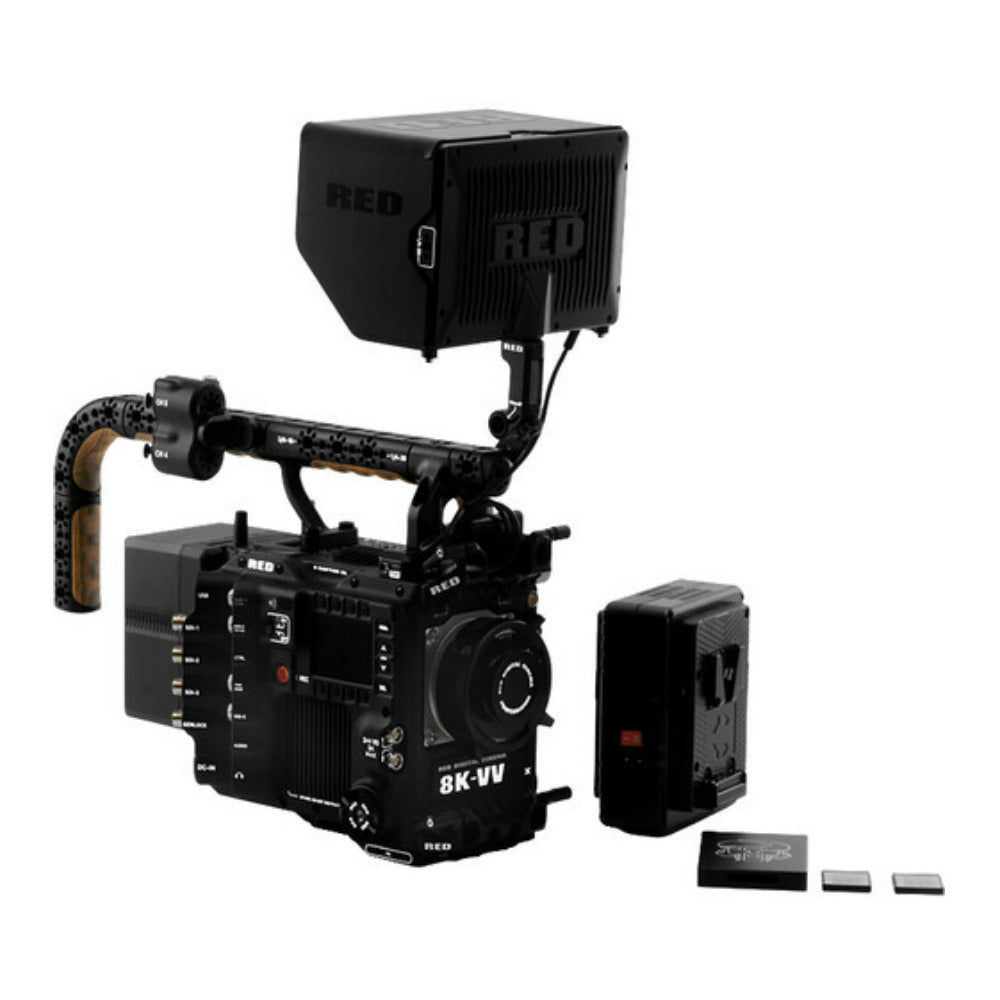

RED Digital Cinema V-RAPTOR XL X 8K VV Production Pack without Batteries V-Lock

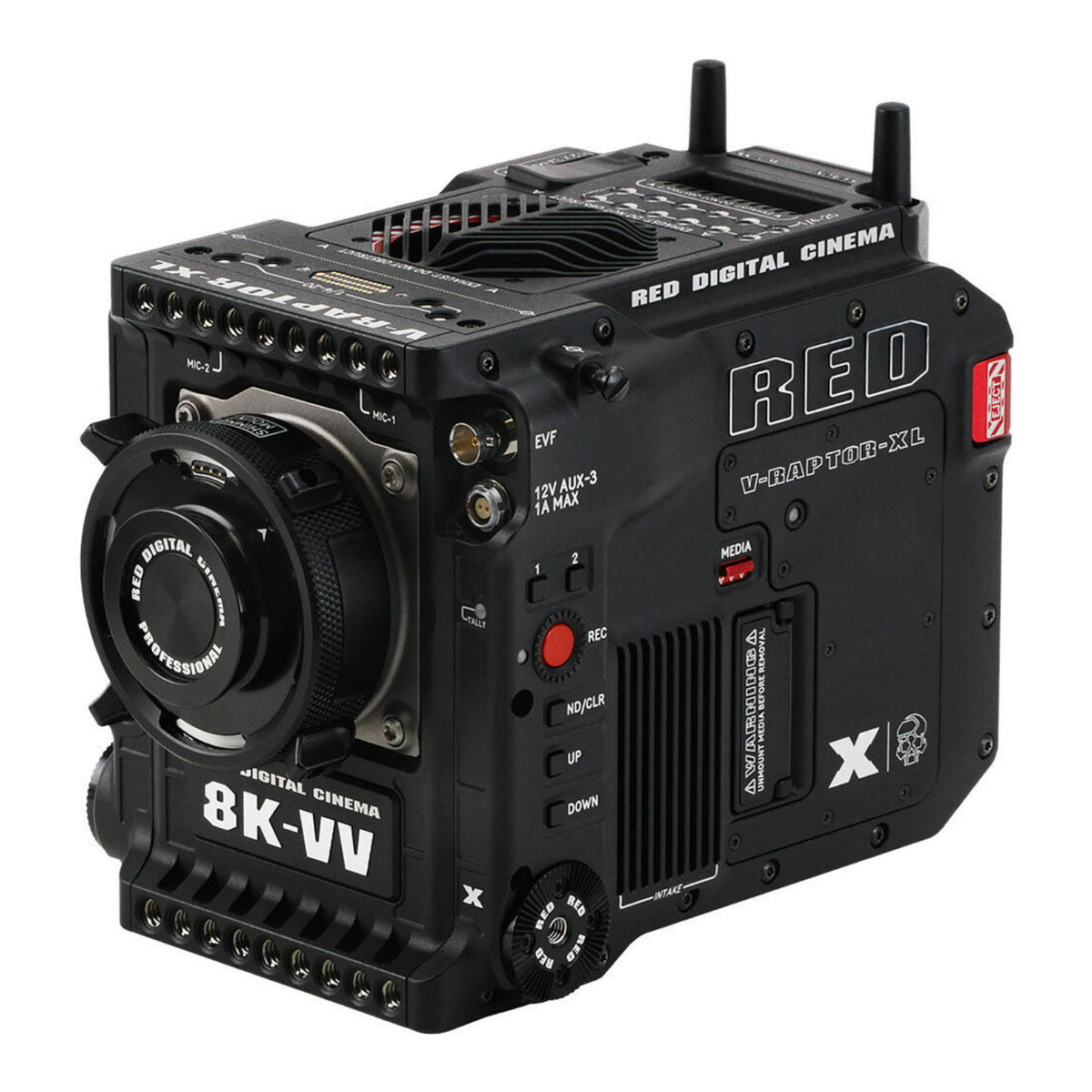

The RED Digital Cinema V-RAPTOR XL X 8K VV combines large format 8K acquisition, a global shutter sensor, high frame rate recording, and production ready connectivity in RED's integrated XL camera platform. Its 35.4 MP CMOS sensor captures 8192 x 4320 pixels across a 40.96 mm x 21.60 mm imaging area and delivers 17 plus stops of dynamic range. The global shutter architecture is particularly valuable for fast subjects, moving cameras, vehicle work, and other shots where maintaining motion geometry is important, while the 8K VV image provides resolution for detailed masters, reframing, stabilization, visual effects, and multiple finishing formats.

8K REDCODE RAW and High Frame Rate Acquisition

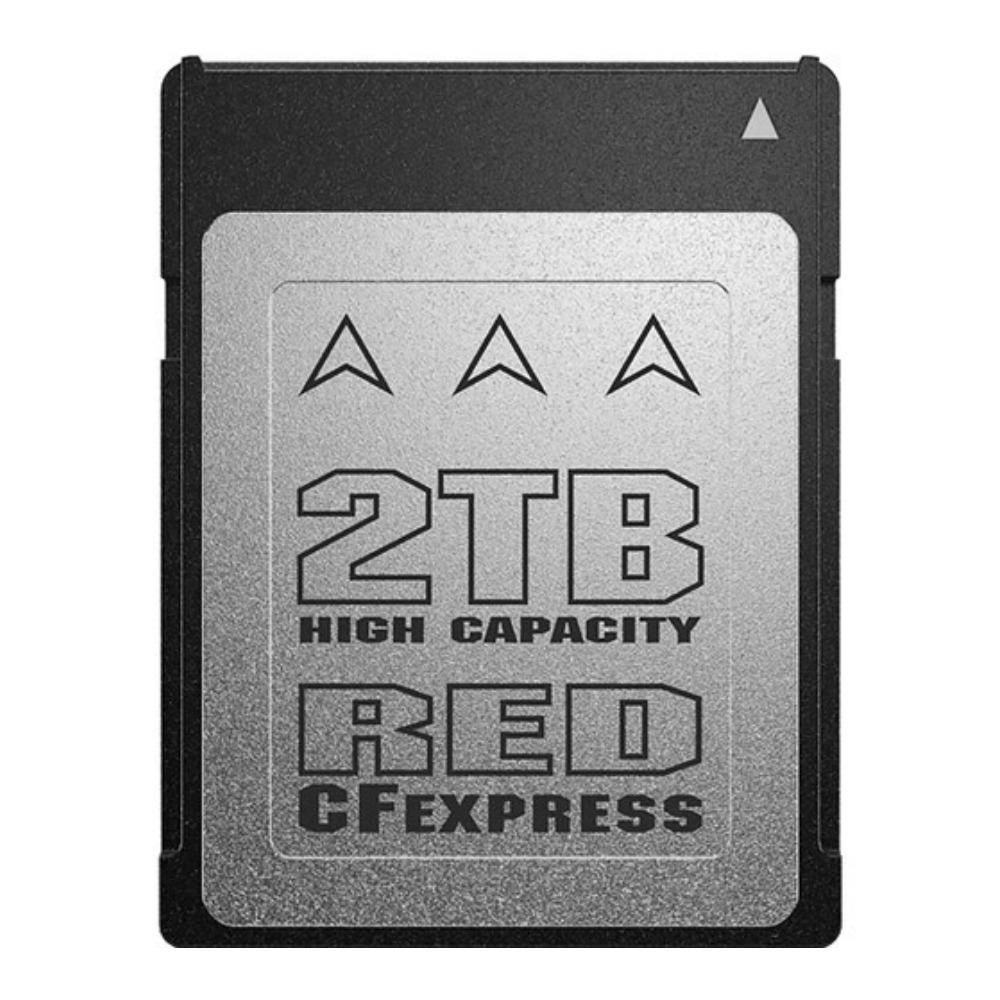

REDCODE RAW recording supports up to 120 fps at 8K 17:9 and 150 fps at 8K 2.4:1, giving cinematographers full resolution acquisition alongside high speed capture. Reducing resolution extends the available frame rates to 240 fps at 4K 17:9, 320 fps at 3K 17:9, and 600 fps at 2K 2.4:1. Multiple REDCODE quality settings allow recording requirements to be balanced against frame rate, resolution, media capacity, and post production needs, with qualified CFexpress Type B media supporting data rates up to 800 MB/s. Dedicated Apple ProRes recording is also available in ProRes 4444 XQ, 4444, 422 HQ, 422, and 422 LT at resolutions up to 4096 x 2160.

Large Format Lensing, Electronic ND, and RED Global Vision

The interchangeable lens mount system includes the shimmable V-RAPTOR XL PL Mount and supports the optional locking Canon EF Mount. Integrated electronic ND provides 2 to 7 stops of density adjustment in selectable 1/4, 1/3, or full stop increments, allowing exposure and depth of field to be controlled without adding an external matte box filter. REDCODE RAW supports multiple VV aspect ratios and dedicated anamorphic acquisition formats. RED IPP2 color management provides REDWideGamutRGB and Log3G10 processing with 33 x 33 x 33 3D LUT support and CDL workflows. RED Global Vision adds Extended Highlights for scenes that exceed the camera's base highlight range and Phantom Track recording for compatible virtual production and frame remapping workflows.

Production Ready Monitoring, Sync, and Connectivity

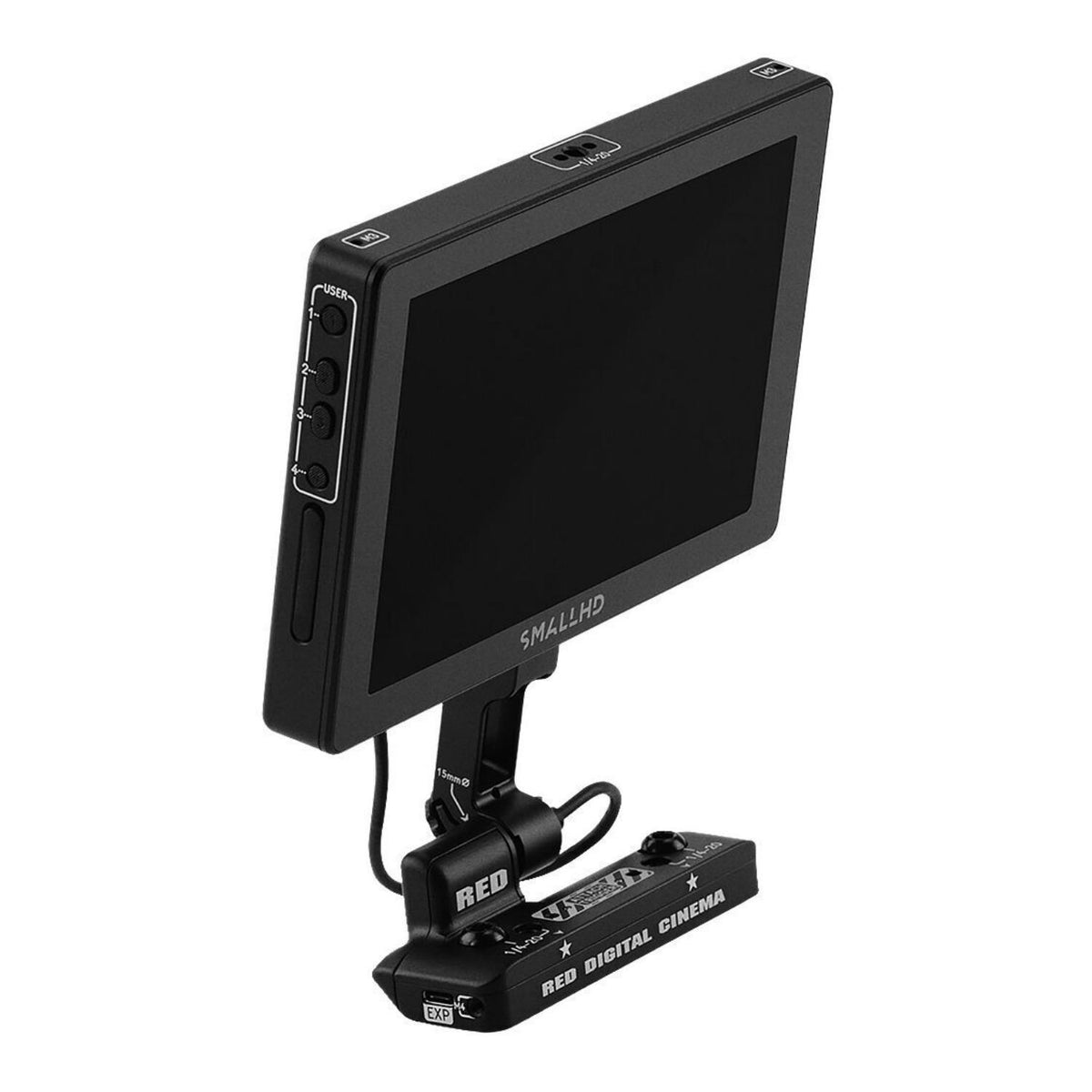

Three 12G SDI connections provide 10 bit 4:2:2 monitoring at resolutions up to 4096 x 2160 at 60p, while a dedicated 3G SDI EVF connection supports an additional operator monitoring path. Camera synchronization options include Genlock, LTC timecode, PTP, and wireless Ambient Communication Network support. Dual band Wi-Fi, USB C, and 9 pin Gigabit Ethernet provide options for camera control, live preview, remote media offload, and connected production workflows. Compatibility with the RED Connect Module expands the platform to live 8K R3D video over IP or live 4K through SMPTE ST 2110, while supported Camera to Cloud workflows include Frame.io and Amazon S3 integration.

Integrated XL Body for V Lock Production Builds

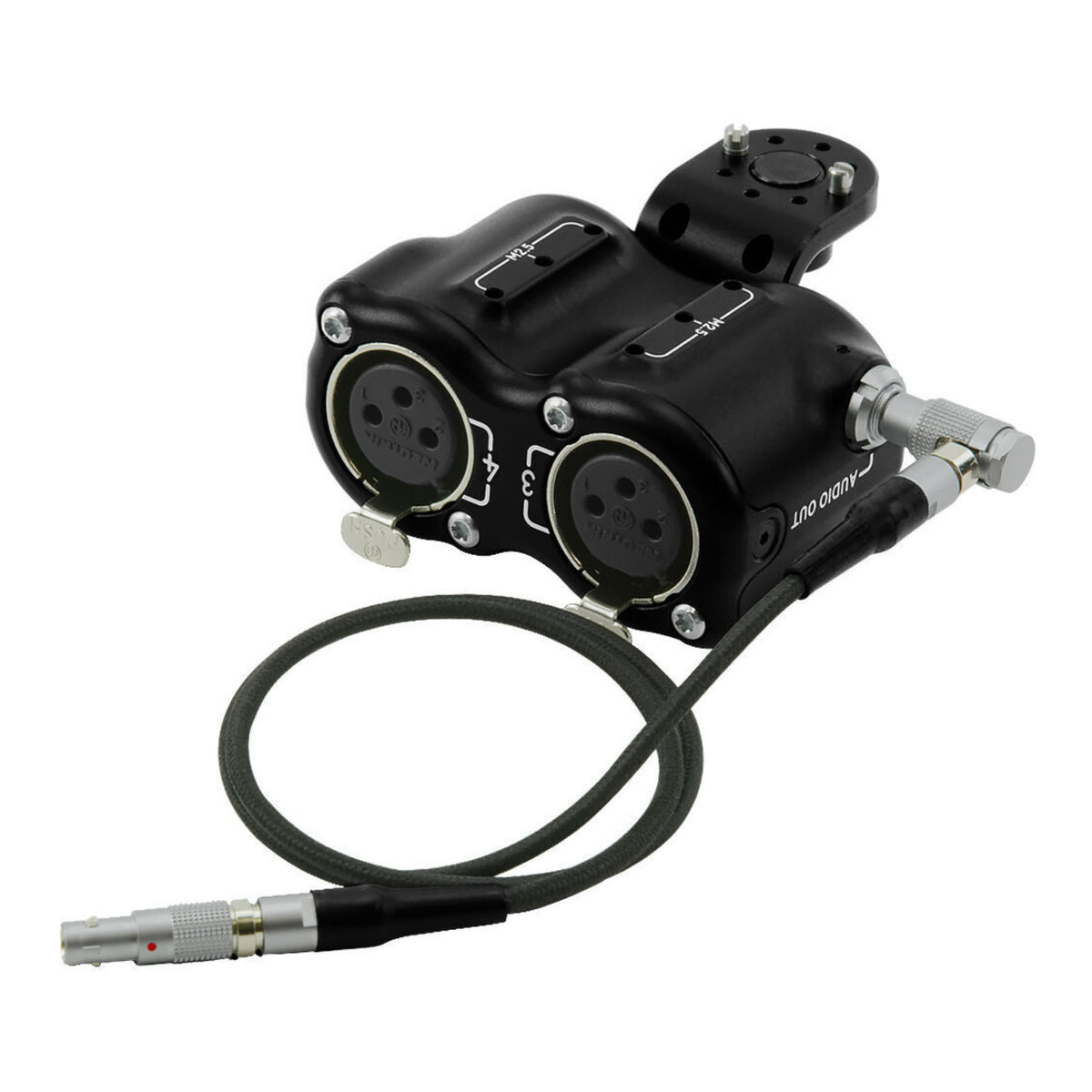

The aluminum alloy XL chassis integrates the connections and accessory power normally required for larger crew operated builds. Regulated 12 V and 24 V outputs can supply compatible camera accessories from the body, while integrated dual channel digital microphones and dual channel mic, line, and 48 V audio input support 24 bit 48 kHz recording. This V Lock configuration uses an integrated dual voltage 14 V and 26 V battery interface and accepts 19.5 to 34 V DC through the 4 pin DC input. With the PL mount installed, the V Lock body weighs approximately 7.99 lb and measures 7.91 inches long by 6.29 inches wide, with a 6.53 inch body height or 7.22 inches including the antenna. This Production Pack configuration is supplied without batteries, allowing professional crews and rental environments to integrate the camera into an established V Lock power ecosystem.

Imaging:

Frame Rates:

Exposure Control:

Lens Mount:

Media and Connectivity:

Power:
