- KOMODO-X RF Mount Camera System (Power cord not included - must purchase separately)
- DSMC3 RED Touch 7” LCD
- 2x RED PRO CFexpress v4 Type B 1TB
- RED PRO CFexpress v4 Type B Card Reader
- RED Pro V-Lock I/O Module
- RED Compact Top Handle
- DSMC3 RED 5-Pin to Dual XLR Adapter
- 1 Year Standard Warranty (camera only)
Trusted & Verified
RED Digital Cinema KOMODO-XTM Production Pack Vlock
- 19.9 MP Super 35 mm global shutter CMOS sensor with 6144 x 3240 effective pixels
- Records up to 80 fps at 6K and 120 fps at 4K in supported REDCODE RAW modes
- Integrated locking Canon RF mount supports electronic communication
- CFexpress Type B media supports compact professional recording workflows
- Wi-Fi and Ethernet over USB Type C support control, preview, and media offloading
- Integrated Micro V Lock interface supports compatible professional batteries
- Aluminum alloy camera body measures 5.1 inches x 4 inches x 3.8 inches

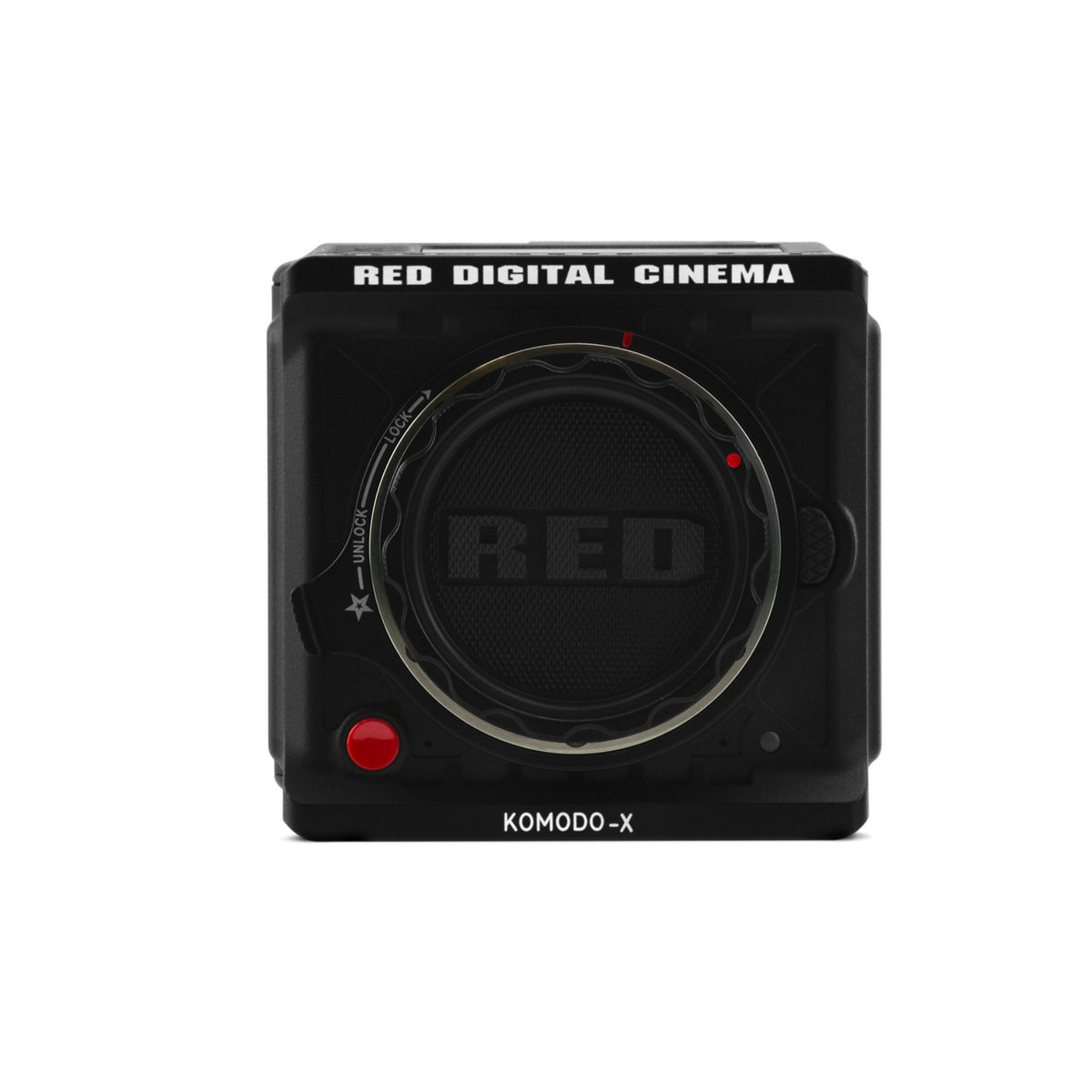

The RED Digital Cinema KOMODO-X Production Pack V-Lock combines a 19.9 MP Super 35 global shutter cinema camera with monitoring, media, audio, handling, and full size V-Lock power support in one production ready configuration. Its 6144 x 3240 sensor delivers 16.5 plus stops of dynamic range, while global shutter capture exposes the frame simultaneously to help maintain image geometry during fast motion, camera movement, visual effects work, and synchronized multi camera production.
6K REDCODE RAW and High Frame Rate Capture
KOMODO-X records REDCODE RAW at up to 80 fps in 6K 17:9, 96 fps in 5K 17:9, 120 fps in 4K 17:9, and 240 fps in 2K 17:9. Qualified CFexpress Type B media supports data rates up to 560 MB/s, giving the camera the throughput required for its higher frame rate modes. Dedicated Apple ProRes recording is also available in 4K, including ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, 422, and 422 LT up to 120 fps. IPP2 color management supports 3D LUTs and CDL adjustments for controlled on set and post production color workflows.
Locking RF Mount and Professional Camera I/O
The integrated locking Canon RF mount combines electronic lens communication with a reinforced mechanical connection for configured cinema rigs. Compatible RED RF to PL adapters support /i PL lenses, while compatible Canon EF adapters retain electronic communication. The body includes 12G SDI monitoring, USB Type C, full size DC input, a 9 pin EXT connection for tri level genlock, LTC timecode, and RS 232 control, plus a locking 5 pin audio input with phantom power support. Built in Wi-Fi and wired IP connectivity support RED Control, media offload, PTP synchronization, cloud workflows, and licensed RED Connect live 6K R3D broadcasting over IP.
V-Lock Production Power and Monitoring

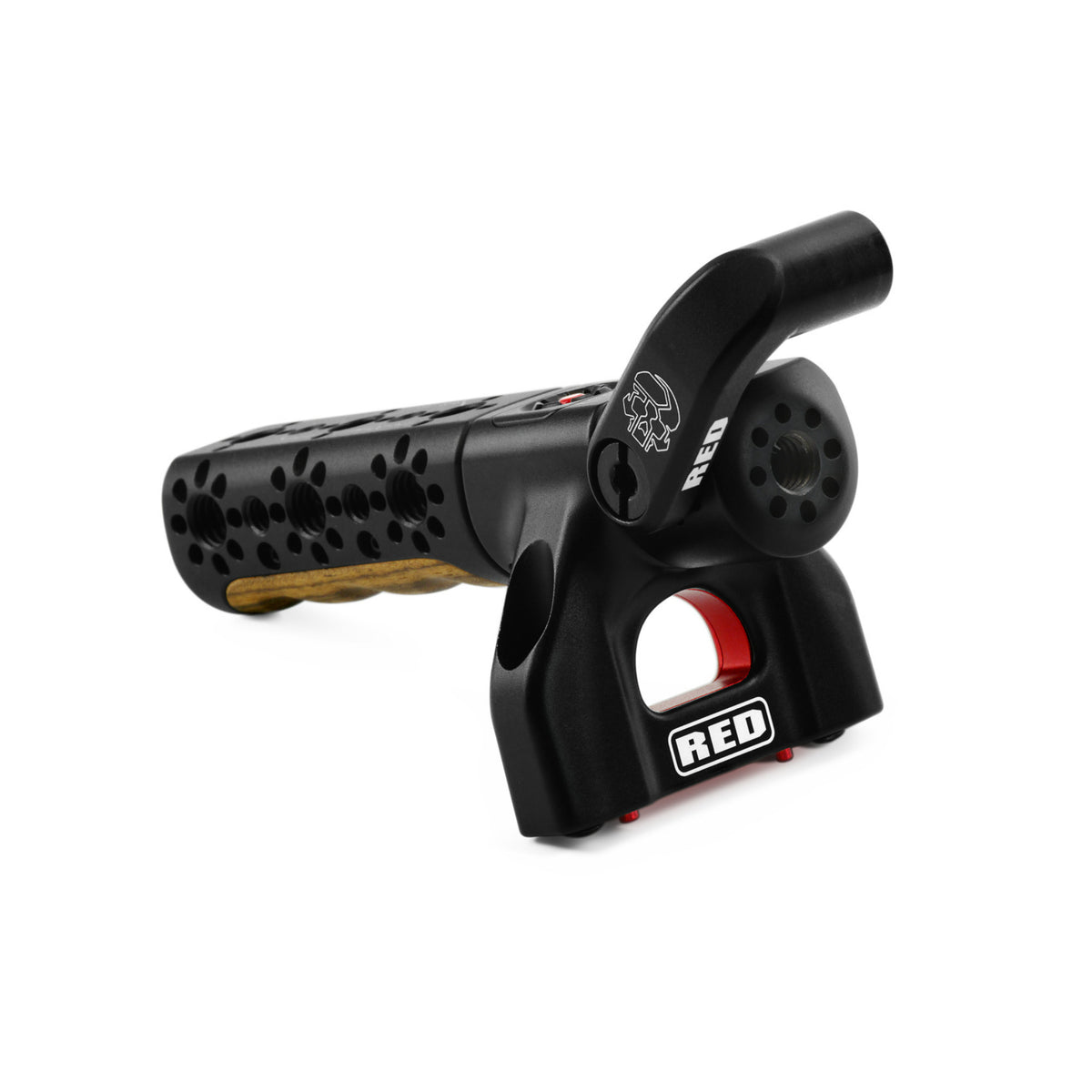

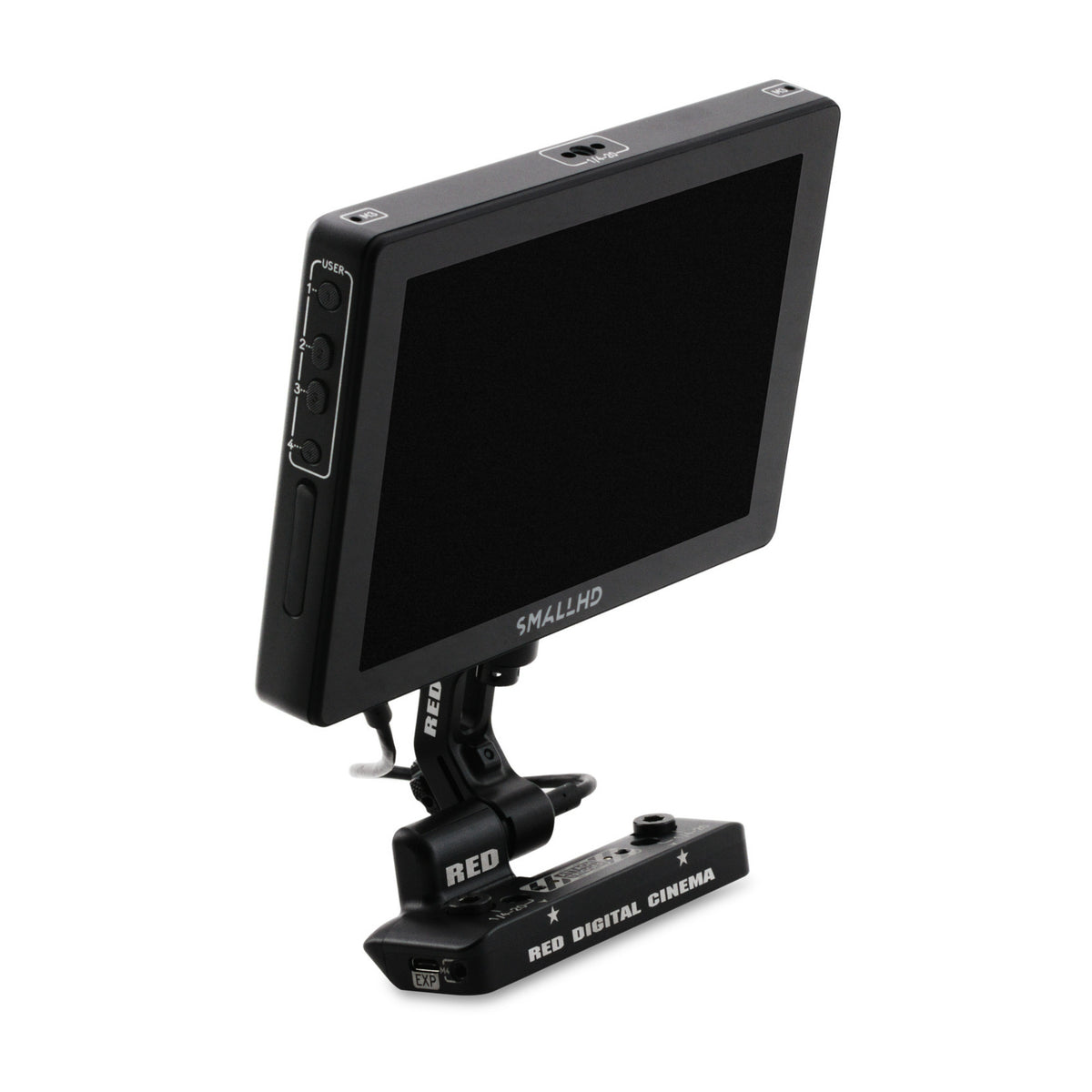

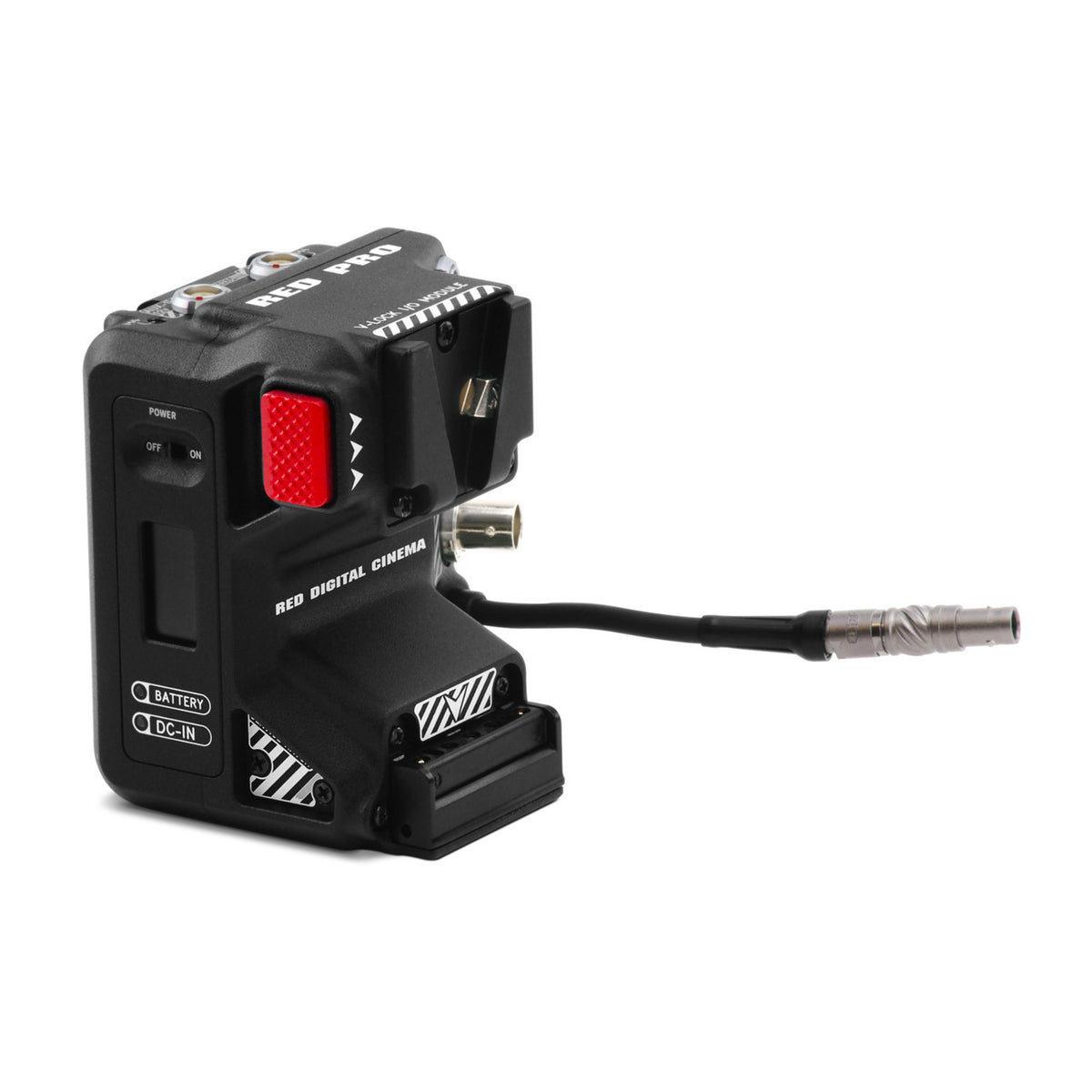

The camera body includes an integrated Micro V-Lock interface, while the included RED Pro V-Lock I/O Module expands the system for full size V-Lock battery use and production accessory integration. The DSMC3 RED Touch 7 inch LCD provides a larger camera top monitoring and control surface, complementing the integrated 2.9 inch touchscreen when the camera is built for crew operated production. The RED Compact Top Handle adds a dedicated handling point for rigged configurations.
Complete Production Pack Media and Audio Setup

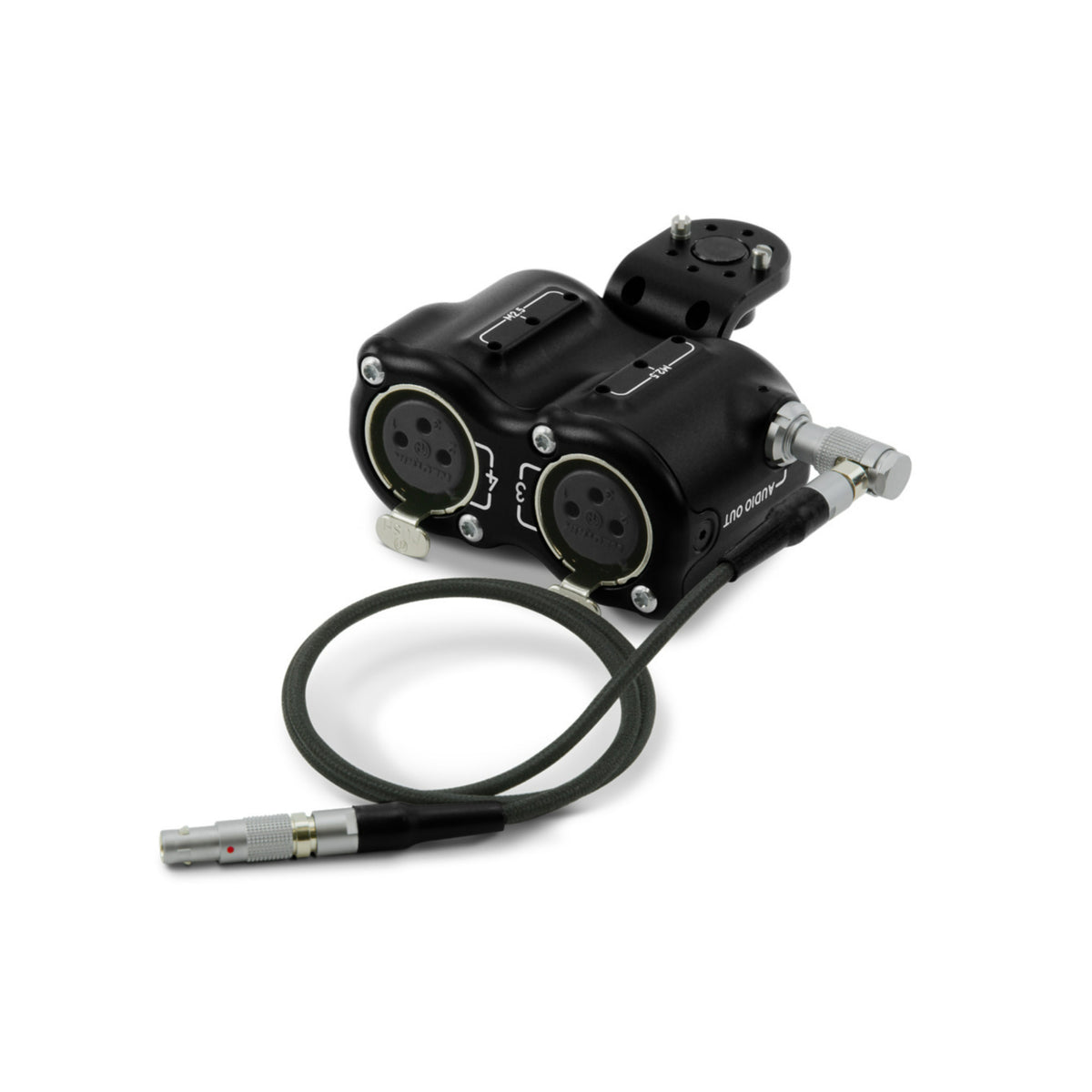

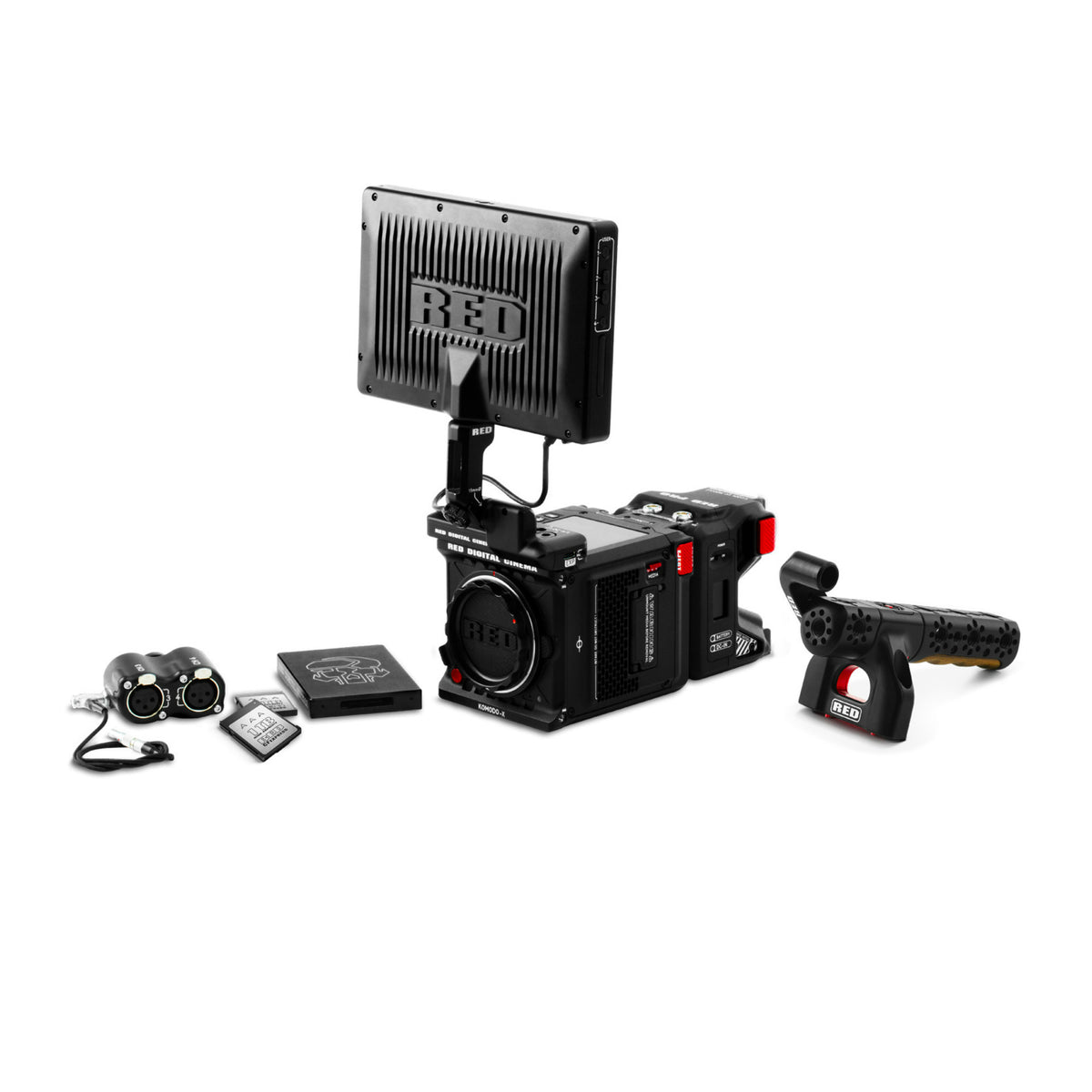

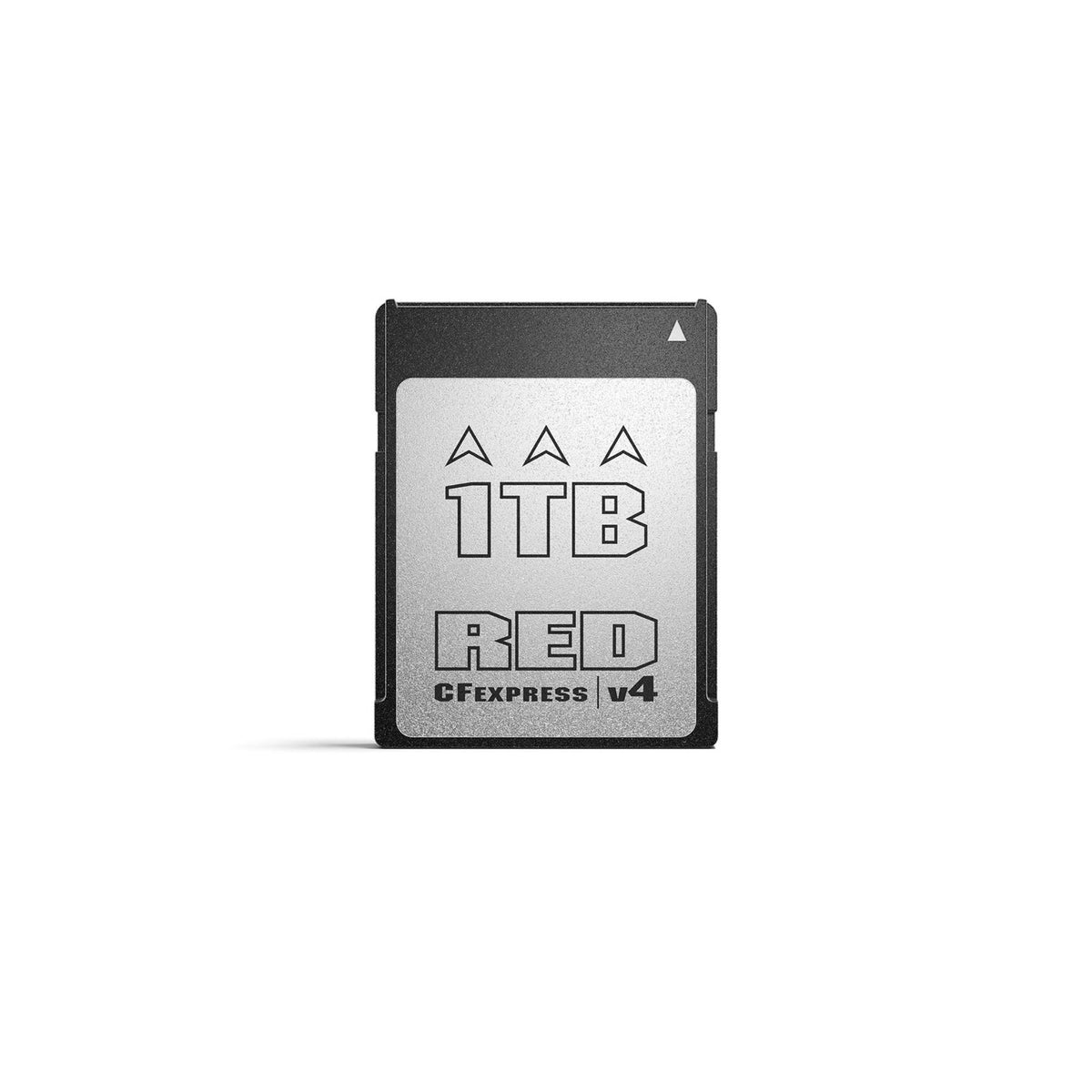

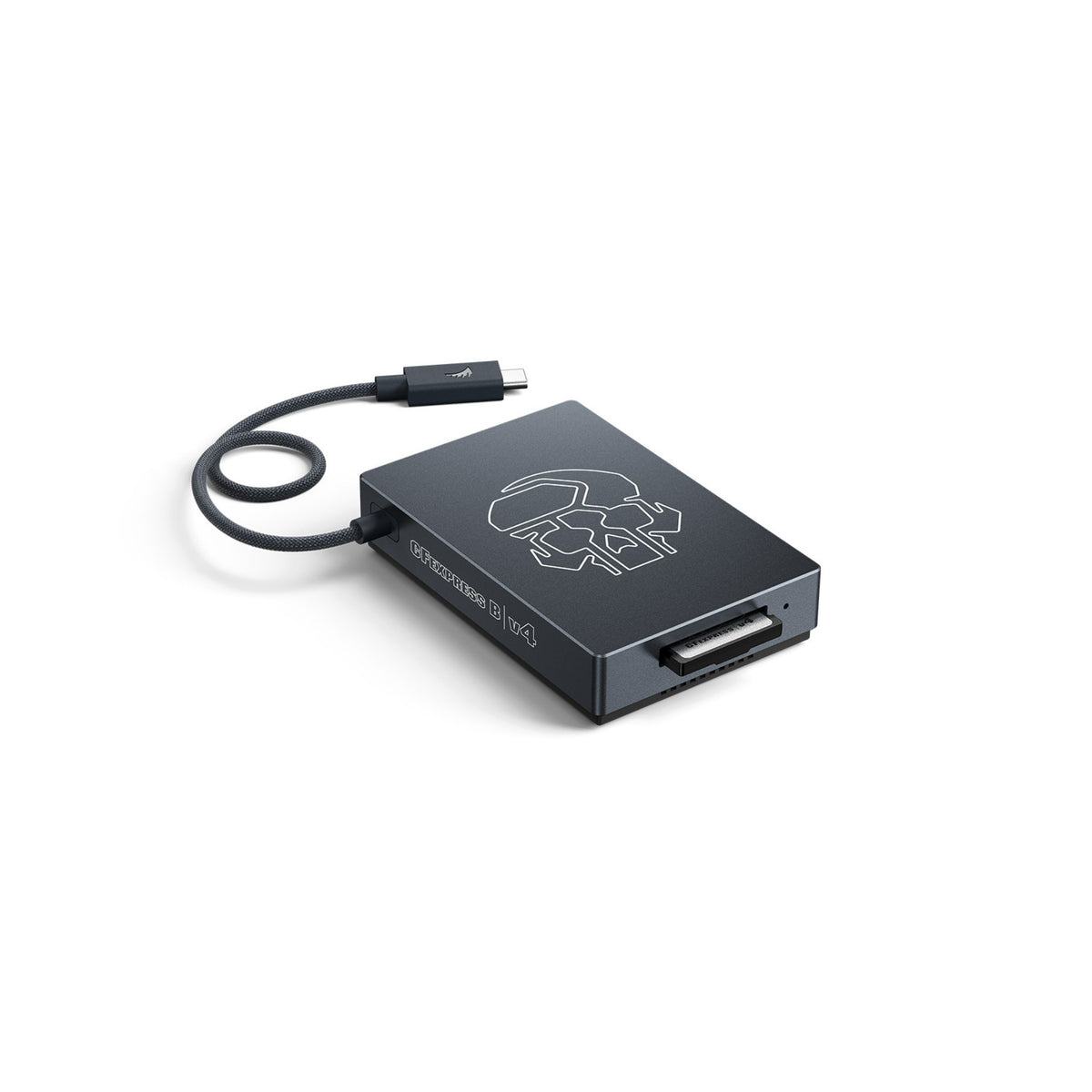

The pack includes the KOMODO-X RF Mount Camera System, DSMC3 RED Touch 7 inch LCD, 2 x RED PRO CFexpress v4 Type B 1TB cards, RED PRO CFexpress v4 Type B Card Reader, RED Pro V-Lock I/O Module, RED Compact Top Handle, and DSMC3 RED 5-Pin to Dual XLR Adapter. Together, these components create a more complete path from capture and monitoring through media offload, professional audio connection, and full size V-Lock powered production builds.
Imaging:
| Sensor Type | KOMODO-X 19.9 MP Super 35 mm Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 mm x 14.26 mm, diagonal 30.56 mm |
| Dynamic Range | 16.5+ stops |
Lens Mount:
| Mount Type | Integrated locking Canon RF mount with electronic communication |
| Adapter Support | Supports compatible RED PL adapters and other Canon RF mount based adapters |
| Autofocus | Phase Detect and Contrast |
Recording:
| Maximum Data Rate | Up to 560 MB/s using RED branded or qualified CFexpress media cards |
| Maximum 6K Frame Rate | 80 fps at 6144 x 3240 |
| Maximum 5K Frame Rate | 96 fps at 5120 x 2700 |
| Maximum 4K Frame Rate | 120 fps at 4096 x 2160 |
| Maximum 2K Frame Rate | 240 fps at 2048 x 1080 |
| Media Type | CFexpress Type B |
| Color Management | Image Processing Pipeline 2 with 33 x 33 x 33 3D LUT support and CDL adjustment |
Construction:
| Material | Aluminum Alloy |
| Dimensions | 5.1 inch x 4 inch x 3.8 inch, largest fixed dimensions |
| Metric Dimensions | 129.37 mm x 101.26 mm x 95.26 mm |
| Weight | 2.62 pound without body cap and CFexpress card |
Power:
| Battery Interface | Integrated V Lock battery interface optimized for Micro V Lock batteries |
| DC Power | 11v to 17v through 6 pin DC input |
Audio:
| Internal Audio | Integrated dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Integrated dual channel mic, line, and 48V input through 5 pin audio port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
Monitoring and Connectivity:
| Integrated Display | 2.9 inch 1440 x 1440 touchscreen LCD with preview and camera control |
| SDI Monitoring | Integrated 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| Genlock | Tri Level Genlock input through 9 pin EXT |
| Timecode | LTC Timecode input through 9 pin EXT |
| Control | RS232 CTRL through 9 pin EXT |
| Wireless | Wi-Fi 2.4 GHz and 5 GHz for control, preview, and media offloading |
| Network | Ethernet over USB Type C for control, preview, and media offloading |
| Live Stream | MJPEG 1080p stream through Wi-Fi and USB Type C |
| Synchronization | PTP frame level synchronization |
Environment:
| Operating Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | minus 20 degrees C to 50 degrees C, minus 4 degrees F to 122 degrees F |
| Relative Humidity | 0 percent to 85 percent non condensing |
