- 1 x RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera, Canon RF, Black
- 1 x AC Adapter
- 2 x RED DIGITAL CINEMA 1 TB PRO CFexpress v4 Type B Memory Card
- 1 x RED DIGITAL CINEMA PRO CFexpress v4 Type B Card Reader
- 1 x RED DIGITAL CINEMA DSMC3 RED Touch 7.0 Inch LCD with Rigid Hinge
- 1 x Rigid Hinge Arm
- 1 x DSMC3 RMI Cable
- 1 x RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR and V-RAPTOR XL
- 1 x Front Piece, 1 Inch
- 1 x Rear Piece, 3 Inch

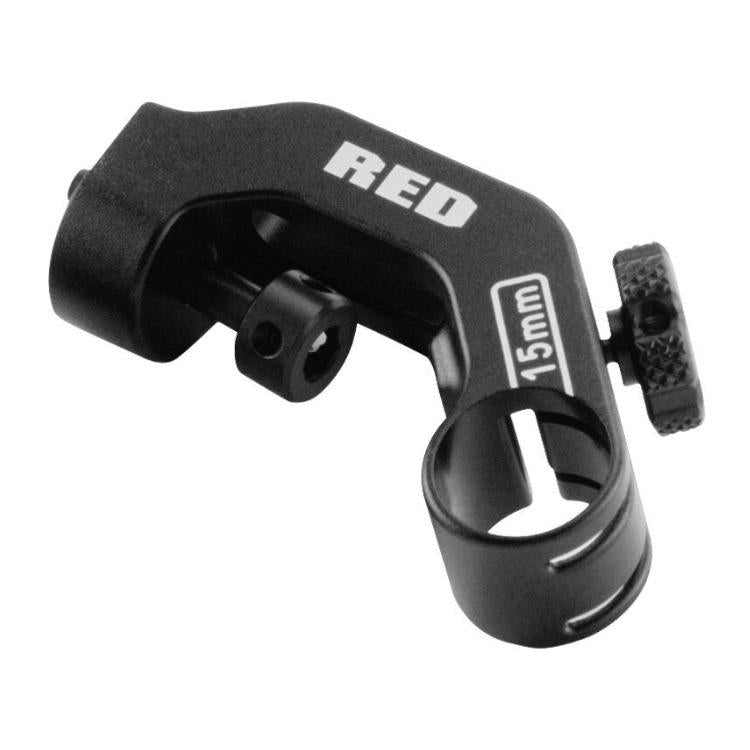

- 1 x 15 mm Rod Monitor Mount
- 2 x 1/4 Inch 20 Captive Screw
- 1 x RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter

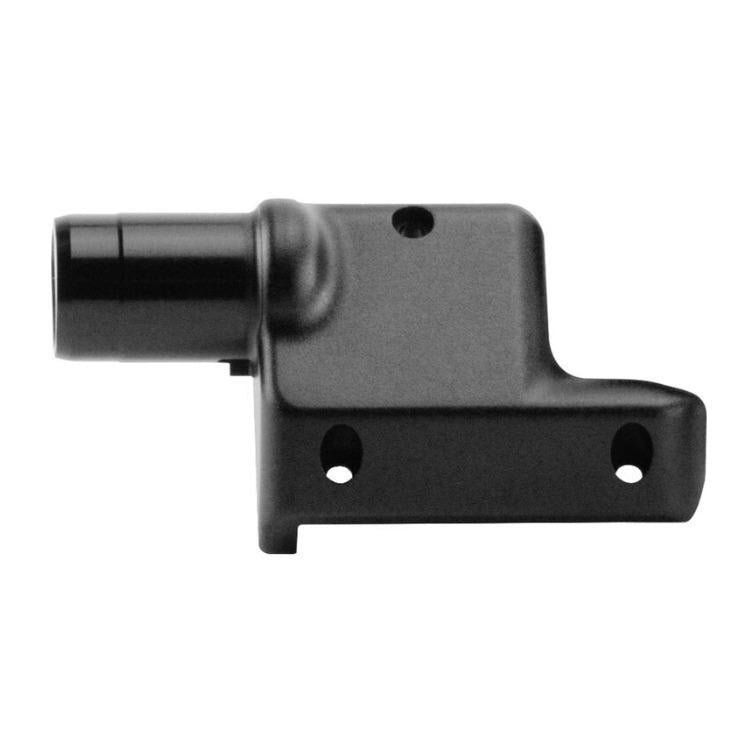

- 1 x Right Angle Mounting Bracket
- 2 x 1/4 Inch 20 Mounting Screw
- 1 x RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X, Gold Mount
Trusted & Verified

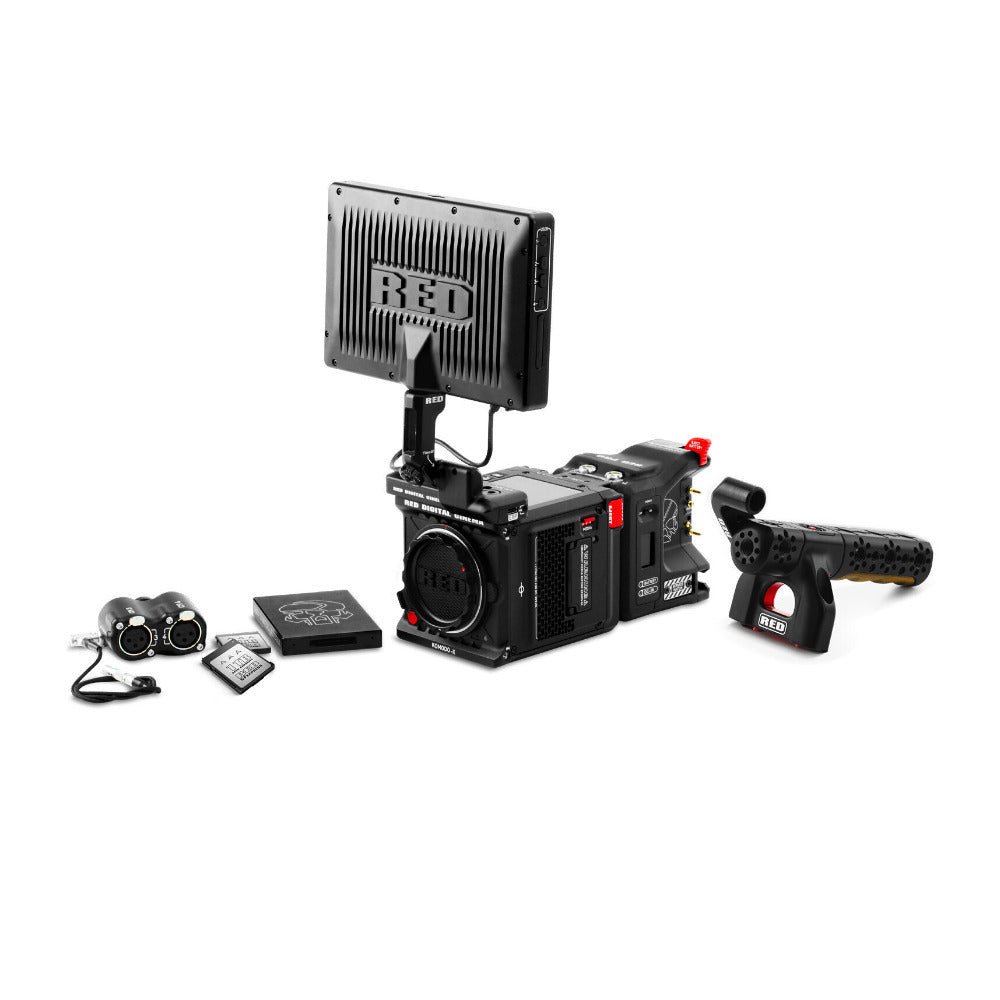

RED DIGITAL CINEMA KOMODO-X Production Pack with Rigid-Hinge Touch 7.0 (Gold Mount)
- 19.9 MP Super 35 mm global shutter CMOS sensor captures 6144 x 3240 images
- Records up to 80 fps at 6K 17:9 and 120 fps at 4K 17:9
- 16.5+ stops dynamic range with RED IPP2 color management
- Reinforced locking Canon RF mount supports electronic lens communication
- 12G SDI output supports up to 4096 x 2160 4:2:2 at 60p
- Built-in Wi-Fi and USB Type-C Ethernet support control, preview, and media offloading
- 2.9-inch 1440 x 1440 touchscreen provides compact preview and camera control
- CFexpress Type B media supports up to 560 MB/s with qualified cards
Build a compact cinema production setup with global shutter capture, high frame rates, direct monitoring, fast media handling, expanded audio, and Gold mount power support in one coordinated bundle.
RED KOMODO-X 6K Digital Cinema Camera
The 19.9 MP Super 35 mm global shutter CMOS sensor captures 6144 x 3240 images and supports REDCODE RAW up to 80 fps at 6K 17:9, 120 fps at 4K 17:9, and 240 fps at 2K 17:9. The camera offers 16.5+ stops of dynamic range, a reinforced locking Canon RF mount, a 2.9 inch 1440 x 1440 touchscreen, 12G SDI output, CFexpress Type B recording, built in Wi-Fi, and USB Type C Ethernet for connected production workflows.
2 x RED 1 TB PRO CFexpress v4 Cards, PRO Card Reader, and DSMC3 RED Touch 7.0 inch LCD
The RED certified v4 cards provide 2 TB total capacity and support KOMODO-X recording rates up to 560 MB/s. The bus-powered USB4 reader supports transfers up to 40 Gb/s. The 7-inch touchscreen provides 1920 x 1200 resolution, 322 ppi, 1300 cd/m2 brightness, a 1250:1 contrast ratio, 100 percent DCI P3 coverage, and SmallHD PageOS monitoring and camera control tools.
RED Compact Top Handle, DSMC3 Dual XLR Adapter, and RED PRO I/O Gold Mount Module
The machined aluminum alloy top handle adds Bocote wood inlays, a run and stop trigger, a 15 mm monitor mount, and accessory mounting points. The dual XLR adapter provides mic and line inputs with 48 V phantom power. The Gold mount I/O module adds timecode, genlock, control, DC power, regulated 24 V run and stop, dual 12 V auxiliary outputs, and an operator-side status screen. Together, these components expand the KOMODO-X for handheld, studio, multicamera, live IP, and virtual production workflows.
RED KOMODO-X 6K Digital Cinema Camera
Imaging:
| Sensor Type | 19.9 MP Super 35 mm Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 mm x 14.26 mm, 30.56 mm diagonal |
| Dynamic Range | 16.5+ stops |
| Color Management | Image Processing Pipeline 2, IPP2 |
| LUT Support | 33 x 33 x 33 3D LUT import and CDL adjustment |
| Autofocus | Phase detect and contrast |
Lens Mount:
| Mount Type | Integrated locking Canon RF mount with electronic communication |
| Lens Adaptation | Supports compatible RED PL adapters and Canon EF adapters based on the Canon RF mount |
Recording:
| Media Type | CFexpress Type B |
| Maximum Data Rate | Up to 560 MB/s with RED branded or other qualified CFexpress media |
| Maximum Frame Rate at 6K 17 | 9: 80 fps at 6144 x 3240 |
| Maximum Frame Rate at 5K 17 | 9: 96 fps at 5120 x 2700 |
| Maximum Frame Rate at 4K 17 | 9: 120 fps at 4096 x 2160 |
| Maximum Frame Rate at 2K 17 | 9: 240 fps at 2048 x 1080 |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| REDCODE RAW Settings | HQ, MQ, LQ, and ELQ at supported resolutions and frame rates |
| REDCODE RAW 6K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| REDCODE RAW 5K Formats | 17:9 and 16:9 |
| REDCODE RAW 4K Formats | 17:9 and 16:9 |
| REDCODE RAW 2K Format | 17:9 |
| ProRes Recording | 4K 4096 x 2160 |
| ProRes 4444 XQ | Up to 60 fps |
| ProRes 4444 | Up to 80 fps |
| ProRes 422 HQ, 422, and 422 LT | Up to 120 fps |
Monitoring and Output:
| Integrated Display | 2.9 inch 1440 x 1440 touchscreen with preview and camera control |
| 12G SDI | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI | Up to 4096 x 2160 4:2:2 at 30p |
| 3G SDI | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI | Up to 2048 x 1080 4:2:2 at 30p and 24p |
| SDI Embedded Data | SMPTE timecode, HANC metadata, and 24 bit 48 kHz audio |
| Top Accessory Port | Proprietary monitoring and control interface |
Audio:
| Integrated Audio | Dual channel digital mono microphones, uncompressed 24 bit 48 kHz |
| External Audio | Dual channel mic and line input with 48 V phantom power through the 5 pin audio port |
| Headphone Output | 3.5 mm stereo |
Synchronization and IP:
| Genlock | Tri level genlock input through the 9 pin EXT port |
| Timecode | LTC timecode input through the 9 pin EXT port |
| Control | RS232 control using RCP2 through the 9 pin EXT port |
| Wireless | Wi-Fi 2.4 GHz and 5 GHz for camera control, video preview, and media offloading |
| Wired IP | Ethernet over USB Type C for camera control, video preview, and media offloading |
| IP Preview | MJPEG 1080p live stream through Wi-Fi and USB Type C |
| Synchronization | PTP frame level synchronization |
| Live IP Output | Up to 6K R3D live broadcasting with a RED Connect license and compatible 5 Gbps Ethernet adapter |
| Control Software | RED Control and RED Control Pro apps for iOS and Android |
Power and Physical:
| Construction | Aluminum alloy |
| Dimensions | 5.1 inch x 4 inch x 3.8 inch, 129.37 mm x 101.26 mm x 95.26 mm |
| Weight | 2.62 pounds without body cap and CFexpress card |
| Battery Interface | Integrated V Lock interface optimized for Micro V Lock batteries |
| DC Power | 11 V to 17 V through a 6 pin DC input |
| Operating Temperature | 32 degrees F to 104 degrees F, 0 degrees C to 40 degrees C |
| Storage Temperature | Minus 4 degrees F to 122 degrees F, minus 20 degrees C to 50 degrees C |
| Relative Humidity | 0 percent to 85 percent, noncondensing |
2 x RED 1 TB PRO CFexpress v4 Type B Memory Cards
Media:
| Capacity | 1 TB each, 2 TB total in this bundle |
| Usable Capacity | 1024.21 GB, 953.87 GiB per card |
| Media Standard | CFexpress v4 Type B |
| Camera Compatibility | RED KOMODO-X, V-RAPTOR, and V-RAPTOR XL |
| KOMODO-X Maximum Data Rate | Up to 560 MB/s |
| Firmware Support | RED camera firmware 2.0.4 beta or later |
Physical and Environmental:
| Dimensions | 1.52 inch x 1.17 inch x 0.15 inch, 38.5 mm x 29.6 mm x 3.8 mm |
| Weight | Approximately 0.25 ounce, 7.1 grams |
| Operating Temperature | 14 degrees F to 158 degrees F, minus 10 degrees C to 70 degrees C |
| Storage Temperature | Minus 4 degrees F to 185 degrees F, minus 20 degrees C to 85 degrees C |
| Operating Humidity | 5 percent to 95 percent |
| Operating Shock Resistance | 50 g |
| Operating Vibration Resistance | 15 g at 10 Hz to 2000 Hz |
RED PRO CFexpress v4 Type B Card Reader
Interface:
| Media Read | CFexpress v4 Type B |
| Host Interface | USB4 up to 40 Gb/s |
| Connector | Integrated USB Type C cable |
| Power | USB bus power |
Physical:
| Dimensions | 3.84 inch x 2.56 inch x 0.85 inch, 97.5 mm x 65 mm x 21.5 mm |
| Weight | Approximately 6.17 ounces, 175 grams |

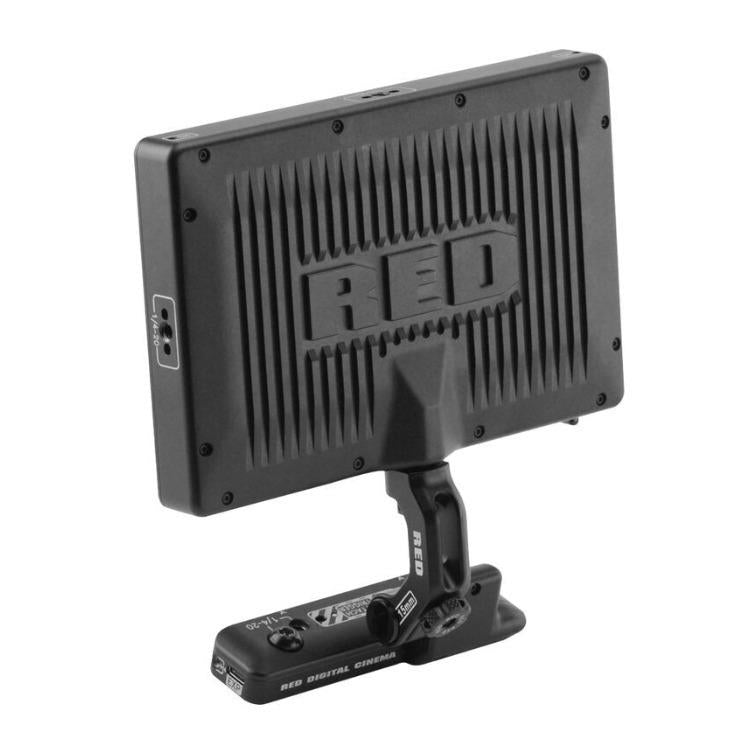

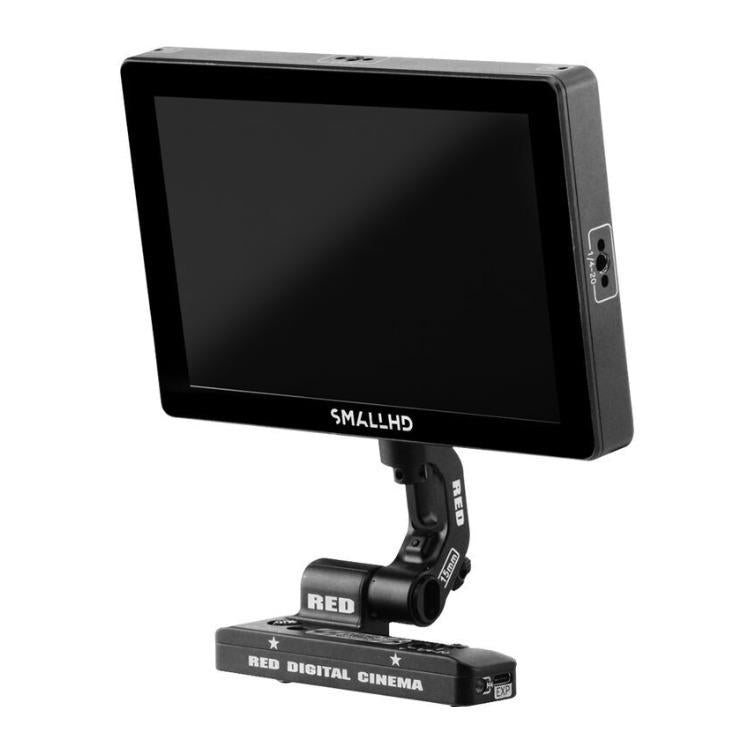

DSMC3 RED Touch 7.0 inch LCD with Rigid Hinge
Display:
| Resolution | 1920 x 1200 |
| Pixel Density | 322 ppi |
| Refresh Rate | 60 Hz |
| Response Time | 25 ms |
| Contrast Ratio | 1250:1 |
| Brightness | 1300 cd/m2 |
| Color Depth | 10 bit |
| Color Gamut | 100 percent DCI P3 |
| Viewing Angle | Plus or minus 160 degrees on all axes |
| Display Orientation | Landscape with 180 degree rotation |
| Touch | Projected capacitive multitouch |
Control and Mounting:
| Camera Control Software | SmallHD PageOS |
| Monitoring Tools | Waveform, vectorscope, histogram, false color, color picker, and pixel zoom |
| Camera Connection | Power and communication through the DSMC3 RMI connection |
| Mounting | 15 mm rail |
| Hood Mounting | 4 x M3 mounting points |
| Buttons | 4 function buttons |
Power and Physical:
| Material | Aluminum alloy |
| Power Consumption | 15.5 watts |
| Dimensions | 4.67 inch x 7.09 inch x 1.13 inch, 118.70 mm x 180.10 mm x 28.80 mm |
| Weight | Approximately 1.25 pounds, 568 grams |
| Operating Temperature | 32 degrees F to 104 degrees F, 0 degrees C to 38 degrees C |
| Storage Temperature | 0 degrees F to 120 degrees F, minus 18 degrees C to 49 degrees C |
| Operating Humidity | 0 percent to 85 percent, noncondensing |
| Storage Humidity | 0 percent to 85 percent, noncondensing |
RED Compact Top Handle
Design:
| Construction | Machined aluminum alloy with Bocote wood inlays |
| Configuration | Modular 3 piece design |
| Front Section | 1 inch |
| Rear Section | 3 inch |
| Monitor Mount | 15 mm rod mount |
| Camera Control | Run and stop trigger |
| Accessory Mounting | Multiple 1/4 inch 20 and 3/8 inch 16 anti twist threads |
| Compatibility | RED KOMODO-X, V-RAPTOR, and V-RAPTOR XL |
DSMC3 RED 5-Pin to Dual XLR 3-Pin Adapter
Audio:
| Camera Connection | 5 pin audio connection |
| XLR Connections | 2 x XLR 3 pin ports |
| Input Levels | Mic and line |
| Phantom Power | 48 V |
| Accessory Mounting | 6 x M2.5 screw holes |
| Compatibility | RED KOMODO-X and compatible V-RAPTOR systems |
RED PRO I/O Module for KOMODO-X, Gold Mount
Power and Battery:
| Battery Plate | Gold mount |
| Camera Mounting | Rear Micro V Lock plate and 9 pin EXT port |
| DC Power Input | 6 pin 1B socket |
| Regulated Power Output | 1 x 3 pin 24 V run and stop port, 3 amps maximum |
| Auxiliary Power Outputs | 2 x 2 pin 12 V ports, 3 amps combined maximum |
| Status Display | Operator side voltage and battery percentage display with compatible batteries |
| Power Switch | Cuts power to the module while a battery remains attached |
Communication:
| Genlock | BNC input |
| Timecode | 5 pin input |
| Control | 4 pin 00B ODU RS232 control port |
| Module Connection | 9 pin 0B ODU connection to the camera extension port |
| Compatibility | RED KOMODO-X |
