- 1 x RED KOMODO-X Z Mount Camera Body
Trusted & Verified

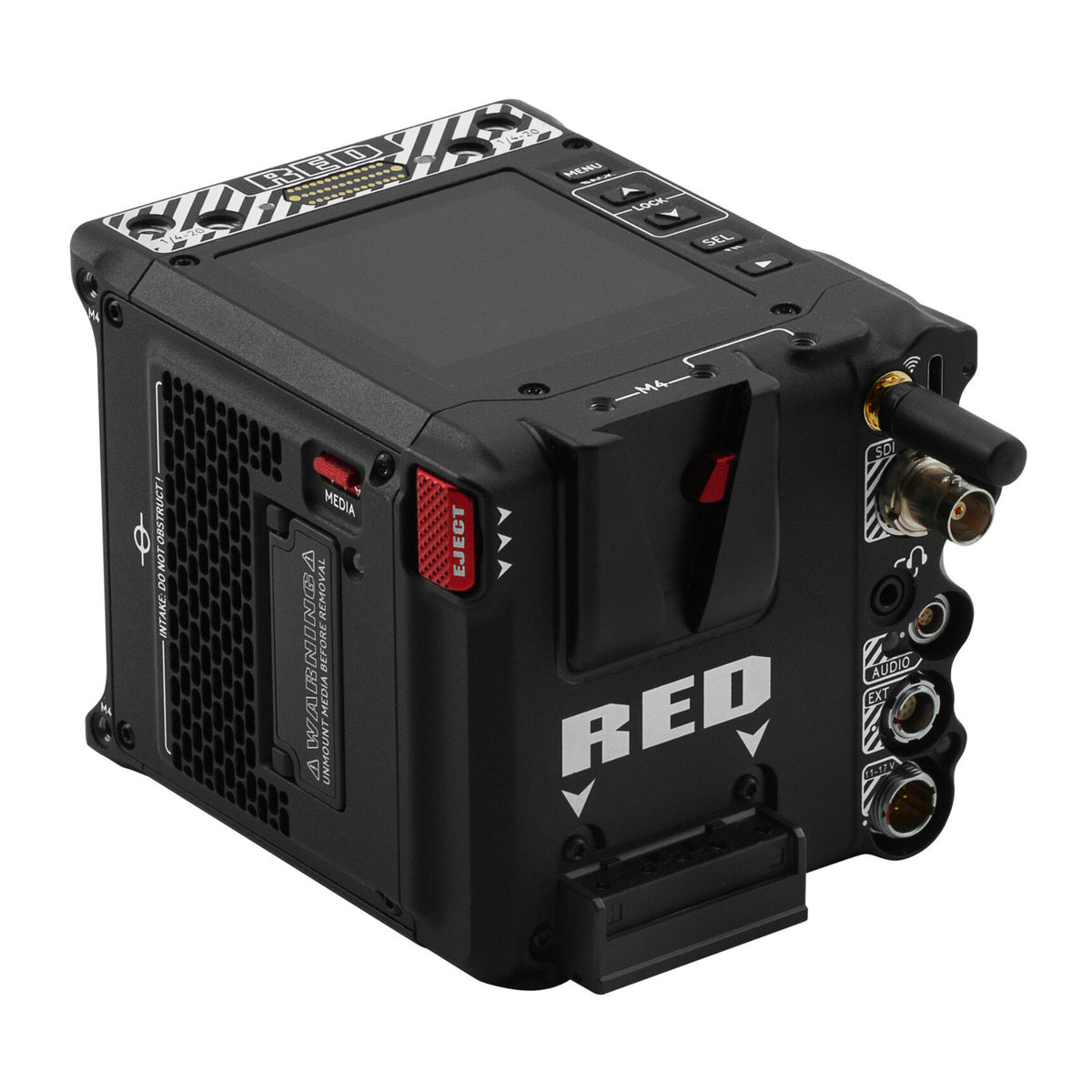

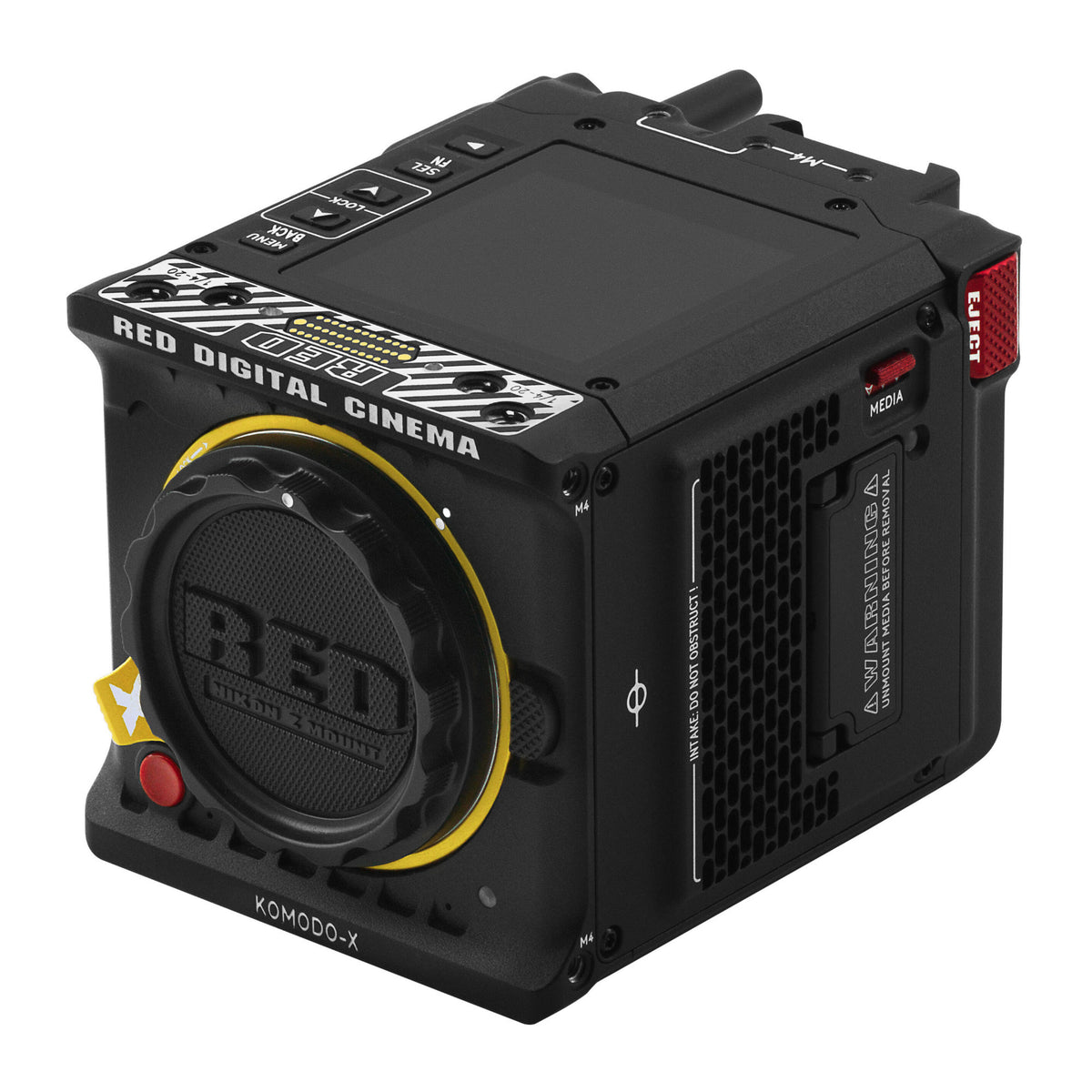

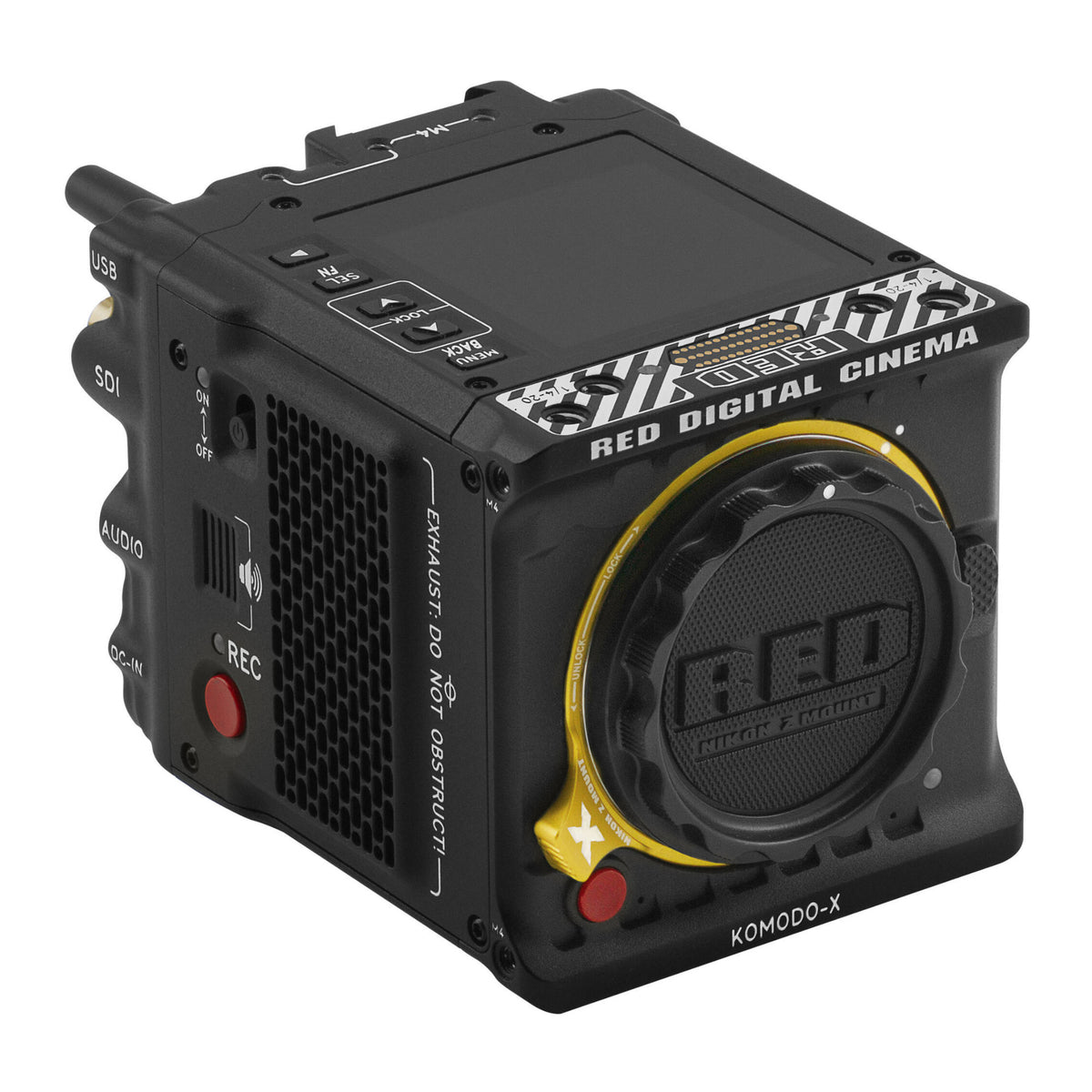

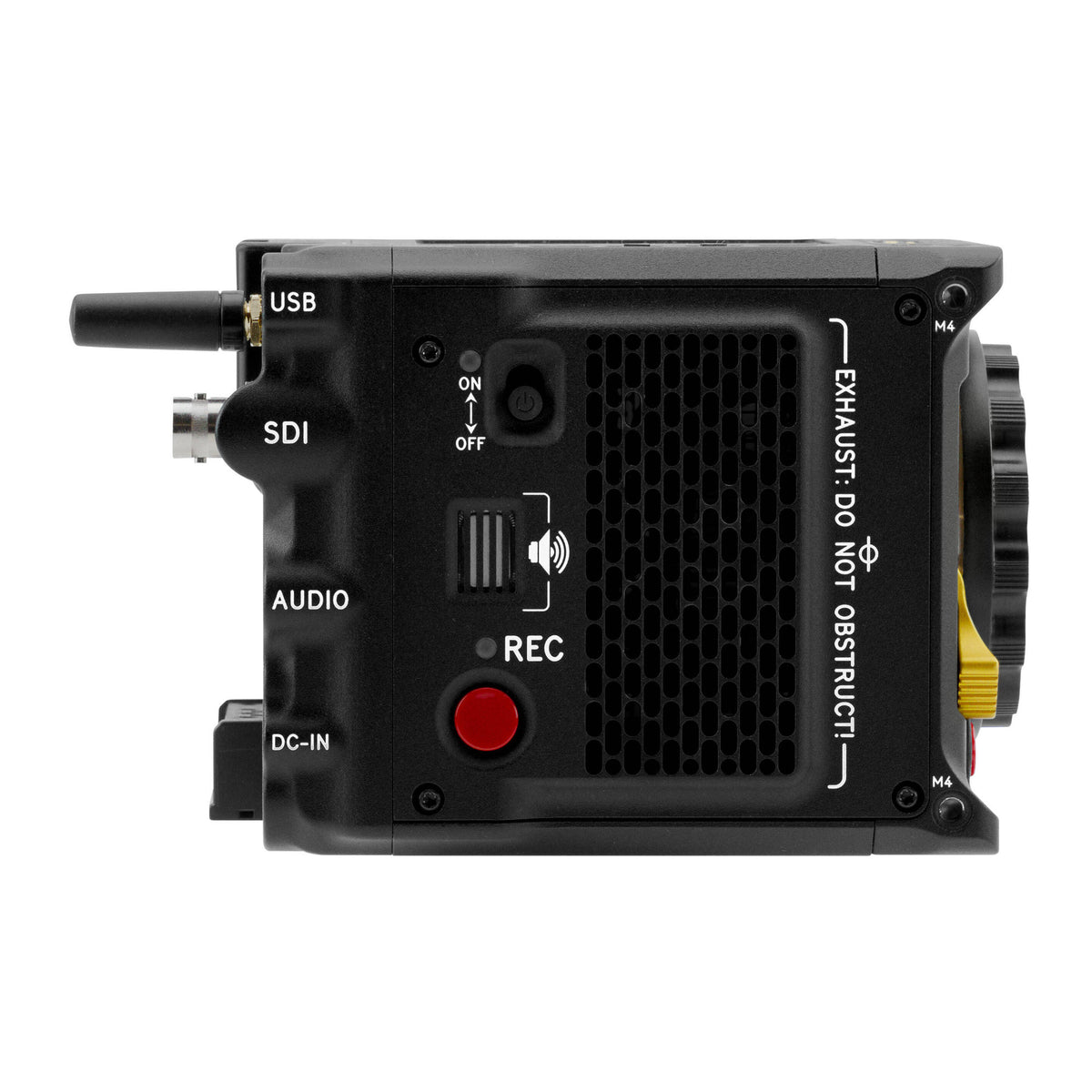

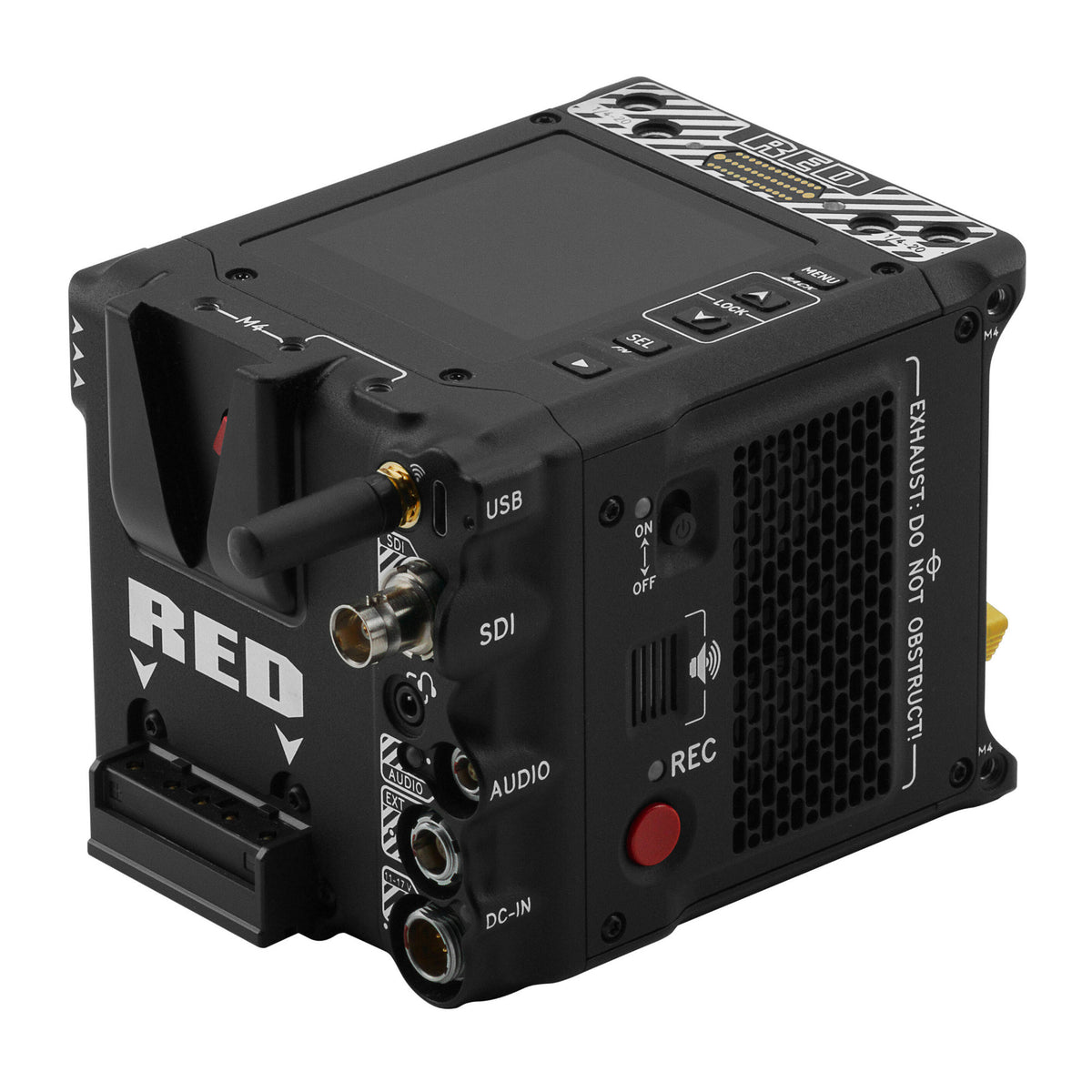

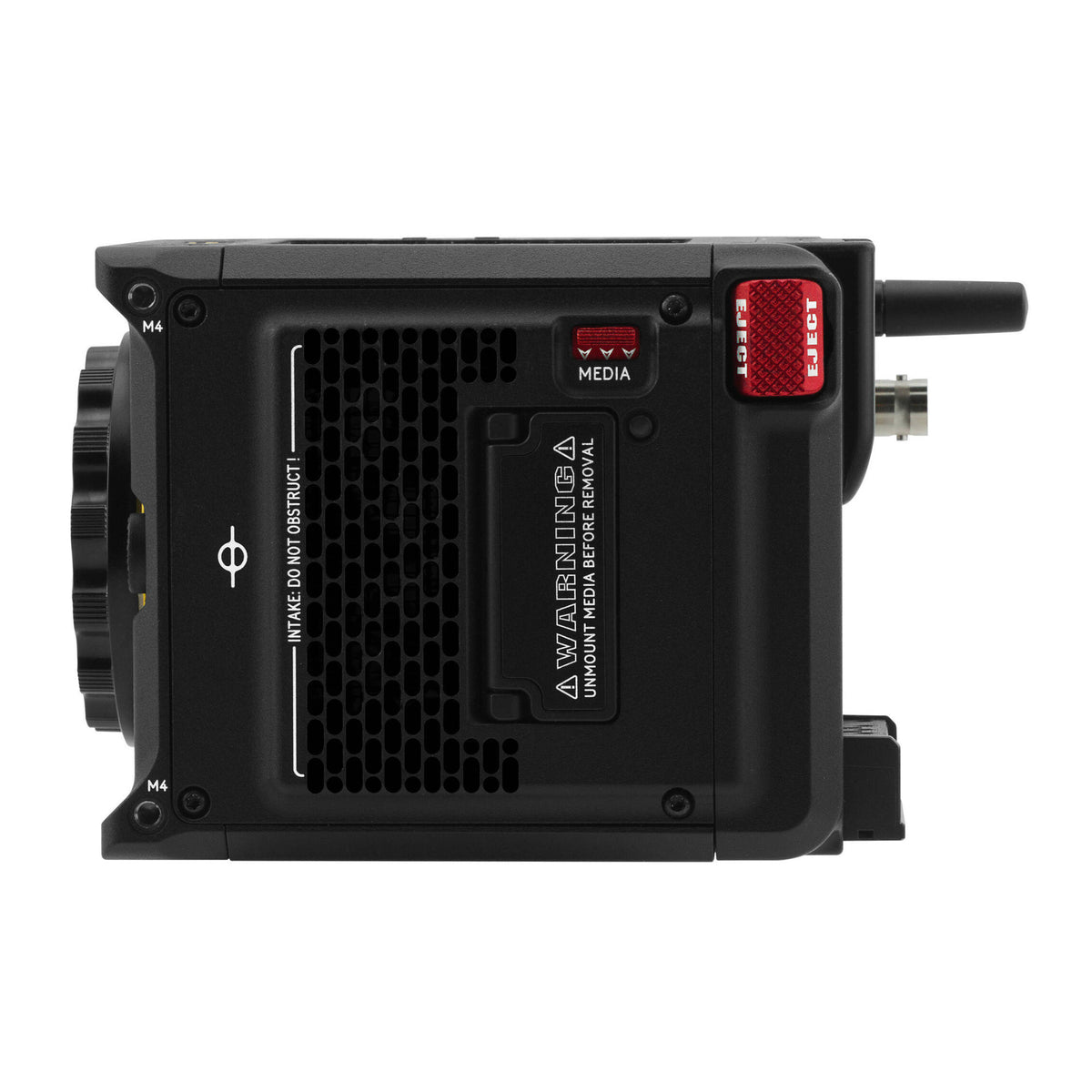

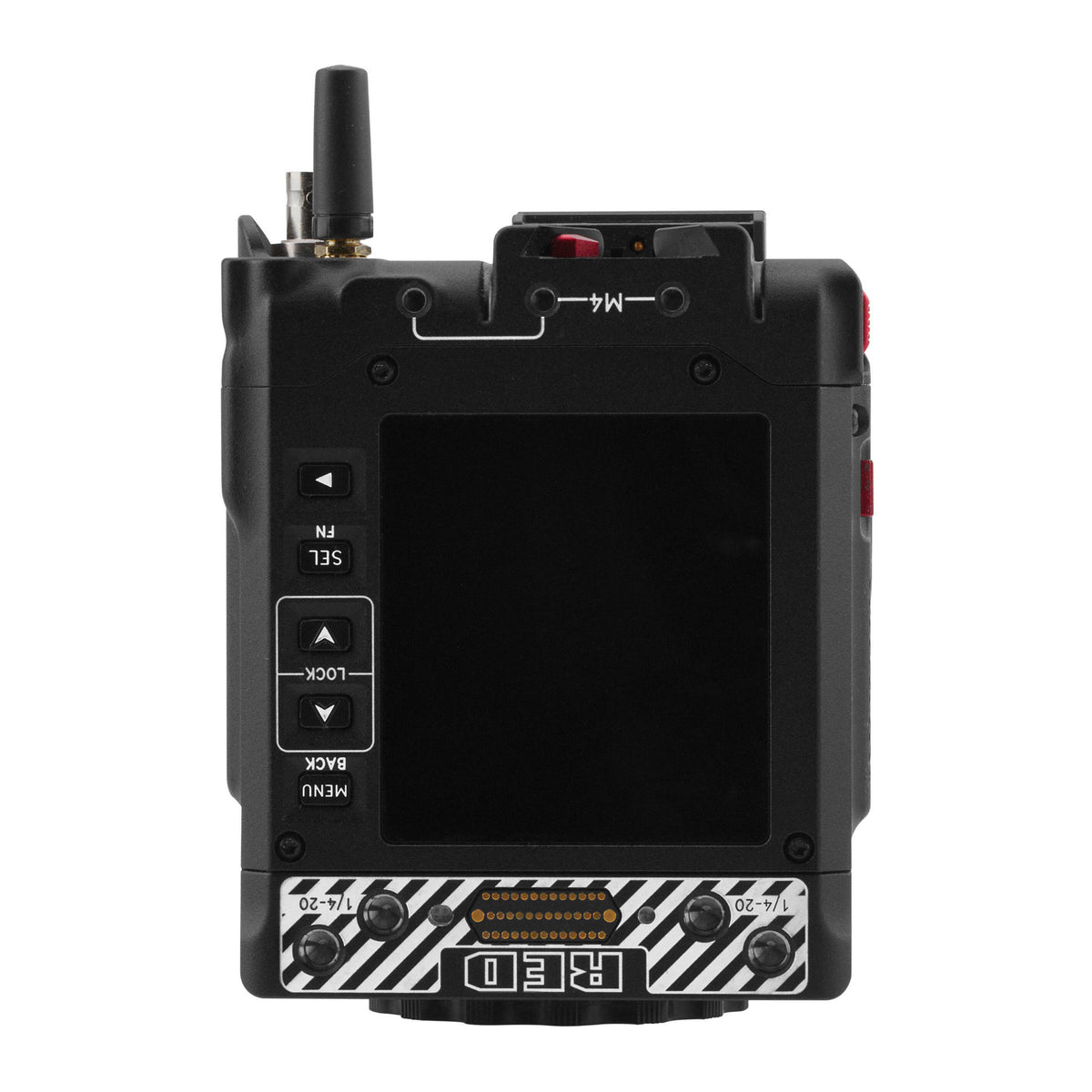

RED DIGITAL CINEMA KOMODO-X Z Mount 6K Digital Cinema Camera (Nikon Z)
- 19.9 MP Super 35 global shutter sensor captures 6K up to 80 fps
- 4K capture reaches 120 fps, while 2K REDCODE RAW reaches 240 fps
- Locking Nikon Z Mount supports electronic lens communication
- Dynamic range reaches 16.5 stops or more for flexible exposure control
- CFexpress Type B recording supports data rates up to 560 MB/s with qualified media
- Integrated 2.9 inch 1440 x 1440 touchscreen provides preview and camera control
- Wi-Fi and Ethernet over USB Type C support control, preview, and media offload
- PTP and trilevel genlock support frame accurate synchronization
The RED KOMODO-X Z Mount brings a 19.9 MP Super 35 global shutter sensor into a compact cinema body for professional production workflows. It captures 6144 x 3240 images and records REDCODE RAW up to 80 fps at 6K, 120 fps at 4K, and 240 fps at 2K. With 16.5 stops or more of dynamic range, the camera provides broad exposure latitude for controlled studio and location work.
Native Nikon Z Mount Control

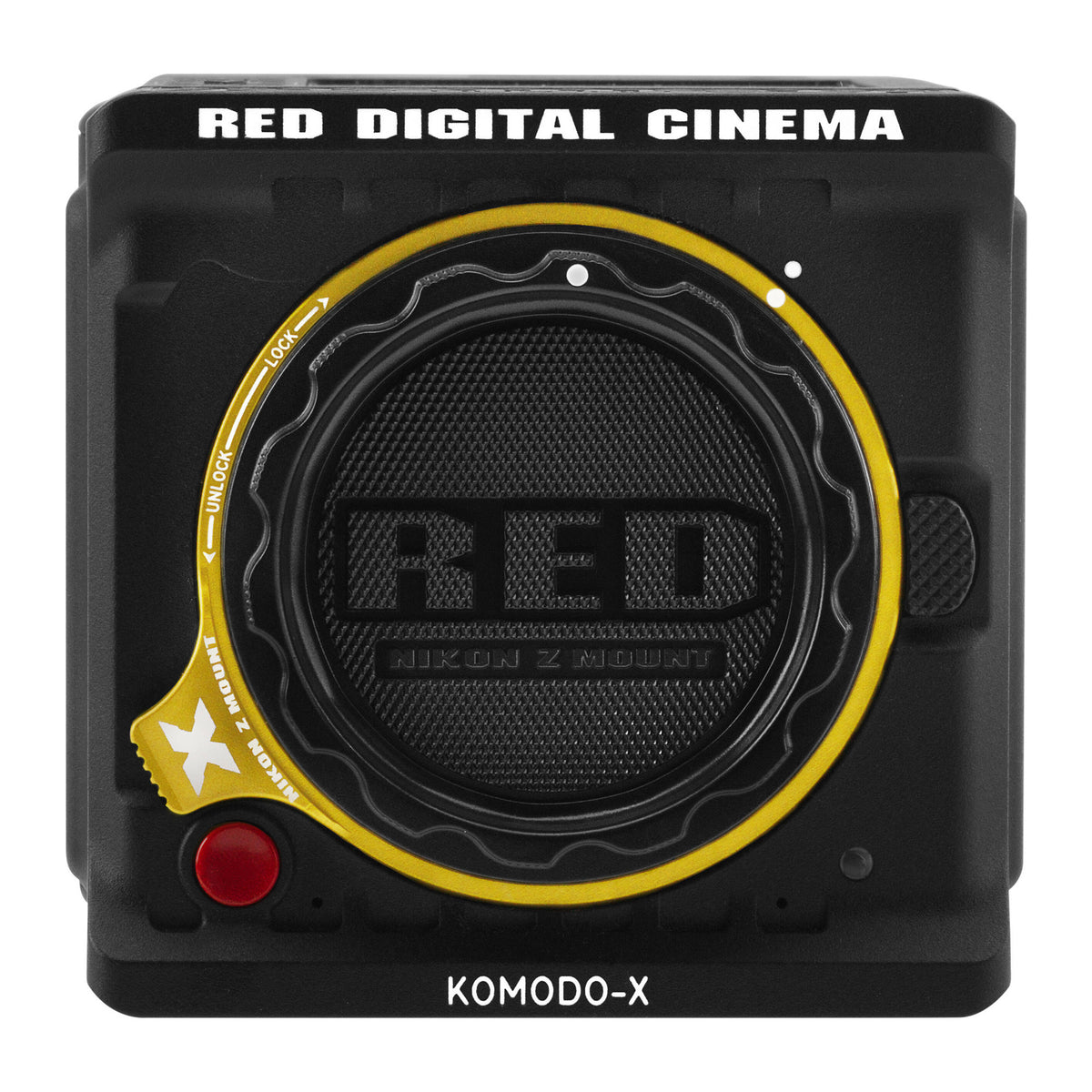

The reinforced locking Nikon Z Mount supports electronic lens communication and all Z Mount lenses. Compatible lenses can use iris control, autofocus, image stabilization status, and control ring functions through the camera interface. Adjustable autofocus speeds, fluid iris control, and customizable lens response help tailor lens behavior for cinema work. RED Z to PL adapters extend the platform to compatible /i PL lenses.
Professional Recording, Monitoring, and IP Workflows
Record to CFexpress Type B media with supported data rates up to 560 MB/s. The integrated 2.9-inch 1440 x 1440 touchscreen handles image preview and camera control. 12G SDI supports output up to 4096 x 2160 4:2:2 at 60p. Wi-Fi and Ethernet over USB Type-C support camera control, video preview, and media offload. PTP and tri-level genlock provide frame-accurate synchronization for multicamera and virtual production environments.

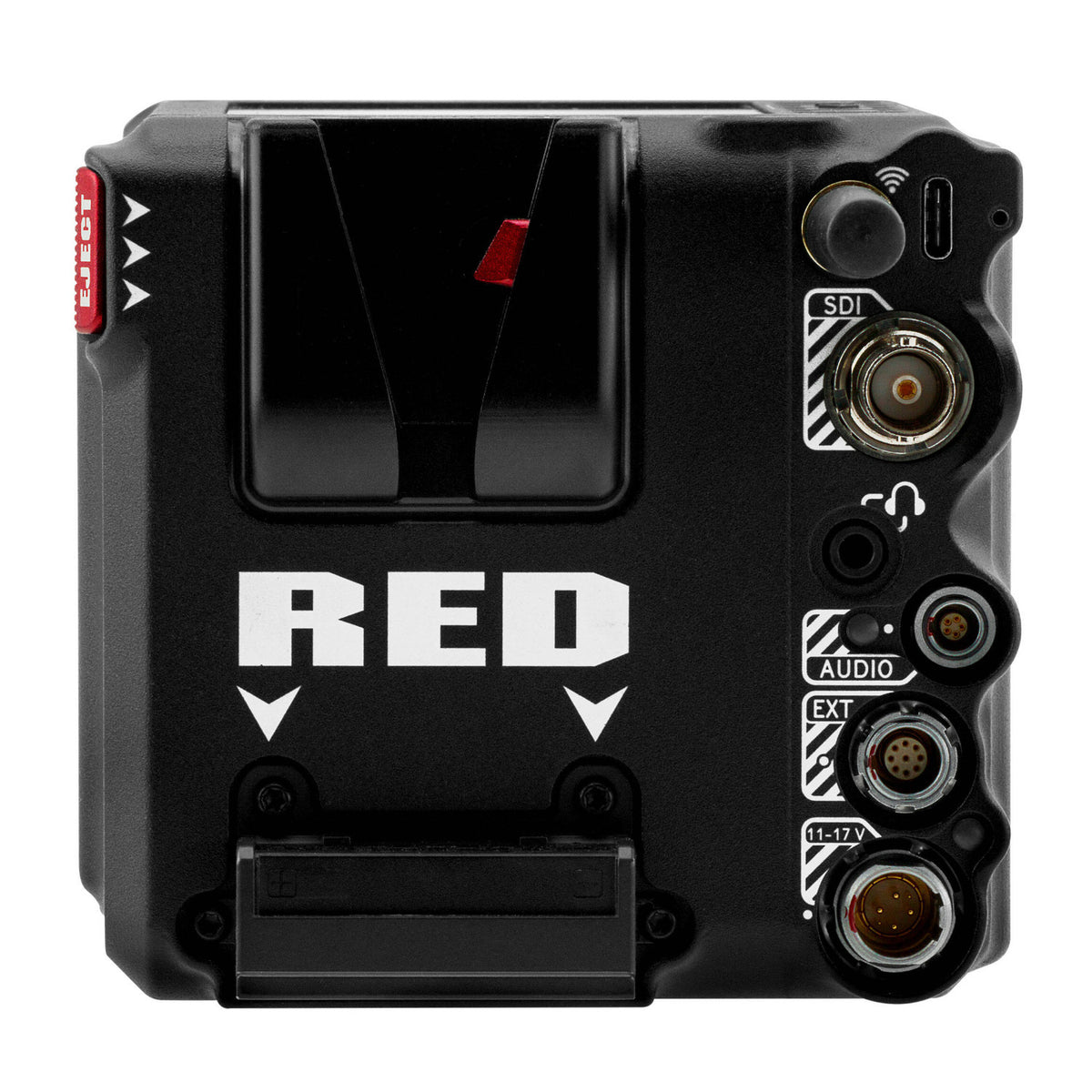

The aluminum alloy body measures 5.1 x 4 x 3.8 inches and weighs 2.62 pounds without the body cap and CFexpress card. An integrated V Lock battery interface is optimized for Micro V Lock batteries, while the 11 V to 17 V DC input supports studio and rig power configurations.
General
Imaging:
| Sensor Type | KOMODO-X 19.9 MP Super 35 mm Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 x 14.26 mm, 30.56 mm diagonal |
| Dynamic Range | 16.5 stops or more |
| Mount Type | Integrated locking Nikon Z Mount with electronic communication, support for /i PL lenses with RED PL adapters, and support for other adapters based on Nikon Z Mount |
Recording:
| Maximum Data Rate | Up to 560 MB/s using RED branded or other qualified CFexpress media cards |
| REDCODE RAW Maximum Frame Rates | 80 fps at 6K 17:9 (6144 x 3240), 96 fps at 5K 17:9 (5120 x 2700), 120 fps at 4K 17:9 (4096 x 2160), 240 fps at 2K 17:9 (2048 x 1080) |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| Best Available REDCODE Settings | HQ, MQ, LQ, and ELQ at 6K 17:9 up to 80 fps, 4K 17:9 up to 120 fps, and 2K 17:9 up to 240 fps |
| REDCODE RAW Acquisition Formats | 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x; 5K 17:9 (5120 x 2700) and 16:9; 4K 17:9 (4096 x 2160) and 16:9; 2K 17:9 (2048 x 1080) |
| Apple ProRes | Dedicated recording in 4K (4096 x 2160), ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps |
| Media Type | CFexpress Type B |
Body and Power:
| Construction | Aluminum Alloy |
| Dimensions | 5.1 x 4 x 3.8 inches (129.37 x 101.26 x 95.26 mm), largest fixed dimensions |
| Weight | 2.62 pounds without body cap and CFexpress card |
| Battery Type | Integrated V Lock battery interface optimized for Micro V Lock batteries |
| DC Power | 11 V to 17 V through a 6 pin DC IN |
| Operating Temperature | 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F) |
| Storage Temperature | minus 20 degrees C to 50 degrees C (minus 4 degrees F to 122 degrees F) |
| Relative Humidity | 0 percent to 85 percent, noncondensing |
Image Processing:
| Color Management | Image Processing Pipeline 2 (IPP2), 33 x 33 x 33 3D LUT support, import and adjustment of CDLs |
Audio:
| Integrated Audio | Dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, plus 48 V input through a 5 pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
Focus:
| Autofocus | Phase Detect and Contrast |
Monitoring and I/O:
| Monitor Options | Proprietary Top Accessory Port for monitoring and control, integrated 2.9 inch 1440 x 1440 touchscreen LCD with preview and camera control |
| SDI Modes | Integrated 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI Output | Up to 4096 x 2160 4:2:2 at 30p |
| 3G SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI Output | Up to 2048 x 1080 4:2:2 at 30p and 24p |
| SDI Metadata and Audio | SMPTE timecode, HANC metadata, 24-bit 48 kHz audio |
| Additional I/O | Tri-level genlock input through 9-pin EXT, LTC timecode input through 9-pin EXT, RS232 CTRL using RCP2 through the 9-pin EXT port |
IP Connectivity:
| Wi-Fi | 2.4 GHz and 5 GHz for camera control, video preview, and media offloading |
| Ethernet | Ethernet over USB Type C for camera control, video preview, and media offloading |
| Live Stream | MJPEG 1080p through Wi-Fi and USB Type C |
| Synchronization | PTP for frame-level synchronization |
| R3D Live Broadcasting | Available with RED Connect license and 5 Gbps Ethernet adapter |
Software:
| RED Control App | Camera controls and live preview from supported iOS or Android devices |
| RED Control Pro App | Supports multiple cameras over IP, synchronized settings, media management, uploads, and advanced CDL and LUT controls |
| RED Control Connection | Wireless or wired over USB Type-C |
| RED Control Pro Availability | Apple App Store only, separate purchase required |
