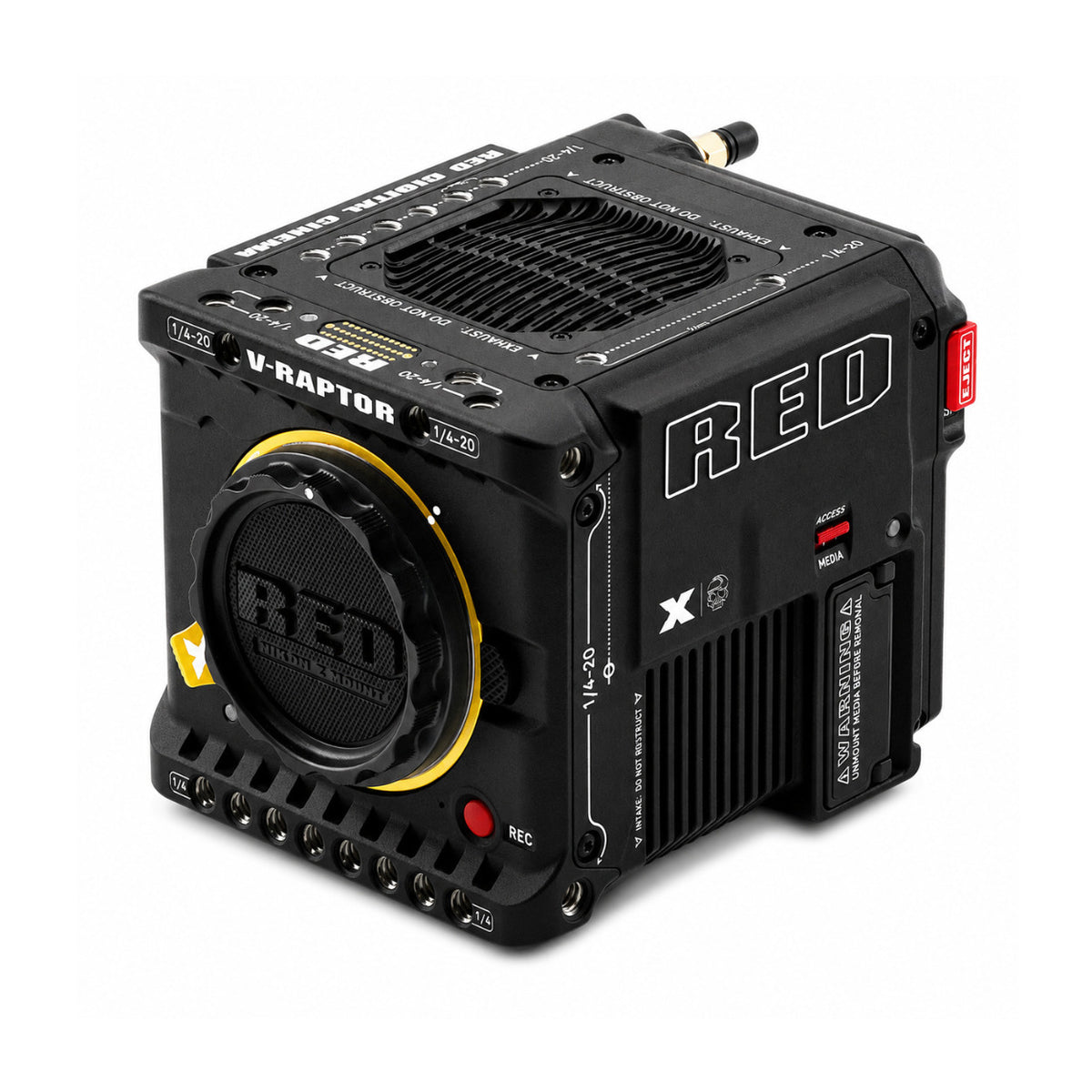

- 1 x RED Digital Cinema 8K V-RAPTOR-X Z-Mount Camera

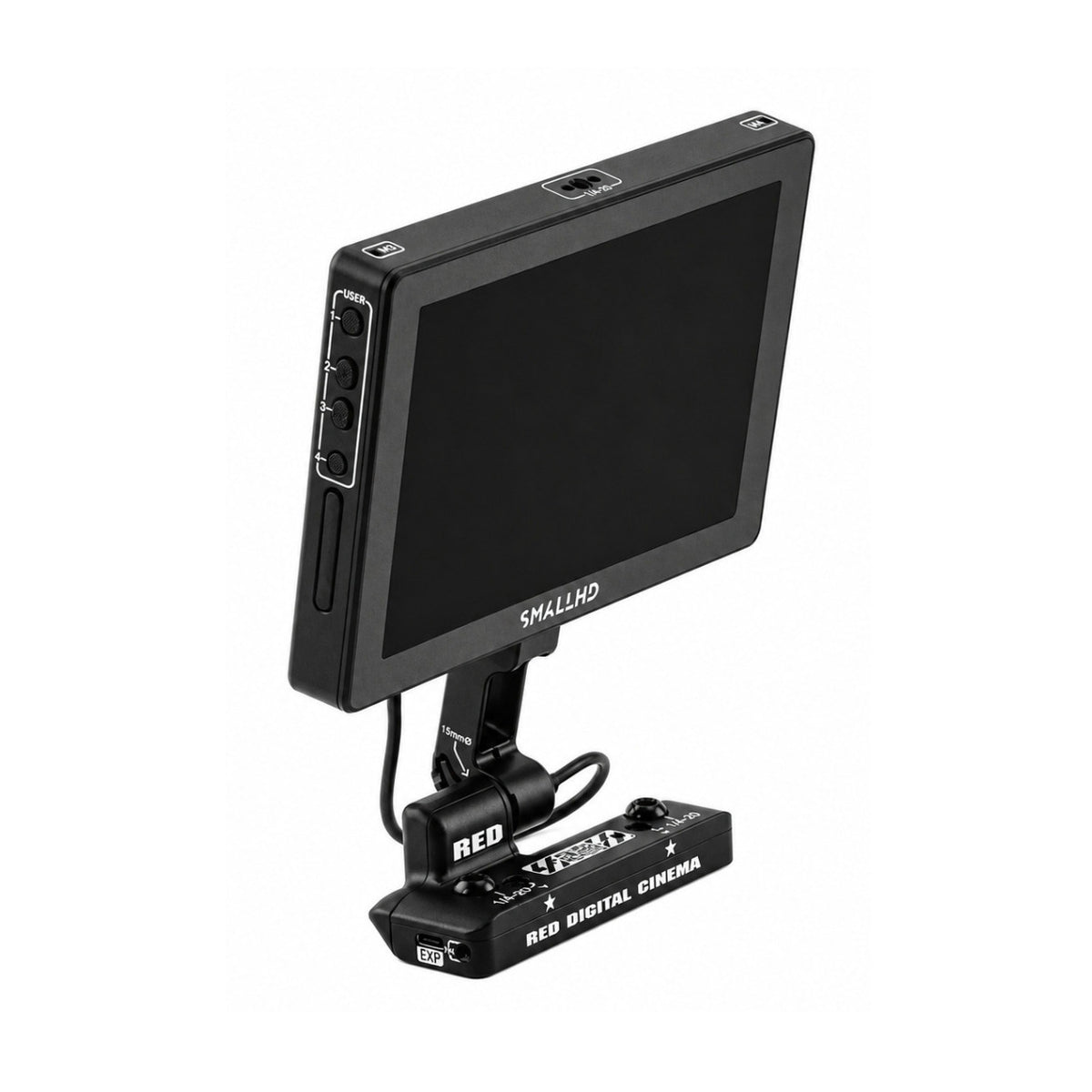

- 1 x DSMC3 RED Touch 7-inch LCD Display

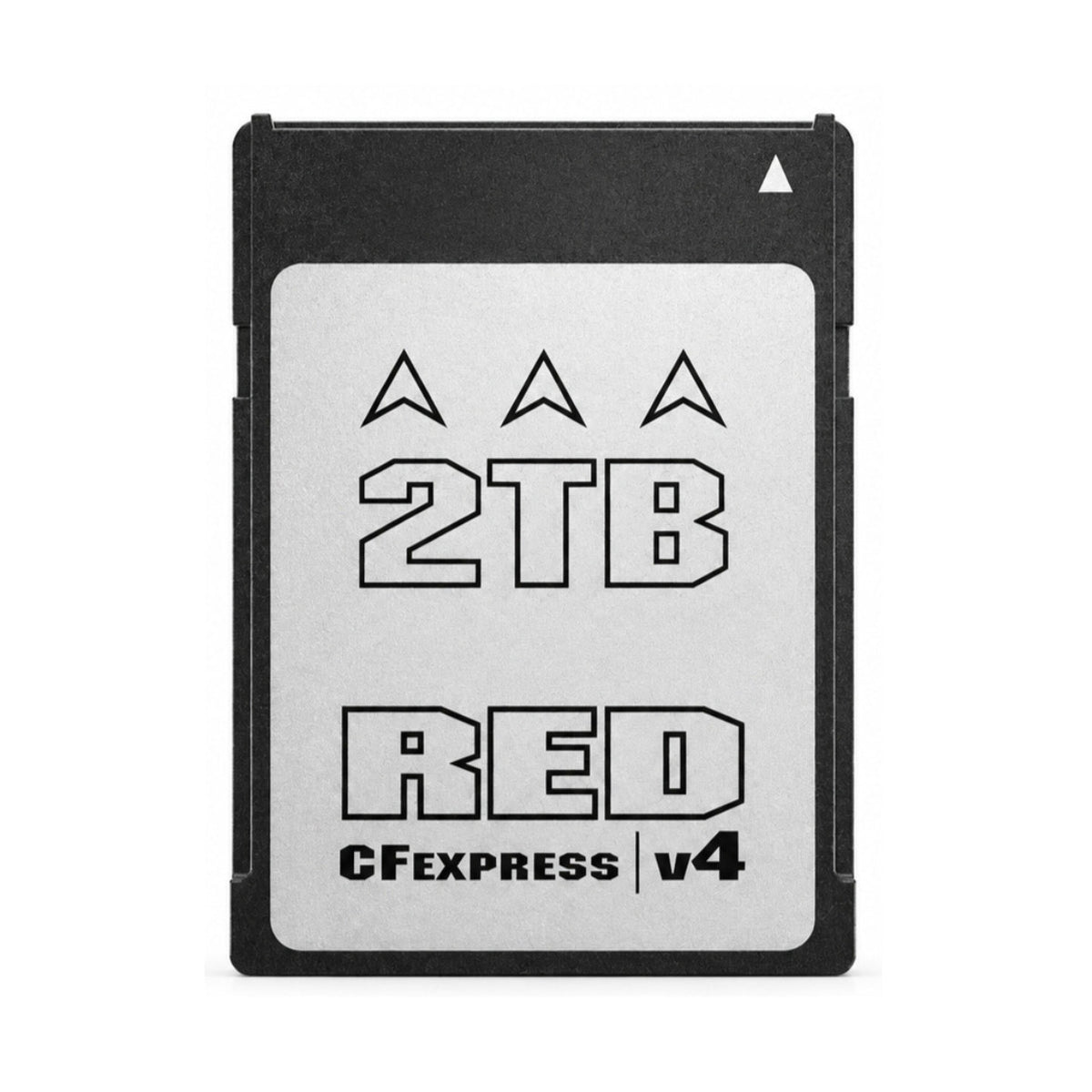

- 1 x RED PRO CFexpress v4 Type-B 2TB Card

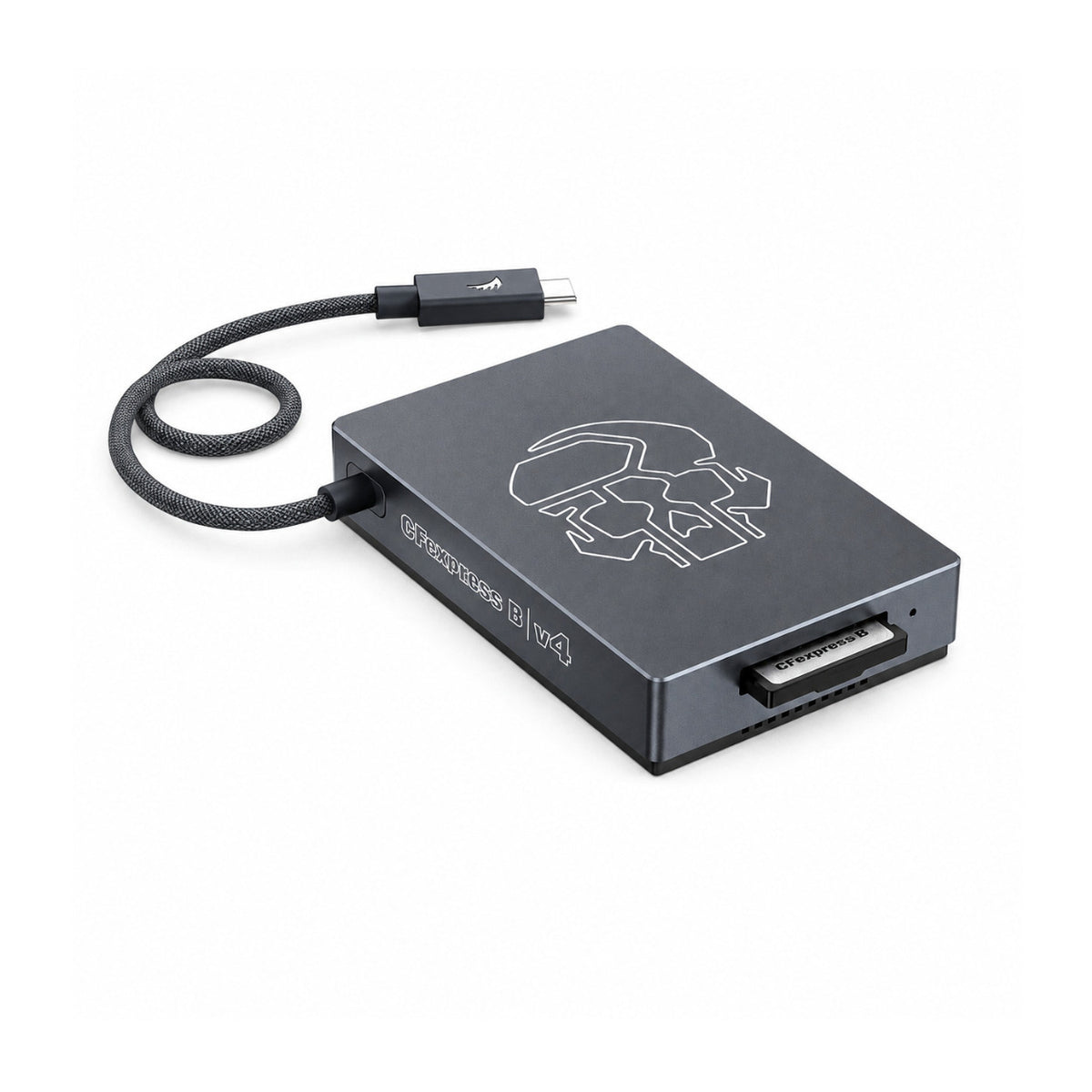

- 1 x RED PRO CFexpress v4 Type-B Card Reader

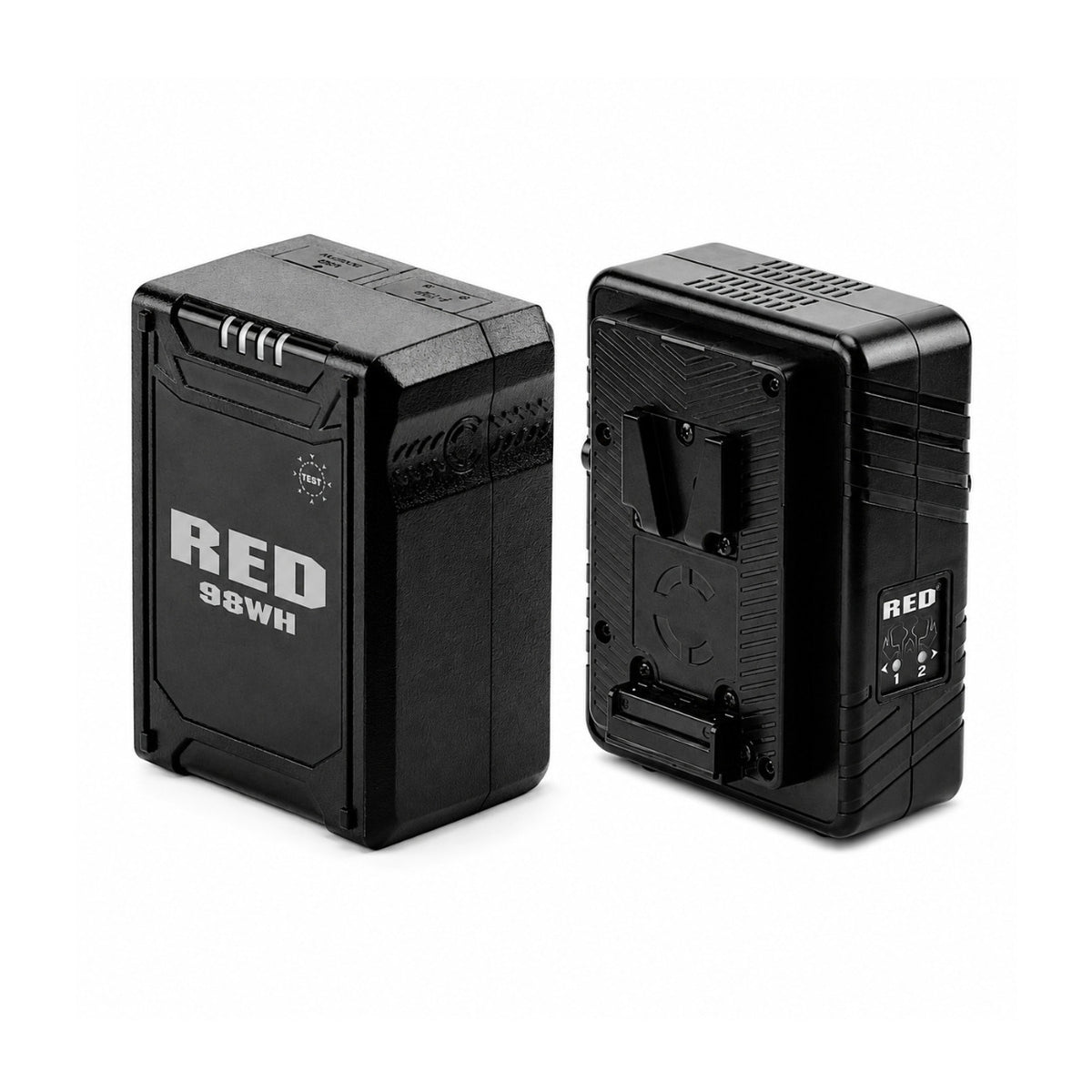

- 2 x REDVOLT MICRO-V
- 1 x Compact Dual V-Lock Charger

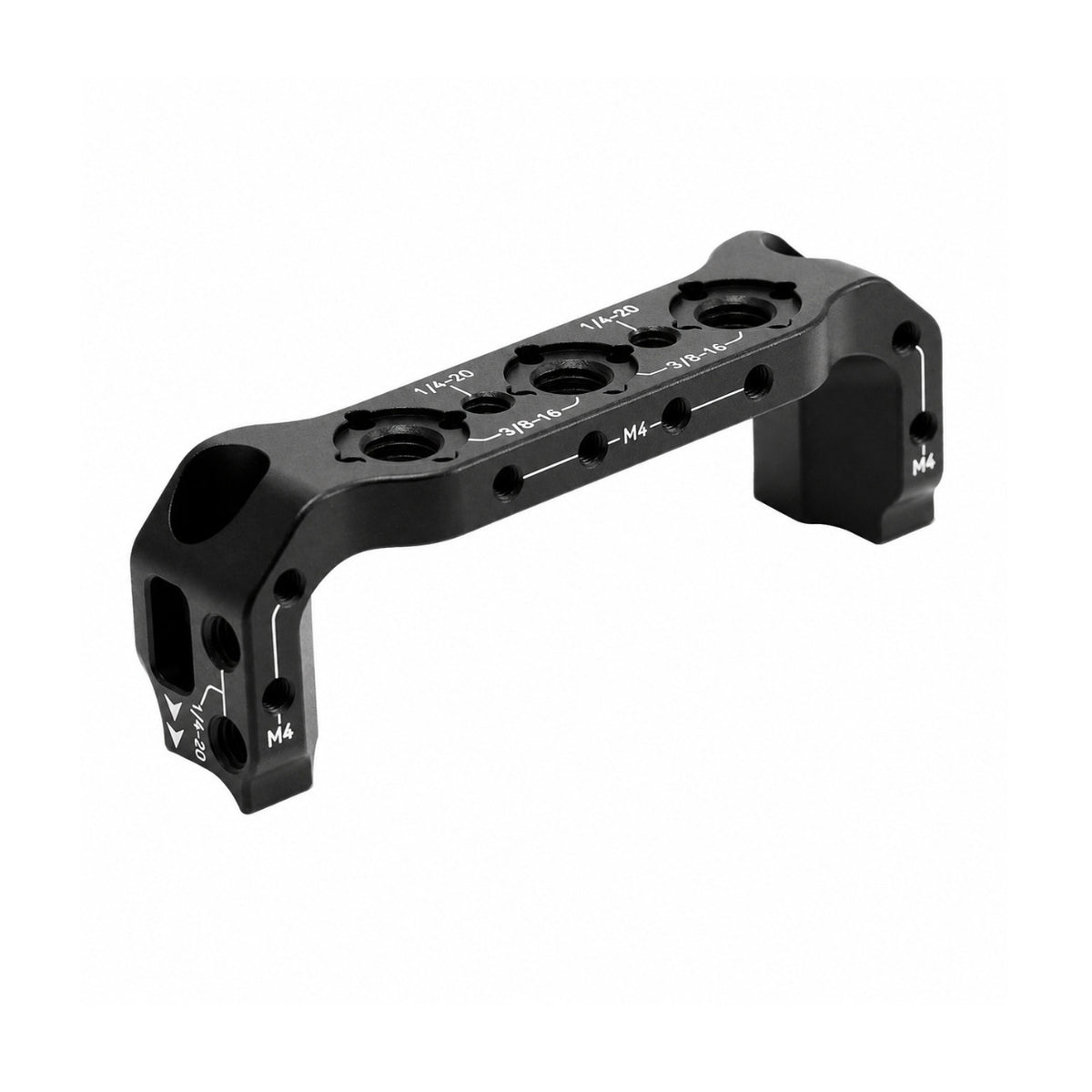

- 2 x V-RAPTOR Wing Grips
- 1 x RED EXT-to-Timecode 3ft Cable
- 1 x Product Information Card
Trusted & Verified

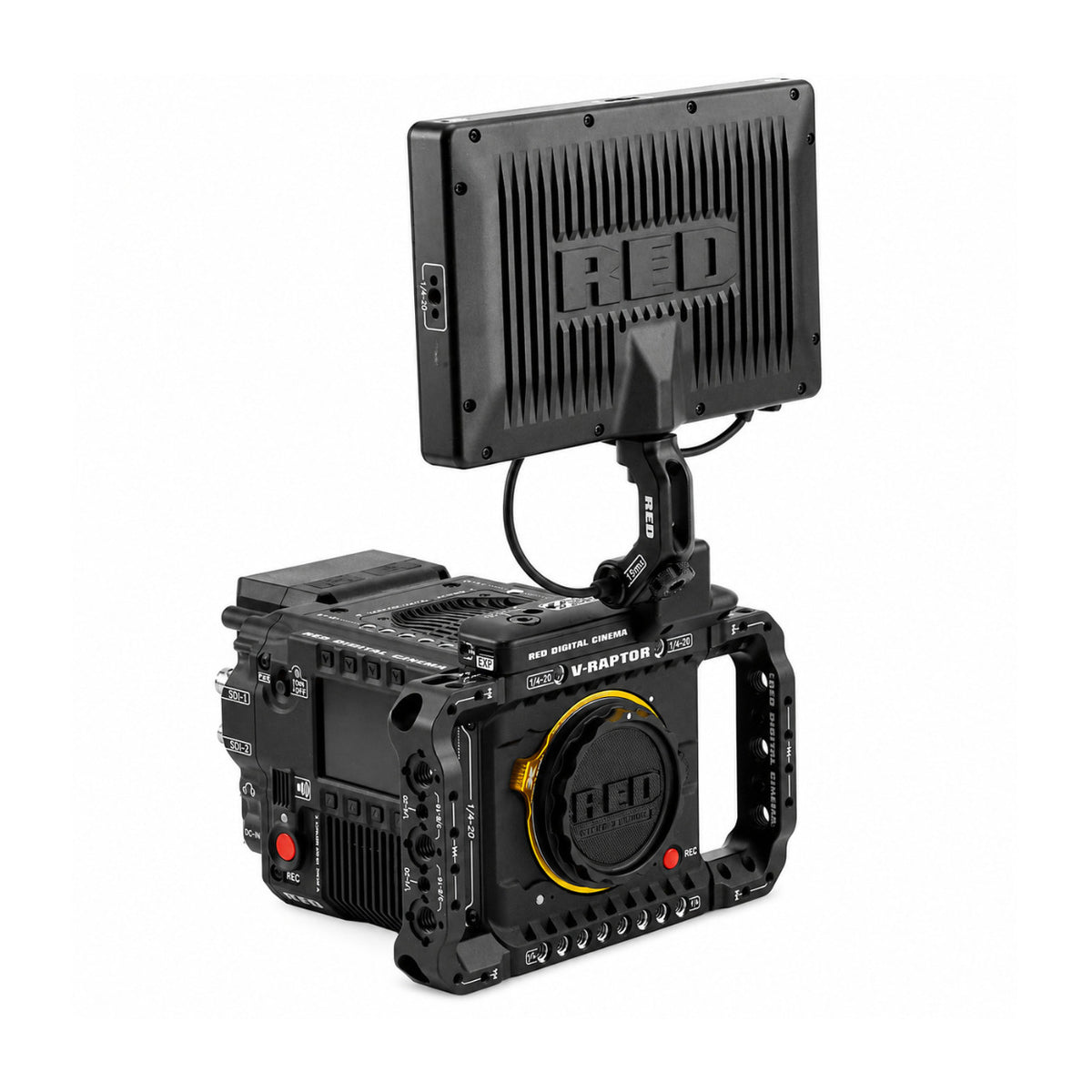

RED Digital Cinema 8K V-RAPTOR-X Z-Mount Cinema Camera Starter Pack with Batteries and Accessories
- 35.4MP Global Shutter 8K VV CMOS Sensor
- Captures 8192 x 4320 Effective Pixels
- 17+ stops of Dynamic Range
- Records REDCODE RAW in 8K at 120 fps
- 8K 17:9 and 8K 2.4:1 Recording
- Integrated locking Nikon Z-Mount with lens communication
- Phase Detection Autofocus with Face Detection
- CFexpress Type-B Media Support
- Up to 800 MB/s Data Transfer Rates
- Dual 12G SDI Outputs
- Dual-band Wi-Fi and Wireless Camera Control
- Integrated V-Lock Interface
- Supports Professional Camera Power Setups
8K VV Global Shutter Imaging
The V-RAPTOR-X Z-Mount uses a 35.4MP global shutter CMOS sensor with 8192 x 4320 effective pixels and more than 17 stops of dynamic range. REDCODE RAW recording reaches up to 8K 17:9 at 120 fps and 8K 2.4:1 at 150 fps.
Native Locking Z-Mount
The integrated locking Z mount supports electronic lens communication and compatible features such as smooth iris control, adjustable autofocus speeds, and customizable lens response. Compatible PL lenses can be used through RED Z-to-PL adapters.
Built for Connected Production
Dual 12G SDI outputs, CFexpress Type B recording, wired and wireless camera control, RED Global Vision tools, integrated V-Lock power, timecode, Genlock, and RS232 control support professional production and virtual production workflows.
Imaging
| Sensor Type | V-RAPTOR-X 8K VV 35.4MP Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm |
| Sensor Diagonal | 46.31 mm |
| Dynamic Range | 17+ stops |
Lens Mount
| Mount Type | Integrated locking Nikon Z mount with electronic communication |
| PL Lens Support | Supports /i PL lenses with RED Z-to-PL adapters |
| Adapter Support | Supports Nikon FTZ II Adapter with communication and other adapters based on the Nikon Z mount |
| Autofocus | Phase detect with face detection |
REDCODE RAW Max. Frame Rates
| Maximum 8K 17 | 9 Frame Rate: 120 fps |
| Maximum 8K 2.4 | 1 Frame Rate: 150 fps |
| Maximum 7K 17 | 9 Frame Rate: 140 fps |
| Maximum 7K 2.4 | 1 Frame Rate: 175 fps |
| Maximum 6K 17 | 9 Frame Rate: 160 fps |
| Maximum 6K 2.4 | 1 Frame Rate: 200 fps |
| Maximum 5K 17 | 9 Frame Rate: 192 fps |
| Maximum 5K 2.4 | 1 Frame Rate: 240 fps |
| Maximum 4K 17 | 9 Frame Rate: 240 fps |
| Maximum 4K 2.4 | 1 Frame Rate: 300 fps |
| Maximum 3K 17 | 9 Frame Rate: 320 fps |
| Maximum 3K 2.4 | 1 Frame Rate: 400 fps |
| Maximum 2K 17 | 9 Frame Rate: 480 fps |
| Maximum 2K 2.4 | 1 Frame Rate: 600 fps |
Apple ProRes Recording
| ProRes Recording Format | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT |
| ProRes Recording Resolution | Up to 4K (4096 x 2160) at 120P |
| Proxy Recording Resolution | Up to ProRes 422 HQ in 2K (2048 x 1080) at up to 60P |
Construction and Dimensions
| Construction | Aluminum Alloy |
| Length | 5.9 inches |
| Width | 4.5 inches |
| Height | 4.3 inches |
| Weight | 4.03 lbs. (without body cap and CFexpress card) |
Power
| Battery Interface | Integrated V-Lock Battery Interface optimized for Micro V-Lock batteries |
| DC Power Input | 11 to 17V DC through 6-Pin DC input |
Audio
| Integrated Microphones | Dual channel digital mono, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48V through 5-Pin 00B audio port |
| Headphone Output | 3.5 mm stereo headphone port |
Connectivity and Monitoring
| Media Type | CFexpress Type B |
| Max Data Rates | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| Wireless | Dual-band Wi-Fi at 2.4 GHz or 5 GHz |
| Wired Control | USB-C or Ethernet with compatible adapter |
| Monitor Outputs | Dual 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| Timecode | SMPTE timecode support |
| Genlock | Tri-level genlock input through 9-Pin EXT |
| LTC Timecode Input | Through 9-Pin EXT |
| RS232 CTRL (using RCP2) | Via 9-Pin EXT |
Environment
| Operating Temperature | 0 to 40 degrees C |
| Storage Temperature | -20 to 50 degrees C |
| Storage Relative Humidity | 0% to 85% non-condensing |
Image Processing
| Color Management | Image Processing Pipeline 2 |
| 3D LUT Support | 33 x 33 x 33 |
| RED Global Vision | Extended Highlights and Phantom Track |
Additional Information
| Camera Manufacturer Warranty | 2-Year Standard Warranty |
| Power Cord | Both the V-Raptor-X and Compact Dual V-Lock Charger do not include power cords. Cords are sold separately. |
