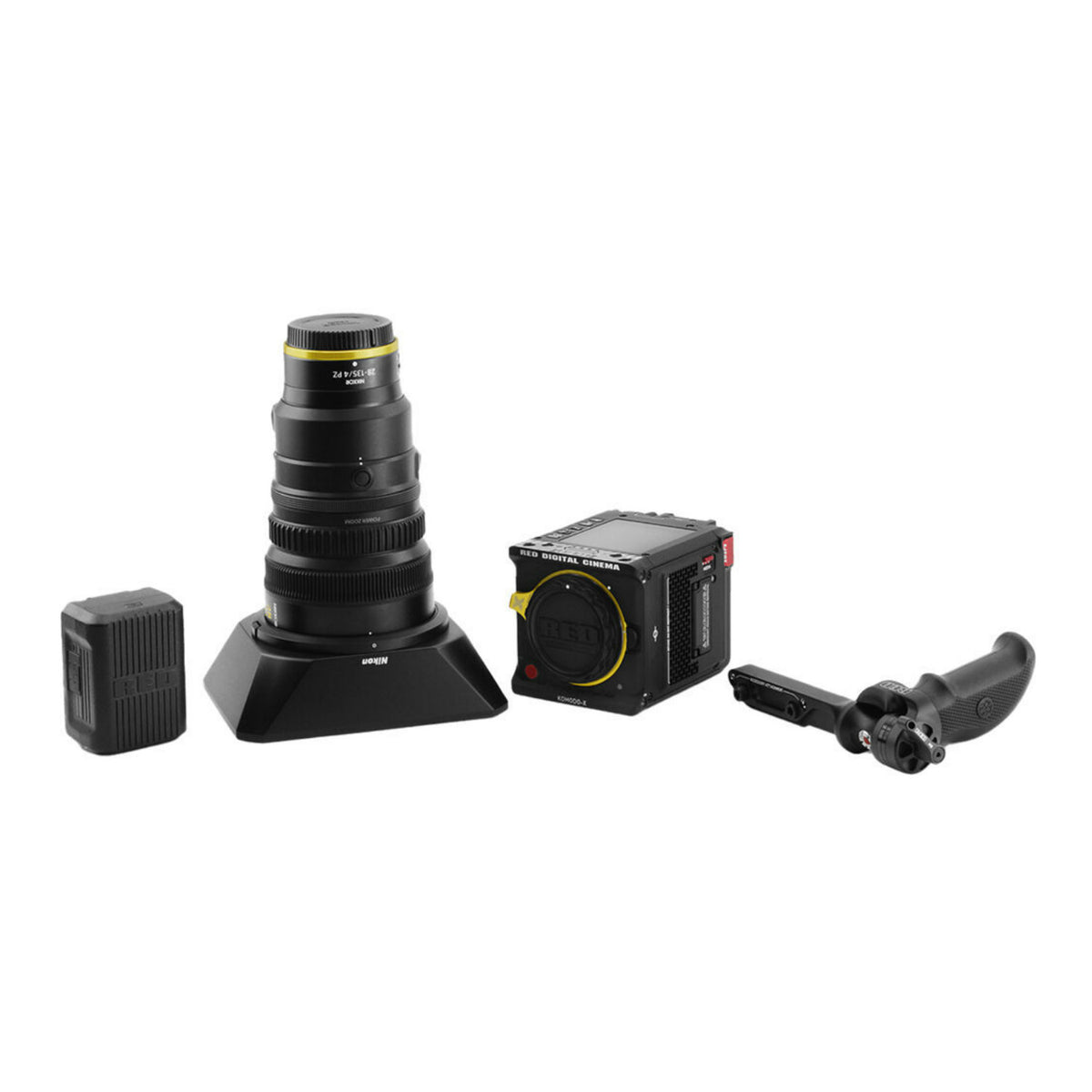

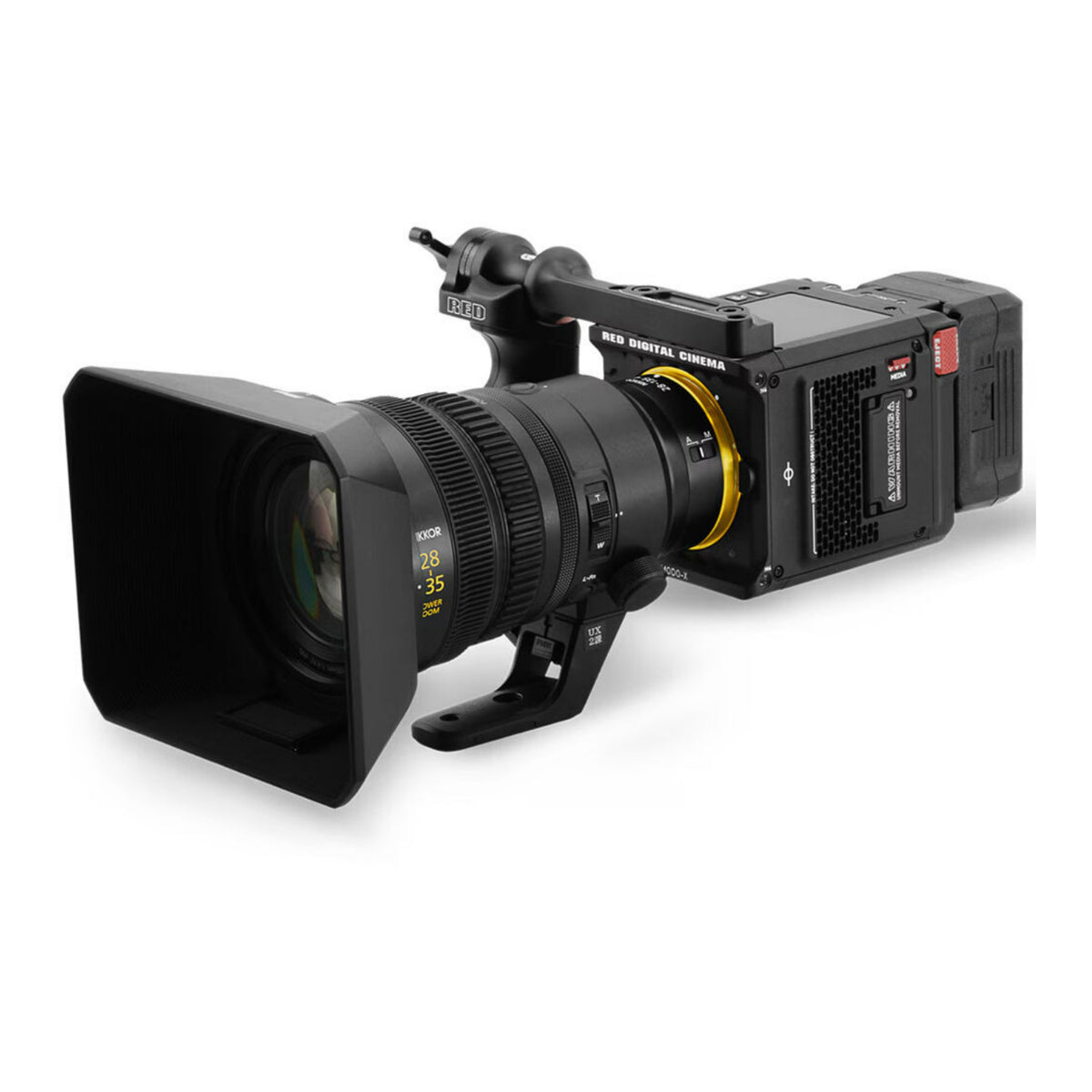

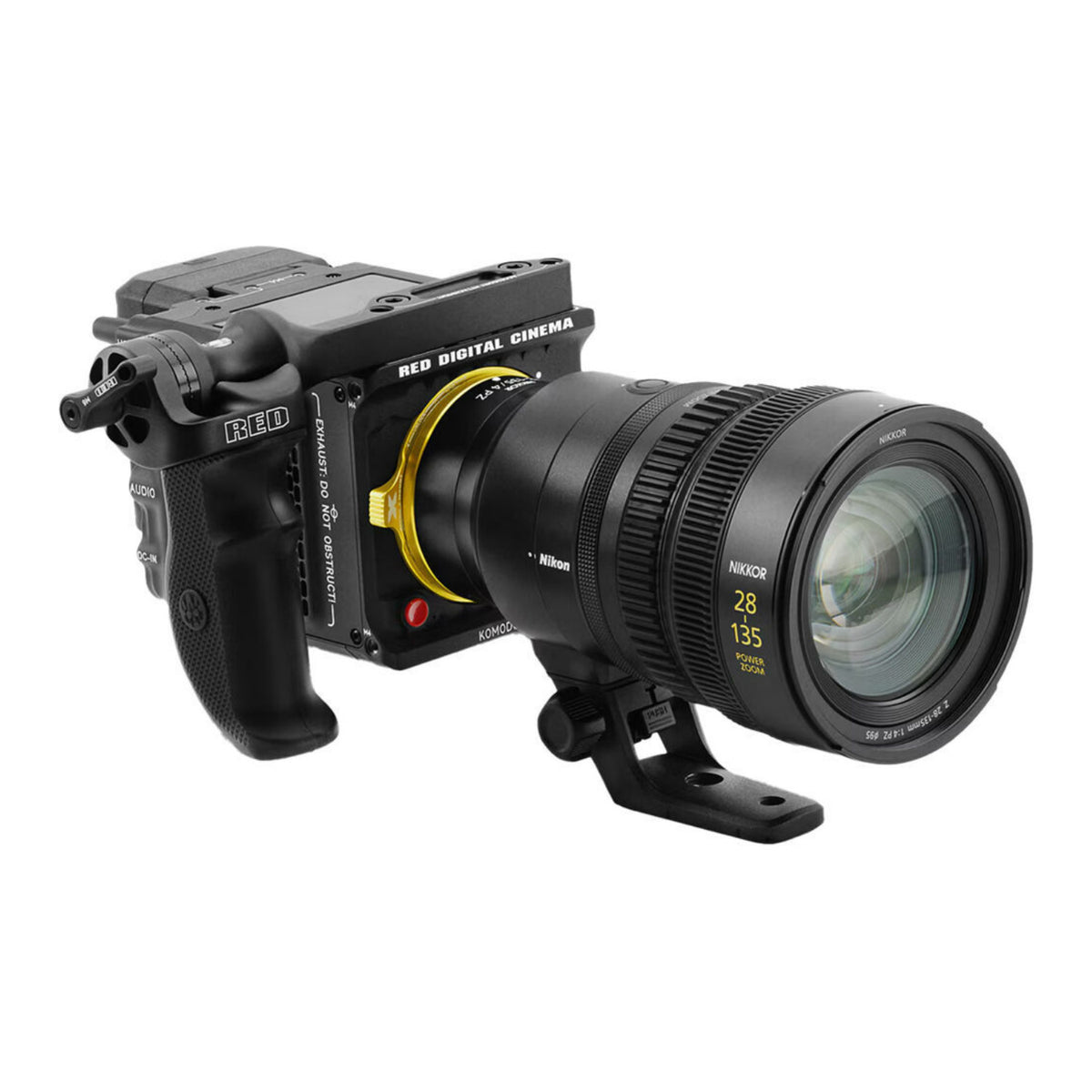

RED Digital Cinema KOMODO-X 6K Super 35 Cinema Camera Power Zoom Pack (Z Mount)
- 19.9 MP Super 35 global shutter CMOS sensor with 6144 x 3240 effective pixels
- Records REDCODE RAW at up to 80 fps in 6K 17:9
- Reinforced locking Nikon Z mount with electronic lens communication
- CFexpress Type B recording with data rates up to 560 MB/s
- Integrated 2.9-inch touchscreen for preview and camera control
- Wi-Fi and USB Type-C support remote control, preview, and media offloading
- Compact aluminum alloy body weighs 2.62 pounds without body cap or media
The RED Digital Cinema KOMODO-X Z Mount Power Zoom Pack brings together a compact 6K cinema camera platform and a broad range of power zoom lenses for productions that need fast reframing, professional recording options, and a streamlined Nikon Z Mount workflow. The camera combines a 19.9 MP Super 35 global shutter CMOS sensor with 6144 x 3240 effective pixels and REDCODE RAW recording for flexible acquisition.

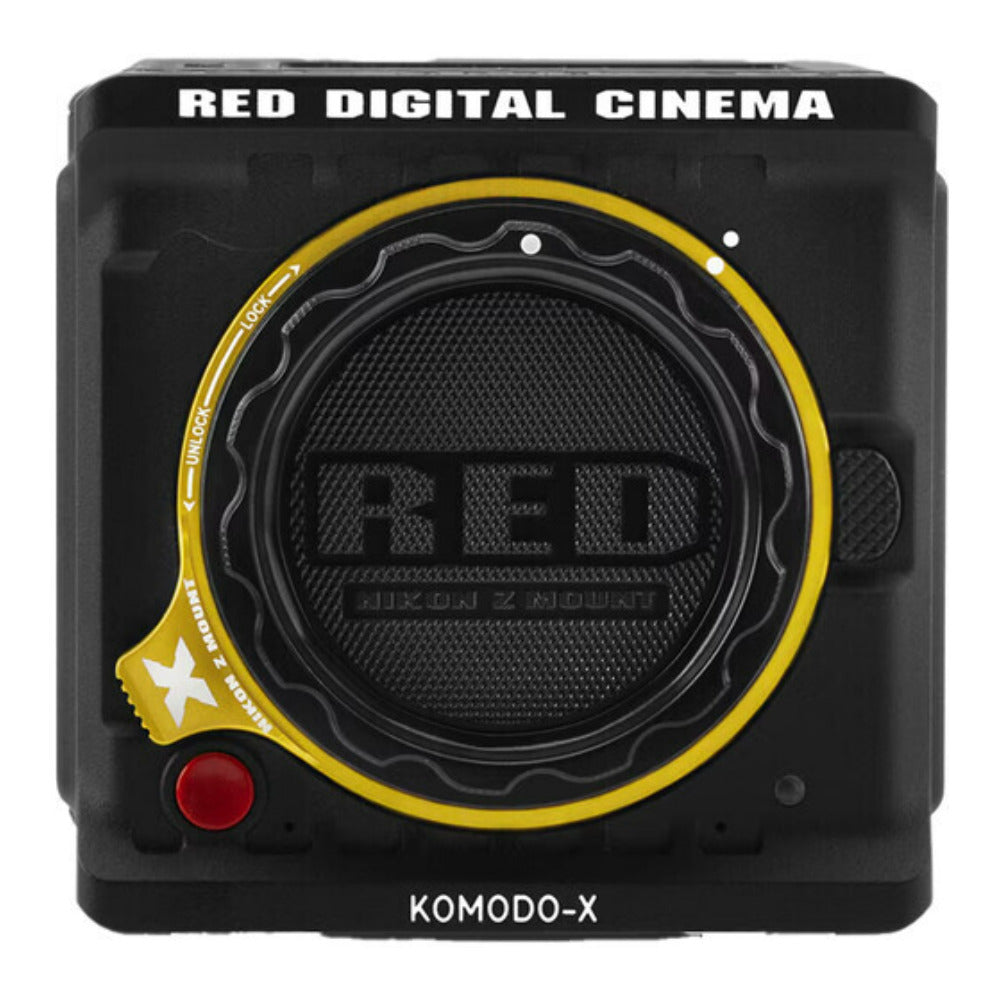

KOMODO-X Z Mount Cinema Camera
KOMODO-X records up to 80 fps at 6K 17:9, 120 fps at 4K 17:9, and 240 fps at 2K 17:9. Its global shutter captures the entire sensor frame simultaneously, helping prevent the motion distortion associated with rolling shutter capture. A reinforced locking Nikon Z mount provides electronic communication with compatible lenses and supports features including smooth iris control, customizable lens response, and adjustable autofocus speeds. Recording uses CFexpress Type B media with data rates up to 560 MB/s.

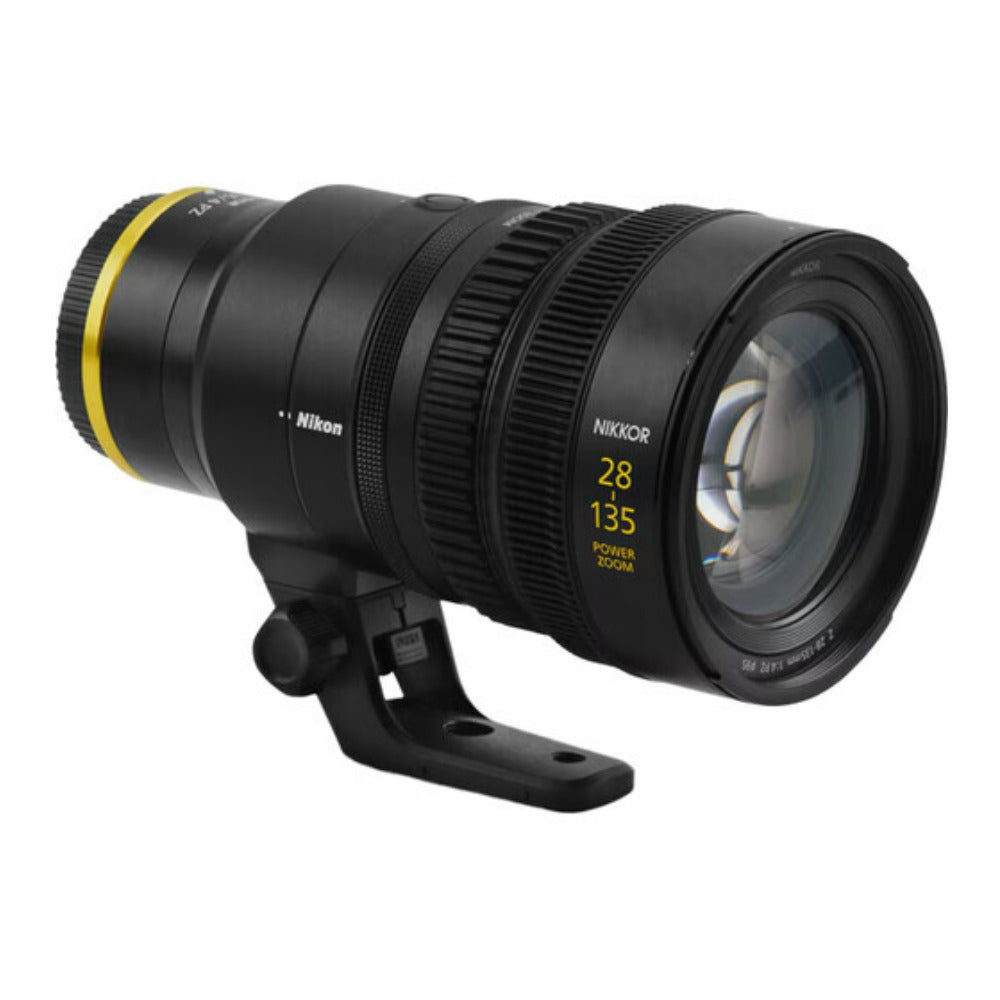

NIKKOR Z 28-135mm f/4 PZ Power Zoom Lens
The NIKKOR Z 28-135mm f/4 PZ covers wide through telephoto framing while maintaining a constant f/4 maximum aperture. Its internal zoom mechanism keeps the physical lens length constant during zooming and minimizes changes to the center of gravity. A customizable rocker-style power zoom control provides 11 selectable zoom speeds, while internal focusing and a stepping motor support smooth video operation. The lens accepts 95 mm filters and uses a 9-blade rounded diaphragm.

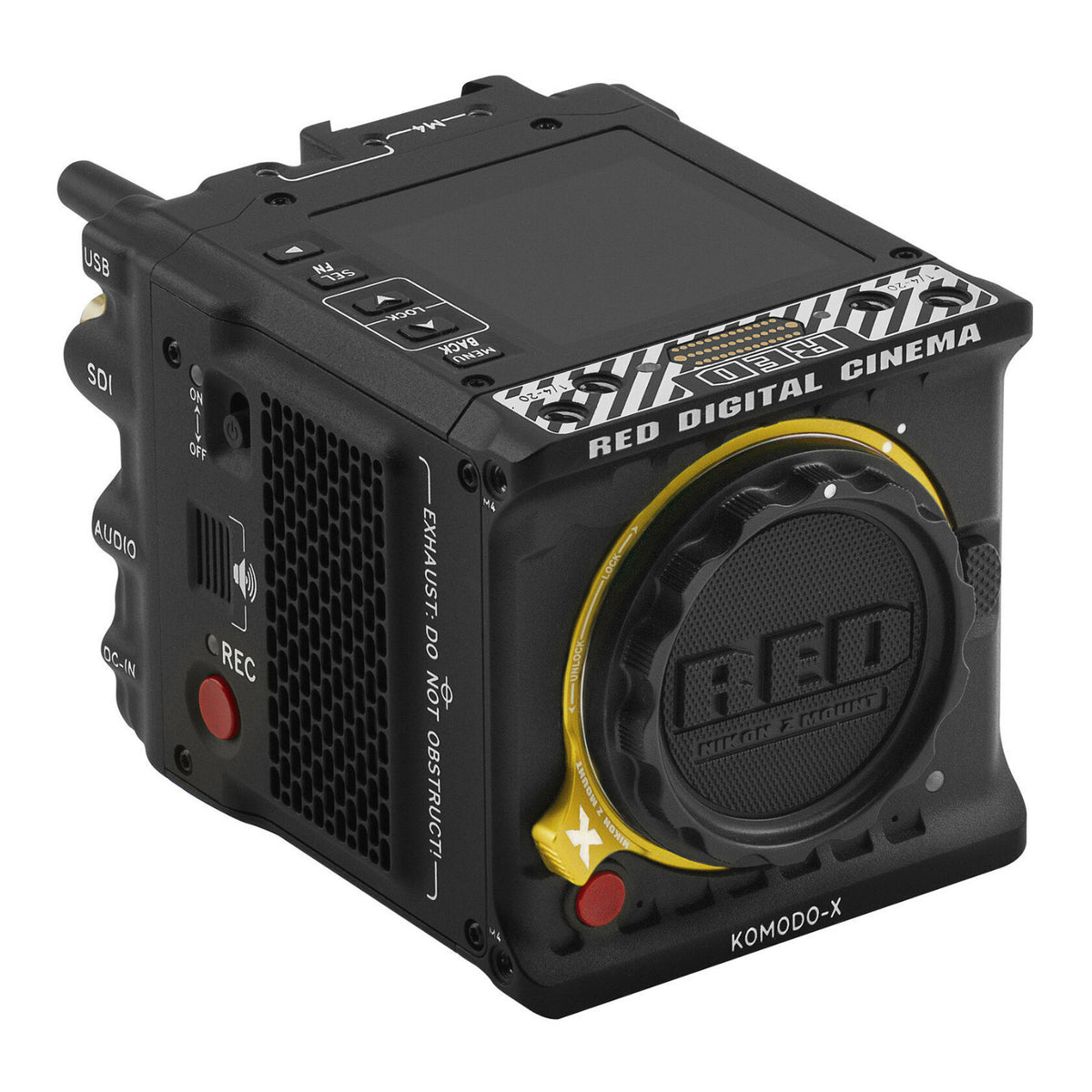

Aluminum Body
The aluminum alloy KOMODO-X body measures 5.1 x 4 x 3.8 inches and weighs 2.62 pounds without the body cap or CFexpress card. An integrated 2.9-inch touchscreen provides image preview and camera control, while Wi-Fi and USB Type-C connectivity support remote control, preview, and media offloading. The result is a compact cinema setup built around high frame rate 6K capture and flexible Nikon Z Mount lens operation.
KOMODO-X Z Mount Camera
Imaging:
| Sensor Type | KOMODO-X 19.9 MP Super 35 Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 x 14.26 millimeters |
| Sensor Diagonal | 30.56 millimeters |
| Dynamic Range | 16.5+ stops |
Lens Mount:
| Mount Type | Integrated locking Nikon Z mount with electronic communication |
| PL Lens Support | Supports /i PL lenses with RED Z to PL Adapters |
| Adapter Support | Supports Nikon FTZ II Adapter with communication and other adapters based on the Nikon Z mount |
Recording:
| Maximum Data Rate | Up to 560 MB/s using RED branded or other qualified CFexpress media cards |
| 6K Maximum Frame Rate | 80 fps at 6K 17:9, 6144 x 3240 |
| 5K Maximum Frame Rate | 96 fps at 5K 17:9, 5120 x 2700 |
| 4K Maximum Frame Rate | 120 fps at 4K 17:9, 4096 x 2160 |
| 2K Maximum Frame Rate | 240 fps at 2K 17:9, 2048 x 1080 |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| Media Type | CFexpress Type B |
Construction and Size:
| Construction | Aluminum Alloy |
| Dimensions | 5.1 x 4 x 3.8 inches |
| Metric Dimensions | 129.37 x 101.26 x 95.26 millimeters |
| Weight | 2.62 pounds without body cap and CFexpress card |
Power:
| Battery Interface | Integrated V-Lock interface optimized for Micro V-Lock batteries |
| DC Power Input | 11 to 17 volts through 6 pin DC input |
Operating Environment:
| Operating Temperature | 0 to 40 degrees Celsius, 32 to 104 degrees Fahrenheit |
| Storage Temperature | Negative 20 to 50 degrees Celsius, negative 4 to 122 degrees Fahrenheit |
| Storage Relative Humidity | 0 to 85 percent noncondensing |
Color Management:
| Color Management | Image Processing Pipeline 2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment supported |
Audio:
| Integrated Audio | Dual channel digital mono microphones, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48V input through 5 Pin 00B Audio Port |
Autofocus and Monitoring:
| Autofocus | Phase Detect and Contrast |
| Integrated Display | 2.9 inch 1440 x 1440 touchscreen LCD with preview and camera control |
| Monitoring Output | Integrated 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
Connectivity:
| Wireless | Wi-Fi 2.4 GHz and 5 GHz for camera control, video preview, and media offloading |
| Wired Networking | Ethernet through USB Type-C for camera control, video preview, and media offloading |
| Live Stream | MJPEG 1080p through Wi-Fi and USB Type-C |
| Synchronization | PTP for frame level synchronization |
| Genlock Input | Tri Level Genlock through 9 Pin EXT |
| Timecode Input | LTC through 9 Pin EXT |
NIKKOR Z 28-135mm f/4 PZ Lens
Optics:
| Mount | Nikon Z Mount |
| Focal Length | 28 to 135 millimeters |
| Maximum Aperture | f/4 |
| Minimum Aperture | f/22 |
| Lens Construction | 18 elements in 13 groups |
| Diaphragm Blades | 9, rounded diaphragm opening |
| Maximum Reproduction Ratio | 0.25x from 55 to 135 millimeters |
| Filter Attachment Size | 95 millimeters |
Focusing:
| Focusing System | Internal focusing system |
| Minimum Focus Distance at 28 millimeters | 0.34 meter |
| Minimum Focus Distance at 35 millimeters | 0.34 meter |
| Minimum Focus Distance at 50 millimeters | 0.34 meter |
| Minimum Focus Distance at 70 millimeters | 0.39 meter |
| Minimum Focus Distance at 85 millimeters | 0.43 meter |
| Minimum Focus Distance at 105 millimeters | 0.49 meter |
| Minimum Focus Distance at 135 millimeters | 0.57 meter |
Dimensions and Weight:
| Dimensions | Approximately 105 x 177.5 millimeters |
| Weight with Tripod Collar | Approximately 1210 grams |
| Weight without Tripod Collar | Approximately 1120 grams |
