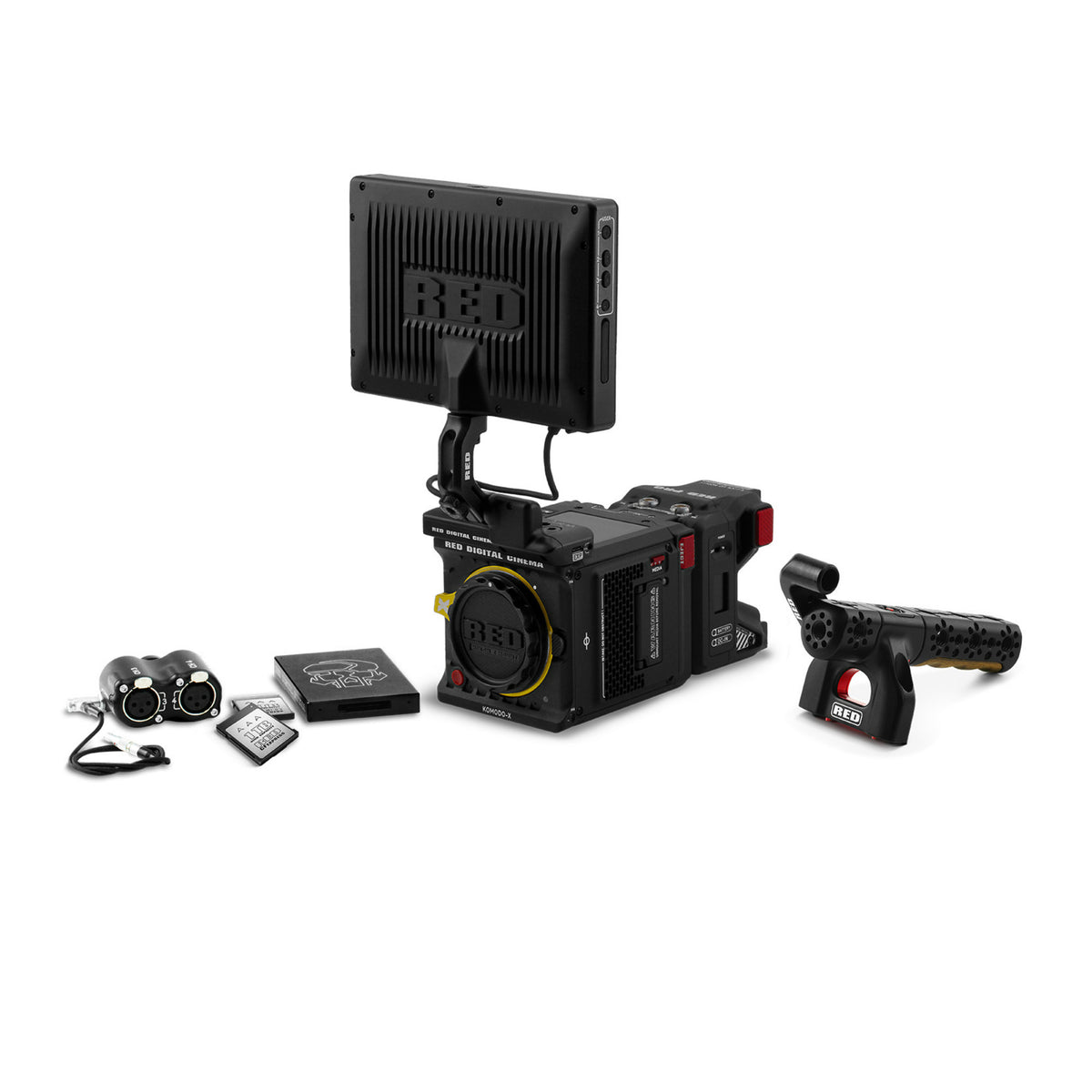

- KOMODO-X Z Mount Camera NOTE: POWER CORD NOT INCLUDED – MUST PURCHASE SEPARATELY

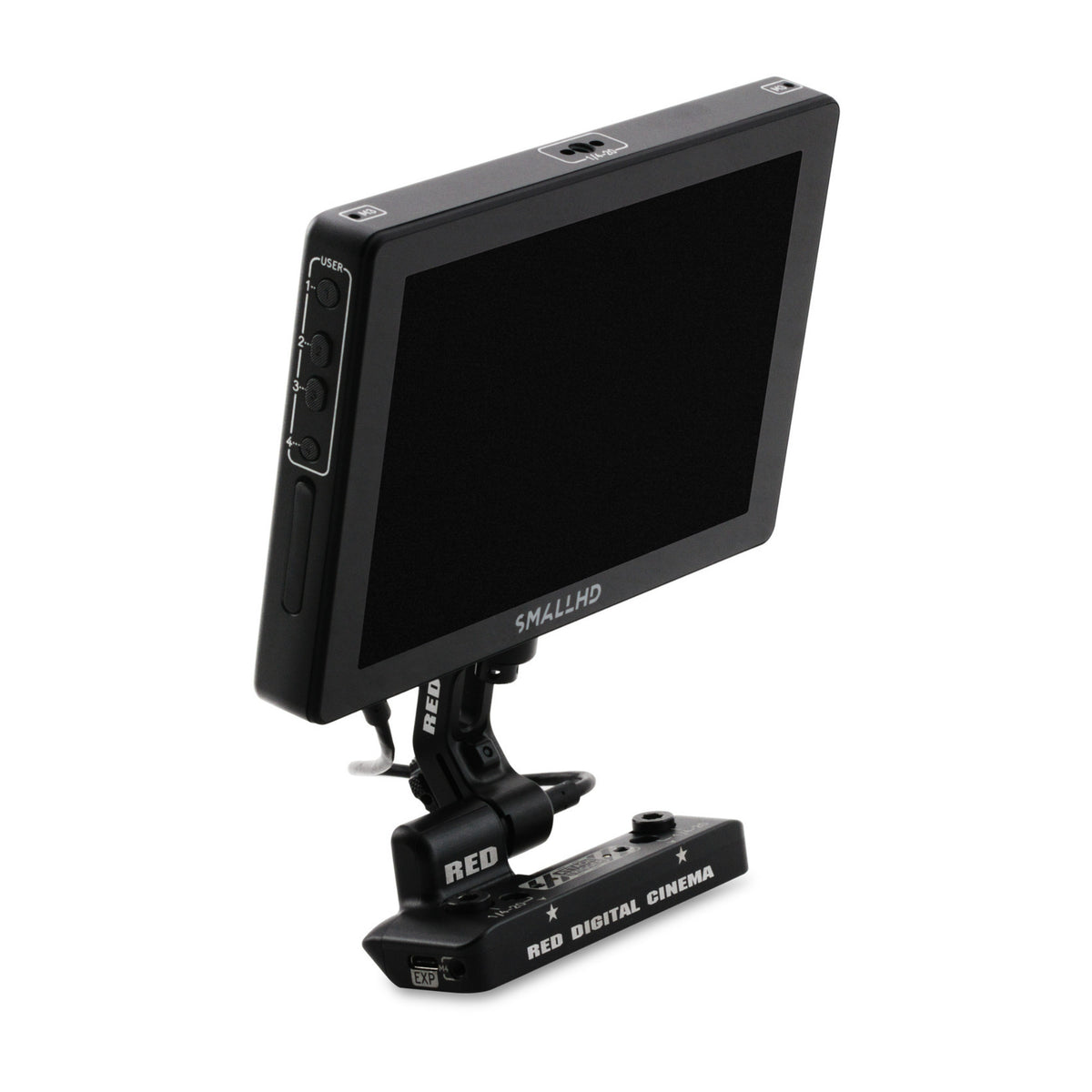

- DSMC3 RED Touch 7” LCD

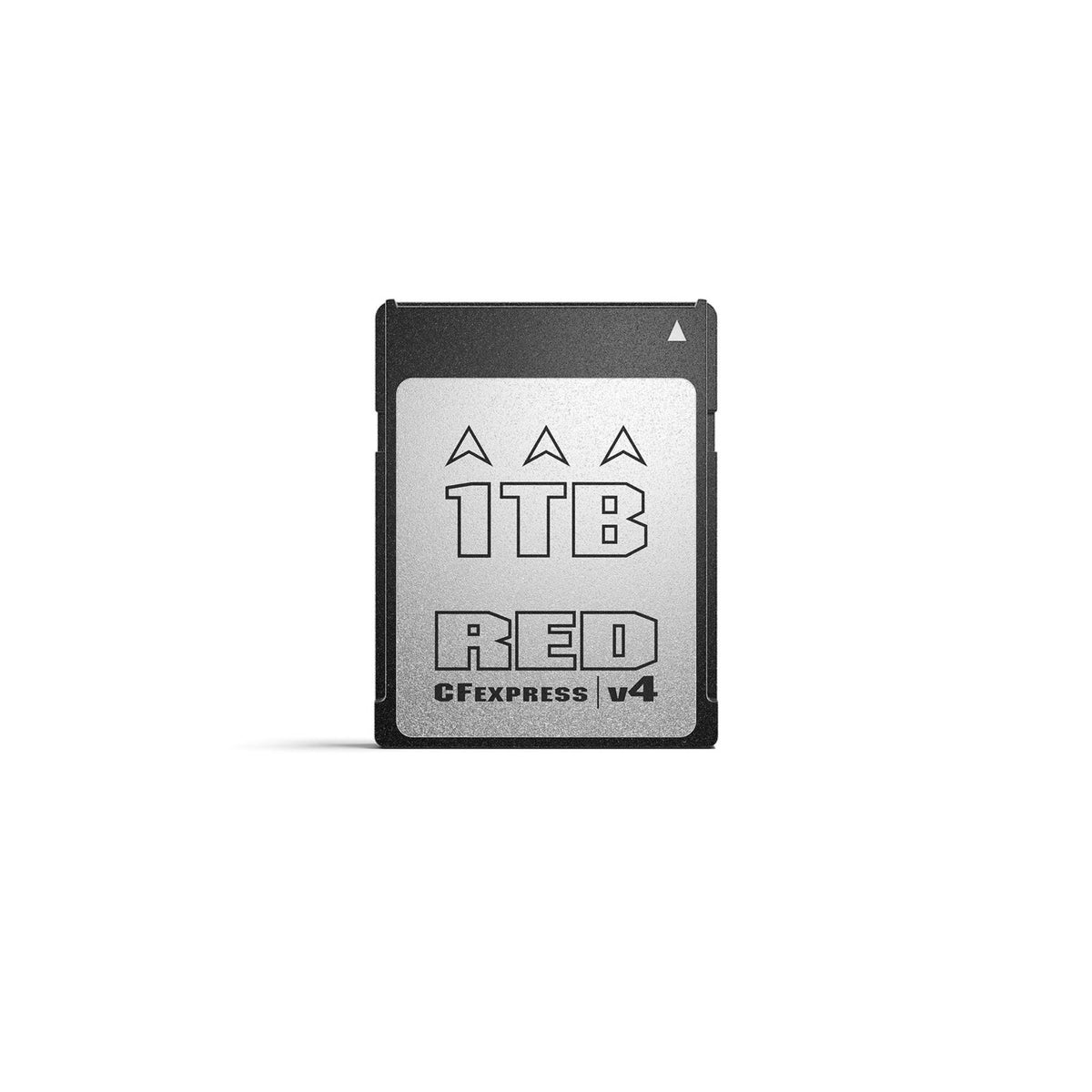

- 2x RED PRO CFexpress v4 Type B 1TB

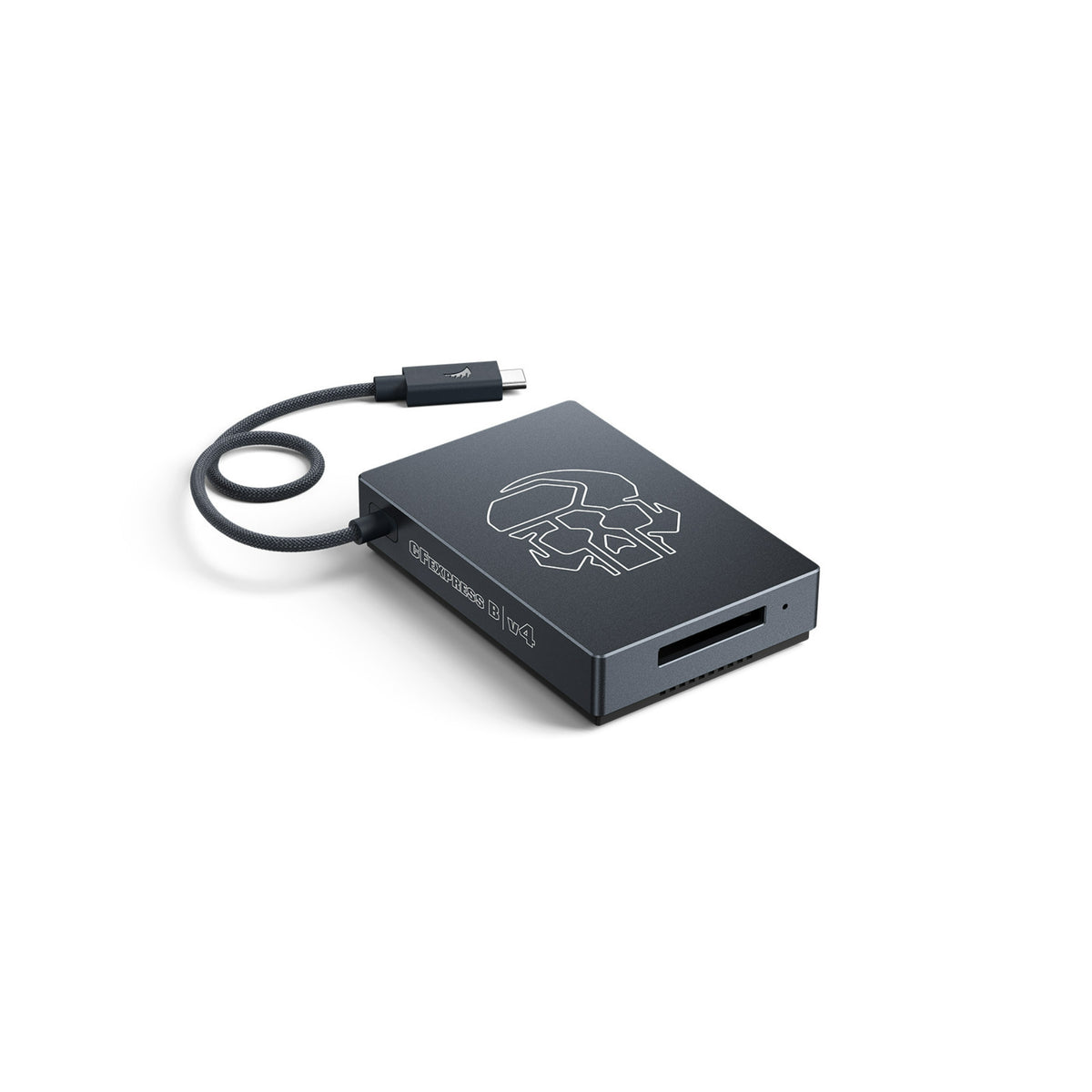

- RED PRO CFexpress v4 Type B Card Reader

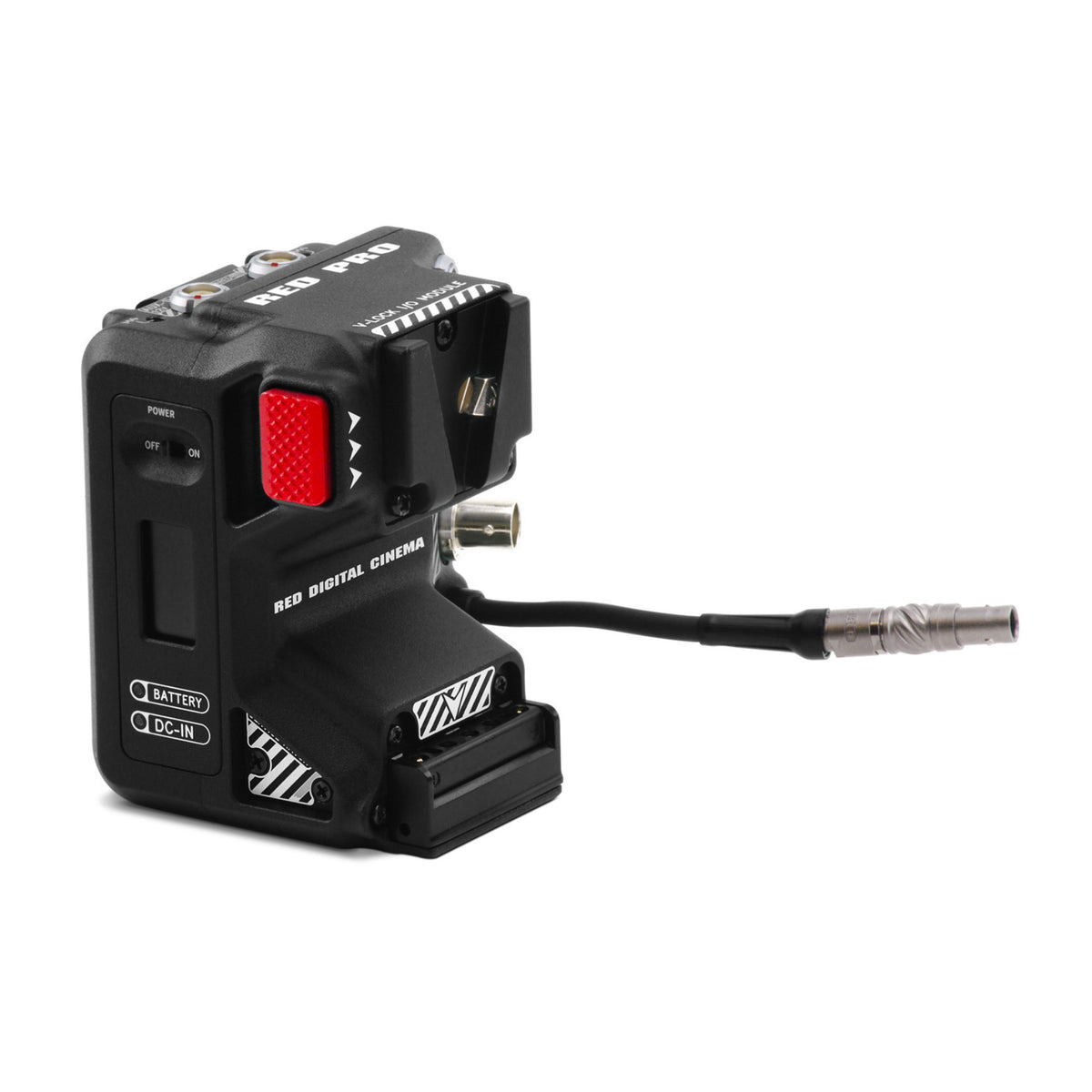

- RED Pro V-Lock I/O Module

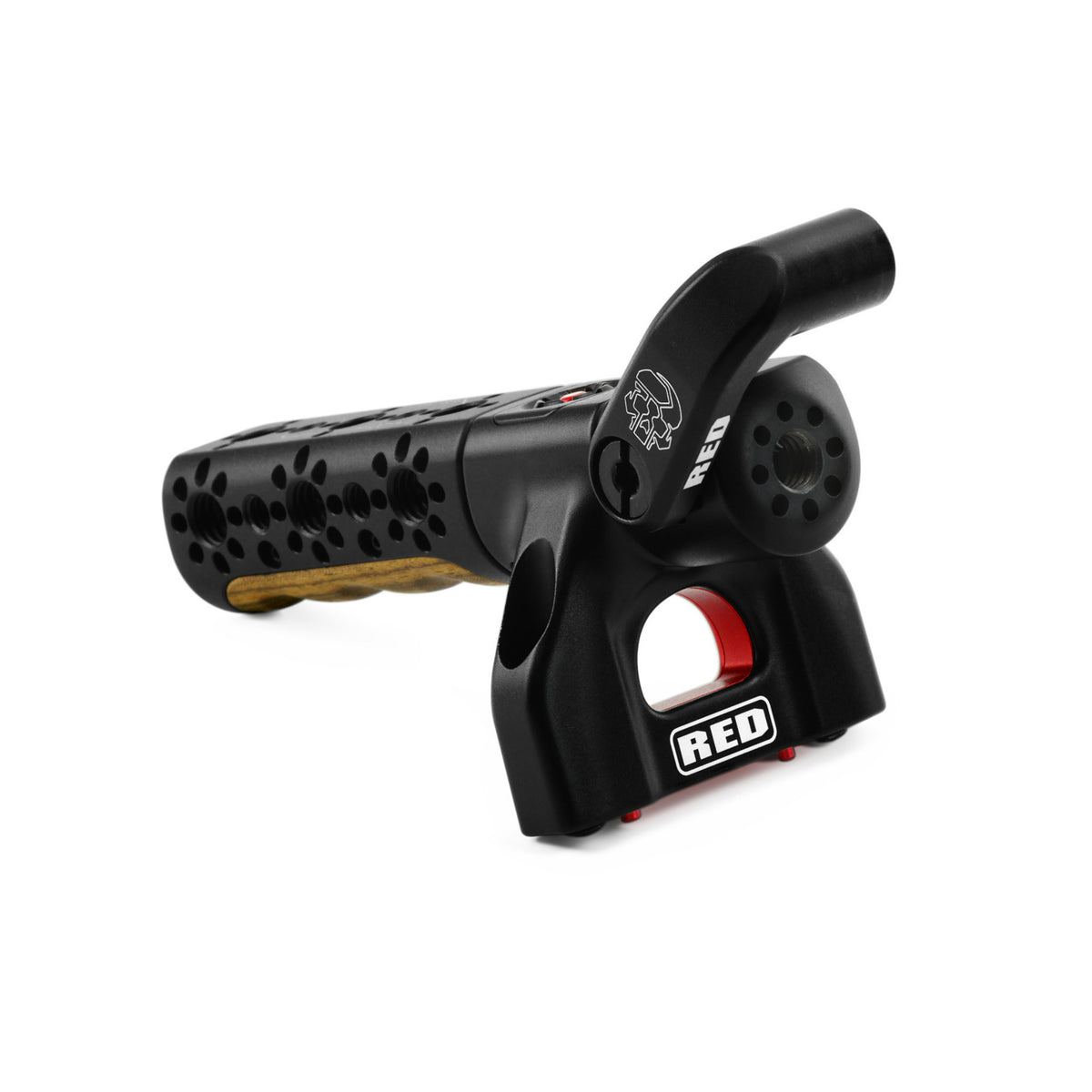

- RED Compact Top Handle

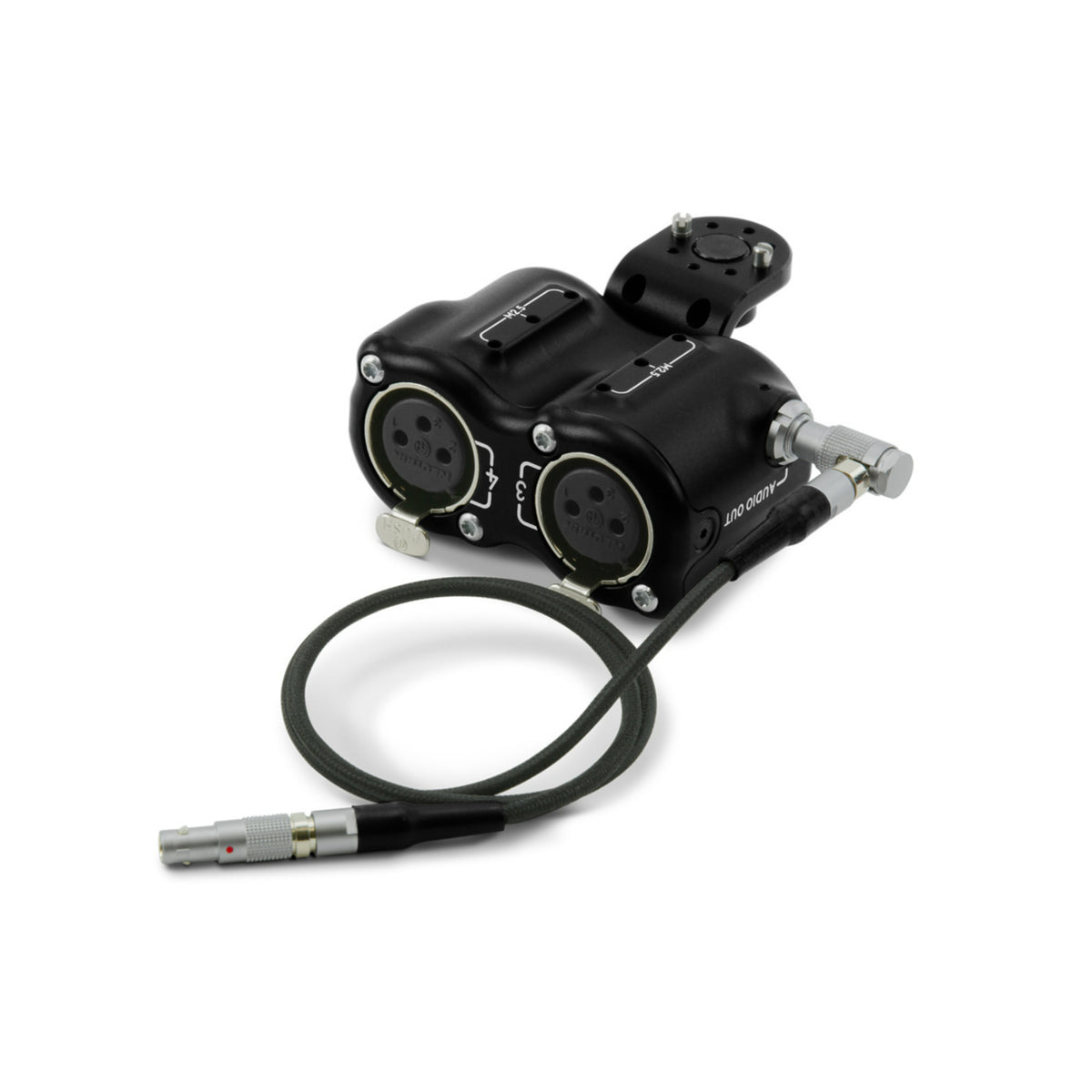

- DSMC3 RED 5-Pin to Dual XLR Adapter
- 1 Year Standard Warranty (camera only)
Trusted & Verified

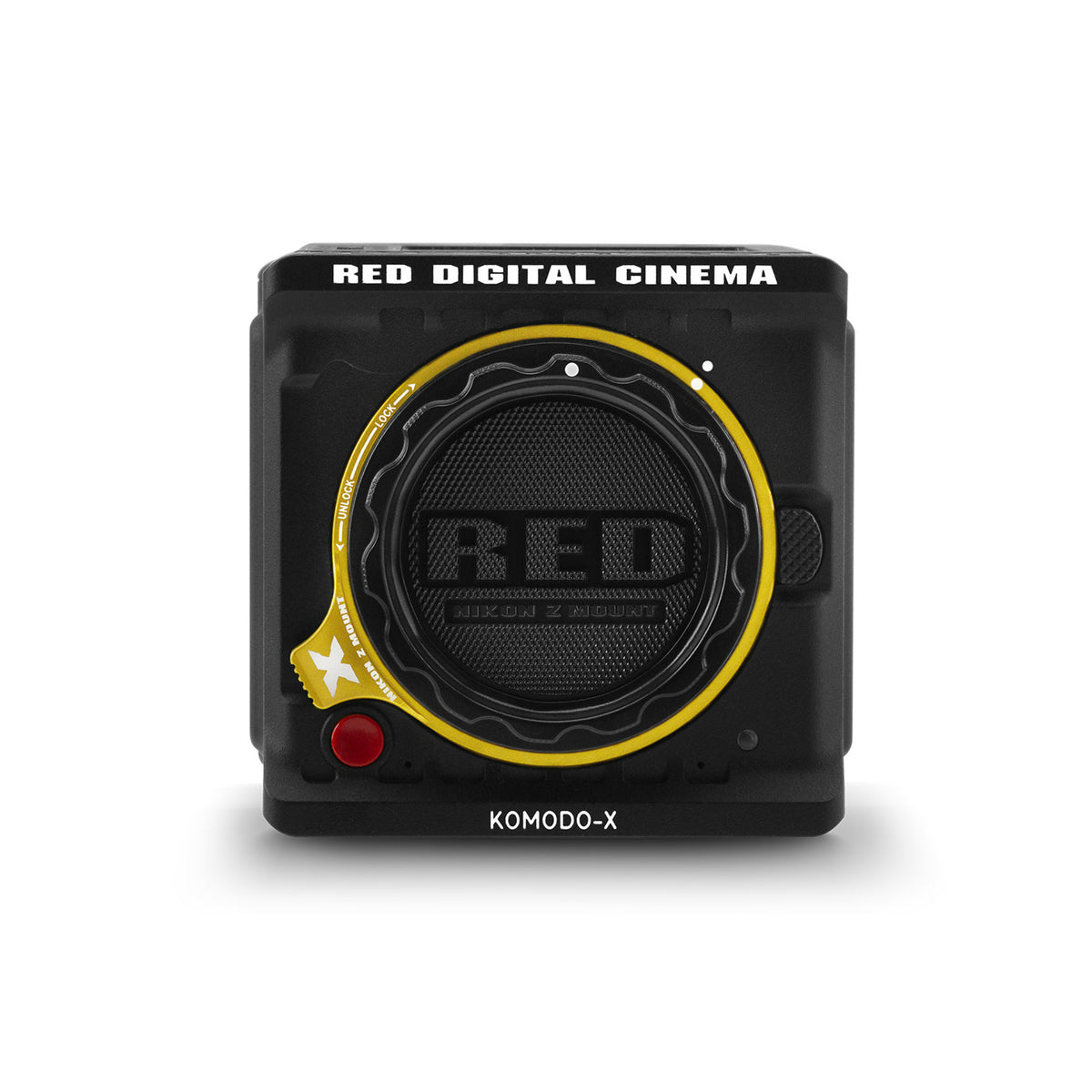

RED Digital Cinema KOMODO-X Z Mount Production Pack V-Lock
- 19.9 MP Super 35 global shutter CMOS sensor captures 6144 x 3240 effective pixels
- Records up to 6K 80 fps, 4K 120 fps, and 2K 240 fps
- Integrated locking Nikon Z Mount supports electronic lens communication
- Records REDCODE RAW to CFexpress Type B media at up to 560 MB/s
- Integrated V Lock interface is optimized for Micro V Lock batteries
- 2.9-inch 1440 x 1440 touchscreen supports preview and camera control
- Wi-Fi and USB Type-C support control, preview, and media offloading
- Compact aluminum alloy body weighs 2.62 pounds without body cap or media
The RED Digital Cinema KOMODO-X Z Mount combines a 19.9 MP Super 35 global shutter sensor, high frame rate REDCODE RAW recording, native Nikon Z lens support, and professional production connectivity in a compact cinema camera platform. Its 6144 x 3240 sensor measures 27.03 mm x 14.26 mm and delivers 16.5 plus stops of dynamic range. By exposing the entire frame simultaneously, the global shutter helps maintain image geometry during fast subject movement, camera motion, visual effects work, and synchronized multi camera production.
6K REDCODE RAW and High Frame Rate Capture
KOMODO-X records REDCODE RAW at up to 80 fps in 6K 17:9, 96 fps in 5K 17:9, 120 fps in 4K 17:9, and 240 fps in 2K 17:9. REDCODE HQ, MQ, LQ, and ELQ settings provide flexibility for balancing image requirements, frame rate, and media capacity. Qualified CFexpress Type B media supports data rates up to 560 MB/s. Apple ProRes recording is also available in 4K, including ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, 422, and 422 LT up to 120 fps.
Native Nikon Z Mount and Lens Flexibility
The integrated locking Nikon Z Mount supports Z Mount lenses with electronic communication and camera controlled iris, autofocus, image stabilization, and control ring functions on compatible optics. Professional PL lens workflows are also available through compatible RED Z to PL adapters, including Cooke /i communication on supported configurations. Phase detect and contrast autofocus provide additional focusing support with compatible lenses.
Monitoring, Control, and IP Workflow
An integrated 12G SDI output supports monitoring up to 4096 x 2160 4:2:2 at 60p, while the proprietary top accessory port supports compatible RED monitoring and control devices. The 2.9 inch 1440 x 1440 touchscreen provides image preview and direct camera control. Dual band Wi-Fi and USB C connectivity support camera control, video preview, and media offload, while PTP synchronization, tri level genlock, LTC timecode, and RS 232 control support coordinated multi camera and virtual production workflows. RED Connect compatibility enables licensed live 6K R3D broadcasting over IP.
V-Lock Production Pack Configuration
The aluminum alloy body measures 5.1 inches long by 4 inches wide by 3.8 inches high and weighs approximately 2.62 lb without the body cap and CFexpress card. An integrated V-Lock battery interface is optimized for Micro V-Lock batteries, while the 6 pin DC input accepts 11 to 17 V DC. This V-Lock Production Pack builds around the KOMODO-X Z Mount platform for productions that need a compact global shutter camera with expanded rigging, monitoring, power, and lens configuration options.
General
Imaging:
| Sensor Type | KOMODO-X 19.9 MP Super 35 mm Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 mm x 14.26 mm, 30.56 mm diagonal |
| Dynamic Range | 16.5 plus stops |
Lens Mount:
| Mount Type | Integrated locking Nikon Z Mount with electronic communication |
| PL Lens Support | Supports compatible PL lenses with RED PL adapters |
Recording:
| Maximum Data Rate | Up to 560 MB/s using RED branded or other qualified CFexpress media cards |
| Media Type | CFexpress Type B |
| 6K Maximum Frame Rate | 80 fps at 6K 17:9, 6144 x 3240 |
| 5K Maximum Frame Rate | 96 fps at 5K 17:9, 5120 x 2700 |
| 4K Maximum Frame Rate | 120 fps at 4K 17:9, 4096 x 2160 |
| 2K Maximum Frame Rate | 240 fps at 2K 17:9, 2048 x 1080 |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps |
| REDCODE Settings | HQ, MQ, LQ, and ELQ |
| ProRes Recording | 4K ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 formats up to 120 fps |
Body:
| Construction | Aluminum Alloy |
| Dimensions | 5.1 inches x 4 inches x 3.8 inches, largest fixed dimensions |
| Weight | 2.62 pounds without body cap and CFexpress card |
Power:
| Battery Interface | Integrated V-Lock battery interface optimized for Micro V-Lock batteries |
| DC Power | 11 V to 17 V through 6 Pin DC-IN |
Display and Monitoring:
| Integrated Display | 2.9 inch 1440 x 1440 touchscreen LCD with preview and camera control |
| Monitor Output | Integrated 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
Audio:
| Integrated Audio | Dual channel digital mono microphones, uncompressed 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and plus 48 V input through 5 Pin 00B Audio Port |
| Headphone Output | 3.5 mm stereo headphone port |
Focus:
| Autofocus | Phase Detect and Contrast |
Connectivity:
| Wireless | Wi-Fi 2.4 GHz and 5 GHz |
| USB Connectivity | Ethernet over USB Type C for camera control, preview, and media offloading |
| Live Stream | MJPEG 1080p through Wi-Fi and USB Type C |
| Synchronization | PTP frame level synchronization |
| Additional I/O | Tri Level Genlock input, LTC timecode input, and RS232 control through 9 Pin EXT |
Environmental:
| Operating Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | Negative 20 degrees C to 50 degrees C, negative 4 degrees F to 122 degrees F |
| Relative Humidity | 0 percent to 85 percent, noncondensing |
Color Management:
| Color Pipeline | Image Processing Pipeline 2 |
| LUT Support | 33 x 33 x 33 3D LUTs |
| CDL Support | Import and adjustment supported |
