- 1 x RED DIGITAL CINEMA KOMODO-X Z Mount 6K Digital Cinema Camera
- 1 x RED DIGITAL CINEMA 1TB PRO CFexpress v4 Type B Memory Card
- 1 x RED DIGITAL CINEMA PRO CFexpress v4 Type B Card Reader
- 1 x RED DIGITAL CINEMA DSMC3 RED Touch 7.0-inch LCD with Rigid Hinge
- 1 x RED DIGITAL CINEMA Compact Top Handle
- 1 x RED DIGITAL CINEMA DSMC3 5 Pin to Dual XLR Adapter
- 1 x RED DIGITAL CINEMA RED Pro I/O Module, Gold Mount
Trusted & Verified

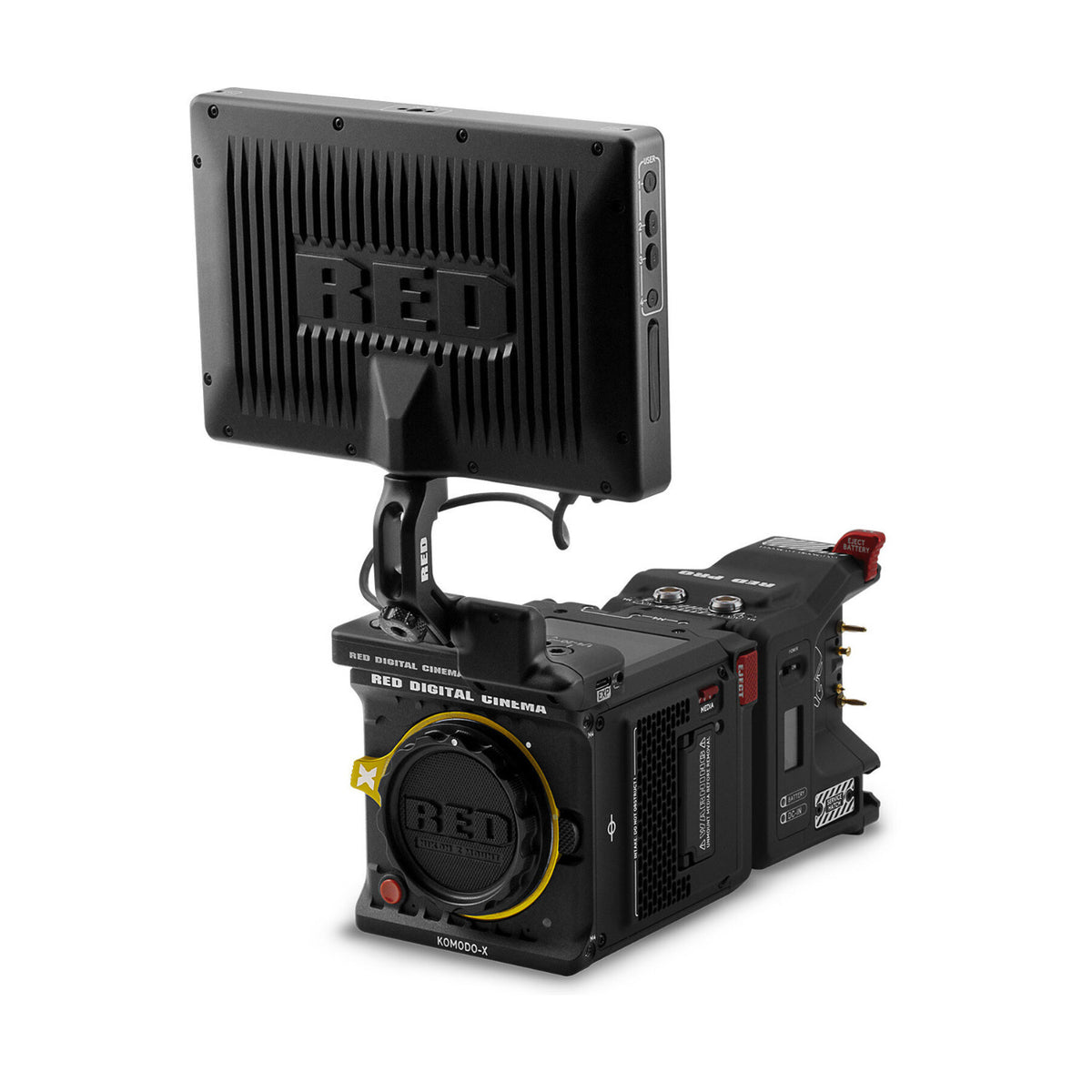

RED DIGITAL CINEMA KOMODO-X Z Mount Production Pack (Nikon Z, Gold Mount)
- 19.9 MP Super 35 global shutter CMOS sensor for 6K digital cinema capture
- Records 6K 17:9 up to 80 fps, 4K 17:9 up to 120 fps, and 2K 17:9 up to 240 fps
- Locking Nikon Z Mount supports electronic lens communication
- Adjustable autofocus speed, smooth iris control, and customizable lens response
- Integrated 2.9-inch 1440 x 1440 touchscreen for preview and camera control
- 12G SDI output supports up to 4096 x 2160 4:2:2 at 60p
- Wi-Fi and Ethernet over USB Type-C support control, preview, and media offloading
- Integrated Micro V Lock interface supports compact battery mounting
The RED DIGITAL CINEMA KOMODO-X Z Mount camera combines a 19.9 MP Super 35 global shutter sensor, 6K capture up to 80 fps, and a locking Nikon Z Mount in a compact digital cinema body. This 7-item bundle expands the camera with recording media, offload, monitoring, handling, audio, and power connectivity for production workflows.
6K Global Shutter Camera
Capture 6144 x 3240 REDCODE RAW at up to 80 fps, 4K 17:9 up to 120 fps, and 2K 17:9 up to 240 fps. The camera supports data rates up to 560 MB/s with qualified CFexpress media, an integrated 2.9-inch 1440 x 1440 touchscreen, 12G SDI output, Wi-Fi, and Ethernet over USB Type-C.
1TB PRO CFexpress v4 Type B Media
The included 1TB RED PRO CFexpress v4 Type B card is RED certified for KOMODO-X and supports camera data rates up to 560 MB/s. Its capacity gives the bundle a RED-tested recording option for high bit rate capture.
PRO CFexpress v4 Type B Card Reader
Move footage through a USB4 connection up to 40 Gb/s. The reader is bus powered and uses a USB Type-C cable for host connectivity.

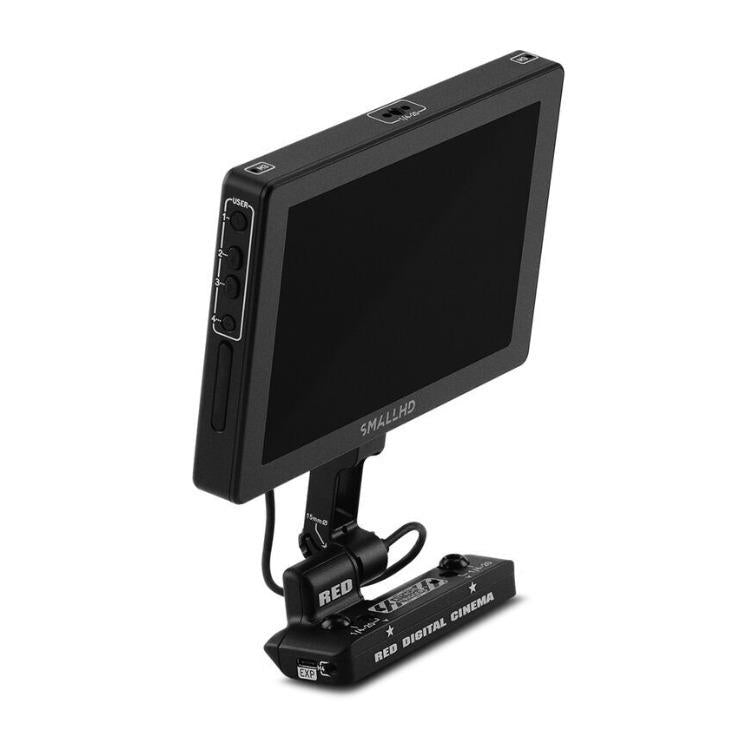

DSMC3 RED Touch 7.0-inch LCD with Rigid Hinge
Monitor and control the camera on a 1920 x 1200 touchscreen with 1300 cd/m² brightness, 322 ppi, and 100% DCI P3 coverage. PageOS tools include waveform, vectorscope, histogram, false color, color picker, and pixel zoom.

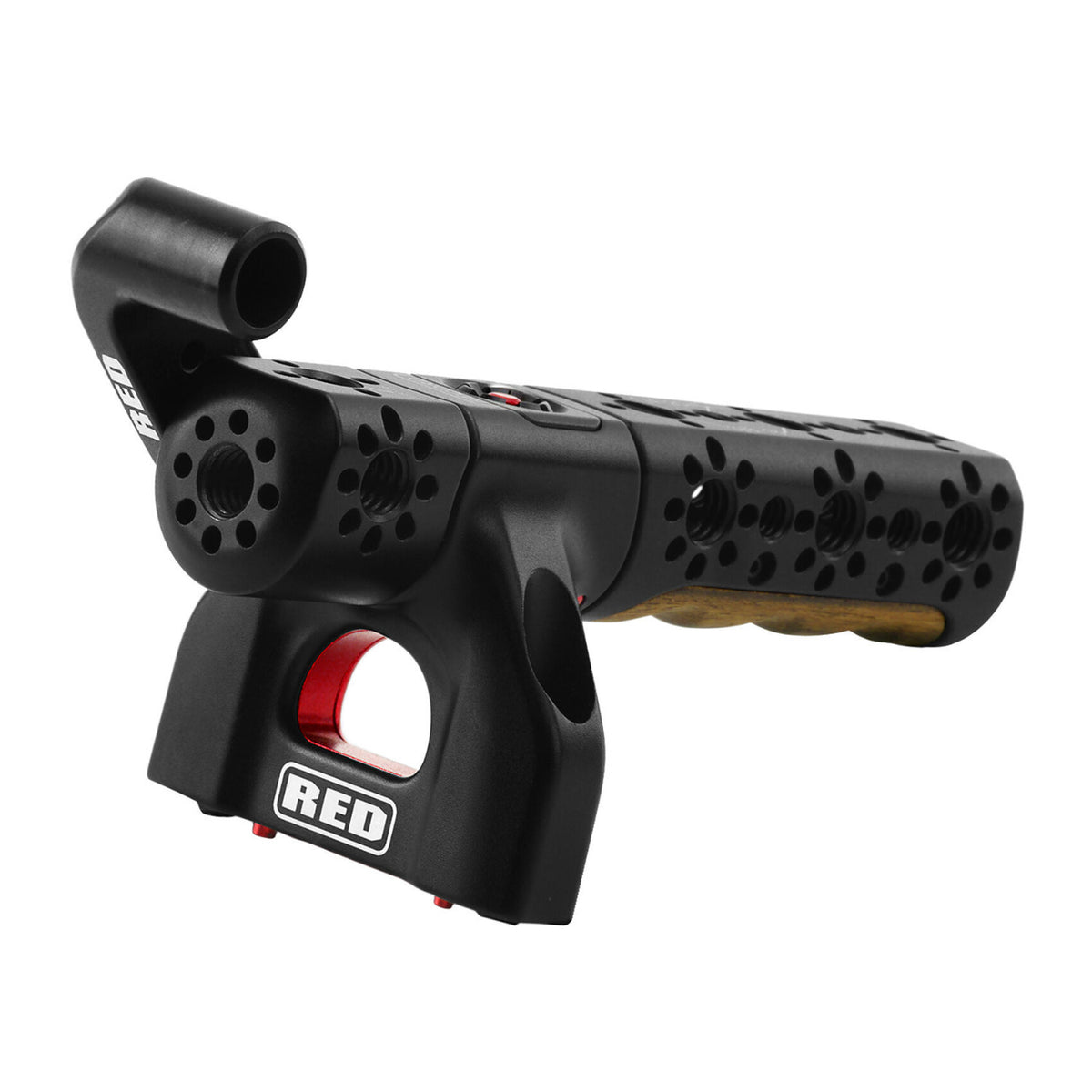

Compact Top Handle
The top-mounted handle adds Bocote wood inlays, a camera trigger, front and rear extensions, and a 15 mm monitor mount for handheld and rigged operation.

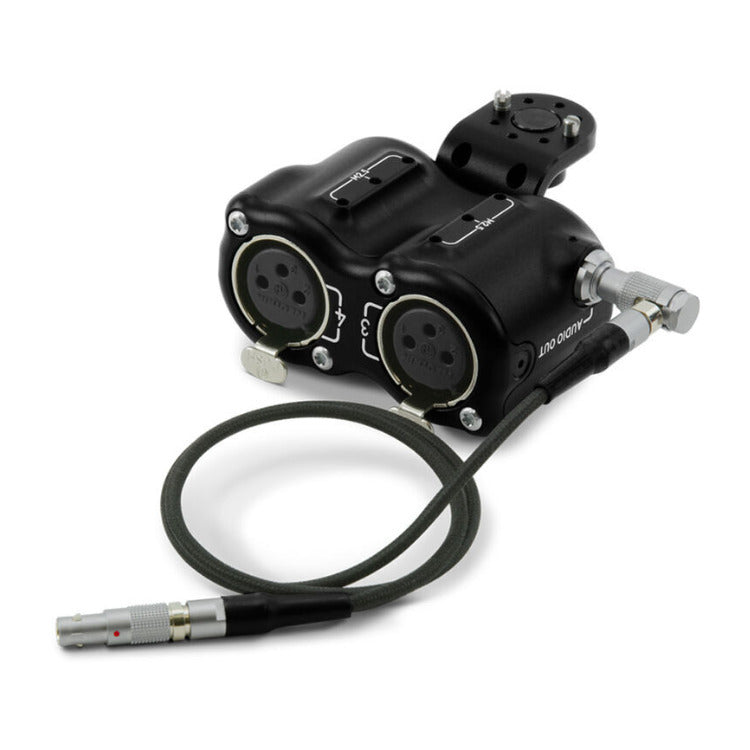

DSMC3 5 Pin to Dual XLR Adapter
Expand the camera audio path to two 3 Pin XLR inputs with 48 V phantom power plus mic and line input support.

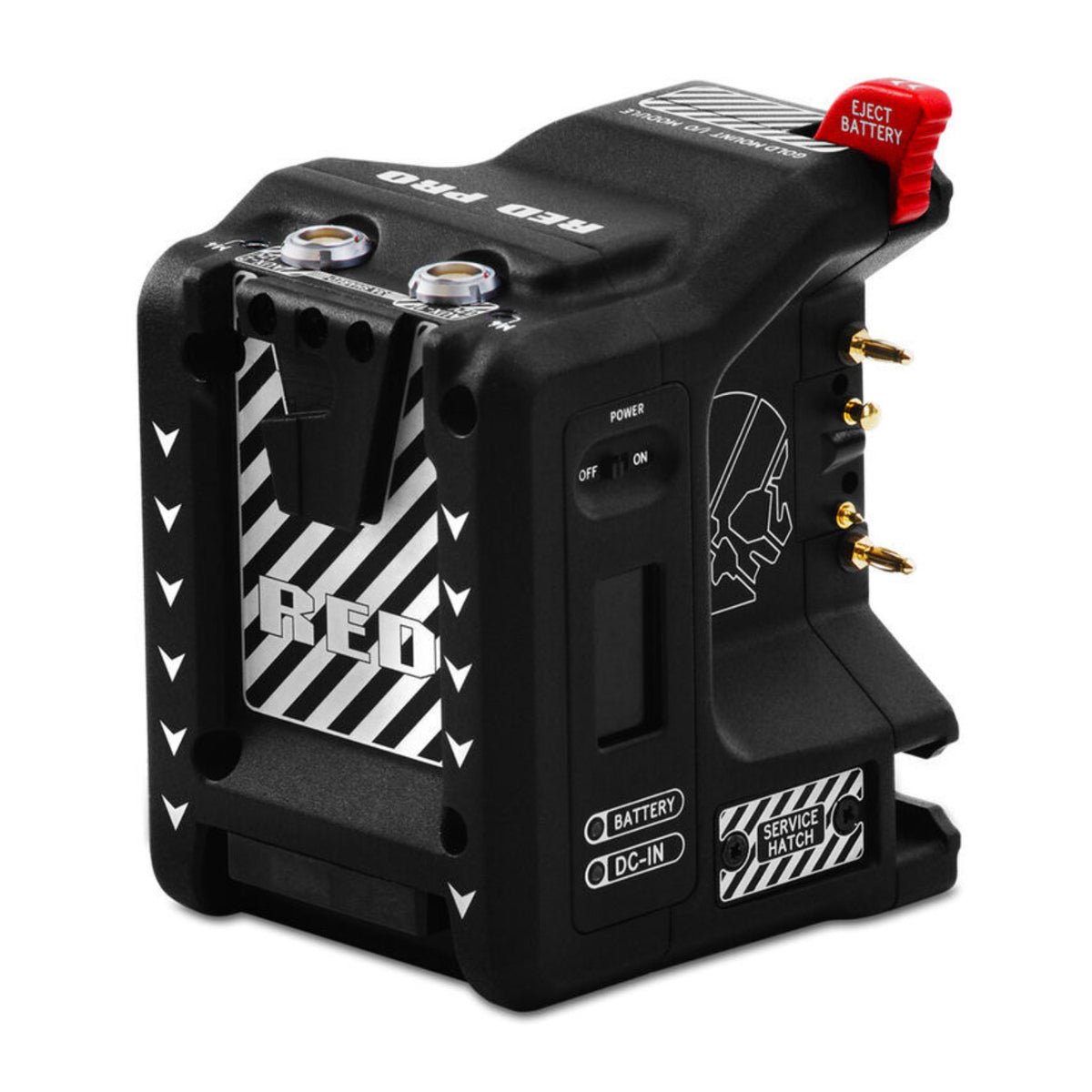

RED Pro I/O Module, Gold Mount
Add Gold Mount battery support plus timecode, genlock, control, 24 V run stop, 12 V auxiliary power, and DC power connections. The operator side screen shows voltage and battery percentage with compatible batteries.

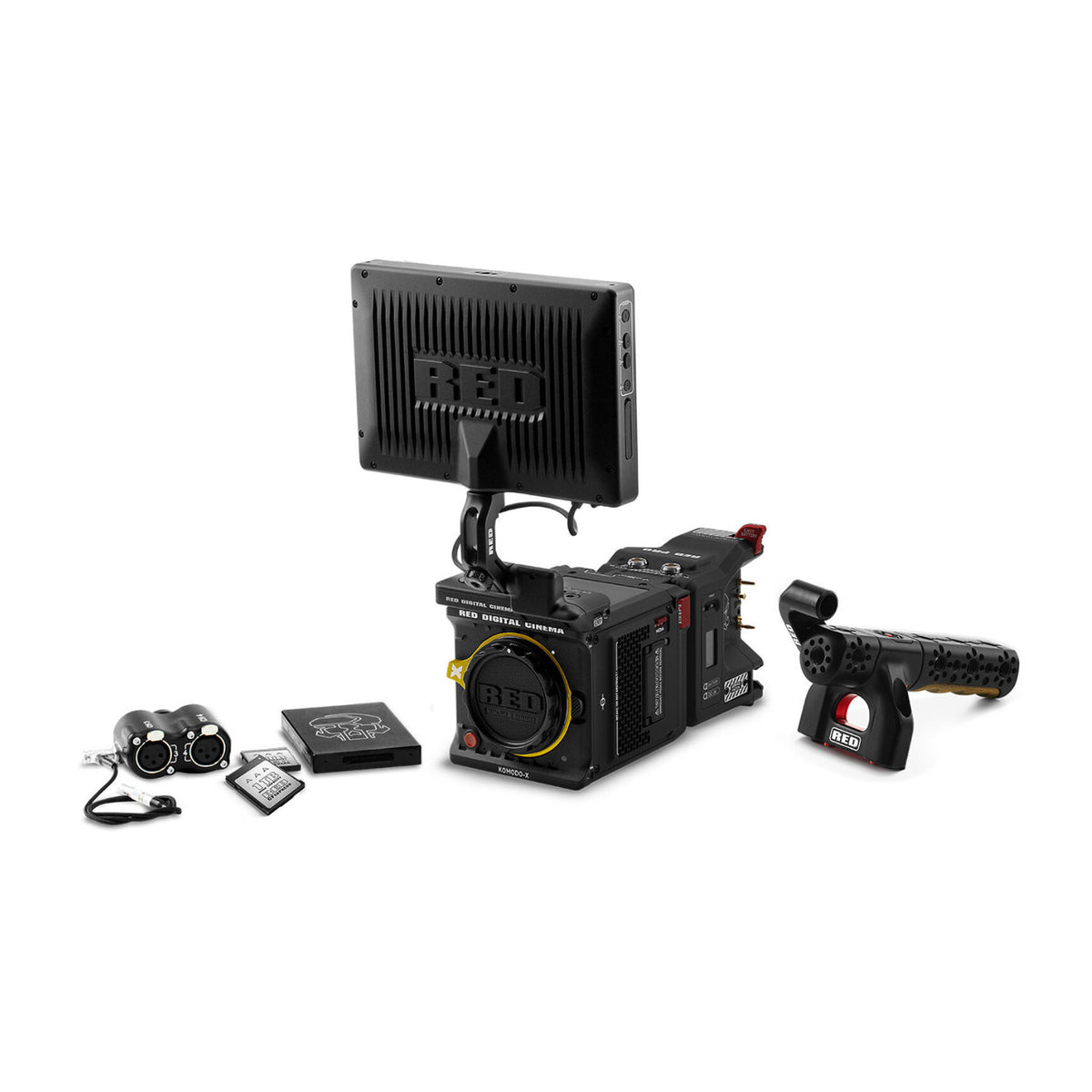

The complete package combines capture, media, monitoring, audio, handling, and power expansion around the KOMODO-X Z Mount platform.
General

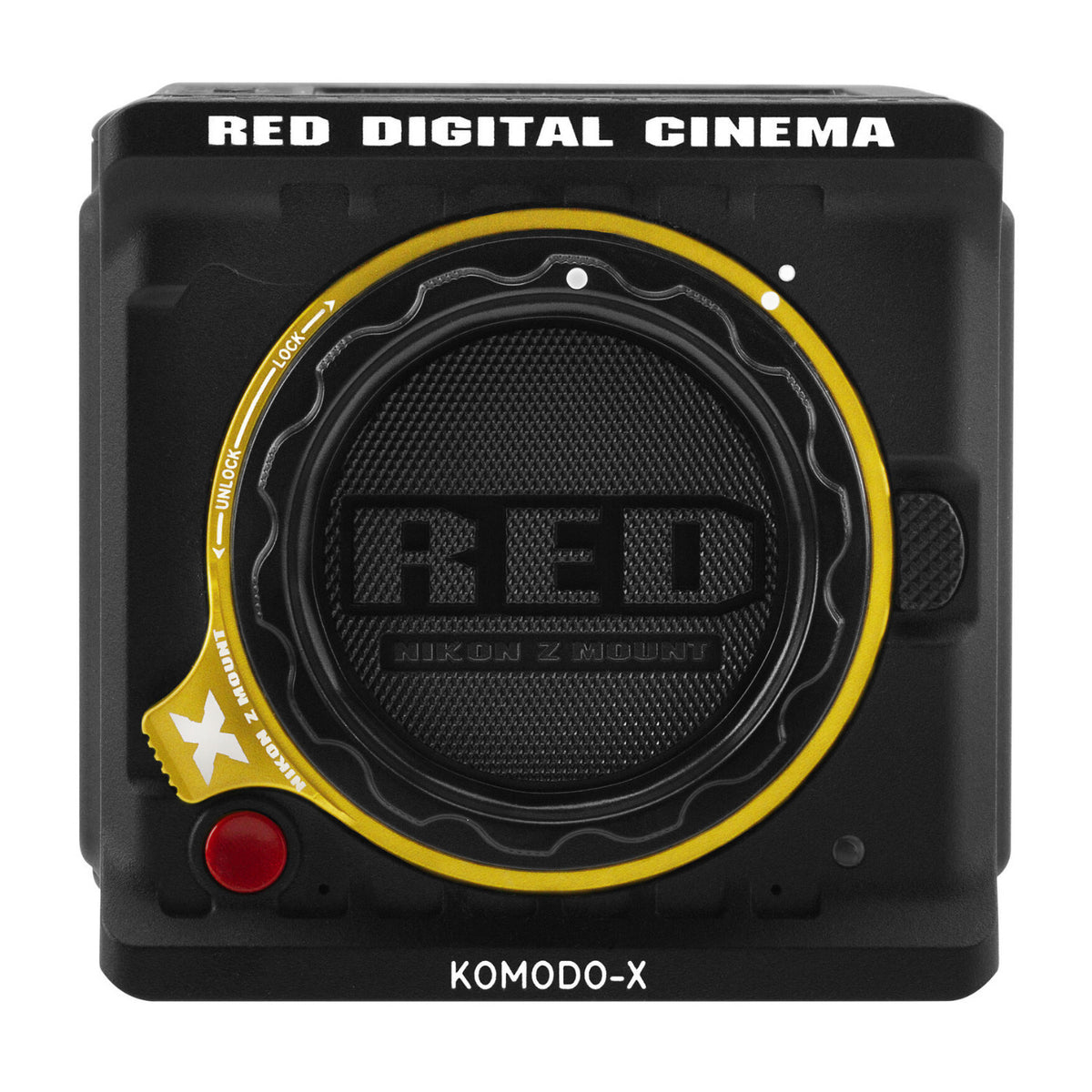

RED DIGITAL CINEMA KOMODO-X Z Mount Camera:
| Sensor Type | KOMODO-X 19.9 MP Super 35 mm Global Shutter CMOS |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03 mm x 14.26 mm, diagonal 30.56 mm |
| Dynamic Range | 16.5+ stops |
| Mount Type | Integrated locking Nikon Z Mount with electronic communication |
| Lens Adapter Support | Supports /i PL lenses with RED PL Adapters and other adapters based on Nikon Z Mount |
| Max Data Rate | Up to 560 MB/s using RED branded or other qualified CFexpress media cards |
| Maximum Frame Rates | 80 fps at 6K 17:9, 96 fps at 5K 17:9, 120 fps at 4K 17:9, 240 fps at 2K 17:9 |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| REDCODE Settings | HQ, MQ, LQ, and ELQ |
| REDCODE RAW 6K Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x |
| REDCODE RAW 5K Formats | 17:9 and 16:9 |
| REDCODE RAW 4K Formats | 17:9 and 16:9 |
| REDCODE RAW 2K Format | 17:9 |
| ProRes Recording | 4K 4096 x 2160 ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps |
| Construction | Aluminum alloy |
| Dimensions | 5.1 inch x 4 inch x 3.8 inch, 129.37 mm x 101.26 mm x 95.26 mm |
| Weight | 2.62 lb without body cap and CFexpress card |
| Media Type | CFexpress Type B |
| Battery Type | Integrated V Lock battery interface optimized for Micro V Lock batteries |
| DC Power | 11 V to 17 V through 6 Pin DC input |
| Operating Temperature | 32 degrees F to 104 degrees F, 0 degrees C to 40 degrees C |
| Storage Temperature | Negative 4 degrees F to 122 degrees F, negative 20 degrees C to 50 degrees C |
| Relative Humidity | 0% to 85%, noncondensing |
| Color Management | Image Processing Pipeline 2, supports 33 x 33 x 33 3D LUTs and CDL import and adjustment |
| Audio | Integrated dual-channel digital mono microphones, 24-bit 48 kHz |
| Audio Input | Integrated dual-channel mic, line, and 48 V input through 5 Pin 00B Audio Port, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo headphone port |
| Autofocus | Phase Detect and Contrast |
| Integrated Monitor | 2.9-inch 1440 x 1440 touchscreen LCD with preview and camera control |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI Output | Up to 4096 x 2160 4:2:2 at 30p |
| 3G SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI Output | Up to 2048 x 1080 4:2:2 at 30p and 24p |
| Additional I/O | Tri-level genlock input, LTC timecode input, and RS232 control through the 9 Pin EXT port |
| Wireless | Wi-Fi 2.4 GHz and 5 GHz for camera control, video preview, and media offloading |
| Wired Networking | Ethernet over USB Type C for camera control, video preview, and media offloading |
| Live Stream | MJPEG 1080p through Wi-Fi and USB Type C |
| Synchronization | PTP for frame-level synchronization |
| IP Broadcast | R3D live broadcasting available with RED Connect license and 5 Gbps Ethernet adapter |
| Control Software | RED Control App and RED Control Pro App |
RED DIGITAL CINEMA 1TB PRO CFexpress v4 Type B Memory Card:
| Capacity | 1TB |
| Usable Capacity | 1024.21 GB, 953.87 GiB |
| Media Standard | CFexpress v4 Type B |
| Camera Compatibility | KOMODO-X, V-RAPTOR, V-RAPTOR XL |
| KOMODO-X Max Data Rate | Up to 560 MB/s |
| Operating Temperature | 14 degrees F to 158 degrees F, negative 10 degrees C to 70 degrees C |
| Storage Temperature | Negative 4 degrees F to 185 degrees F, negative 20 degrees C to 85 degrees C |
| Operating Humidity | 5% to 95%, noncondensing |
| Shock Resistance | 50 g |
| Vibration Resistance | 15 g at 10 Hz to 2000 Hz |
| Weight | Approximately 0.25 oz, 7.1 g |
| Dimensions | 1.52 inch x 1.17 inch x 0.15 inch, 38.5 mm x 29.6 mm x 3.8 mm |
RED DIGITAL CINEMA PRO CFexpress v4 Type B Card Reader:
| Media Read | CFexpress v4 Type B |
| Interface | USB Type-C 4.0 Gen 3x2 cable to CFexpress v4 Type B |
| Maximum Connection Speed | Up to 40 Gb/s with a USB4 host port |
| Power | USB bus power |
| Cable | USB Type-C 4.0 Gen 3x2 cable |
| Weight | Approximately 6.17 oz, 175 g |
| Dimensions | 3.84 inch x 2.56 inch x 0.85 inch, 97.5 mm x 65 mm x 21.5 mm |
RED DIGITAL CINEMA DSMC3 RED Touch 7.0 inch LCD with Rigid Hinge:
| Material | Aluminum alloy |
| Resolution | 1920 x 1200 |
| Pixel Density | 322 ppi |
| Refresh Rate | 60 Hz |
| Response Time | 25 ms |
| Contrast | 1250:1 |
| Brightness | 1300 cd/m² |
| Color Depth | 10 bit, 8 bit panel |
| Color Gamut | 100% DCI P3 |
| Viewing Angle | Plus or minus 160 degrees on all axes |
| Touch | pCap Multi Touch |
| Camera Connection | Power and communication through the RED Monitor Interface cable |
| Mounting | 15 mm rail |
| Hood Mounting | 4 x M3 mounting points |
| Buttons | 4 function buttons |
| Power Consumption | 15.5 W |
| Operating Temperature | 32 degrees F to 104 degrees F, 0 degrees C to 38 degrees C |
| Operating Humidity | 0% to 85%, noncondensing |
| Monitor Weight | Approximately 1.25 lb, 568 g |
| Monitor Dimensions | 4.67 inch x 7.09 inch x 1.13 inch, 118.70 mm x 180.10 mm x 28.80 mm |
| Hinge | Rigid hinge |
| KOMODO-X Compatibility | Supported |
RED DIGITAL CINEMA Compact Top Handle:
| Compatibility | KOMODO-X |
| Construction | Machined aluminum alloy with Bocote wood inlays |
| Control | Camera trigger |
| Front Extension | 1 inch |
| Rear Extension | 3 inch |
| Monitor Mount | 15 mm |
RED DIGITAL CINEMA DSMC3 5 Pin to Dual XLR Adapter:
| Camera Compatibility | KOMODO-X |
| Camera Connection | 5 Pin Audio Port |
| Audio Outputs | 2 x 3 Pin XLR ports |
| Phantom Power | 48 V |
| Input Support | Mic and line |
RED DIGITAL CINEMA Pro I/O Module, Gold Mount:
| Camera Compatibility | KOMODO-X |
| Battery Mount | Gold Mount |
| Camera Mounting | Rear Micro V Lock plate and 9 Pin EXT Port |
| DC Power Input | 6 Pin socket |
| Genlock | BNC |
| Control | 4 Pin 00B ODU RS232 port |
| Timecode | 5 Pin |
| Run Stop Power | 1 x 3 Pin 24 V regulated Fischer R/S port, 3 A maximum |
| Auxiliary Power | 2 x 2 Pin 12 V unregulated AUX ports, 3 A combined maximum |
| Status Screen | Displays voltage and battery percentage with compatible batteries |
