- 1 x V-Raptor XE RF-Mount Camera System

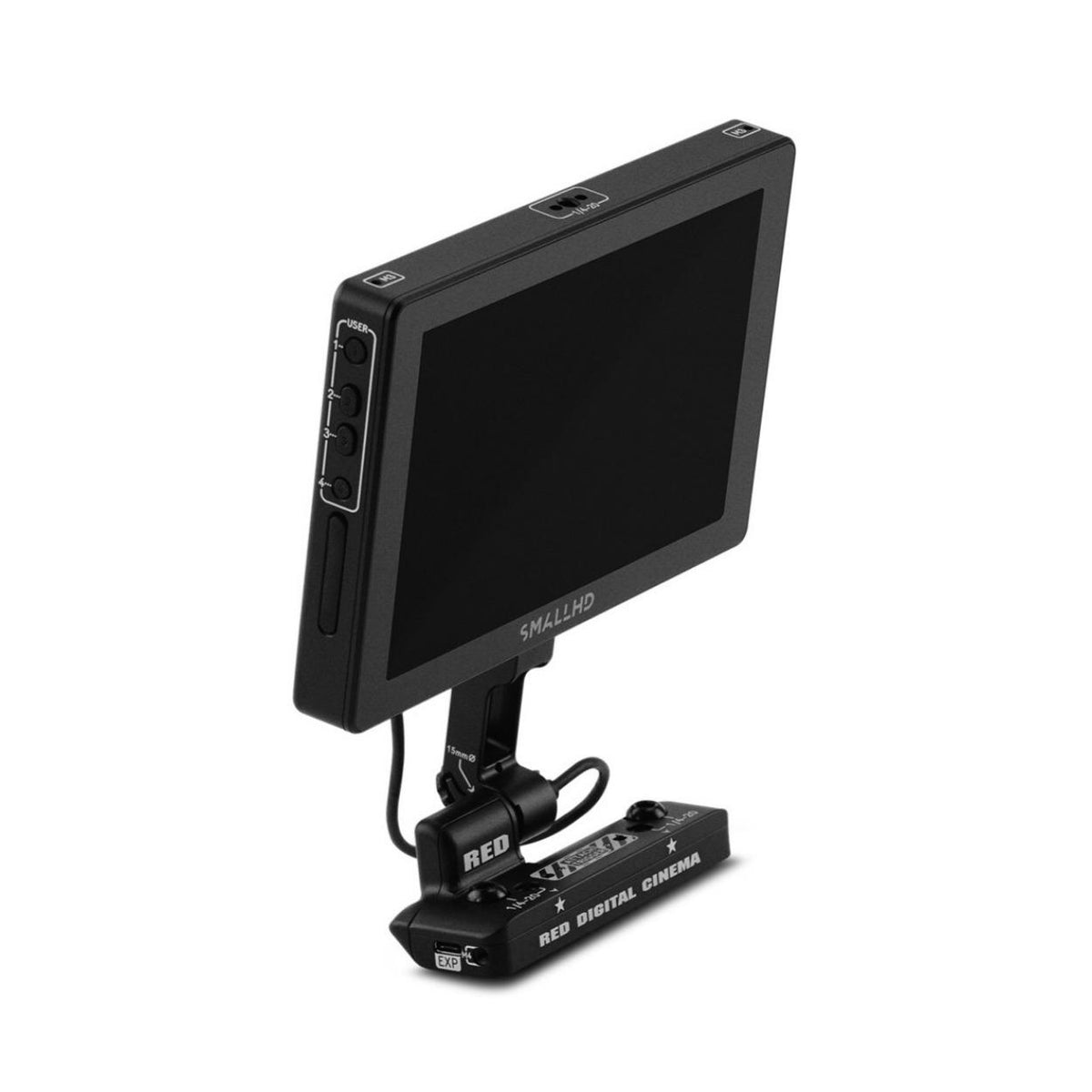

- 1 x DSMC3 Red Touch 7-inch LCD

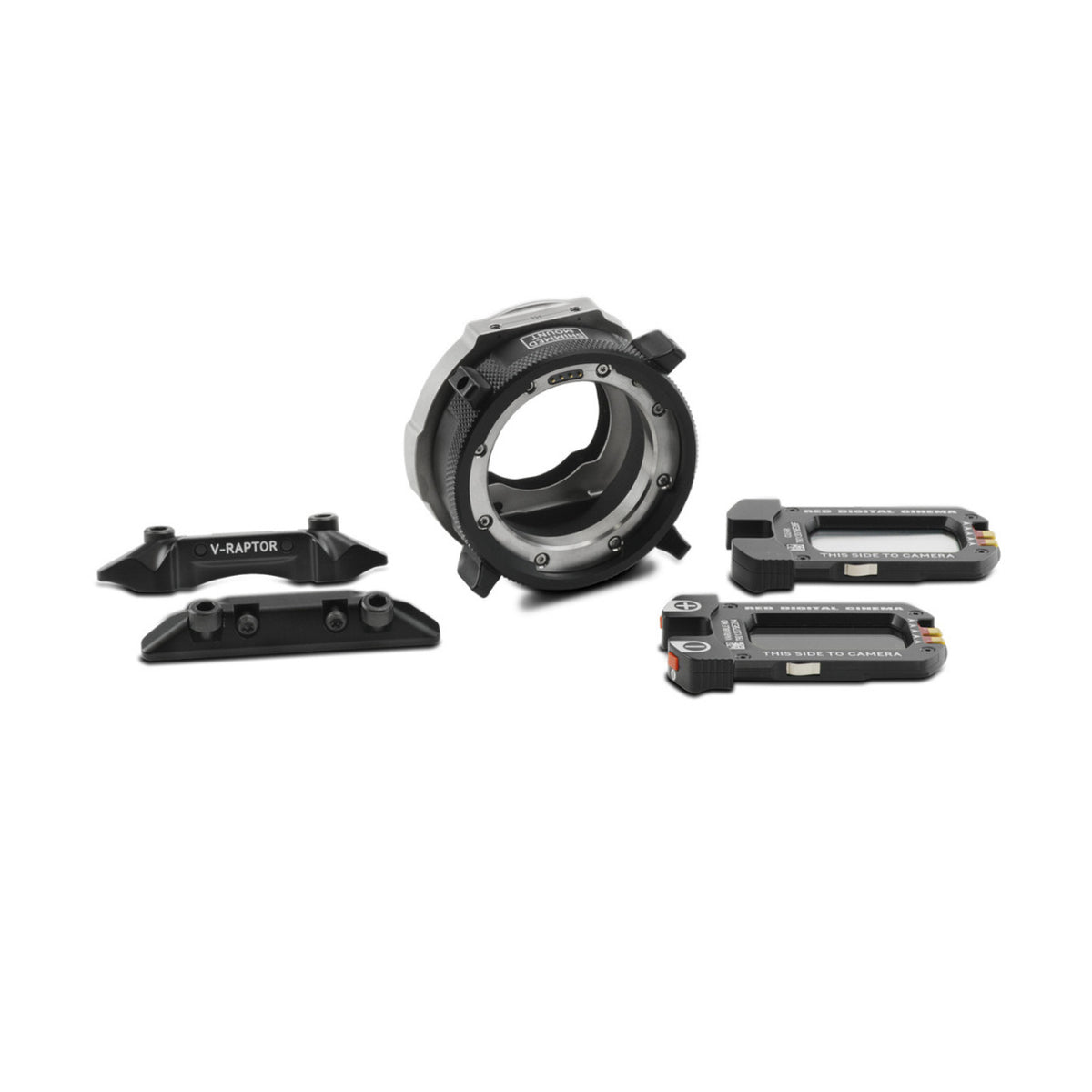

- 1 x Red V-Raptor RF to PL Adapter
- 1 x Electronic ND Filter Adapter Pack

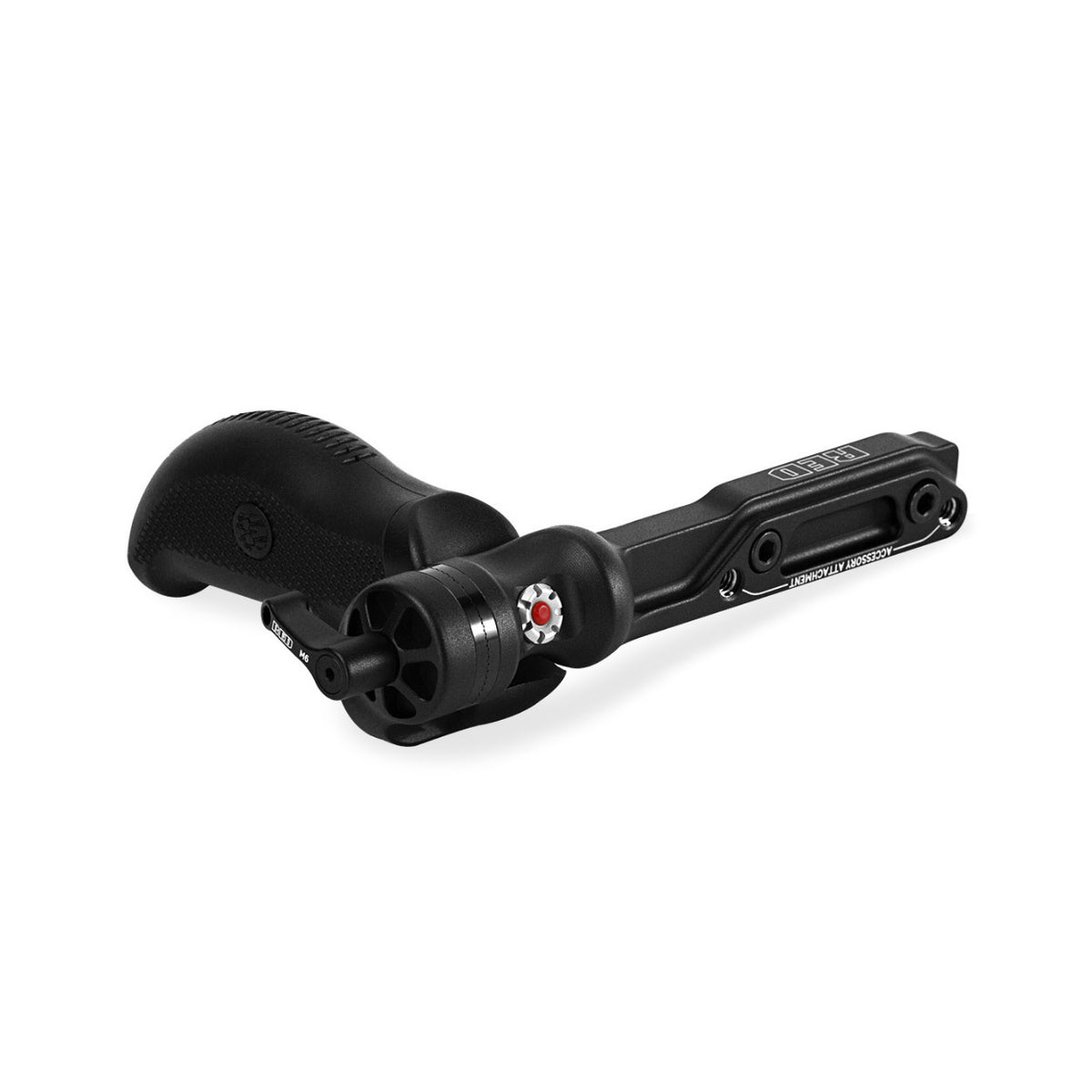

- 1 x Komodo Outrigger Handle
Trusted & Verified

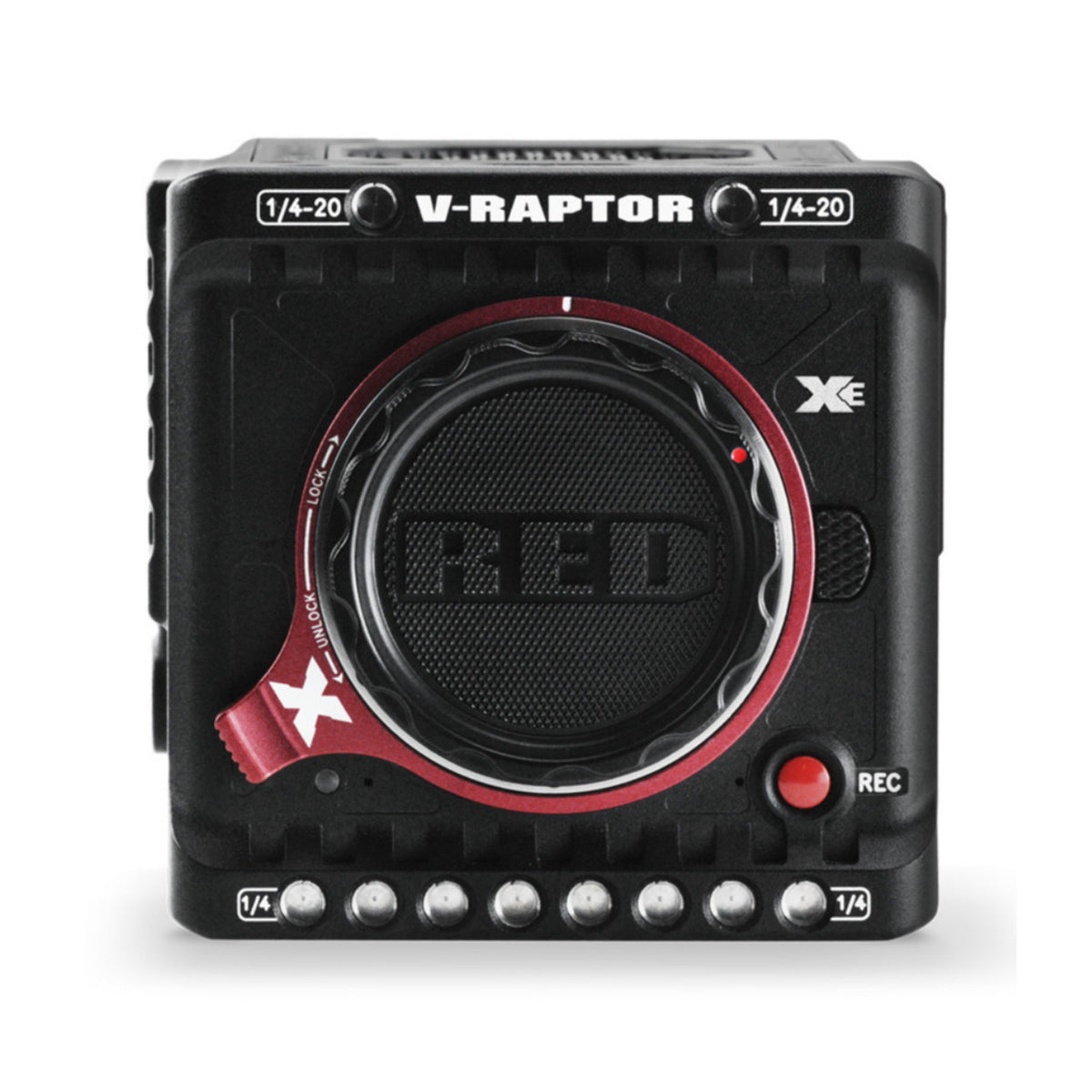

RED Digital Cinema V-RAPTOR XE RF-Mount 8K Digital Camera Cine Essentials Pack with Dual 12G SDIs
- 8K VV Global Shutter Sensor
- High-resolution Cinema Video Capture
- Records R3D at 8K/60P, 4K/120P, and 2K/240P
- RF-Mount Compatible
- Dual 12G SDI Outputs
- CFexpress Type-B Media Support
- Supports Pre-record and Simultaneous Proxy Recording
- Built-in Cloud Upload Integration with Frame.io and AWS
- Wireless and Wired Remote Control with RED Control
The RED Digital Cinema V-RAPTOR XE RF-Mount brings the 35.4 MP 8K VV global shutter sensor platform into a streamlined DSMC3 cinema camera designed around essential production features. Its 8192 x 4320 sensor delivers 17 plus stops of dynamic range across a 40.96 x 21.60 mm imaging area. The global shutter captures the full frame simultaneously, helping maintain image geometry during fast motion while the large format 8K image provides resolution for reframing, stabilization, visual effects, and high resolution finishing.
8K REDCODE RAW and High Frame Rate Capture
V-RAPTOR XE records REDCODE RAW at up to 60 fps in 8K 17:9 and 75 fps in 8K 2.4:1. Lower resolution formats extend capture to 120 fps at 4K 17:9 and 240 fps at 2K 17:9. Qualified CFexpress Type B media supports data rates up to 800 MB/s. Apple ProRes recording is available in formats up to 4096 x 2160, with simultaneous ProRes proxy recording available up to 2K 60p for productions that need a faster editorial handoff.
Locking RF Mount and Electronic ND
The locking RF mount supports compatible RF lenses and can be adapted for cinema lens workflows. This Cine Essentials Pack includes the RED RF to PL Adapter with Electronic ND Filter Pack, adding a robust PL mount solution with Cooke /i communication and integrated electronic ND. The ND system provides 2 to 7 stops of density adjustment in selectable 1/4, 1/3, or full stop increments, allowing exposure to be controlled without changing the intended aperture.
Professional Monitoring and Connected Workflow
Dual 12G SDI outputs support independent monitoring paths with 10 bit 4:2:2 output up to 4096 x 2160 at 60p. Tri level genlock, LTC timecode, RS 232 control, USB C, dual band Wi-Fi, and compatible Ethernet connectivity support synchronized and remotely operated productions. RED Control provides camera control and live preview, while supported network workflows include Camera to Cloud upload to Frame.io or Amazon S3 and compatibility with RED Connect for live 8K R3D video over IP.

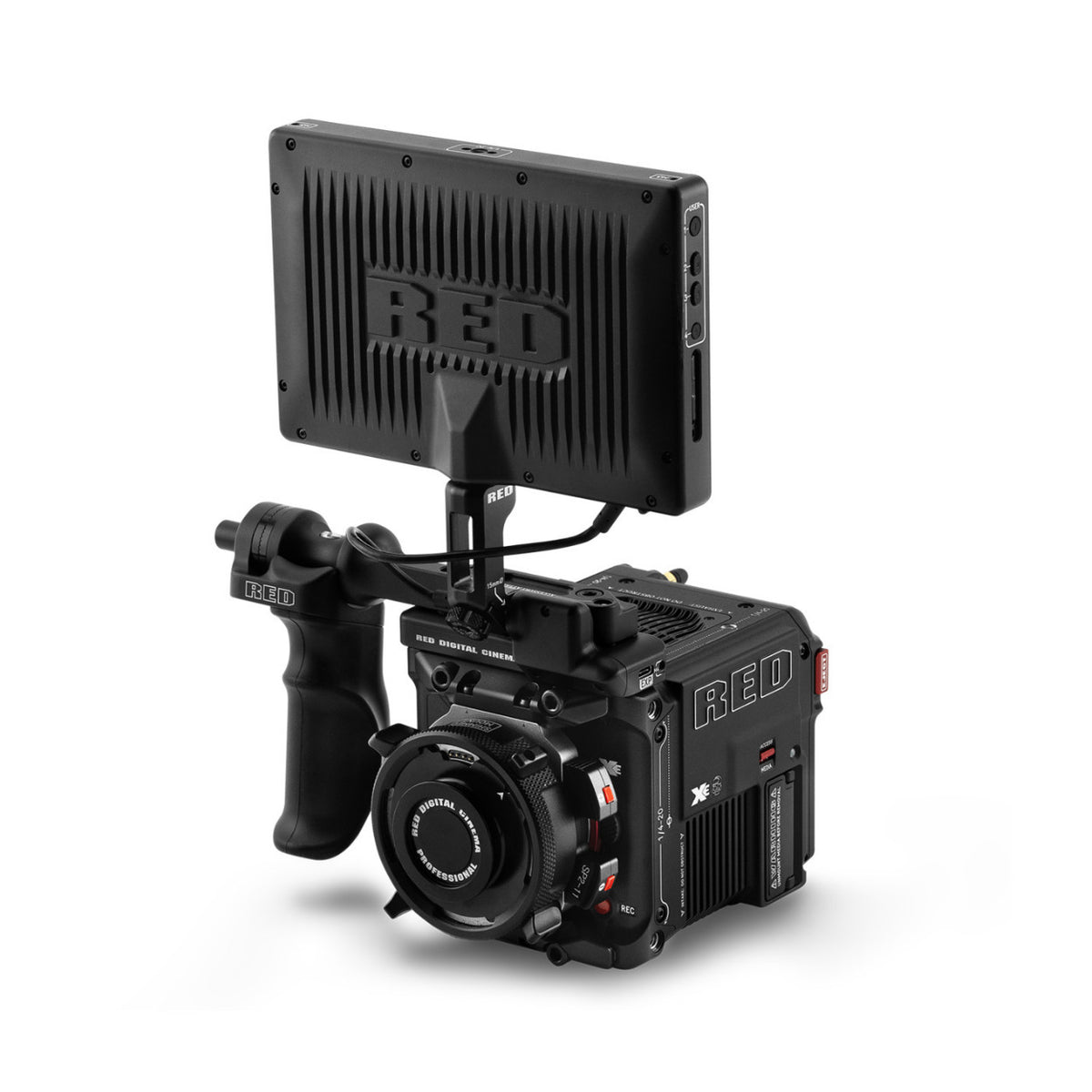

Cine Essentials Pack
The aluminum alloy camera body measures 5.9 x 4.5 x 4.3 inches and weighs approximately 4.03 lb without the body cap and CFexpress card. The Cine Essentials Pack pairs the V-RAPTOR XE RF-Mount camera with the RF to PL Electronic ND Filter Adapter Pack, DSMC3 RED Touch 7.0 inch LCD, and Outrigger Handle. Together, these components provide lens adaptation, integrated exposure control, on camera monitoring, and a practical handheld control point for narrative, documentary, commercial, and studio configurations.
| Sensor Type | V-RAPTOR XE 8K VV 35.4MP Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) |
| Dynamic Range | 17+ stops |
| Mount Type | Integrated Locking RF-Mount with electronic communication. Supports /i PL lenses with RED RF to PL Adapters. Supports Canon EF Adapter with communication and other adapters based on the RF mount. |
| Max Data Rates | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| REDCODE RAW Max Frame Rates | 60fps at 8K 17:9, 75 fps at 8K 2.4:1, 70 fps at 7K 17:9, 87 fps at 7K 2.4:1, 80 fps at 6K 17:9, 100 fps at 6K 2.4:1, 96 fps at 5K 17:9, 120 fps at 5K 2.4:1, 120 fps at 4K 17:9, 150 fps at 4K 2.4:1, 160 fps at 3K 17:9, 200 fps at 3K 2.4:1, 240 fps at 2K 17:9, 300 fps at 2K 2.4:1 |
| Best Available REDCODE Settings | REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps / REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 80 fps / REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 120 fps / REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 240 fps |
| REDCODE Raw Acquisition Formats | 8K at 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x / 7K at 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x / 6K at 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x / 5K at 17:9, 2:1, 2.4:1, 16:9, 1:1 / 4K at 17:9, 2:1, 2.4:1, 16:9, 1:1 / 3K at 17:9, 2:1, 2.4:1, 16:9, 1:1 / 2K at 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| Apple Pro-Res | Dedicated Recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) at 120P / Proxy Recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P. |
| Construction | Aluminum Alloy |
| Dimensions (LxWxH) | 149.63 x 115.5 x 108 mm (5.9 x 4.5 x 4.3 inches) |
| Weight | 4.03 lbs. (1.83 kg) (without body cap and CFexpress card) |
| Media Type | CFexpress Type-B |
| Battery Type | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries |
| DC Power Input | 11-17 V via 6-Pin DC-IN |
| Operating Temperature | 0 to 40 degrees C (32 to 104 degrees F) |
| Storage Temperature | -20 to 50 degrees C (-4 to 122 degrees F) |
| Storage Relative Humidity | 0% to 85% non-condensing |
| Color Management | Image Processing Pipeline 2 (IPP2) / Supports 33x33x33 3D LUTs / Supports import and adjustment of CDLs |
| Audio | 1 x Integrated Dual Channel digital mono microphones, uncompressed, 24-bit 48 kHz. 1 x Integrated Dual Channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz. 1 x 3.5mm Stereo Headphone Port |
| Autofocus | Phase Detect with Face Detection |
| IP Connected | Dual Band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3. / Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload. / Compatible with optional RED Connect license for live 8K R3D video over USB-C to Ethernet adapter. |
| Monitor Outputs | Proprietary Top Accessory Port for Monitoring and Control / Integrated Dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes / 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p / 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p / 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p / 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p / SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
| Monitor Options | DSMC3 RED Touch 7-inch LCD, RED Compact EVF with DSMC3 Adapter A, Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing, and Integrated 2.4-inch LCD for camera control (no preview video) |
| Additional I/O | Tri-Level Genlock Input via 9-Pin EXT, LTC Timecode Input via 9-Pin EXT, and RS232 CTRL (using RCP2) via 9-Pin EXT |
| Red Control and Red Control Pro | Access full camera controls and live preview from iOS or Android devices. Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. Standard app available from the Apple App Store and Google Play Store. RED Control Pro available via Apple App store only and requires additional purchase. RED Control works wirelessly or wired via USB-C. |
| Manufacturer Warranty | 2-Year Standard Warranty |
