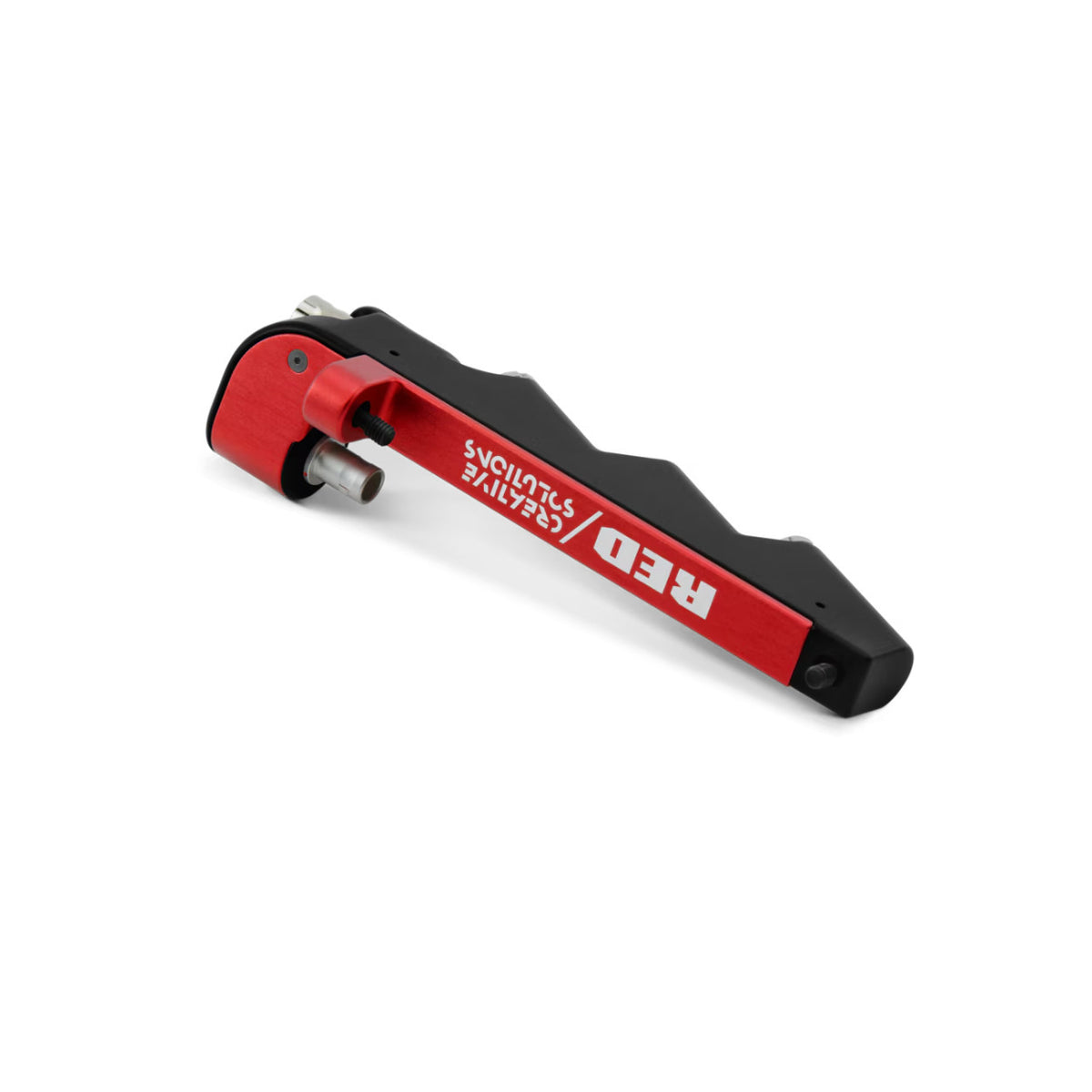

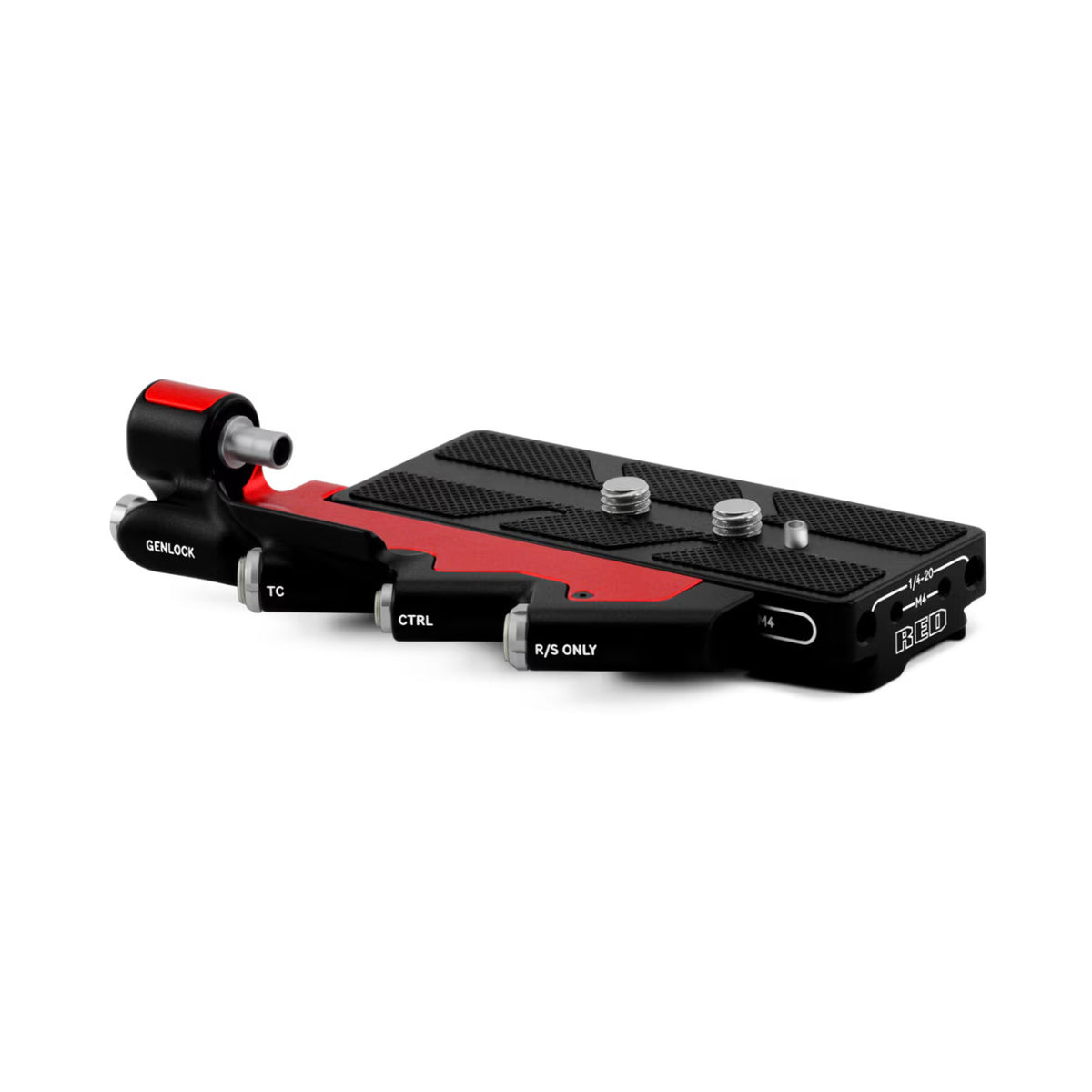

RED Digital Cinema V-RAPTOR Expander Blade
- Adds Genlock, timecode, RED CTRL, and Run/Stop connectivity to a V-RAPTOR camera
- Connects directly through the camera's 9 Pin EXT port
- Uses a 38 mm RRS Dovetail Standard Arca support plate for secure attachment

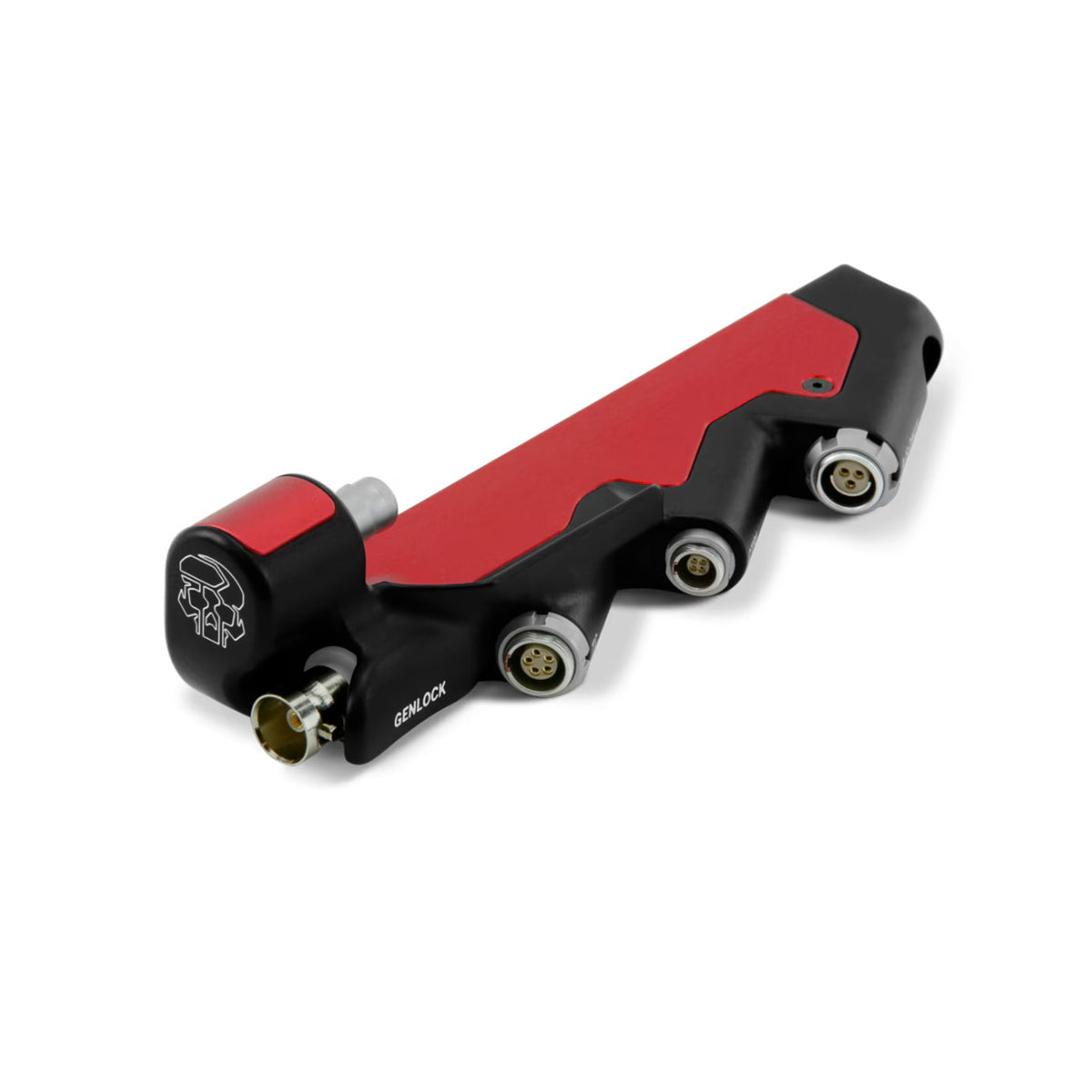

- BNC connection supports Genlock video synchronization workflows
- 5 Pin connection supports timecode integration in production rigs
- 4 Pin RED CTRL connection supports compatible camera control workflows
- 3 Pin Fischer Run/Stop connection is trigger only and does not supply power
Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain video, power, and communication ports, enabling a wide choice in how you configure your camera for professional applications. V-RAPTOR Expander Blade is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), Timecode 5-Pin, R/S (Run/Stop) 3-Pin, and RED CTRL 4-pin. The V-RAPTOR Expander Blade creates the flexibility to support a vast array of options when it comes to how users will rig their V-RAPTOR.
NOTES:
- The V-RAPTOR Quick Release Platform Pack Arca Plate (included w/ Expander Blade) is RRS Dovetail Standard (38mm) and is required for the V-RAPTOR Expander Blade to attach to the camera.
- The 3-Pin Run/Stop connection is for trigger only and does not supply power.
Expander Blade Dimensions:
| Height | 1.28 inch (32.5 mm) |
| Width | 5.16 inch (131.1 mm) |
| Depth | 1.87 inch (47.5 mm) |
Arca Plate Dimensions:
| Height | 1.28 in (20.0 mm) |
| Width | .79 in (117.0 mm) |
| Depth | 1.97 inch (50.0 mm) |
Weight:
| Without Arca Plate | Approximately 0.22 lbs (98.75 g) |
| With Arca Plate | Approximately 0.58 lbs (262.9 g) |
Camera Connection:
| Connection to V-RAPTOR | 9 Pin EXT Port and Arca Plate |
| Arca Plate Standard | RRS Dovetail Standard, 38 mm |
Connections:
| Genlock | BNC |
| Timecode | 5 Pin 0B |
| RED CTRL | 4 Pin 00B |
| Run/Stop | 3 Pin Fischer |
| Run/Stop Function | Trigger Control Only, No Power Output |
Temperature:
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –20°C to 50°C (–4°F to 122°F) |
