RED Digital Cinema RED Pro V-Lock I/O Module for KOMODO-X
- Expands KOMODO-X with dedicated power, synchronization, and control connections

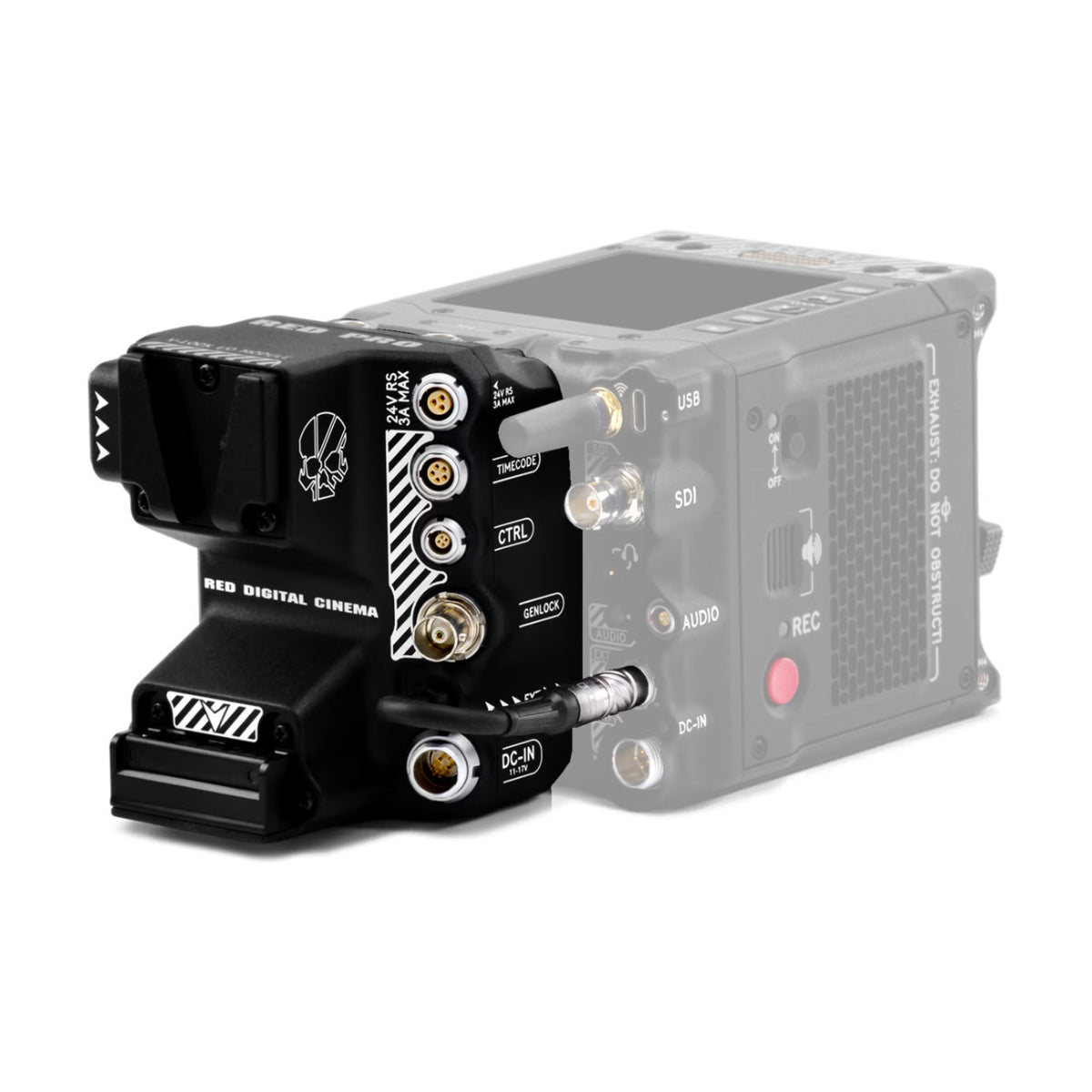

- Mounts directly to the rear Micro V-Lock plate and 9-Pin EXT Port
- Supports higher capacity V-Lock battery use
- Provides DC power input, Genlock, timecode, and CTRL connections
- Offers one regulated 24 volt R/S output rated up to 3 amps
- Offers two unregulated 12 volt AUX outputs rated up to 3 amps combined
- Operator side OLED display shows voltage and compatible battery percentage

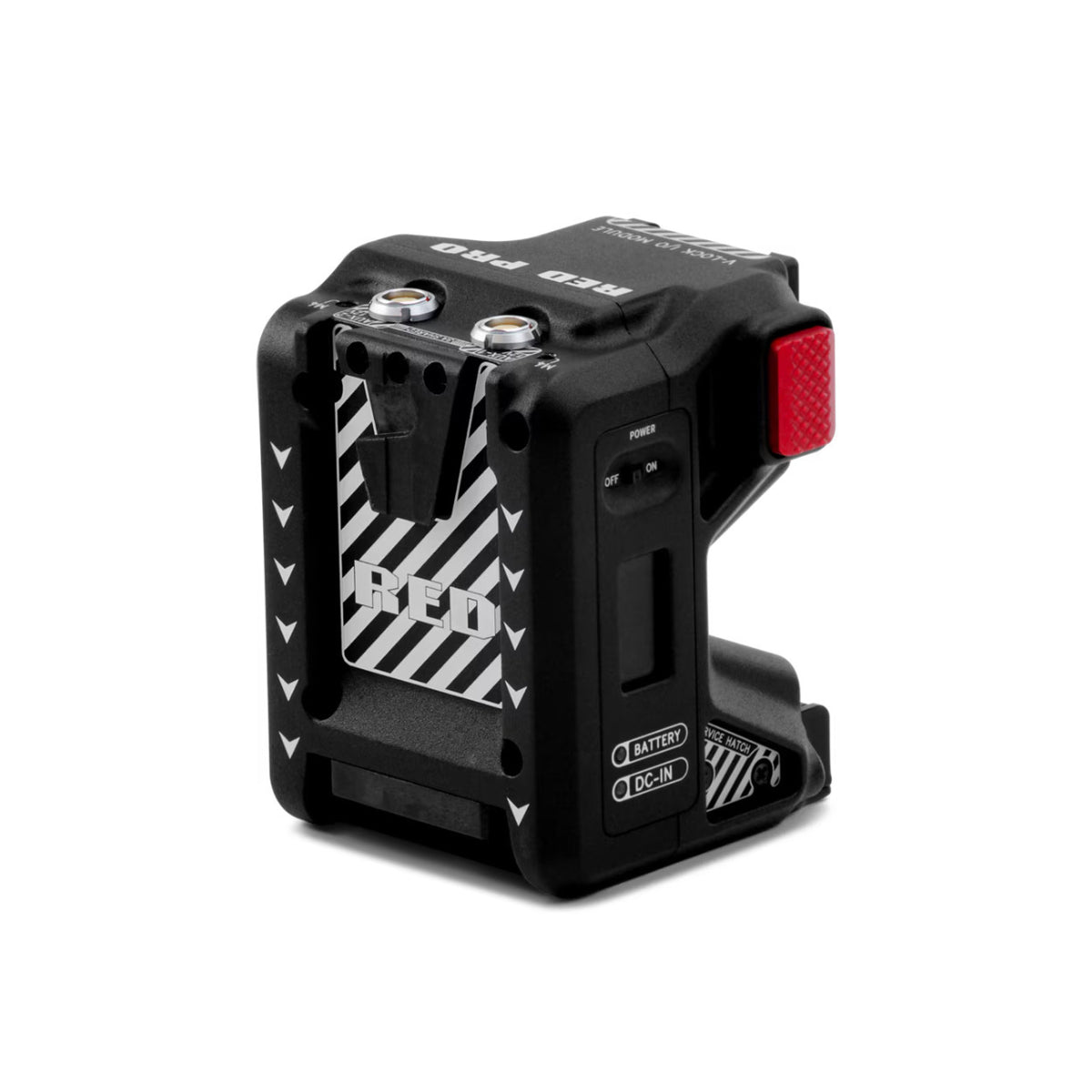

- Two position slider switch can cut module power with a battery attached
- Aluminum alloy body weighs 0.90 pound

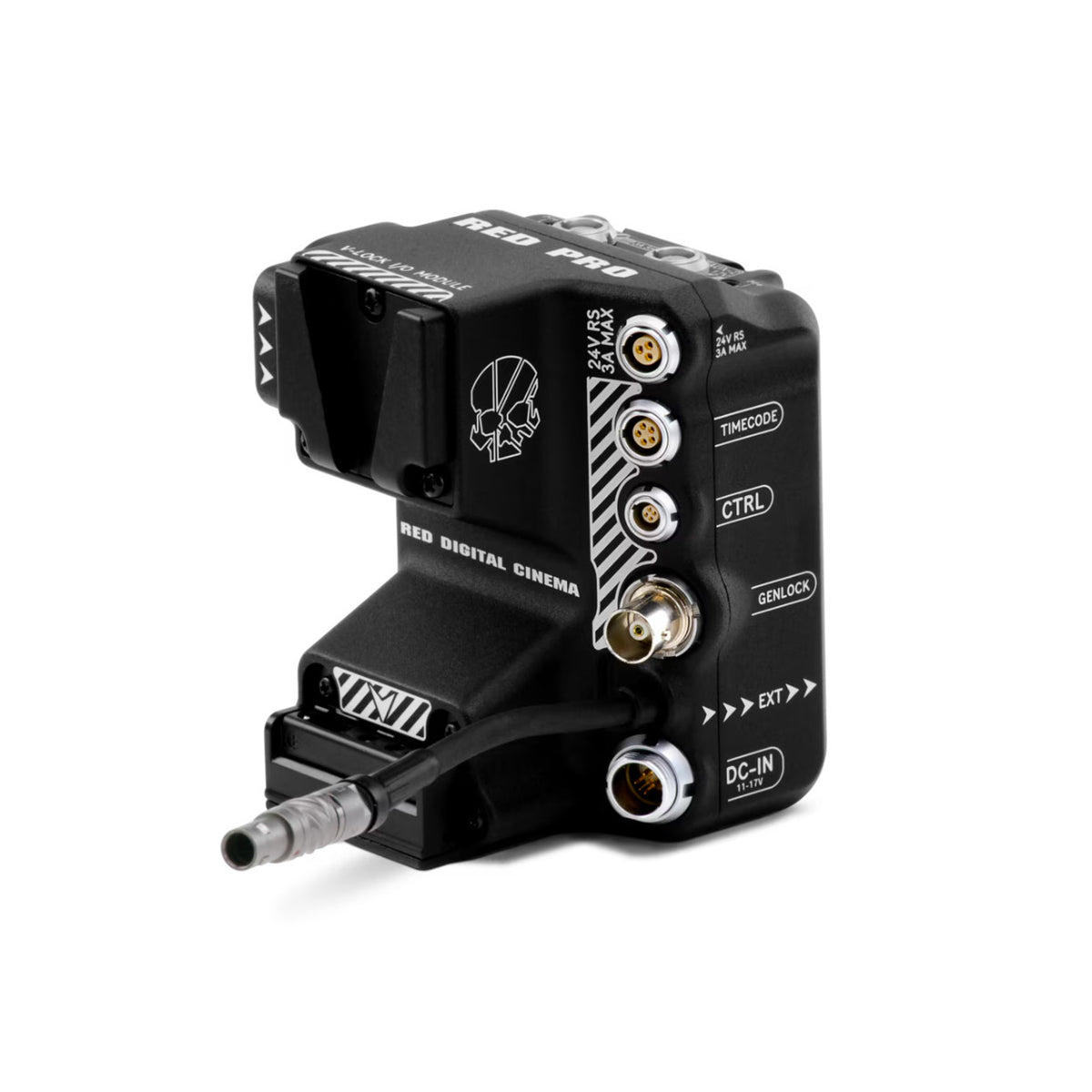

The RED Pro V-Lock I/O Module offers a variety of input/ output connections, and it also includes an industry standard V-Lock mount to power your KOMODO-X with higher capacity batteries. This V-lock module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following:
- DC Power Input (DC-IN)
- Genlock (BNC)
- CTRL (4-Pin)
- Timecode (5-pin)
- 1x 3-Pin 24-volt (regulated) R/S port (3A max)

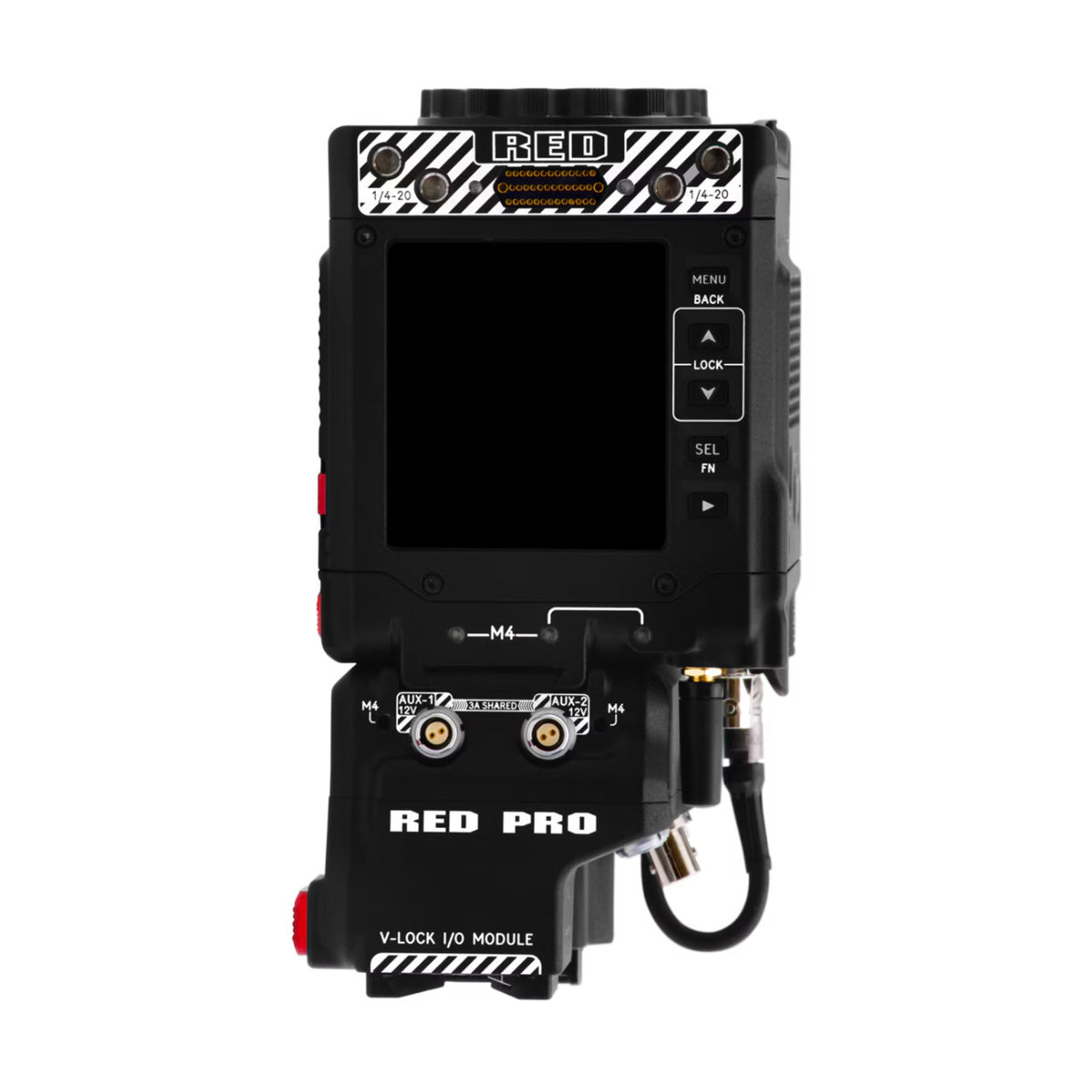

- 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)

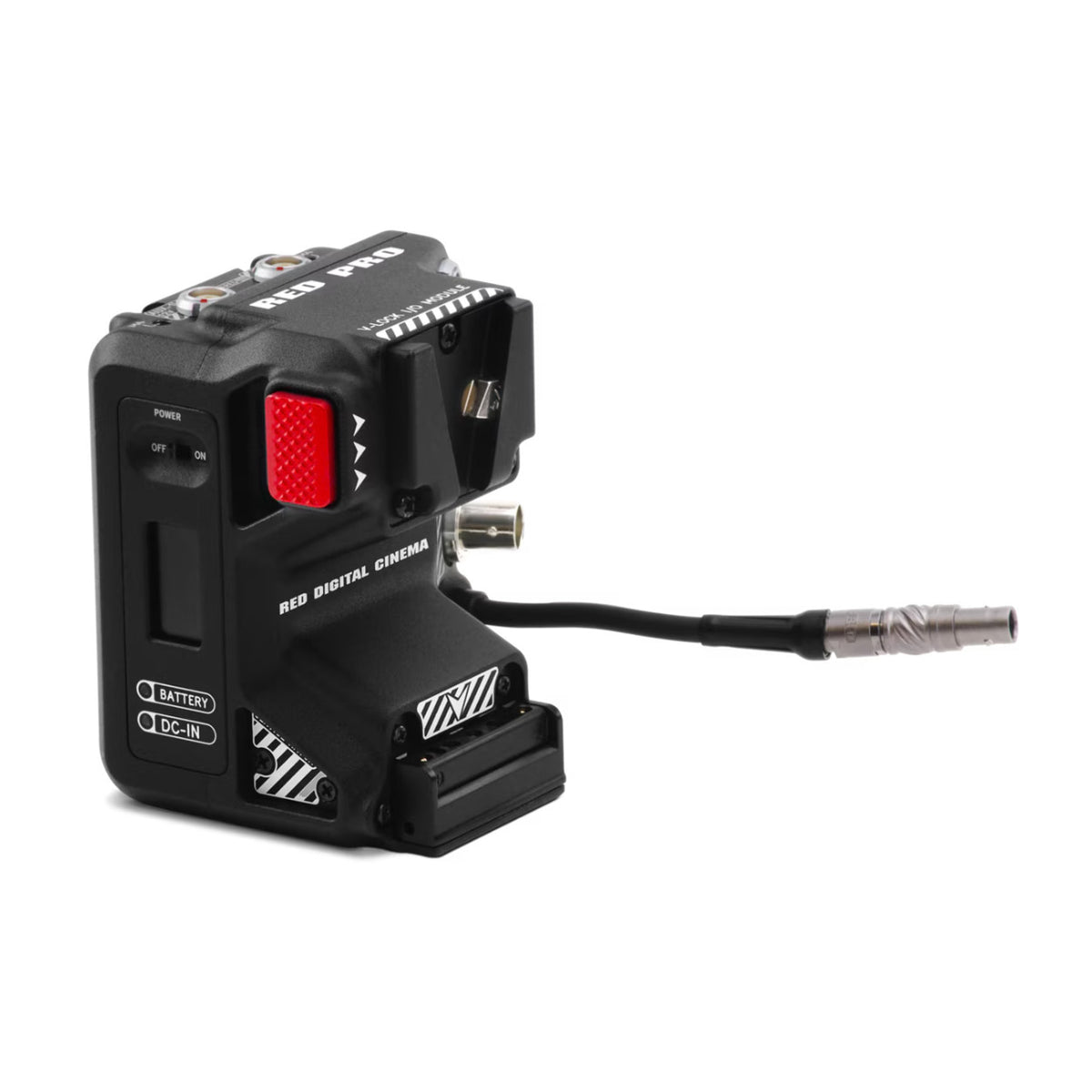

The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations.
Compatibility and Mounting:
| Compatibility | KOMODO-X |
| Camera Mounting | Micro V-Lock |
| Camera Connection | 9-Pin EXT Port |
Physical:
| Height | 3.86 inches (98.00 millimeters) |
| Width | 3.38 inches (85.80 millimeters) |
| Depth When Connected to BRAIN | 2.80 inches (71.00 millimeters) |
| Weight | 0.90 pound (410.00 grams) |
| Material | Aluminum Alloy |
Connections:
| 24 Volt AUX Power and Remote Start/Stop Output | 1 x 3-Pin Fischer, 3 amps maximum |
| 12 Volt AUX Power Outputs | 2 x 2-Pin 0B, 3 amps shared maximum |
| DC Input | 6-Pin 1B Socket |
| Timecode | 5-Pin 0B |
| Genlock Input | 75 ohm BNC |
| CTRL | RS232 Rx and Tx, 4-Pin 00B |
Power and Display:
| Power Control | Two Position On and Off Slider Switch |
| Display | OLED Power Information Display |
| Display Size | 12 mm x 23 mm (0.4 inch x 0.9 inch) |
Temperature:
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Charging Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –20°C to 50°C (–4°F to 122°F) |
