- 1 x RED DIGITAL CINEMA DSMC3 RED Touch 7.0 Inch LCD
- 1 x RED Monitor Interface
- 1 x Monitor Arm
- 1 x DSMC3 RMI Cable
- 1 x Limited 1 Year Manufacturer Warranty
Trusted & Verified

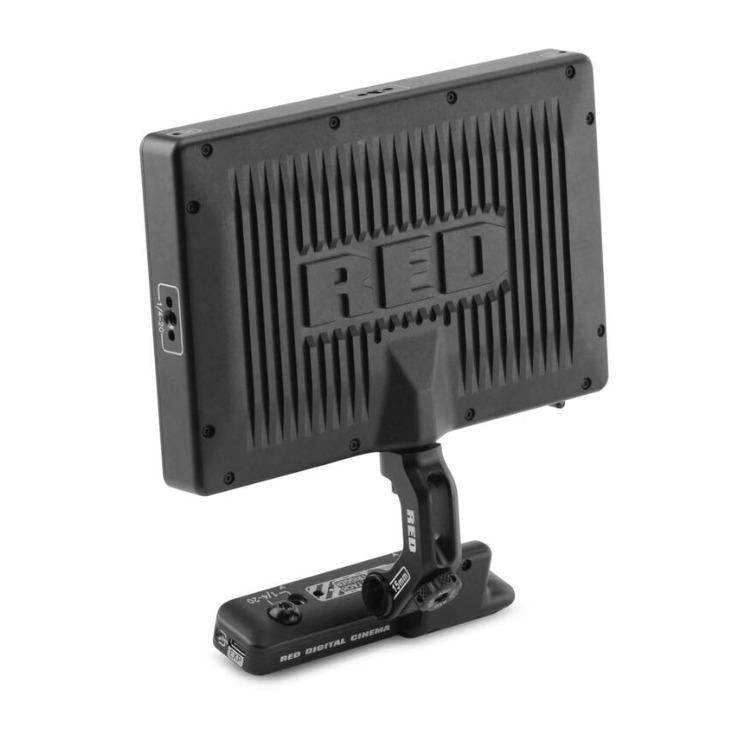

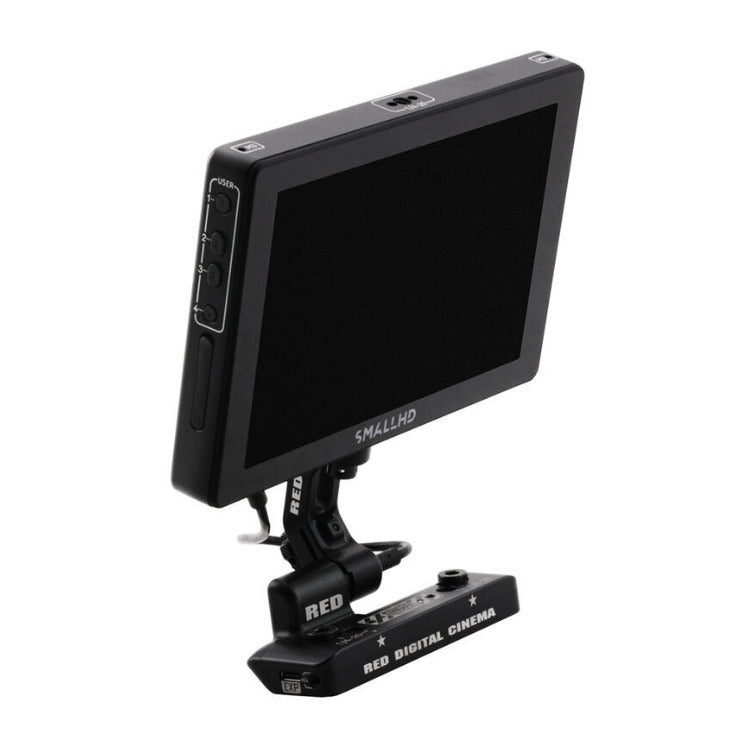

RED DIGITAL CINEMA DSMC3 RED Touch 7.0 Inch LCD Touchscreen Monitor 1300 Nits
- 1300 nits of brightness supports daylight viewing on set
- 1920 x 1200 resolution provides a detailed monitoring image
- 100 percent DCI P3 gamut supports color evaluation
- Touchscreen access puts PageOS camera controls at your fingertips
- Direct pogo connection provides power and video from compatible cameras
- Locking DSMC3 RMI cable carries video, power, and communication
- Removable tilt arm rotates 180 degrees for flexible screen positioning
- Compatible with KOMODO-X, V-RAPTOR, and V-RAPTOR XL cameras
The RED DIGITAL CINEMA DSMC3 RED Touch 7.0 Inch LCD brings a large, bright control display directly to compatible RED camera rigs. Its 1920 x 1200 panel reaches 1300 nits and covers 100 percent of the DCI P3 color gamut, giving camera operators a detailed view for framing, exposure checks, and image review in daylight conditions. A 1250:1 contrast ratio and 322 pixels per inch add clarity when evaluating the image.
Touch Control for Camera Operation
The capacitive Multi Touch interface provides camera control through PageOS. Monitoring tools include Waveform, Vectorscope, Histogram, False Color, Color Picker, and Pixel Zoom. The display refreshes at 60 hertz and supports 10-bit color depth, helping keep essential monitoring information available from the camera top position.
Direct Mount or Locking Cable Connection

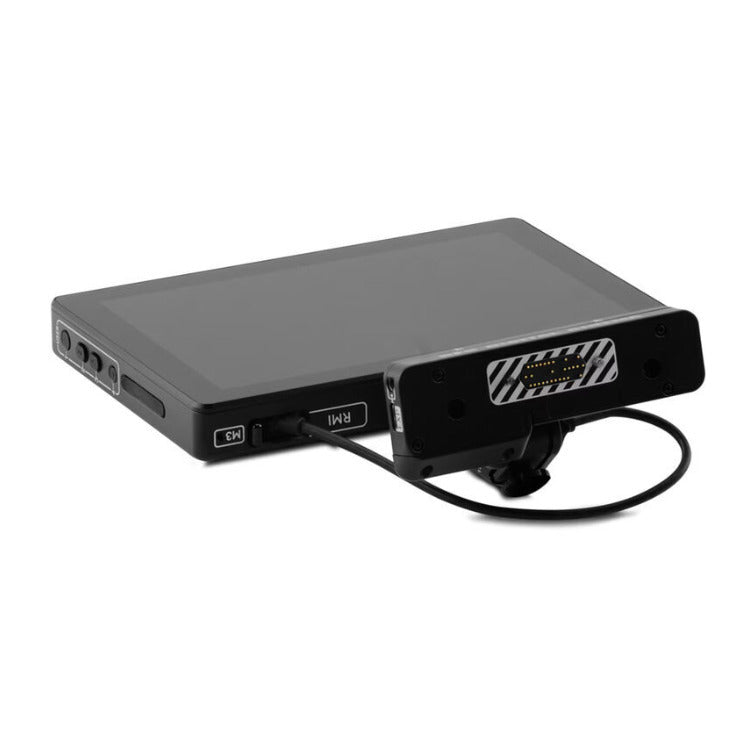

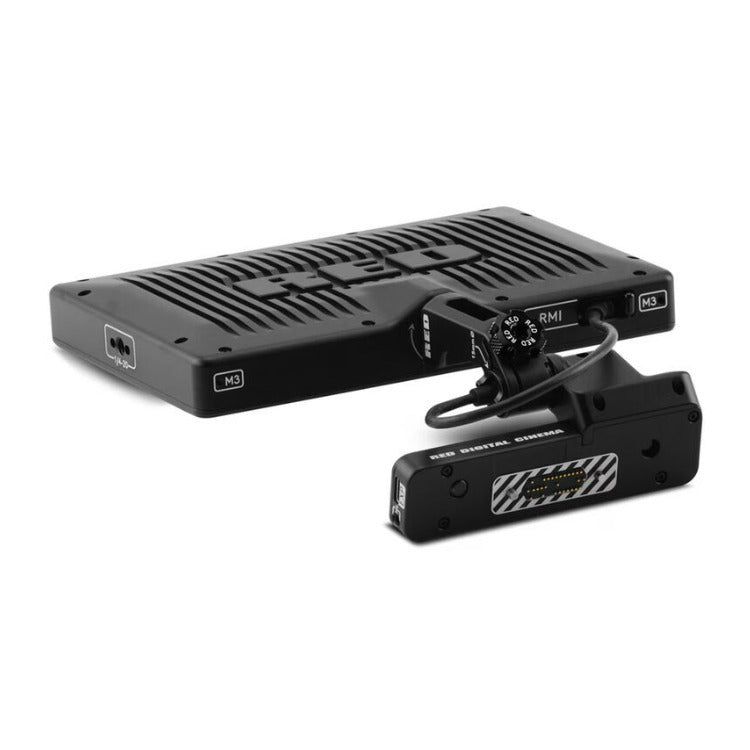

Latest generation pogo pins can provide power and video to the monitor through a direct camera connection. When a different setup is required, the locking DSMC3 RMI cable carries video, power, and communication. The removable tilt arm rotates 180 degrees, allowing the screen position to adapt to changing camera angles and operator positions.
Built for DSMC3 Camera Rigs
The aluminum alloy monitor is compatible with KOMODO-X, V-RAPTOR, and V-RAPTOR XL systems. The monitor measures 7.09 inches wide, 4.67 inches high, and 1.13 inches deep, with an approximate weight of 1.25 pounds. Four function buttons, a 15 millimeter rail mount, and four M3 hood mounting points support practical integration into professional camera builds.
General
Display:
| Material | Aluminum alloy |
| Resolution | 1920 x 1200 |
| Pixel Density | 322 pixels per inch |
| Refresh Rate | 60 hertz |
| Response Time | 25 milliseconds |
| Contrast Ratio | 1250:1 |
| Brightness | 1300 nits |
| Color Depth | 10 bit |
| Color Gamut | 100 percent DCI P3 |
| Viewing Angle | Plus or minus 160 degrees on all axes |
| Display Orientation | Landscape with 180 degree rotation |
| Touch | pCap Multi Touch |
Connectivity and Mounting:
| Camera Connection | Power and communication through the DSMC3 RMI cable |
| Pogo Connection | Power and video from a compatible camera |
| Mounting | 15 millimeter rail |
| Hood Mounting | 4 x M3 mounting points |
| Buttons | 4 function buttons |
| EXP Ports | For future use, not currently supported |
Power and Environment:
| Power Consumption | 15.5 watts |
| Operating Temperature | 32 degrees Fahrenheit to 104 degrees Fahrenheit, 0 degrees Celsius to 38 degrees Celsius |
| Storage Temperature | 0 degrees Fahrenheit to 120 degrees Fahrenheit, minus 18 degrees Celsius to 49 degrees Celsius |
| Operating Humidity | 0 percent to 85 percent, noncondensing |
| Storage Humidity | 0 percent to 85 percent, noncondensing |
| Firmware Requirement | V-RAPTOR firmware version 1.1 or later |
Monitor Dimensions:
| Weight | Approximately 1.25 pounds, 568.0 grams |
| Height | 4.67 inches, 118.70 millimeters |
| Width | 7.09 inches, 180.10 millimeters |
| Depth | 1.13 inches, 28.80 millimeters |
Arm Dimensions:
| Weight | Approximately 0.07 pounds, 30.1 grams |
| Height | 1.18 inches, 30.00 millimeters |
| Width | 2.40 inches, 61.00 millimeters |
| Depth | 0.70 inches, 17.50 millimeters |
RED Monitor Interface Dimensions:
| Weight | Approximately 0.28 pounds, 126 grams |
| Height | 1.67 inches, 42.50 millimeters |
| Width | 4.25 inches, 108.00 millimeters |
| Depth | 1.51 inches, 38.23 millimeters |
Compatibility:
| Compatible Cameras | KOMODO-X, V-RAPTOR, V-RAPTOR XL |
| Not Compatible With | DSMC, DSMC2, RED RANGER, KOMODO |
