- 1 x REDVOLT MICRO-G Battery
Trusted & Verified

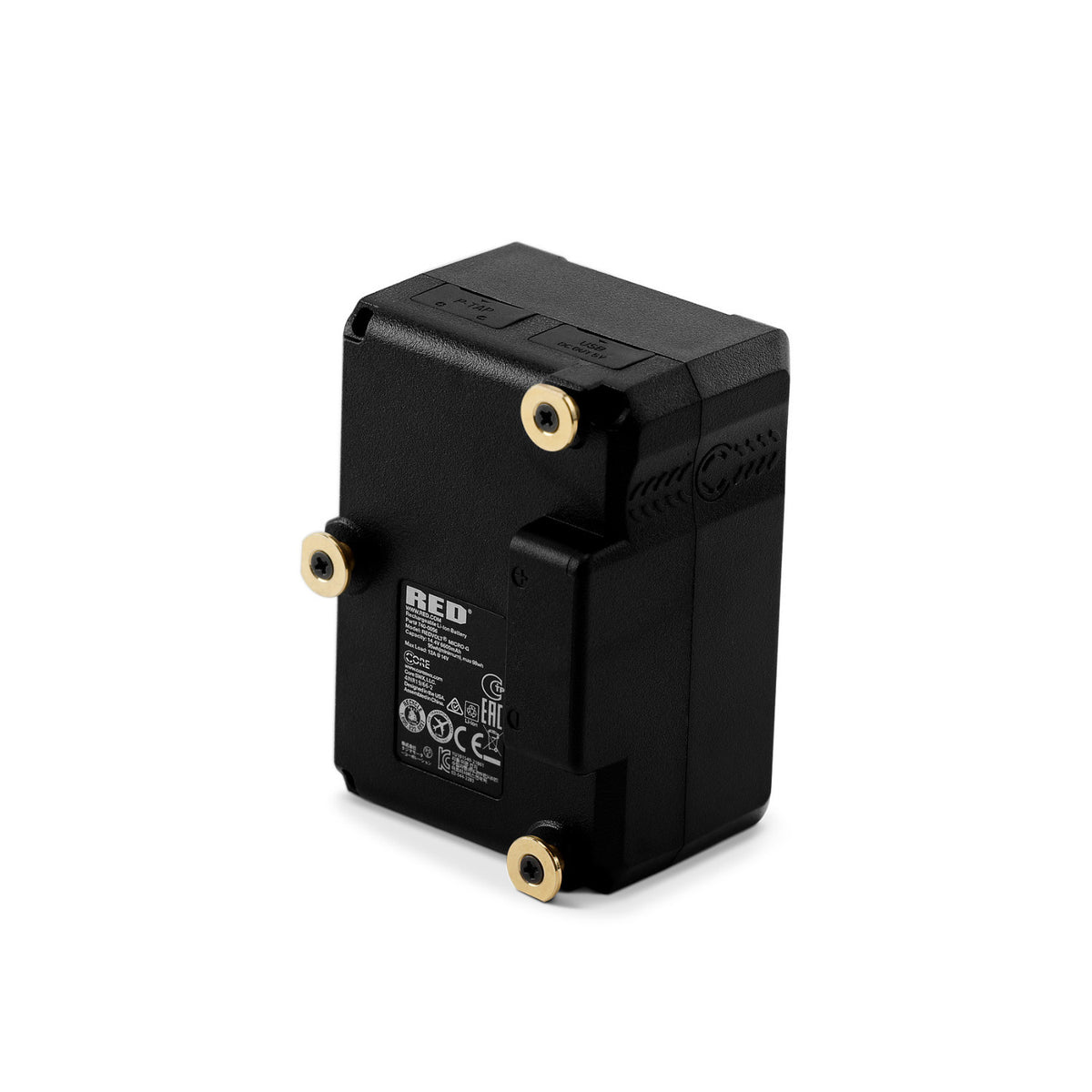

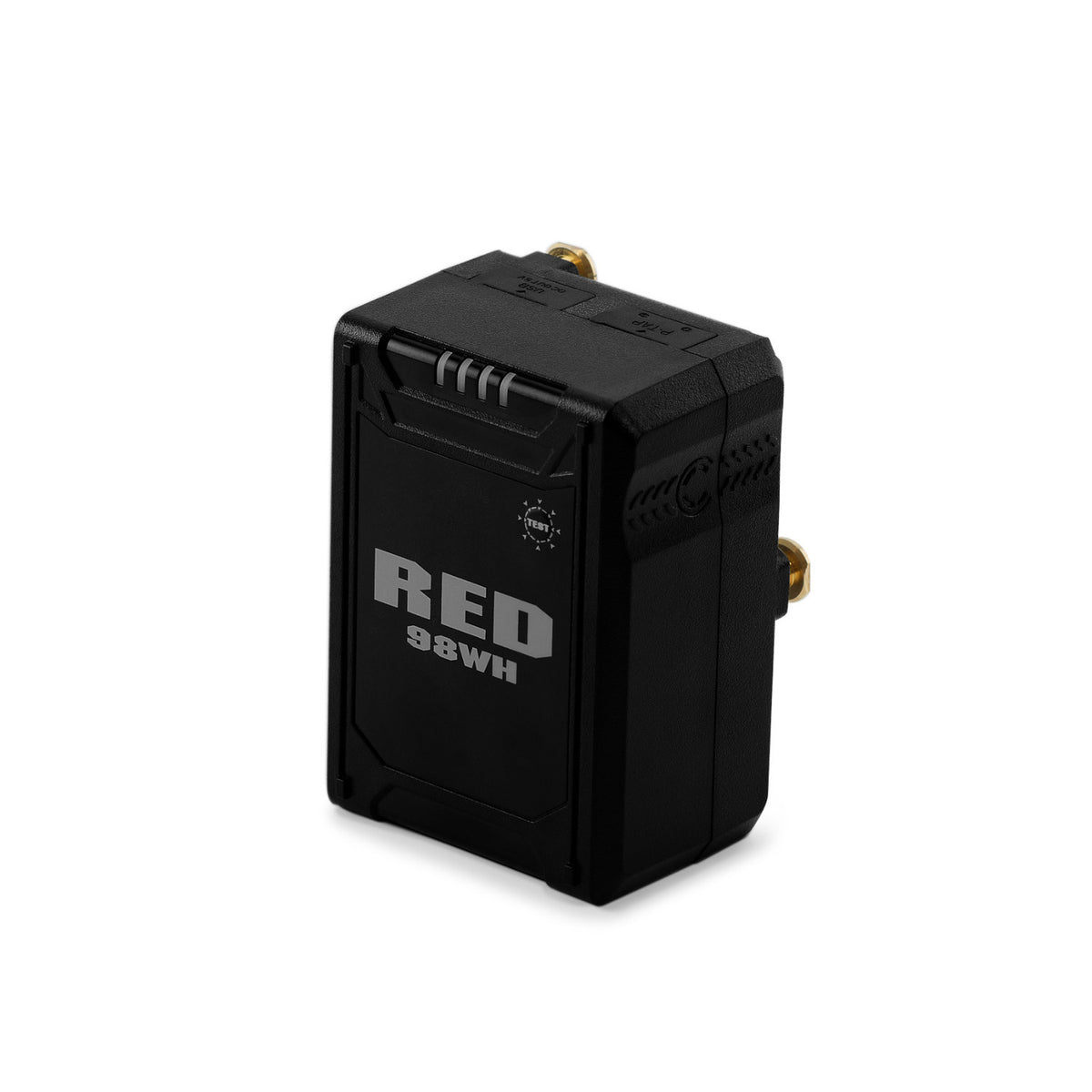

RED Digital Cinema REDVOLT MICRO-G 98Wh Gold Mount Battery, 12A Output
- 98 Wh rechargeable lithium-ion battery with 6600 mAh capacity
- Gold Mount format for compatible RED camera power workflows
- 14.8 V DC battery output with a 12-amp maximum load at 14 V DC
- P-tap port provides 12 V DC output for compatible accessories
- USB power port provides 5 V DC at 3 amps
- LED charge level indicator supports quick battery status checks
- Compact 3.93 inch by 2.82 inch by 1.94 inch body
- Approximate weight of 1.2 pounds for compact production setups
The RED Digital Cinema REDVOLT MICRO-G Battery delivers 98 Wh of rechargeable lithium-ion power in a compact Gold Mount format for mobile cinema workflows. Its 6600 mAh capacity is packed into a body measuring 3.93 inches high, 2.82 inches wide, and 1.94 inches deep, with an approximate weight of 1.2 pounds. The result is a substantial power source that takes up little room on a camera build or in a production case. Developed in partnership with Core SWX, the battery supports users working with Gold Mount and 3-stud power systems.
High Output Power in a Compact Form
The battery provides 14.8 V DC output and supports a maximum load of 12 amps at 14 V DC. A P-tap port supplies 12 V DC, while the USB power port provides 5 V DC at 3 amps for compatible accessories. An integrated LED charge level indicator gives crews a quick way to check battery status before a take, during a setup change, or while preparing gear for transport.
Broad RED Camera Compatibility
REDVOLT MICRO-G supports a wide range of RED camera workflows, including DSMC, DSMC2, RANGER, KOMODO, KOMODO-X, V-RAPTOR, and V-RAPTOR XL configurations. Some camera setups require an additional adapter, battery plate, or I/O module. RED documents V-RAPTOR use with the V-RAPTOR Tactical Top Plate and Gold Mount Battery Adapter, while KOMODO-X use requires the RED Pro Gold Mount I/O Module.
Charging and Operating Range
Recharge the REDVOLT MICRO-G with the RED Compact Dual Gold Mount Charger. The specified operating range is 50 degrees F to 113 degrees F, with charging from 32 degrees F to 104 degrees F and storage from 68 degrees F to 122 degrees F. Its 98 Wh flight-safe capacity and compact dimensions support production travel where output capability and pack size both matter.
General
Battery:
| Battery Type | Rechargeable Lithium-Ion Battery |
| Battery Capacity | 6600 mAh / 98 Wh |
| Battery Mount | Gold Mount |
| Battery Output | 14.8 V DC |
| Maximum Load | 12 amps at 14 V DC |
| P-tap Output | 12 V DC |
| USB Output | 5 V DC at 3 amps |
| Charge Level Indicator | LED |
Temperature:
| Operating Temperature | 50 degrees F to 113 degrees F / 10 degrees C to 45 degrees C |
| Charging Temperature | 32 degrees F to 104 degrees F / 0 degrees C to 40 degrees C |
| Storage Temperature | 68 degrees F to 122 degrees F / 20 degrees C to 50 degrees C |
Physical:
| Height | 3.93 inches / 99.8 mm |
| Width | 2.82 inches / 71.6 mm |
| Depth | 1.94 inch / 49.2 mm |
| Weight | Approximately 1.2 pounds / 544.3 g |
Charging:
| Compatible Charger | RED Compact Dual Gold Mount Charger |
Camera Compatibility:
| Compatible Camera Families | DSMC, DSMC2, RANGER, KOMODO, KOMODO-X, V-RAPTOR, V-RAPTOR XL |
| Compatibility Note | Some configurations require an additional adapter, battery plate, or I/O module |
| V-RAPTOR Requirement | V-RAPTOR Tactical Top Plate and Gold Mount Battery Adapter |
| KOMODO-X Requirement | RED Pro Gold Mount I/O Module |
