- 1 x RED Digital Cinema REDVOLT XL-G Battery
Trusted & Verified

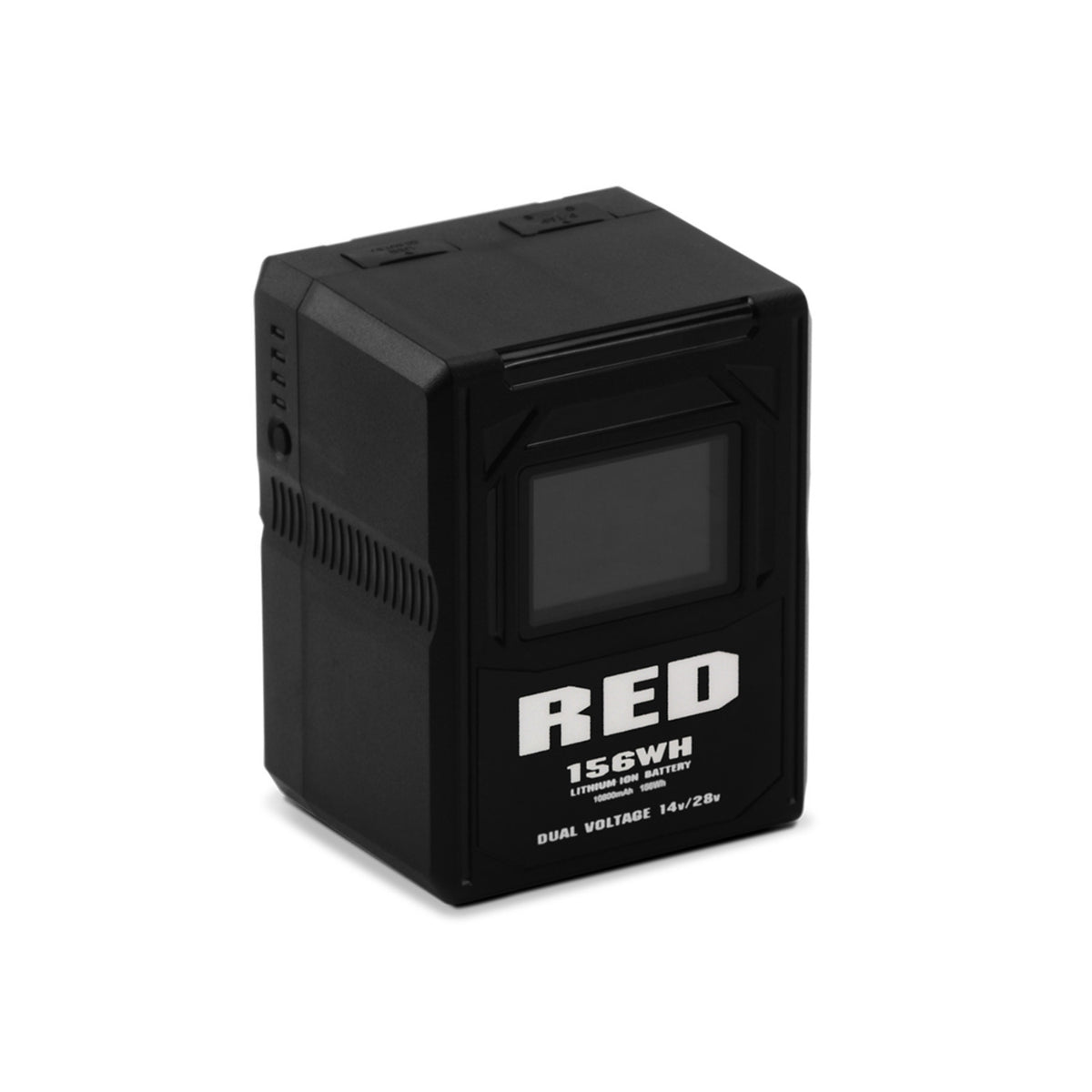

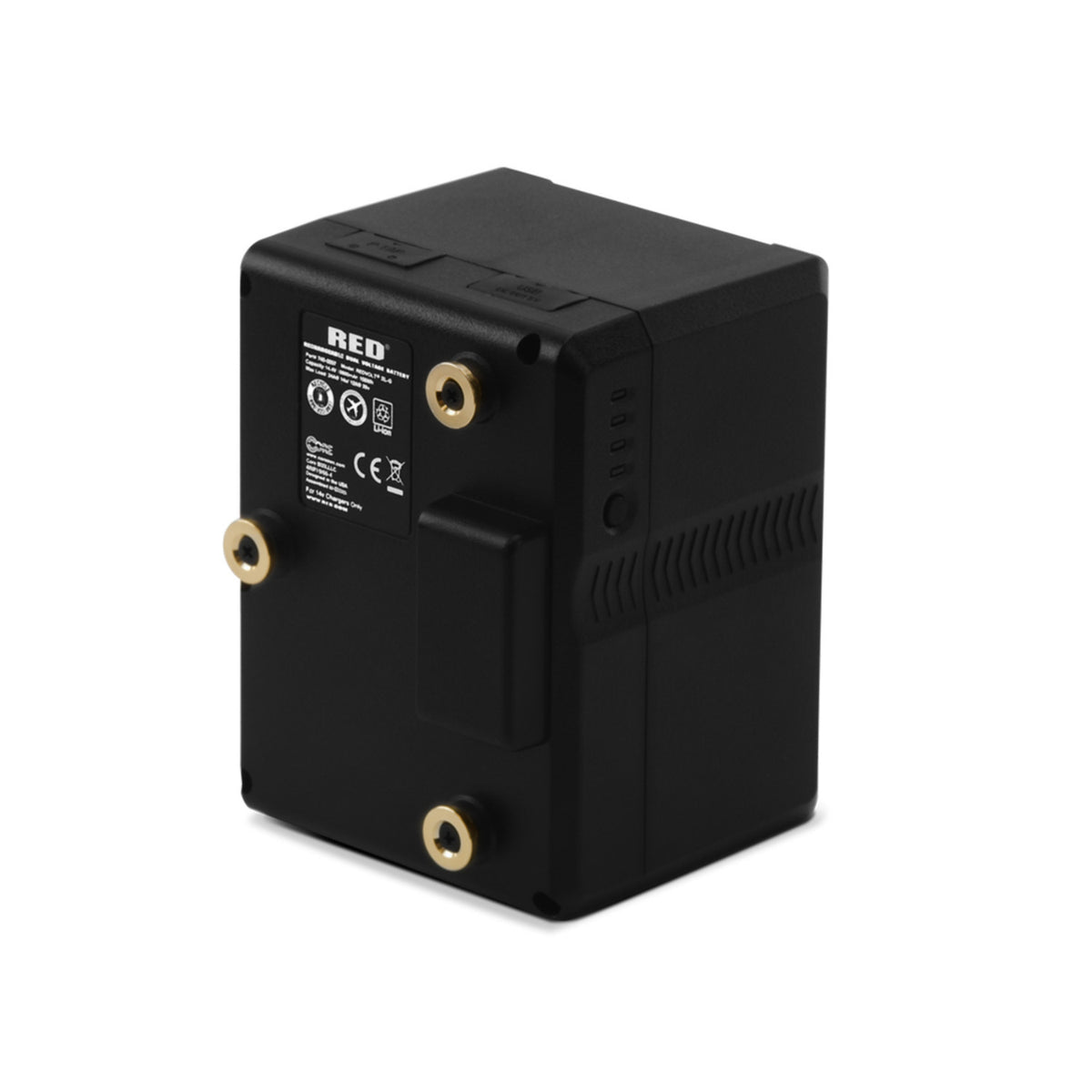

RED Digital Cinema REDVOLT XL-G 156Wh Dual Voltage Gold Mount Battery
- 156 Wh and 10,800 mAh rechargeable Lithium-Ion capacity
- Automatic 14.4 V and 28.8 V output switching for compatible camera systems
- Delivers up to 400 watts of power for demanding cinema camera builds
- Maximum load of 12 A at 28 V DC or 24 A at 14 V DC
- Gold Mount design works with most compatible cameras and modules
- Supports V-RAPTOR XL and V-RAPTOR with the appropriate Gold Mount adapter
- Requires a 14 V charger and supports the RED Compact Dual Gold Mount Charger
- Compact 4.65 inch by 3.54 inch by 2.99 inch body weighs about 2.35 lb
The RED Digital Cinema REDVOLT XL-G gives production crews one Gold Mount battery platform for both high voltage and 14 V camera workflows. Its native dual voltage architecture automatically changes output based on the supported camera or mount, helping simplify power planning when moving between compatible systems. A 156 Wh capacity and up to 400 watts of power make it suited to demanding cinema camera builds.
Automatic Dual Voltage Power
The REDVOLT XL-G can provide 14.4 V DC or 28.8 V DC without manual output selection. When mounted to a V-RAPTOR XL, the battery can switch to the higher voltage configuration and deliver up to 12 A at 28 V DC. With a V-RAPTOR using an additional Gold Mount battery adapter, or another compatible 14 V camera, it can provide up to 24 A at 14 V DC. This camera-aware switching lets one battery serve more than one voltage class.
156 Wh Capacity for Production Workflows
With 10,800 mAh and 156 Wh of rechargeable Lithium Ion capacity, the REDVOLT XL-G supports extended shooting workflows while keeping the battery package compact. It measures 4.65 inches high, 3.54 inches wide, and 2.99 inches deep, with an approximate weight of 2.35 lb. The Gold Mount design is compatible with most cameras and modules that accept Gold Mount batteries.
The battery must be charged with a 14 V charger and is compatible with the RED Compact Dual Gold Mount Charger. Its combination of automatic voltage switching, substantial capacity, and high current output gives cinema crews a flexible power option for compatible RED and Gold Mount camera systems.
General
Battery:
| Battery Type | Rechargeable Dual Voltage Lithium-Ion Battery |
| Mount | Gold Mount |
| Battery Capacity | 10,800 mAh / 156 Wh |
| Battery Output | 14.4 V DC / 28.8 V DC |
| Maximum Power | Up to 400 W |
| Maximum Load | 12 A at 28 V DC / 24 A at 14 V DC |
| P Tap Output | 12 V DC |
| USB Output | 5 V DC / 3 A |
Compatibility and Charging:
| V-RAPTOR XL Support | Automatic high voltage output |
| V-RAPTOR Support | 14 V output with an additional Gold Mount battery adapter |
| Gold Mount Compatibility | Most cameras and modules accepting Gold Mount batteries |
| Charging Requirement | 14 V charger |
| Compatible Charger | RED Compact Dual Gold Mount Charger |
Physical:
| Height | 4.65 inches / 118 mm |
| Width | 3.54 inch / 90 mm |
| Depth | 2.99 inches / 76 mm |
| Weight | Approximately 2.35 lb / 1067 g |
Temperature:
| Operating Temperature | 50 degrees F to 113 degrees F / 10 degrees C to 45 degrees C |
| Charging Temperature | 32 degrees F to 104 degrees F / 0 degrees C to 40 degrees C |
| Storage Temperature | 68 degrees F to 122 degrees F / 20 degrees C to 50 degrees C |
