- 1 x REDVOLT NANO-V Battery
Trusted & Verified

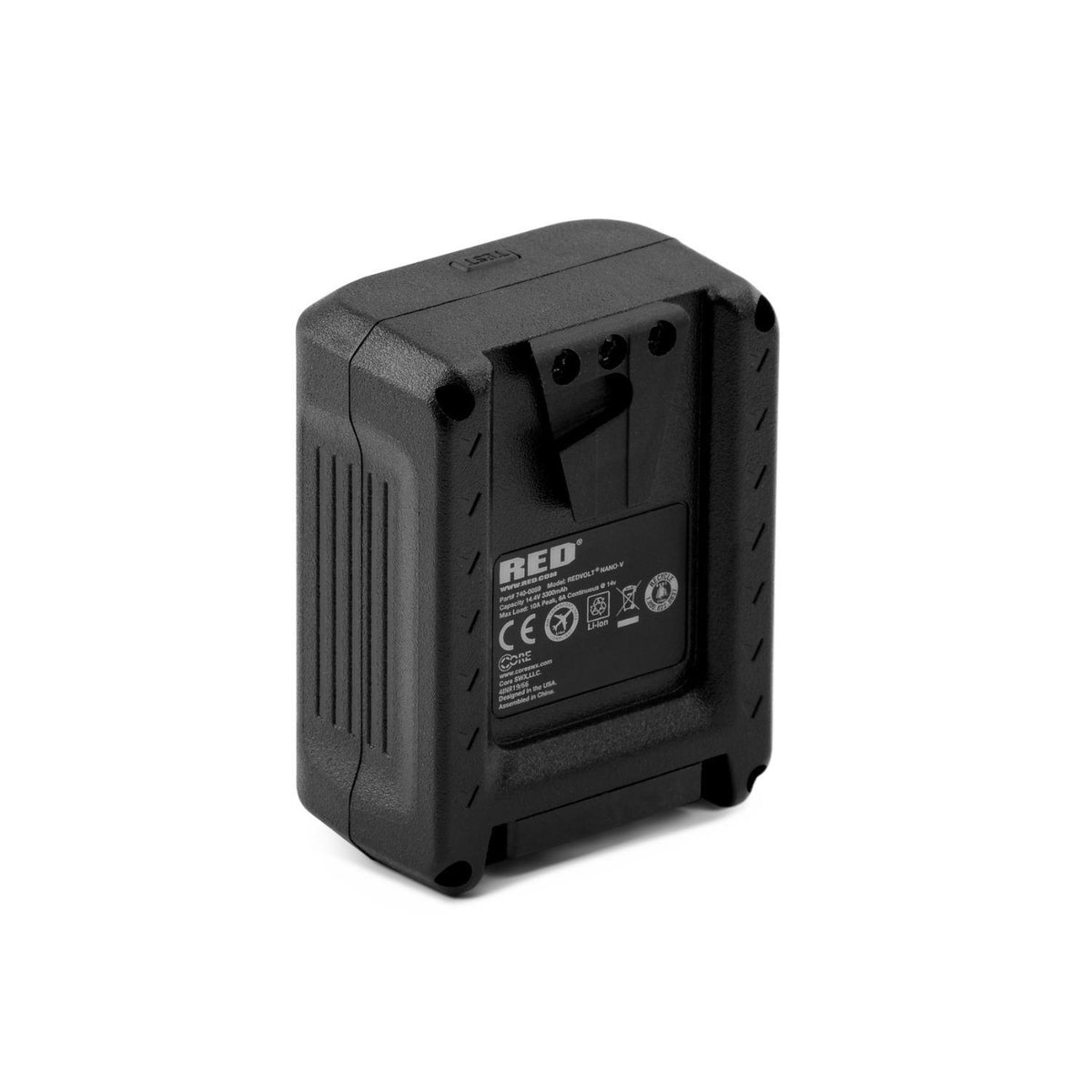

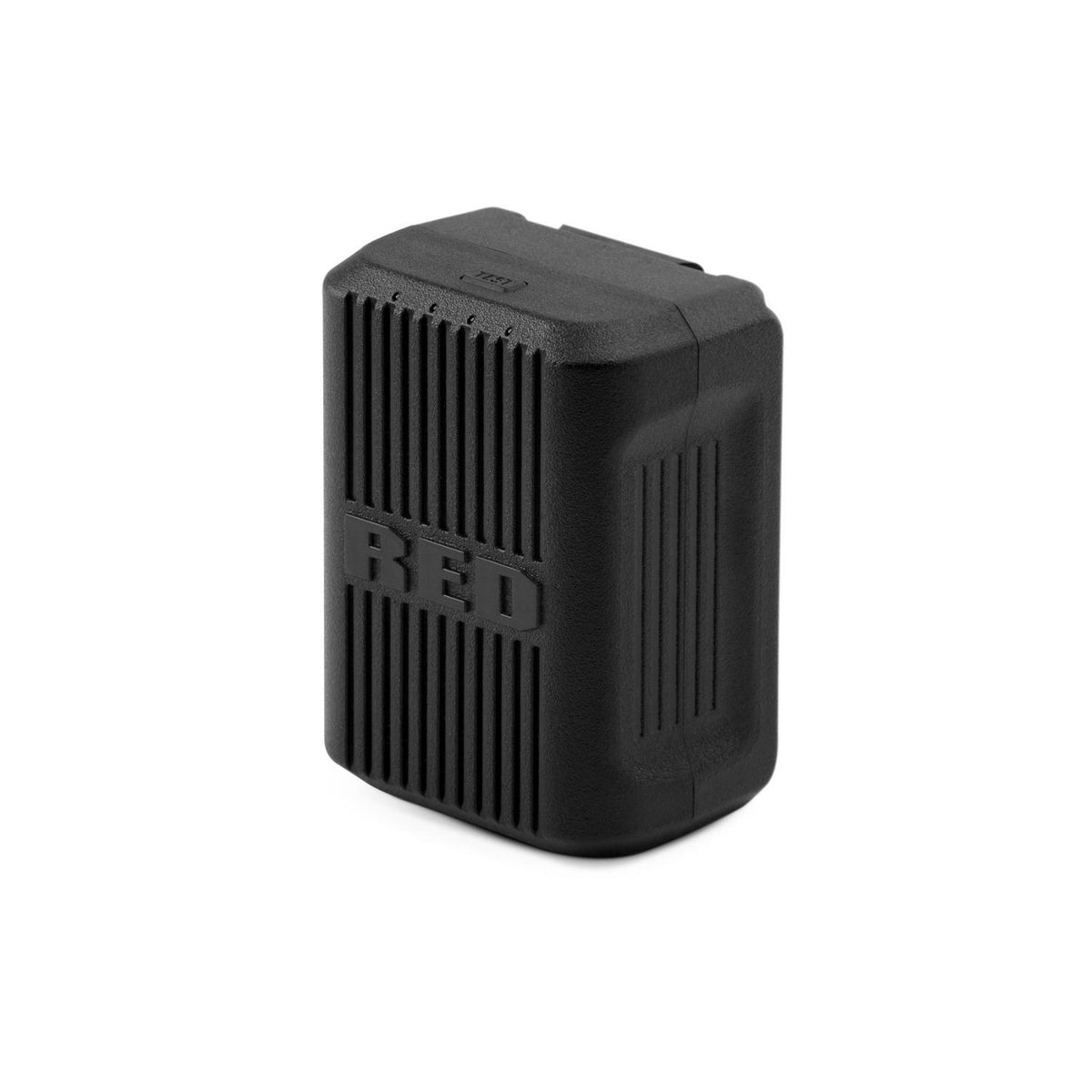

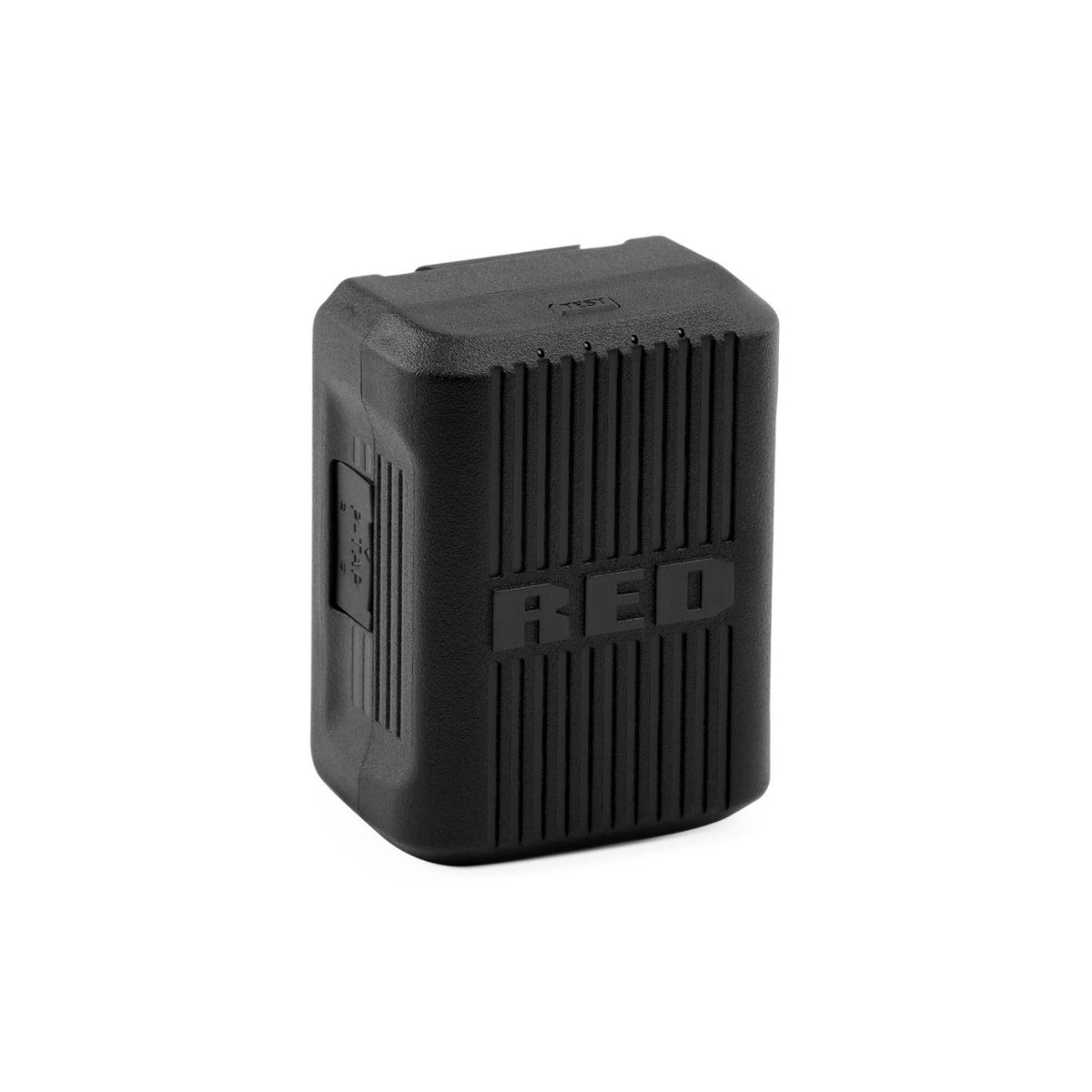

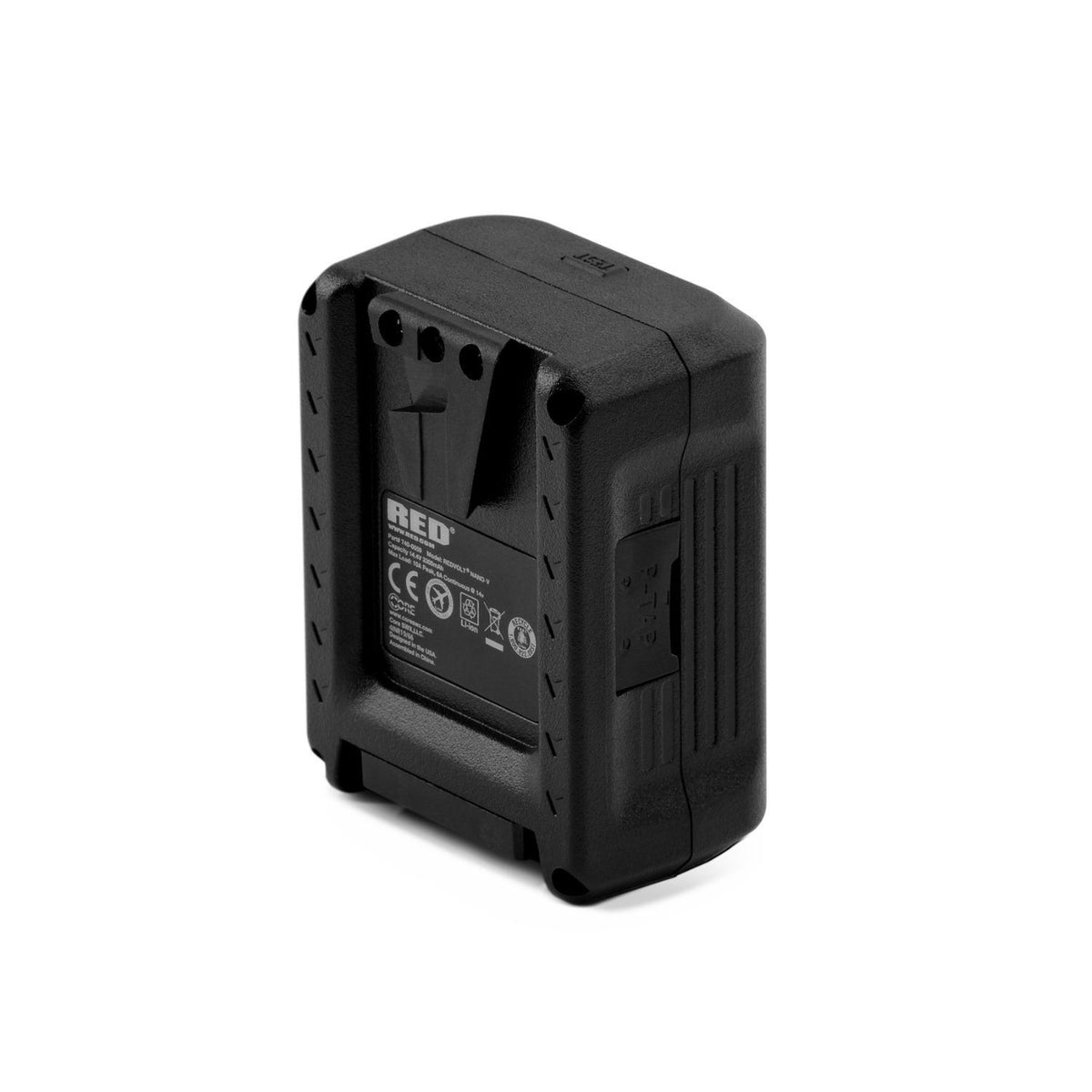

RED Digital Cinema REDVOLT NANO-V Compact 49 Wh V-Lock Camera Battery 6 Amp
- 49 Wh capacity in a compact V-Lock battery for smaller camera setups
- Approximately 0.63 pound weight supports lighter gimbal and drone builds
- 6 A maximum load supports KOMODO-X in a minimal configuration
- 3300 mAh rechargeable lithium-ion battery capacity
- 66 mm wide body helps leave room for cages and plates
- Works with most cameras and modules that accept V-Lock batteries
- Compatible with the RED Compact Dual V-Lock Charger
- Developed by RED in partnership with Core SWX
The REDVOLT NANO-V brings 49 Wh of rechargeable lithium-ion power to compact camera builds. When a camera setup needs to stay small, its approximately 0.63-pound weight and 66 mm x 88 mm x 44 mm body help reduce bulk around the camera. The V-Lock form factor works well for gimbals, drones, and stripped-down handheld configurations where accessory clearance matters.
Compact Power for KOMODO-X

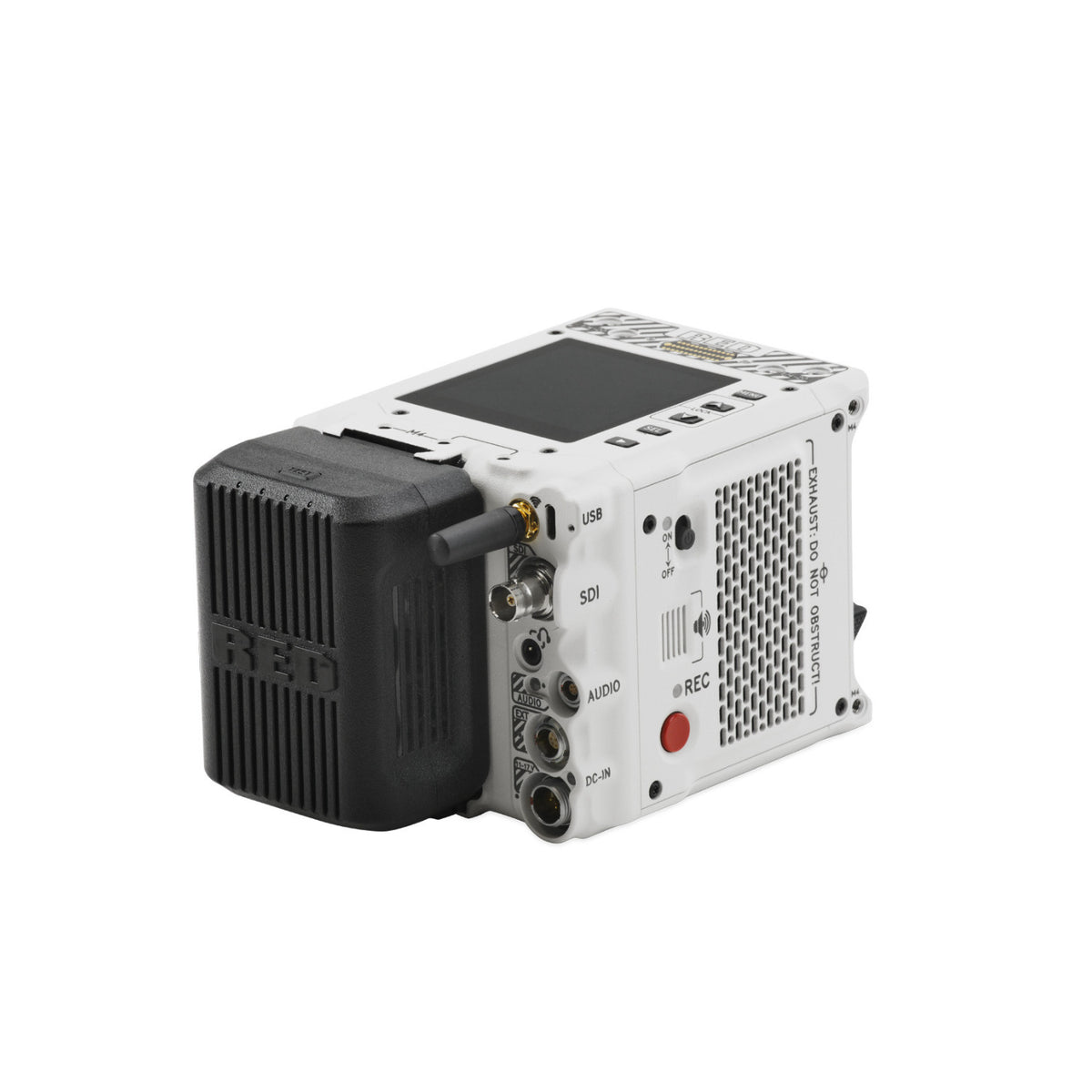

With a 3300 mAh capacity and maximum load of 6 A, this rechargeable lithium-ion battery can power the KOMODO-X and DSMC3 RED Touch 7.0-inch LCD in a minimal configuration. The 49 Wh capacity gives camera crews a smaller battery option when a larger pack would add unwanted size or weight. Its 2.60-inch width helps the camera retain clear top and side surfaces for cages and plates.
V-Lock Compatibility
RED developed the REDVOLT NANO-V in partnership with Core SWX. It is compatible with most cameras and modules that accept V-Lock batteries, so it can move between supported camera builds while keeping the footprint compact. Charging is supported with the RED Compact Dual V-Lock Charger. The battery operates from 50 to 113 degrees F, with charging from 32 to 104 degrees F.
For productions that prioritize a smaller camera profile, the REDVOLT NANO-V combines 49 Wh capacity, a 6 A maximum load, and compact dimensions in a 0.63-pound package. It gives KOMODO-X users and other compatible V-Lock setups a practical way to reduce battery size while preserving room for essential rigging.
General
Battery:
| Type | Rechargeable Lithium-Ion Battery |
| Capacity | 3300 mAh / 49 Wh |
| Battery Output | 12 to 16.8 V DC |
| Maximum Load | 6 Amps at 14 V DC |
| Charger | RED Compact Dual V-Lock Charger |
Temperature:
| Operating Temperature | 50 degrees F to 113 degrees F (10 degrees C to 45 degrees C) |
| Charging Temperature | 32 degrees F to 104 degrees F (0 degrees C to 40 degrees C) |
| Storage Temperature | 68 degrees F to 122 degrees F (20 degrees C to 50 degrees C) |
Physical:
| Height | 3.46 inches (88 mm) |
| Width | 2.60 inches (66 mm) |
| Depth | 1.73 inches (44 mm) |
| Weight | Approximately 0.63 pounds (288 g) |
Compatibility:
| Mount | V-Lock |
| Camera and Module Compatibility | Most cameras and modules that accept V-Lock batteries |
