- 1 x RED Digital Cinema 9-Pin EXT-to-Flying Lead 1.3ft Cable
Trusted & Verified

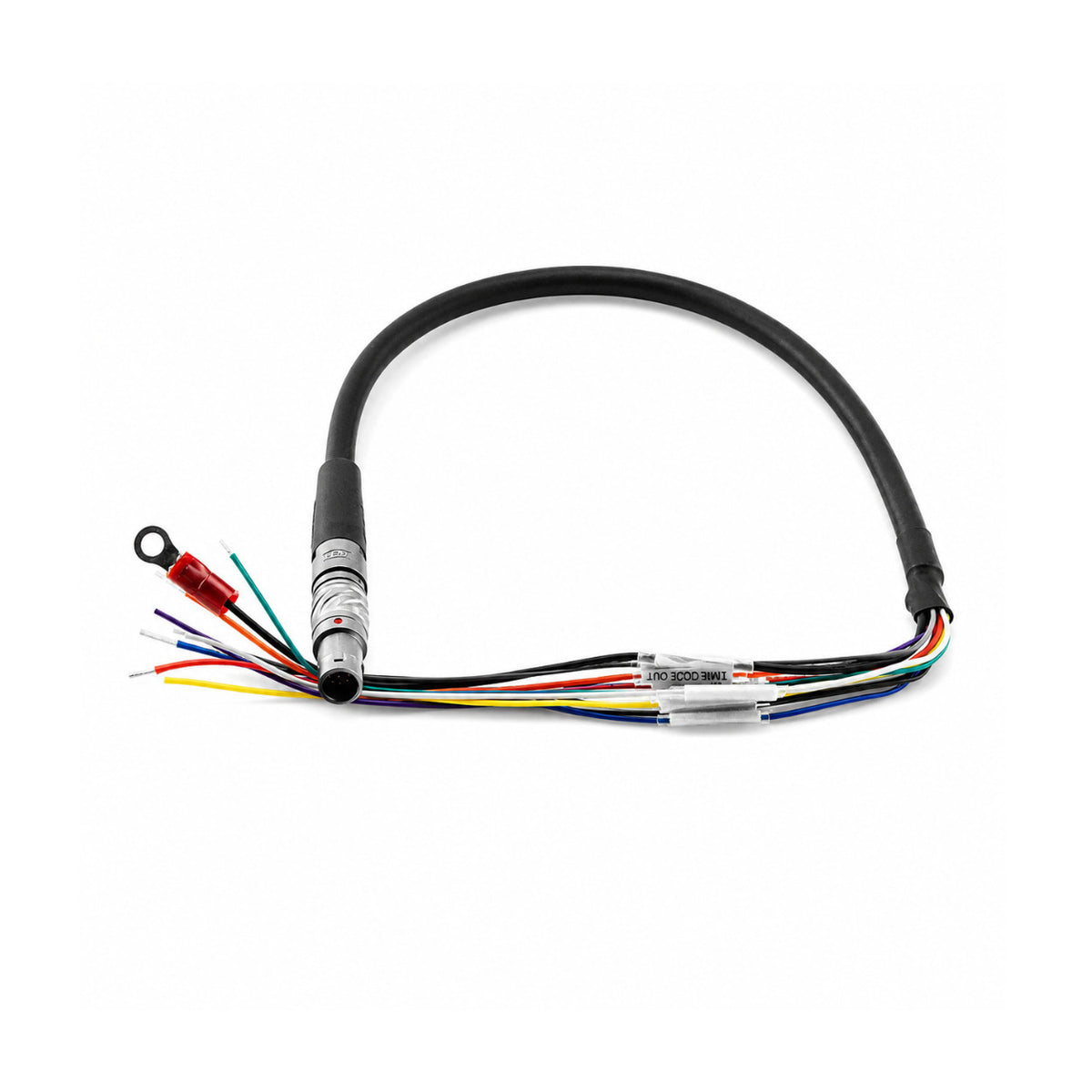

RED Digital Cinema 9-Pin EXT-to-Flying Lead 1.3ft Cable with 5V Auxiliary Power Output
- Flying leads support purpose built camera wiring
- Timecode In provides external timecode input capability
- Genlock In supports supported synchronization workflows
- RS-232 transmit and receive support serial communication
- GPI supports external control applications
- 5 V auxiliary power provides up to 500 mA
- Cable works with KOMODO, KOMODO-X, and V-RAPTOR
- 1.3 foot length keeps custom wiring runs compact
- Complete 9-pin auxiliary port pinout
Direct Access to RED EXT Functions
The RED 9-Pin EXT-to-Flying Lead Cable breaks out supported EXT port functions for advanced camera integration. Available signals include timecode, GPI, Genlock, RS-232 communication, auxiliary power, and ground for custom wiring applications.
Built for Custom Production Systems
Flying leads allow experienced users to build purpose specific connections for synchronization, external control, timecode, and other supported camera functions. The 5V auxiliary output supports up to 500 mA when enabled through the compatible camera menu.
Compatible RED Camera Platforms
RED lists the cable for KOMODO, KOMODO-X, and V-RAPTOR. The cable measures 1.3 feet.
General
| Product Type | Camera EXT Breakout Cable |
| Connection Type | 9-Pin EXT to Flying Leads |
| Cable Length | 1.3 ft |
Camera Compatibility
| RED KOMODO | Supported |
| RED KOMODO-X | Supported |
| RED V-RAPTOR | Supported |
9-Pin Auxiliary Port Pinout
| Pin 1 | 5V AUX, 5V Auxiliary Power, 500 mA Maximum |
| Pin 2 | Timecode Out, SMPTE 12M |
| Pin 3 | GPO, General Purpose Out, Tally or Sync, 3.3 V Logic Level |
| Pin 4 | UART TX, RS-232 Transmit |
| Pin 5 | UART RX, RS-232 Receive |
| Pin 6 | GPI, General Purpose In, 3.3V Logic Level |
| Pin 7 | Timecode In, SMPTE 12M |
| Pin 8 | Genlock In, Tri Level Genlock, SMPTE 296M and 274M |
| Pin 9 | Ground, Signal and Power Ground |
Functional Notes
| 5V Auxiliary Power | Enabled through the camera power menu |
| Timecode Out on KOMODO | Not currently supported |
| GPO | Not currently supported |
| GPI Signal Path | Includes a Pull-Up Resistor designed for a closure switch connected to ground |
