- Denz Premium Optics
- Denz Eye Cup
- Allen Wrench
- 2 x RED 20 mm Wing Nut and Shim
- RED P Tap to 5 Pin Power Cable
- RED 2 Pin to 5 Pin Power Cable
Trusted & Verified

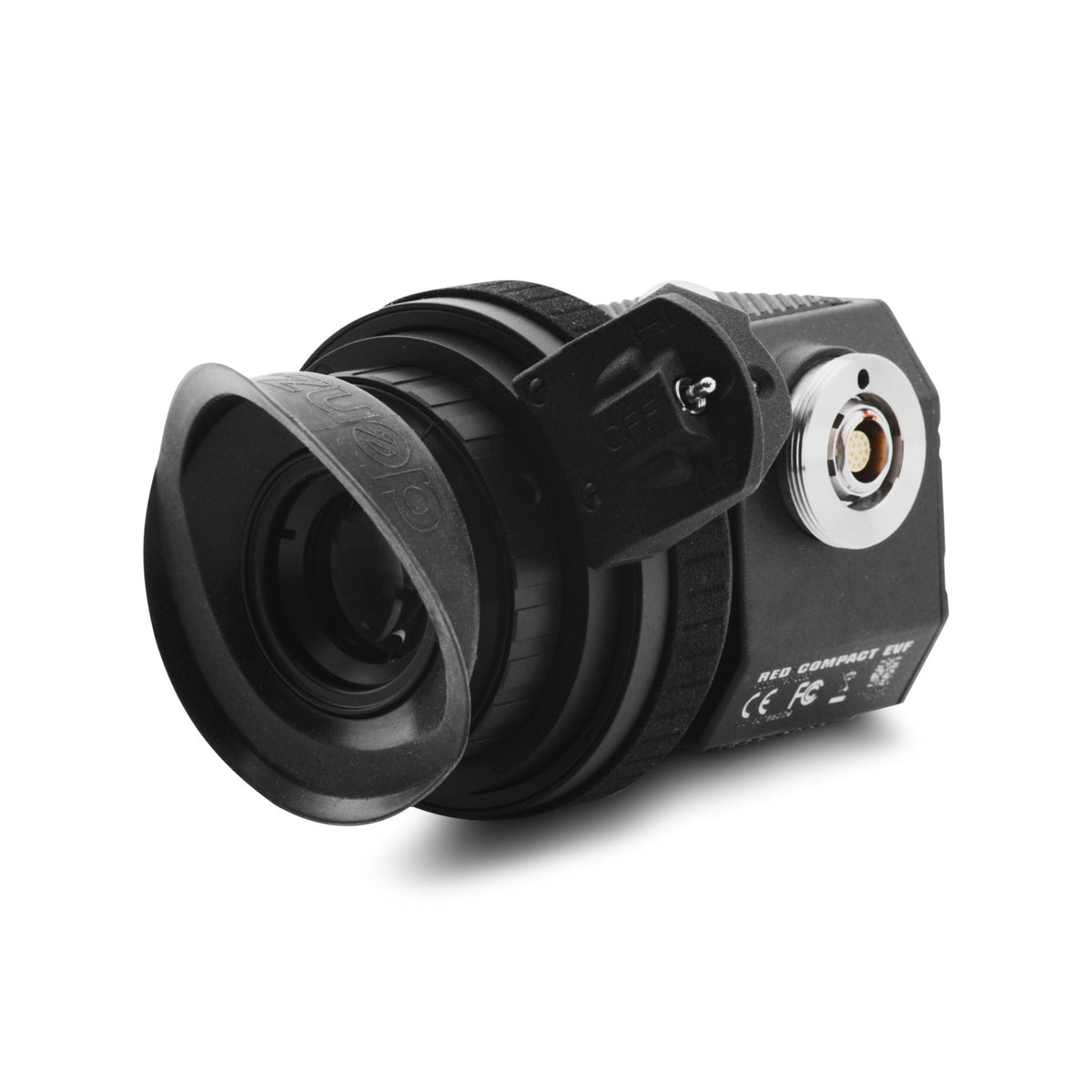

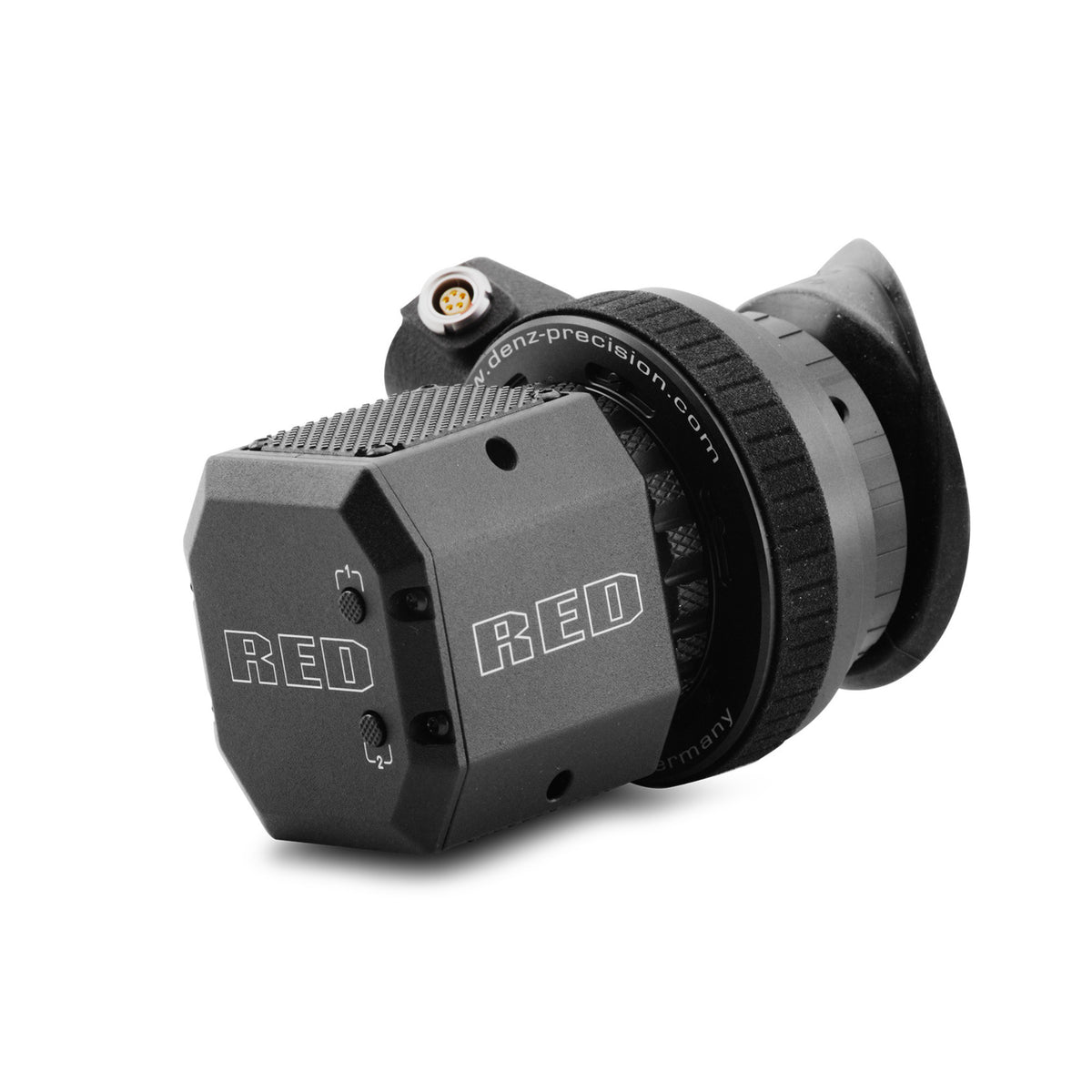

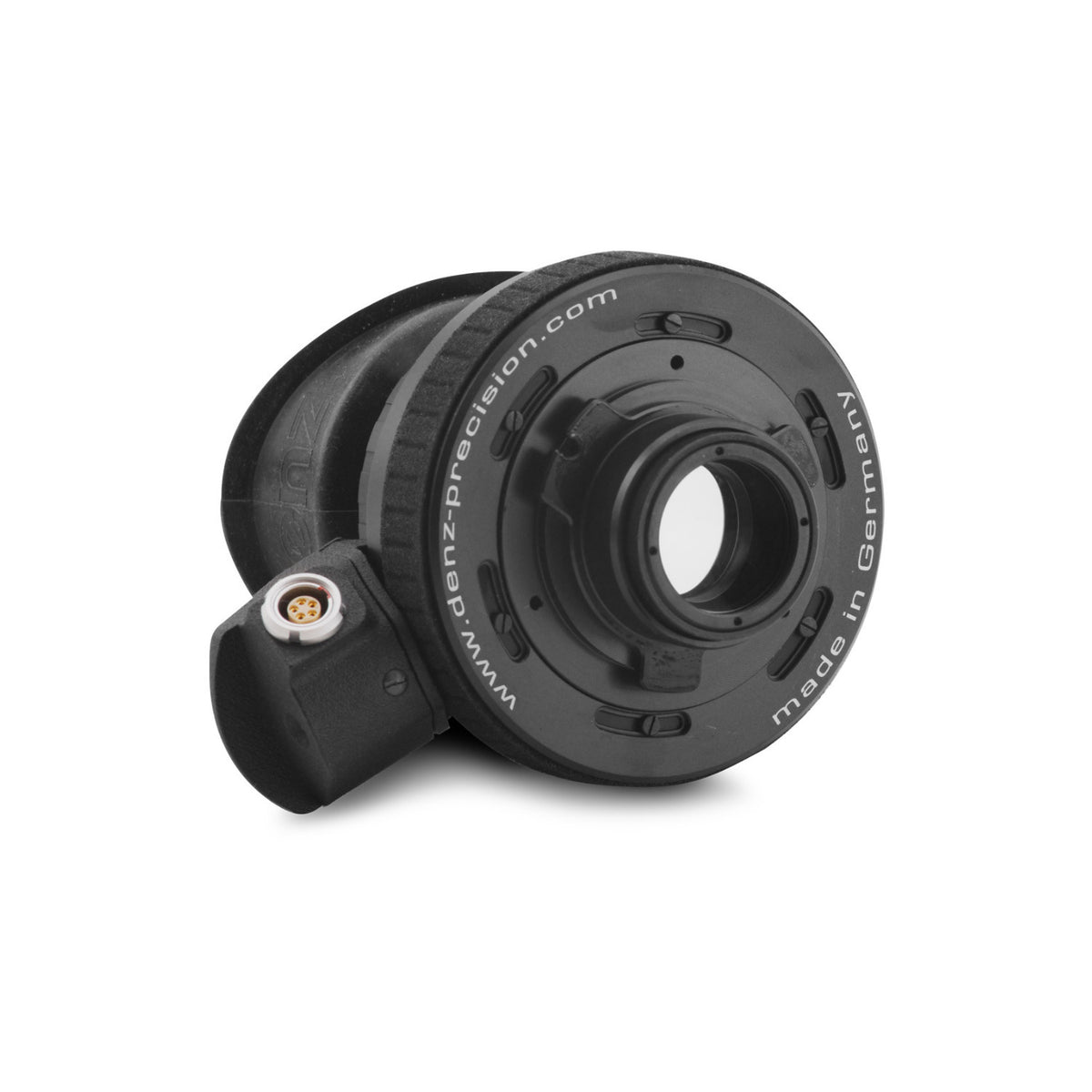

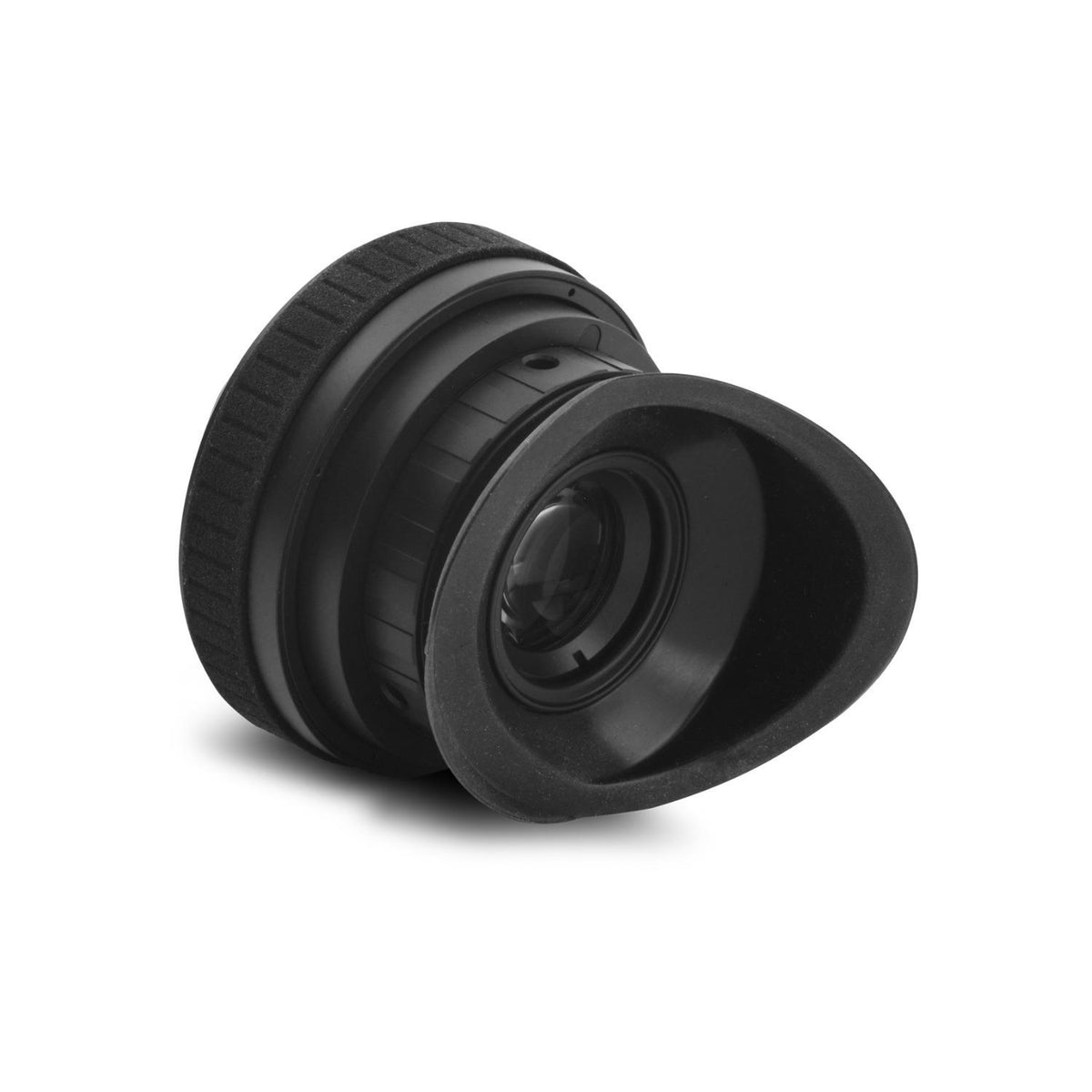

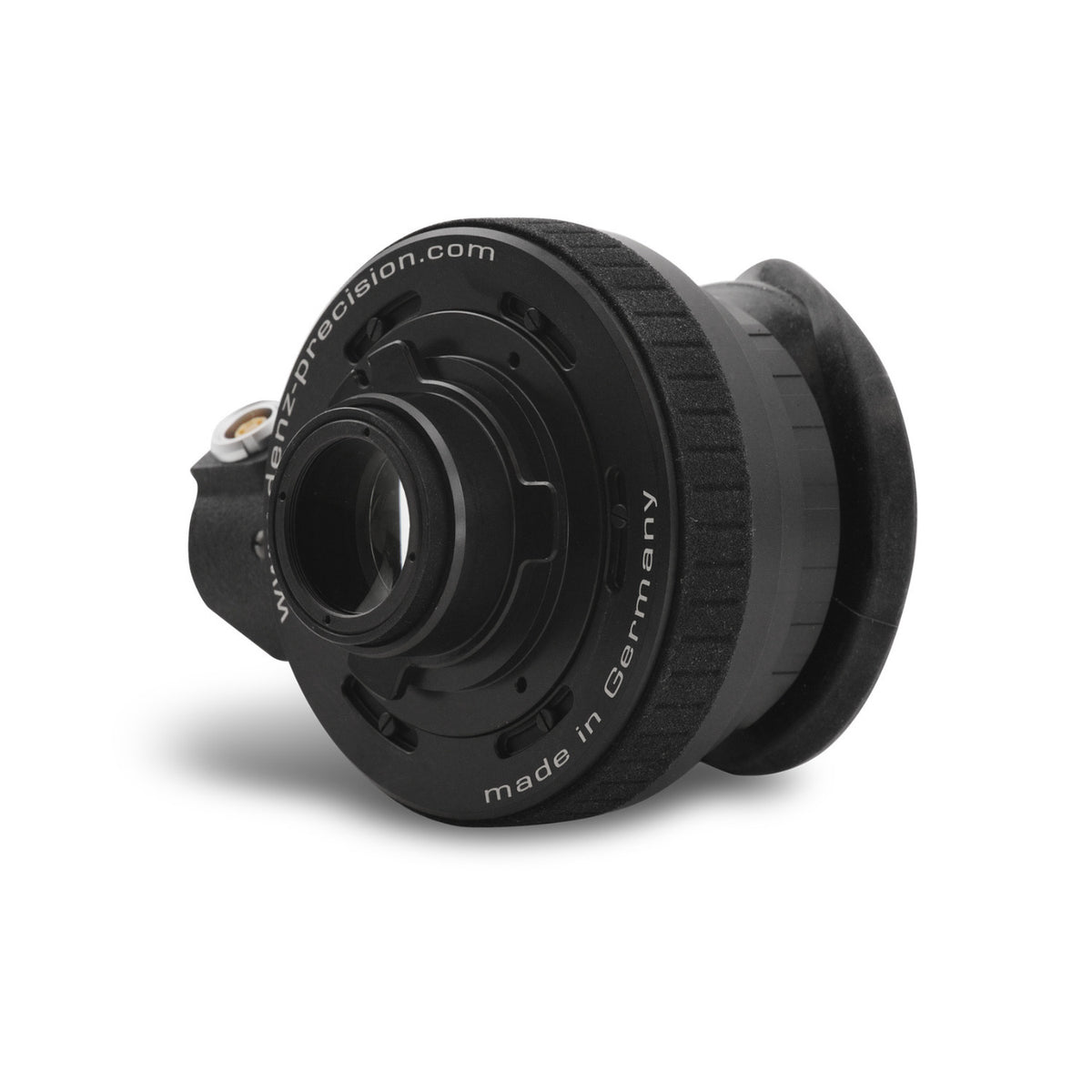

RED Digital Cinema Denz Premium Optics for RED Compact EVF
- Higher optical quality provides a sharper image for camera operation and focus evaluation
- Improved off-axis viewing supports more flexible eye positioning
- Minus 4 to plus 3 diopter correction expands operator adjustment range
- Integrated ocular heater provides two selectable temperature settings
- Quick-connect eye cup supports convenient adjustment and ambient light blocking
- Mounts through the integrated compatible EVF bayonet connection
- Aluminum and plastic construction weighs approximately 0.88 pounds
The RED Digital Cinema Denz Premium Optics upgrade gives RED Compact EVF and DSMC2 RED EVF OLED operators an enhanced optical interface for demanding camera work. The replacement ocular mounts directly to the integrated EVF bayonet connection and provides higher optical quality for a sharper image, helping operators evaluate framing and focus with greater confidence during production.
Sharper Viewing and Expanded Adjustment
The upgraded optics improve off-axis viewing angles while extending diopter correction from minus 4 to plus 3. This broader adjustment range helps accommodate different operator vision requirements without changing the core EVF. A quick-connect eye cup also supports fast positioning while helping block unwanted ambient light around the viewing area.
Integrated Heating for Challenging Conditions
An integrated ocular heater provides two temperature settings for changing environments. The LO setting supports normal climate conditions, while the HI setting is specified for very cold conditions down to minus 18 degrees Celsius. Heating power is approximately 7 W regardless of supply voltage. Power is supplied through the included 5-pin cables, with an operating input range of 10 to 32 VDC.
Purpose-Built EVF Integration

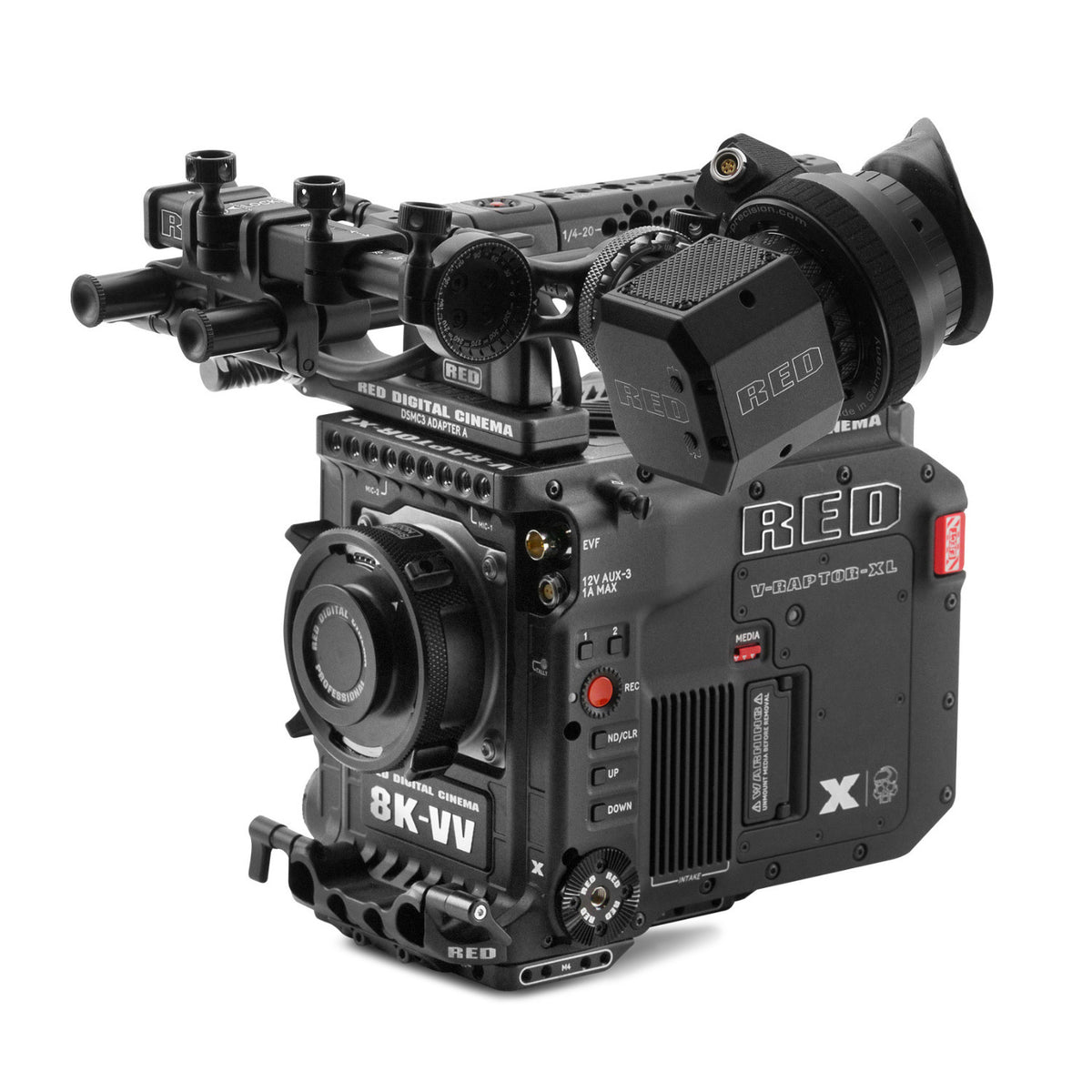

The aluminum and plastic assembly measures 3.03 inches high, 3.54 inches wide, and 4.09 inches deep, with an approximate weight of 0.88 pounds. It mounts through the RED Compact EVF or DSMC2 EVF bayonet connection. When paired with the RED EVF Mount or EVF Extension Arm, the supplied wing nuts and shims support the required mounting adjustment. The RED Compact EVF itself is sold separately.
General
Dimensions:
| Height | 3.03 inches, 77.00 mm |
| Width | 3.54 inches, 90.00 mm |
| Depth | 4.09 inches, 104.00 mm |
Weight:
| Approximate Weight | 0.88 pounds, 400.00 g |
Material:
| Material | Aluminum, Plastic |
EVF Mounting:
| Mounting | RED Compact EVF or DSMC2 EVF Bayonet Mount |
Diopter:
| Correction Range | Minus 4 to plus 3 diopter |
Electrical:
| Voltage | 10 to 32 VDC |
| Protection | Inverse polarity protection with shutdown at overvoltage and undervoltage |
| Current Consumption at 12 VDC | Approximately 0.54 A |
| Current Consumption at 24 VDC | Approximately 0.30 A |
| Residual Current When Off | None |
Heating:
| Heating Power | Approximately 7 W regardless of supply voltage |
| Temperature Settings | HI and LO |
| HI Setting | Very cold conditions down to minus 18 degrees Celsius, minus 0.4 degrees Fahrenheit |
| LO Setting | Normal conditions and climate |
Power Input:
| Connection | 5 Pin 0B |
| Pin 1 | Power Positive |
| Pin 4 | Ground Negative |
Environmental:
| Operating Temperature | Minus 30 degrees Celsius to 50 degrees Celsius, minus 22 degrees Fahrenheit to 122 degrees Fahrenheit |
