- 1 x RED Z to PL Adapter with Electronic ND Filter
- 1 x Matched Clear Glass Filter
- 1 x RED PL Mount Shim Pack
- 1 x KOMODO Side Ribs 2-Piece Set
- 1 x KOMODO PL Support Brackets 2-Piece Set
Trusted & Verified
RED Digital Cinema KOMODO-X Z-to-PL Electronic ND Filter Adapter Pack with Brackets and Side Ribs
- 2 to 7 Stop Electronic ND Range
- 1/4, 1/3, and Full Stop Adjustment Options
- Matched Clear and ND Filters
- Direct ND Adjustment from the camera or filter controls
- Remote adjustment through RED Control Systems
- Cooke /i lens Communication Support
- Compatible Lens Power and Record Triggering
- Titanium core helps maintain stable back focus
- Shimmable Mount allows precise flange adjustment
- Support Brackets and Side Ribs Sets included

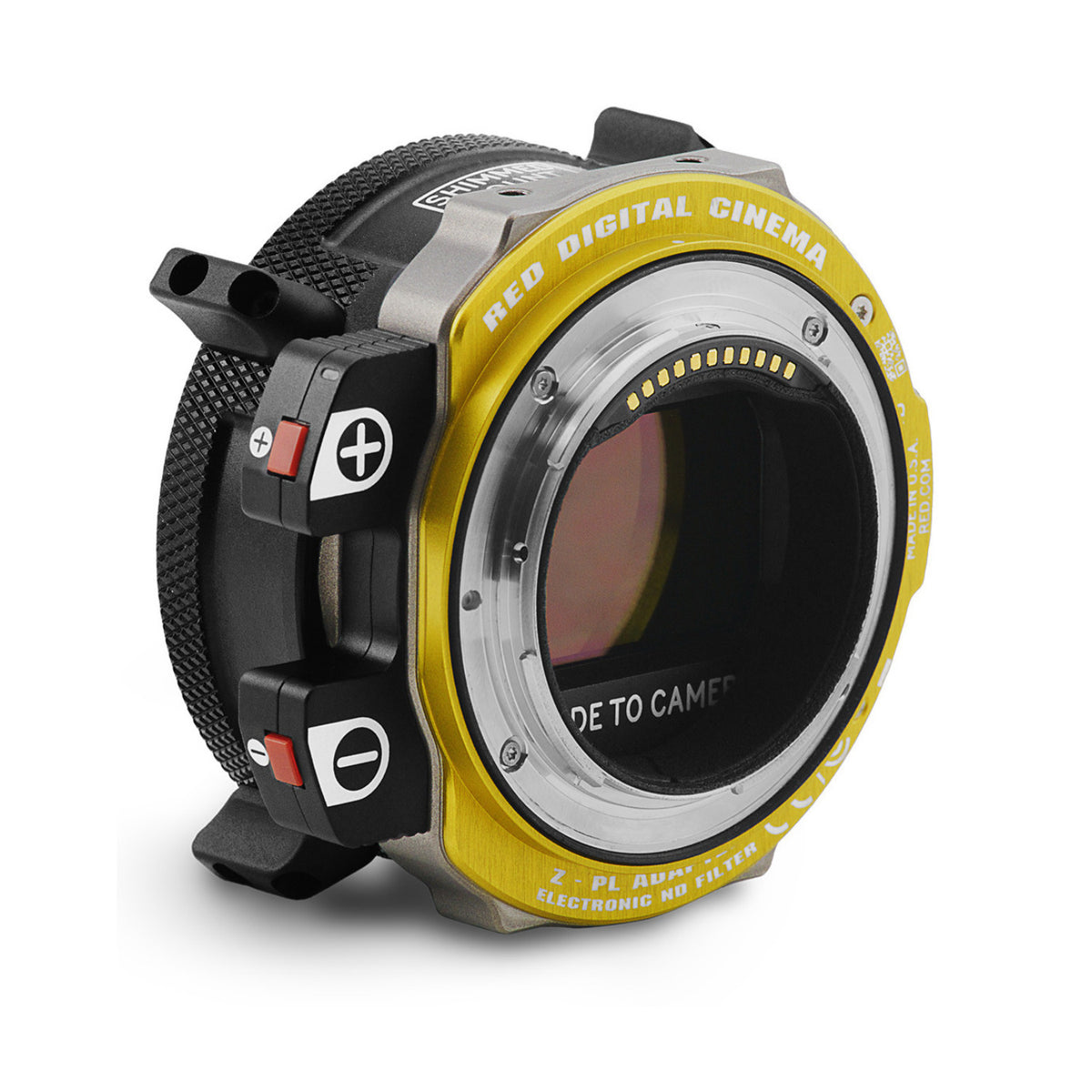

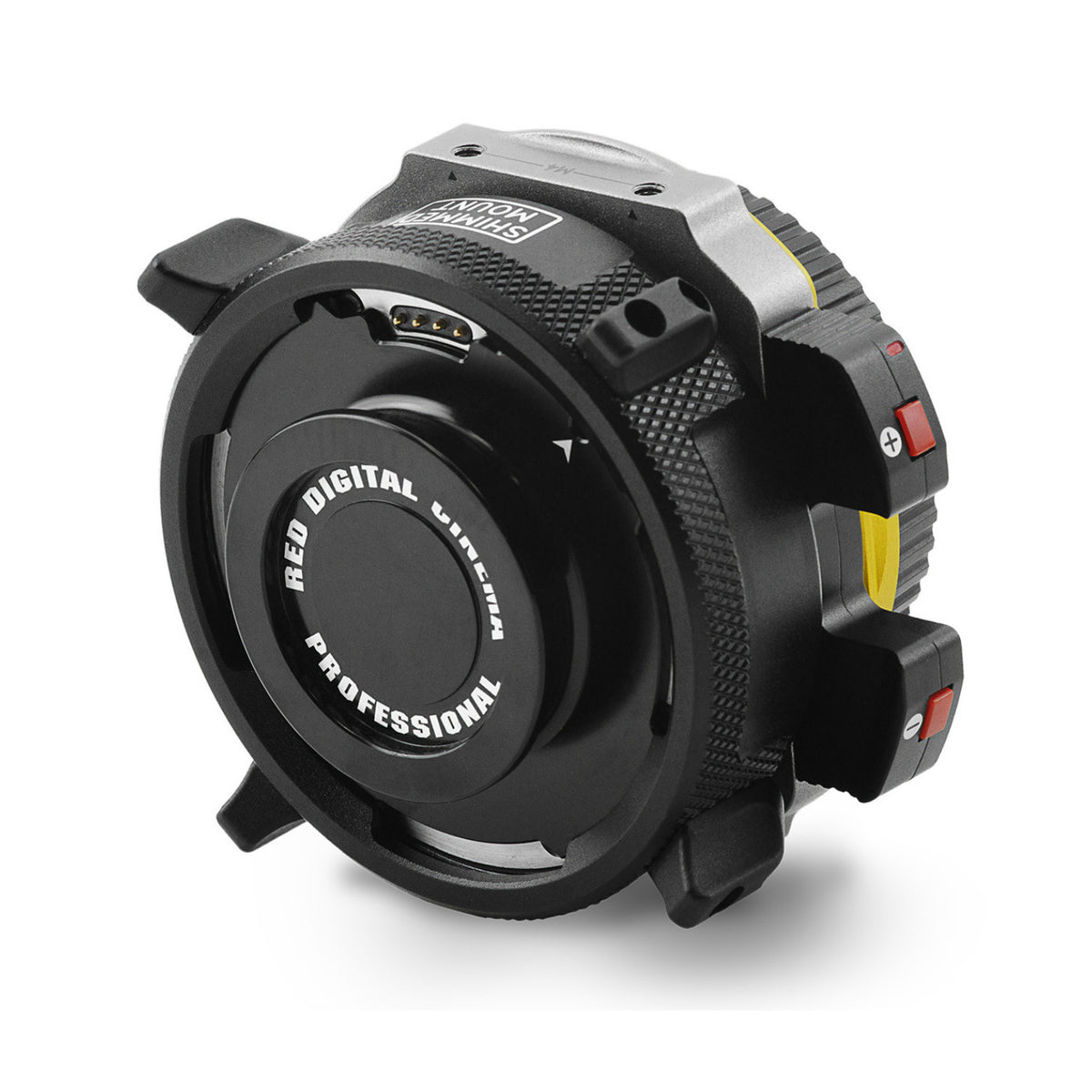

The RED Digital Cinema KOMODO-X Z to PL Electronic ND Filter Adapter Pack expands the KOMODO-X Z Mount camera for PL cinema lenses while adding integrated electronic ND control. The adapter combines a titanium core, shimmable back focus adjustment, Cooke /i communication, compatible lens power, and record triggering with a 2 to 7 stop electronic ND system. This gives crews a single mount solution for PL lens integration and exposure control without forcing aperture or shutter changes.
2 to 7 Stop Electronic ND Control
The included electronic ND filter provides 2 to 7 stops of exposure reduction with selectable 1/4, 1/3, or full stop increments. ND can be adjusted from the filter controls, the KOMODO-X interface, DSMC3 RED Touch 7 inch LCD, RED Control, RED Control Pro, web interface, or compatible RCP2 control systems. This allows exposure changes while preserving the intended aperture and depth of field.
Matched Clear and ND Filters
The pack includes a clear filter for shooting without ND and an electronic ND filter for exposure reduction. Each clear and ND filter pair is measured for matching thickness so back focus remains consistent when switching between them. A clear or ND filter must remain installed whenever the adapter is in use because removing the filter can introduce focus errors and stray light into the sensor cavity.
Titanium Core and Supported PL Lens Functions
The shimmable titanium core helps maintain precise back focus across changing environmental temperatures and allows fine adjustment when required. Compatible PL lenses can pass Cooke /i data, receive power, and support record triggering through the adapter. Most PL lenses are compatible, although lenses with unusually deep rear protrusions should be checked for clearance before use with the electronic ND filter system.

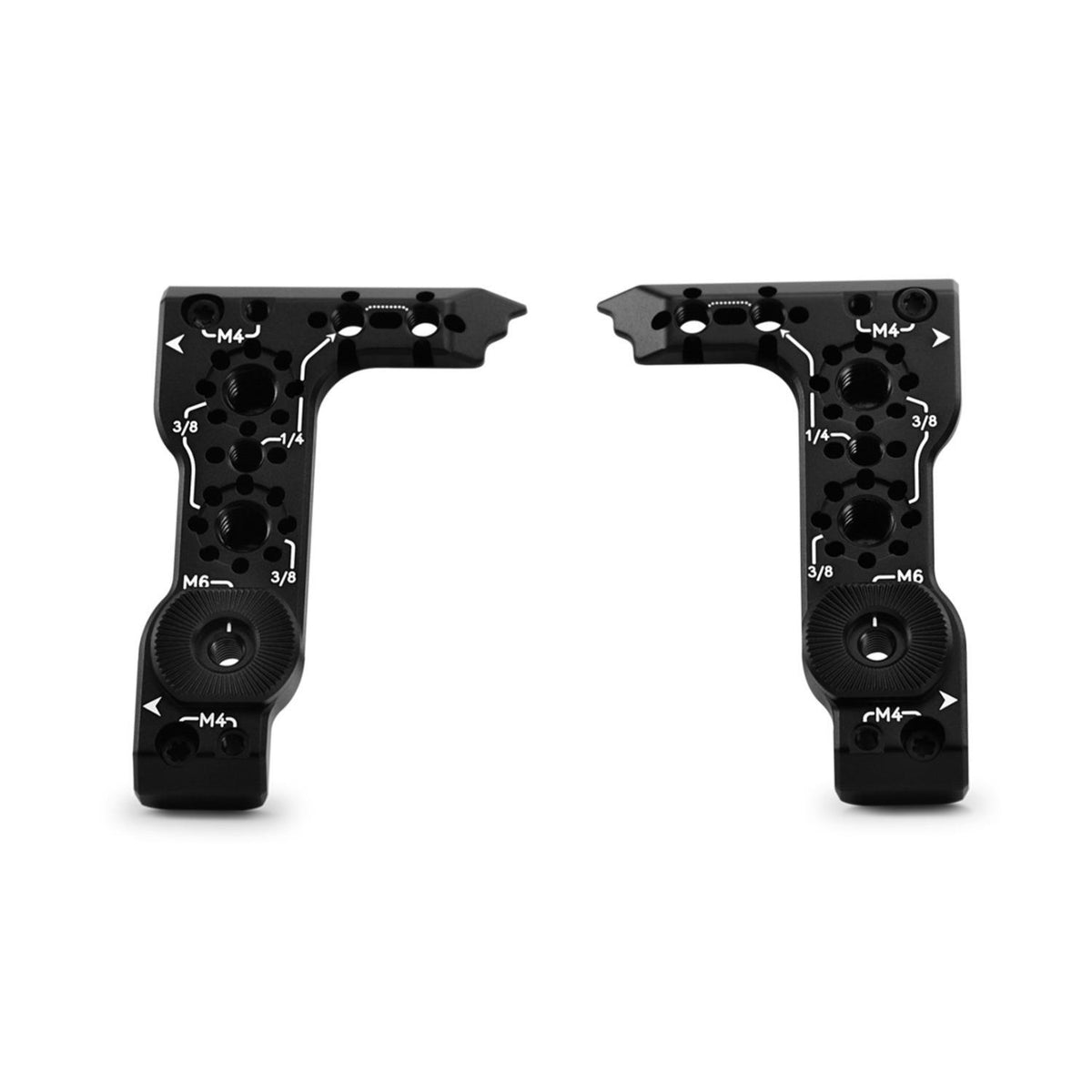

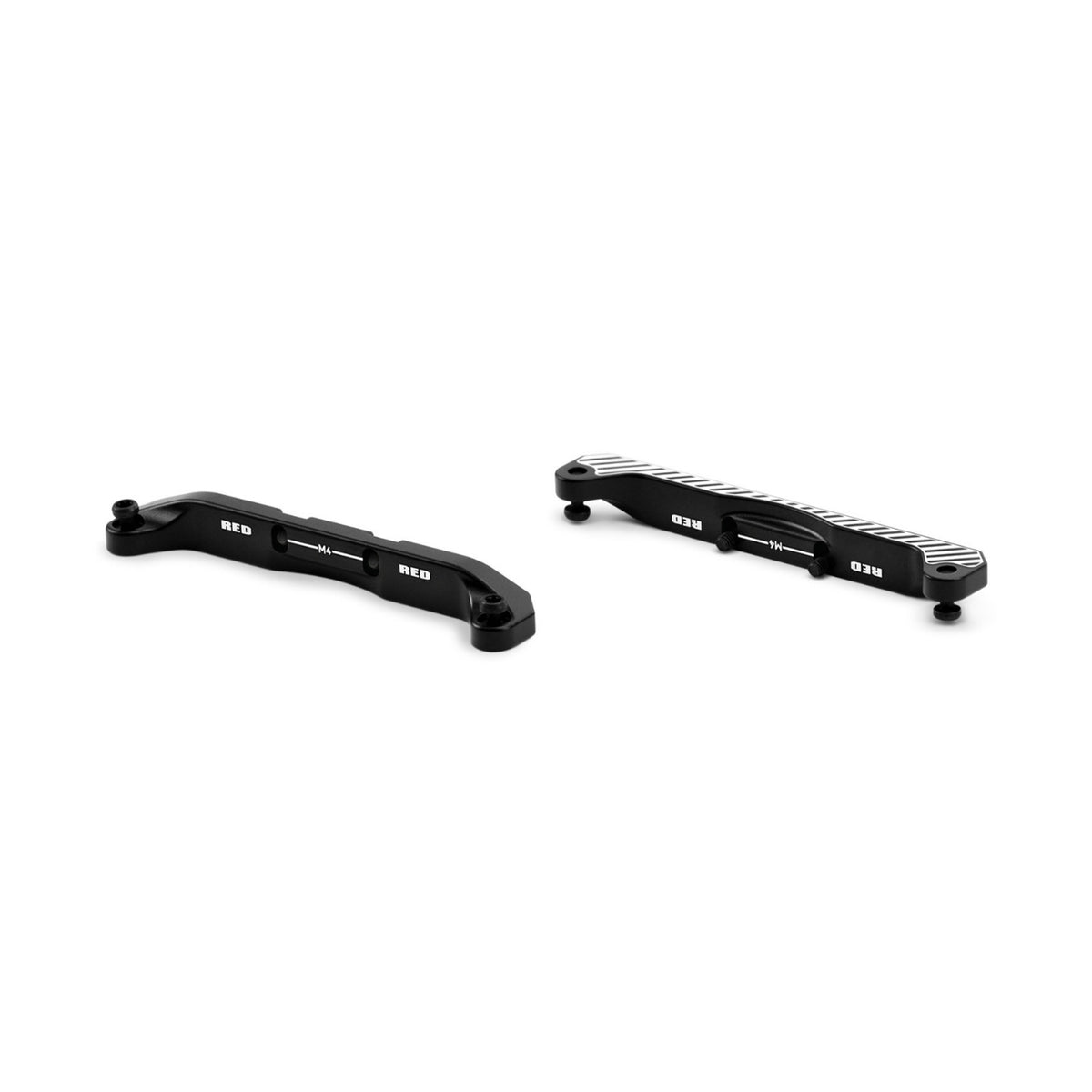

KOMODO-X Z Mount Support Hardware

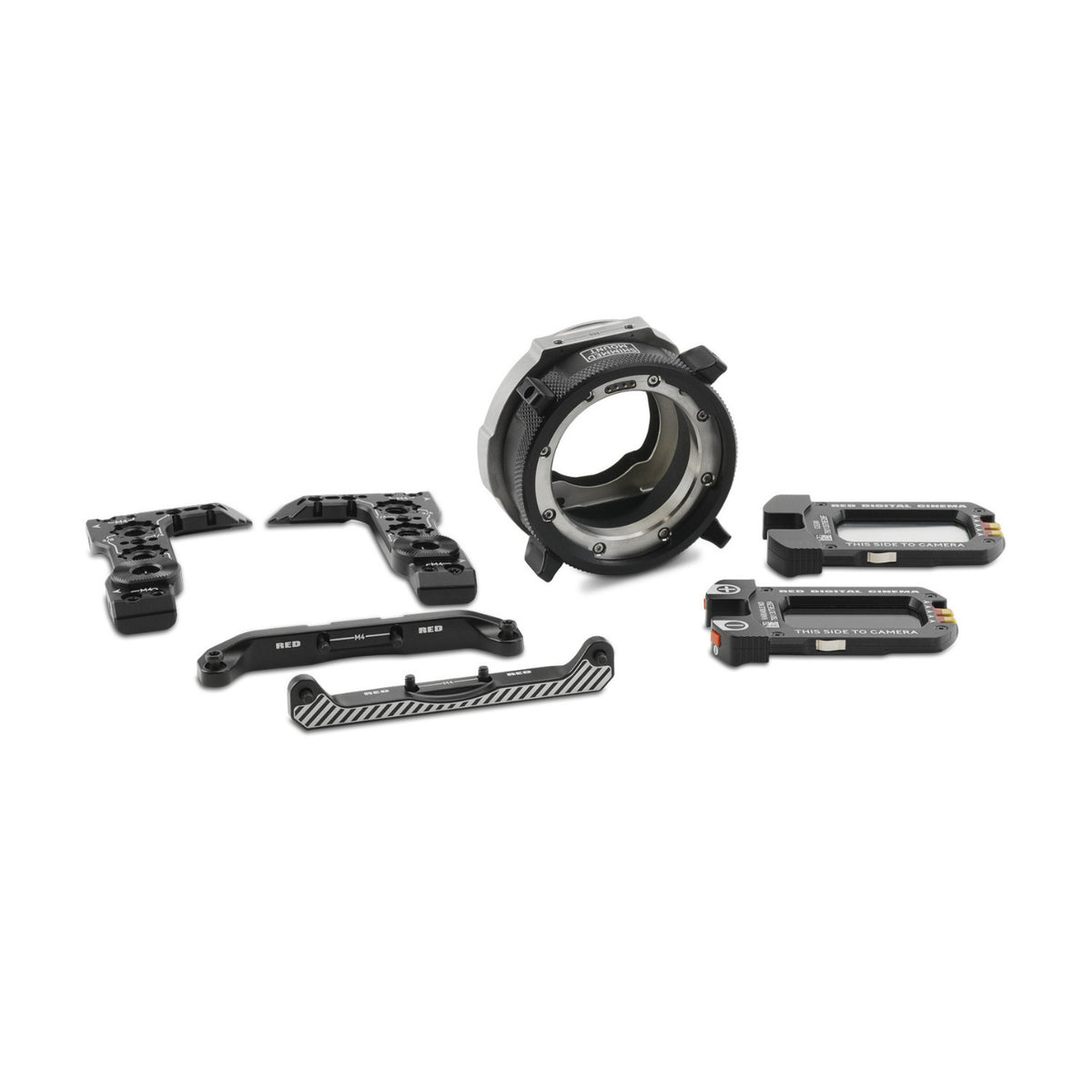

This pack is designed specifically for the KOMODO-X Z Mount camera. KOMODO Side Ribs and PL Support Brackets reinforce the mount area and add structural support for configured PL lens setups. A RED PL Mount Shim Pack is also included for back focus adjustment. The complete pack includes the Z to PL adapter, clear filter, electronic ND filter, shim pack, Side Ribs, and PL Support Brackets.
Adapter
| Product Type | Lens Mount Adapter with Electronic ND Filter |
| Camera Mount | Z-Mount |
| Lens Mount | PL Mount |
| Compatible Camera | RED KOMODO-X Z Mount |
| Core Material | Titanium |
| Back Focus Adjustment | Shimmable |
Electronic ND Filter
| ND Range | 2 to 7 Stops |
| Adjustment Increments | 1/4 Stop, 1/3 Stop, or 1 Stop |
| Physical Filter Controls | Increase and Decrease Buttons |
| Camera Control | KOMODO-X Interface |
| Monitor Control | DSMC3 RED Touch 7.0 Inch LCD |
| Remote Control | RED Control, RED Control Pro, Web Interface, RCP2 Compatible Control |
Clear Filter
| Filter Type | Clear Glass |
| Purpose | Shooting Without ND |
| Matching | Thickness Paired with Included Electronic ND Filter |
| Required During Operation | Clear or Electronic ND Filter Must Remain Installed |
Lens Communication
| Cooke /i Communication | Supported |
| Compatible Lens Power | Supported |
| Record Triggering | Supported |
PL Lens Clearance
| Maximum Rear Protrusion at 54 mm Diameter | 20.40 mm |
| Maximum Rear Protrusion at 45.60 mm Diameter | 21.60 mm |
| Lens Compatibility Note | Some PL Lenses with Deep Rear Protrusions Are Not Compatible |
Support System
| KOMODO PL Support Brackets | Supported |
| KOMODO Side Ribs Required for Support Bracket Installation | Yes |
| Support Purpose | Added rigidity for heavy or long PL lenses |
Shim Pack
| 13 Micron Shim | Included |
| 19 Micron Shim | Included |
| 25 Micron Shim | Included |
| 50 Micron Shim | Included |
| 75 Micron Shim | Included |
