- NVS16 Network Video Recorder with 4TB HDD
- 8 x 12MP PoE Cameras
Trusted & Verified

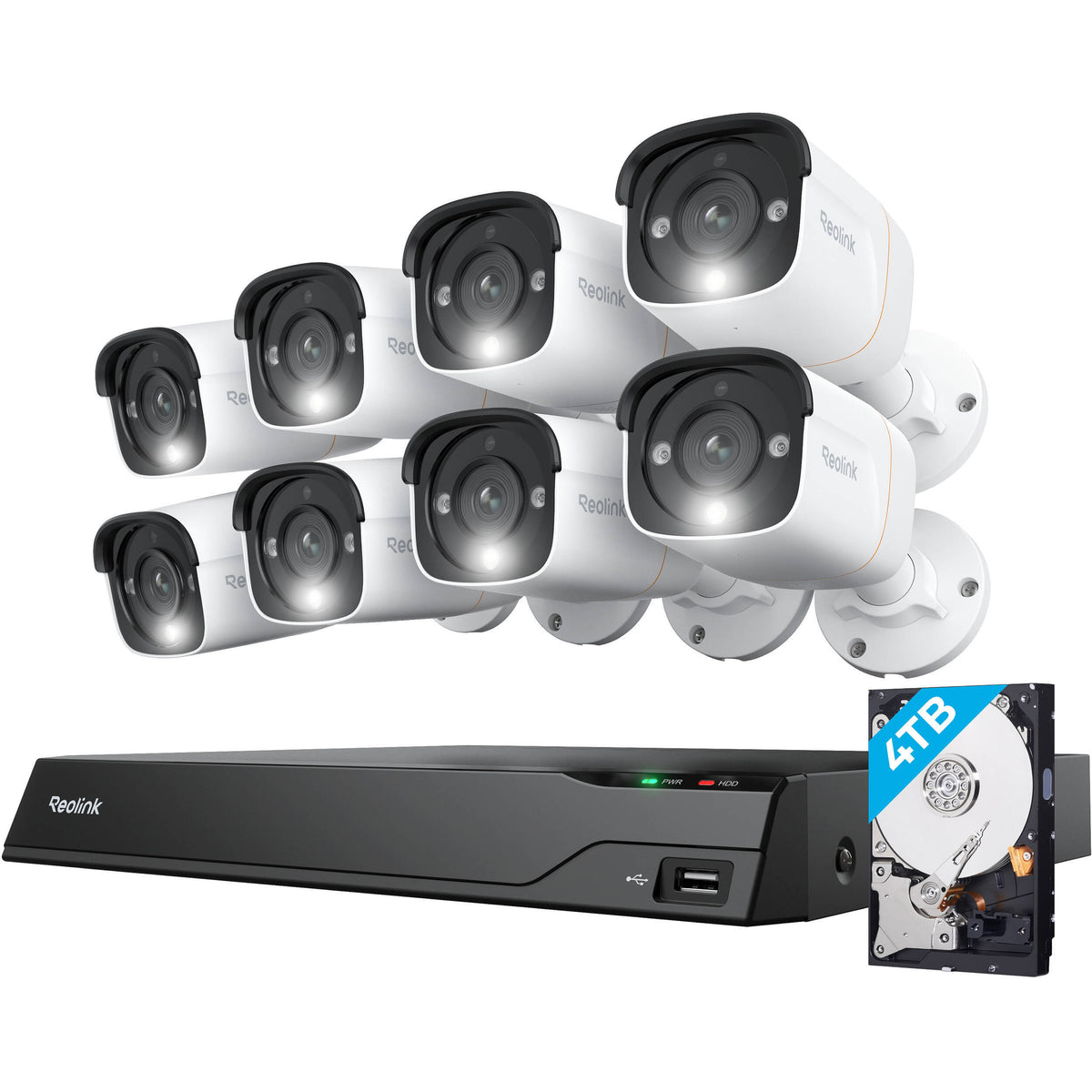

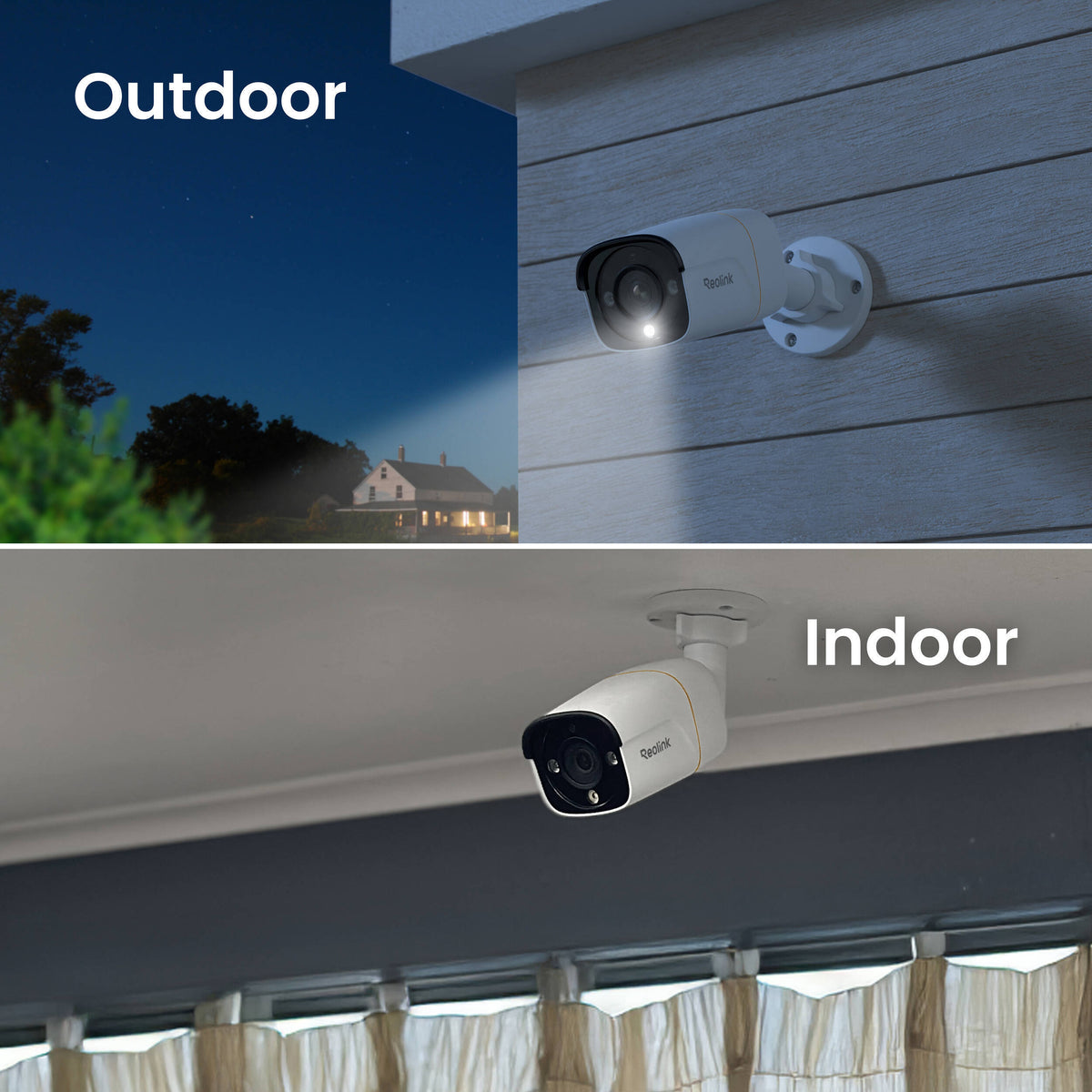

Reolink NVS16-12MB8 16-Channel 12MP PoE Security System with 4TB NVR and 8 Bullet Cameras
- 12MP cameras record detailed 4512 x 2512 video at up to 20 fps
- Detects people, vehicles, pets, and general motion
- 700 lumen spotlights support full color video after dark
- Infrared night viewing reaches up to 100 feet
- Built in microphone and speaker support two way audio
- IP67 weather resistance supports exposed outdoor installation
- Supports continuous 24/7, scheduled, and motion recording
- Custom motion zones help exclude areas that do not need alerts
- Smart playback filters recorded video by detection mode
- Reolink App, Client, and NVR provide centralized management
Monitor entrances, yards, garages, stores, and other important areas with the Reolink NVS16-12MB8 12MP PoE Security Camera System. Eight cameras capture detailed 4512 x 2512 video at up to 20 fps, while the included NVS16 recorder stores footage locally on its built in 4TB hard drive. Continuous 24/7 recording, scheduled recording, and motion recording give you flexible control without subscription fees.
Smart Detection for More Relevant Alerts

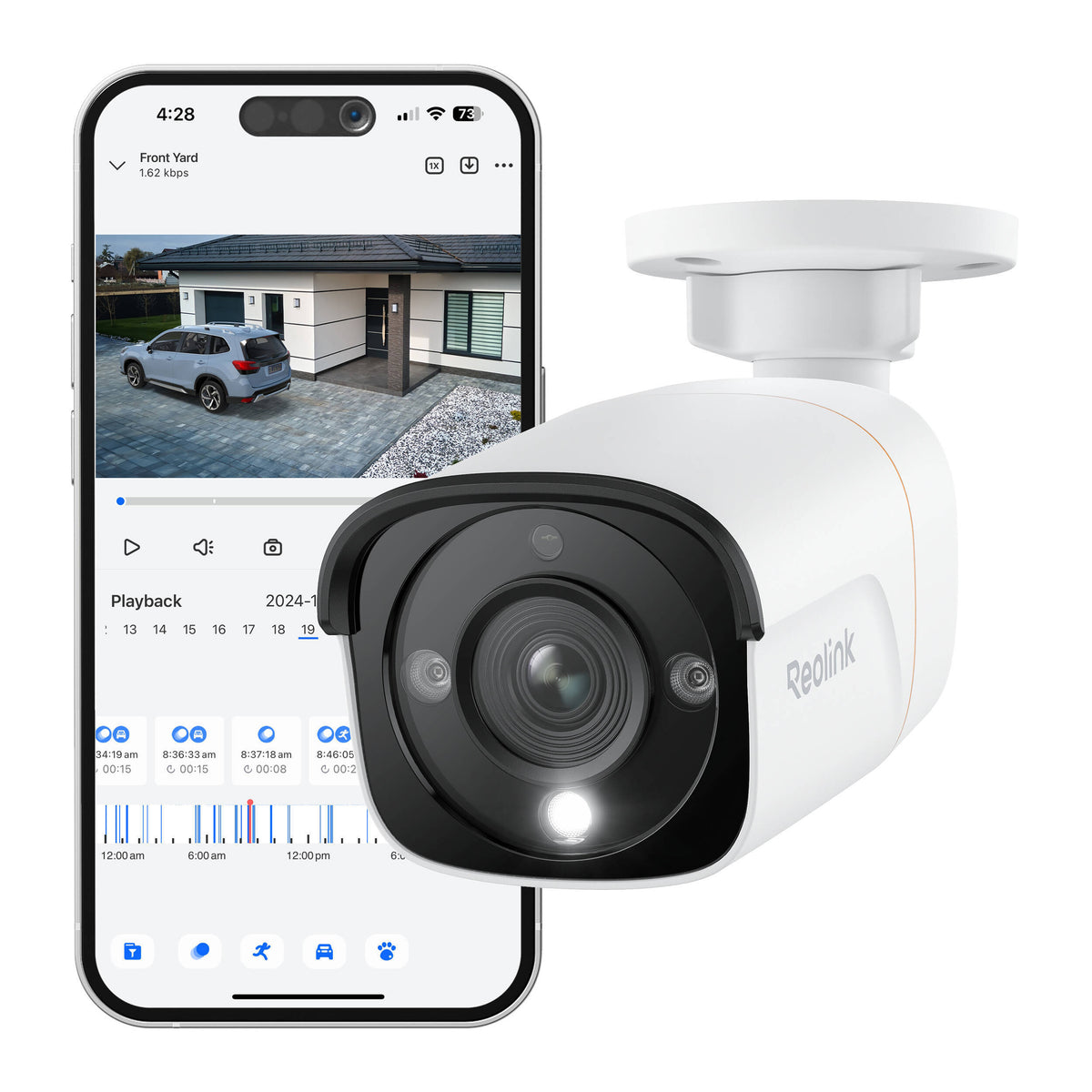

On camera detection recognizes people, vehicles, pets, and general motion. This helps separate useful activity from less relevant events. Push notifications and email alerts can keep you informed when activity is detected, while customizable motion zones let you exclude areas that do not need monitoring. Smart playback can also filter saved footage by detection mode to help you locate important events faster.
Detailed Day and Night Monitoring
Each camera combines a 12MP image sensor with a 4.0 mm lens and a 93 degree horizontal field of view. A 700 lumen spotlight supports full color night recording, while infrared illumination reaches up to 100 feet for viewing in darkness. Built in microphones and speakers provide two way audio through supported Reolink software. IP67 weather resistance supports installation in exposed outdoor locations.
PoE Setup and Centralized Recording

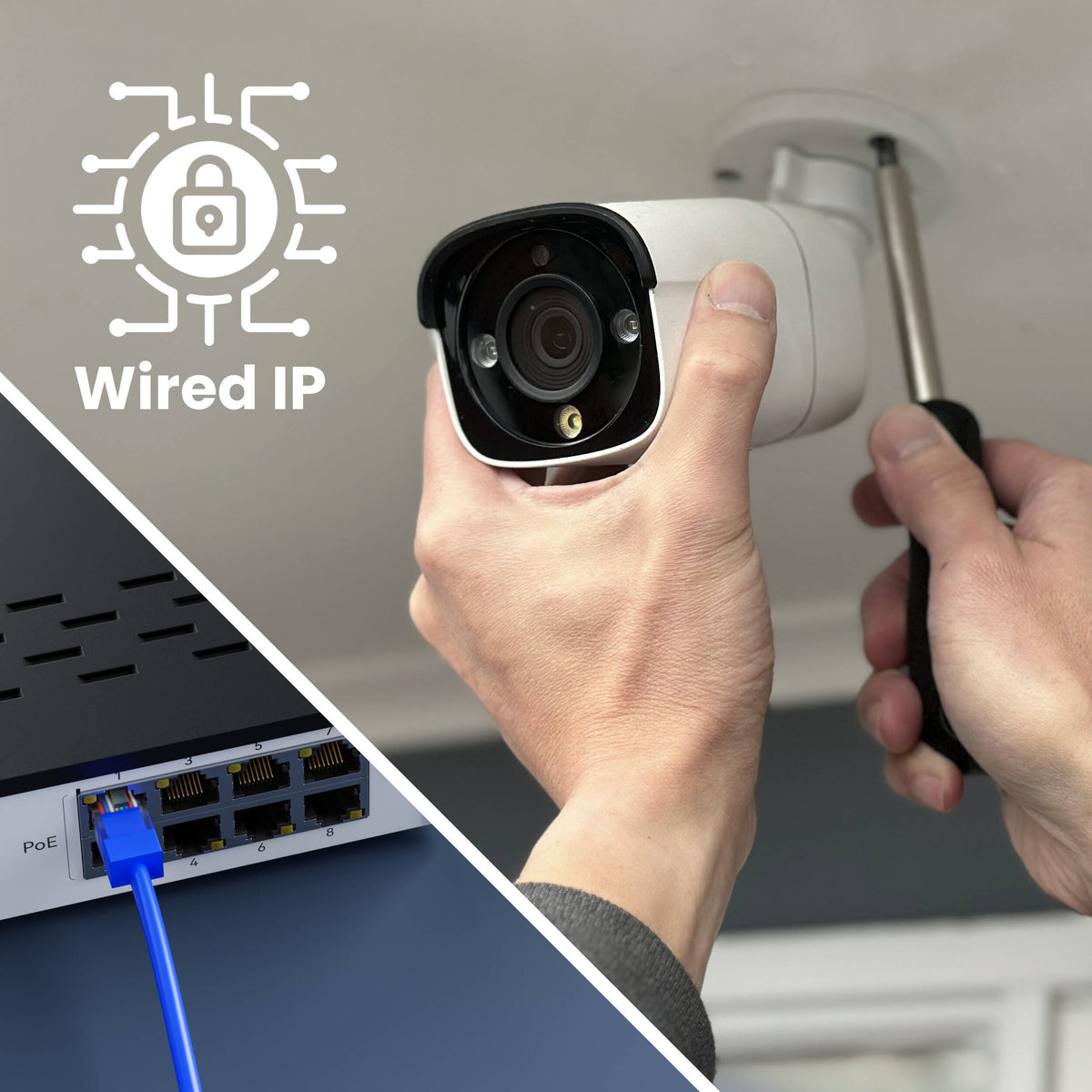

Power over Ethernet carries power and video through a network cable, simplifying wired camera installation. The NVS16 provides 16 PoE camera ports and supports up to 24 IP cameras in total. Its 2 SATA interfaces support up to 16TB of storage, with a maximum of 8TB per drive. Access live feeds and recorded footage through the Reolink App, Client, or NVR, with multi camera viewing, recording schedules, smart playback, and centralized system controls.
System Configuration
| Camera Quantity | 8 |
| Recorder | NVS16 |
| Camera Model | P340 |
| Recording Modes | Motion Recording, Scheduled Recording, 24/7 Recording |

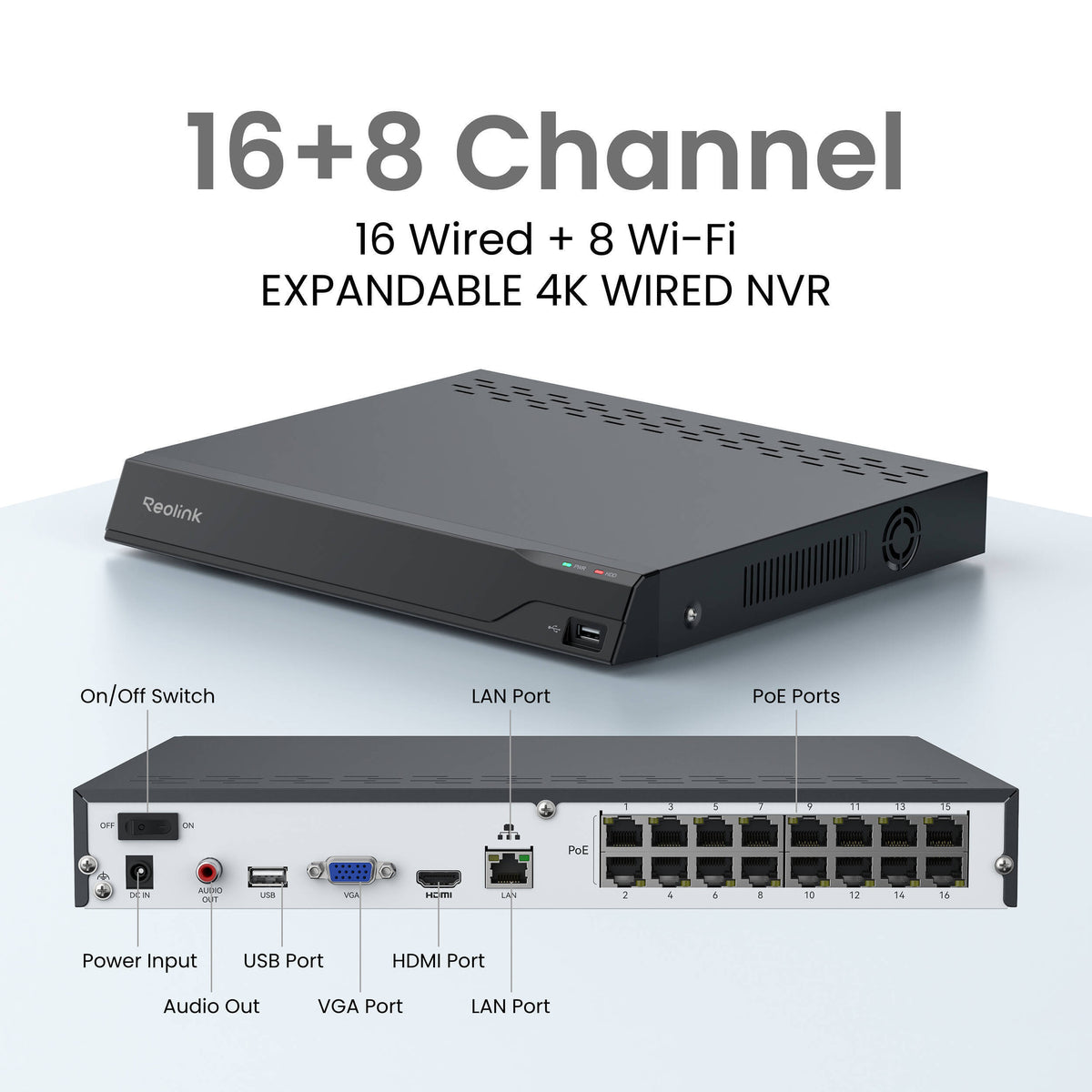

NVS16 Recorder
| Hardware Version | N6MB01 |
| IP Video Input | Up to 24 IP cameras, maximum 16 wired cameras |
| Audio Input | Cameras with built in microphone |
| Video Output | VGA and High Definition Multimedia Interface compatible output |
| Audio Output | 1 channel RCA |
| Video Formats | H.265, H.264 |
| Synchronous Playback | Up to 4 channels |
| SATA Interfaces | 2 |
| Included Storage | 1 x 4TB HDD |
| Maximum Storage Capacity | 16TB total, maximum 8TB per HDD |
| External HDD Support | No |
| USB Interface | 2 x USB 2.0 |
| LAN and WAN Interface | 1 x RJ45 10/100 Mbps self adaptive Ethernet interface |
| PoE Interfaces | 16 x RJ45 10/100 Mbps self adaptive Ethernet interfaces |
| Maximum PoE Power Per Port | 25W |
| PoE Standard | IEEE 802.3 af/at |
| Supported Browsers | Firefox, Chrome, Edge, Safari |
| Supported Computer Systems | Windows, Mac OS |
| Supported Smartphone Systems | iOS, Android |
| Maximum User Access | 20 users, 1 administrator account and 19 user accounts |
| Simultaneous Video Streams | Up to 12, including 10 substreams and 2 mainstreams |
| Power Supply | DC 48V to 54V |
| Power Consumption | Less than 10W without HDD and PoE |
| Operating Temperature | 14 degrees F to 113 degrees F |
| Operating Humidity | 10% to 90% |
| Dimensions | 330 mm x 45 mm x 285 mm |
| Weight | 2.4 kg |
Camera
Video and Audio
| Image Sensor | 1/2.49 inch CMOS sensor |
| Video Resolution | 4512 x 2512, 12MP at 20 fps |
| Lens | 4.0 mm, F1.6 with IR cut filter |
| Video Format | H.265 |
| Horizontal Field of View | 93 degrees |
| Vertical Field of View | 49 degrees |
| Day and Night Mode | Automatic switching with IR cut filter |
| Infrared Night Vision | Up to 30 meters or 100 feet |
| Infrared LEDs | 2 x 850 nm LEDs |
| Color Night Vision Spotlight | 1 x 4.3W, 6500K, 700 lumen spotlight |
| Audio | Two way audio |
| Built In Audio | Microphone and speaker |
Power and Interfaces
| PoE | IEEE 802.3af, 48V active |
| DC Power | DC 12V, 1A, less than 12W |
| Ethernet | 1 x 10/100 Mbps RJ45 |
| Local Storage | microSD card slot, maximum 256GB |
| System Control | Reset button |
Software
| Mainstream Frame Rate | 2 fps to 20 fps, default 20 fps |
| Substream Frame Rate | 4 fps to 20 fps, default 10 fps |
| Mainstream Code Rate | 3072 Kbps to 10240 Kbps, default 8192 Kbps |
| Substream Code Rate | 128 Kbps to 1024 Kbps, default 768 Kbps |
| Detection Types | Motion, Person, Vehicle, Pet |
| Supported Browsers | Edge, Chrome, Firefox, Safari |
| Supported Computer Systems | Windows, Mac OS |
| Supported Smartphone Systems | iOS, Android |
| Smart Home Compatibility | Google Assistant |
Environment and Size
| Weather Resistance | IP67 |
| Operating Temperature | 14 degrees F to 131 degrees F |
| Operating Humidity | 10% to 90% |
| Dimensions | 67 mm diameter x 187 mm |
| Weight | 460 g |
