- NVS8 NVR
- 4 x NVS-B12M Cameras
- NVR Power Adapter
- High Definition Video and Audio Cable
- USB Mouse
- 1 Meter Network Cable
- 4 x 18 Meter Network Cables
- Quick Start Guide
- 5 x Mounting Templates
- 4 x Surveillance Stickers
- 4 x Waterproof Lids
- 5 x Packs of Screws
- Wrench
Trusted & Verified

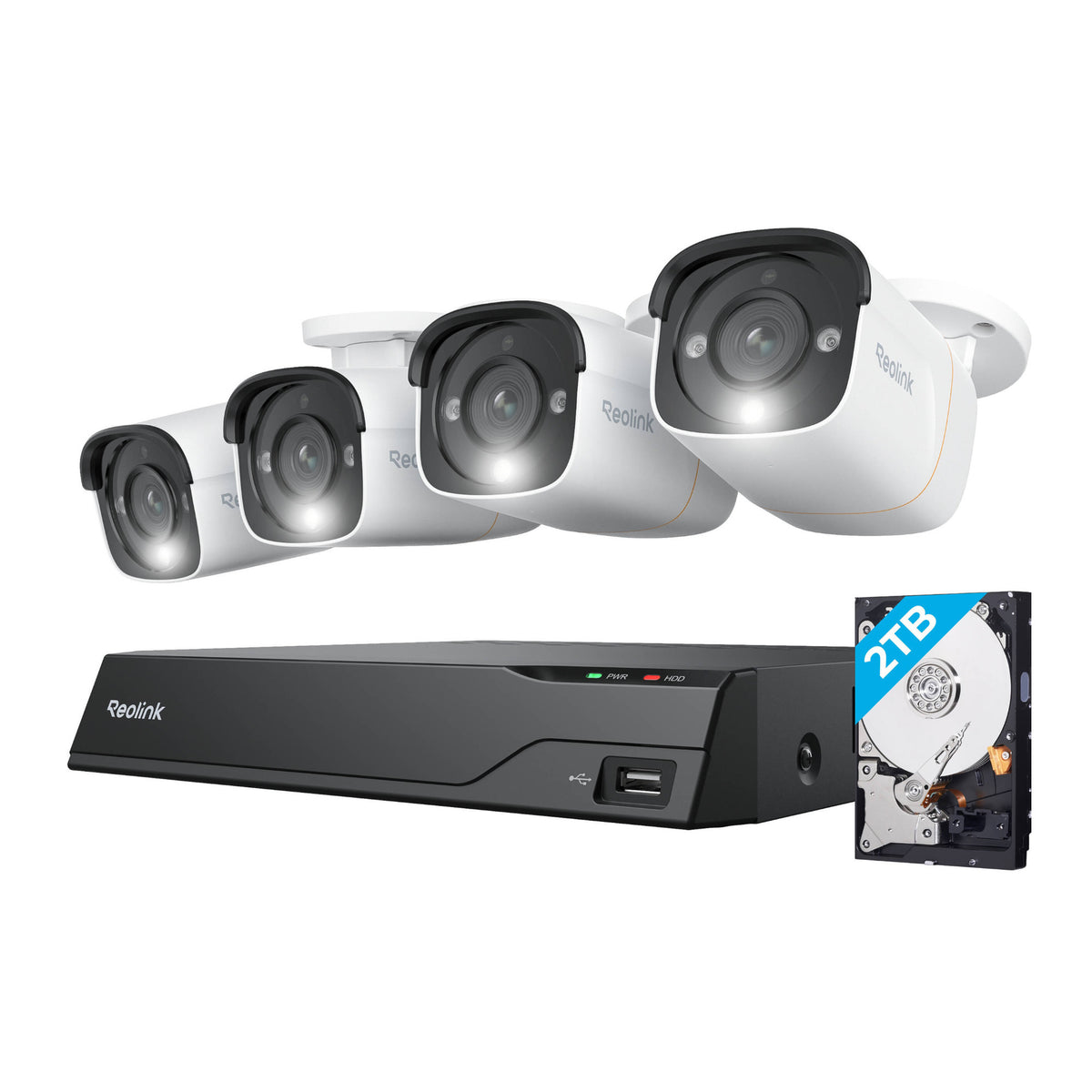

Reolink NVS8-12MB4 4K+ 12MP PoE Security System with 4 Bullet Cameras and 2TB 8-Channel NVR
- Four 12MP cameras capture detailed 4512 x 2512 resolution video

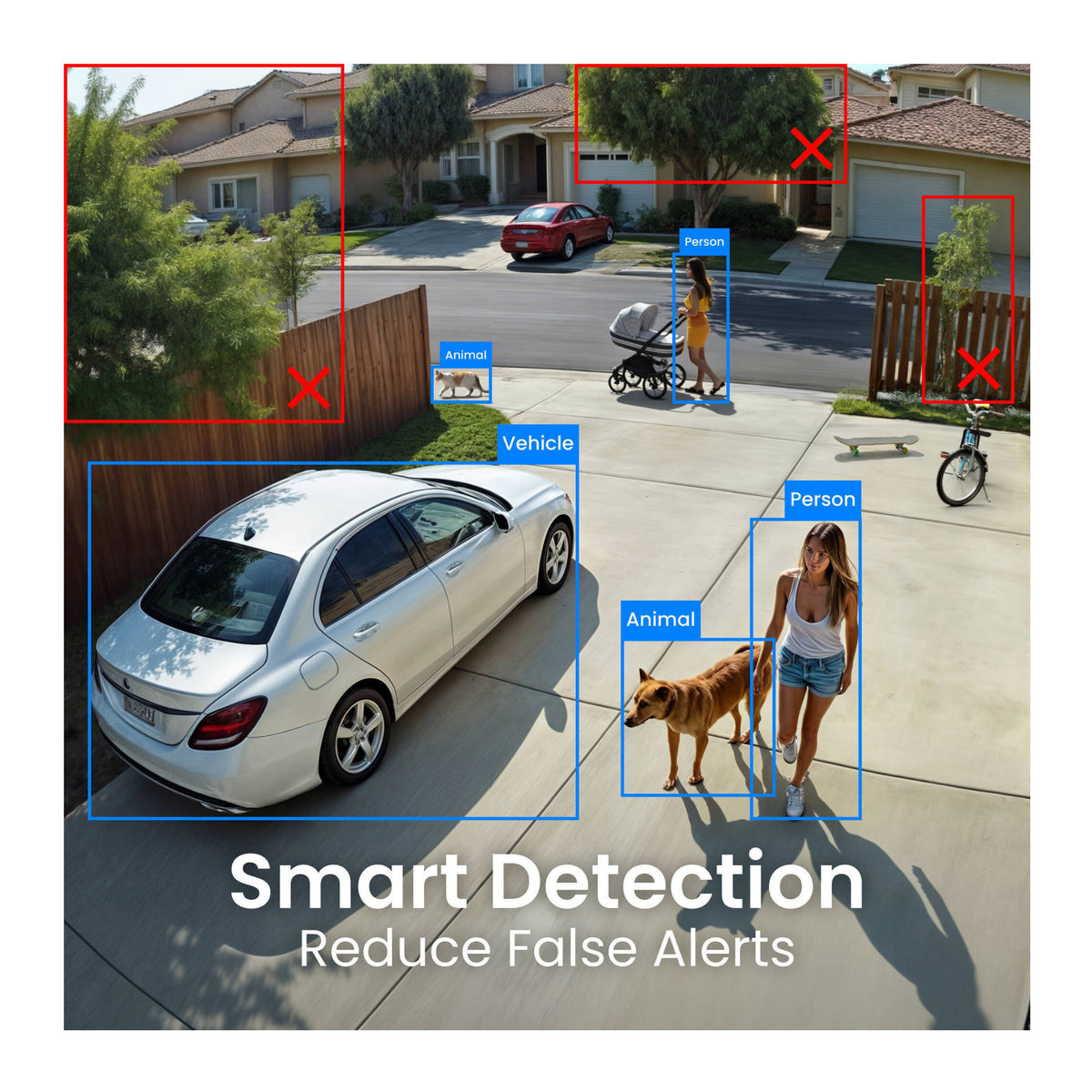

- Smart detection distinguishes people, vehicles, and pets
- Built in spotlights support full color monitoring after dark
- Infrared night vision reaches up to 100 feet
- IP67 rated cameras support outdoor installation
- Two way audio works through the Reolink App or Client
- Power over Ethernet carries power and data through one cable
- Continuous, motion triggered, and scheduled recording modes provide flexible monitoring

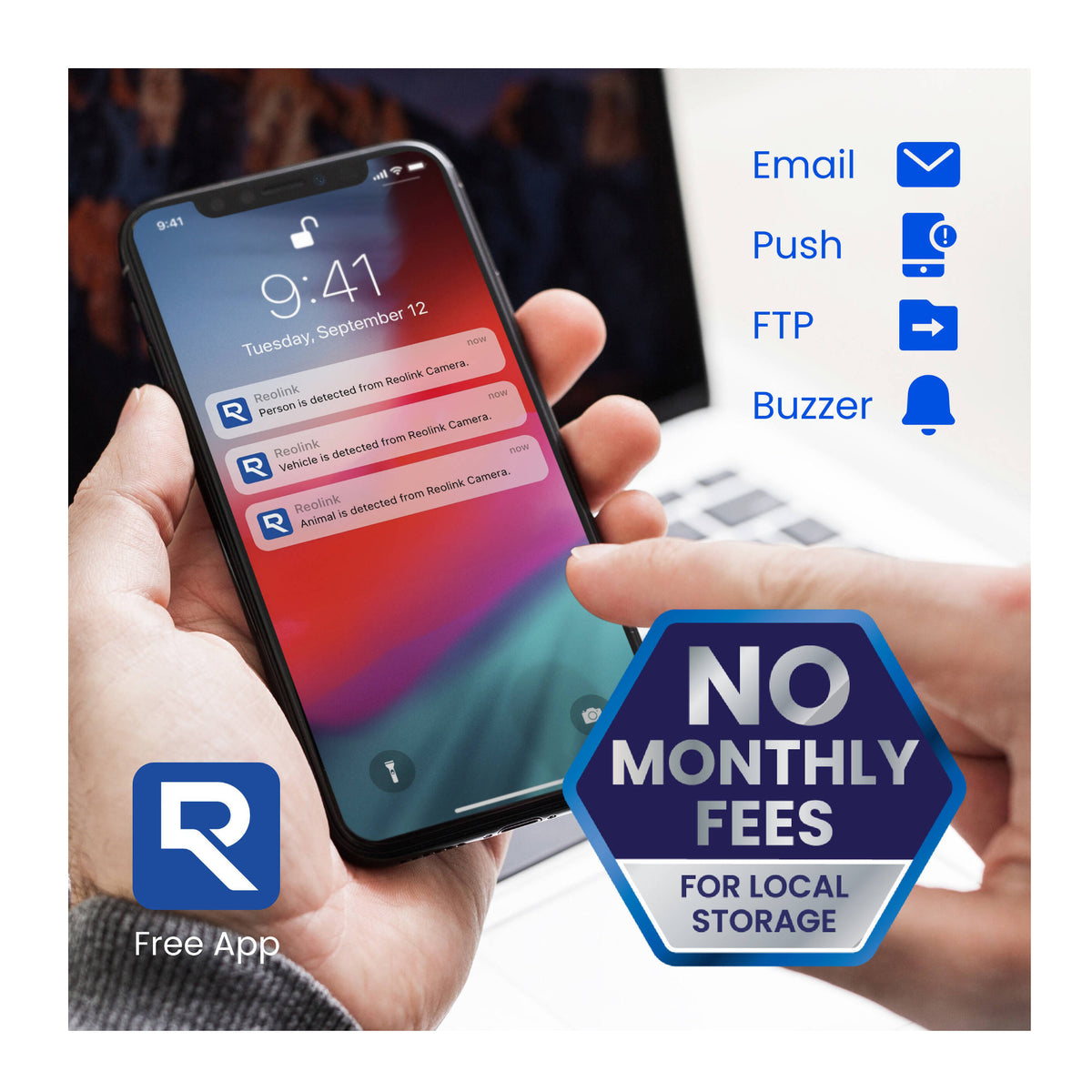

The Reolink NVS8-12MB4 PoE surveillance system combines four 12MP cameras with an 8 channel NVR for detailed monitoring around your property. Each camera captures 4512 x 2512 resolution video and uses smart detection to distinguish people, vehicles, and pets. Real time alerts help you focus on activity that matters while reducing notifications caused by less relevant movement.
Detailed Video Day and Night

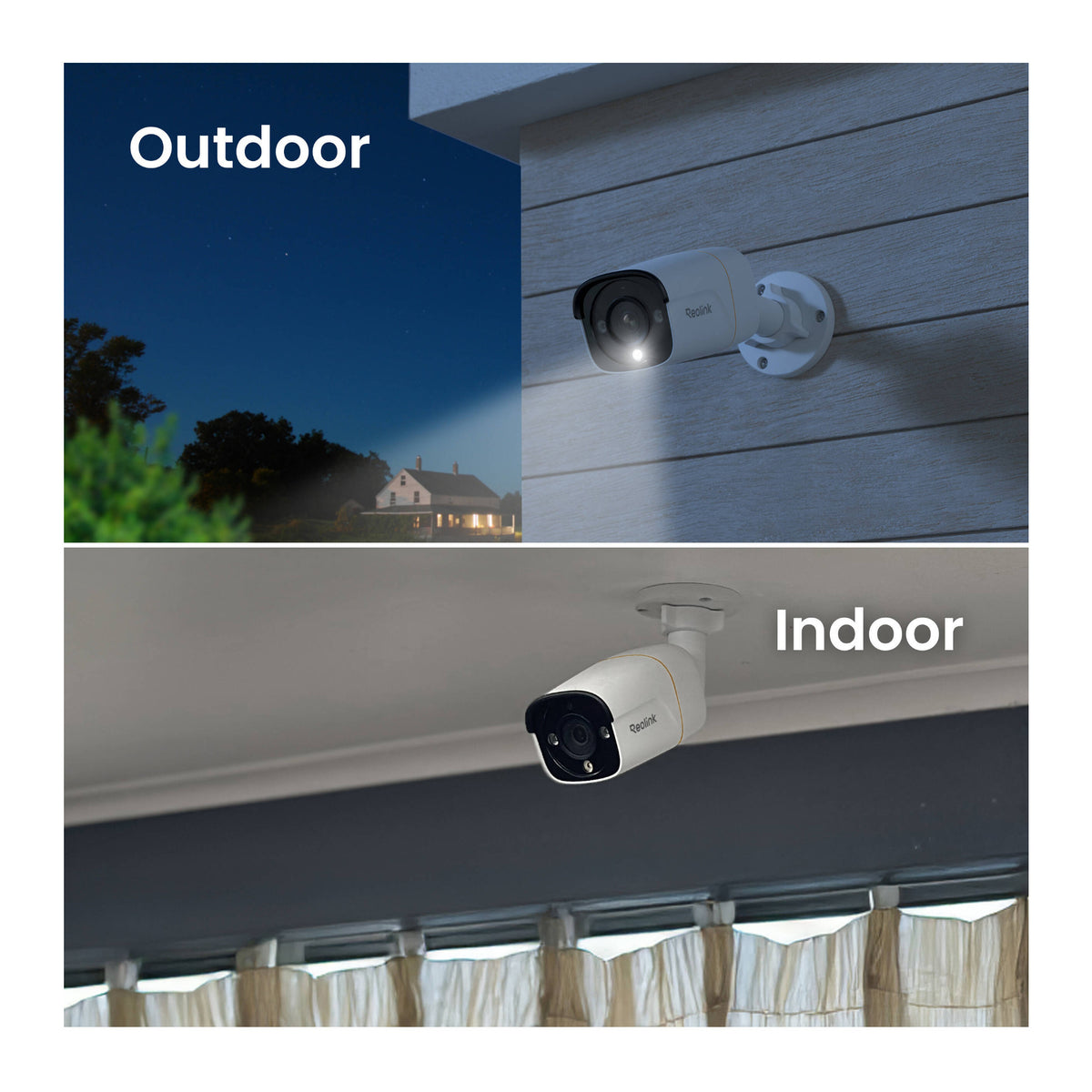

The four included cameras support full color night vision with built in spotlights, along with infrared night vision up to 100 feet. A 93 degree horizontal field of view covers broad areas, while built in microphones and speakers support two way audio through the Reolink App or Client. IP67 weather resistance helps prepare the cameras for outdoor installation across changing conditions.
Continuous Local Recording
The NVR includes a preinstalled 2TB hard drive and supports storage expansion up to 16TB. Recording options include continuous 24 hour recording, motion triggered recording, and scheduled recording. Smart playback filters make it easier to locate important moments by detection type and timeline without manually searching through long periods of footage.

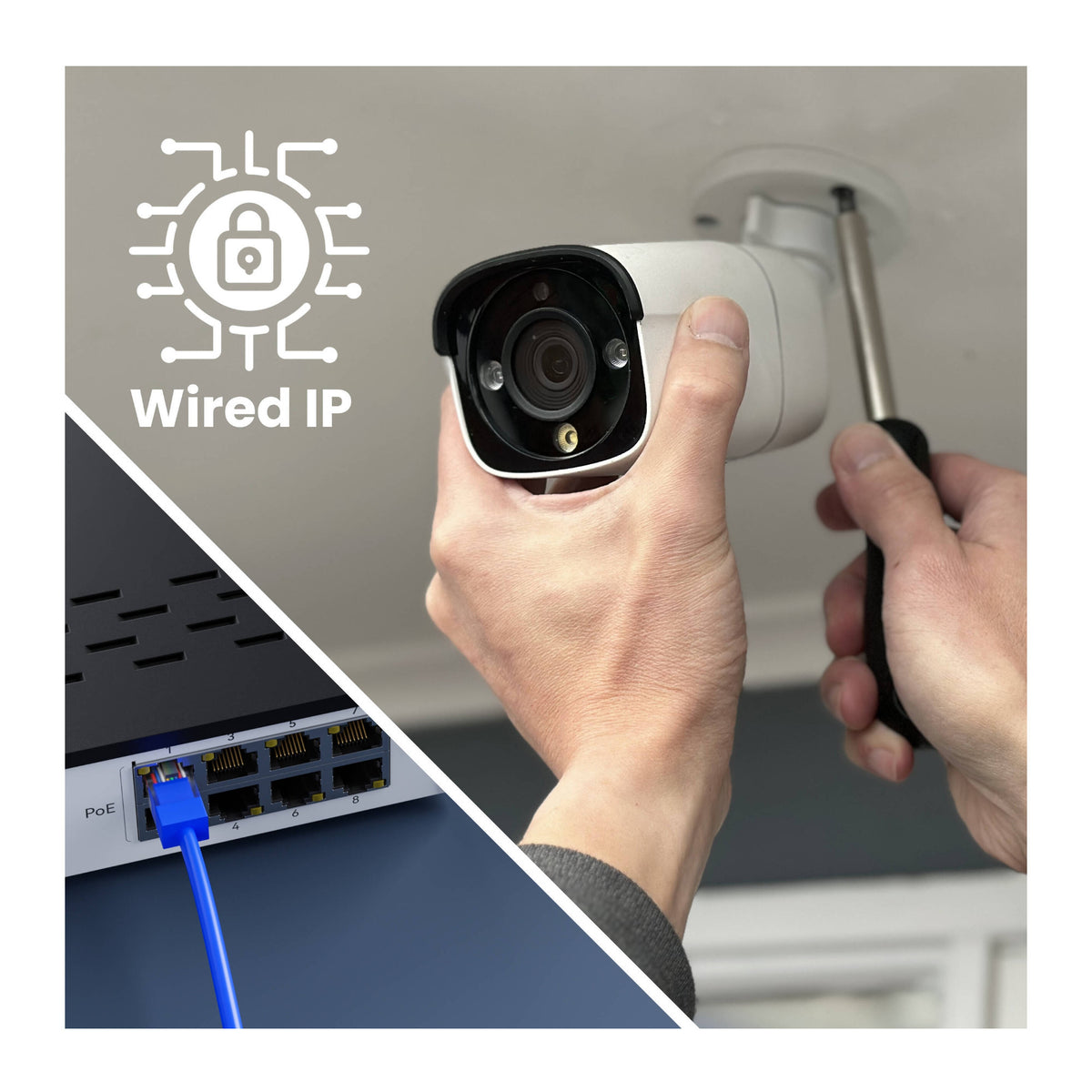

Simple Power over Ethernet Setup

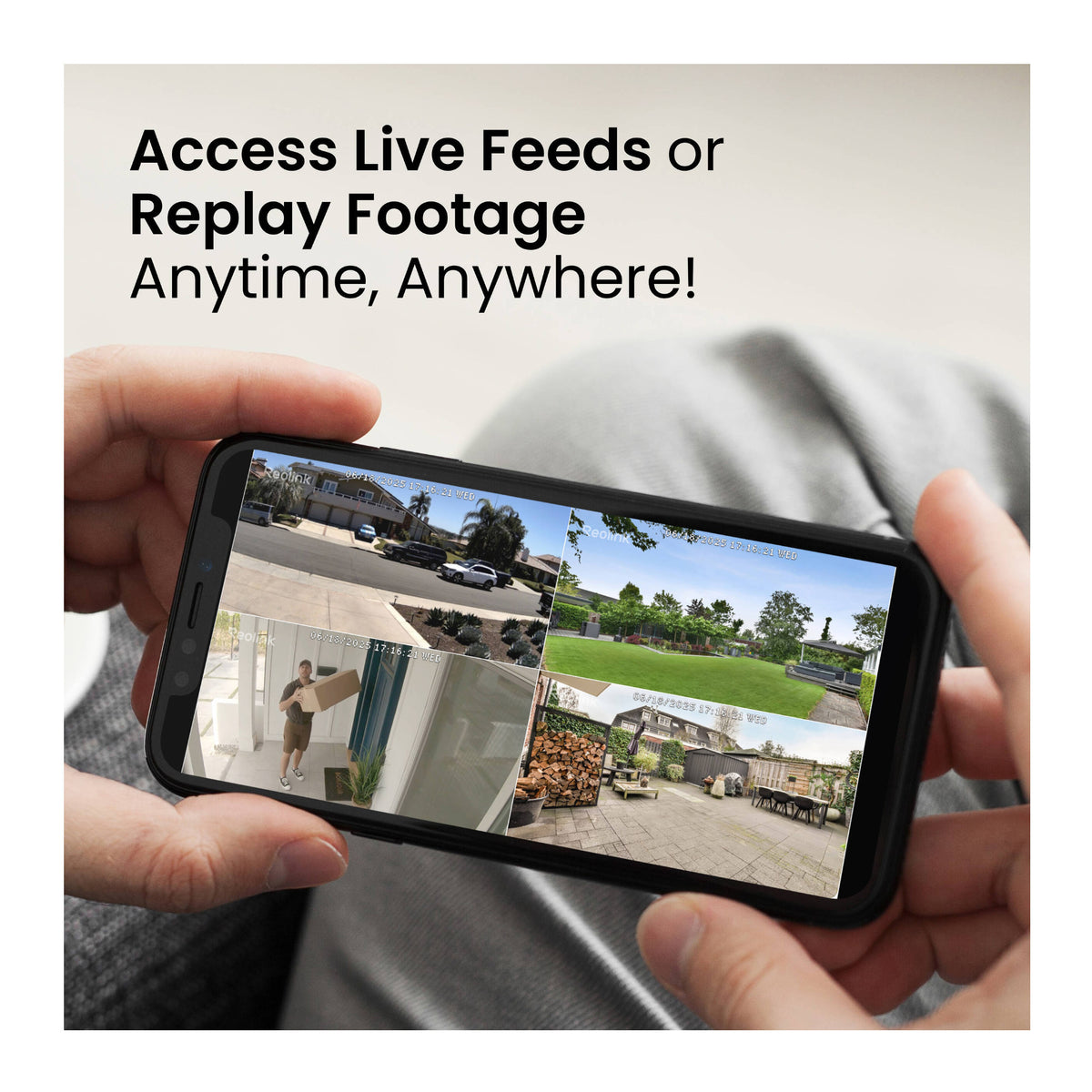

Power over Ethernet carries power and data through a single Ethernet connection between each camera and the NVR, reducing cabling around each installation point. Connect the NVR to your router, attach the cameras, then use the Reolink App to access live feeds and alerts. Multi camera live viewing, customizable motion zones, and centralized NVR management provide practical control over the complete system.

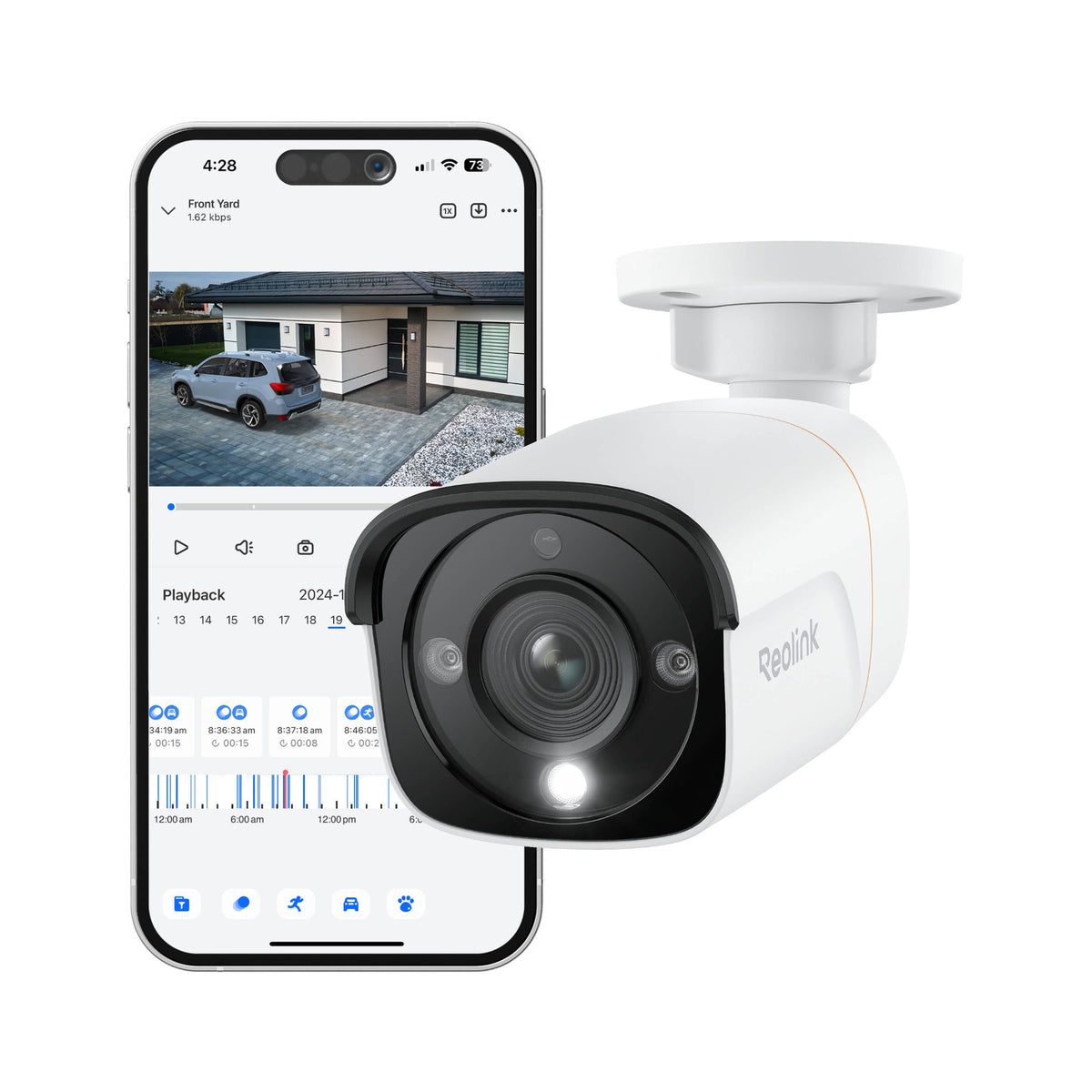

NVS-B12M Camera
Video and Audio
| Image Sensor | 1/2.49 inch CMOS sensor |
| Video Resolution | 4512 x 2512, 12MP at 20 fps |
| Lens | 4.0 mm, F1.6 with IR cut filter |
| Video Format | H.265 |
| Field of View | 93° horizontal, 49° vertical |
| Day and Night | Automatic switching with IR cut filter |
| Infrared Night Vision | Up to 30 meters, 100 feet |
| Spotlight | 4.3 W, 6500 K, 700 lumens |
| Audio | Two way audio |
Power and Connectivity
| Power over Ethernet | IEEE 802.3af, 48 V Active |
| DC Power | 12 V, 1 A, less than 12 W |
| Ethernet | One 10M/100 Mbps RJ45 connection |
| Audio Hardware | Built in microphone and speaker |
Software Features
| Mainstream Frame Rate | 2 fps to 20 fps, default 20 fps |
| Substream Frame Rate | 4 fps to 20 fps, default 10 fps |
| Mainstream Bit Rate | 3072 Kbps to 10240 Kbps, default 8192 Kbps |
| Substream Bit Rate | 128 Kbps to 1024 Kbps, default 768 Kbps |
| Smart Detection | Motion, person, vehicle, and pet detection |
| Recording Modes | Motion triggered, scheduled, and continuous 24 hour recording |
Environment and Dimensions
| Operating Temperature | 14°F to 131°F |
| Operating Humidity | 10% to 90% |
| Weather Resistance | IP67 |
| Dimensions | 67 mm diameter x 187 mm |
| Weight | 460 g |
NVS8 NVR
Camera Support
| IP Camera Input | Up to 12 IP cameras, maximum 8 wired cameras |
| Audio Input | Cameras with built in microphones |
| Synchronous Playback | Up to 4 channels |
| Video Formats | H.265 and H.264 |
Storage
| Internal Storage Interface | 1 SATA interface |
| Installed Storage | 2TB hard drive |
| Maximum Storage Capacity | Up to 16TB |
| Maximum Capacity Per Hard Drive | 8TB |
| External Storage Interface | 1 eSATA interface |

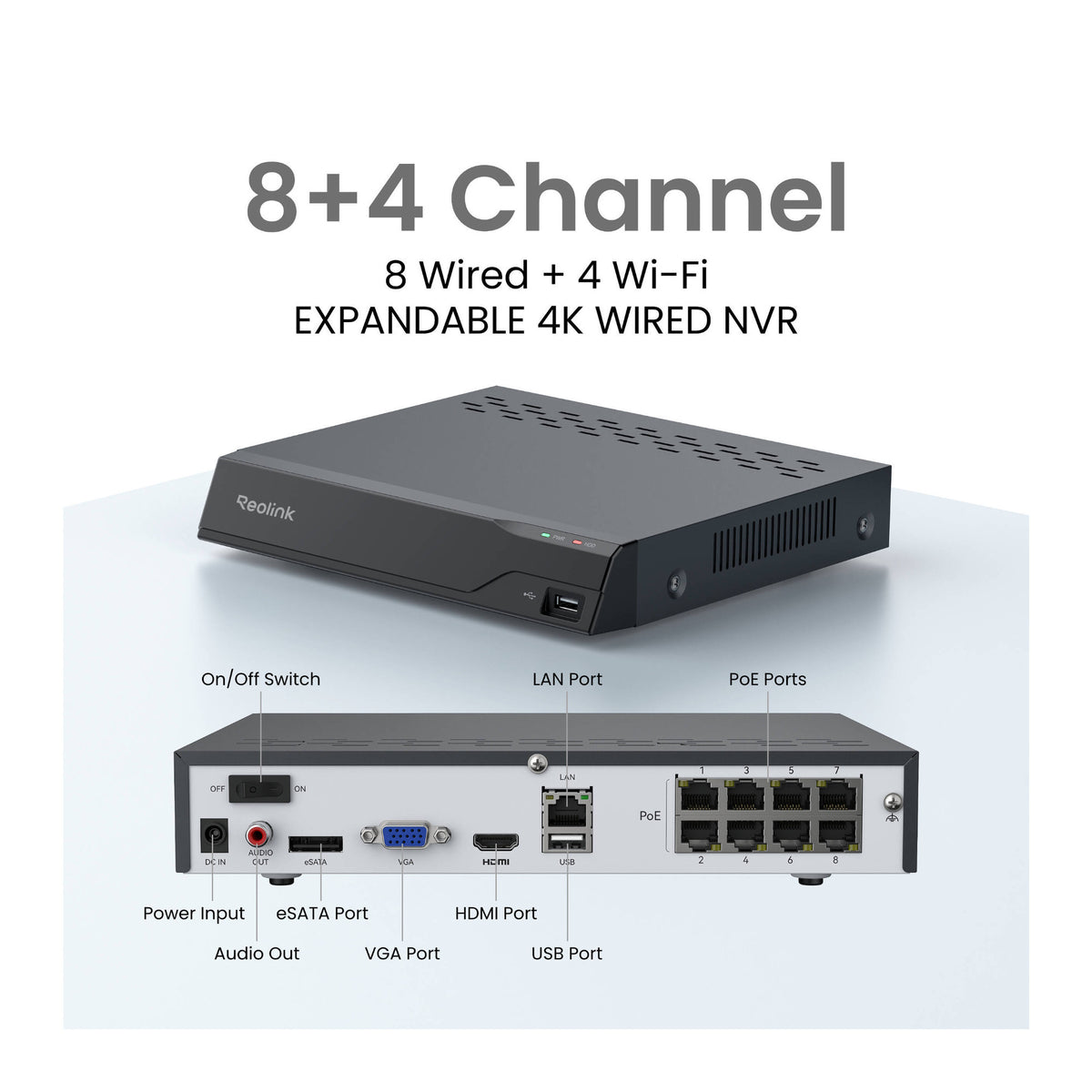

Interfaces
| USB | 2 USB 2.0 ports |
| Network | 1 RJ45 10/100 Mbps Ethernet connection for LAN or WAN |
| Camera Network | 8 RJ45 10/100 Mbps Power over Ethernet connections |
| Maximum Power Per Camera Port | 25 W |
| Power over Ethernet Standard | IEEE 802.3af and IEEE 802.3at |
| Video Outputs | High definition digital video and audio output and VGA |
| Audio Output | 1 channel RCA |
General
| Power Supply | DC 48 V to 53 V |
| Power Consumption | Less than 10 W without hard drive and Power over Ethernet load |
| Operating Temperature | 14°F to 113°F |
| Operating Humidity | 10% to 90% |
| Dimensions | 260 x 41 x 230 mm |
| Weight | 1.4 kg |
