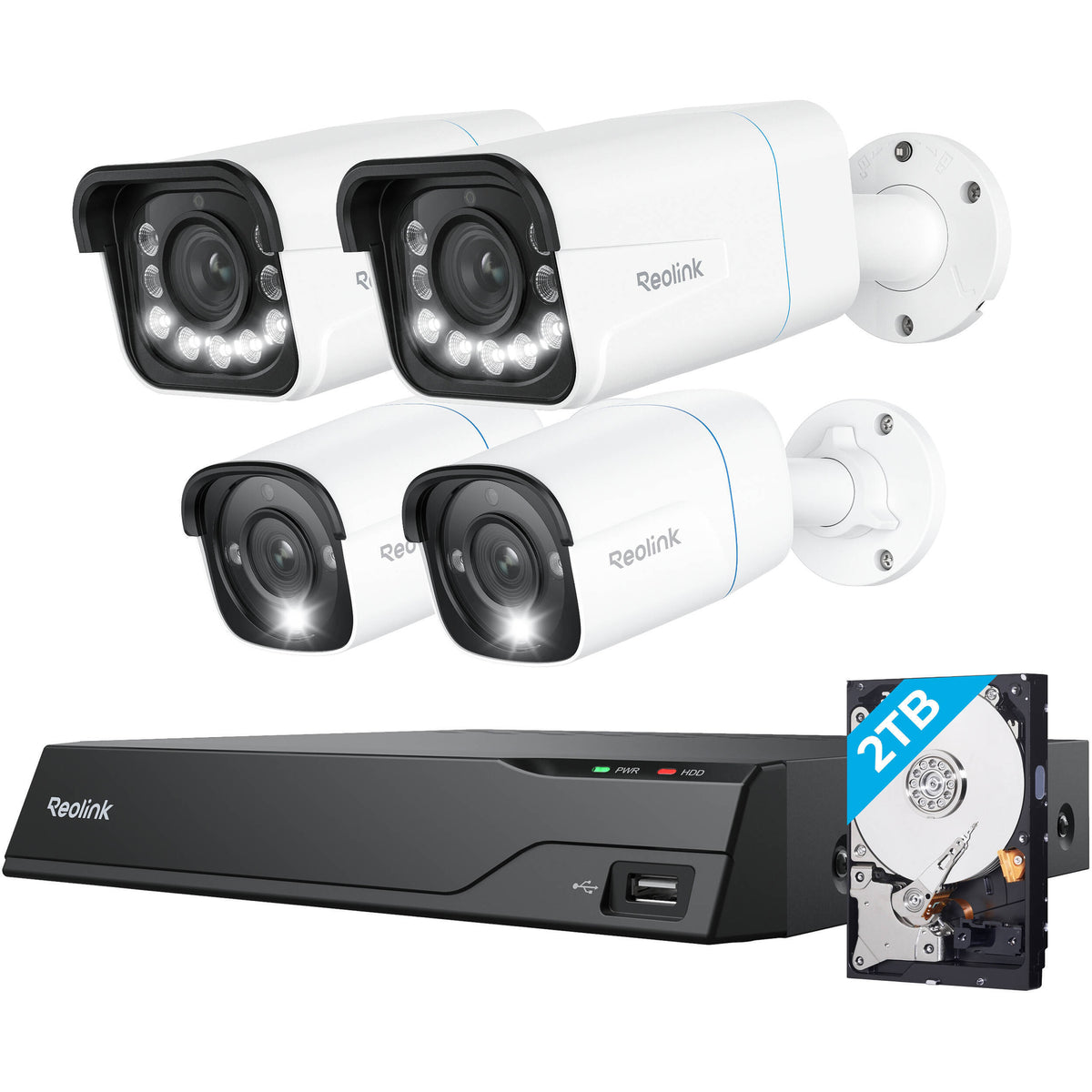

Reolink NVS8-8MB2AFB2 8-Channel 4K UHD Security System with 2TB NVR and 4 x 8MP Bullet Cameras
- 4K 8MP video records at 3840 x 2160 resolution
- Person, vehicle, and animal detection helps focus alerts
- Night vision reaches up to 100 feet with 18 infrared LEDs per camera
- 87 degree viewing angle covers a broad scene
- IP67 weatherproof cameras support indoor or outdoor placement
- Preinstalled 2TB hard drive supports local recording
- Storage capacity expands up to 16TB
- PoE carries power and video through one network cable
- Smart playback filters saved footage by detection mode
- Continuous, motion based, or scheduled recording options

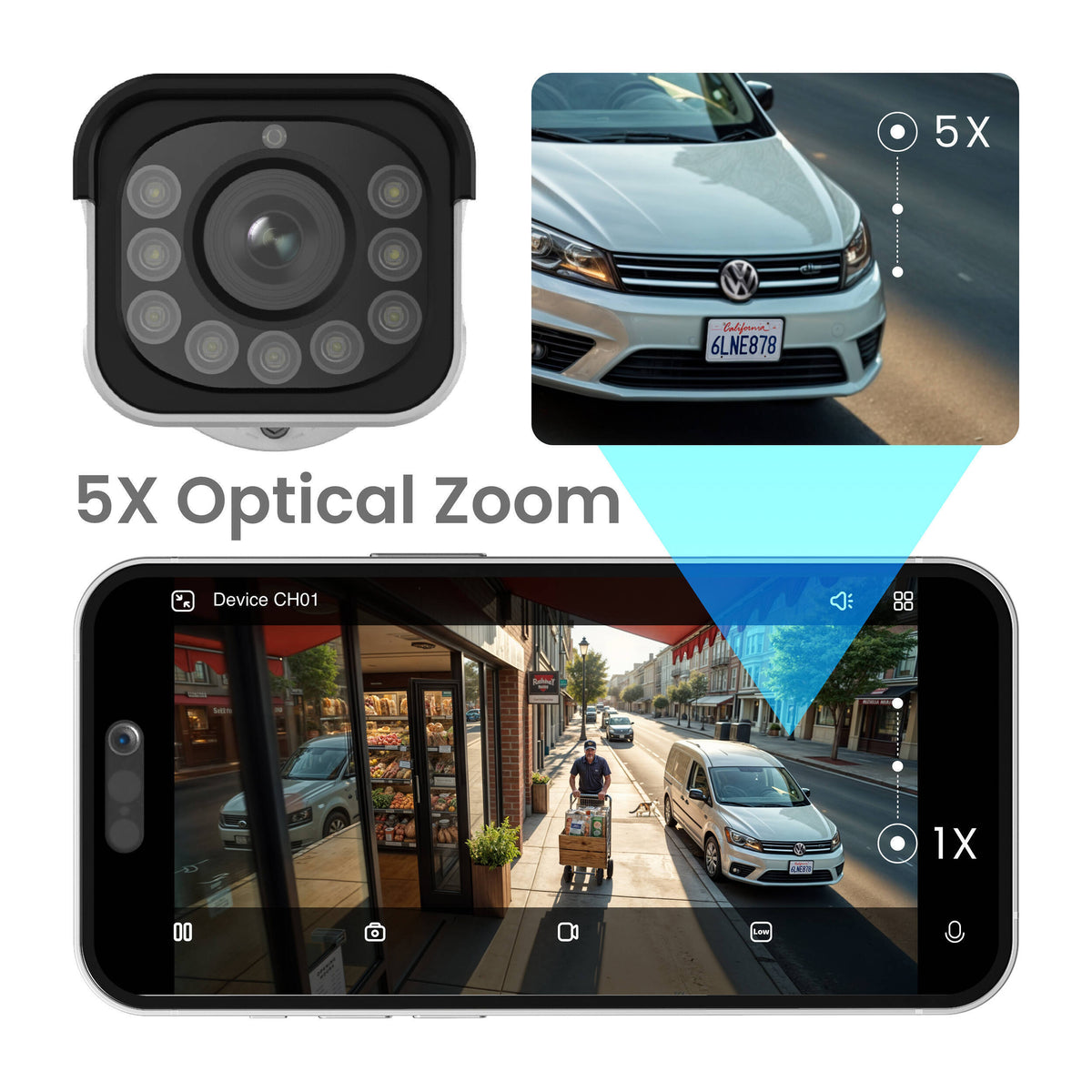

The Reolink NVS8-8MB2AFB2 brings 4K 8MP monitoring, smart detection, local recording, and simple PoE connectivity into one security camera system. Each camera records at 3840 x 2160 resolution, helping preserve useful detail when reviewing footage or digitally zooming into recorded scenes.
Smarter Detection and Faster Review

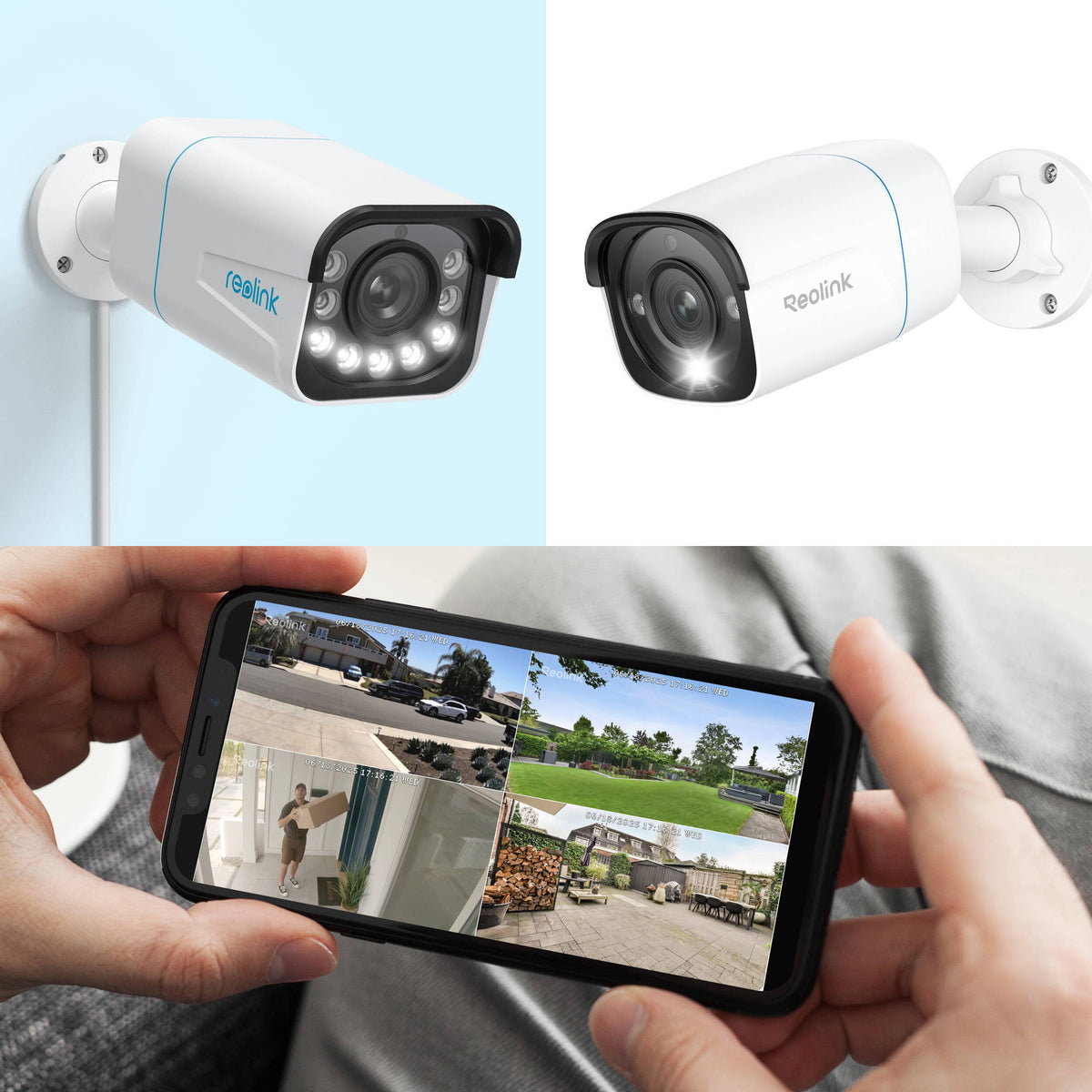

Person, vehicle, and animal detection helps separate important activity from general motion. When suspicious activity is detected, the system can send a push notification or email. Smart playback lets you filter saved video by detection type, while customizable motion zones let you choose where movement should be monitored. Multi camera live view gives you a broader look at the property from one screen.
Clear Night Monitoring and Local Storage

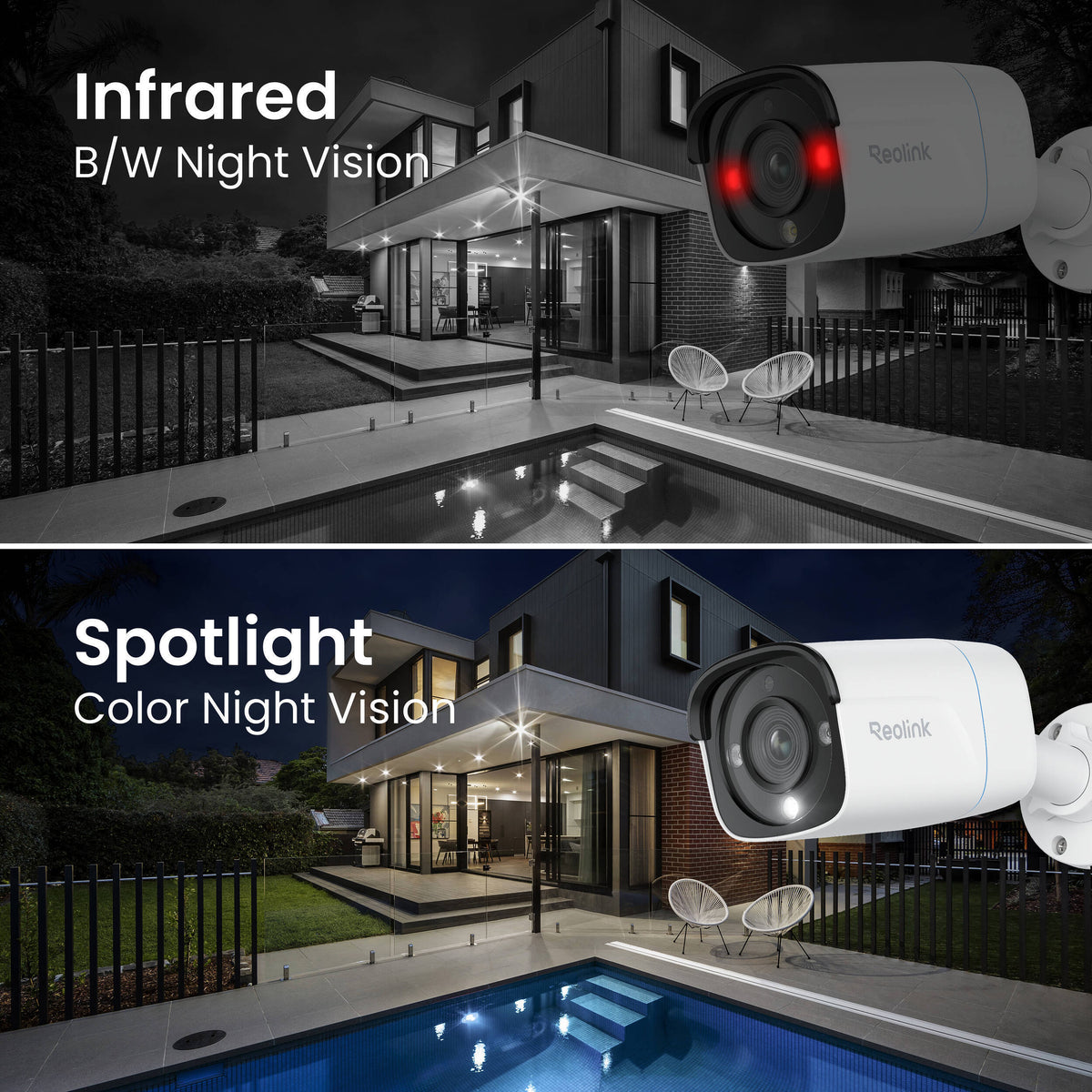

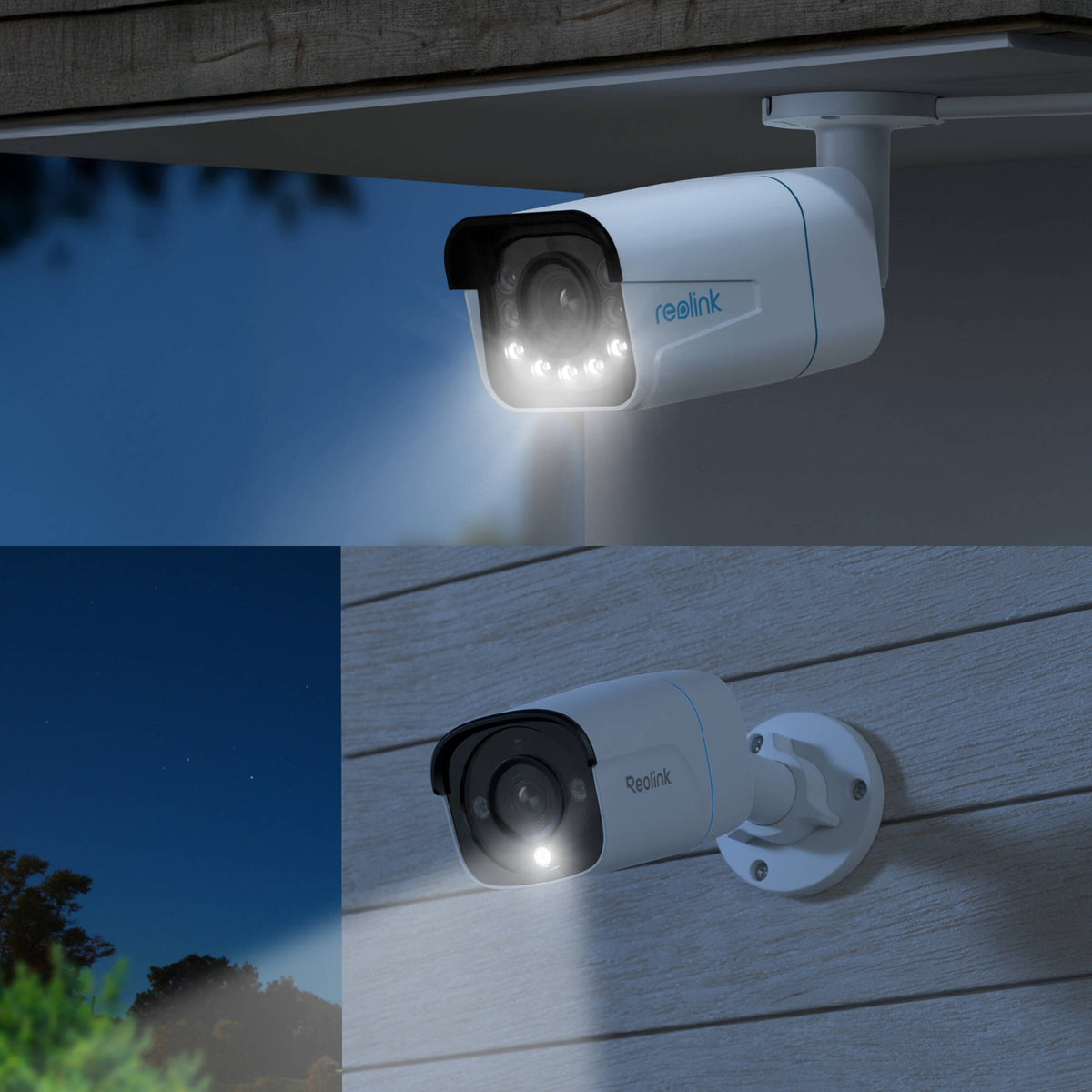

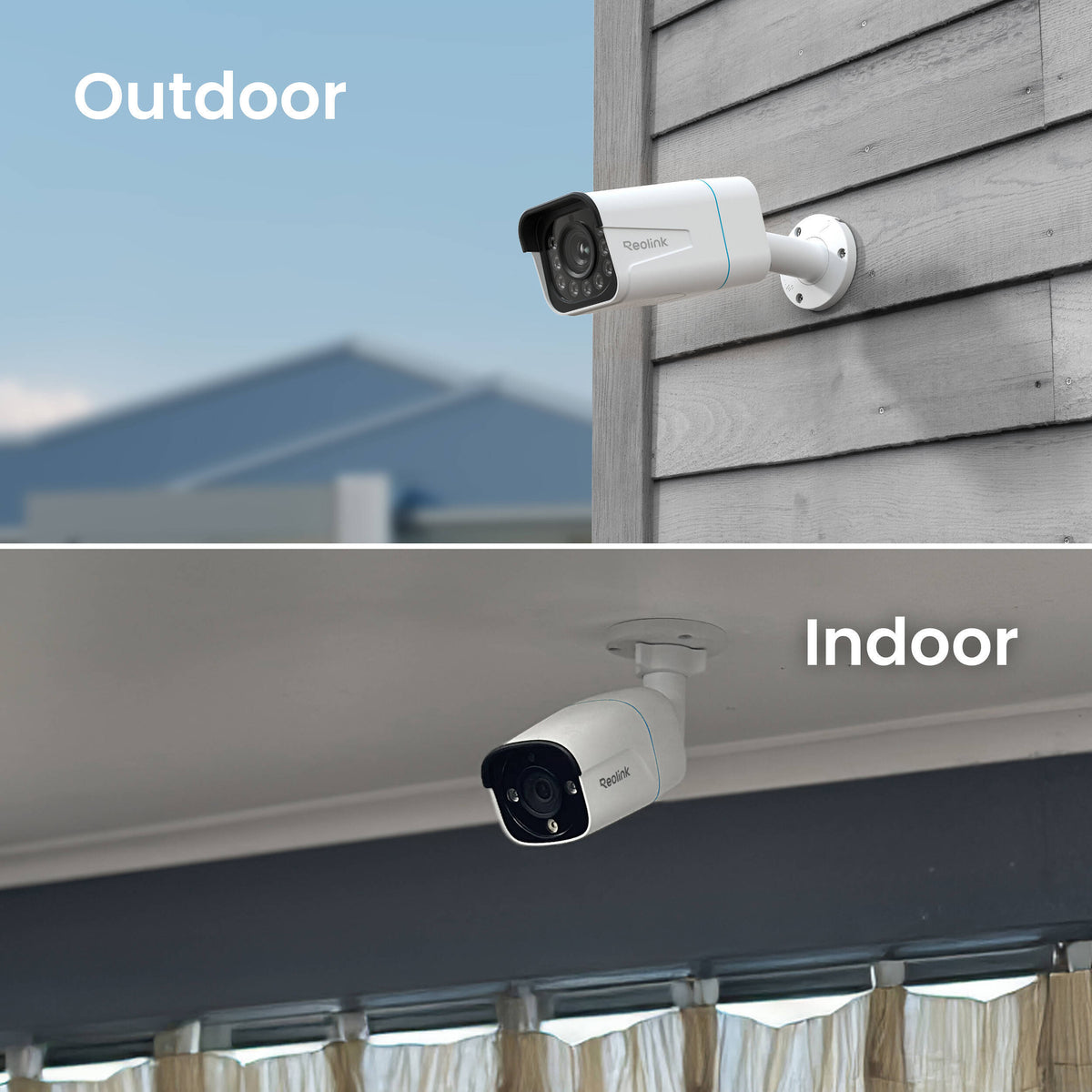

Each 4K camera uses 18 infrared LEDs for night vision up to 100 feet. Advanced 3D DNR reduces image noise for clearer nighttime footage, while an 87 degree viewing angle covers a wide area. The cameras carry an IP67 weatherproof rating for indoor or outdoor placement. A preinstalled 2TB hard drive supports continuous local recording, and the NVR supports storage expansion up to 16TB.
PoE Setup with Flexible Expansion

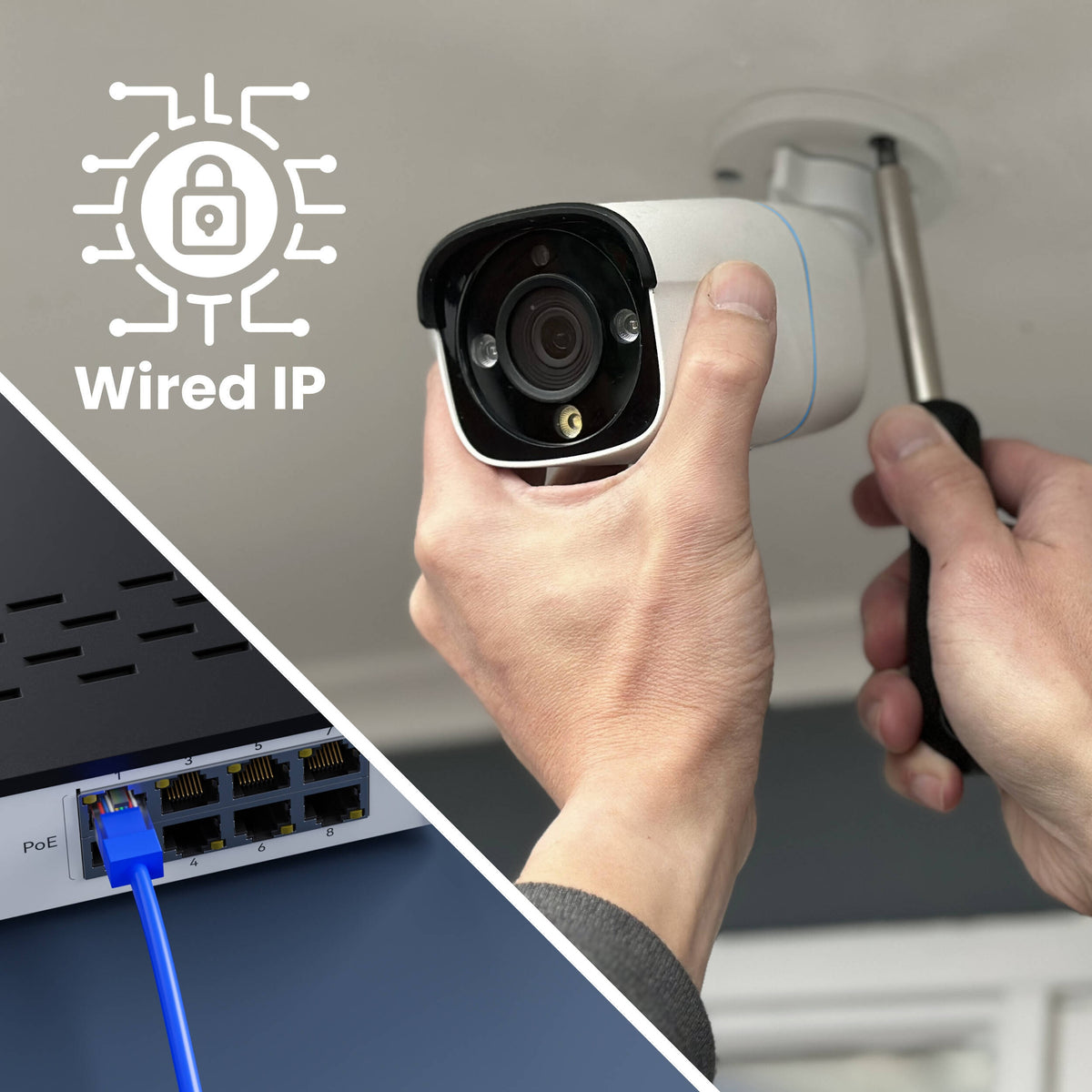

Power over Ethernet carries power and video through one network cable between each compatible camera and the NVR. Recording can run continuously, when motion is detected, or on a daily schedule. The NVR can support up to 12 Reolink cameras, with up to 8 PoE or plug in Wi-Fi cameras, plus compatible battery powered Wi-Fi models for added coverage as your monitoring needs grow.
Network Video Recorder
Hardware
| Hardware Version | N7MB01 |
Video and Audio I/O
| IP Video Input | Up to 12 IP Cameras |
| Maximum Wired Cameras | 8 |
| Audio Input | Cameras with Built In Microphone |
| Video Output | VGA, High Definition Multimedia Interface Compatible Output |
| Audio Output | 1 Channel RCA |
Display Resolution
| High Definition Multimedia Interface Compatible Output | 4096 x 3072, 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA | 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 800, 1280 x 720, 1024 x 768 |
Decoding
| Live View and Playback Resolution | 7680 x 2160, 4608 x 1728, 4512 x 2512, 4096 x 3072, 3840 x 2160, 2560 x 2560, 2560 x 1920, 2560 x 1440, 2048 x 1536, 2304 x 1296, 1080p, 720p |
| Video Format | H.264, H.265 |
| Synchronous Playback | Up to 4 Channels |
Storage
| SATA Interface | 1 |
| Included Hard Drive | 1 x Seagate 2TB HDD |
| Maximum Storage Capacity | Up to 16TB |
| Maximum Capacity Per Hard Drive | 8TB |
| External Hard Drive Interface | 1 x eSATA |

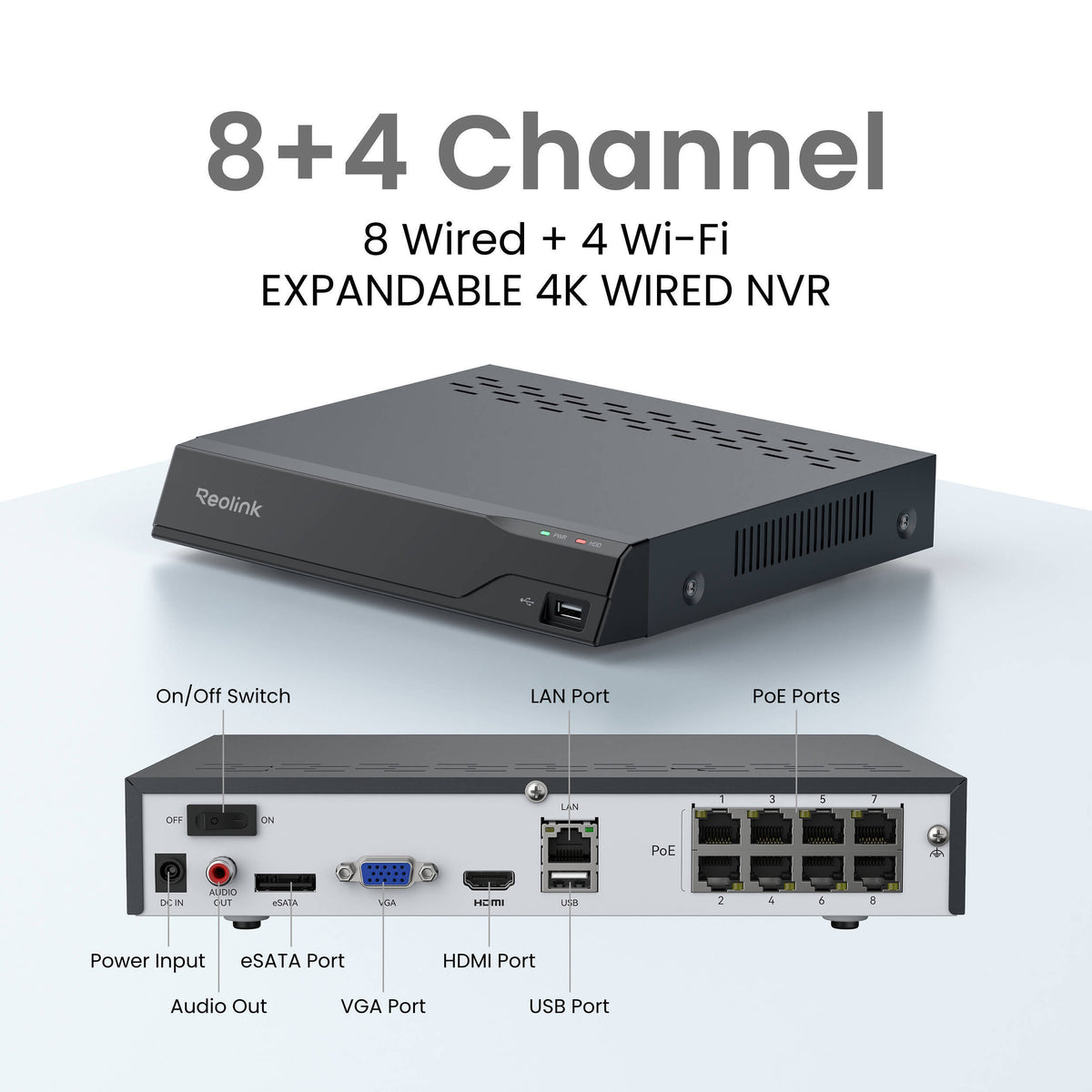

External Interfaces
| USB Interface | 2 x USB 2.0 |
| Network Interface | 1 x RJ45 10/100 Mb/s Self Adaptive Ethernet Interface for LAN/WAN |
| Camera Interfaces | 8 x RJ45 10/100 Mb/s Self Adaptive PoE Ethernet Interfaces |
PoE
| Maximum Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
Network
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Supported Browsers | Edge, Firefox, Chrome, Safari |
| Computer OS Support | Windows, Mac OS |
| Mobile OS Support | iOS, Android |
| Maximum User Access | 20 Users, 1 Admin Account and 19 User Accounts |
| Simultaneous Video Streams | Up to 12, 10 Substreams and 2 Mainstreams |
Power
| Power Supply | 48 VDC, 1.875 to 2.5 A |
| Power Consumption | Less than 10w without HDD and PoE |
Operating Environment
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Operating Humidity | 10 to 90% |
Physical
| Dimensions | 10.24 x 1.61 x 9.05 inches, 260 x 41 x 230 millimeters |
| Weight | 8.8 pounds, 1.4 kilograms |
Camera
Imaging
| Image Sensor | 1/2.49 inch CMOS Sensor |
| Video Resolution | 3840 x 2160, 8 Megapixels at 20 fps Default |
| Lens | 4.0 millimeter Fixed, F2.0, with IR Cut |
| Video Format | H.265 |
Field of View
| Horizontal Field of View | 87 Degrees |
| Vertical Field of View | 44 Degrees |
Day and Night
| Day and Night Mode | IR Cut Filter with Auto Switching |
| Night Vision | Up to 100 feet, 30 meters |
| Infrared LEDs | 18 |
| Infrared LED Size | 14 mil |
| Infrared Wavelength | 850 nm |
Frame Rate
| Mainstream Frame Rate | 2 to 20 fps |
| Mainstream Default Frame Rate | 20 fps |
| Substream Frame Rate | 4 to 15 fps |
| Substream Default Frame Rate | 10 fps |
Bit Rate
| Mainstream Bit Rate | 4096 to 8192 Kb/s |
| Mainstream Default Bit Rate | 6144 Kb/s |
| Substream Bit Rate | 64 to 512 Kb/s |
| Substream Default Bit Rate | 256 Kb/s |
Audio and Detection
| Audio | Audio Recording |
| Microphone | Built In |
| Smart Alarm | Person Detection, Vehicle Detection, Motion Detection |
Recording
| Default Recording Mode | Motion Triggered Recording |
| Additional Recording Modes | Scheduled Recording, 24/7 Recording |
Power and Connectivity
| PoE Standard | IEEE 802.3af |
| PoE Voltage | 48V Active |
| DC Power | 12 VDC, 1 A |
| Power Consumption | Less Than 12W |
| Power Interface | DC Power Port |
| System Interface | Reset Button |
| Ethernet Interface | 1 x RJ45 10M/100 Mb/s |
Operating Environment
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Weatherproof Rating | IP67 |
Physical
| Dimensions | 4.1 x 3.7 inches, 105 x 93 millimeters |
| Weight | 1.1 pounds, 0.48 kilograms |
Packaging Information
Package
| Package Weight | 21.2 pounds |
| Box Dimensions | 16.88 x 14.5 x 12.5 inches |
