- NVS8 NVR
- 4 x 8MP Cameras (White)
- NVR Power Adapter
- High Definition Video and Audio Cable
- USB Mouse
- 1 Meter Network Cable
- 4 x 18 Meter Network Cables
- Quick Start Guide
- Surveillance Sticker
- 4 x Mounting Templates
- 4 x Packs of Screws
- 4 x Waterproof Lids

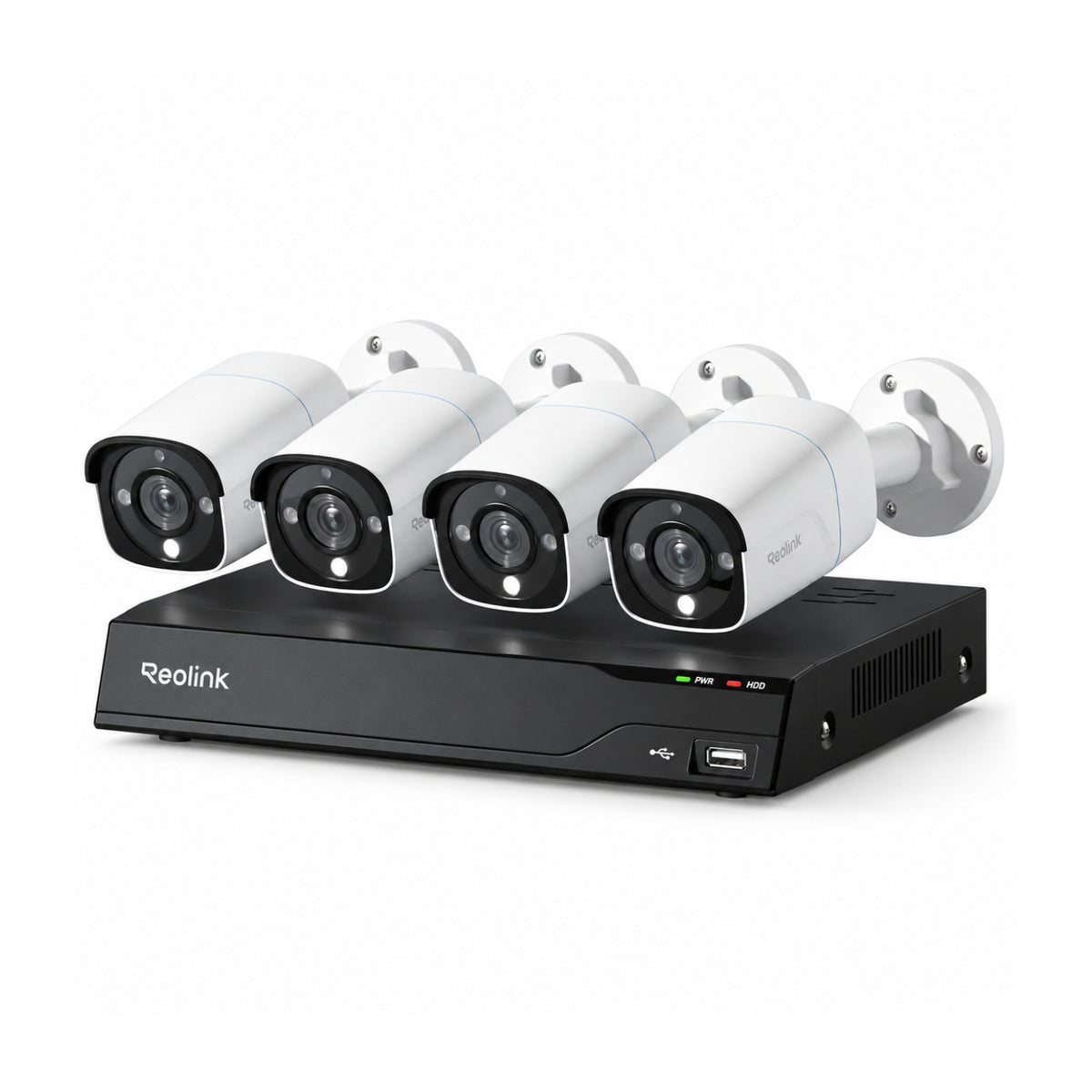

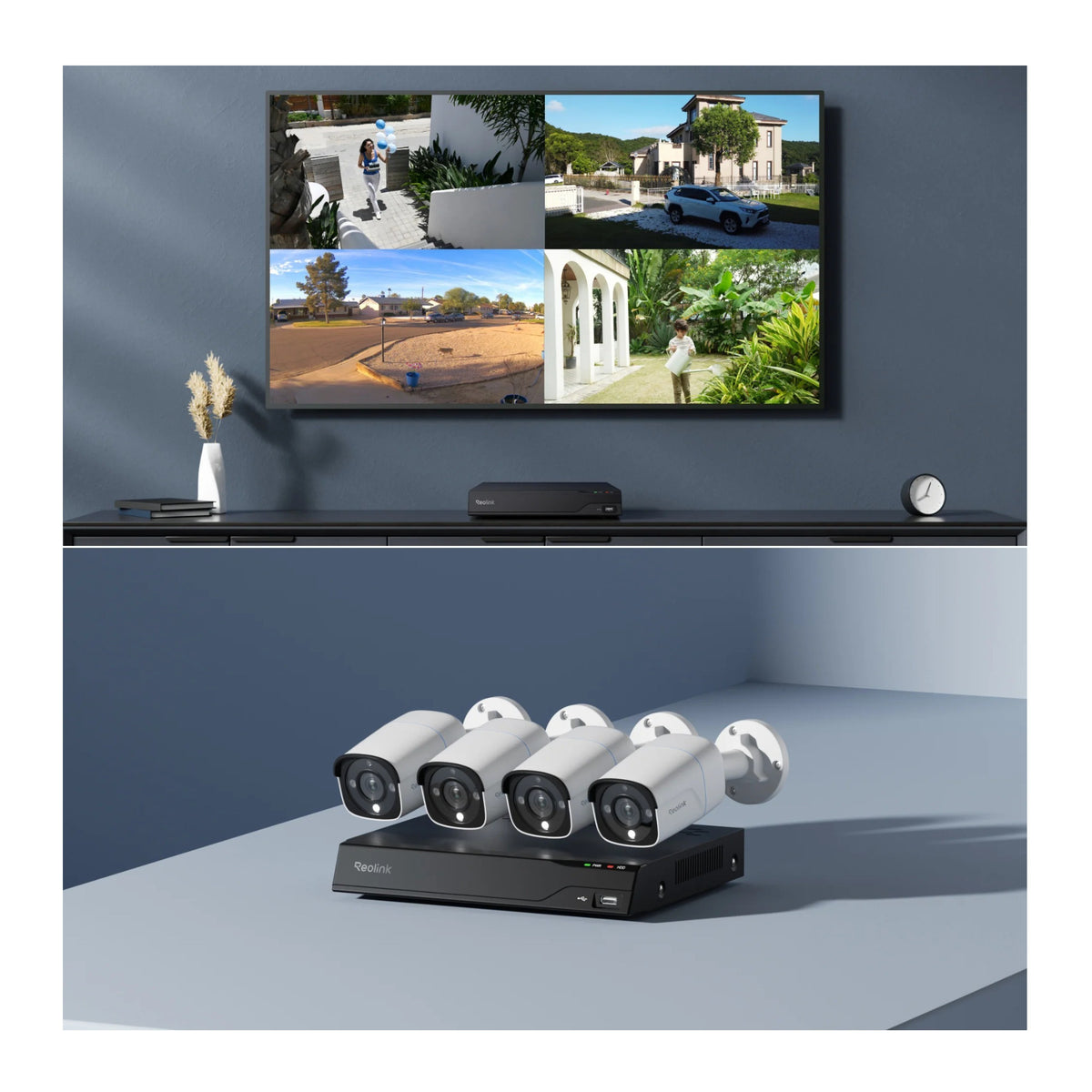

Reolink NVS8-8MB4 4K 8MP PoE Security System (White) with 4 Bullet Cameras and 2TB 8 Channel NVR
- White four 8MP cameras capture detailed 3840 x 2160 4K Ultra HD video
- Smart detection identifies people, vehicles, and animals
- Infrared night vision reaches up to 100 feet
- 87° viewing angle helps monitor key areas around the property
- IP67 cameras support indoor and outdoor installation
- Power over Ethernet carries power and data through one connection
- Smart playback filters saved footage by detection type
- Continuous, motion triggered, and scheduled recording modes provide flexible monitoring
The Reolink NVS8-8MB4 Security System in White delivers detailed 4K Ultra HD monitoring with four 8MP PoE cameras and an 8 channel NVR. Each camera captures 3840 x 2160 resolution video, helping reveal important visual details across indoor and outdoor areas. Smart detection identifies people, vehicles, and animals so alerts can focus on activity that matters.
Clear Monitoring Day and Night

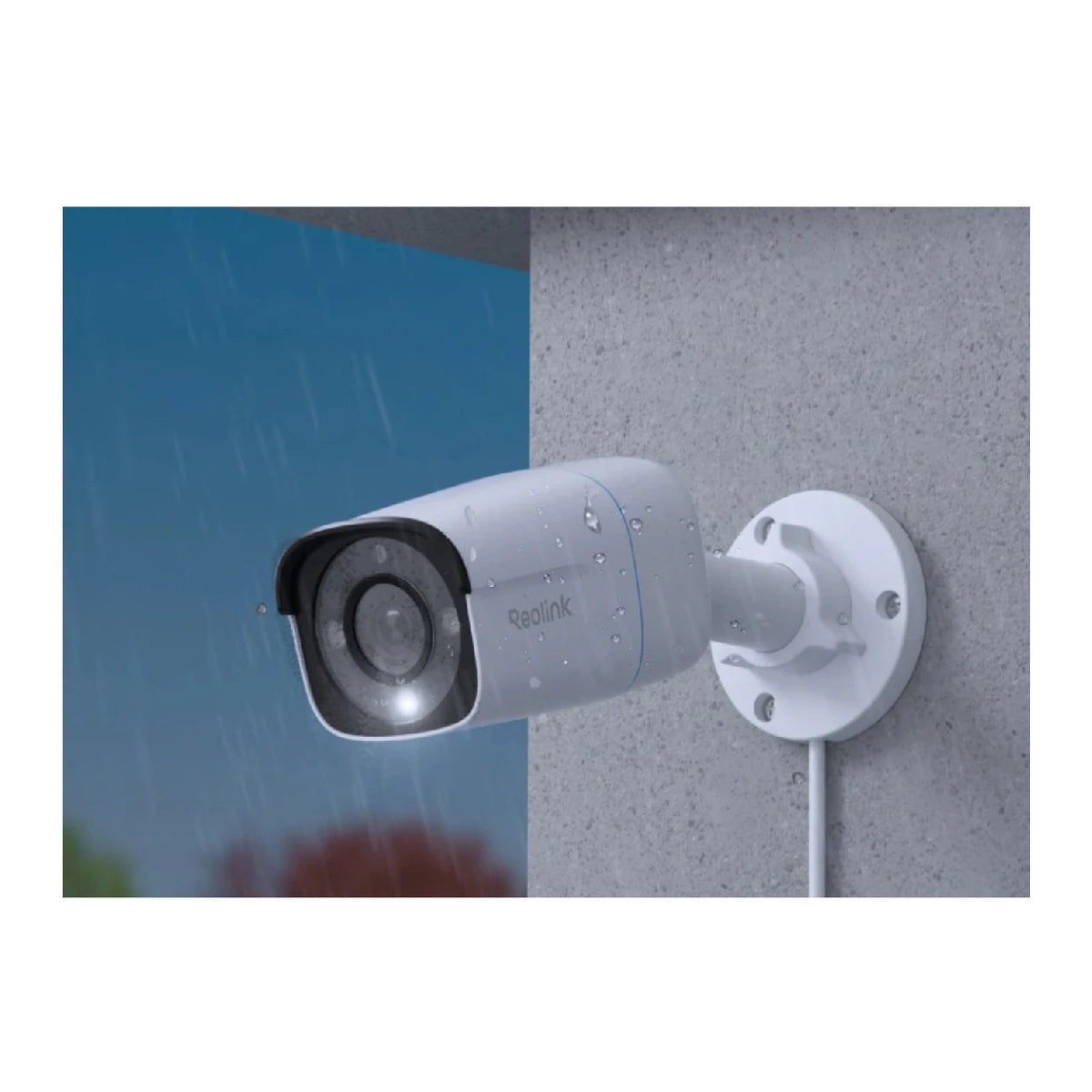

Each white camera uses 18 infrared LEDs to provide night vision up to 100 feet. An 87° viewing angle helps cover key areas around homes, driveways, entrances, and other monitored spaces. IP67 weather resistance supports reliable placement indoors or outdoors across changing weather conditions.
Continuous Local Recording
The 8 channel NVR includes a built in 2TB hard drive and supports storage expansion up to 16TB. Choose continuous 24 hour recording, motion triggered recording, or scheduled recording based on your monitoring needs. Smart playback lets you filter saved footage by detection type and navigate the timeline to locate important events more efficiently.

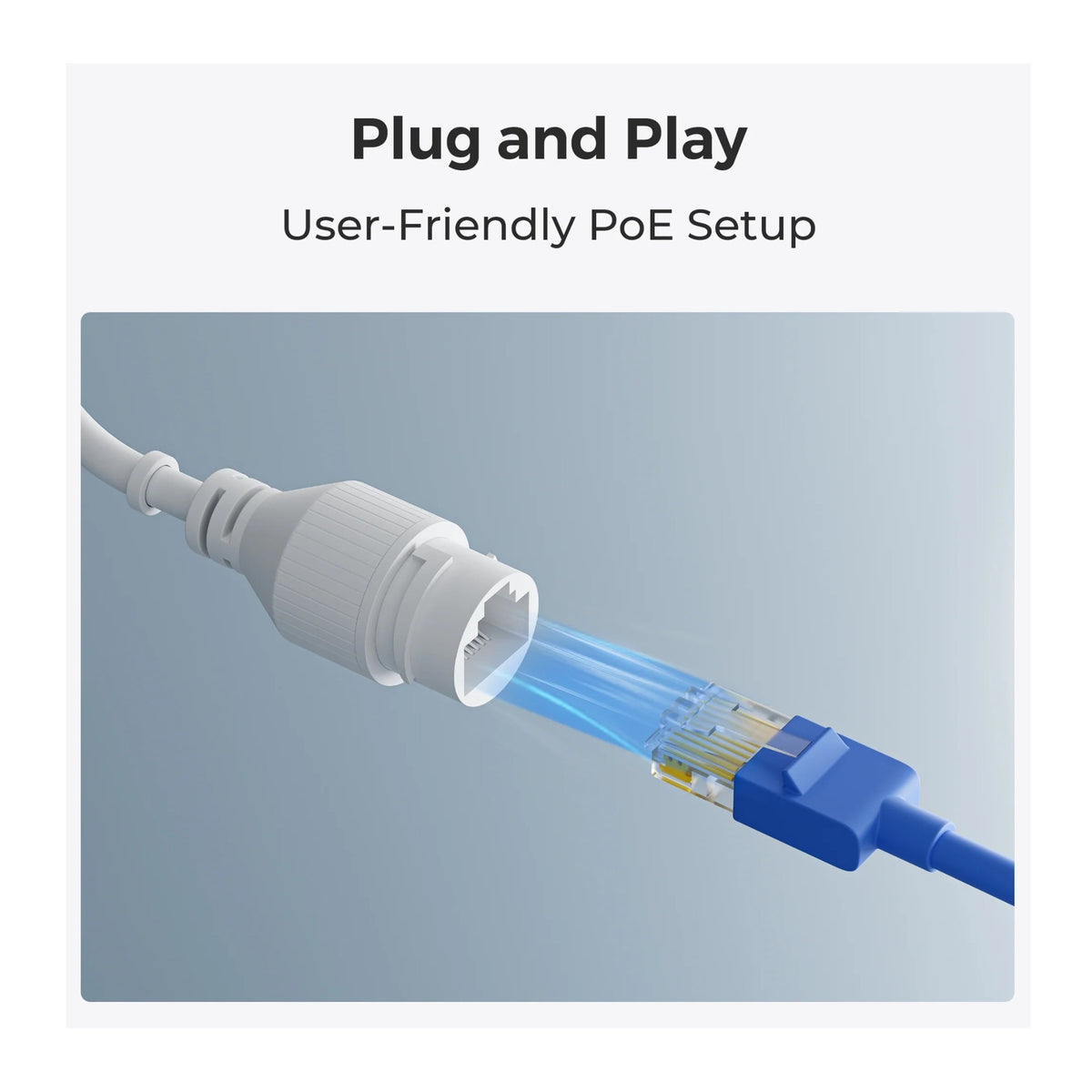

Streamlined PoE Setup and Control
Power over Ethernet sends power and data through a single Ethernet connection between each camera and the NVR. Connect the NVR to your router, attach the cameras, and use the Reolink App to view live feeds. Multi camera viewing, instant push or email alerts, customizable motion zones, and centralized playback provide practical control over the complete system.

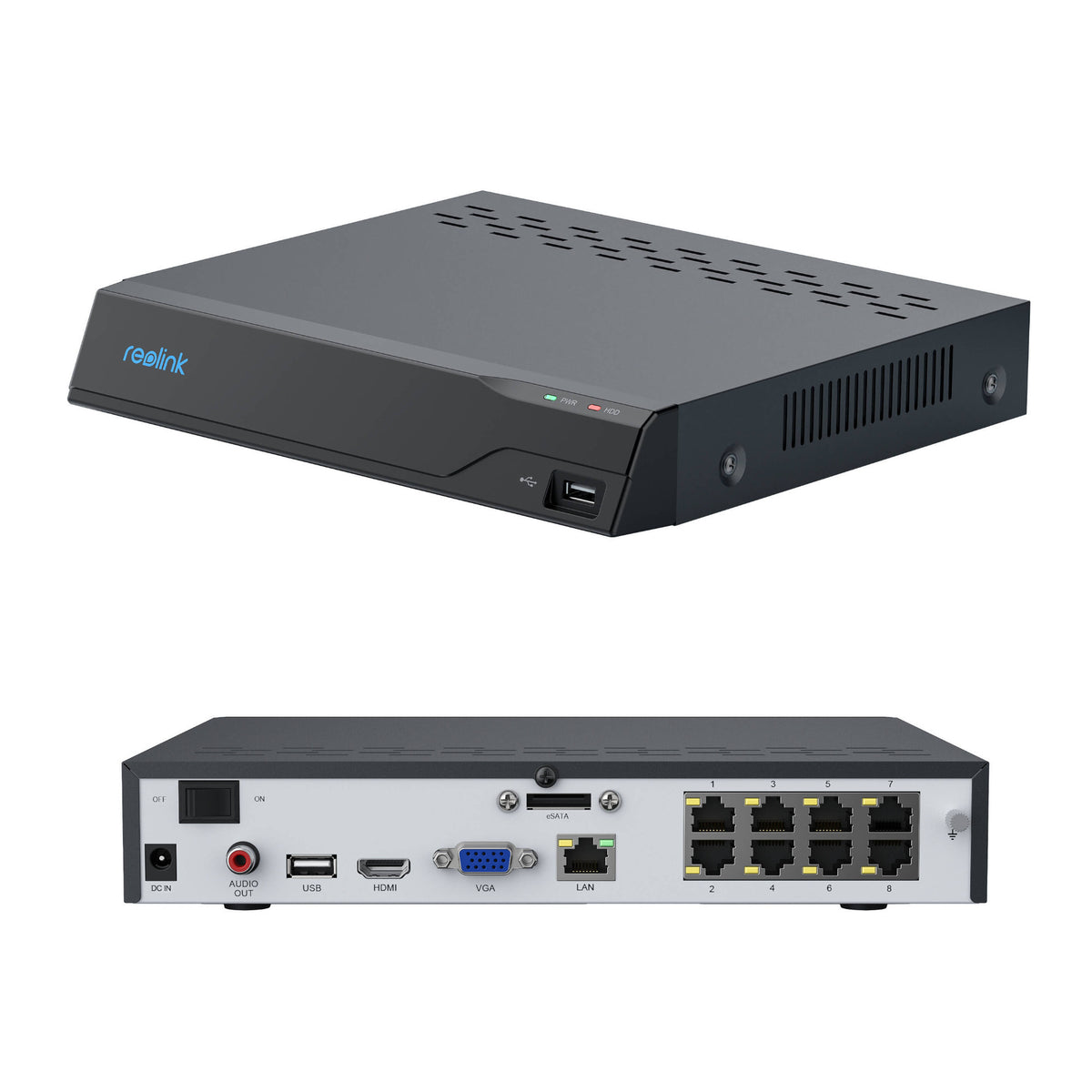

NVS8 NVR
Hardware
| Hardware | N7MB01 |
Video and Audio Input
| IP Video Input | Up to 12 IP cameras, maximum 8 wired cameras |
| Audio Input | Cameras with built in microphone |
Video and Audio Output
| Video Output | VGA and high definition digital video and audio output |
| Display Resolution | High definition digital output: 4096 × 3072, 3840 × 2160, 1920 × 1080, 1440 × 900, 1280 × 1024, 1280 × 720, 1024 × 768; VGA: 1920 × 1080, 1440 × 900, 1280 × 1024, 1280 × 800, 1280 × 720, 1024 × 768 |
| Audio Output | 1 channel RCA |
Decoding
| Live View and Playback Resolution | 7680 × 2160, 4608 × 1728, 4512 × 2512, 4096 × 3072, 3840 × 2160, 2560 × 2560, 2560 × 1920, 2560 × 1440, 2048 × 1536, 2304 × 1296, 1080p, 720p |
| Video Format | H.264, H.265 |
| Synchronous Playback | Up to 4 channels |
Storage
| SATA | 1 x SATA interface, 1 x Seagate 2TB HDD included |
| Capacity | Up to 16TB, maximum 8TB capacity for each HDD |
| External HDD | 1 eSATA interface for HDD |
External Interface
| USB Interface | 2 x USB 2.0 |
| Network Interface | 1 x RJ45 10/100 Mbps self adaptive Ethernet interface for LAN or WAN; 8 x RJ45 10/100 Mbps self adaptive PoE Ethernet interfaces for IP cameras |
Power over Ethernet
| Maximum Power Per Port | 25 W |
| Supported Standard | IEEE 802.3af/at |
Network
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Maximum User Access | 20 users, 1 admin account and 19 user accounts; supports up to 12 simultaneous video streams, 10 substreams and 2 mainstreams |
General
| Power Supply | DC 48 V/1.875 to 2.5 A |
| Power Consumption | <10 W without HDD and PoE |
| Working Environment | Temperature: -10°C to +45°C, 14°F to 113°F; humidity: 10% to 90% |
| Dimensions | 260 × 41 × 230 mm |
| Weight | 1.4 kg |
Camera
Video and Audio
| Image Sensor | 1/2.49 inch CMOS sensor |
| Video Resolution | Default 3840 × 2160, 8MP at 20 fps |
| Lens | f=4.0 mm fixed, F=2.0, with IR cut |
| Field of View | 87° horizontal, 44° vertical |
| Day and Night | IR cut filter with automatic switching |
| Night Vision | 30 meters, 100 feet, with 18 infrared LEDs |
| Mainstream Frame Rate | 2 fps to 20 fps, default 20 fps |
| Substream Frame Rate | 4 fps to 15 fps, default 10 fps |
| Mainstream Bit Rate | 4096 Kbps to 8192 Kbps, default 6144 Kbps |
| Substream Bit Rate | 64 Kbps to 512 Kbps, default 256 Kbps |
| Audio | Audio recording |
| Video Format | H.265 |
Detection and Recording Modes
| Smart Alarms | Person detection, vehicle detection, motion detection |
| Recording Modes | Motion triggered recording by default, scheduled recording, 24/7 recording |
Power
| Power over Ethernet | IEEE 802.3af, 48 V Active |
| DC Power | DC 12.0 V, 1 A, <12 W |
Working Environment
| Operating Temperature | -10°C to +55°C, 14°F to 131°F |
| Operating Humidity | 10% to 90% |
| Weather Resistance | IP67 |
Size and Weight
| Dimensions | Φ66 × 192 mm |
| Weight | 485 g |
