Ricoh IM 430Fb Desktop Multifunction Printer
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

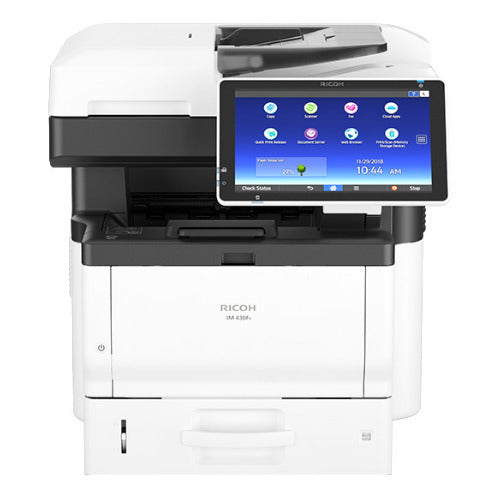

The Ricoh IM 430Fb Multifunction Printer is a smart choice for a forward-thinking business. Easily connect mobile devices using mobile applications to print, scan, and access documents seamlessly. Unlock the full extent of the device capabilities with the user-friendly Smart Operation Panel. Plus, rely on high-level security and certifications, built-in to ensure your data is protected. With this Black-and-white intelligent device, you'll get access to the latest technology as it’s available, so your device capabilities scale up as your business does.
Compact and Convenient Design

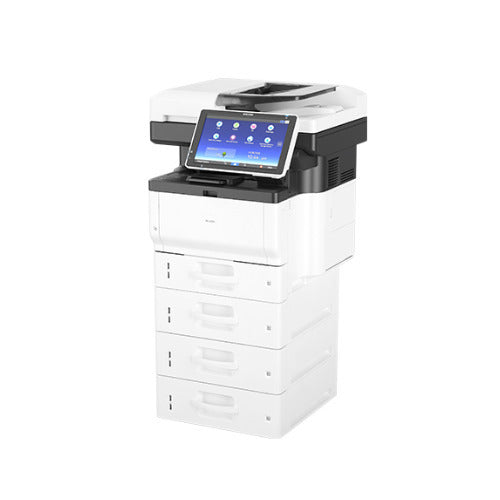

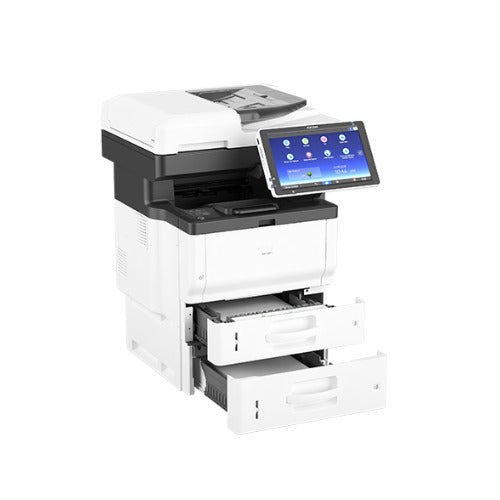

Make a big impact with the space-saving and budget-friendly Ricoh IM 430Fb Desktop Multifunction Printer (MFP). It offers print output at up to 45 pages per minute (ppm). You can digitize originals and share them instantly with advanced scanning and faxing capabilities. This printer gives you an option to add multiple paper trays to expand capacity to 2,100 sheets.
Smart Operation Panel

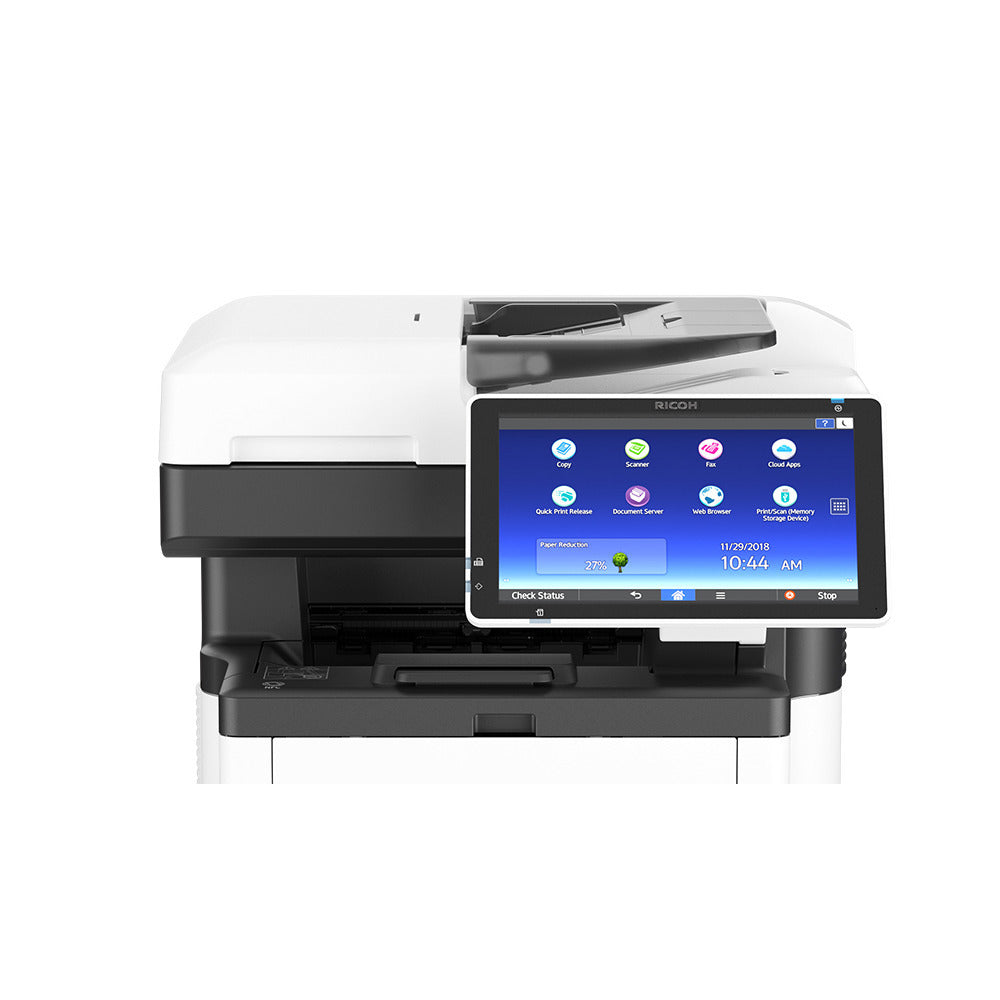

This IM 430Fb printer is equipped with the 10.1-inch Smart Operation Panel that helps to move between tasks with fingertip precision. It allows you to choose how information is displayed on the touchscreen control panel and add downloadable widgets and other icons for one-touch access to important information. Use RICOH Smart Integration Workflows for automated document process workflows, such as scanning directly to supported cloud accounts with OCR.
Simplicity with the Cloud
Use cloud connectivity to improve collaboration. Capture images, information and more from preferred cloud-based services using the embedded web browser and print or share them with one tap. Opt for apps from the RICOH Application Site for specialized tasks. You can use RICOH Content Manager for secured storage of important files and add other software solutions from third-party providers at any time.
Keep Documents and Data Moving
Download the RICOH Smart Device Connector app to grab and print information directly from your smartphone or tablet without utilities or drivers. You can easily scan documents to your personal mobile device with the app or save scans to a USB Flash Drive and take your work with you. You can even use the app to connect directly to Ricoh whiteboards and projectors for larger group presentations.
Maintain Optimal Uptime
Designed specifically to minimize downtime, the IM 430Fb includes How-To-Videos, FAQs and on-screen prompts pre-installed on the MFP to guide users through maintenance tutorials, troubleshooting and other helpful aids. Other available features include device administration software, service, and consumables alerts and real-time monitoring for optimal performance.
Share Information Digitally
Transform how you reach audiences with advanced scanning and faxing capabilities. Use the Single Pass Document Feeder to scan up to 40 images per minute (ipm). You can add the Optical Character Recognition (OCR) option to simplify storage and retrieval of scanned files via keyword search. With paperless faxing, you can send contracts, invoices and other forms quickly and economically.
Advanced Security
Restrict the release of prints only to authorized users with Locked Print and minimize security threats with a Hard Disk Drive that encrypts transmitted data. When you add the optional Near Field Communications (NFC) Card Reader, users are required to have a proximity or ID card to access MFP controls. Add optional RICOH Streamline NX software to issue chargebacks to specific users and departments.
Sharp Text and Clear Images
Impress audiences with sharp text and clear images with up to 1200 x 1200 dpi resolution. Use the 100-Sheet Bypass Tray for specialty media including thicker stocks, envelopes, labels and more. The Bypass Size Assist to prevent misfeeds by helping you correctly place custom-sized paper in the tray.
- Trays: 14 - 58 lb. Bond (52 - 220 g/m)
- Bypass: 14 - 68 lb. Bond (52 - 256 g/m)
- Duplex: 14 - 43 lb. Bond (52 - 162 g/m)
- Maximum: Less than 1,380W
- Operation: 628 W
- Ready: 91 W
- Sleep: 0.74 W
Ricoh IM 430Fb Desktop Multifunction Printer
General
| Configuration | Desktop |
| Control panel | 10.1-inch Smart Operation Panel |
| Color / Black & White | Black & White |
| Output speed Copy/Print | 45 ppm |
| First page out time | Less than 5 seconds |
| Warm-up time | 24 seconds |
| Resolution | 1200 x 1200 dpi |
| System memory | 2 GB RAM/ 320 GB HDD |
| Maximum copy quantity | Up to 999 copies |
| Document feeder type | Single Pass Document Feeder (SPDF): 50 sheets |
| Zoom Range | 25% to 400% in 1% increments |
Paper Handling
| Supported paper sizes | Standard paper tray(s): 5.5 x 8.5 inches - 8.5 x 14 inches (A6-A4, B6-B5) |
| Optional paper tray(s) | 5.5 x 8.5 inches - 8.5 x 14 inches (A6-A4, B6-B5) |
| Bypass tray | 5.5 x 8.5 inches - 8.5 x 14 inches (A6-A4, B6-B5) Custom Sizes - Width: 2.36 - 8.5 inches (60 - 216 mm), Length: 5.0 - 35.43 inches (127 - 900 mm) |
| Supported paper weights | |
| Supported paper types | Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Bond, Coated, Envelope, Label, OHP |
| Standard paper capacity | 500 sheets |
| Maximum paper capacity | 2,100 sheets |
| Standard output capacity | 250 sheets |
Power
| Power source | 120V - 127V/12A 60Hz |
| Typical Electricity Consumption (TEC) | 1.9 kWh/week |
| Power consumption |
Environment Sustainability
| Energy Star | Certified |
| EPEAT status | Gold |
Dimensions and Weight
| Dimensions (W x D x H) | 18.7 x 17.4 x 20.1 inches (476 mm x 442 mm x 510mm) |
| Weight | 67.24 lb (30.5 kg) |
Printer Specifications
| Processor speed | Intel Atom Processor Bay Trail 1.46GHz |
| Hard disk drive | 320 GB HDD |
Interfaces
| Standard | Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host 2.0 |
| Optional | Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port), Extended USB Board, File Format Converter |
| Network Protocol | TCP/IP (IPv4, IPv6) |
Supported Operating Systems
| Windows environments | Windows 7, Windows 8.1, Windows 10, Windows Server 2008, Windows Server 2008R2, Windows Server 2012, Windows Server 2012R2, Windows Server 2016 |
| Mac OS environments | Macintosh OS X v10.10 or later |
| UNIX environments | UNIX Sun SolarisUNIX Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Citrix XenApp |
| SAP environments | SAP R/3, SAP S/4 |
| Other supported environments | NDPS Gateway, AS/400 using OS/400 Host Print Transform, IBM iSeries |
Printer Languages
| Standard | PCL5e, PCL6, PostScript 3 (emulation), PDF direct (emulation) |
| Optional | Genuine Adobe PostScript 3, IPDS, PDF Direct from Adobe |
| Print resolution | 1200 x 1200 dpi |
| Mobile printing support | Apple AirPrint, Mopria, Google Cloud Print, NFC, Ricoh Smart Device Connector |
Scanner Specifications
| Scan speed | 45.7 ipm |
| Scanning resolution | 600 dpi |
| File formats | Single Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multipage PDF/A |
| Scan modes | E-mail, Folder, USB, SD Card |
Fax Specifications
| Circuit | PSTN, PBX |
| Fax Resolution | 8x7.7 line per mm, 200x200 dpi |
| Compression method | MH, MR, MMR, JBIG |
| Scanning speed | 28 spm |
| Modem speed | 33.6 Kbps |
| Transmission speed | 2 seconds (200x100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission) |
| Memory | Standard: 4 MB (approx. 320 pages) |
