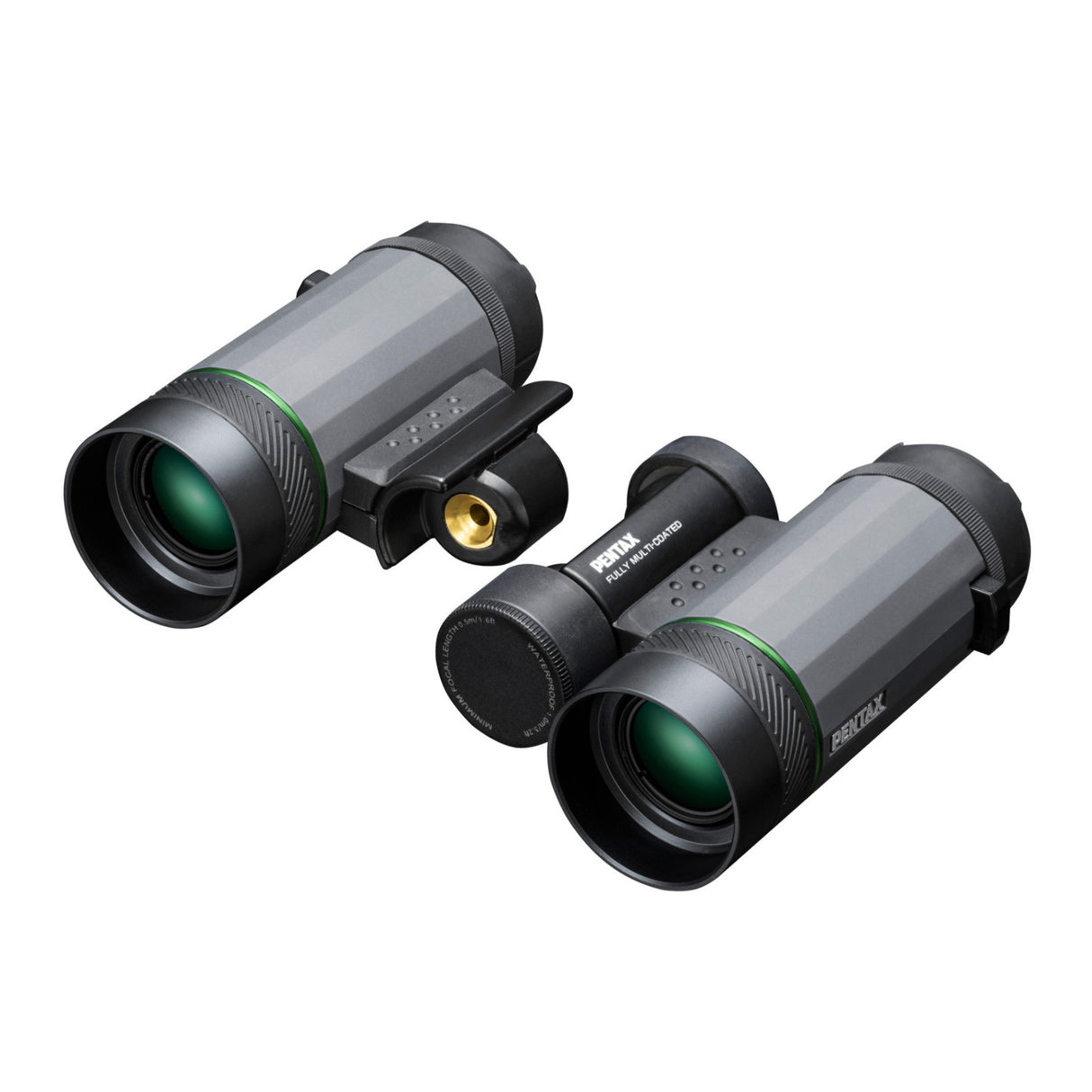

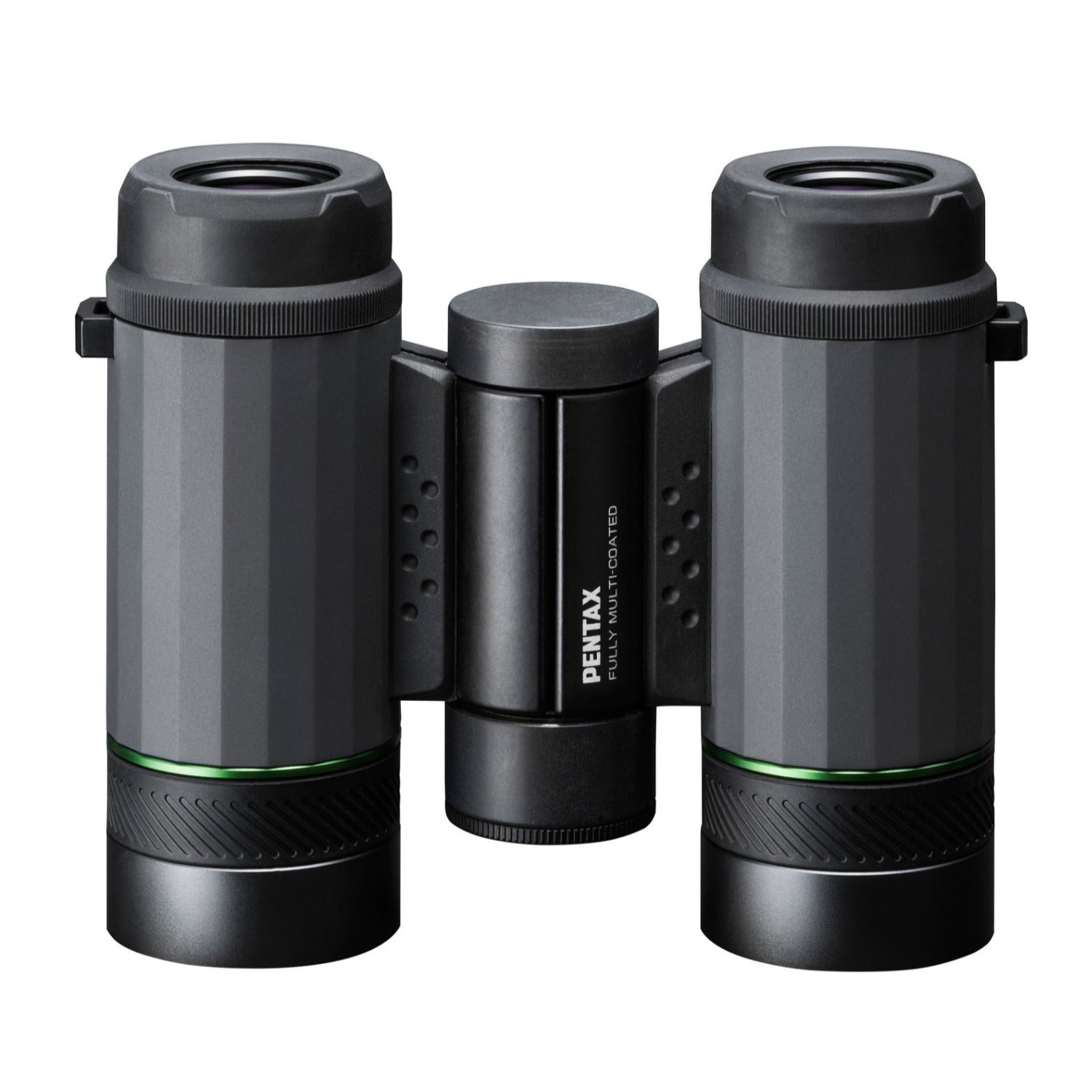

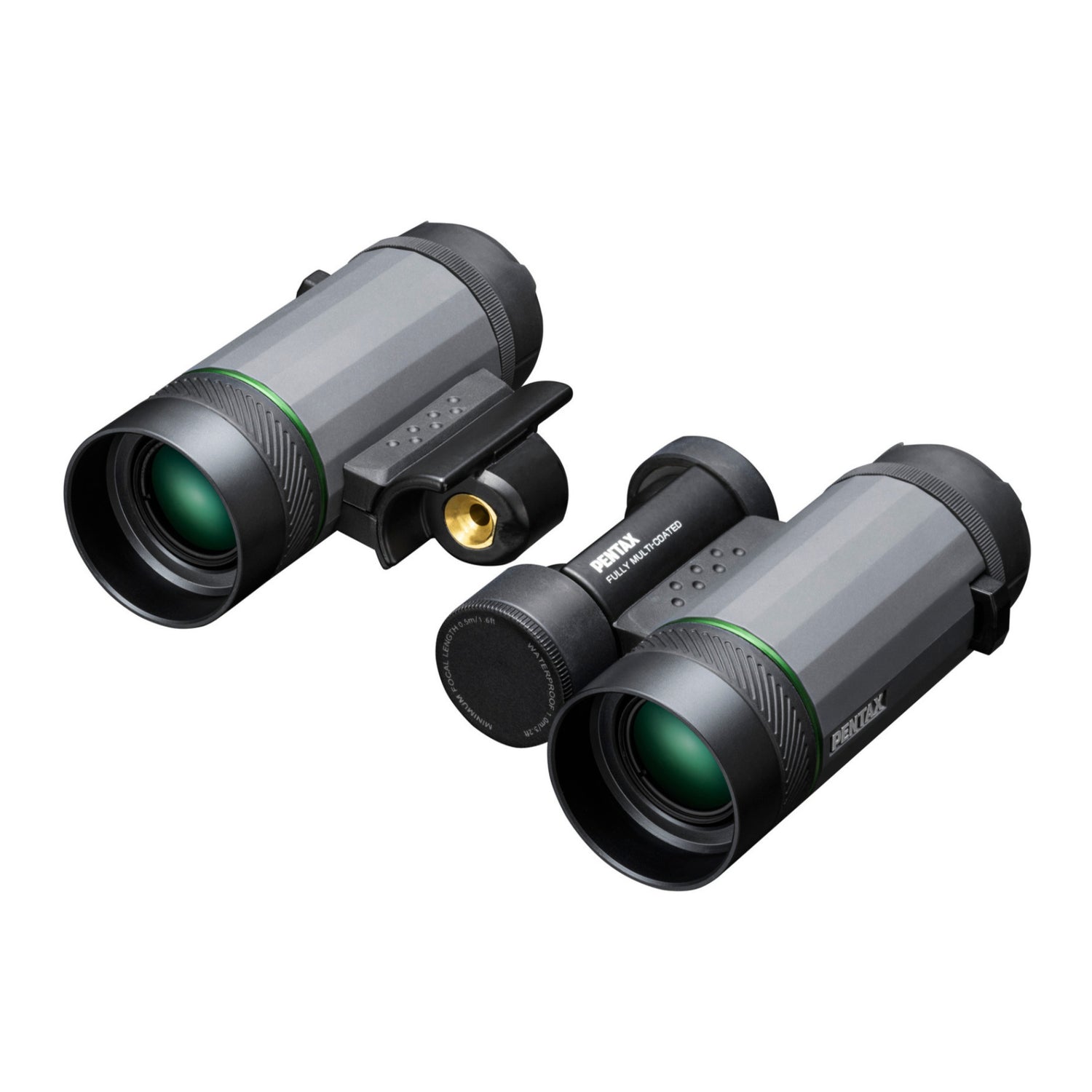

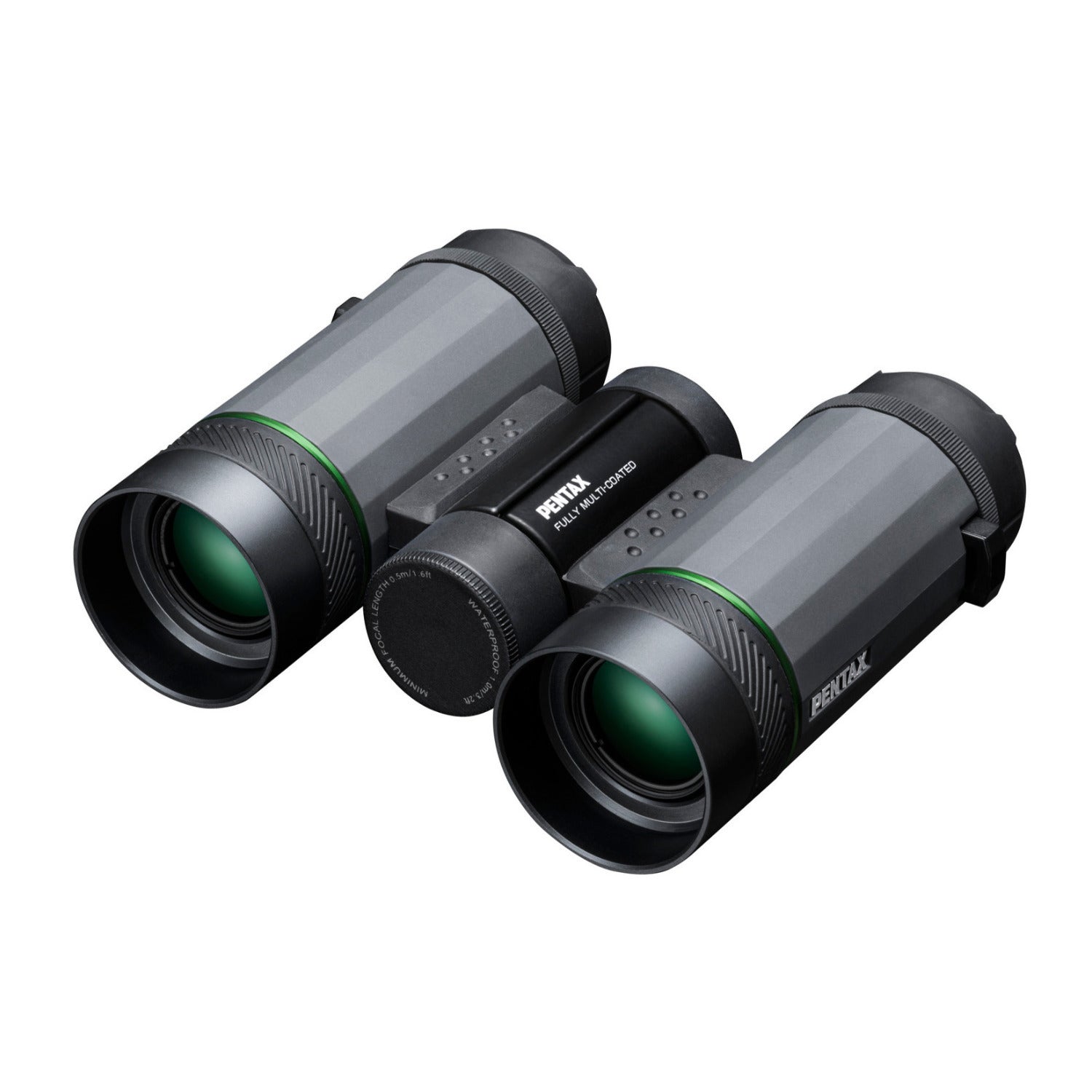

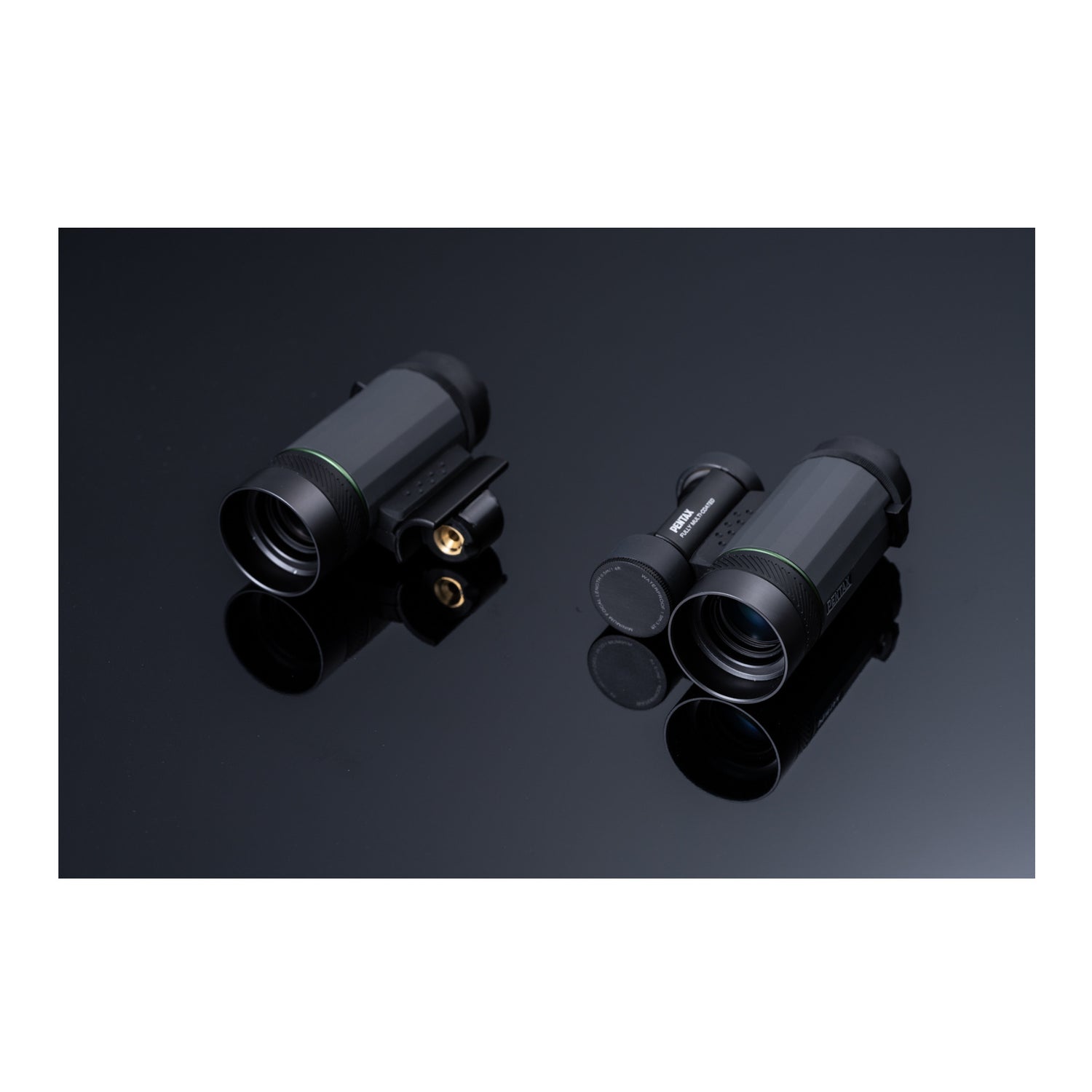

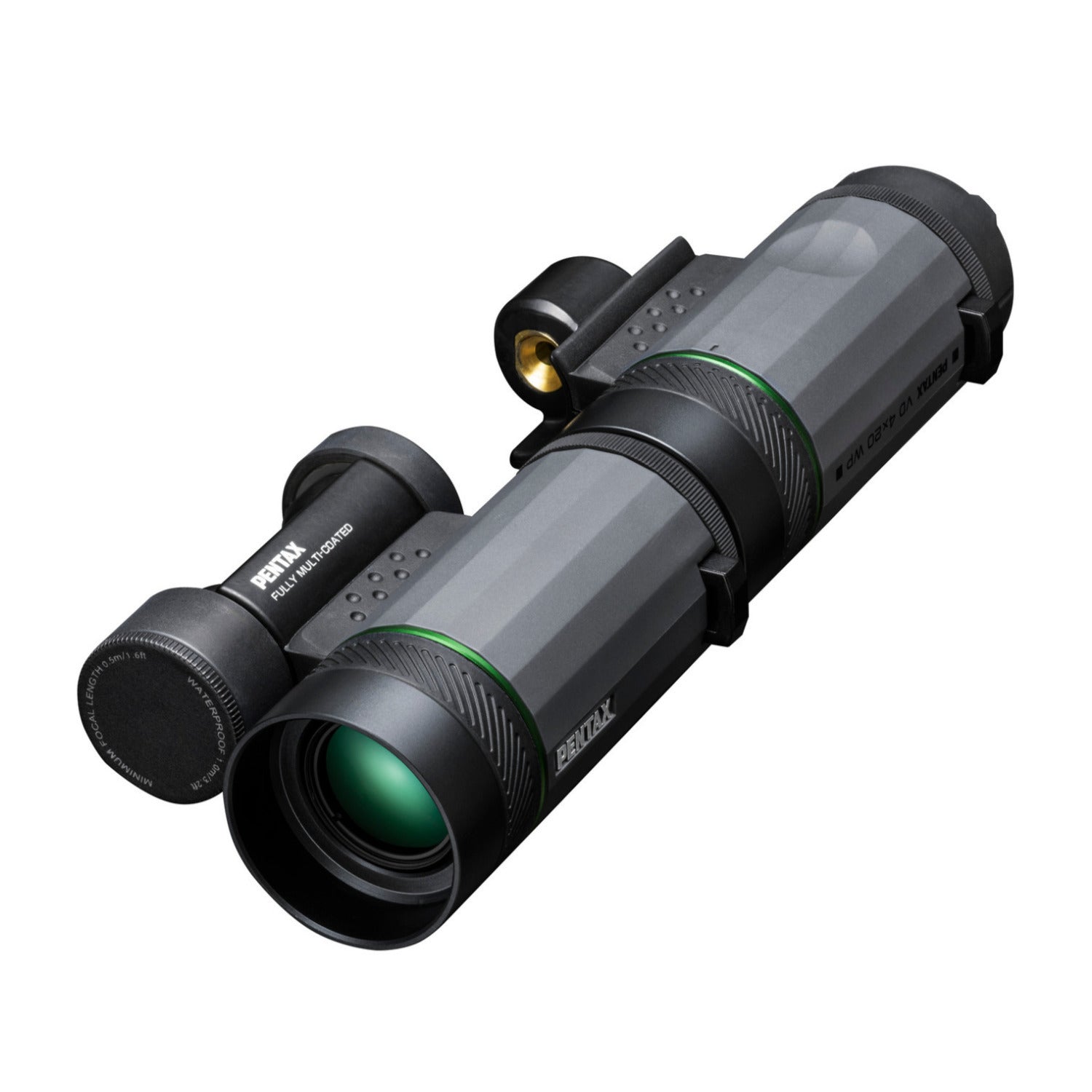

The Pentax VD 4x20 WP are multi-featured binoculars with a unique three-in-one design that lets you spot in three different ways. These unique binoculars can be converted into a monocular and a telescope with the versatility to capture the emotion of a variety of scenes. As conventional binoculars, they deliver a solid, magnified view of the subject at 4x magnification. Separate the barrels and the VD 4x20 WP functions as two independent monoculars with 4x magnification that can be shared by two observers. The monoculars allow you to observe the subject with focus adjustment alone. By connecting the two barrels inline, it functions as a high-power telescope with 16x magnification. The Pentax VD 4x20 WP offers bright, clear, high contrast, excellent optical performance in a washable weather-resistant construction. These are perfect for concerts, festivals, sports, theater, museums.

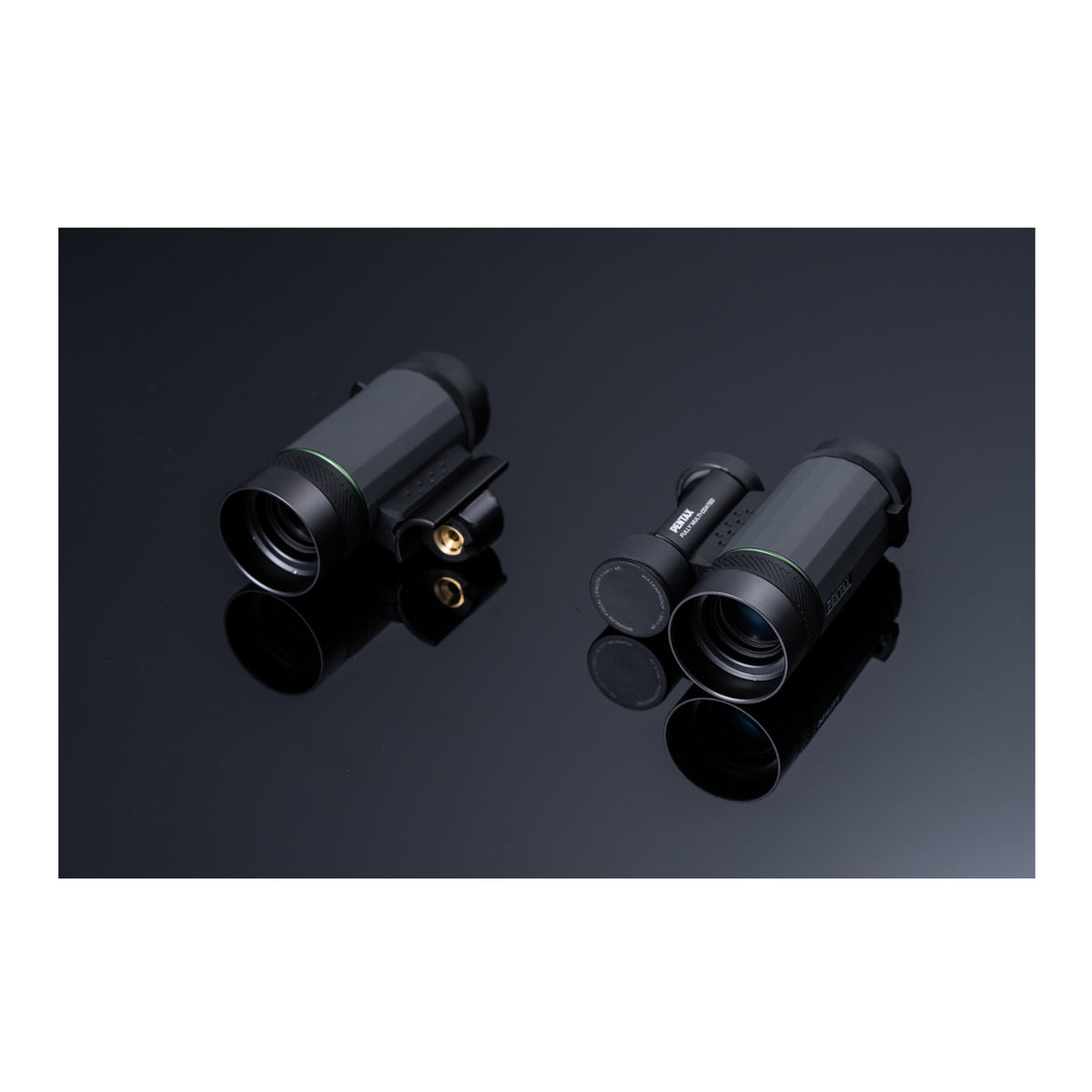

Exceptional Optical Performance
All reflective surfaces of the optical elements and prisms have been fully multi-coated to prevent excessive reflection. By treating roof prisms with phase coating and auxiliary prisms with super-high-reflection dielectric, multi-layer coating, the VD 4X20 WP boosts improved light transmission and delivers outstanding imaging performance with a bright, sharp, high-contrast view of the subject with minimal flare and ghost images.
Washable, Weather-Resistant Body

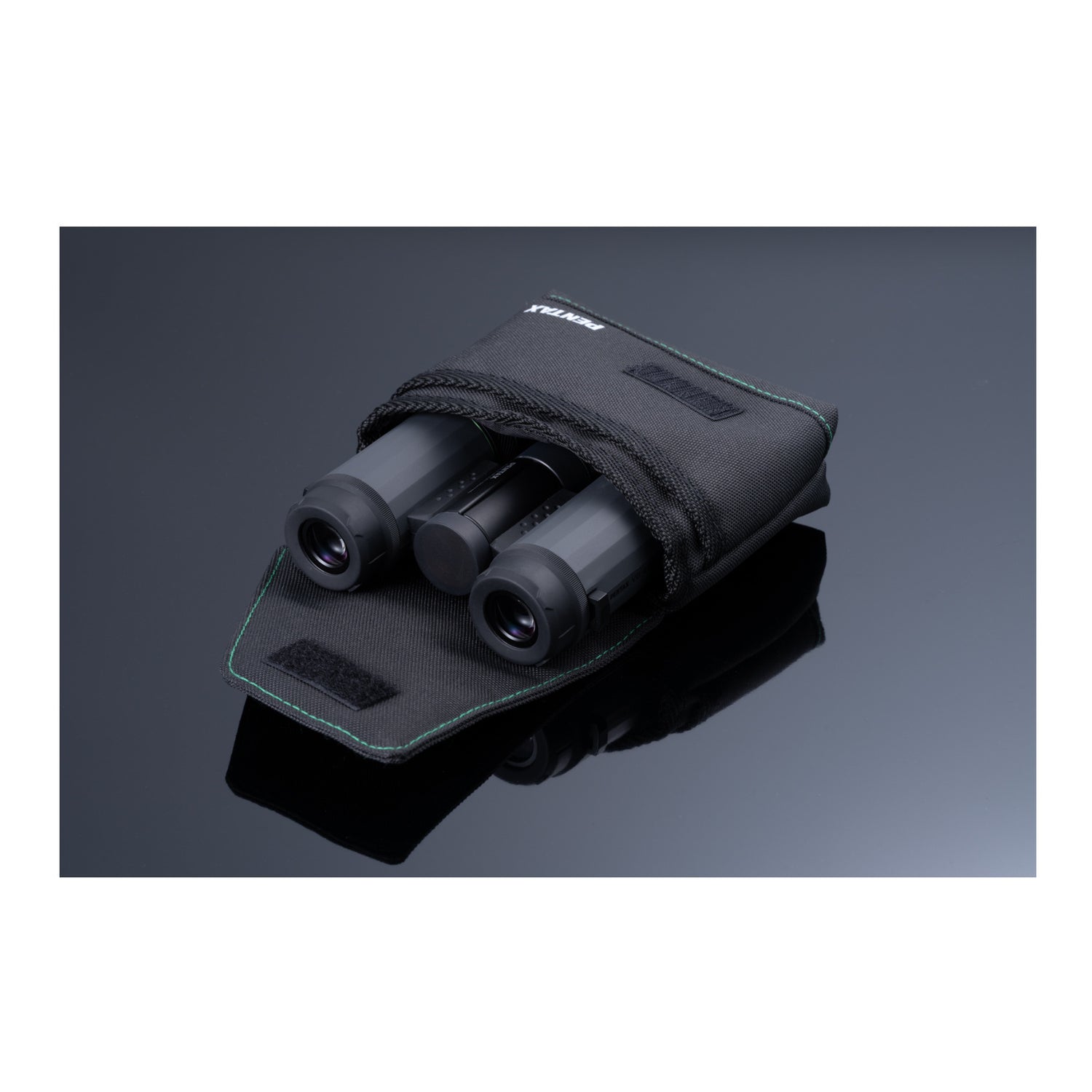

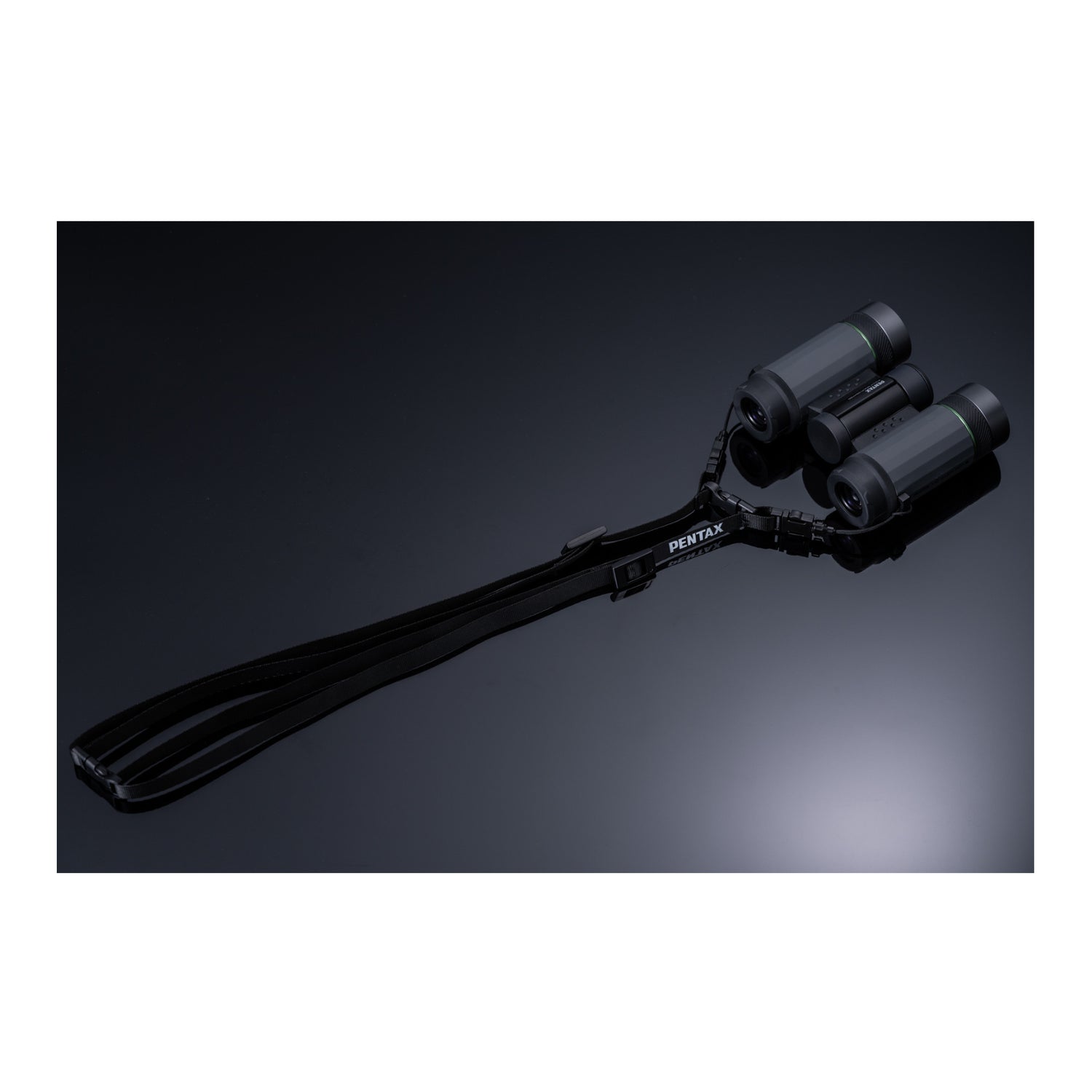

The VD 4x20 WP features a weather-resistant construction (equivalent to JIS Class 7; protected against immersion to one meter under the water). It can be rinsed clean with water and is usable under all weather conditions (cannot be used inside water). An exclusive neck strap is included that double-functions as two independent hand straps for the monoculars. The Pentax VD 4x20 WP 3-in-1 Binoculars come with a dedicated case for easy storage and can be used with an optional TP-3 tripod adapter for mounting them on a tripod.
General
| Weight | 12.9oz (345g) |
Performance
| Magnification | 4x |
| Objective Lens Diameter | 20mm |
| Angle of view | Binoculars and monocular: 10 degree |
| Minimum Focus Distance | Binoculars: Approx. 1.5m, Monocular: Approx. 0.5m |
| Exit Pupil Diameter | Binoculars and monocular: 5mm |
| Eye Relief | 19 mm |
| Prism System | Roof |
- Binoculars and monocular: 4x
- Telescope: 16x
- Binoculars and monocular: 10 degree
- Telescope: 2.6 degree
- Binoculars and monocular: 525 feet (175 m)
- Telescope: 135 feet (45 m)
- Binoculars and monocular: 5mm
- Telescope: 1.25mm
- Binoculars and monocular: 25
- Telescope: 2
- Binoculars: Approx. 1.5m
- Monocular: Approx. 0.5m
- Height:
- Binoculars and monocular: Approx. 3.7 inch (95 mm)
- Telescope: Approx. 6.9 inch (175 mm)
- Width:
- Binoculars: Approx. 4.6 inch (117 mm)
- Monocular and telescope: Approx. 2.7 inch (69 mm)
- Depth: Approx. 1.4 inch (36mm)
Pentax VD 4x20 WP 3-in-1 Binoculars
| Magnification | |
| Objective lens diameter | 20mm |
| Real field of view | |
| Field of view at 1000 yards | |
| Exit pupil | |
| Eye relief | 19mm |
| Relative brightness | |
| Minimum focusing distance | |
| Dimensions | |
| Weight | Approx. 12.9 oz (345g) binoculars or telescope configuration |
