- 1 x RODECaster Video
- 1 x SC27
- 2 x External Antenna
- 1 x Power Supply
Trusted & Verified

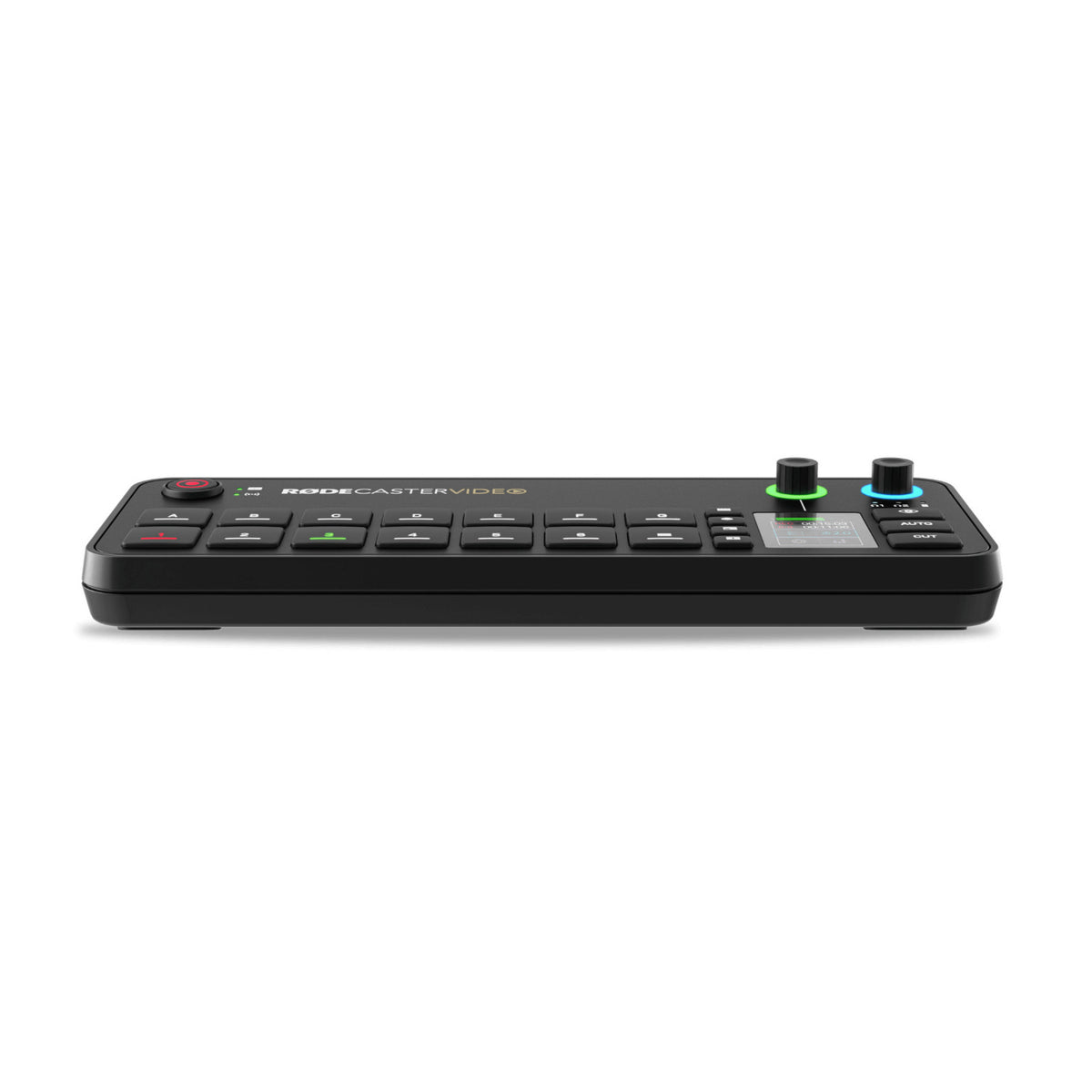

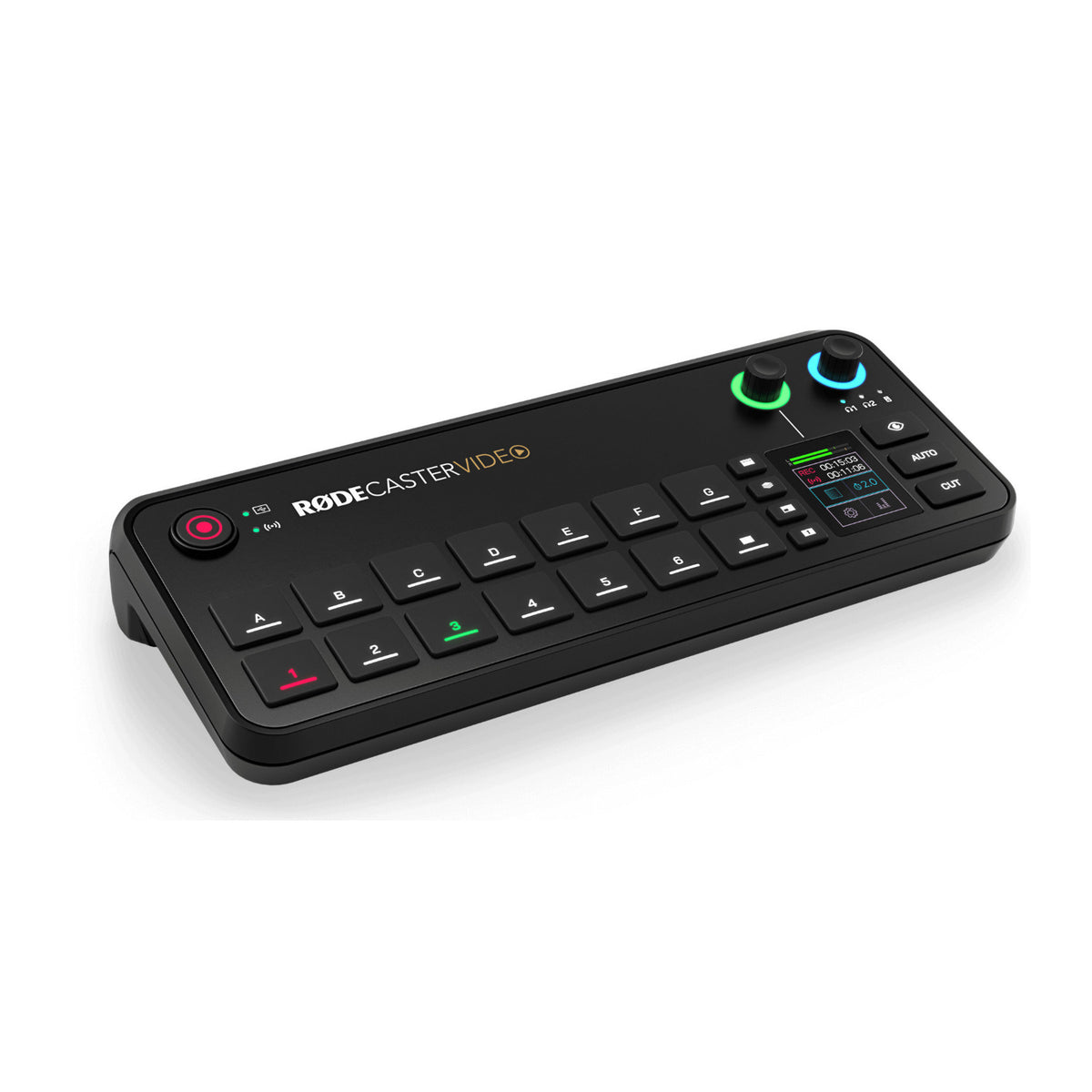

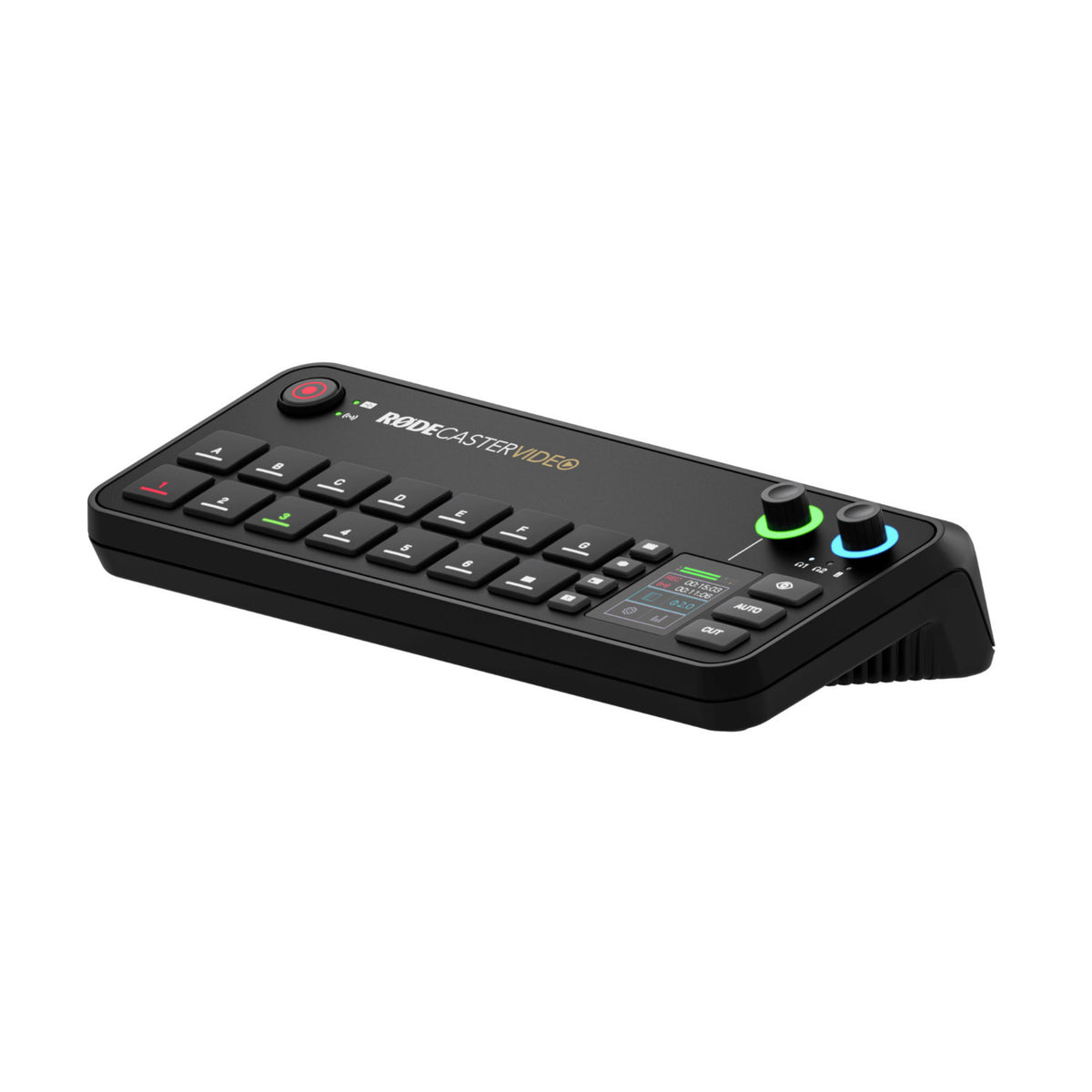

RODE RODECaster All-in-One Video and Audio Production Studio Console (Open Box)
- Switch between up to six video sources
- Seven fully customizable scenes
- High-performance octa-core CPU
- Four full HD (1080p) HDMI inputs
- Two configurable HDMI outputs
- Two USB-C ports for video and audio sources
- Two Neutrik combo jacks with Revolution Preamps
- Dual internal wireless receivers
- APHEX audio processing
- 2-inch high-resolution touchscreen
- Versatile rotary encoder
- Automatic chroma keying
- Media playback and graphic overlays
- Inspect mode for preview and configuration
- Intelligent auto-switching based on audio
- Direct streaming via Wi-Fi or Ethernet
- USB recording with ISO support
- Remote control via RODE Central
- Designed and made in Australia
Take Full Creative Control of Your Production
The RODECaster Video is a revolutionary all-in-one console designed to transform your video and audio workflow. Whether you're livestreaming, podcasting, producing interviews, or creating content in a multi-cam studio, this powerful system puts everything at your fingertips. It seamlessly integrates professional-grade audio mixing with intuitive video switching, multi-track recording, and real-time effects — all in a single compact unit. With the RODECaster Video, broadcast-quality production has never been more accessible.
Multi-Source Video Switching
Instantly switch between up to six video sources and seven customizable scenes with a single button press
High-Performance Processing
Powered by an advanced octa-core CPU for seamless video and audio performance
Full HD HDMI Inputs & Outputs
Includes four 1080p HDMI inputs with automatic frame rate conversion and two configurable HDMI outputs for program, preview, or multiview
Flexible USB-C Connectivity
Two USB-C ports allow connection of compatible webcams and RODE USB audio devices for expanded input options
Studio-Grade Audio Inputs
Two Neutrik combo jacks with ultra-low-noise, high-gain Revolution Preamps for connecting XLR mics, instruments, and more
Integrated Wireless Support
Dual internal receivers for direct pairing with RODE Series IV wireless microphones
Advanced APHEX Audio Processing
Onboard effects include EQ, compressor, noise gate, high-pass filter, de-esser, Aural Exciter, Big Bottom, and Compellor

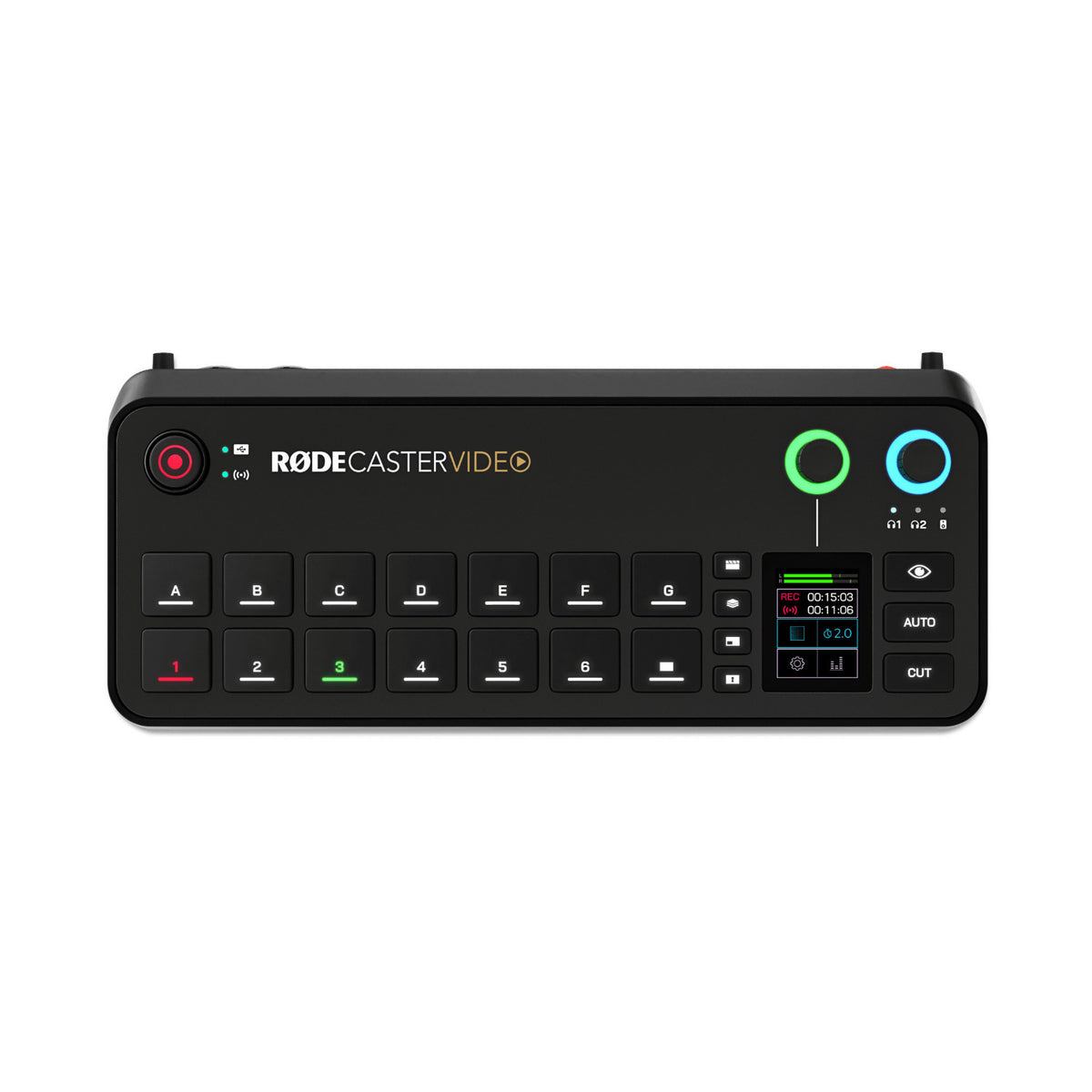

Intuitive Control Interface
Bright 2-inch high-resolution touchscreen with a rotary encoder for fast navigation and settings adjustment
Scene Creation & Switching
Create and trigger up to seven layered scenes with media, video, and graphics – all at the touch of a button

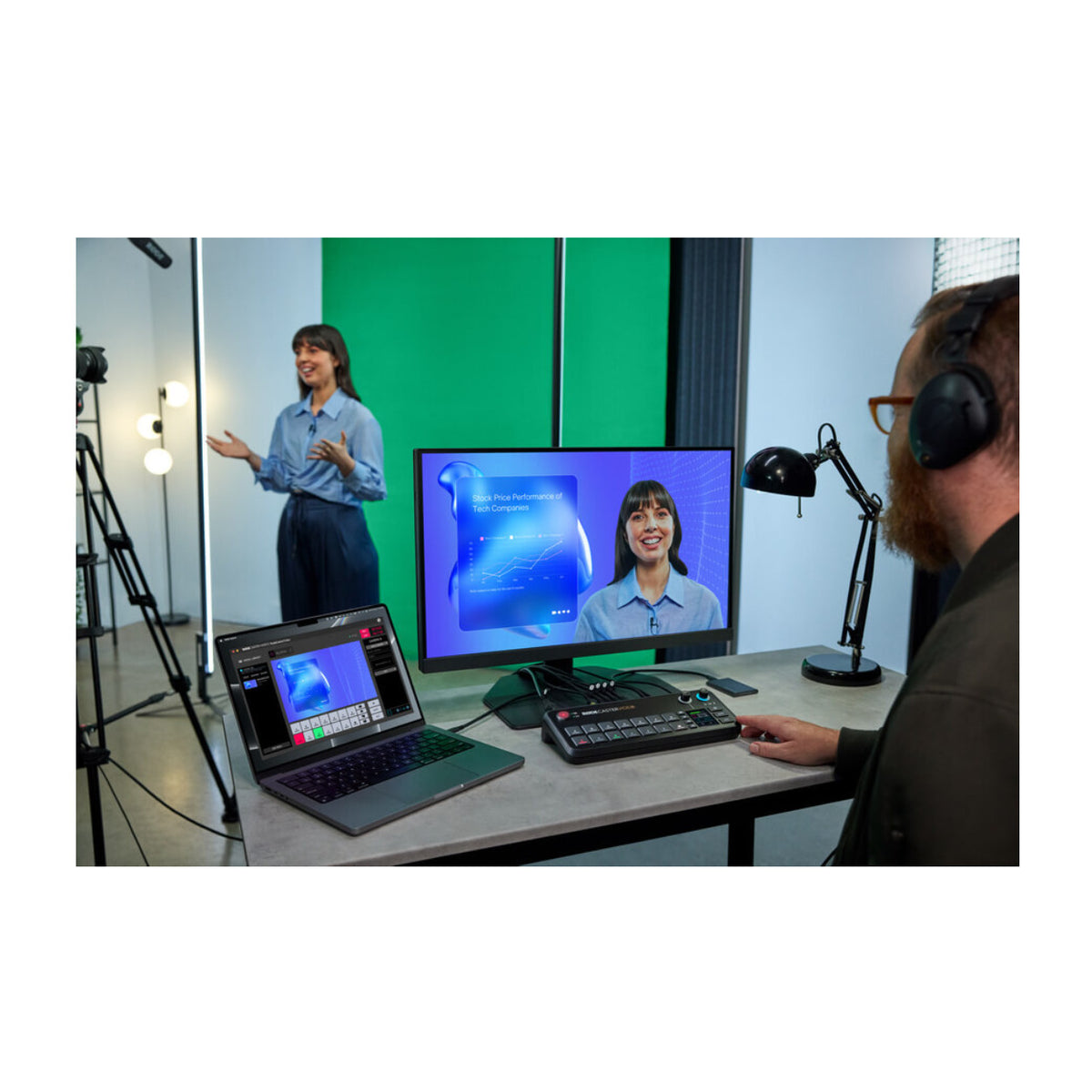

Built-in Chroma Keying
Automatically replace backgrounds with live video or custom media

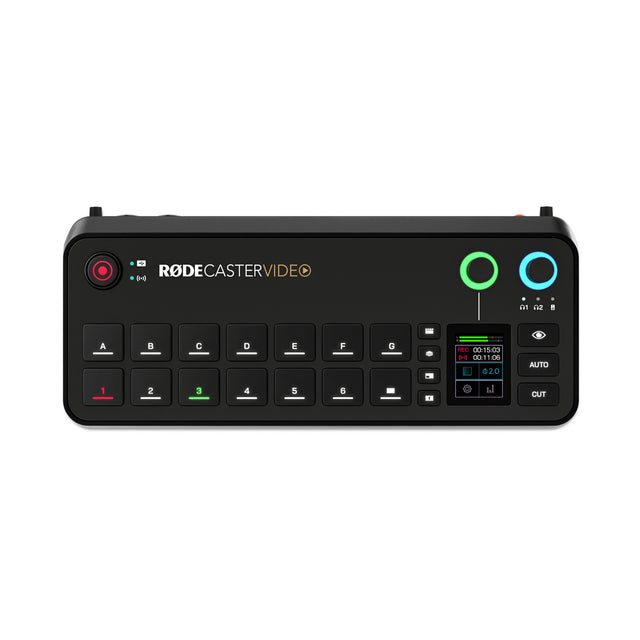

Front Panel Production Tools
Access media playback, overlays, transitions, keying, and scene controls directly from the console
Inspect Preview Mode
Quickly preview and configure any input or scene before going live
Intelligent Auto-Switching
Automatically switch video sources or scenes based on audio input activity
Direct Streaming Support
Stream to major platforms via built-in Wi-Fi or Ethernet, or route output to streaming software over USB
Onboard Recording with ISO Support
Record directly to an external USB drive with isolated track capture for post-production flexibility

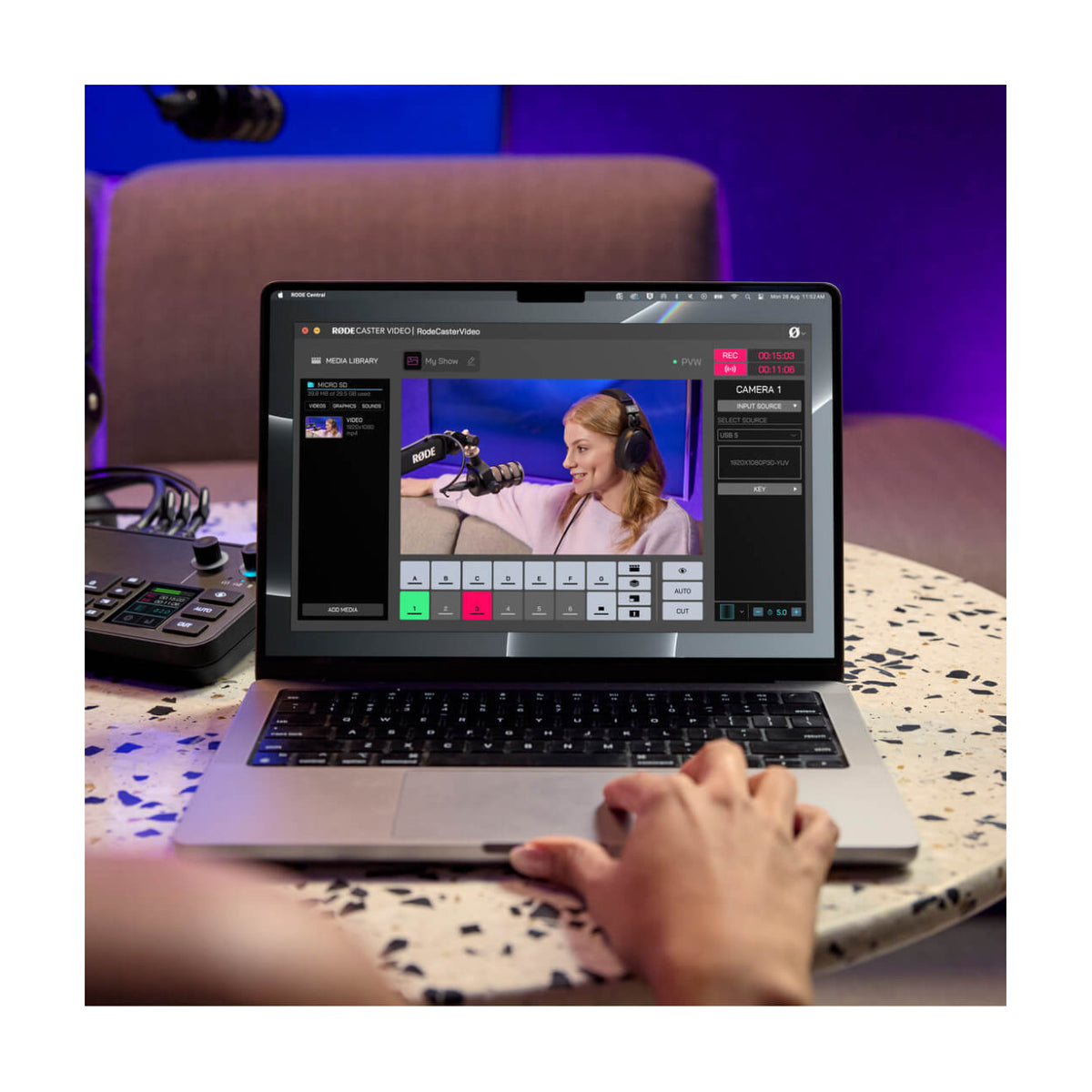

Advanced Control with RODE Central
Access remote control features, assign graphics and media, build custom scenes, and apply effects
Designed & Made in Australia
Engineered and manufactured in RODE’s cutting-edge Sydney facilities
RODE RODECaster All-in-One Video and Audio Production Studio Console
Audio Inputs
| Analog Inputs | 2 combo jacks (mic, line, instrument) with Revolution Preamps™ |
| Wireless Inputs | 2 internal Series IV wireless receivers |
| Digital Inputs |
|
Audio Outputs
| Headphone Outputs | 2 x 1/4-inch |
| Line Outputs | 2 x balanced 1/4-inch (L/R) |
Audio Mixer & Routing
| Total Sources | Up to 20 audio sources (9 stereo channels simultaneously) |
| Routing Outputs | 12 outputs with custom routing |
| Input Types | Combo 1/2, Wireless 1/2, HDMI 1–4, USB audio, Bluetooth, video clips, sounds |
Audio Processing
| Channel Effects | APHEX VoxLab with compressor, EQ, de-esser, panning, noise gate, high-pass filter |
| Additional Effects | Aural Exciter, Big Bottom, Compellor |
Preamps
| Frequency Range | 20Hz – 20kHz |
| Gain Range | Up to 76dB |
| EIN | -131.5dBV (A-weighted) |
Audio Format Support
| Streaming | 48kHz / 32-bit |
| Recording | 48kHz / 24-bit |
Streaming & Platforms
| Streaming Protocol | RTMP/RTMPS over Ethernet or Wi-Fi |
| Supported Platforms | YouTube Live, Twitch, Facebook Live, Twitter/X, Custom server |
Network & Wireless
| Ethernet | 10/100/1000 BaseT |
| Wi-Fi | Wi-Fi 6 (2.4GHz & 5GHz) |
| Bluetooth | 5.3 (for stereo input and phone calls) |
Recording & Storage
| External Storage | USB drive (exFAT format) |
| Program Video Recording | MP4 (H.264/AVC) with AAC stereo |
| ISO Video Recording | 6 inputs + 1 program feed as individual MP4 files (up to 1080p30) |
| Stereo Audio Recording | WAV |
| Multitrack Audio Recording | 9 stereo WAV files |
Software & Control
| Companion App | RODE Central |
| Scene Builder | Yes |
| Auto-Switching | Based on audio input |
| Audio Mixer Control | Advanced routing and processing |
| Stream Profiles | Custom streaming settings |
| Device Configuration | Advanced custom settings |
System Compatibility
| macOS | Version 11 or later |
| Windows | Version 10 (1803 or later), Windows 11 |

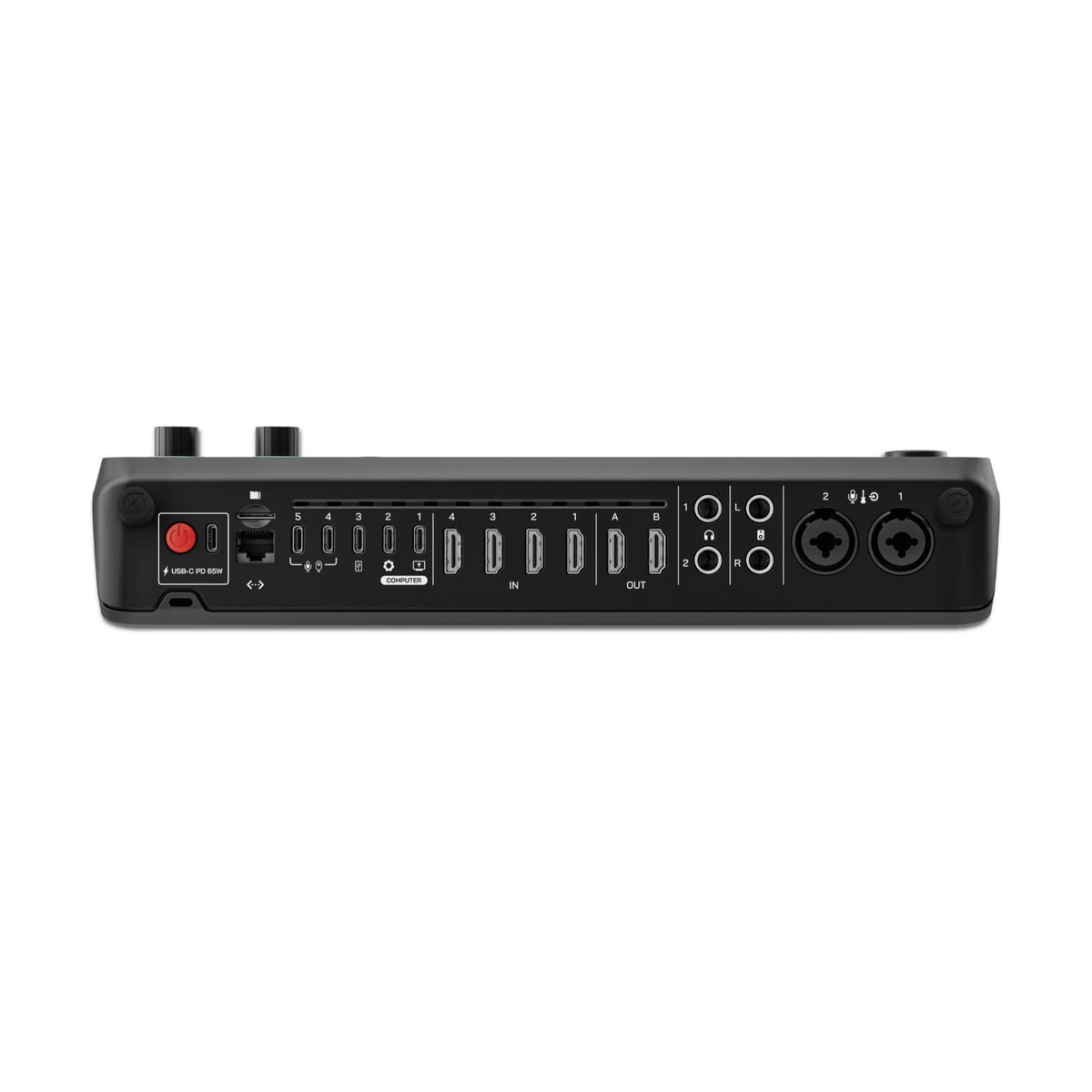

Video Inputs & Outputs
| Video Inputs | 6 total |
| HDMI Inputs | 4 x Type-A (HDMI 1.4b) |
| USB Video Inputs | 2 x USB-C UVC |
| HDMI Outputs | 2 configurable (preview, program, multiview) |
Video Formats & Frame Rates
| HDMI Input Frame Rates (1080p) | 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 |
| HDMI Input Frame Rates (1080i) | 25, 29.97, 30 |
| HDMI Output Frame Rates (1080p) | 24, 25, 30, 50, 60 |
| Streaming Frame Rates (1080p) | 23.97–60 |
Video Color & Bit Depth
| Video Engine | 4:4:4 RGB / 8-bit |
| HDMI Input | 4:4:4 RGB, 4:4:4 & 4:2:2 YUV / 8, 10, 12-bit |
| USB Input | 4:2:2 YUV, 4:2:0 YUV (NV12) |
| HDMI Output | 4:4:4 RGB & YUV / 8-bit |
| USB Output | 4:2:2 YUV / 8-bit |
| Frame Rate Conversion | On all HDMI and USB inputs |
Video Features
| Total Layers | 9 (simultaneous in preview and program) |
| Downstream Keyers | 2 (logos and overlays) |
| Chroma Keyers | 2 (green/blue screen support) |
| Media Players | 2 simultaneous |
| Transitions | SMPTE wipes, dip, fade |
| True Preview | Yes (scene and overlay display) |
| Scene Borders | Automatically generated |
| Multiview Display | Inputs, scenes, media, mixer, system status |
Media Format Support
| Video | MP4 |
| Images | PNG, JPG |
| Audio | WAV |
| Expandable Storage | microSD card support |
Display & Controls
| Touchscreen | 2-inch high-resolution |
| Encoder | Multifunction rotary control |
Power & Dimensions
| Power Requirement | USB-C PD 60W, 20V 3A |
| Weight | 1257g |
| Dimensions (mm) | 305.9 (W) x 132.5 (L) x 61.4 (H) |
