- 1 x SIG SAUER ECHO SV35-LRF Thermal Sight
- 4 x 18650 Lithium-ion Rechargeable Battery
- 1 x USB-C to USB-C Data Cable
- 1 x USB-C 2-Split Charging Cable
- 1 x Optic Multi Tool
- 1 x Lens Cleaning Pen
- 1 x Quick Reference Instructions
- 1 x Thermal Zeroing Target
- 1 x Hard Plastic Case
Trusted & Verified

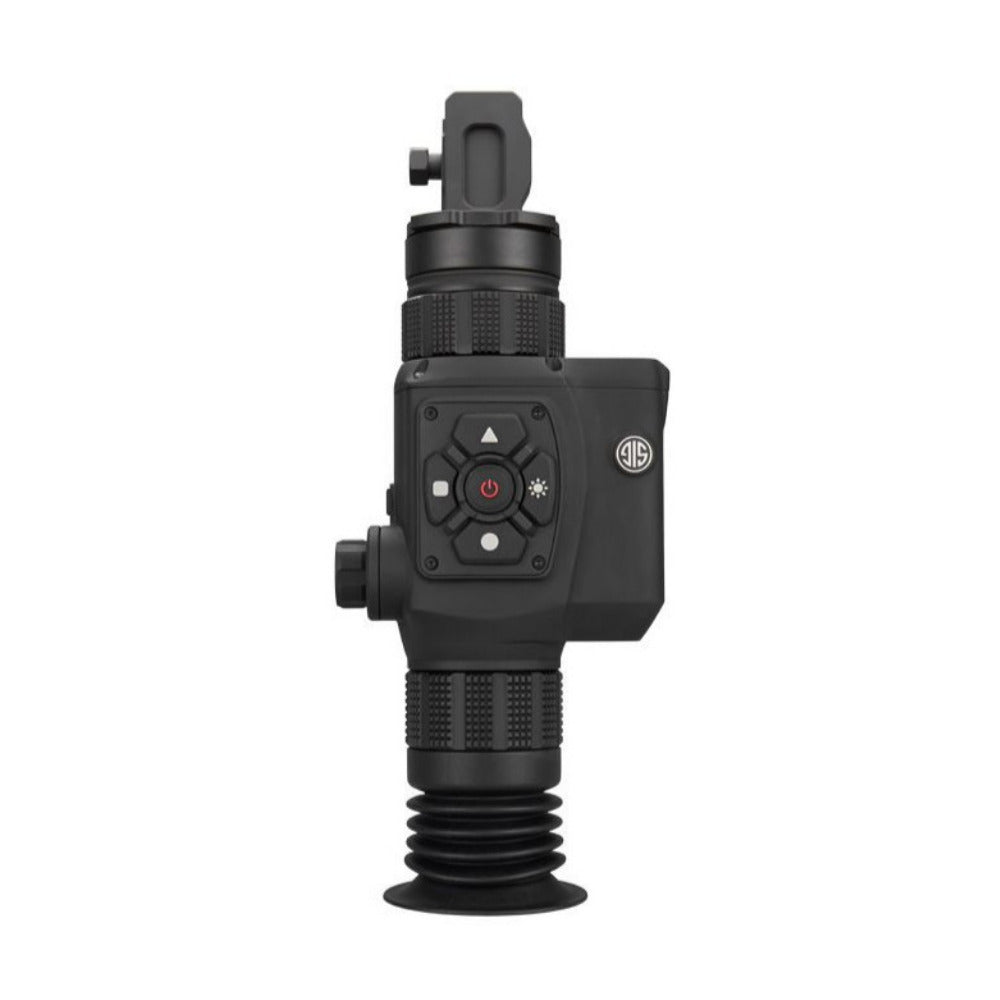

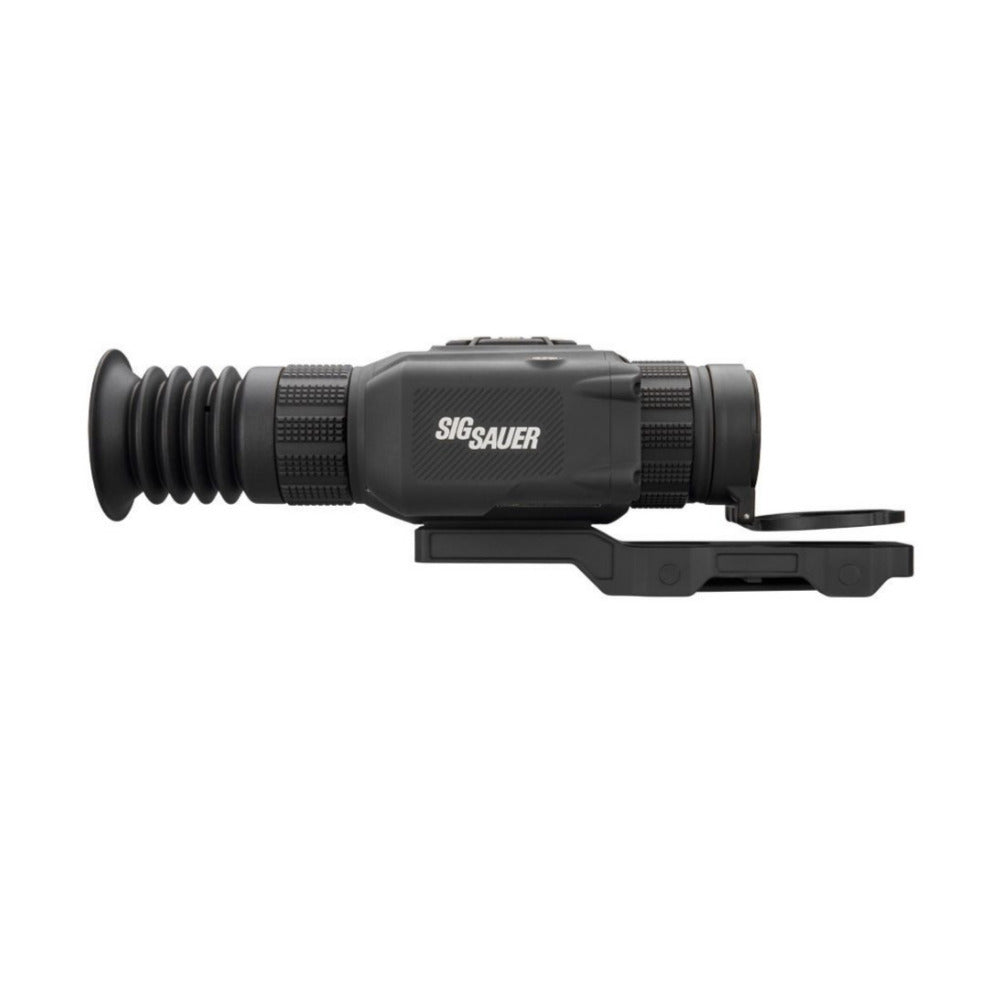

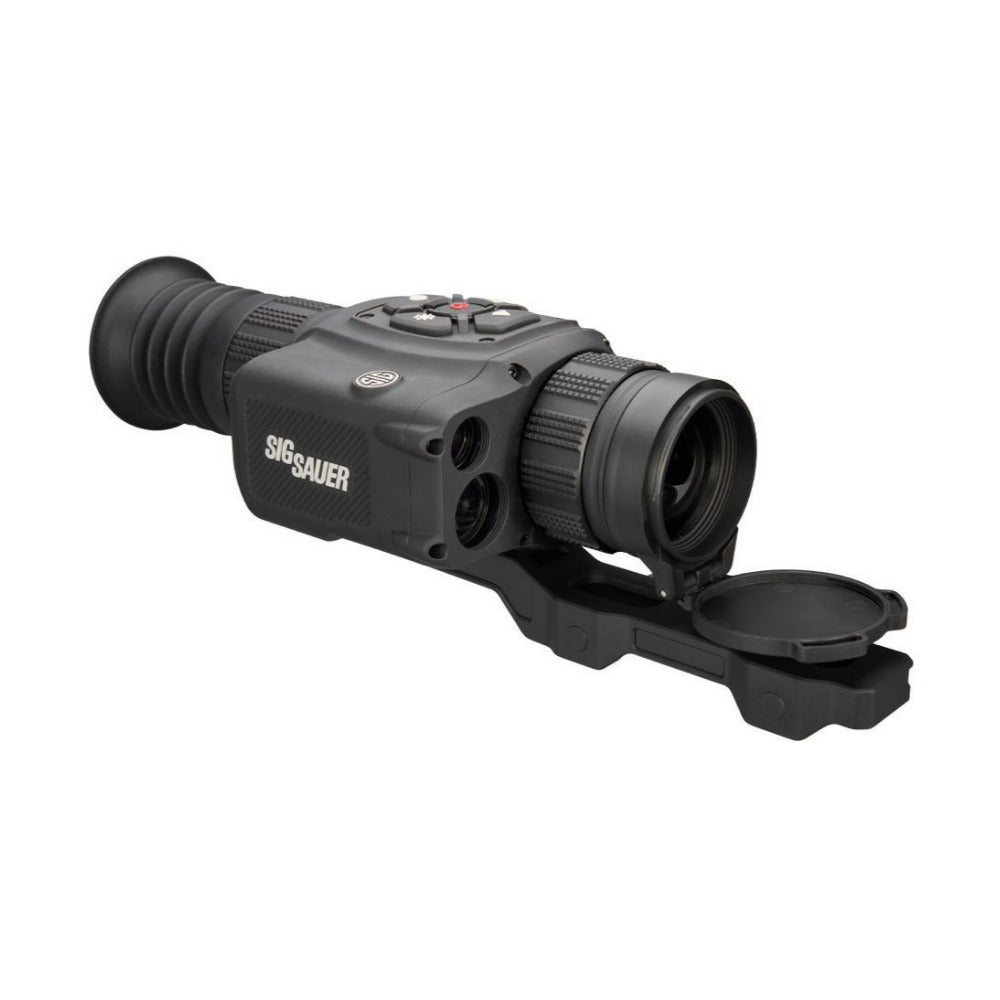

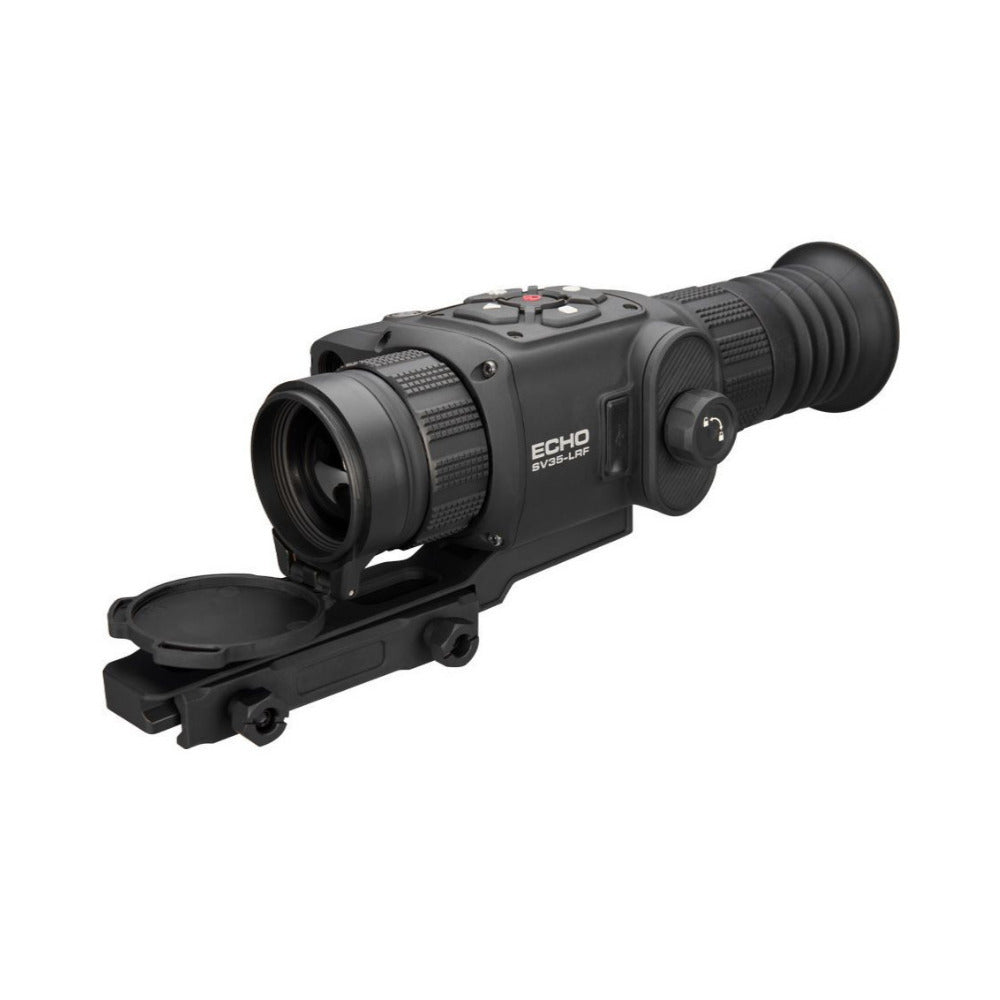

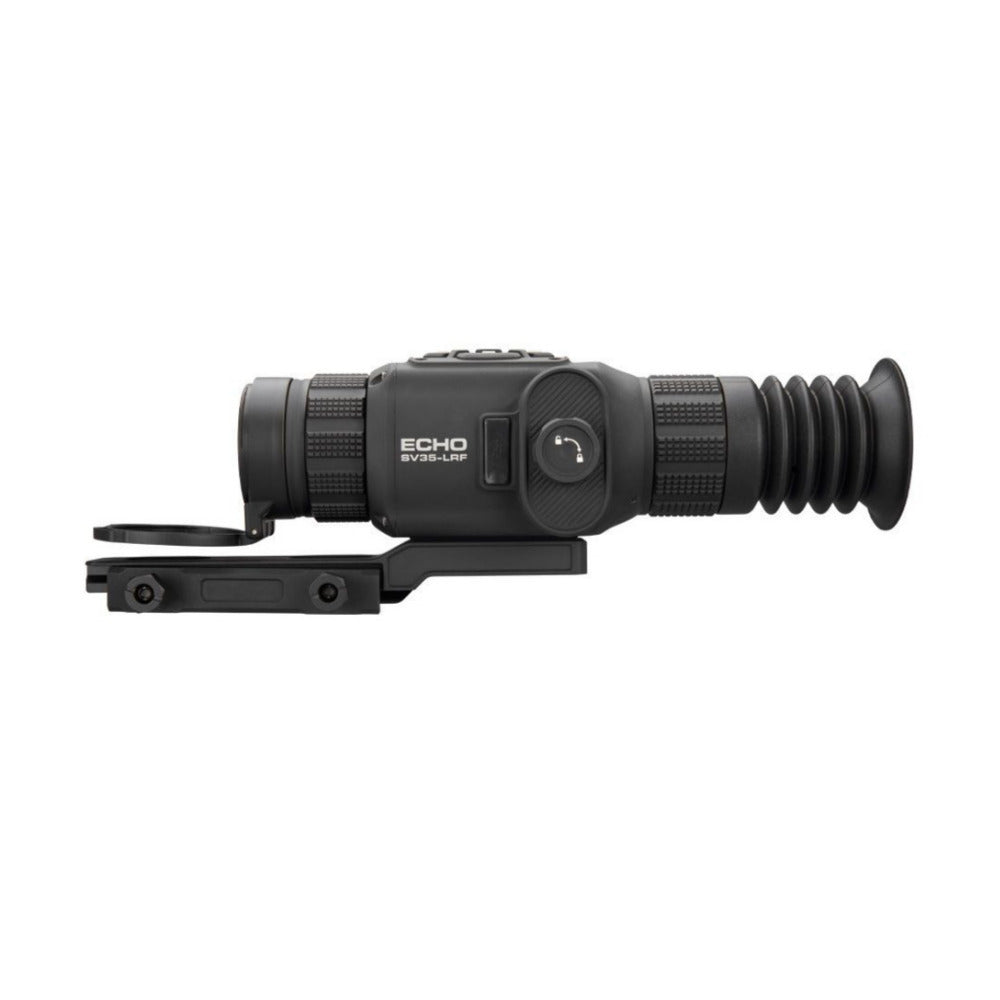

SIG SAUER ECHO SV35-LRF 1.5-12x35MM IP67-rated Thermal Sight with 640 x 512 Thermal Resolution
- 1.5 to 12x Magnification
- 640 x 512 Thermal Resolution
- 12 micrometer Pixel Pitch
- 50 Hz Thermal Refresh Rate
- 20 mK or less Thermal Sensitivity
- Integrated 1000 yard Laser Rangefinder
- 1024 x 768 OLED Display
- 8 Selectable Thermal Palettes
- BDX 2.0 Enabled
- Applied Ballistics Ultralight Integrated
- Wi-Fi and Bluetooth Connectivity
- 32GB Internal Media Storage
- Photo and Video Recording with Audio
- More than 11 hours of runtime
- IP67-rated Environmental Protection
The SIG SAUER ECHO SV35-LRF combines a 1.5 to 12x thermal optical system with a 640 x 512 LWIR sensor, 12 micrometer pixel pitch, 50 Hz frame rate, and sensitivity of 20 mK or less. The integrated 1000 yard laser rangefinder and onboard environmental sensors consolidate ranging and environmental information into the sight, while the 1024 x 768 OLED display presents the thermal image through eight selectable color palettes.
Integrated Digital and Recording System
BDX 2.0 support includes Applied Ballistics Ultralight and connectivity with the SIG BDX app. Wi-Fi and Bluetooth support device communication, while 32 GB of internal storage holds still photos and video with audio. Recorded media can be transferred through the app or through the external USB-C connection.
Rechargeable Field Power
The sight operates on two removable 18650 lithium ion batteries and provides more than 11 hours of runtime. SIG SAUER supplies four rechargeable batteries with the system, allowing a second pair to remain available. The housing is IP67-rated and incorporates a cantilevered direct M1913 Picatinny rail mount.
| Model | SOEC12210 |
| Mount Type | DIRECT M1913 / PICATINNY RAIL |
| Height | 3.5 inches (88 mm) |
| Overall Length | 10.7 inches (273 mm) |
| Overall Width | 4.0 inches (88 mm) |
| Illumination Settings | 8 Selectable Color Palettes |
| Run Time | 11+ Hours |
| Waterproofing | IP67 |
| Color | Black |
| Battery | 4 x 18650 Lithium-ion Re-chargeable Batteries included |
