- 1 x SIG SAUER ECHO CV25 Thermal Clip-On
- 1 x Bikini Lens Cover
- 1 x EVA Zippered Case
- 2 x 18650 Lithium-Ion Rechargeable Battery
- 1 x USB-C to USB-C Data Cable
- 1 x 1.93-inch Center-line Riser Kit
- 1 x Quick Reference Instructions
Trusted & Verified

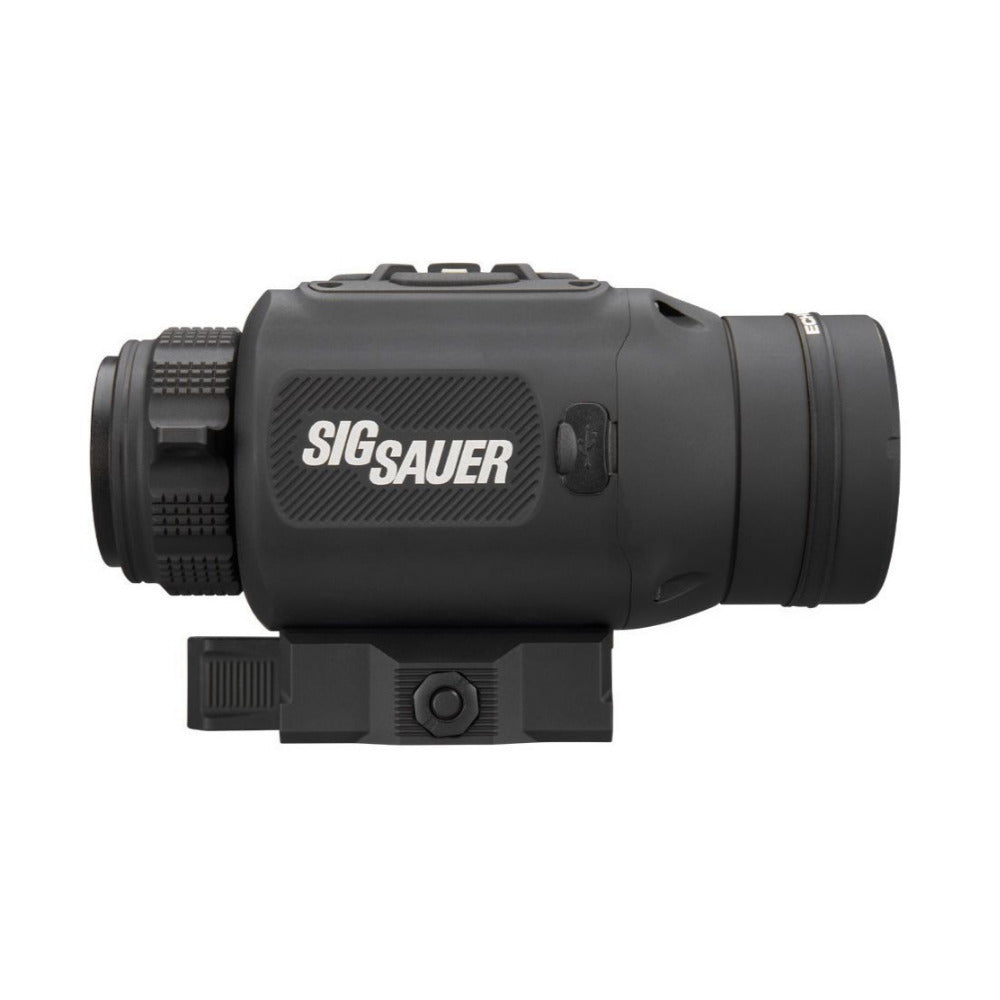

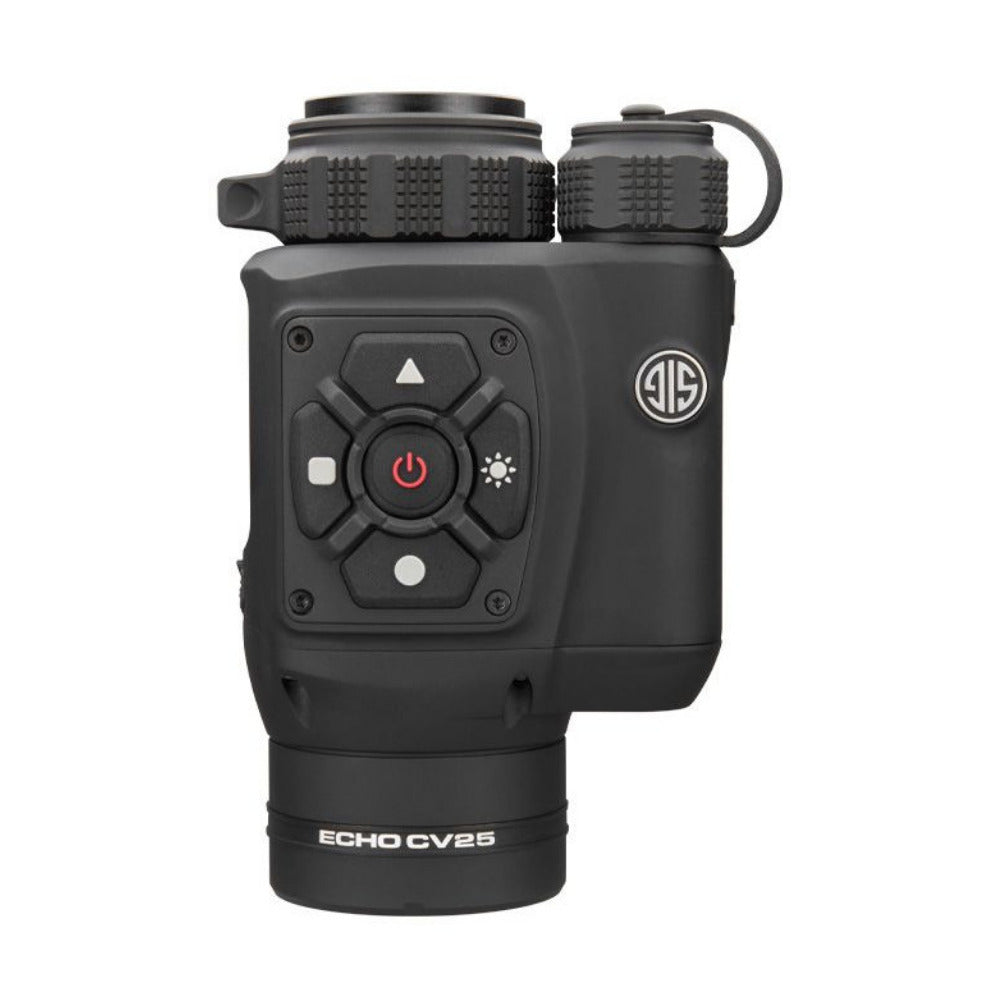

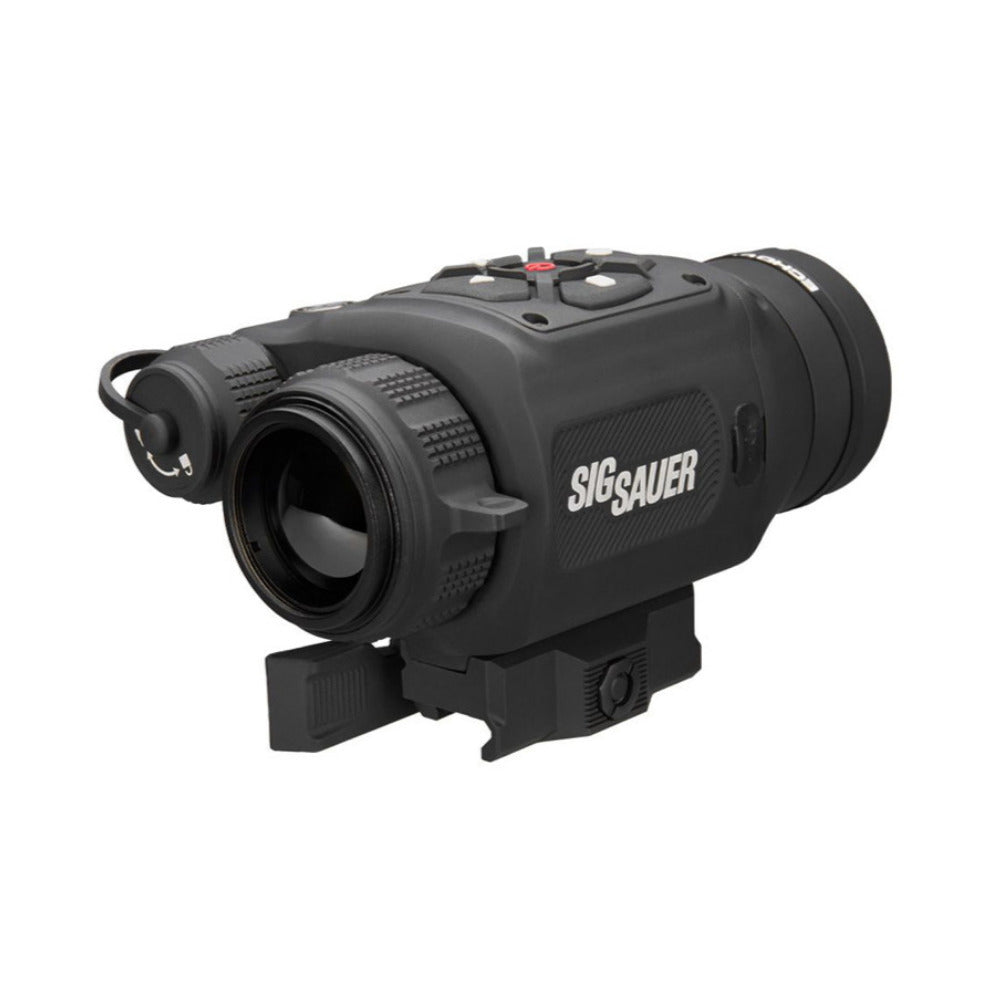

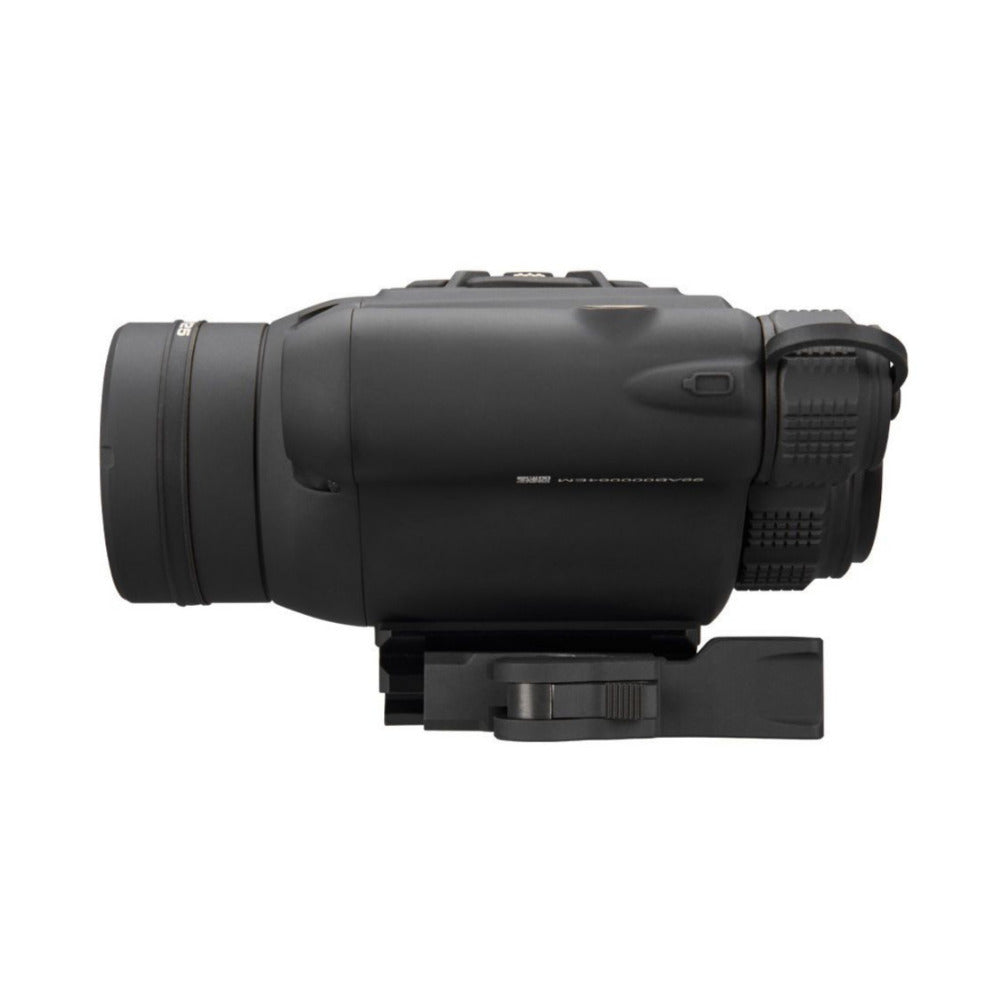

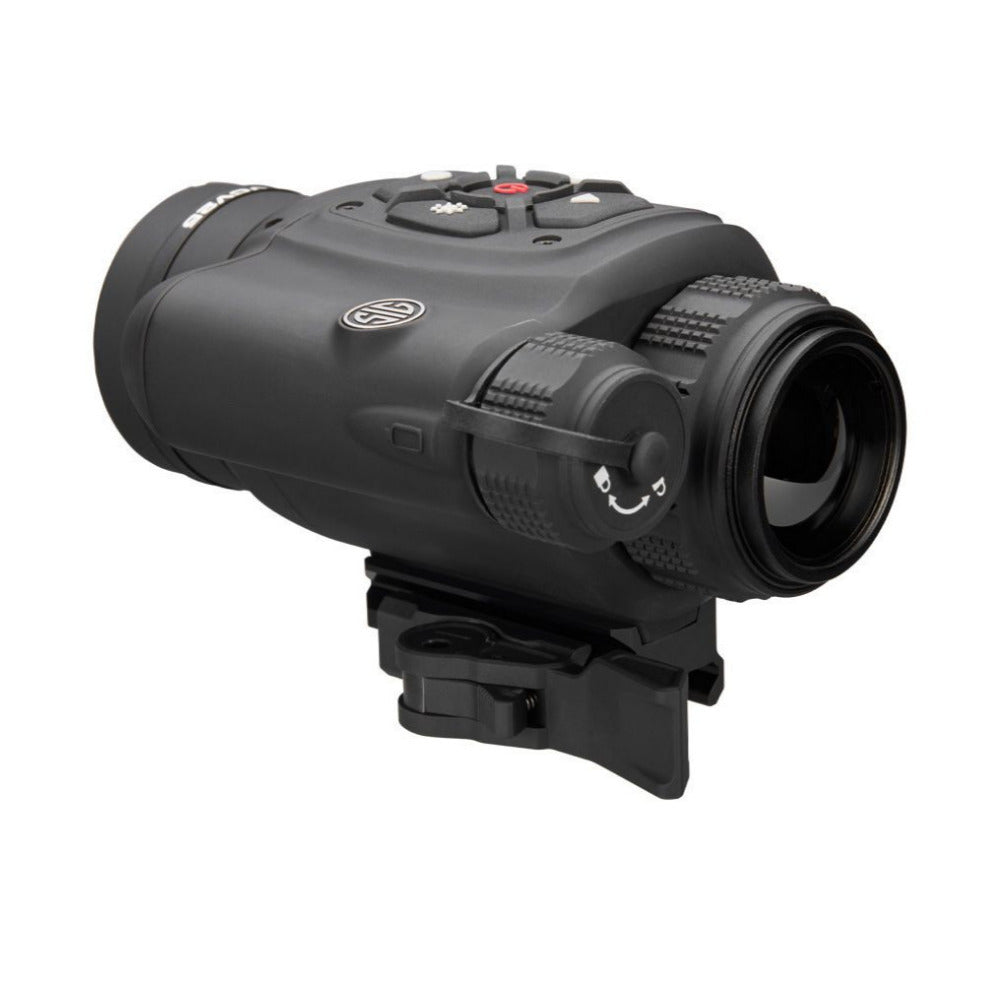

SIG SAUER ECHO CV25 5ft Waterproof Thermal Clip-On with Quick Disconnect Mount and IP67-rated Body
- 640 x 512 Thermal Resolution
- 12 micrometer Pixel Pitch
- 50 Hz Refresh Rate
- Thermal Sensitivity below 20 mK
- 1 to 8x Magnification
- 25mm Objective
- 17.6-degree Field of View
- 1024 x 768 Display
- 8 Selectable Color Palettes
- BDX 2.0 Enabled
- Wi-Fi and Bluetooth Connectivity
- 32GB Internal Media Storage
- Photo and Video Recording with Audio
- More than 9 hours of Runtime
- Quick Disconnect M1913 Mount
- IP67-rated Environmental Protection
The SIG SAUER ECHO CV25 is a compact thermal clip on built around a 640 x 512 LWIR sensor with a 12 micrometer pixel pitch, 50 Hz frame rate, and thermal sensitivity below 20 mK. Its 25 mm objective, 17.6-degree field of view, and 1024 x 768 display provide the core imaging system, while the parallax free eyepiece is optimized specifically for clip-on use.
Compact Quick Disconnect Configuration
The CV25 measures 4.96 inches long and uses a quick disconnect M1913 Picatinny rail mount with an industry standard 1.535-inch center-line. Its short overall length and quick release lever support a compact mounting arrangement, while the included 1.93-inch center-line riser provides an additional mounting configuration.
Integrated Recording and Connectivity
BDX 2.0 support allows device configuration through the SIG BDX app. Wi-Fi and Bluetooth provide wireless communication, while 32GB of internal solid state storage supports still photos and video with audio. A USB-C connection provides another method for data access and external power.
Removable Rechargeable Power
The ECHO CV25 operates on one removable 18650 lithium-ion battery and provides more than 9 hours of runtime. Two rechargeable batteries are supplied so a second battery can remain available. The housing is rated IP67 for environmental protection.
| Model | SOEC22100 |
| Mount Type | QD-LEVER M1913 PICATINNY RAIL |
| Height | 3.07 inches (78 mm) |
| Magnification | 1-8x |
| Objective Lens Diameter | 25 mm |
| Overall Length | 4.96 inches (126 mm) |
| Overall Width | 2.99 inches (76 mm) |
| Run Time | 9+ Hours |
| Waterproofing Rating | IP67 protection |
| Color | Black |
| Battery | 2 x 18650 Lithium-Ion Battery included |
