- Sony DVF-EL1 Detachable Tilt-Type OLED Electronic Viewfinder
- Eyepiece Cup
- Terminal Protect Cap
Trusted & Verified

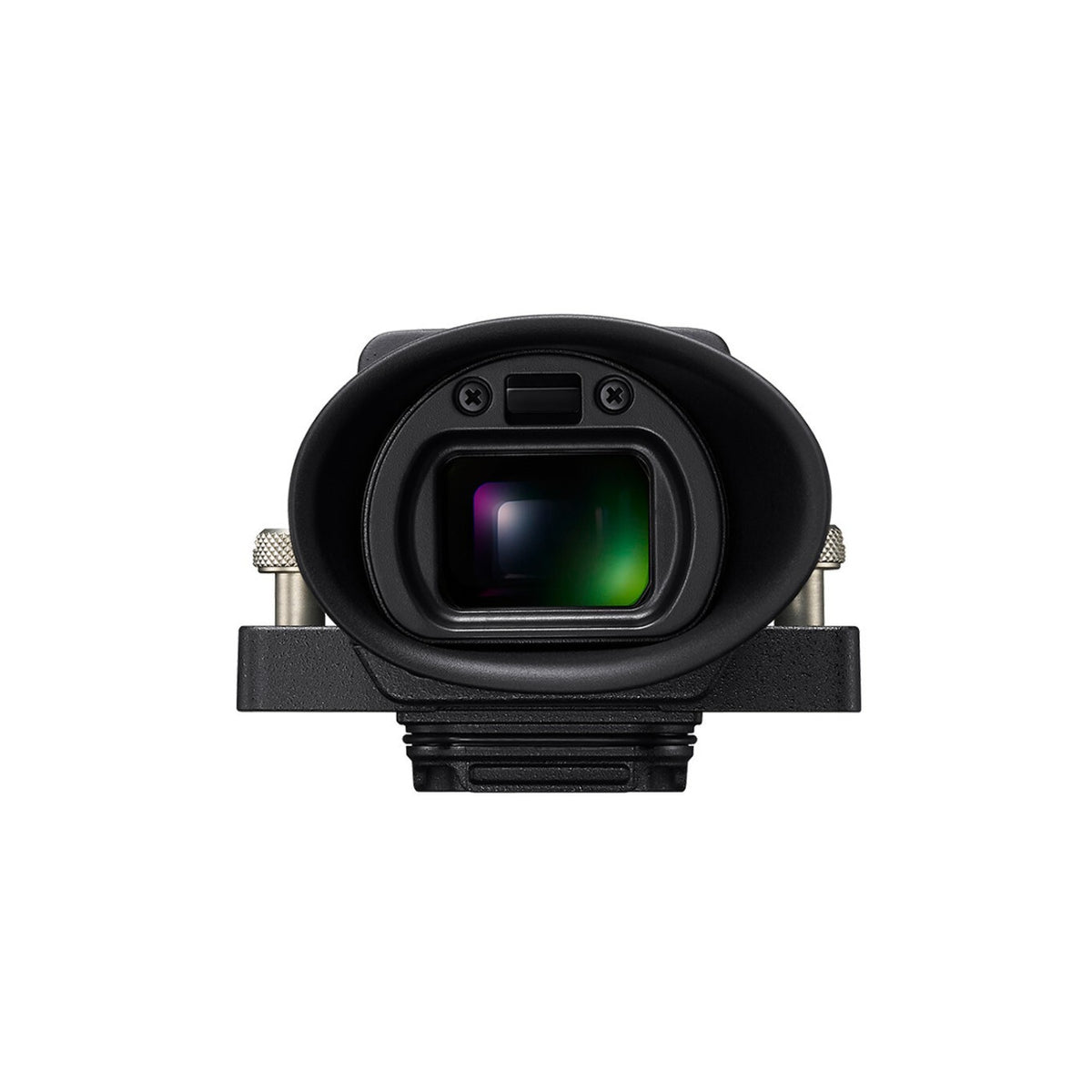

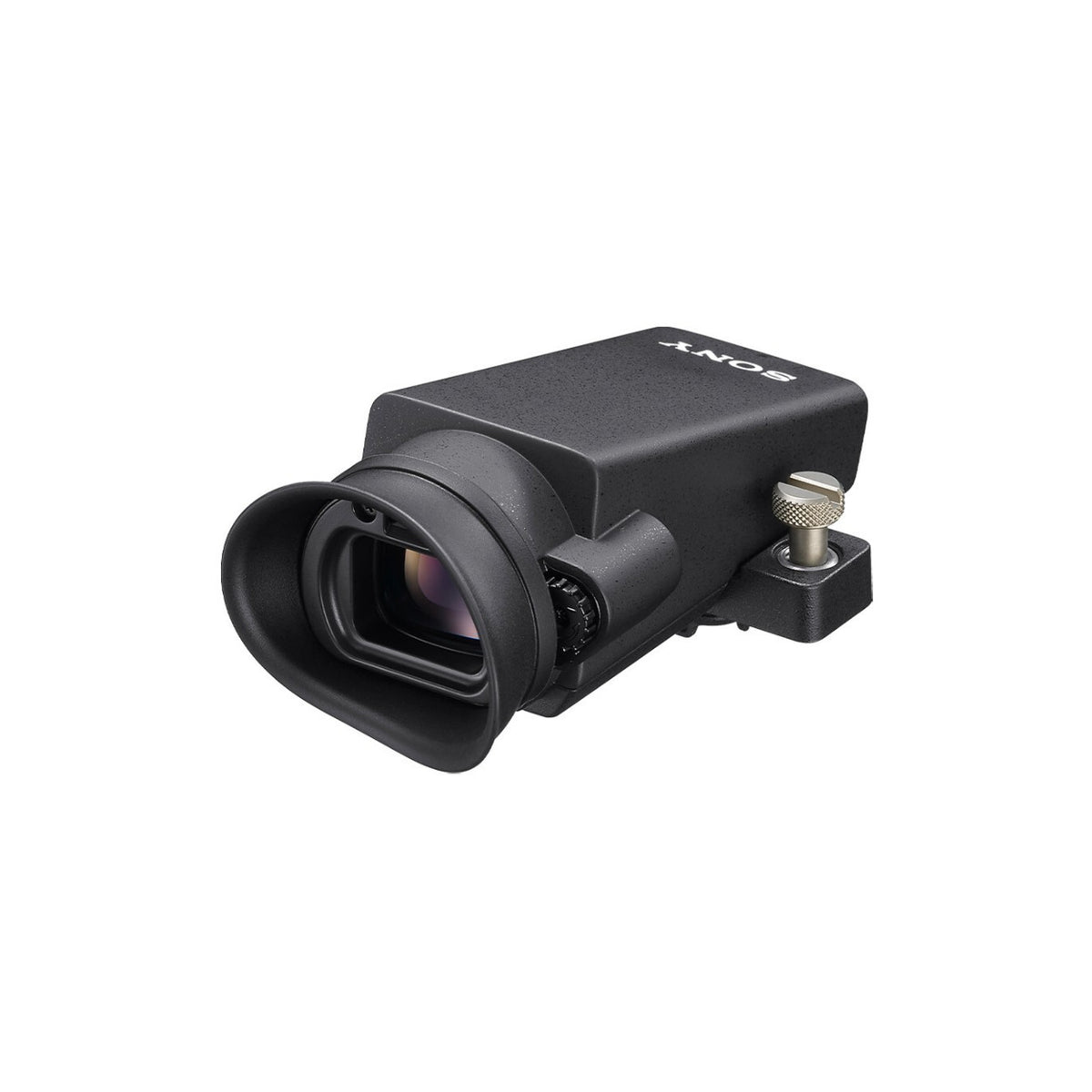

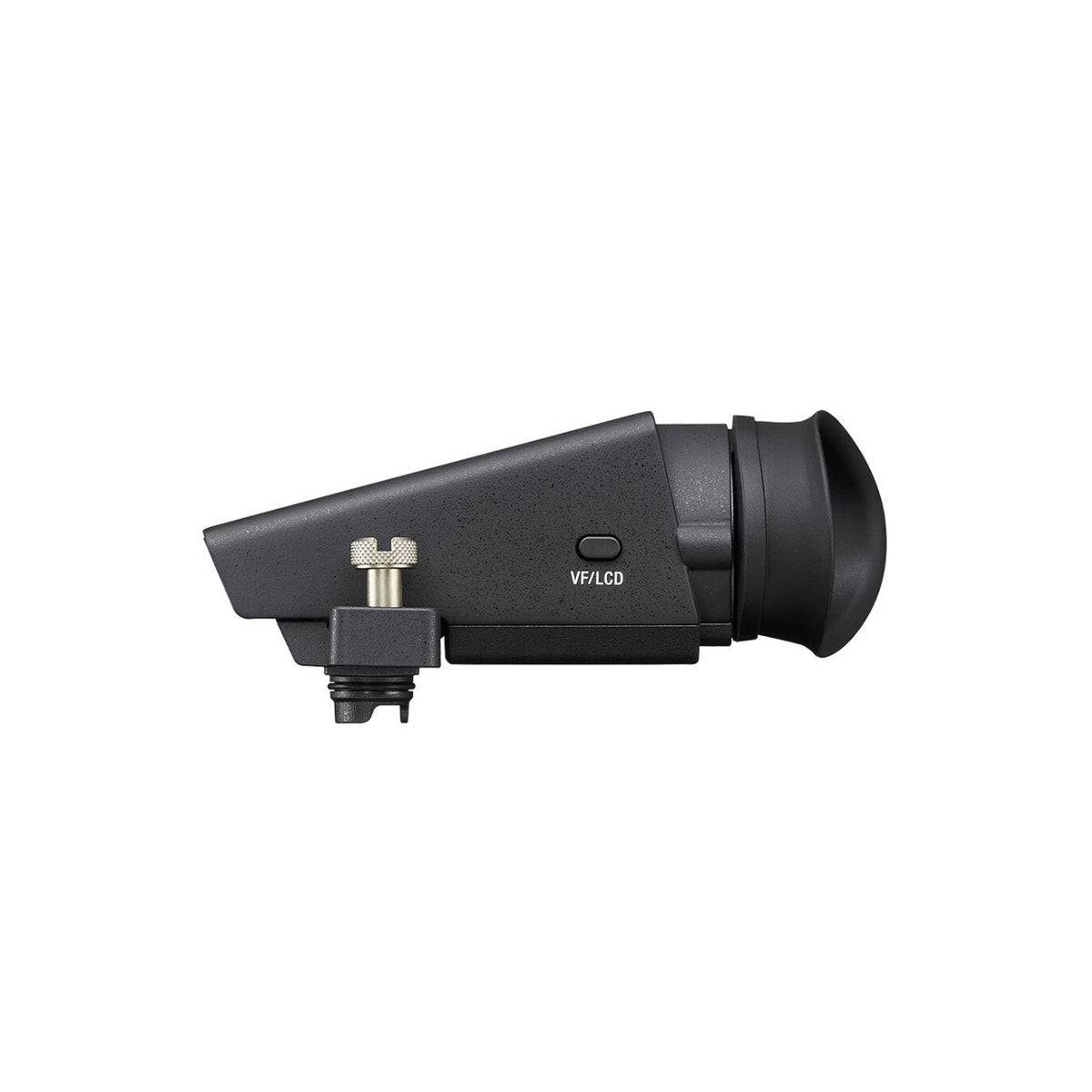

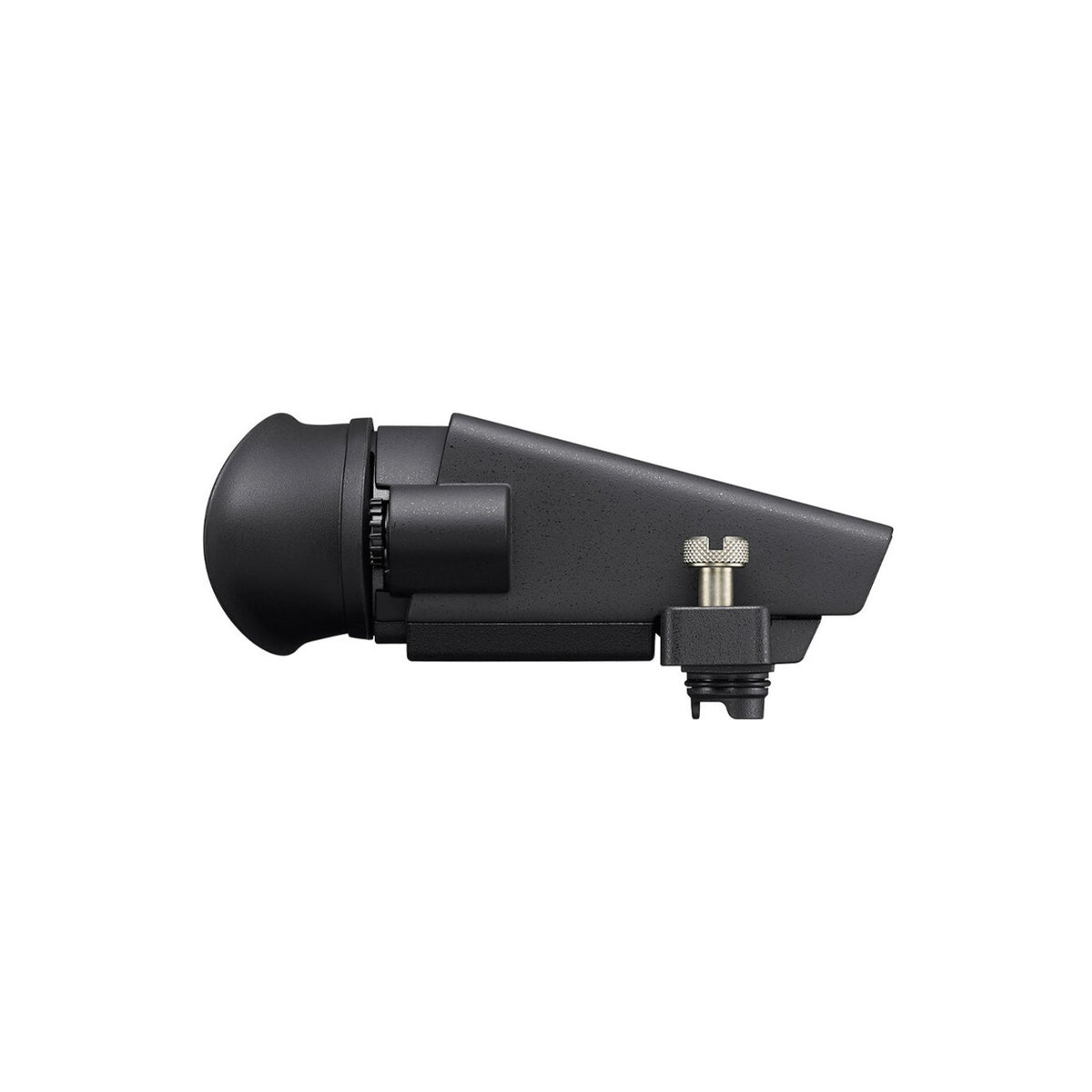

Sony DVF-EL1 Detachable Tilt-Type OLED Electronic Viewfinder for ILME-FX5
- High-resolution, wide color gamut panel
- Two magnification display modes
- Vertical tilt mechanism for easy shooting
- Integrated storage for VF terminal cap
The detachable tilt-type OLED Viewfinder DVF-EL1 enables accurate confirmation of focus and exposure, even in bright outdoor environments, supporting immersive image creation.
High-Resolution, Wide Color Gamut Panel
By attaching the detachable tilt-type OLED Viewfinder, composition, focus and exposure can be accurately confirmed. The 0.58-type OLED panel features approx. 7.07 million dots, a wide color gamut equivalent to DCI-P3, 10-bit display support, and HDR monitoring, reproducing fine details and rich colors with clarity.
Two Magnification Display Modes
With support for up to 0.90× magnification, the display can be switched to suit shooting styles. The VF Magnification setting lets you choose between Standard and Zoom Out, from resolution priority to enhanced visibility. It adapts to a wide range of shooting scenarios, including low- and high-angle shooting.

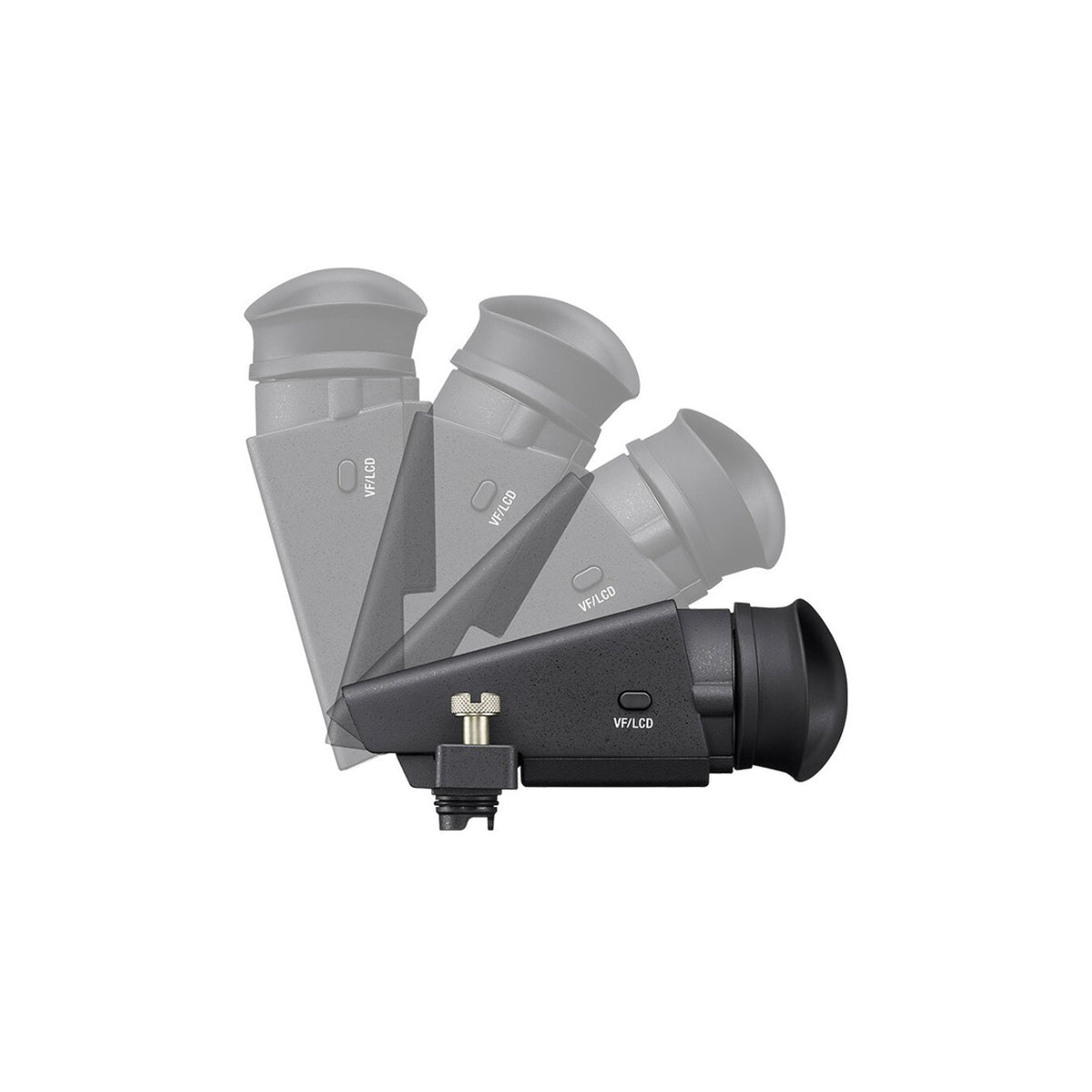

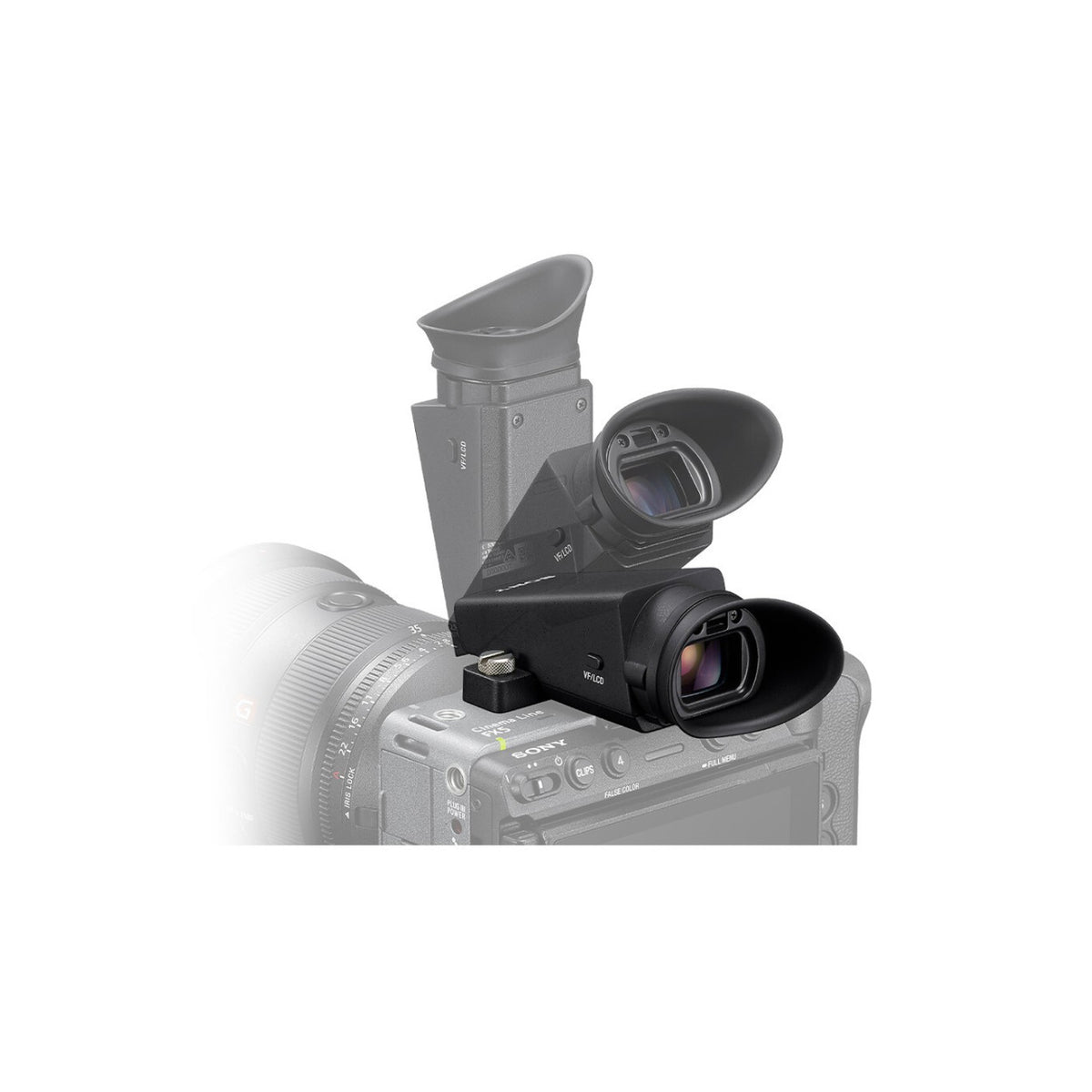

Vertical Tilt Mechanism for Easy Shooting
The vertical tilt mechanism allows adjustment from 0 degree up to approximately 90 degrees upwards. The eyepiece cup is detachable and can be reversed from left to right, offering flexibility for various shooting styles. Removing the eyepiece cup allows the eye to be positioned closer to the eyepoint, ensuring comfortable viewing even when wearing glasses.
Integrated Storage for VF Terminal Cap
The camera’s VF terminal protective cap can be stored inside the OLED Viewfinder body when removed. This design helps prevent loss and enables efficient handling.
Product Type:
| Camera Type | OLED Electronic Viewfinder |
Viewfinder:
| Display Type | 1.5 cm, 0.58 type electronic viewfinder with OLED panel |
| Number of Dots | 7,077,888 dots |
| Color Gamut | Wide color gamut equivalent to DCI P3 |
| Color Depth | 10 bit support |
| Magnification | Approx. 0.90x with a 50 mm lens at infinity and minus 1 m⁻¹ |
| Diopter Adjustment | Minus 4.0 to plus 3.0 m⁻¹ |
| Eye Point | Approx. 27.5 mm from the eyepiece lens |
| Eye Point from Eyepiece Frame | Approx. 21.8 mm at minus 1 m⁻¹, CIPA standard |
Interface:
| VF Terminal | Yes |
Power:
| Maximum Power Consumption | Approx. 1.6 W |
Operating Conditions:
| Operating Temperature | 0 - 40 ℃ / 32 - 104 °F |
| Storage Temperature | -20 to 55 ℃ / -4 to 131 °F |
Dimensions and Weight:
| Dimensions | Approx. 59.9 x 46.1 x 94.9 mm (2 3/8 x 1 7/8 x 3 3/4 inches) |
| Weight | Approx. 95.7 g (3.4 oz) |
Supplied Accessories:
| Eyepiece Cup | |
| Terminal Protection Cap |
