Condition: Open Box
Condition Details: Fully functional item with opened or replaced packaging; essential accessories included.

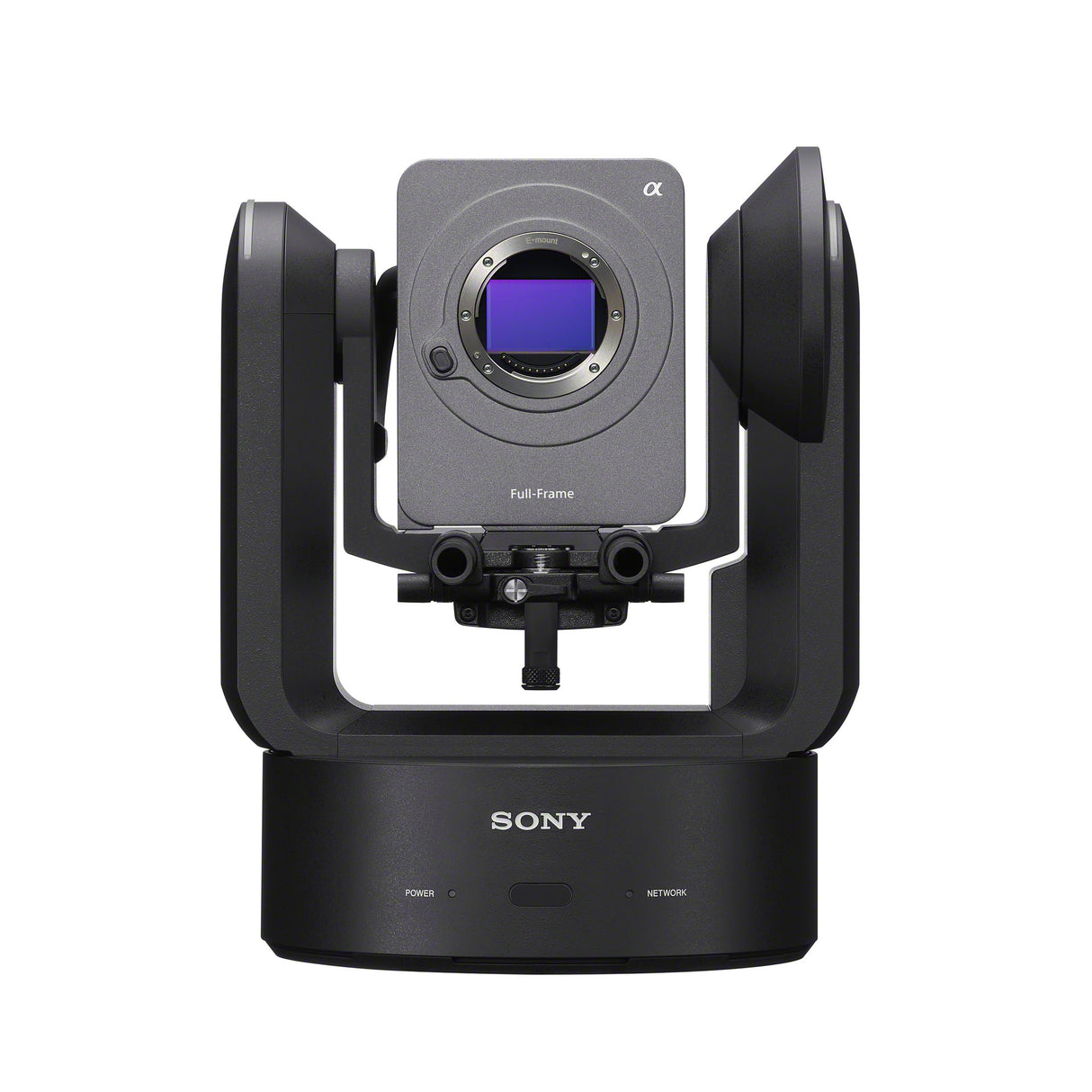

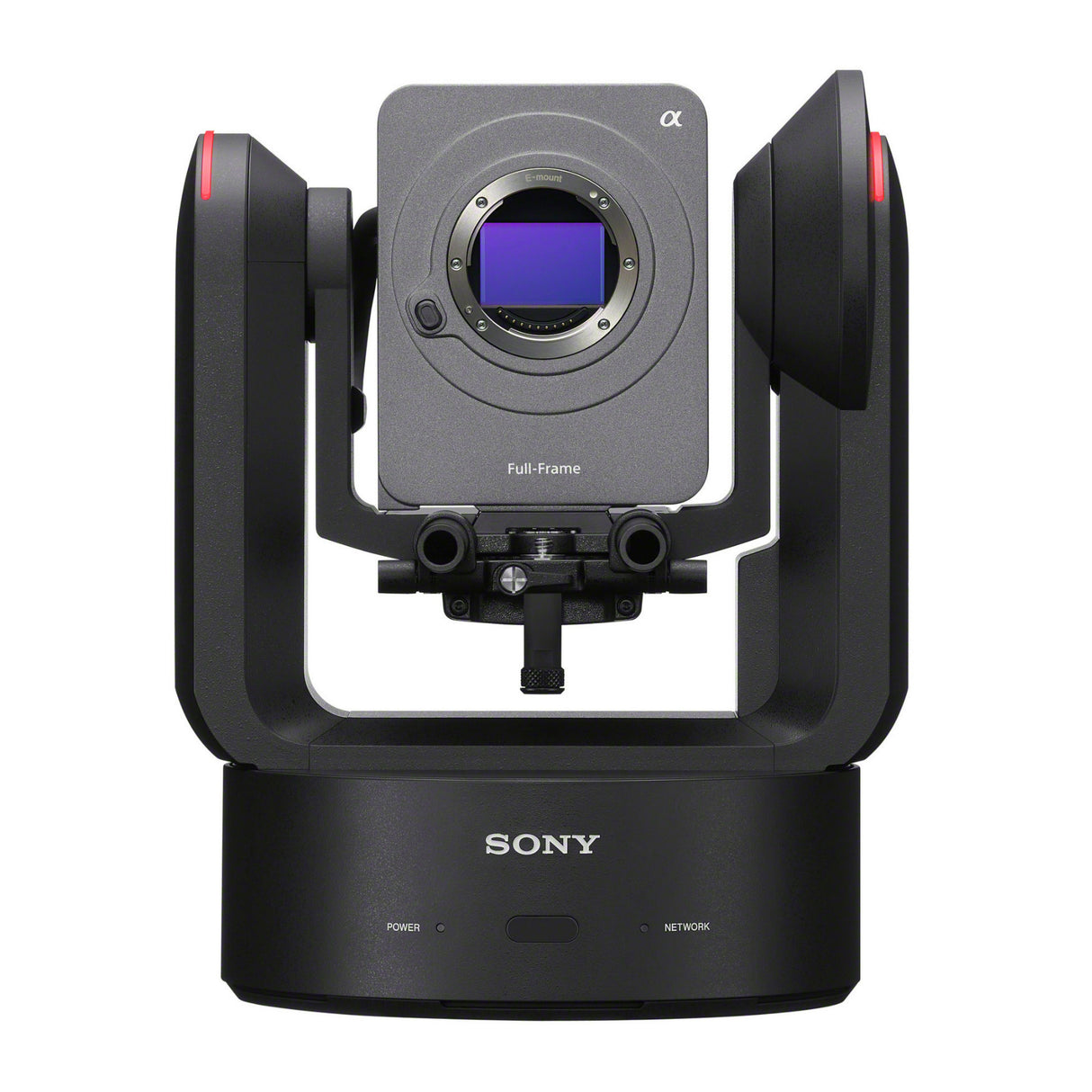

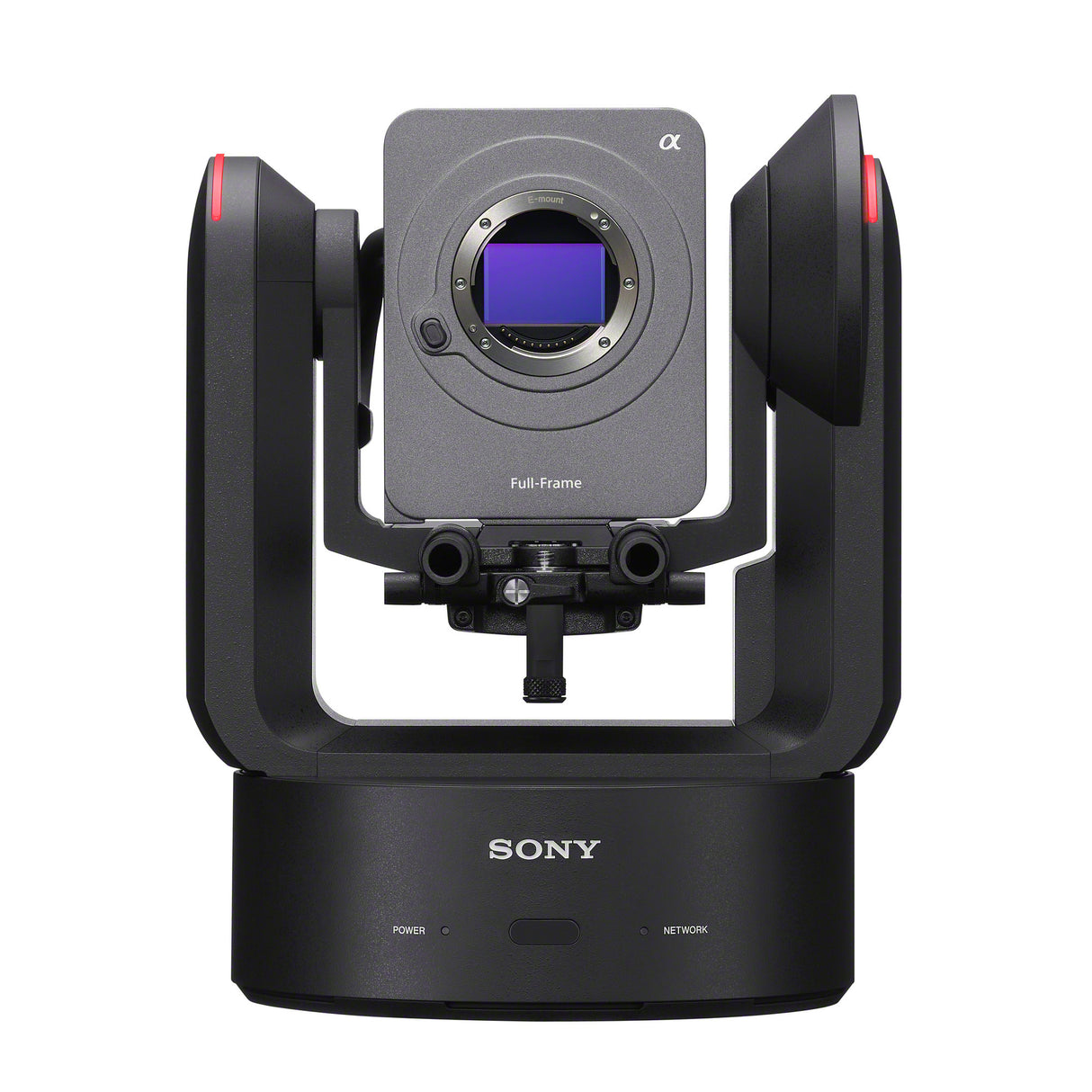

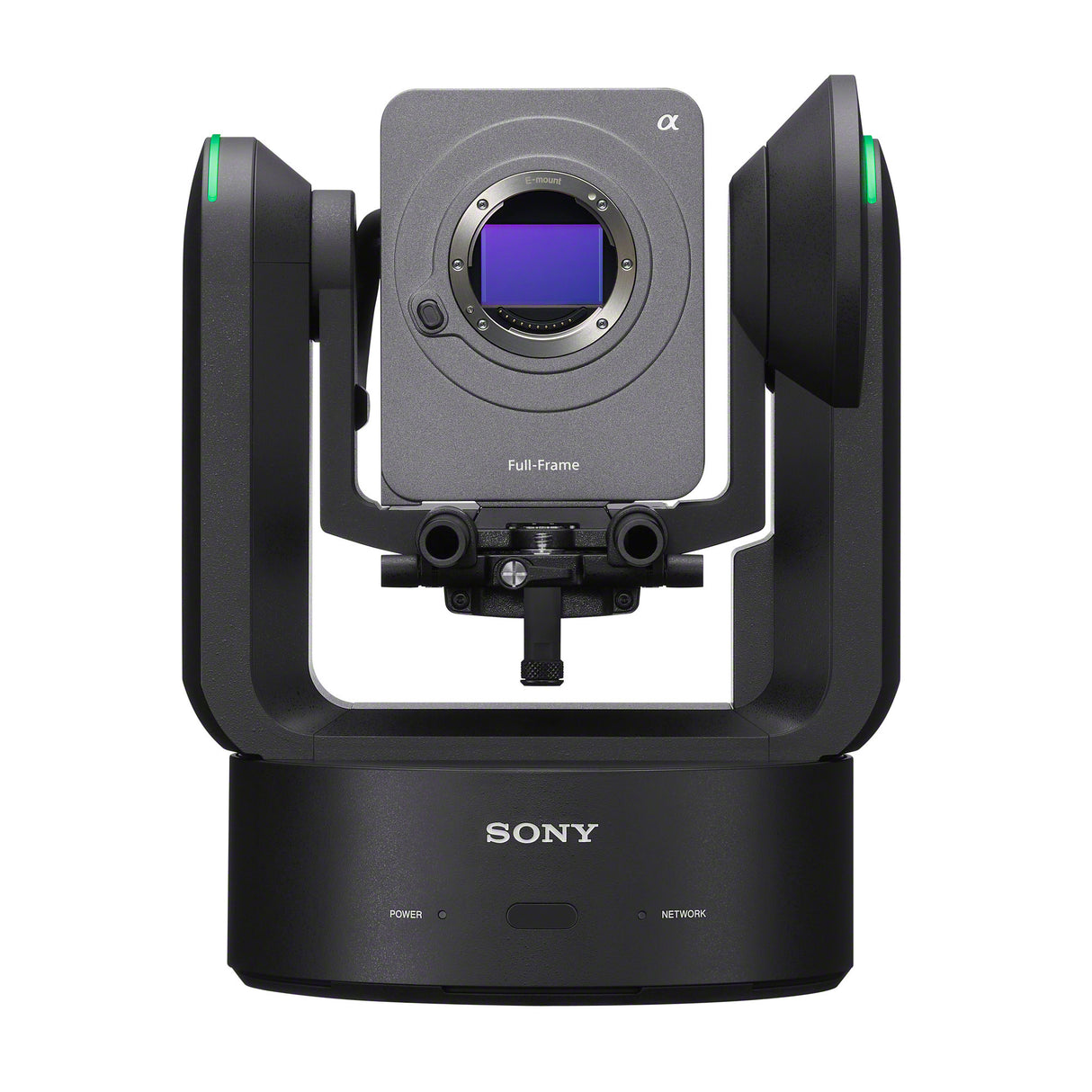

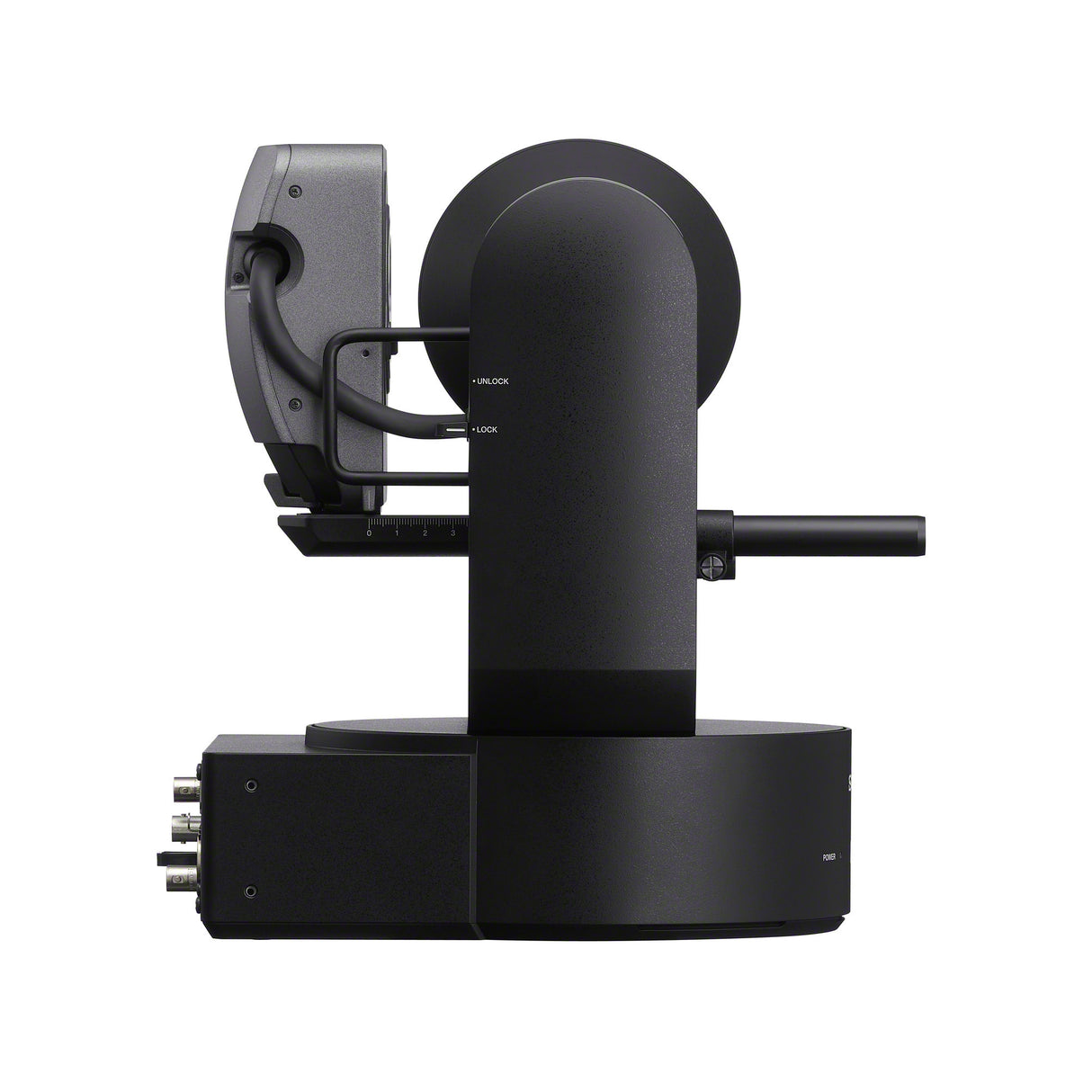

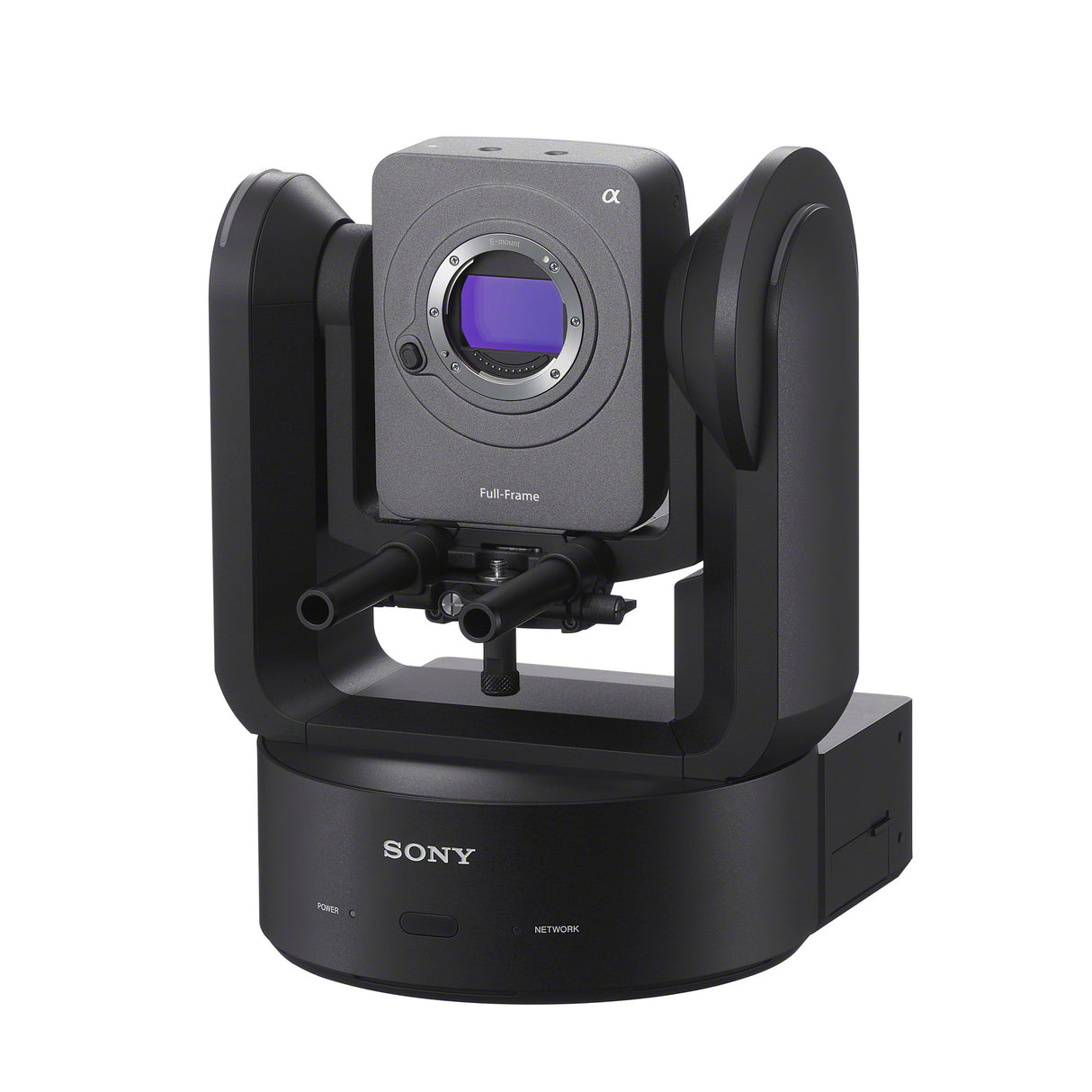

The Sony ILME-FR7 Full-Frame PTZ Camera is the world’s first camera to combine a full-frame image sensor, interchangeable lenses, and integrated pan/tilt/zoom functionality. Featuring a back-illuminated Exmor R sensor with 10.3 effective megapixels and the powerful BIONZ XR processor, the FR7 delivers exceptional image quality, cinematic color, and flexible remote operation for advanced production environments.
Remotely Controlled Pan/Tilt/Zoom Mechanism

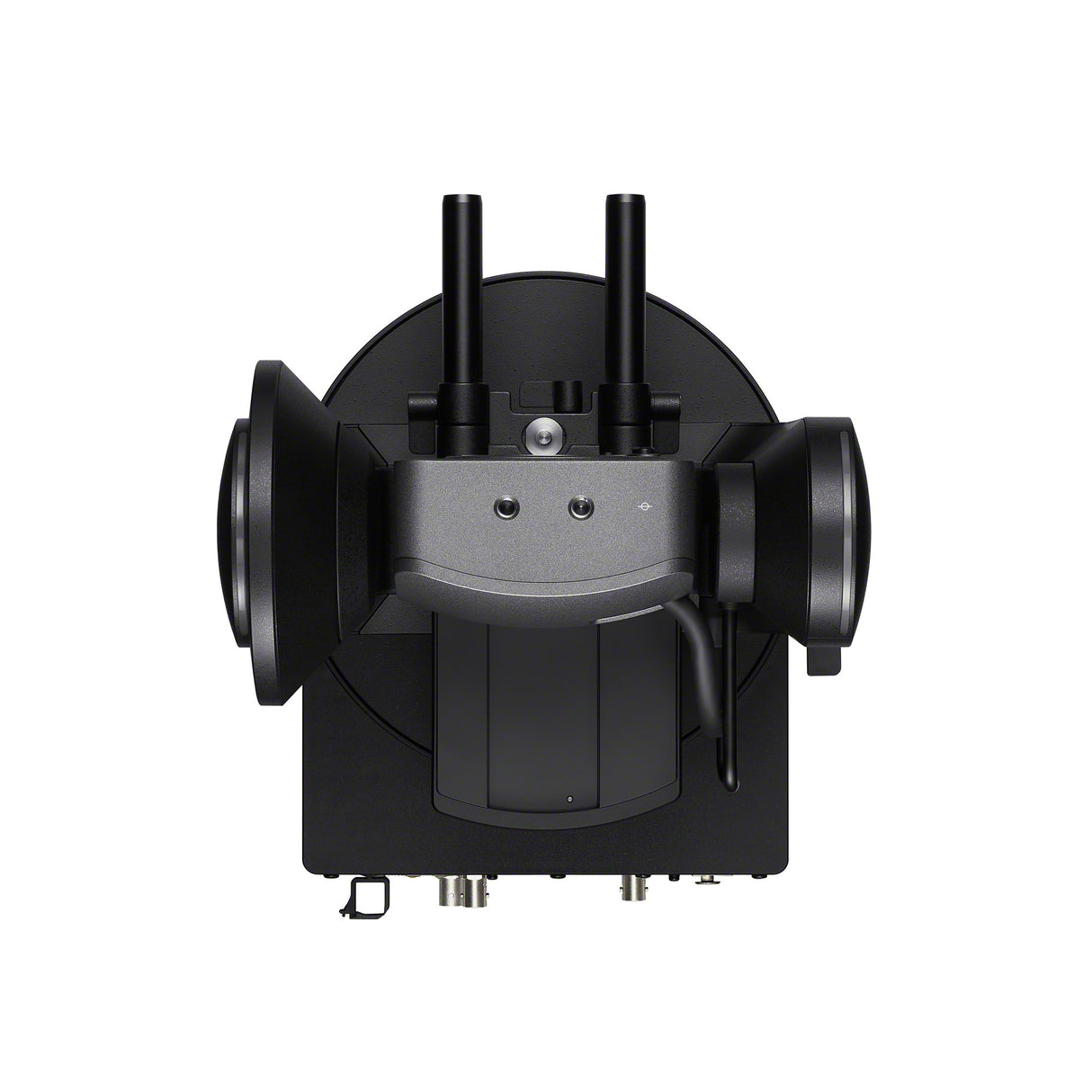

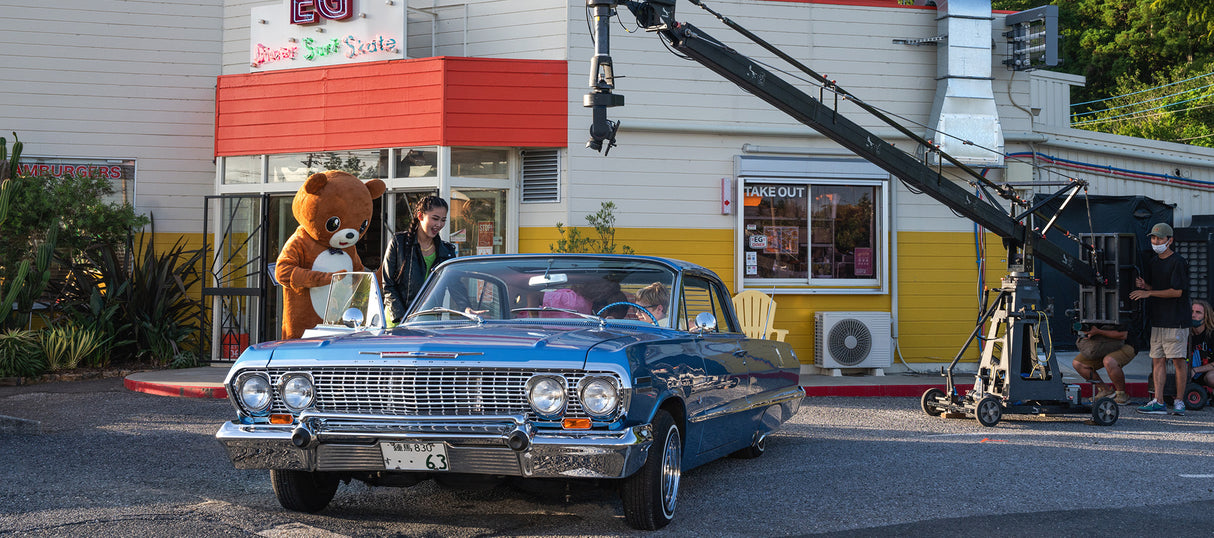

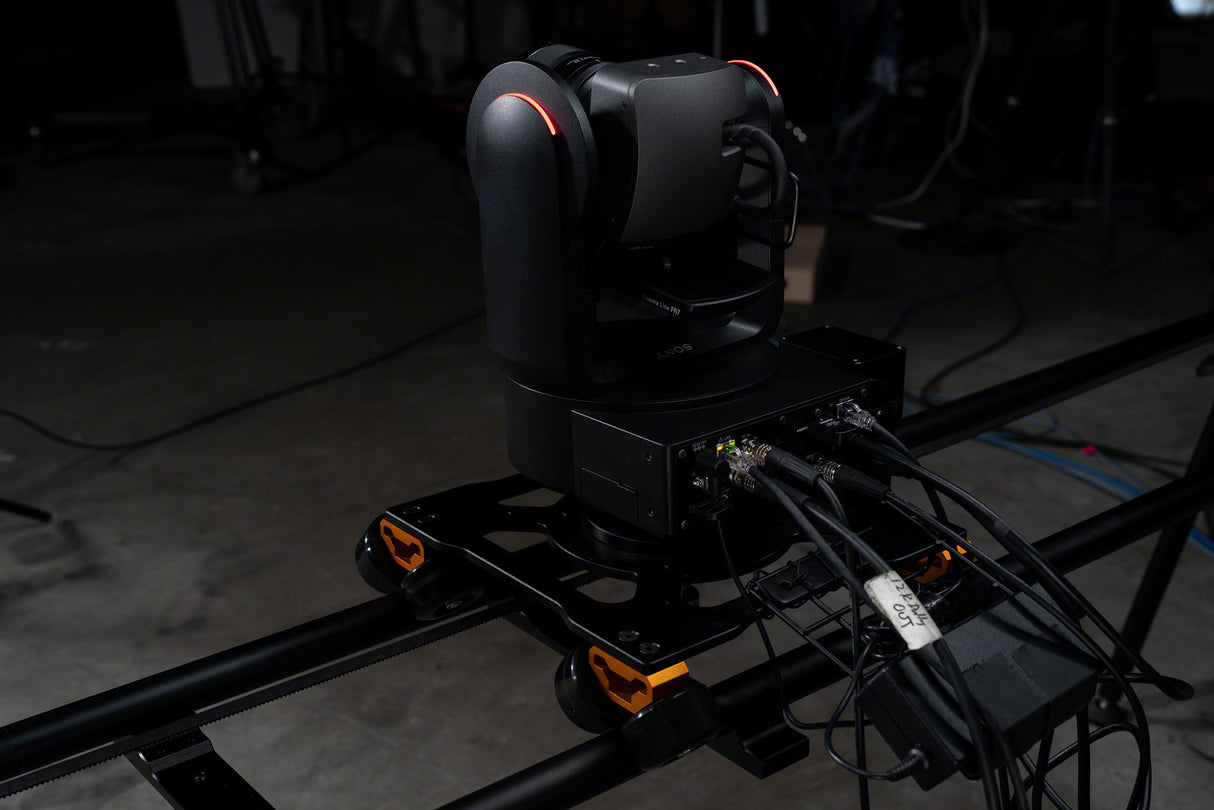

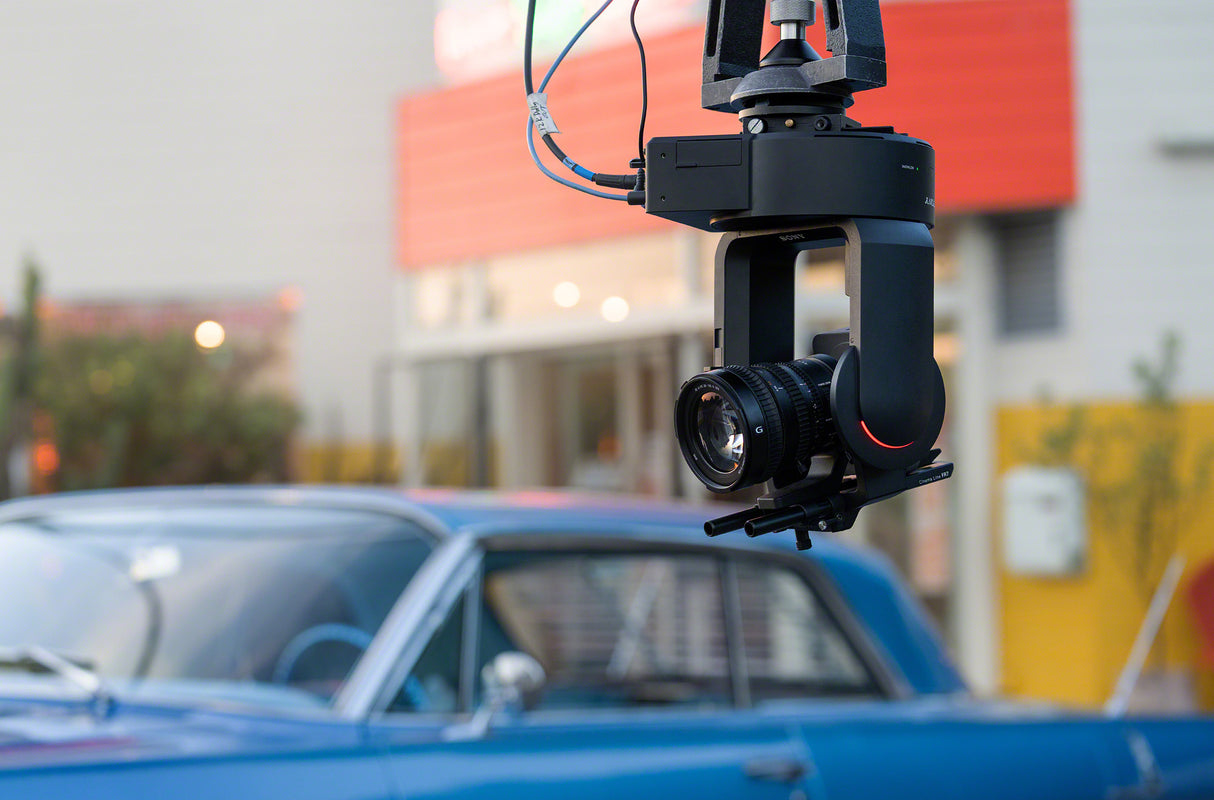

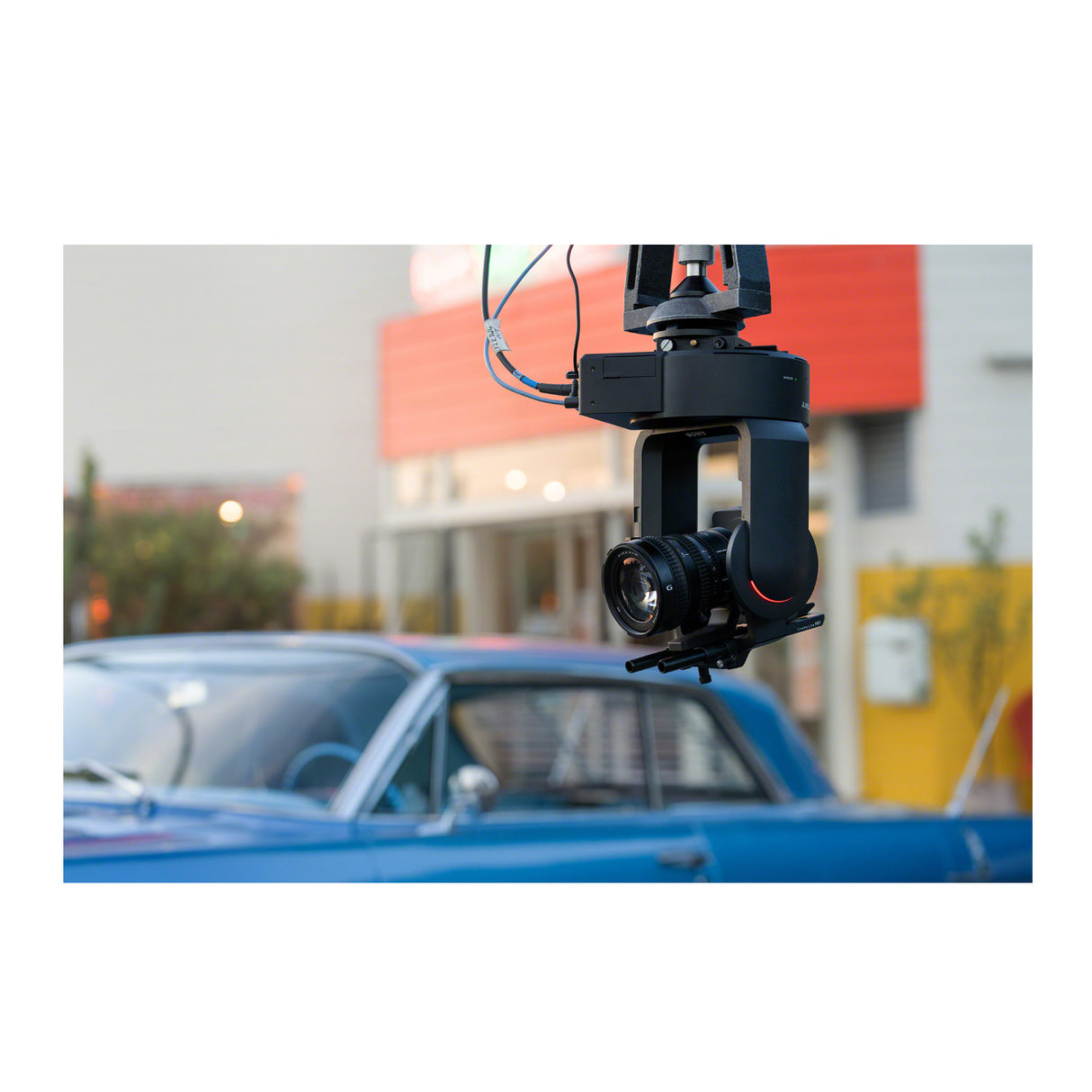

The integrated PTZ mechanism allows the ILME-FR7 to be mounted on tripods, ceilings, or other hard-to-access locations for unobtrusive operation. Pan and tilt speeds are continuously adjustable from 0.02° per second to 60° per second for precise movement. The camera supports a pan range of -170° to +170° and a tilt range of -30° to +195° when upright, or -210° to +15° when inverted. Compatibility with Sony’s RM-IP500 controller enables centralized multi-camera control, with one unit capable of managing up to 100 cameras.

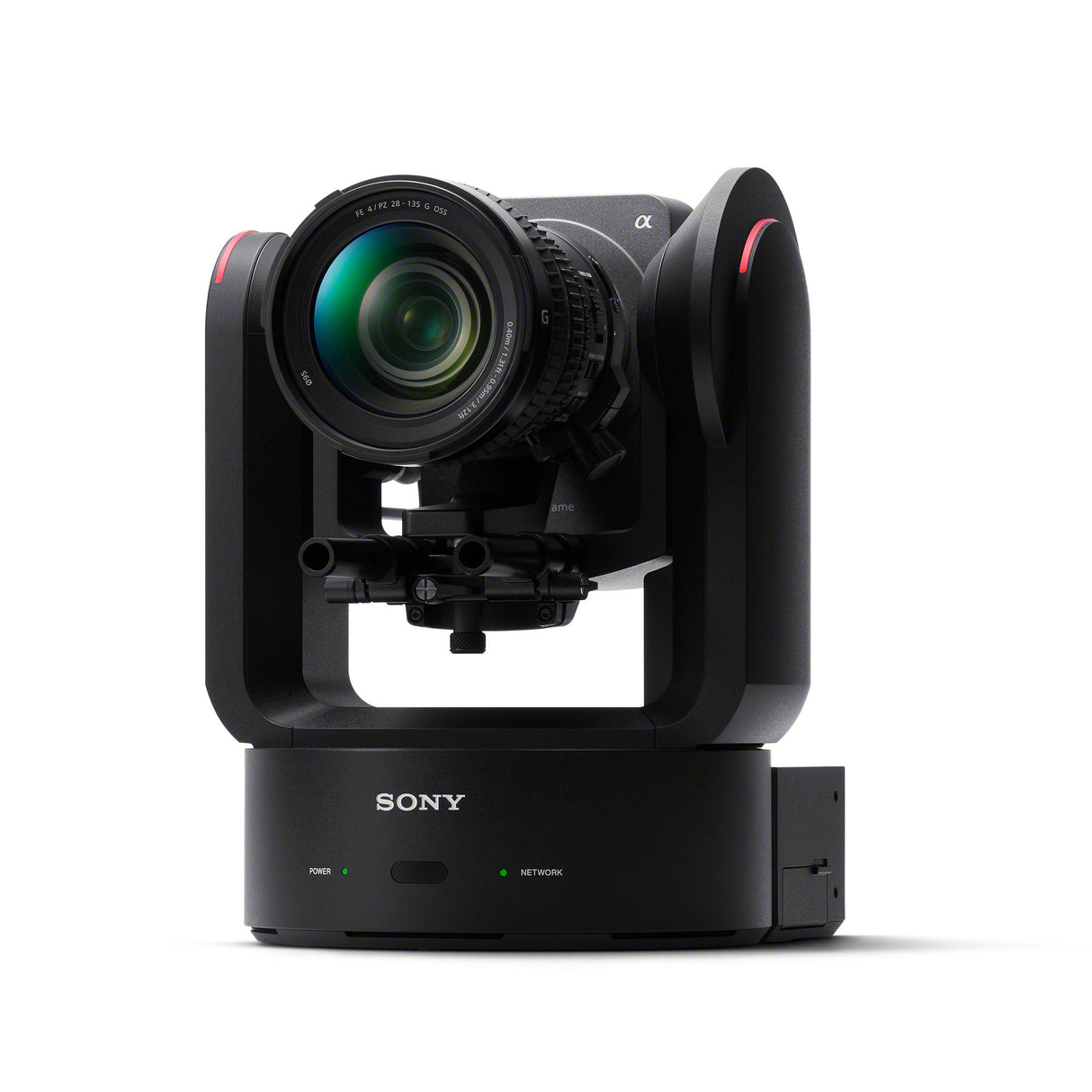

Interchangeable Sony E-Mount Lens Support

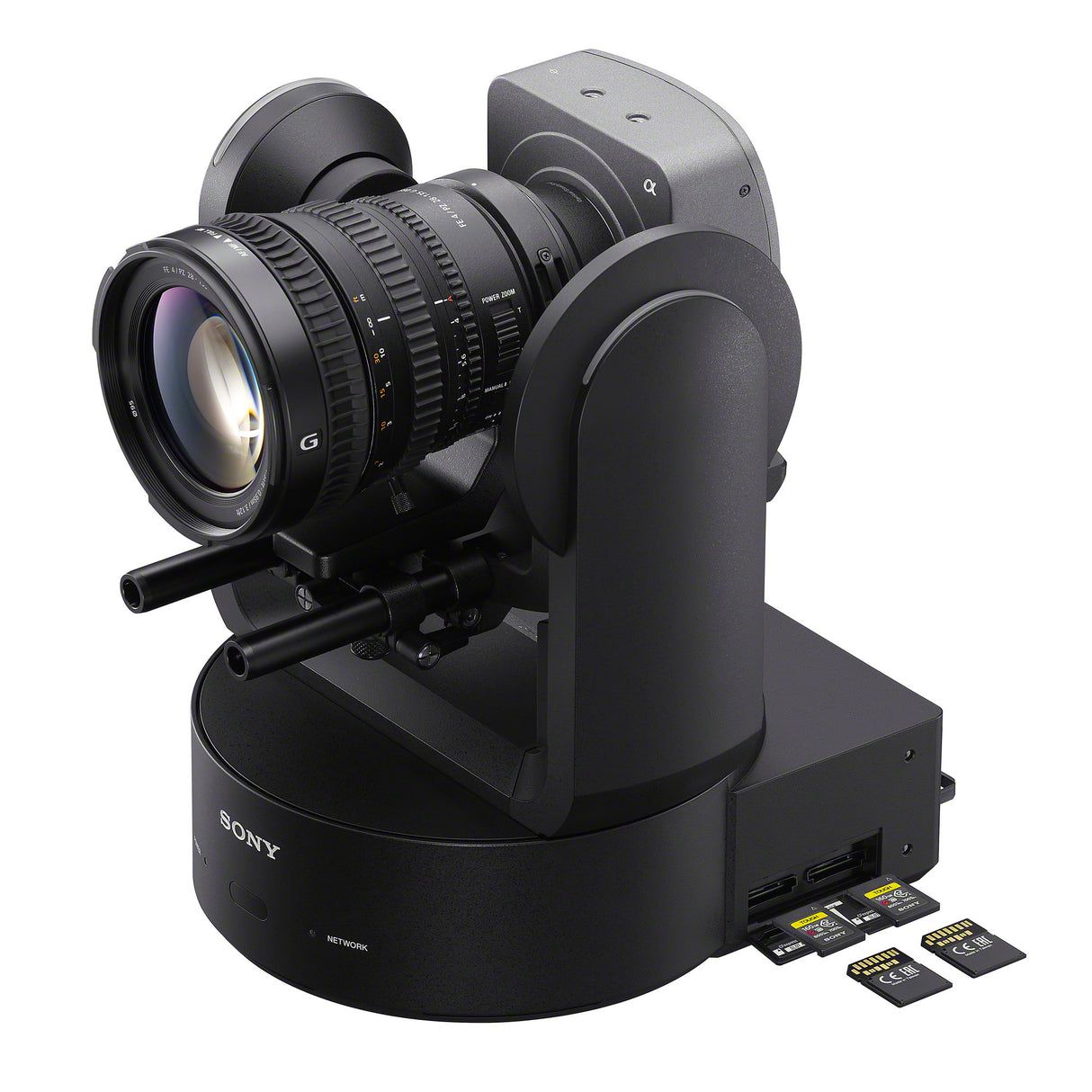

The FR7 supports Sony’s E-mount system and works with more than 70 compatible lenses, including premium G Master options. Focal lengths ranging from ultra-wide to super-telephoto provide extensive creative flexibility, while power zoom lenses can be remotely controlled for precise framing.
Web-Based Remote Control

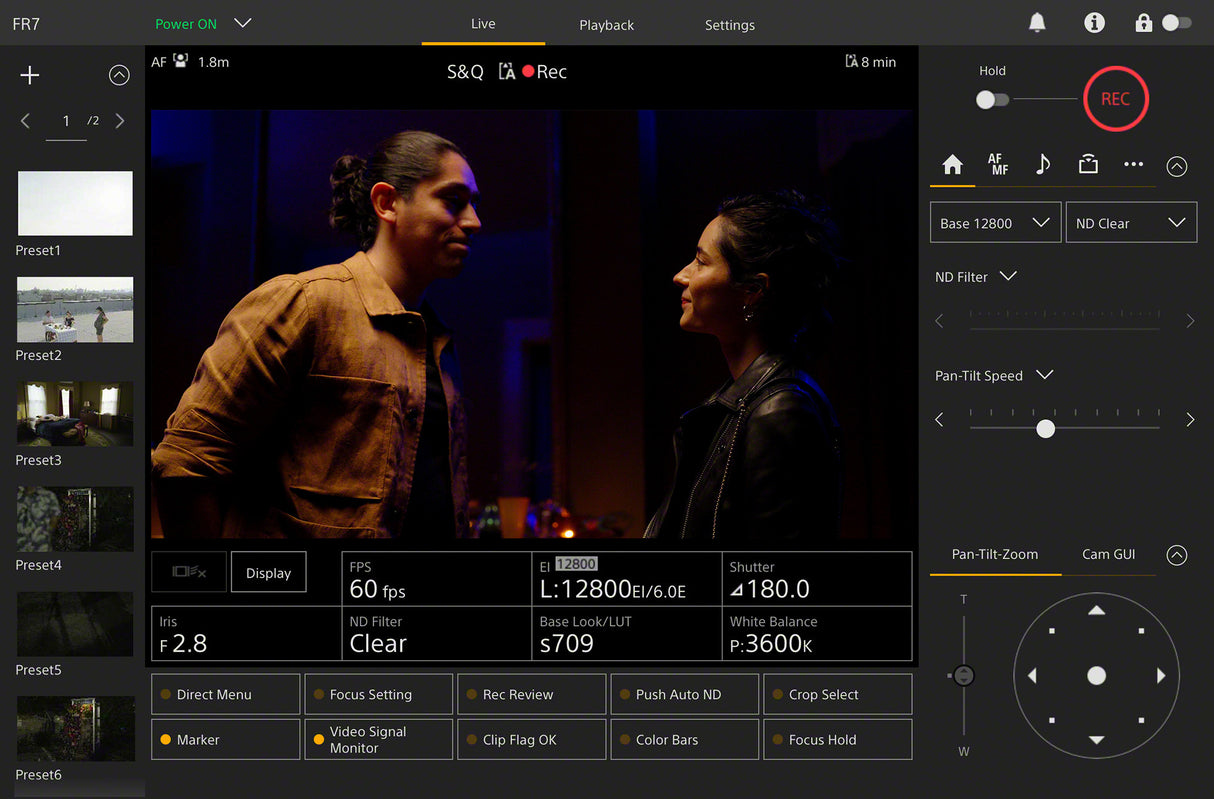

A built-in web application allows full camera control—including pan, tilt, zoom, focus, recording, playback, and settings—directly from a tablet or computer browser. This makes the FR7 ideal for ceiling-mounted or hard-to-reach installations. The camera also integrates seamlessly with the RM-IP500 controller, offering joystick-based PTZ control with adjustable movement speeds.
High Sensitivity and Wide Dynamic Range
The ILME-FR7 supports ISO expansion up to 409,600 for low-light environments. In Cine EI mode, base sensitivity can be set to ISO 800 or ISO 12,800 to balance noise performance and dynamic range. With over 15 stops of dynamic range, the camera preserves highlight and shadow detail for a cinematic look.
Slow and Quick Motion Recording
Internal recording supports QFHD resolution up to 120 fps for smooth 5x slow-motion playback. High-quality XAVC-I 4:2:2 10-bit recording is available at 120 fps, while Full HD recording up to 240 fps enables dramatic 10x slow-motion effects when played back at 24p.
Sony FR7 Cinema Line Full-Frame PTZ Robotic Camera
General
| Mass | Approx. 4.6 kg (body only) |
| Mass (imperial listing provided) | Approx. 10 lb (2.3 oz) |
| Dimensions (W x H x D) | Approx. 227 x 289 x 233 mm (body without protrusions) |
| Dimensions (W x H x D) | Approx. 9 x 11 1/2 x 9 1/4 in (body without protrusions) |
| Ceiling mount | Yes (with Ceiling Bracket option) |
| Tally lamps | Left (x1) / Right (x1), Red/Green |
Power
| Power requirements | DC 19.5 V |
| PoE++ | IEEE 802.3bt Type 4 Class 8 compliant (41.1 V to 57.0 V) |
| Power consumption | ≤ 80 W (DC 19.5 V) |
| Power consumption | ≤ 71.3 W (PoE++) |
Environmental
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -20°C to +60°C (-4°F to +140°F) |
Internal Recording Formats
| Video (XAVC Intra) | MPEG-4 AVC/H.264 |
| Video (XAVC Long) | MPEG-4 AVC/H.264 |
| Audio | LPCM 24-bit, 48 kHz, 4 channels |
XAVC Intra (XAVC-I) Bitrates
| DCI 4K 59.94p | VBR, max 600 Mbps, H.264 |
| DCI 4K 50p | VBR, max 500 Mbps, H.264 |
| DCI 4K 29.97p | VBR, max 300 Mbps, H.264 |
| DCI 4K 25p | VBR, max 250 Mbps, H.264 |
| DCI 4K 24p | VBR, max 240 Mbps, H.264 |
| DCI 4K 23.98p | VBR, max 240 Mbps, H.264 |
| QFHD 59.94p | VBR, max 600 Mbps, H.264 |
| QFHD 50p | VBR, max 500 Mbps, H.264 |
| QFHD 29.97p | VBR, max 300 Mbps, H.264 |
| QFHD 25p | VBR, max 250 Mbps, H.264 |
| QFHD 23.98p | VBR, max 240 Mbps, H.264 |
| HD 59.94p | CBG, max 222 Mbps, H.264 |
| HD 50p | CBG, max 223 Mbps, H.264 |
| HD 29.97p | CBG, max 111 Mbps, H.264 |
| HD 25p | CBG, max 112 Mbps, H.264 |
| HD 23.98p | CBG, max 89 Mbps, H.264 |
XAVC Long (XAVC-L) Bitrates
| QFHD 29.97p / 25p / 23.98p | VBR, max 100 Mbps, H.264 |
| QFHD 59.94p / 50p | VBR, max 150 Mbps, H.264 |
| HD (50 Mbps class) 29.97p / 25p / 23.98p / 59.94p / 50p | VBR, max 50 Mbps, H.264 |
| HD (35 Mbps class) 29.97p / 25p / 23.98p / 59.94p / 50p | VBR, max 35 Mbps, H.264 |
Recording Frame Sizes & Rates
| XAVC-I DCI 4K | 4096 x 2160 at 59.94p, 50p, 29.97p, 25p, 24p, 23.98p |
| XAVC-I QFHD | 3840 x 2160 at 59.94p, 50p, 29.97p, 25p, 23.98p |
| XAVC-I HD | 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p |
| XAVC-L QFHD | 3840 x 2160 at 59.94p, 50p, 29.97p, 25p, 23.98p |
| XAVC-L HD (50) | 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p |
| XAVC-L HD (35) | 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p |
Recording / Playback Time (CEA-G Memory Cards)
| XAVC-I DCI 4K/QFHD 59.94p | 160GB ~30 min; 80GB ~15 min |
| XAVC-I DCI 4K/QFHD 50p | 160GB ~36 min; 80GB ~17 min |
| XAVC-I DCI 4K/QFHD 29.97p | 160GB ~60 min; 80GB ~29 min |
| XAVC-I DCI 4K/QFHD 25p | 160GB ~71 min; 80GB ~35 min |
| XAVC-I DCI 4K 24p | 160GB ~74 min; 80GB ~36 min |
| XAVC-I DCI 4K/QFHD 23.98p | 160GB ~74 min; 80GB ~36 min |
| XAVC-I HD 59.94p | 160GB ~78 min; 80GB ~38 min |
| XAVC-I HD 50p | 160GB ~78 min; 80GB ~38 min |
| XAVC-I HD 29.97p | 160GB ~150 min; 80GB ~74 min |
| XAVC-I HD 25p | 160GB ~150 min; 80GB ~74 min |
| XAVC-I HD 23.98p | 160GB ~185 min; 80GB ~91 min |
| XAVC-L QFHD 29.97p/25p/23.98p | 160GB ~170 min; 80GB ~86 min |
| XAVC-L QFHD 59.94p/50p | 160GB ~115 min; 80GB ~57 min |
| XAVC-L HD (50) 29.97p/25p/23.98p/59.94p/50p | 160GB ~320 min; 80GB ~155 min |
| XAVC-L HD (35) 29.97p/25p/23.98p/59.94p/50p | 80GB ~210 min |
Proxy Recording
| Proxy audio | AAC-LC, 128 kbps, 2 channels |
| Proxy video | XAVC Proxy (AVC/H.264 High Profile, 4:2:0 Long GOP, VBR) |
| Proxy resolution/bitrate | 1920 x 1080 at 9 Mbps |
Camera Section
| Imaging device | 35mm full frame (35.6 x 23.8 mm) Exmor R CMOS |
| Total pixels | Approx. 12.9 megapixels |
| Effective pixels | Approx. 10.3 megapixels |
| Built-in optical filters | Clear, linear variable ND (1/4ND to 1/128ND) |
| ISO sensitivity | ISO 800 / 12800 (Cine EI mode, D55 light source) |
Autofocus
| AF type | Fast Hybrid AF (phase-detection + contrast-detection) |
| AF points | 627 points |
| Focus areas | Wide, Zone, Flexible Spot |
| AF features | Eye AF (Human), AF Subject Shift Sensitivity, AF Transition Speed, Face Detection (Face/Eye Priority, Face/Eye Only AF), Real-time Tracking AF |
Video Output Formats
| SDI output formats | Up to 4096 x 2160 at 59.94p (plus multiple UHD/HD rates including interlaced and PsF options) |
| HDMI output formats | Up to 4096 x 2160 at 59.94p (plus UHD/HD and 720/SD formats as listed) |
Pan/Tilt Section
| Pan range | -170° to 170° |
| Tilt range | -30° to 195° |
| Pan speed | 0.02° to 60° |
| Tilt speed | 0.02° to 60° |
| Quietness | NC35 or less |
| Preset positions | 100 |

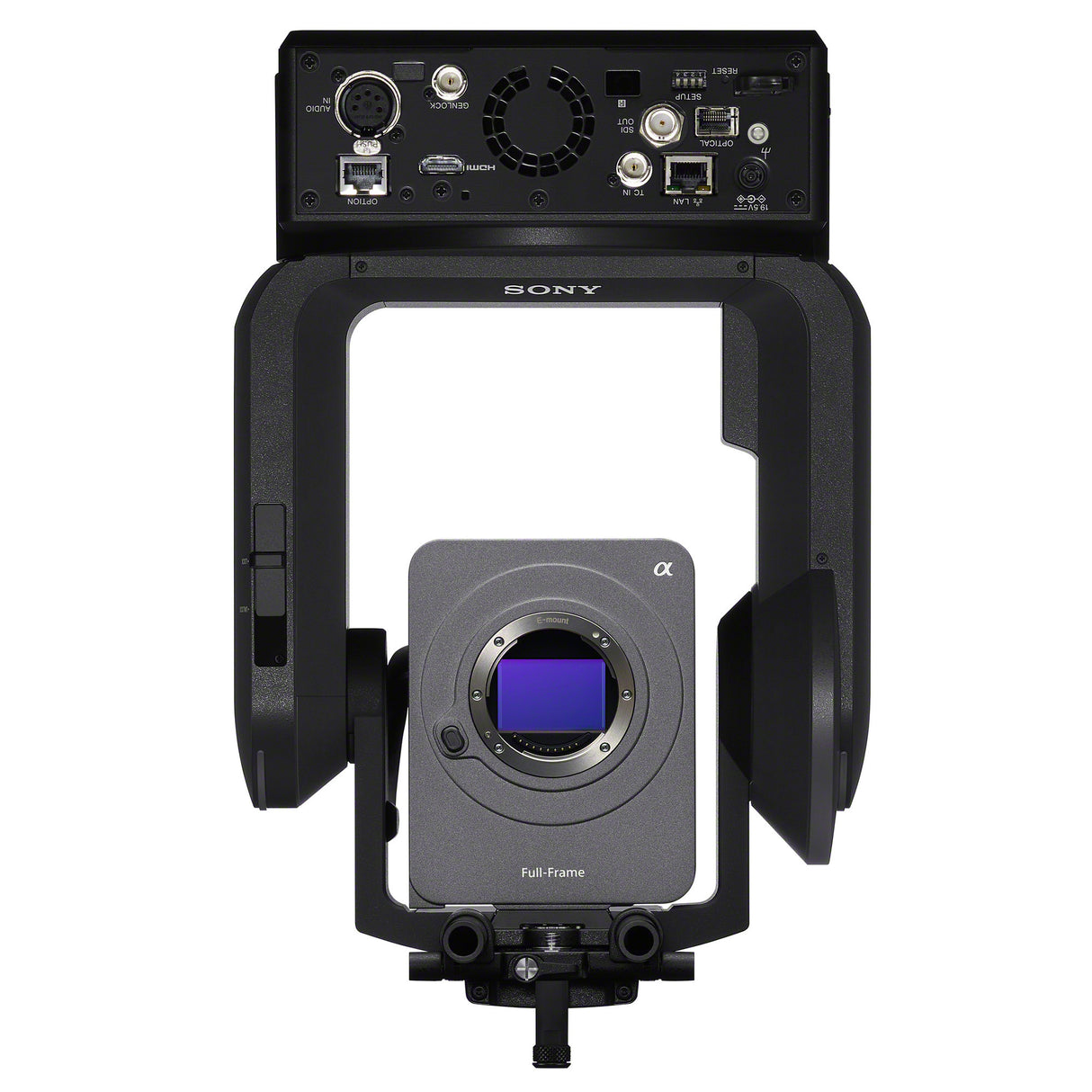

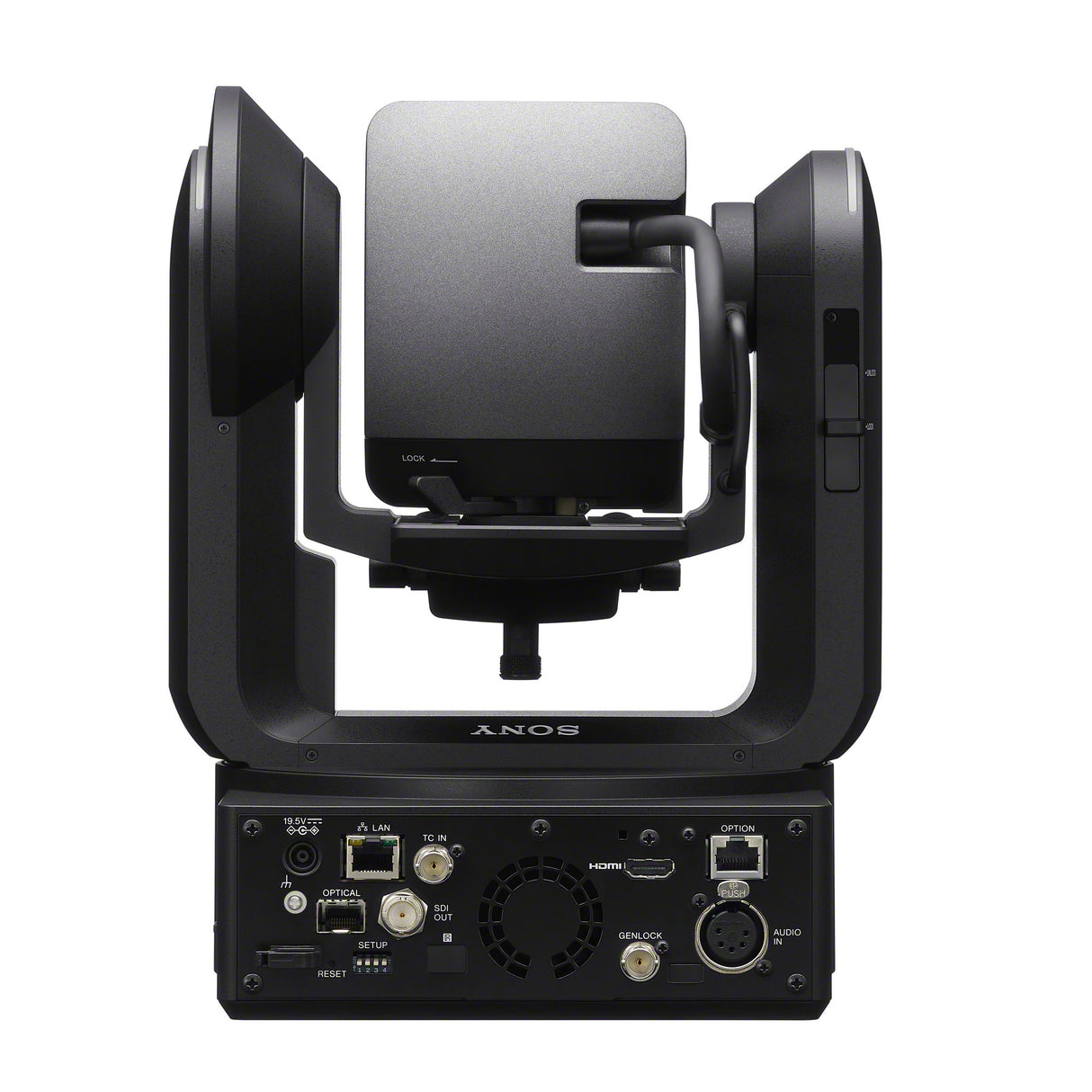

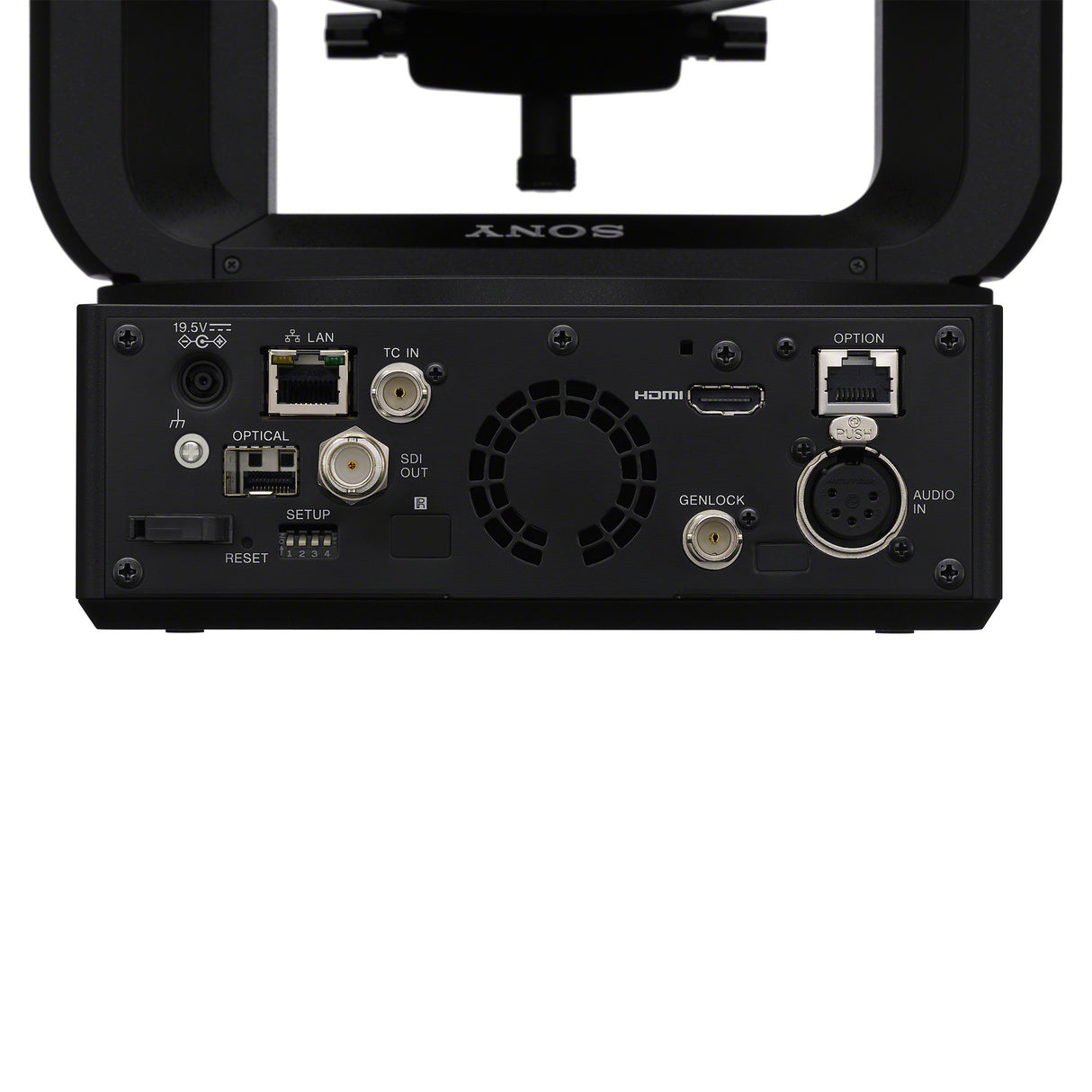

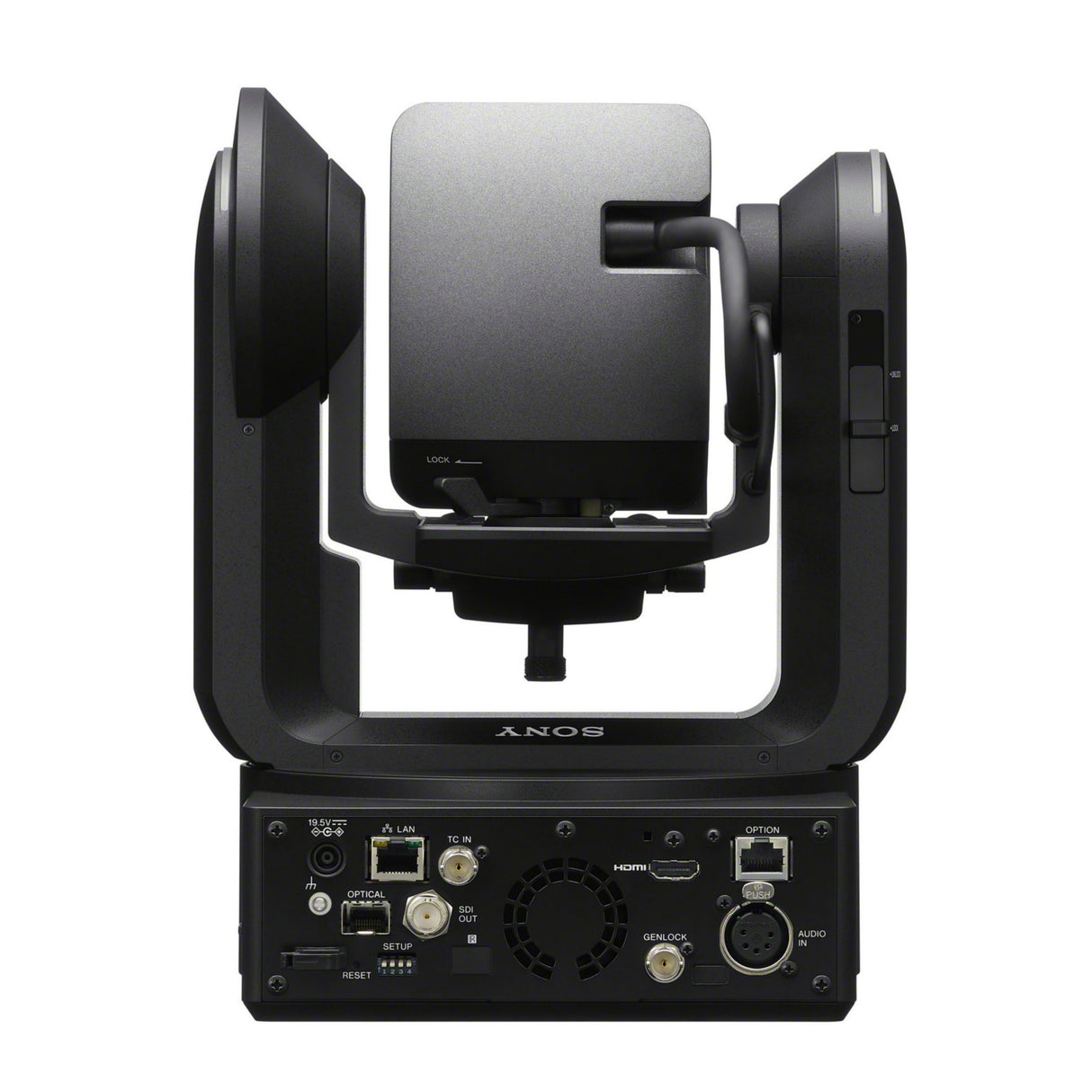

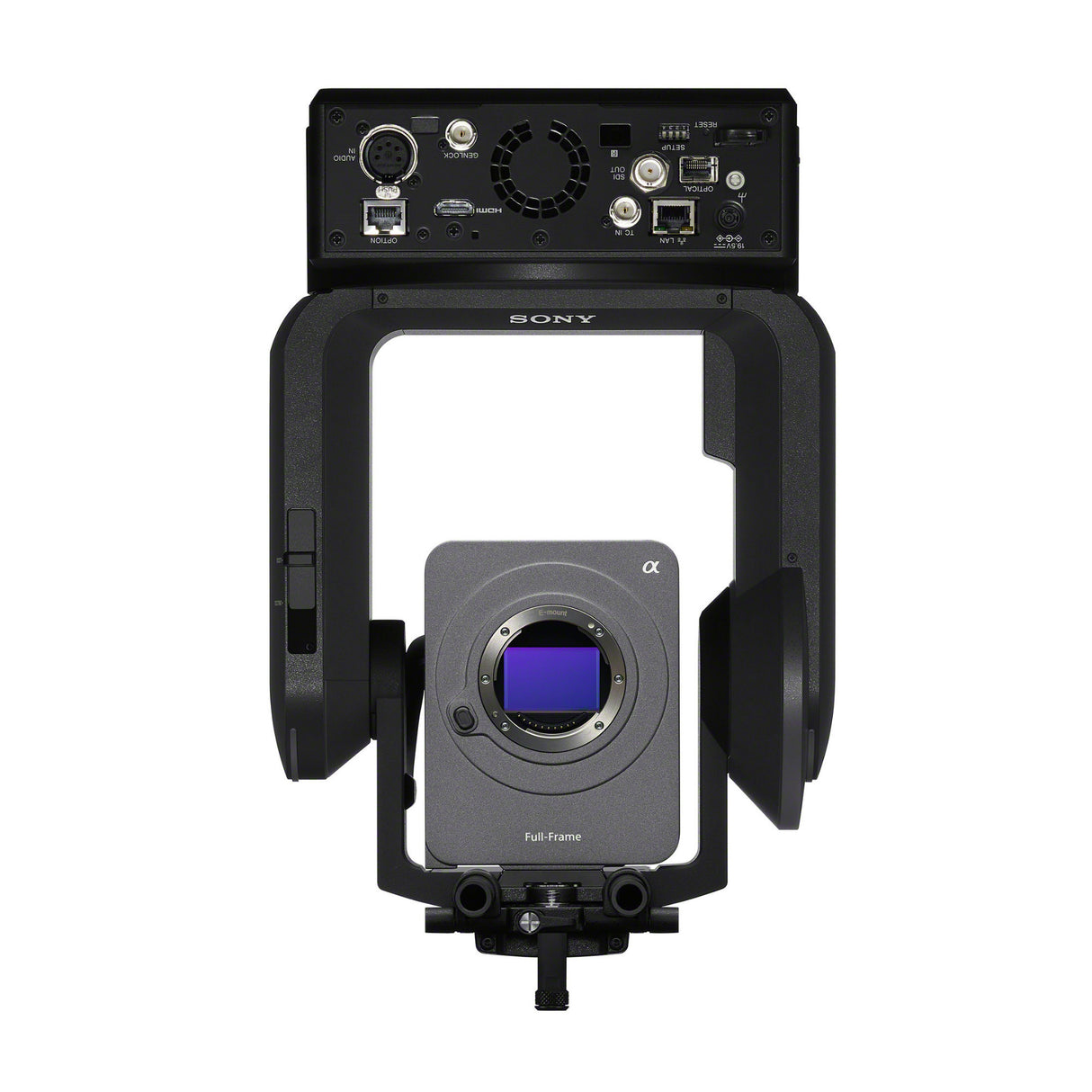

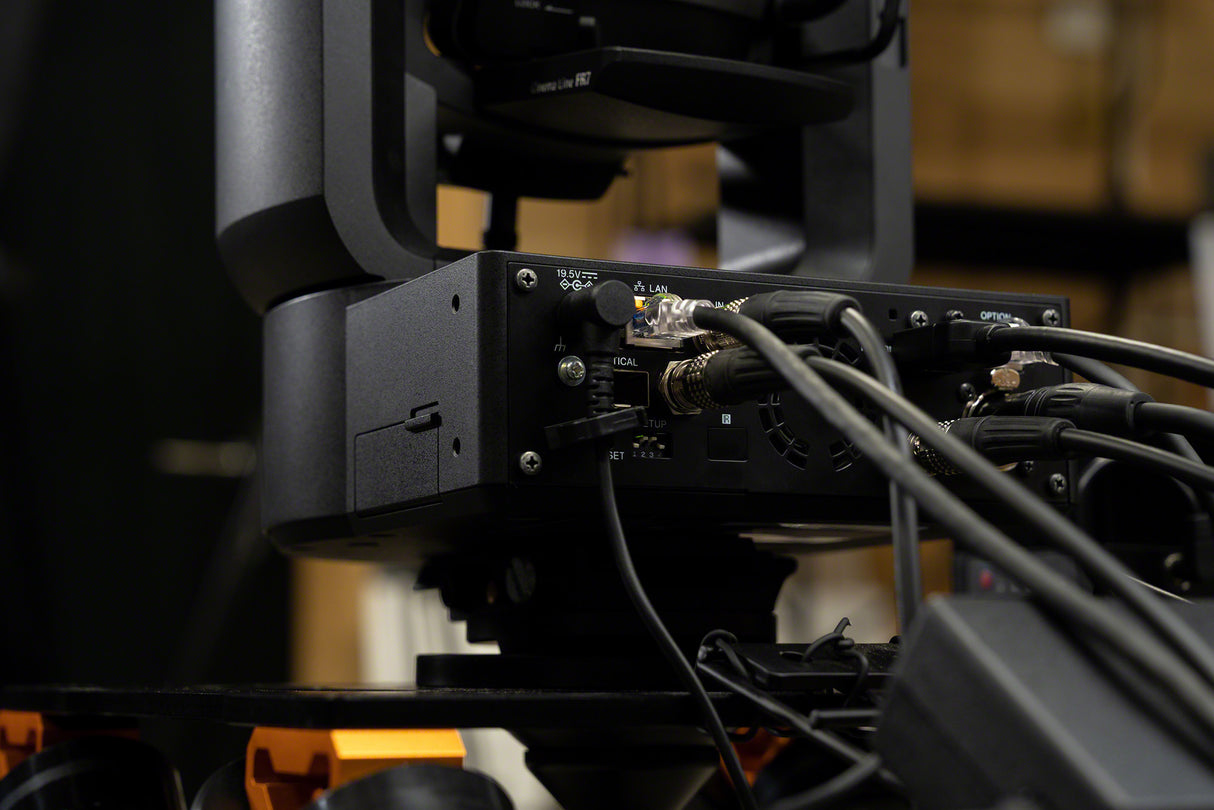

Inputs & Outputs
| Audio input | XLR-type 5-pin (female) x1 (line/mic/mic +48V selectable) |
| Mic reference | -30 to -80 dBu |
| SDI output | BNC x1 (12G/6G/3G Level A/B/HD-SDI) |
| HDMI output | Type-A x1 |
| Genlock input | BNC x1 (1.0 Vp-p, 75Ω) |
| Optical output | SFP+ compliant (video output only; same video as SDI) |
| DC input | DC jack x1 |
| Network | RJ-45 (LAN) x1, 1000BASE-T |
| Remote control | RJ-45 (OPTION) x1; Red Tally IO / Green Tally IO |

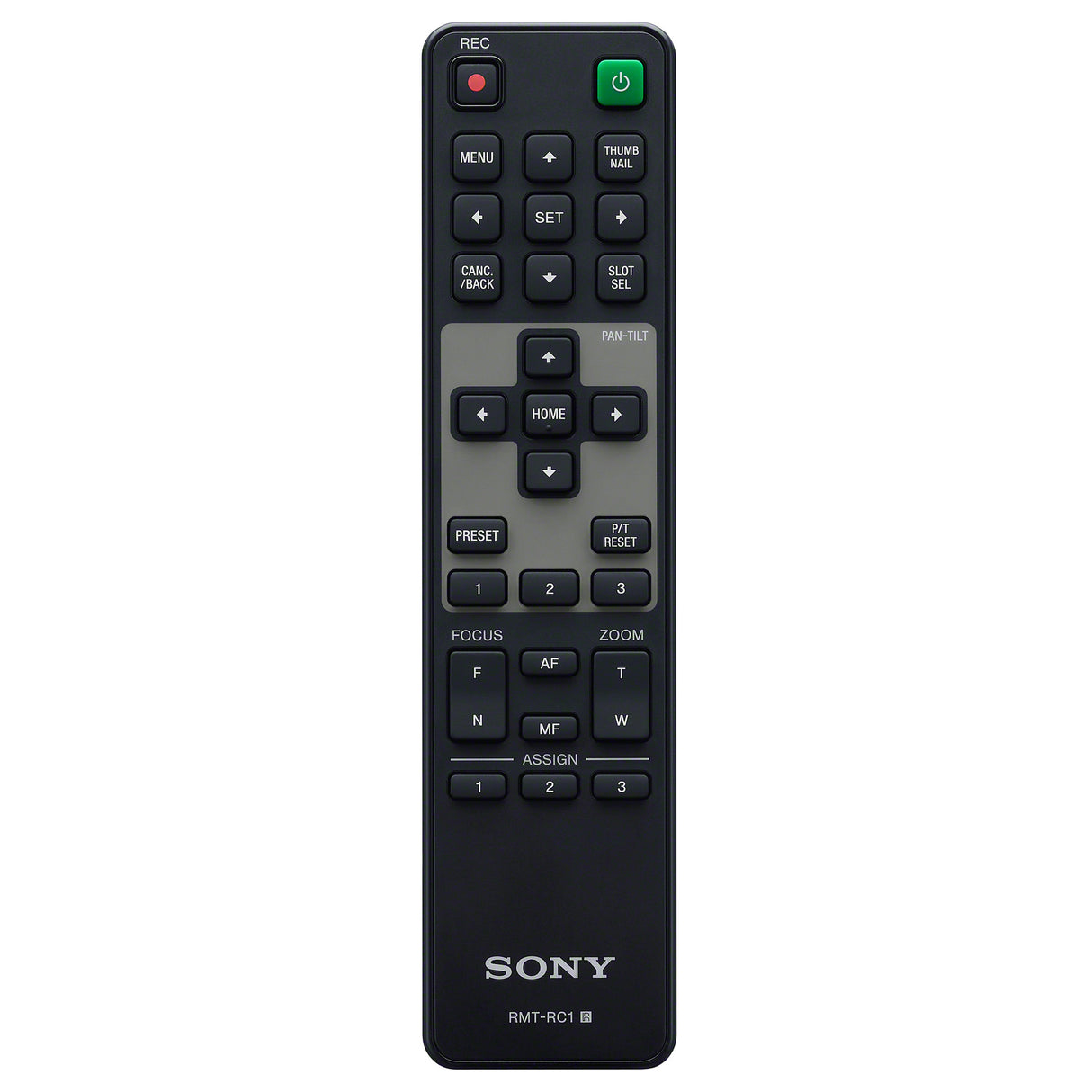

| IR remote control | Yes |
| Timecode | BNC x1 (TC IN only) |
Network / IP Streaming
| IPv6 protocols | TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS |
| IPv4 protocols | TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS |
| Streaming resolutions | 4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360 |
| Compression | H.264 (High/Main/Baseline), H.265 (Main/Main10) |
| Max frame rate | 59.94 fps (H.264 / H.265) |
| Bitrate control | CBR / VBR |
| Bitrate range | 512 Kbps to 80 Mbps |
Web App Compatibility
| Supported OS | Windows 10 or later, macOS 10.15 or later, iPadOS 15 or later, Android 12 or later |
| Supported browsers | Windows (Google Chrome), Mac (Google Chrome, Safari), iPad (Google Chrome, Safari), Android (Google Chrome) |
