- Sony FX5 Cinema Camera
- NP-SA100 Rechargeable Battery
- BC-SAD1 Battery Charger
- Body Cap
- Accessory Shoe Cap
- Viewfinder Terminal Protection Cap
- XLR Handle Unit
- Handle Shoe Cap
- Accessory Shoe Kit
Trusted & Verified

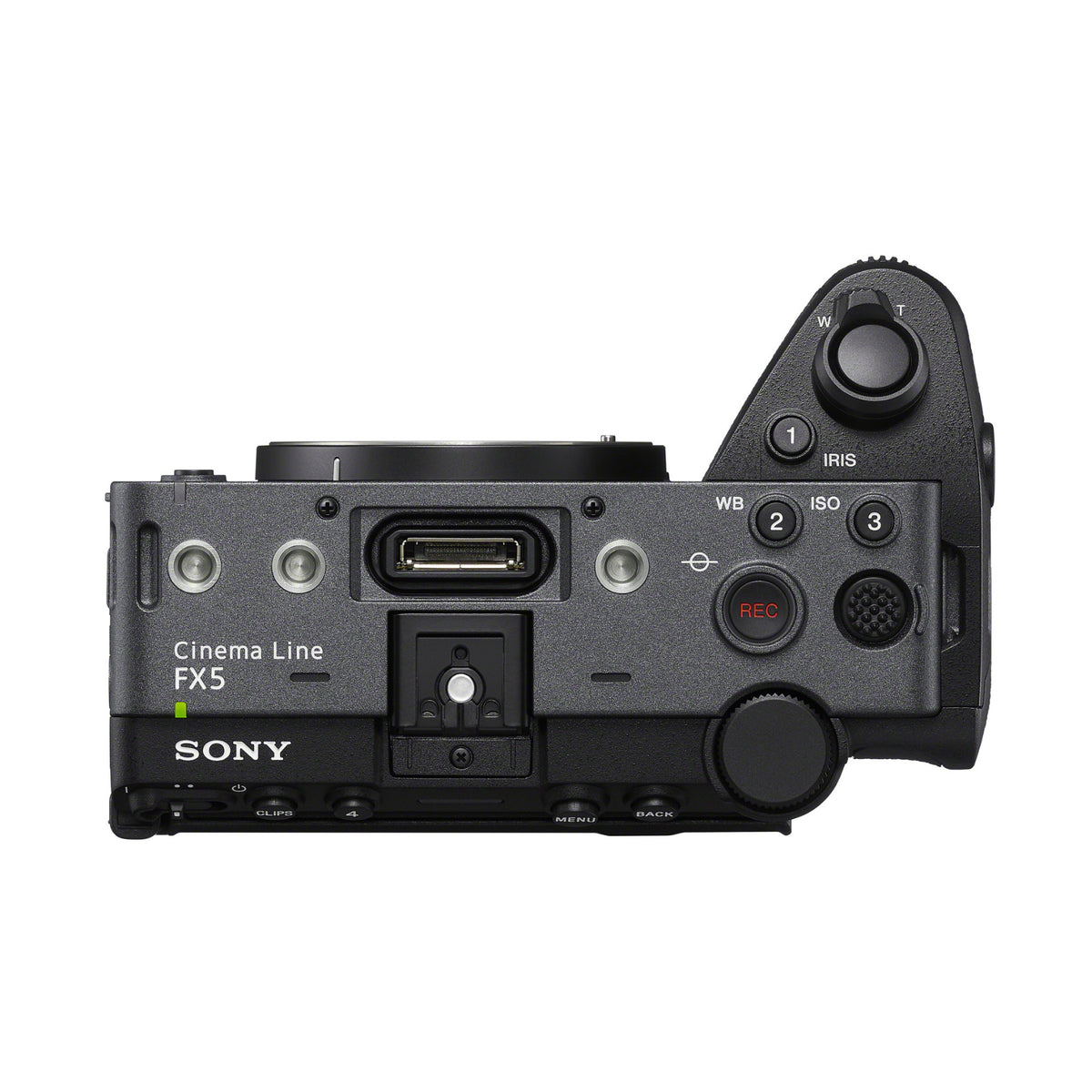

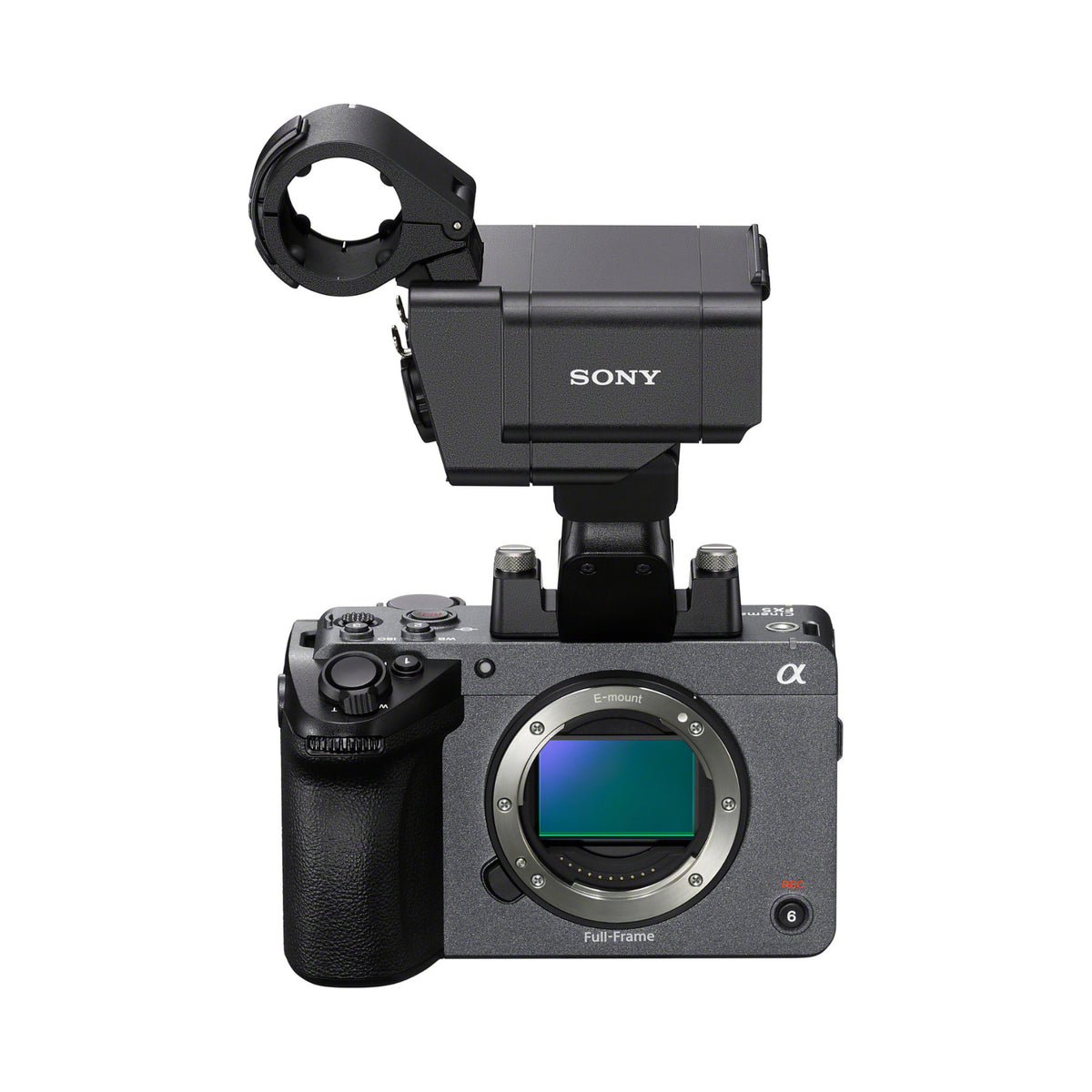

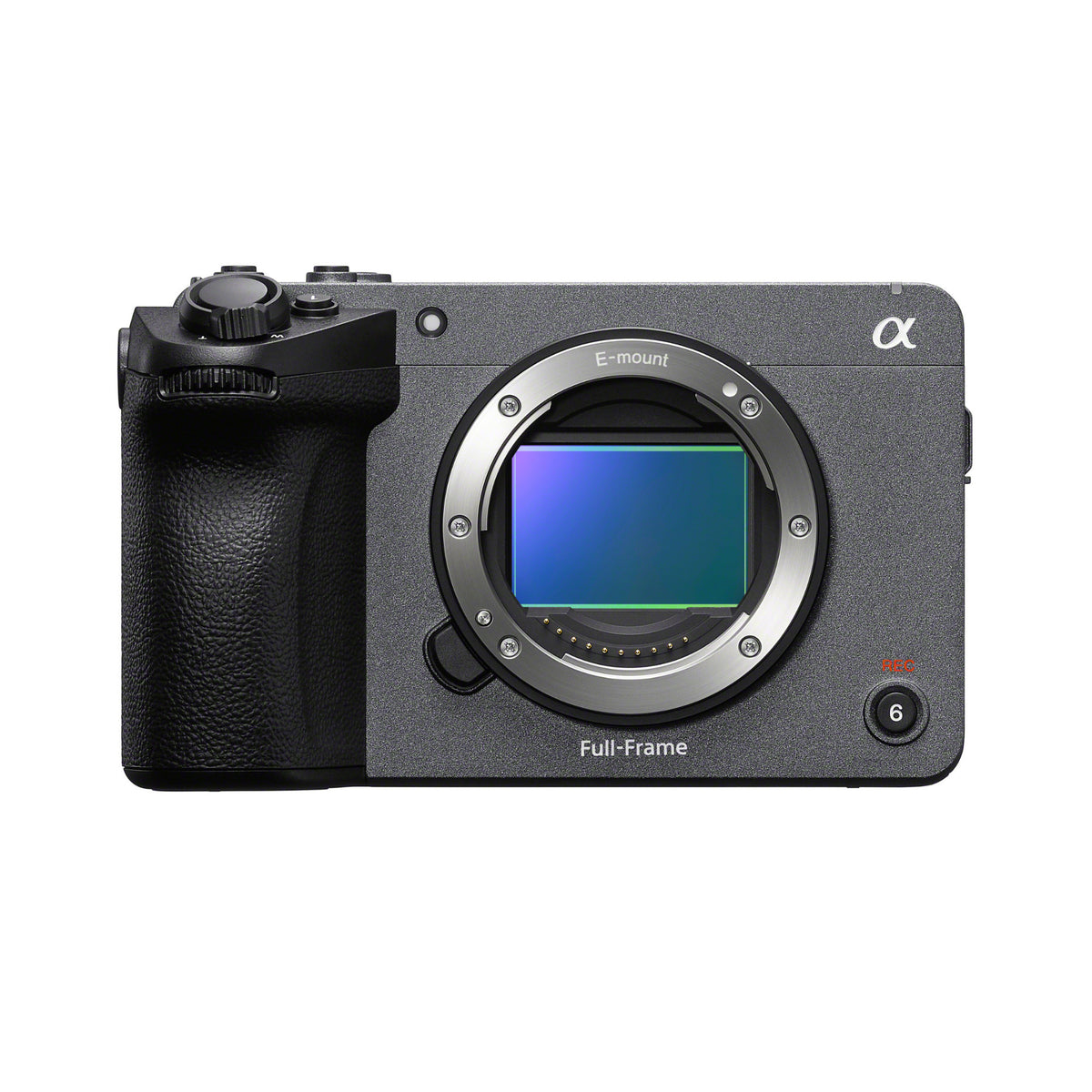

Sony FX5 Cinema Camera with XLR Handle Unit
- 5K Full-Frame Stacked Exmor RS CMOS Sensor
- Internal 16-Bit X-OCN RAW Recording
- Three Base ISO with Dual Gain Technology
- BIONZ XR2 Processor with AI Subject Recognition
- Fast Hybrid AF with Up to 759 Phase-Detection Points
- 5K Recording up to 60 fps
- 4K Recording up to 120 fps
- Included XLR Handle Unit with 32-Bit Float Audio
- 5-Axis In-Body Image Stabilization
- Dual CFexpress Type A and SD Card Slots
- Active Cooling for Extended Recording
- Compact Cinema Line Design
- Wired and Wireless Network Connectivity
- HDMI and Dual USB-C Connectivity
- Compatible with Monitor and Control and Catalyst Workflows
Capture professional productions with the Sony FX5 Cinema Camera with XLR Handle Unit, built for filmmakers who need high-resolution imaging, flexible recording formats, dependable autofocus, and efficient workflows. Featuring a 5K full-frame stacked sensor, internal X-OCN RAW recording, three Base ISO settings, AI-powered autofocus, and professional audio through the included XLR handle, the FX5 is designed to support productions ranging from documentaries and interviews to commercial and cinematic filmmaking.
5K Full-Frame Image Quality
The 5K full-frame stacked Exmor RS CMOS sensor delivers fast readout speeds for high-resolution recording with low noise and over 15 stops of latitude. This helps preserve highlight and shadow detail while providing flexibility during color grading.
Internal X-OCN RAW Recording
Record 16-bit scene-linear X-OCN RAW internally without requiring an external recorder. Multiple recording options allow users to balance image quality, storage requirements, and post-production workflows.
Three Base ISO for Different Lighting Conditions
Three Base ISO settings—ISO 800, 4000, and 12800—help optimize image quality across bright and low-light environments. Combined with Dual Gain technology, the FX5 reduces noise while maintaining wide dynamic range.
AI-Powered Autofocus and Subject Tracking
The BIONZ XR2 processor uses AI to recognize and track people, animals, and birds. Fast Hybrid AF with up to 759 phase-detection points helps maintain focus on moving subjects, making it useful for handheld, documentary, and action shooting.

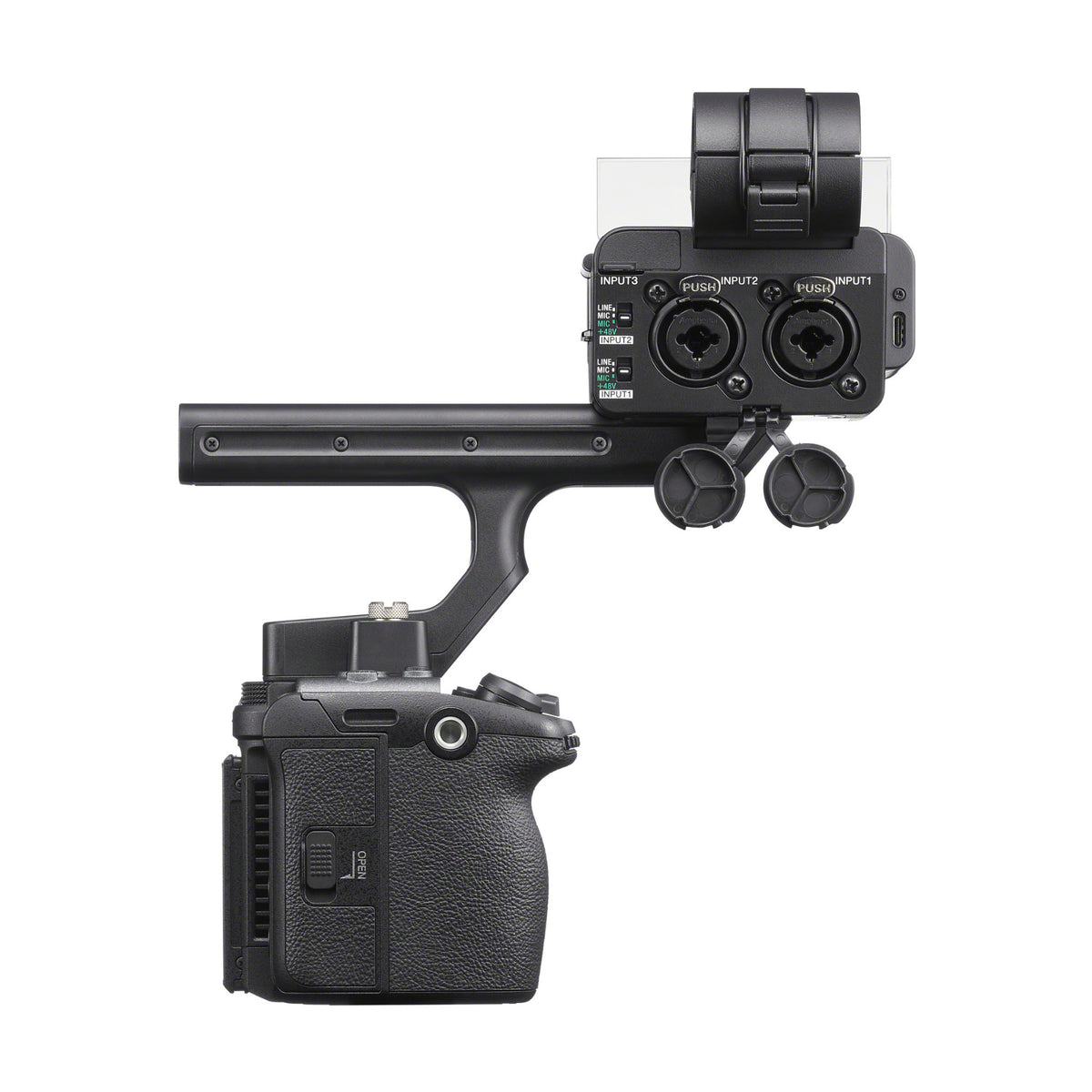

Professional Audio with Included XLR Handle
The included XLR Handle Unit provides two XLR/TRS inputs, a 3.5mm stereo input, support for up to four audio channels, and 96 kHz/32-bit float recording. This allows creators to capture high-quality audio directly in-camera while simplifying on-set recording.
Built for Flexible Production Workflows
Dual CFexpress Type A and SD card slots support relay, simultaneous, and proxy recording. Wired LAN, built-in Wi-Fi, HDMI output, USB-C connectivity, and compatibility with Monitor and Control and Catalyst software help streamline remote production and post-production workflows.
Compact Design for Production
The lightweight body includes multiple accessory mounting points, in-body 5-axis stabilization, an active cooling system for extended recording, and a multi-angle LCD monitor, making it suitable for handheld, gimbal, and rig-mounted shooting.
General
| Camera Type | Interchangeable lens digital camera |
| Lens Mount | E-mount |
Camera
| Sensor Type | 35mm full-frame (35.9 × 24.0 mm) Exmor RS CMOS sensor |
| Effective Resolution | Approx. 16.6 megapixels |
| Total Resolution | Approx. 18.2 megapixels |
| Optical Low Pass Filter | Yes |
| Latitude | 15+ stops (S-Log3) |
| Color Temperature Range | 2000 K – 15000 K |
| Anti-Dust Function | Yes |
Recording
| Video Compression | X-OCN |
| Video Compression | XAVC HS (MPEG-H HEVC/H.265) |
| Video Compression | XAVC S (MPEG-4 AVC/H.264) |
| Audio Recording Format | LPCM 4ch (48 kHz 24-bit), PCM 4ch (48 kHz 32-bit float), LPCM 4ch (96 kHz 24-bit), PCM 4ch (96 kHz 32-bit float) |
Movie Features
| Slow & Quick Motion (S&Q) | Yes |
| Proxy Recording | Yes |
| Timecode/User Bit (TC/UB) | Yes |
| RAW Output | Yes (HDMI) |
Memory
| Memory Card Slots | Dual multi-slots supporting SDXC (UHS-I/UHS-II) and CFexpress Type A cards |
Autofocus
| Focus System | Fast Hybrid AF (Phase Detection / Contrast Detection) |
| Focus Points | Up to 759 phase-detection points |
| Subject Recognition | Human |
| Subject Recognition | Animal |
| Subject Recognition | Bird |
| AF Subject Shift Sensitivity | Yes |
| AF Transition Speed | Yes |
| Focus Map | Yes |
| AF Assist | Yes |
Exposure
| ISO Range | ISO 320–409600 equivalent, Auto ISO 320–409600 with selectable upper limit |

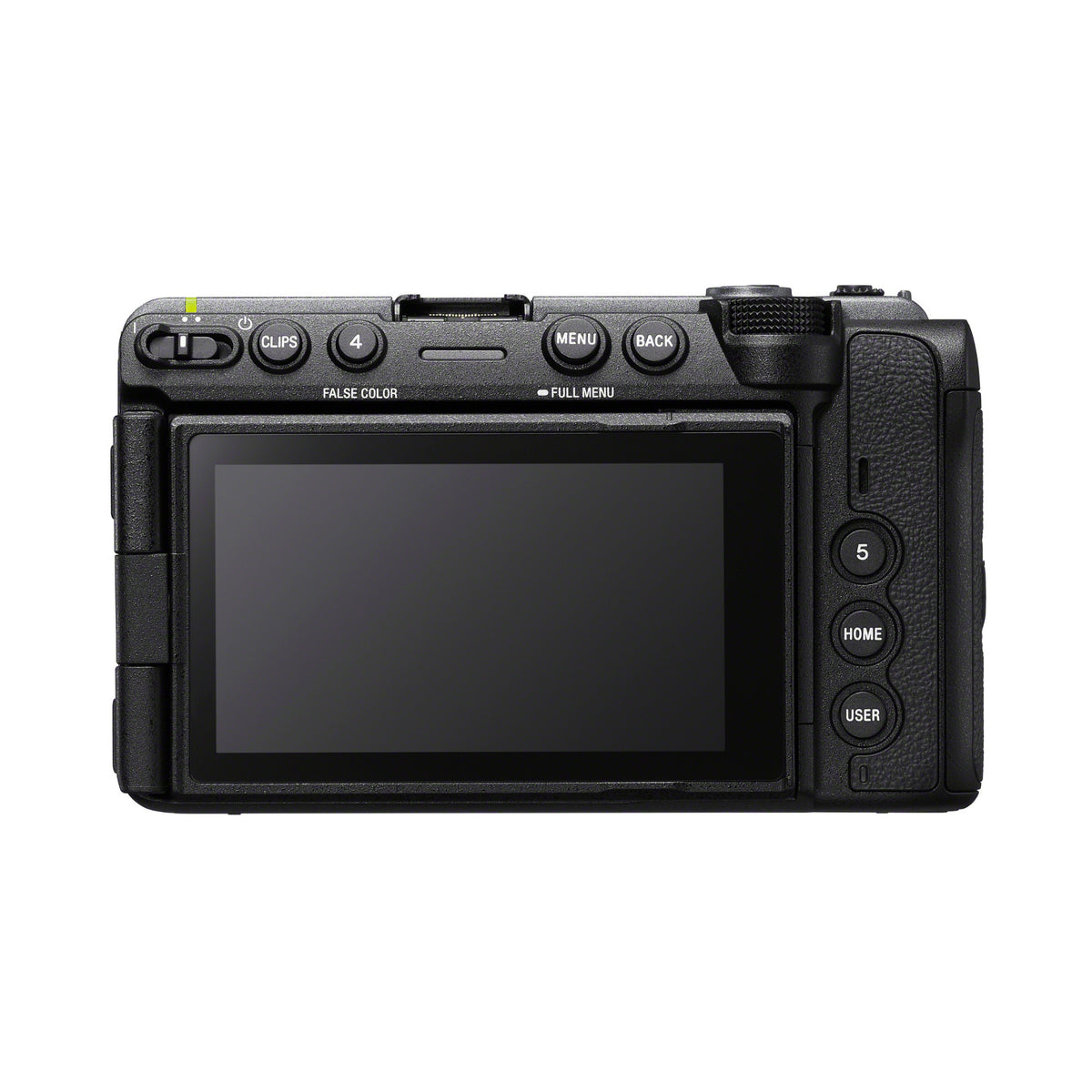

Display
| LCD Type | 3.5-inch TFT LCD |
| Touchscreen | Yes |
| Resolution | 2,764,800 dots |
| Adjustable Screen | Up 98°, Down 40°, Side 180°, Rotation 270° |
Zoom
| Clear Image Zoom | Approx. 1.5x (4K), Approx. 2x (HD) |
Shutter
| Shutter Speed | 64F to 1/8000 sec (Movie) |
Image Stabilization
| Stabilization Type | 5-axis sensor-shift image stabilization |
| Stabilization Modes | Dynamic Active, Active, Standard, Off |
Accessibility
| Screen Reader | |
| Focus Magnifier | |
| Focus Map | |
| Peaking Display | |
| Subject Recognition AF | |
| Touch Focus | |
| Touch Tracking | |
| Multi-Angle LCD | |
| Custom Function | |
| Enlarge Screen |
Connectivity
| PC Interface | Mass Storage |
| USB Type-C | PORT1 SuperSpeed USB 10 Gbps (USB 3.2), PORT2 Hi-Speed USB 480 Mbps (USB 2.0) |
| Wireless LAN | Wi-Fi 802.11a/b/g/n/ac/ax (2.4/5/6 GHz) |
| Bluetooth | Version 5.3 |
| HDMI Output | Type-A |
| Multi Interface Shoe | Yes (Digital Audio Interface) |
| Microphone Input | 3.5 mm Stereo Mini Jack |
| XLR Audio Input | Two 3-pin XLR Inputs |
| Headphone Output | 3.5 mm Stereo Mini Jack |
| Wireless Remote Control | Bluetooth |
| LAN Port | 2.5GBASE-T, 1000BASE-T, 100BASE-TX |
| FTP Transfer | Wired LAN, USB Tethering, Wi-Fi |
| Viewfinder Terminal | Yes |
Network Streaming
| Video Format | MPEG-4 AVC/H.264 |
| Video Format | MPEG-H HEVC/H.265 |
| Streaming Resolution | 3840 × 2160 |
| Streaming Resolution | 1920 × 1080 |
| Streaming Resolution | 1280 × 720 |
| Audio Format | AAC-LC 2-channel (16-bit, 48 kHz) |
| Streaming Protocols | RTMP, RTMPS, SRT |
Audio
| Microphone | Built-in Stereo |
| Speaker | Built-in Monaural |
Lens Compensation
| Shading Compensation | |
| Chromatic Aberration Compensation | |
| Distortion Compensation | |
| Breathing Compensation (Movie) |
Power
| Battery | NP-SA100 Rechargeable Battery |
| Actual Movie Recording Time | Approx. 105 minutes |
| Continuous Movie Recording Time | Approx. 170 minutes |
| Internal USB Charging | Yes |
| USB Power Delivery | Yes |
Power Consumption
| Approx. 7.4 W (with FE 28-70mm F3.5-5.6 OSS II attached) |
Weight
| With XLR Handle | Approx. 1046 g |
| With Battery and Memory Card | Approx. 734 g |
| With Battery and Memory Card | Approx. 1 lb 9.9 oz |
| Body Only | Approx. 643 g |
| Body Only | Approx. 1 lb 6.7 oz |
Dimensions
| 132.2 × 79.0 × 87.0 mm | |
| 5.25 × 3.13 × 3.50 in | |
| Operating Conditions | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 55°C (-4°F to 131°F) |
