- Sony PXW-Z90V Compact XDCAM Camcorder
- XLR Handle Unit
- Lens Hood
- Lens Cap
- Large Eyecup
- Accessory Shoe Kit
- USB Cable
- Rechargeable Battery Pack (NP-FV70A)
- AC Adapter
- Power Cord
- Wireless Remote Commander
- Lithium battery (CR2025 for the Wireless Remote Commander)
- CD-ROM Manuals for Solid-State Memory Camcorder
- Manufacturer Warranty
- Kingston 128GB SDXC Canvas Go Plus 170MB/s Read Memory Card (SDG3/128GB)
- Limited Lifetime Warranty
Trusted & Verified

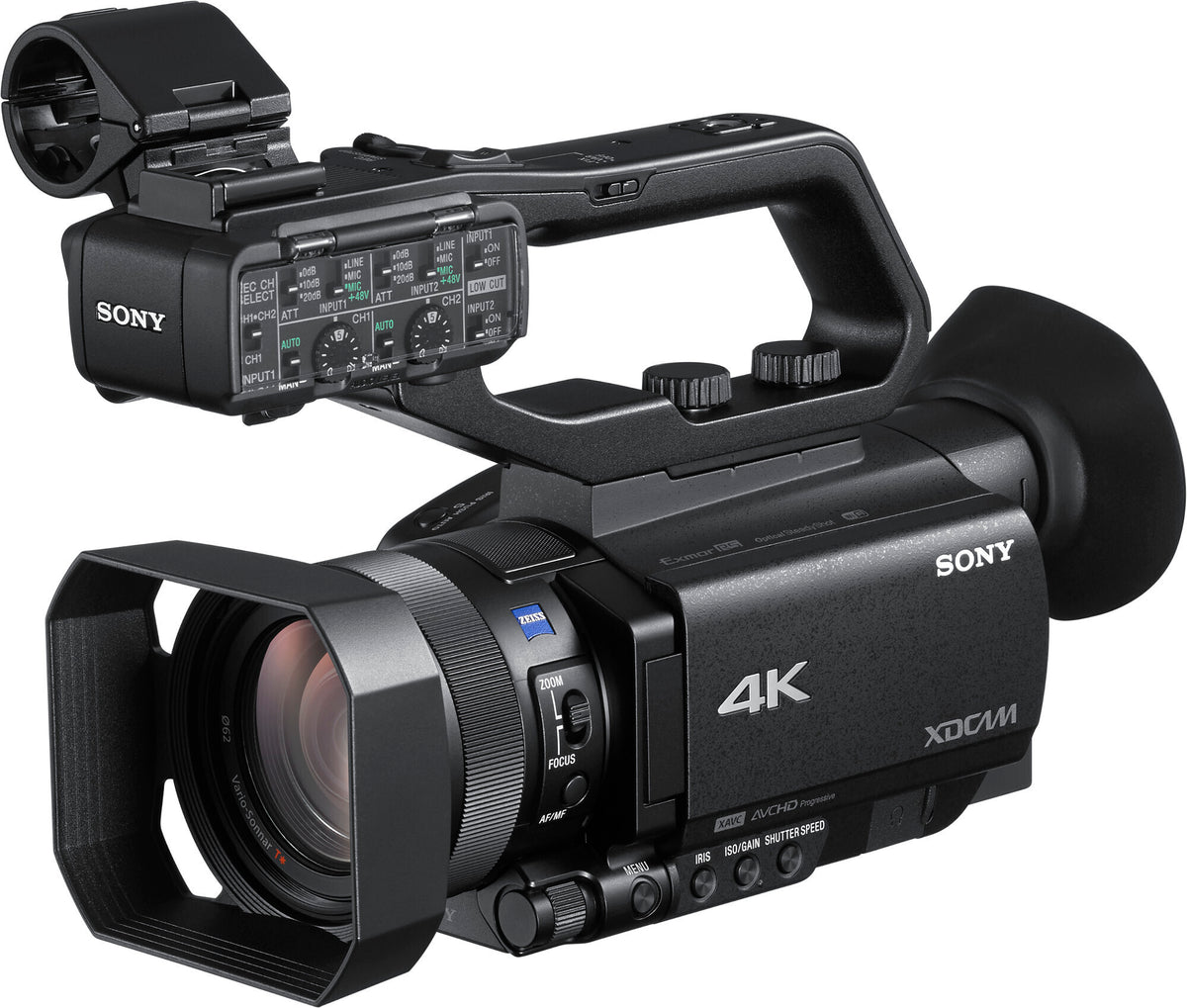

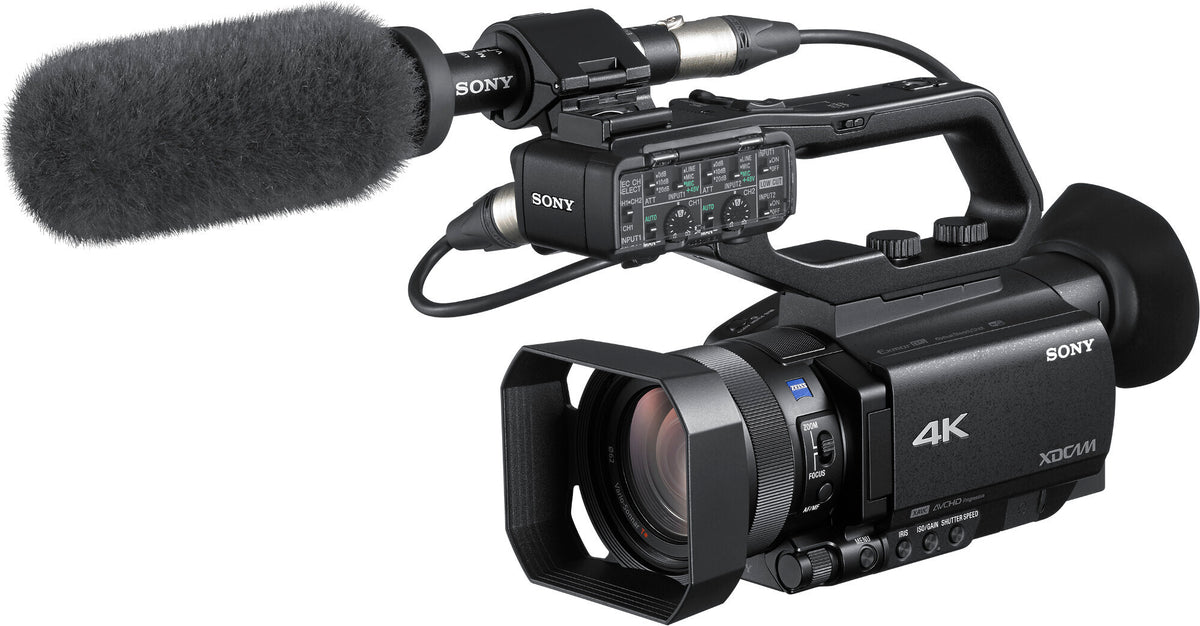

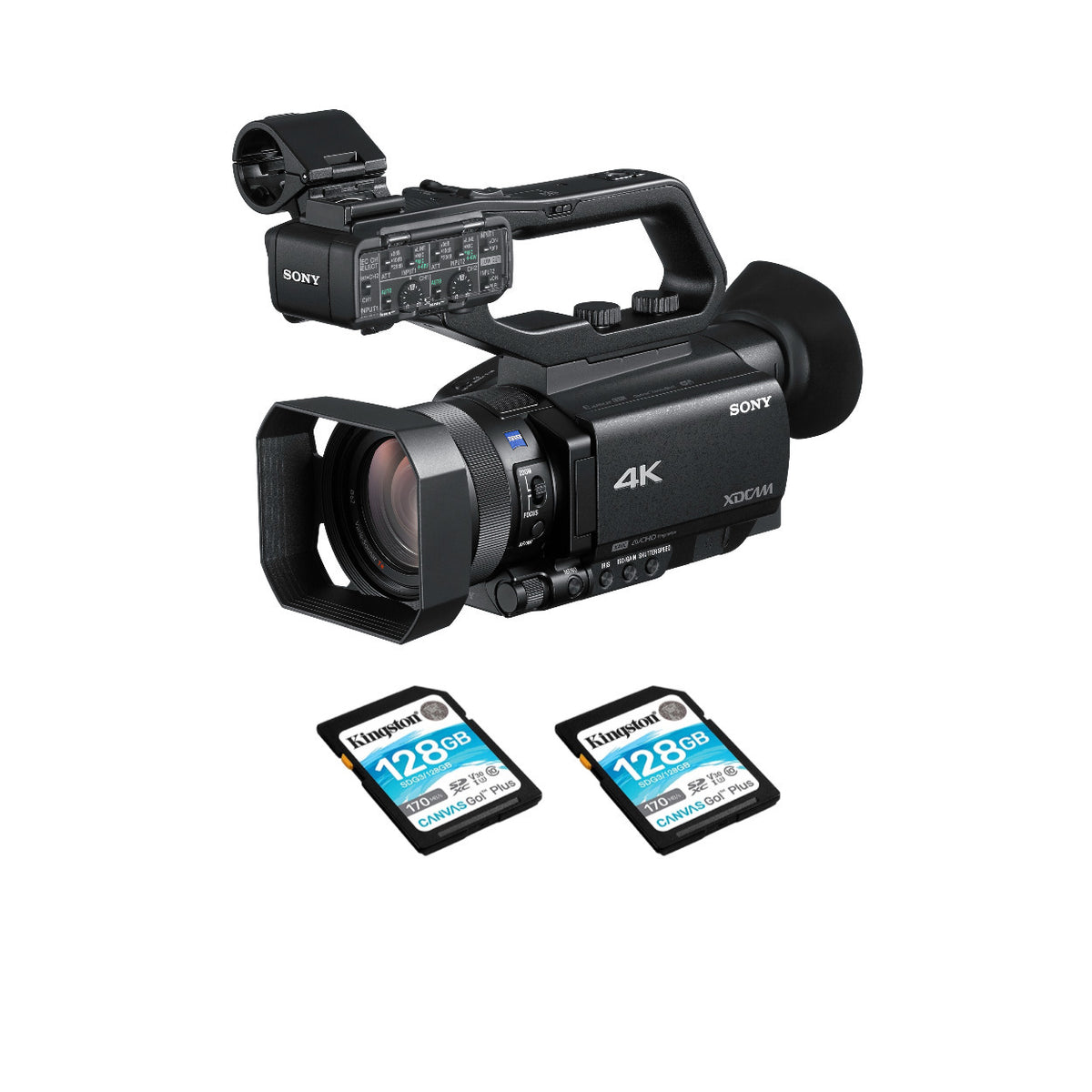

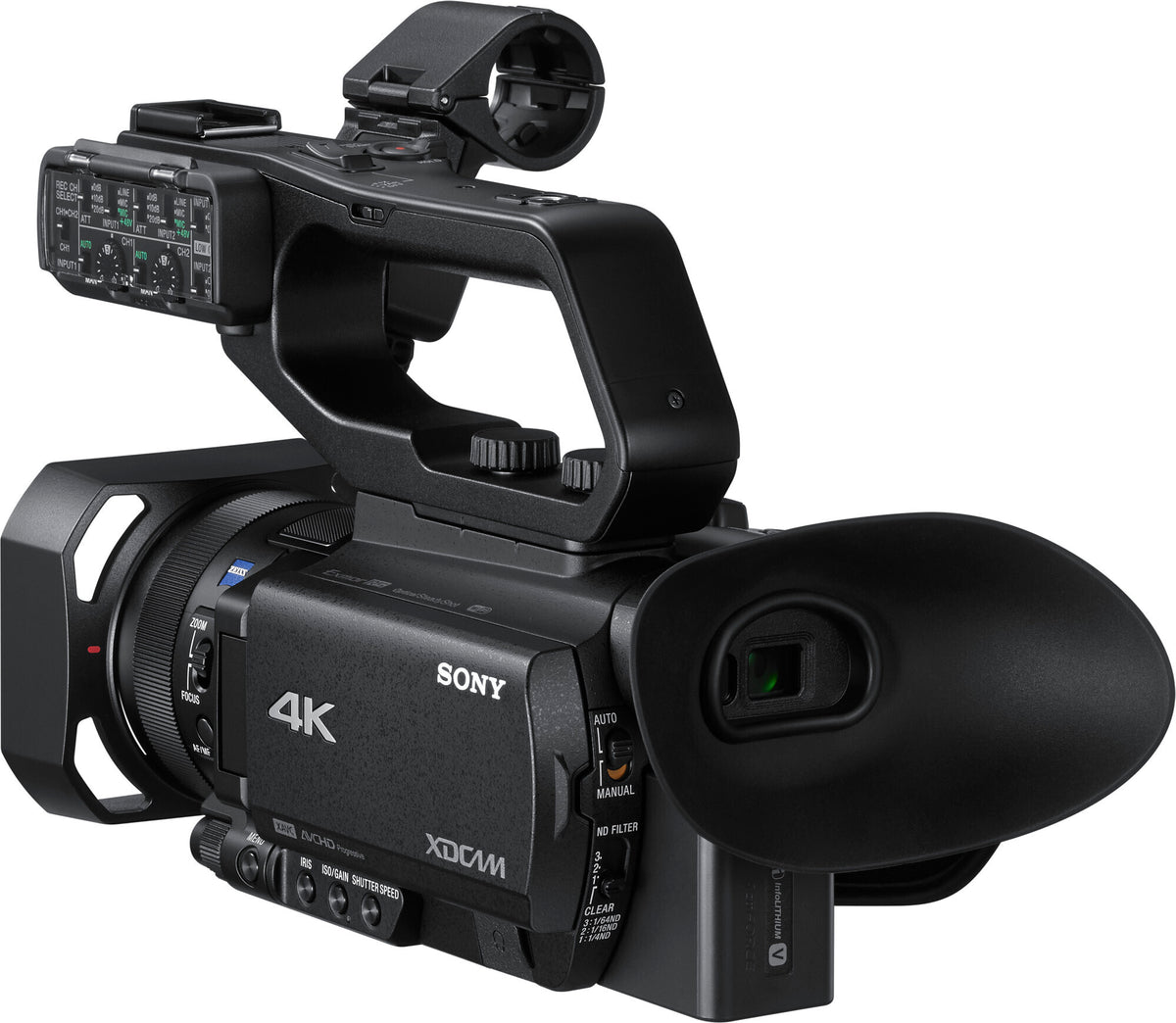

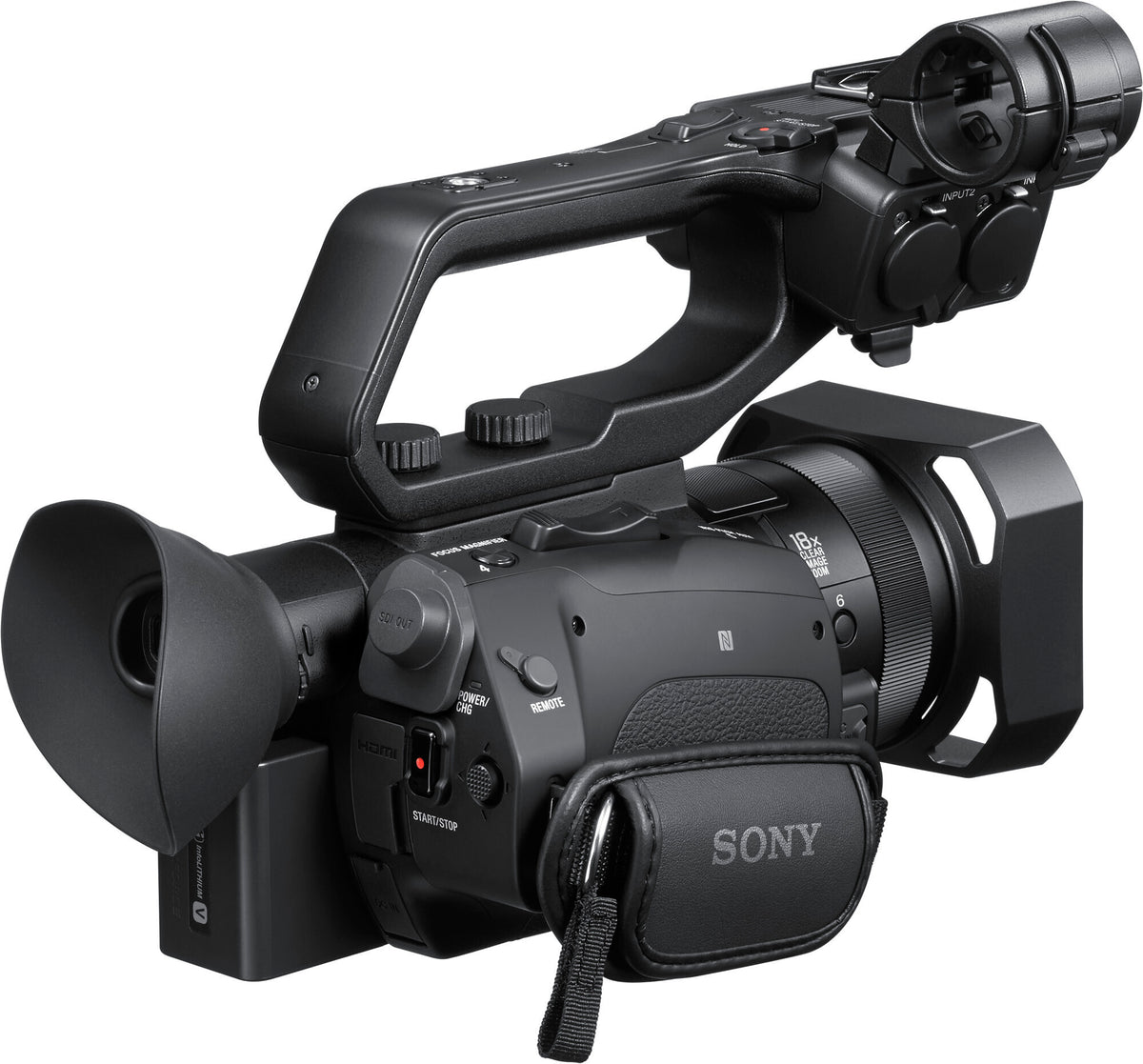

Sony PXW-Z90V Compact XDCAM Camcorder with 128GB SDXC Memory Card (2-Pack)
- 1-inch stacked Exmor RS CMOS sensor
- 4K QFHD and HD recordings up to 30p
- 120 fps in Full HD XAVC 10-bit 4:2:2
- 3.5-type LCD touchscreen monitor with 1550K dots
- High-resolution OLED viewfinder
- 2.4/5 GHz Wi-Fi networking with support for XDCAM Air
- Dual media slots with Relay and Simul mode selection
- Shoot, edit and view HDR content in Hybrid Log-Gamma
- Fast Hybrid Auto Focus with advanced features
- Zeiss Vario-Sonnar T* 12x optical zoom lens
Sony PXW-Z90V Compact XDCAM Camcorder
For unobtrusiveness, agility and ubiquitous news gathering, the PXW-Z90V offers the highest performance Sony has ever built into a palm-sized XDCAM camera. With advances like 4K (3840 x 2160) resolution, Instant HDR, a large 1-inch (1.0-type) Exmor RS image sensor and Fast Hybrid Auto Focus, you'll capture images of superlative quality. And with 3G-SDI output, 2.4 / 5 GHz wireless streaming and compatibility with Sony’s XDCAM air production system, you'll fit right into the broadcast environment.
High Quality Recordings in 4K QFHD and HD
The PXW-Z450 supports a variety of 4K and HD formats, including 4K QFHD (3840x2160) at 50p/59.94p, using the XVAC Intra and XAVC Long GOP, MPEG HD 422 and MPEG HD 420 workflow standards.
Fast Hybrid AF
Fast or unpredictable subject motion can trip up the Contrast Detection auto focus of conventional camcorders. The PXW-Z90V stays ahead of the action using Fast Hybrid Auto Focus (AF). This system combines both Contrast Detection and Phase.
Instant HDR Workflow
With the ability to reproduce images from deep shadows to piercing highlights, 4K High Dynamic Range (HDR) televisions are sweeping the market and demand for HDR production is booming. The PXW-Z90V meets this demand with Sony’s Instant HDR workflow. Hybrid Log-Gamma (HLG) recording captures HDR, yet plays back beautifully on both HDR and conventional monitors and televisions. There’s no need to devote extra time to post-production work and color grading. For added versatility, the camera also provides S-Log3 encoding.
Dual Media Slots
To extend recording time and flexibility, the camera provides two slots for SDXC and SDHC cards. Slot 1 is also compatible with Memory Stick PRO Duo (Mark 2) / PRO-HG Duo cards. To take advantage, Relay mode automatically switches recording to the second memory card when the first is full. Simul mode enables simultaneous recording to two memory cards (for example to create an immediate back-up version). The two Start/Stop buttons on the handle grip and camcorder body can independently start and stop recording on different memory cards while recording in Simul mode.
Zeiss Vario-Sonnar 12x Zoom Lens
12x optical zoom, 24x with Clear Image zoom, 48x with Digital Extender. The 12x optical zoom increases seamlessly to 18x (in 4K) or 24x (in Full HD) thanks to the Super Resolution technology of Sony’s Clear Image Zoom. The Digital Extender doubles this range yet again, up to 48x in Full HD.

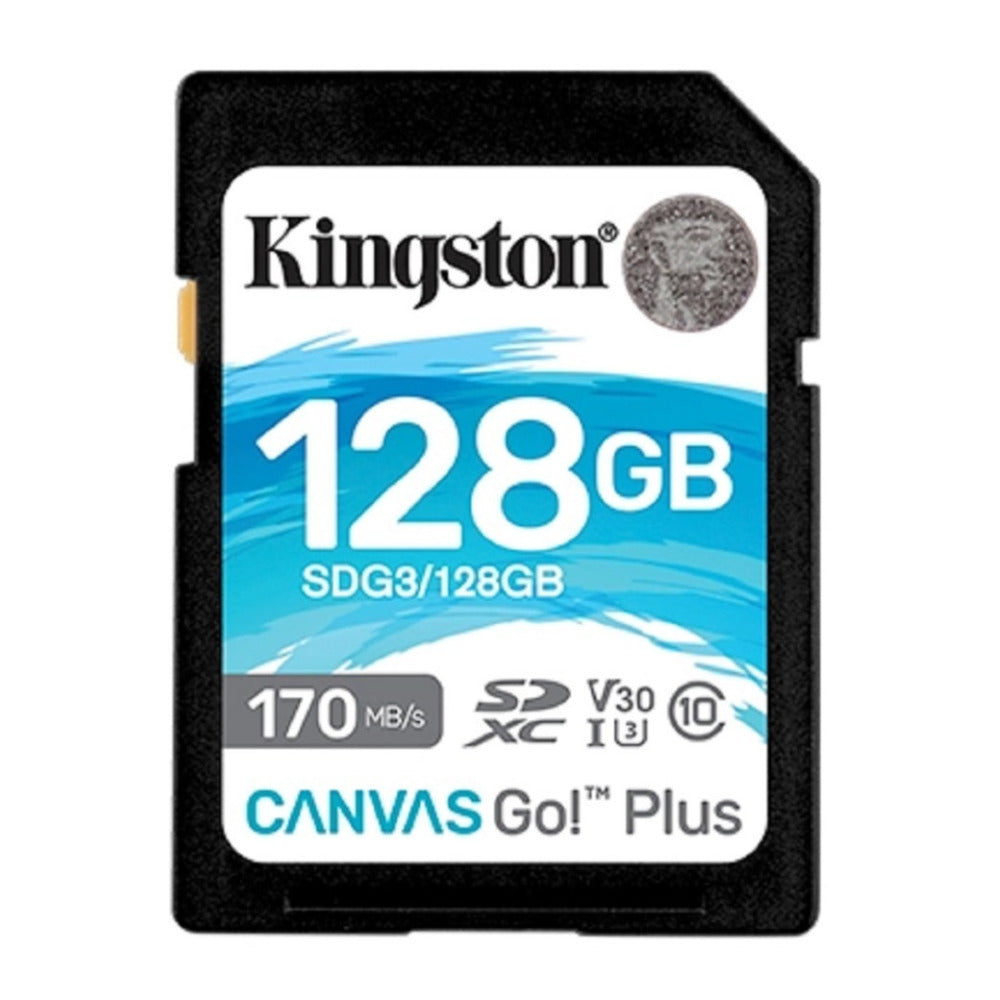

Kingston 128GB SDXC Canvas Go Plus 170MB/s Read Memory Card (SDG3/128GB)
Kingston 128GB SDXC Canvas Go Plus is for adventurers who are always on the go chasing the perfect moment to capture. With superior transfer speeds of up to 170MB/s, the Canvas Go! Plus SD card accelerates your workflow and efficiency so that you’ll have more time to take your creativity onto the next adventure.
Seamless and Consistent
With U3 and V30 speed performance, shoot stunning 4K Ultra-HD videos without worrying about slow speeds and dropped frames, or shoot sequential burst-mode photography that’s seamless and consistent. View the world as your canvas and take your creativity and inspiration on the road with the Canvas Go! Plus SD.
Sony PXW-Z90V Compact XDCAM Camcorder
General
| Mass | |
|
|
| Dimensions (W x H x D) | 6 3/4 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only) |
| Power Requirements | DC 12 V (11 V to 17.0 V) |
| Power Consumption |
|
| Operating Temperature | 0-degree C to 40-degree C, 32-degree F to 104-degree F |
| Storage Temperature | -20-degreeC to +60-degreeC, -4-degreeF to +140-degreeF |
| Continuous Operating Time | Approx. 160 min with BP-FLX75 |
| Recording Format (Video) | |
| XAVC Intra |
|
| XAVC-I HD 100 mode | MPEG-4 AVC/H.264, CBG, Max.223Mbps |
| XAVC Long |
|
| XAVC Long |
|
| XAVC-L422 HD 35 Mode | MPEG-4 AVC/H.264, VBR, Max. 35Mbps |
| XAVC-L422 HD 25 Mode | MPEG-4 AVC/H.264, VBR, Max. 25Mbps |
| Recording Format (Video) |
|
| Recording Format (Audio) |
|
| Recording Format (Proxy Video) |
|
| Recording Format (Proxy Audio) | XAVC Proxy: AAC-LC, 128 kbps, 2 channels |
| Recording Time (Continuity) | |
|
|
| Recording Time (Continuity) |
|
| Recording Time (Continuity)(MPEG IMX 50M) | Approx. 240 min. with 128 GB SxS card at 59.94i |
| Recording Time (Continuity)(MPEG HD) |
|
| Recording Time (Continuity)(DVCAM) | Approx. 440 min. with 128 GB SxS card at 59.94i |
| Recording Frame Rate | |
|
|
| XAVC Intra (XAVC-I HD 100 mode) |
|
| 1280 × 720 | 59.94p, 50p |
| XAVC Long (XAVC-L QFHD 150 mode) | 3840 × 2160: 59.94p, 50p |
| XAVC Long (XAVC-L QFHD 100 mode) | 3840 × 2160: 29.97p,25p, 23.98p |
| XAVC Long (XAVC-L422 HD 50 mode) | |
|
|
| 1280 × 720 | 59.94p, 50p |
| Recording Frame Rate |
|
| MPEG HD422 |
|
| 1280 × 720 | 59.94p, 50p, 29.97p, 25p, 23.98p |
| MPEG HD420 |
|
| 1280 × 720 | 59.94p, 50p |
| MPEG IMX |
|
| 720 × 576 | 50i |
| DVCAM |
|
| 720 × 576 | 50i |
Lens
| Lens Mount | Sony 2/3-inch type bayonet mount |
Input/Output
| Genlock Input | BNC (x1), 1.0 Vp-p, 75 Ω, unbalanced |
| Timecode Input | BNC (x1), 0.5 V to 18 Vp-p, 10 kΩ |
| SDI Input | SMPTE ST292/ST259 standard compliant, 4-channel audio, 1.5G, Poolfeed Recording (upto 1080 59.94i) |
| Audio Input | |
|
|
| Mic Input | XLR-type 5-pin, female: -70 dBu to -3 0 dBu |
| WRR (Wireless Microphone Receiver) |
|
| SDI Output | Output 1/2/3/4: BNC (x4), 0.8 Vp-p, |
| Video Output | BNC, SD analog composite/HD-Y selectable |
| Audio Output | XLR-type 5-pin, male, +4/0/-3 dBu (balanced) |
| Timecode Output | BNC, 1.0 Vp-p, 75 Ω |
| Earphone Output | Stereo mini jack (x1) -11 dBu reference level output, maximum monitor volume, 16 Ω load |
| Speaker Output | Monaural, 300 mW output |
| DC Input | XLR-type 4-pin, male, 11 V to 17 V DC |
| DC Output | Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current |
| Lens | 12-pin, lens power source (11 V to 17V DC, 1.0 A maximum rated current) |
| Remote | 8-pin |
| Light | 2-pin |
| Camera Adaptor | D-sub, 50-pin (x1) |
| Ethernet | RJ-45 (x1), 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3 |
| USB | USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A) |
| HDMI | A type, 19-pin (x1) |
| Viewfinder | 20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750 |
Audio Performance
| Frequency Response | 20 Hz to 20 kHz (±3 dB or less) |
| Dynamic Range | 90 dB (typical) |
| Distortion | 0.08% or lower (-40 dBu input level) |
| Headroom | 20 dB (factory default) (20, 18, 16, 12dB), EBUL |
Camera Section
| Imager | 2/3-type -inchExmor R-inch 4K CMOS |
| Effective Picture Elements | 3840 (H) x 2160 (V) |
| Built-in Optical Filters | 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND |
| Shutter Speed (Time) |
|
| Shutter Speed (Slow Shutter(SLS)) | 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation |
| Slow & Quick Motion Function | 1080p: Frame rate selectable from 1fps to 60 fps |
| Sensitivity (2000 lx, 89.9% reflectance) |
|
| Minimum Illumination | 0.019 lx (F1.4, +42 dB, 16-frame accumulation) |
| White Balance | Preset (3200K), Memory A, Memory B/ATW |
| Gain Selection | -9, -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB(TBD) |
| S/N Ratio | 61 dB typical (typical, 1920x1080/59.94i mode, Noise Suppression On) |
Viewfinder
| Viewfinder | Option |
Other Equipment
| Built-in LCD Monitor | Color LCD, Screen size: 8.8 cm (3.5 inch) diagonal *3 , Aspect ratio: 16:9, Number of pixels: 960 (H) × 540 (V) for Video display, Audio level, TC, battery and media remaining capacity |
| Built-in Speaker | x1 |
| Media SxS Card Slots | 2 |
| Media SD Card Slots | Proxy (1), Utility (1) |
| GPS | Yes |
| Built-in Network Module | Yes |
| NFC | Yes |
Supported Media
| High Resolution Video/Audio | |
|
|
| Proxy Video/Audio and Utility | SDXC/SDHC |
Kingston 128GB SDXC Canvas Go Plus 170MB/s Read Memory Card
| Capacities | 128GB |
| Standard/Class | Class 10, UHS-I, U3, V30 |
| Performance | 170/90MB/s Read/Write |
| Dimensions | 24 x 32 x 2.1 mm |
| Format | exFAT |
| Operating temperatures | -25-degree-C to 85-degree-C |
| Storage temperatures | -40-degree- C to 85-degree-C |
| Voltage | 3.3V |
