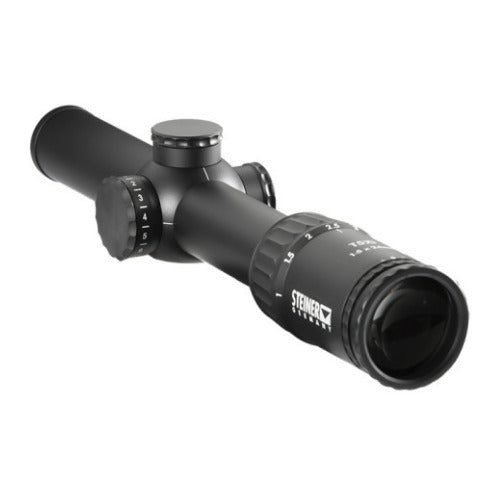

Steiner 1-5x24 T5Xi Riflescope (3TR 5.56 Reticle)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The T5Xi 1-5x24 is designed as a close-combat scope. It features a 30 mm tube, 3-Gun Tactical Reticle (3TR) calibrated in 5.56, with true 1x eyes-open capability for situational awareness and 5x power to engage distant targets.
One-Piece 30mm Tube
It increases strength and reliability and provides greater elevation and windage adjustments for longer ranges.
Tapered, All Metal Magnification Ring
It is angled so the shooter can see his magnification setting while positioned directly behind the scope.
Locking Dioptor
Dioptor that prevents accidental rotation of the diopter.
Consistent Eye Relief
Consistent Eye Relief and a generous eye box throughout the magnification range eliminates the need to reposition your eye when changing magnification.
Throw Lever / Lens Covers
It allows quick, easy magnification changes and Tenebraex covers protect the lenses from dust and moisture.
Steiner 1-5x24 T5Xi Riflescope (3TR 5.56 Reticle)
| Magnification | 1–5x |
| Objective lens diameter | 24mm |
| Tube diameter | 30mm |
| Focal plane | 2nd |
| Field of view at 100 YD. | 108'-21' |
| Eye relief (Low/High) | 3.5-inch - 4.3-inch |
| Exit pupil (Low/High) | 11mm-4.8mm |
| Length | 11.3 inch |
| Weight | 19.4oz |
| Diopter adjustment range | +2 to -3 |
| Reticle | 3TR 5.56 |
| Illumination control | Illuminated Reticle with 4-Night/7-Day Levels |
| Elevation adjustment knob | Resettable Zero |
| Windage/Elevation/Click value | 1cm |
| Windage range @ 100M | 300cm (30 mils) |
| Elevation range @ 100M | 300cm (30 mils) |
| Parallax/Focus | Fixed |
| Nitrogen filled | Yes |
| Operating temperature range | -13 degrees F to +145 degrees F |
| Lens caps | Yes |
| Waterproof/Fogproof | Submersible to 33ft. |
| Battery | CR2450 |
| Special features | Resettable Turrets, Second Rotation Indicator, Locking Diopter |
