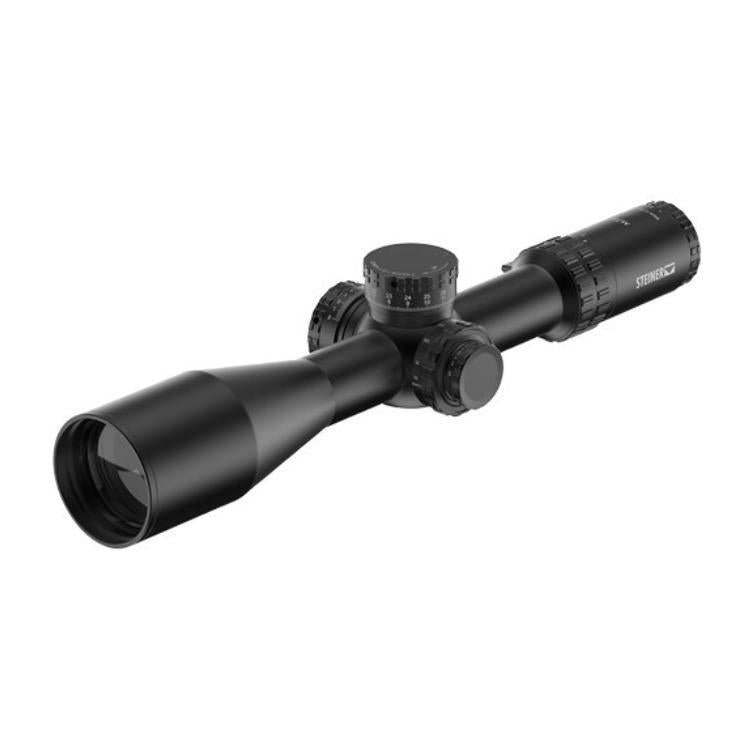

Steiner Optics M7Xi 4-28x56 MSR2
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Dominate distance with the Steiner M7Xi 4-28x56, the ultimate optic for serious shooters who demand extreme precision, rugged reliability, and crystal-clear clarity in every shot. Built for elite performance in the harshest environments, this powerhouse riflescope features a massive 56mm objective and advanced multi-coated glass for razor-sharp images in any light. The ultra-wide 4-28x zoom and 34mm maintube deliver maximum flexibility and adjustment for extreme long-range engagements. Inside, the illuminated MSR2 first focal plane reticle with 0.04 MRAD center dot and precision ranging tools gives you instant target acquisition, even at max magnification. Submersible to 33 feet, shockproof, fogproof, and combat-tested to perform from -40 degrees Fahrenheit to 160 degrees Fahrenheit, the M7Xi is more than a scope; it’s a mission-ready advantage.
4-28x Magnification
Versatile long-range zoom for extreme precision. Engage targets from mid to extreme distances with smooth 4-28x magnification, giving you the flexibility to adapt to any scenario, whether tactical, competitive, or hunting.
56mm Objective Lens
Superior light-gathering for low-light dominance large 56mm objective lens draws in maximum light, ensuring brilliant clarity, enhanced contrast, and sharp images even at dawn, dusk, or in dark environments.
MSR2 First Focal Plane Illuminated Reticle
Combat-proven reticle for fast, accurate targeting. The MSR2 reticle features a 0.04 MRAD center dot, ultra-fine lines, and precision ranging tools. Located on the first focal plane, it maintains accuracy at any zoom level. Seven brightness settings for daylight and four for night use.
34mm Single-Piece Maintube
Maximum adjustment range and strength. Built from rugged aluminum alloy, the 34mm maintube allows greater internal adjustment for elevation (26 MRAD) and windage (6 MRAD), making it ideal for long-range ballistic calculations.
Fully Multi-Coated Optics
Bright, high-contrast visuals in any light. Advanced broadband anti-reflection coatings boost light transmission, reduce glare, and deliver edge-to-edge clarity, perfect for spotting fine details at long range.
Fogproof, Shockproof, Waterproof
Ready for the harshest conditions on Earth, Nitrogen-filled and sealed to be fully waterproof (submersible up to 33 feet), shockproof, and fogproof. Performs flawlessly from -40 to +160 degrees Fahrenheit—rain, snow, or sandstorm.
Low-Profile Tactical Turrets
Tactile, repeatable precision adjustments. Low-profile 0.1 MRAD turrets provide positive click feedback with zero distractions, helping you fine-tune elevation and windage quickly and accurately under pressure.
3.5-Inch Eye Relief
Safe, comfortable shooting position. Generous eye relief enhances safety and comfort, especially during high-recoil shots or long sessions behind the glass.
Main
| Objective Lens Diameter | 56mm |
| Configuration | Core |
| Min Power (Variable) | 4x |
| Max Power (Variable) | 28x |
| Tube Diameter | 34mm |
| Application | Rifles |
| Color | Black |
| Import Designation | Imported |
| Department Name | Unisex Adults |
- 4x – 26.9 ft at 100 yd / 8.9 m at 100 m
- 28x – 4.2 ft at 100 yd / 1.4 m at 100 m
- 4x – 14 mm
- 28x – 2 mm
Steiner 4-28x56 M7Xi Riflescope with 56mm Objective Lens and MSR2 Illuminated Reticle (Black)
| Magnification | 4 to 28x |
| Objective Lens Diameter | 56 mm |
| Field of View | |
| Exit Pupil Diameter | |
| Eye Relief | 3.5 in / 8.9 cm |
| Impact Point Correction | 26 MRAD (Elevation), 6 MRAD (Windage) |
| Adjustment per Click | 0.1 MRAD |
| Anti-Reflective Coatings | Fully Multicoated |
Reticle
| Reticle Type | MSR2 Reticle |
| Illumination | Red, 11-step adjustable brightness |
Environmental
| Environmental Resistance | Water-Resistant (Unrated) |
| Fogproof | Yes |
| Operating Temperature | -8 to 103 degrees Fahrenheit / -40 to 71 degrees Celsius |
General
| Maintube Diameter | 34 mm |
| Battery | Reticle powered by 1x CR2032 |
| Materials | Aluminum |
| Dimensions | Length – 15.2 in / 38.6 cm |
| Weight | 33.5 oz / 949.7 g |
Packaging Info
| Package Weight | 3.645 lb |
| Box Dimensions (L x W x H) | 18.9 x 5.8 x 4.5 in |
