- 1 x TCL LINKZONE 5G UW MW513U Mobile Hotspot Router
- 1 x Battery
- 1 x 9-Volt, 2-Amp, 18 Watt USB Power Adapter
- 1 x USB Type-C Cable
- 1 x Quick Reference Guide
Trusted & Verified

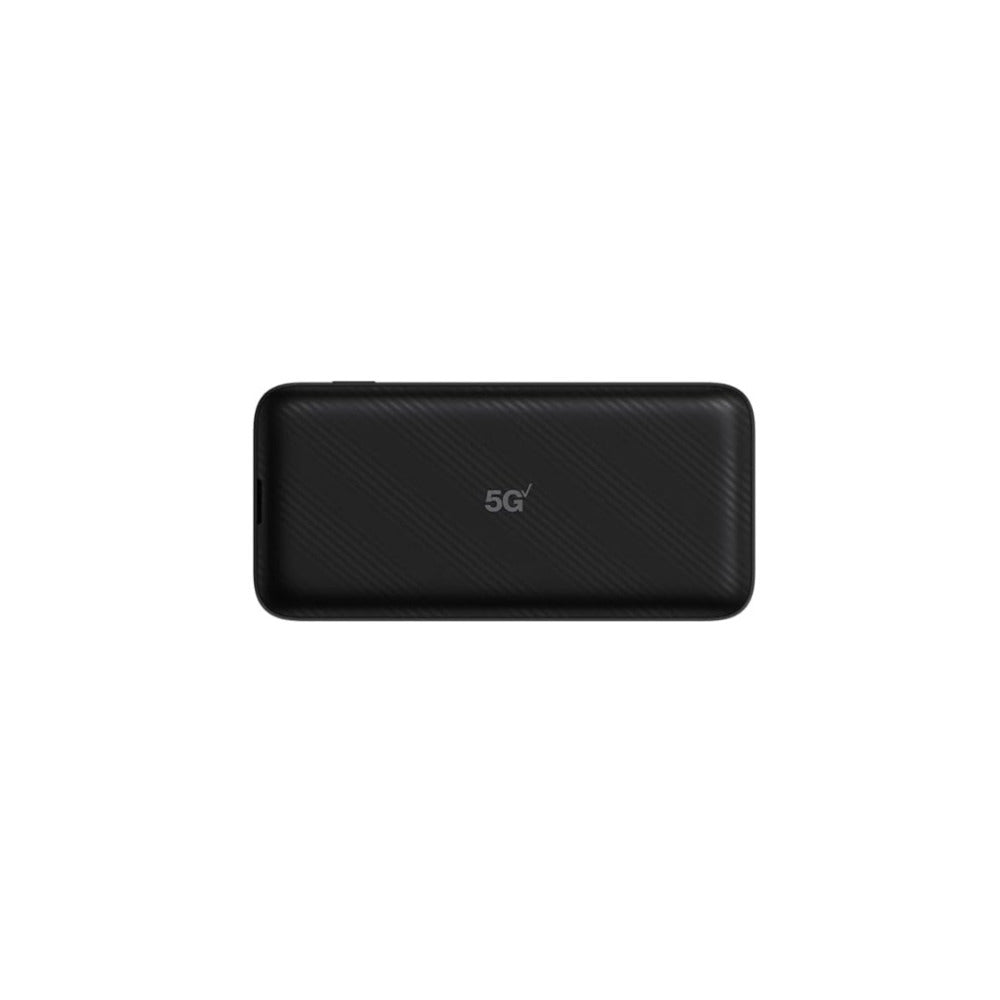

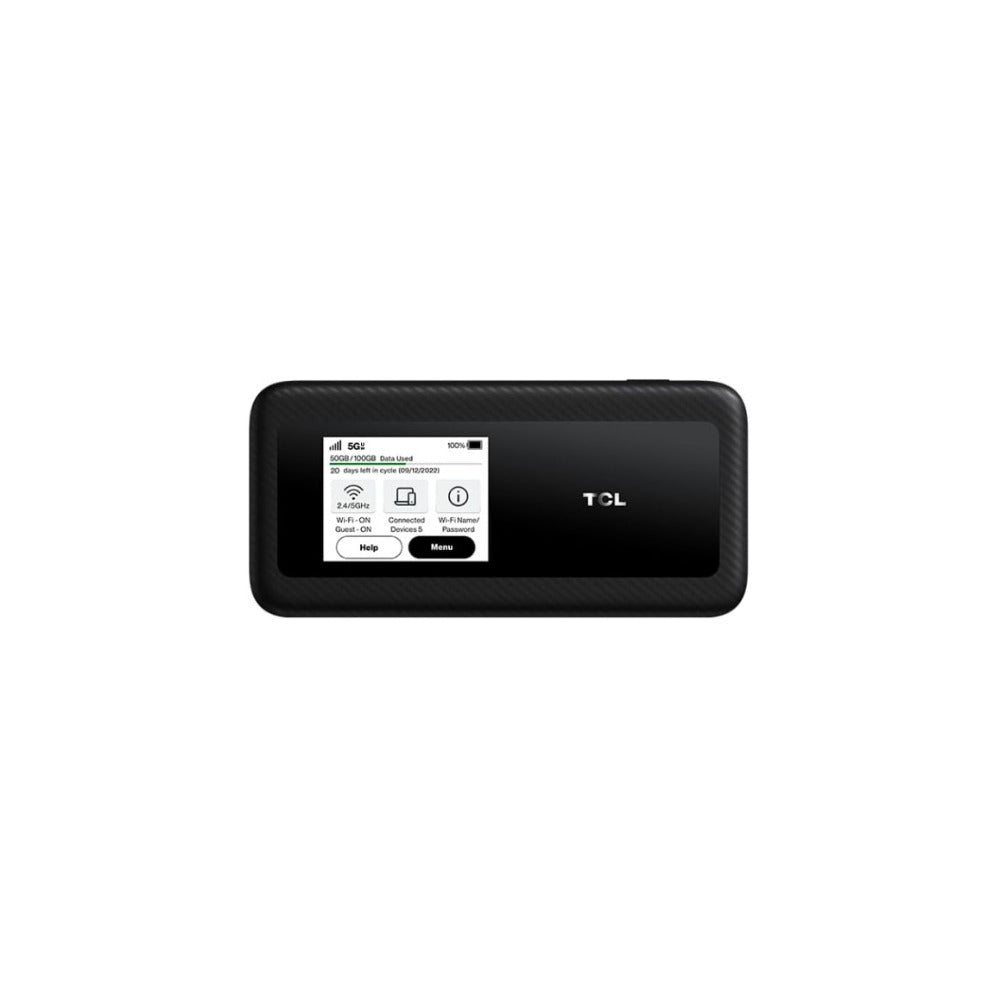

TCL LINKZONE 5G UW MW513U Mobile Wi-Fi Hotspot Router, Verizon Unlocked (Black)
- Connect to supported 5G and 4G LTE networks while traveling, working, or using the hotspot at home
- Share Wi-Fi access with up to 32 connected devices
- Use 2.4 GHz and 5 GHz dual-band Wi-Fi 6 connectivity
- Manage network functions from the 2.4-inch touchscreen
- Connect compatible equipment through USB Type-C or the LAN RJ45 port
- Use the 4500mAh battery for portable connectivity away from a wall outlet
- Support compatible mobile device charging through OTG reverse charging
The TCL LINKZONE 5G UW MW513U is a compact 5G mobile hotspot for creating a private Wi-Fi network at home, at work, or while traveling. This black Verizon and GSM unlocked model supports 5G and 4G LTE connectivity and can connect up to 32 Wi-Fi devices, with support for up to 16 devices on each band. Phones, tablets, and computers can share the mobile connection while staying connected through a network you control.
Dual Band Wi-Fi 6 and Touchscreen Control
Choose between 2.4 GHz and 5 GHz Wi-Fi and manage the hotspot from its 2.4-inch touchscreen. The display provides direct access to device status and connected device management. TCL also supports the TCL Connect app and a web-based management interface, giving you additional ways to manage guest access, review messages, track data usage, and adjust network settings.
Wired Connections and Portable Power
The MW513U provides a LAN RJ45 port and USB Type-C connection for devices that benefit from a wired connection. Its 4500mAh battery supports portable operation away from a wall outlet. OTG reverse charging can also supply power to compatible mobile devices when needed. TCL specifies that this feature requires an OTG cable sold separately.
The hotspot measures 5.94 inches x 2.83 inches x 0.71 inch and weighs 7.4 ounces, making it easy to carry in a bag while traveling. Inside, the Qualcomm SDX62-0 chipset and Linux 5.4 operating system support its mobile broadband and network management functions. Cellular service and 5G availability depend on compatible network coverage.
General
Product:
| Brand | TCL |
| Model | MW513U |
| Product Name | LINKZONE 5G UW |
| Product Type | 5G Mobile Hotspot Router |
| Color | Black |
| Carrier Status | Verizon and GSM Unlocked |
Design:
| Dimensions | 151 millimeters x 72 millimeters x 17.9 millimeters |
| Dimensions | 5.94 inches x 2.83 inches x 0.71 inch |
| Weight | 210 grams, 7.4 ounces |
| Display | 2.4 inch Touchscreen |
| Button | Power |
Hardware:
| Chipset | Qualcomm SDX62-0 |
| Memory | 1 GB RAM, 1 GB ROM |
| Operating System | Linux 5.4 |
| Antenna Type | Fixed |
| Number of Antennas | 4 |
Cellular Connectivity:
| Network Support | 5G and 4G LTE |
| 5G Sub 6 Bands | n2, n5, n46, n48, n66, n77, n78 |
| 5G mmWave Bands | n260, n261, n257 roaming |
| 5G Modes | SA and NSA for FR1 and FR2 |
| LTE Bands | B2, B4, B5, B12, B13, B46, B48, B66 |
| LTE Roaming Bands | B1, B3, B7, B20, B28 |
| LTE Category | CAT 19 |
| LTE Downlink MIMO | 2 x 2 |
| SIM Type | Nano SIM 4FF |
| SIM Card Slots | 1 |
Wi-Fi:
| Wi-Fi Generation | Wi-Fi 6 |
| Wi-Fi Standards | 802.11b, 802.11g, 802.11n, 802.11ax |
| Wi-Fi Bands | 2.4 GHz and 5 GHz |
| Maximum Connected Devices | Up to 32 |
| Maximum Connected Devices Per Band | Up to 16 |
| Security Protocols | WPA, WPA2, WPA3 |
Interfaces:
| USB Interface | 1 USB Type-C 3.0 Port |
| Wired Network Interface | 1 LAN RJ45 Port |
| LAN Port Bandwidth | 1000 Mbps |
| Reset Interface | 1 Reset Hole |
Battery:
| Battery Capacity | 4500mAh |
| OTG Reverse Charging | Supported |
| OTG Charging Cable | Sold Separately |
| Standby Time | Up to 18 Days |
Management:
| Management App | TCL Connect |
| Web Management | Supported |
| SMS | Supported |
| Supported Languages | English, Spanish |
