- 1 x Tilta Full Camera Cage for Sony FX5 (Black)
- 1 x Bottom Arca Type Plate
- 1 x High Definition Video and Audio Cable Clamp
- 1 x Allen Key and Screwdriver Tool
- 1 x Tilta Xeno Top Handle with NATO Clamp (Black)
- 1 x Tilta Xeno Side Handle with NATO Mount (Black)
- 1 x 3 mm Allen Key
Trusted & Verified

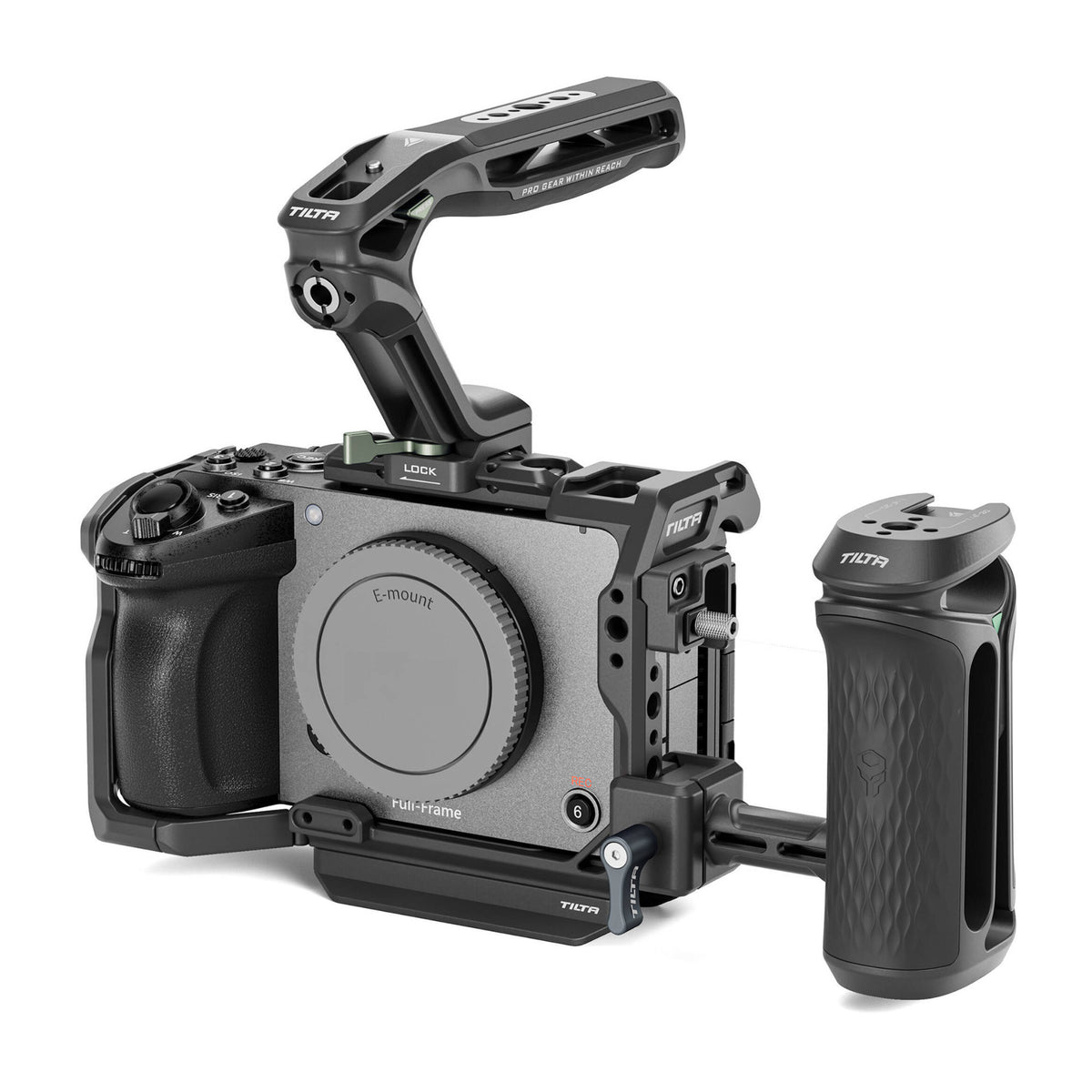

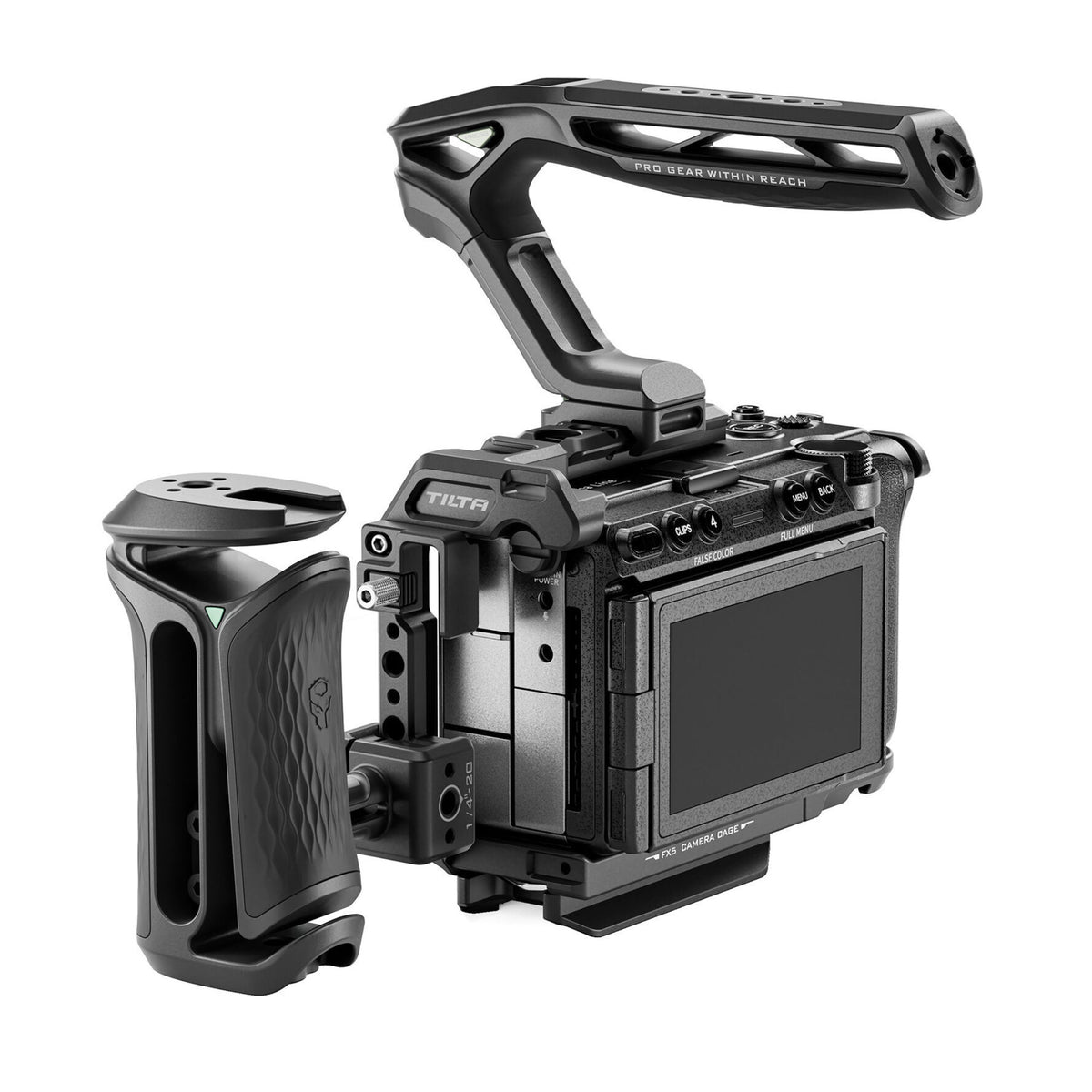

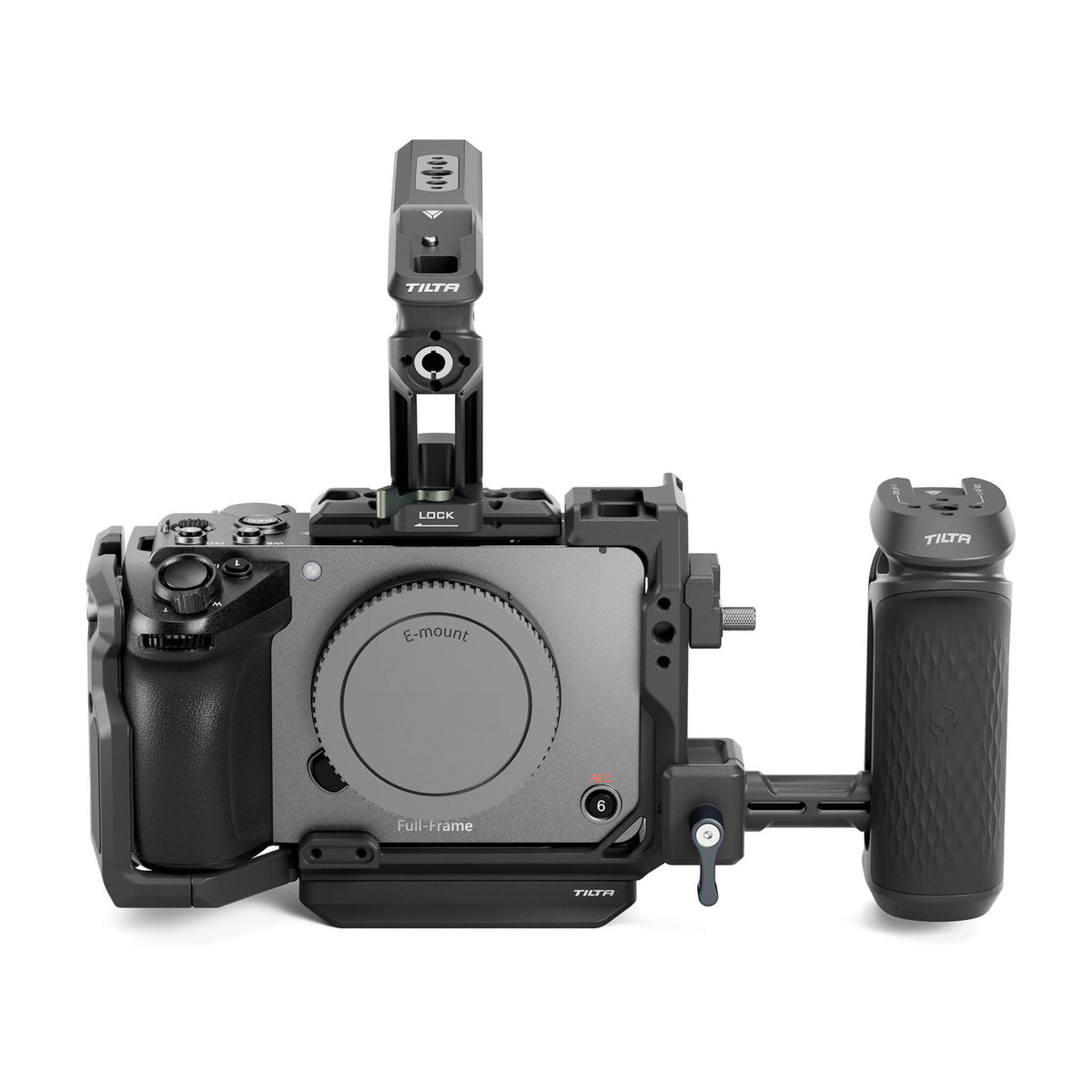

Tilta Camera Cage Base Kit for Sony FX5 (Black)
- Formfitting cage supports the Sony FX5 while maintaining access to camera controls
- Converts from a full cage to a lighter half cage for changing rig requirements
- Bidirectional Arca base supports quick tripod and gimbal transitions
- NATO rails, cold shoe mounts, and threaded points expand accessory placement
- Center positioning mark helps reduce gimbal balancing time
- Magnetic battery latch adds security at the battery compartment
- Reinforced corners add protection during active camera operation
Build a more adaptable Sony FX5 rig with the Tilta Camera Cage Base Kit. The modular aluminum cage adds protection and mounting flexibility while keeping the camera controls, dials, screen, and battery access usable. A three point connection helps reduce twisting, and the cage can convert from a full cage to a lighter half cage by removing the handle side bracket and two bottom screws. The bidirectional Arca base supports fast transitions between supported tripod and gimbal setups, while a center positioning mark helps speed gimbal balancing.
Full Camera Cage for Sony FX5

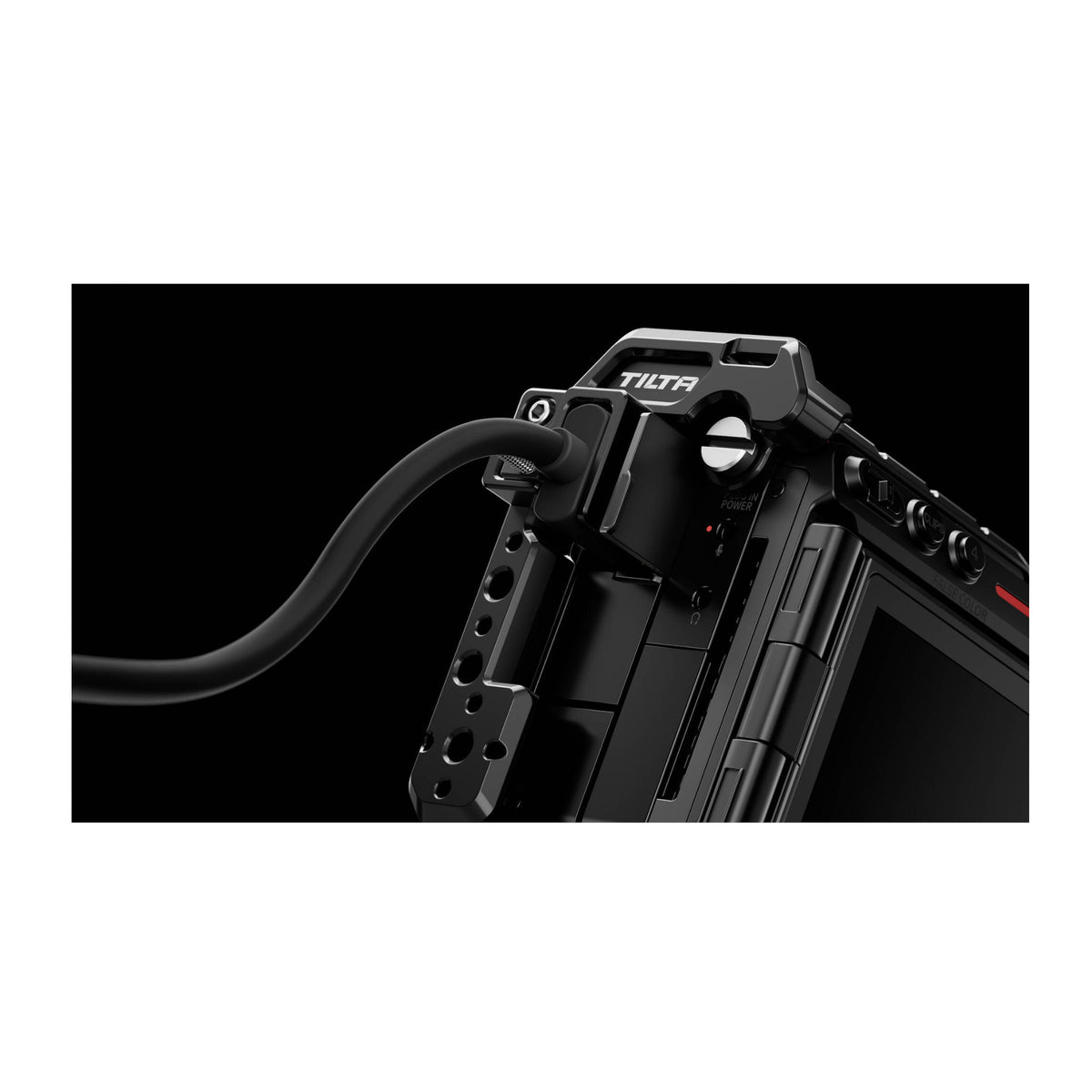

The formfitting cage adds NATO rails, cold shoe mounting, multiple 1/4 inch 20 and 3/8 inch 16 accessory threads, strap slots, and reinforced corners. A magnetic battery latch adds security at the battery compartment. The detachable Arca base supports horizontal and vertical camera orientation, while a high definition video and audio cable clamp helps reduce accidental cable movement. A stored Allen key and screwdriver tool keeps basic cage adjustments close at hand.

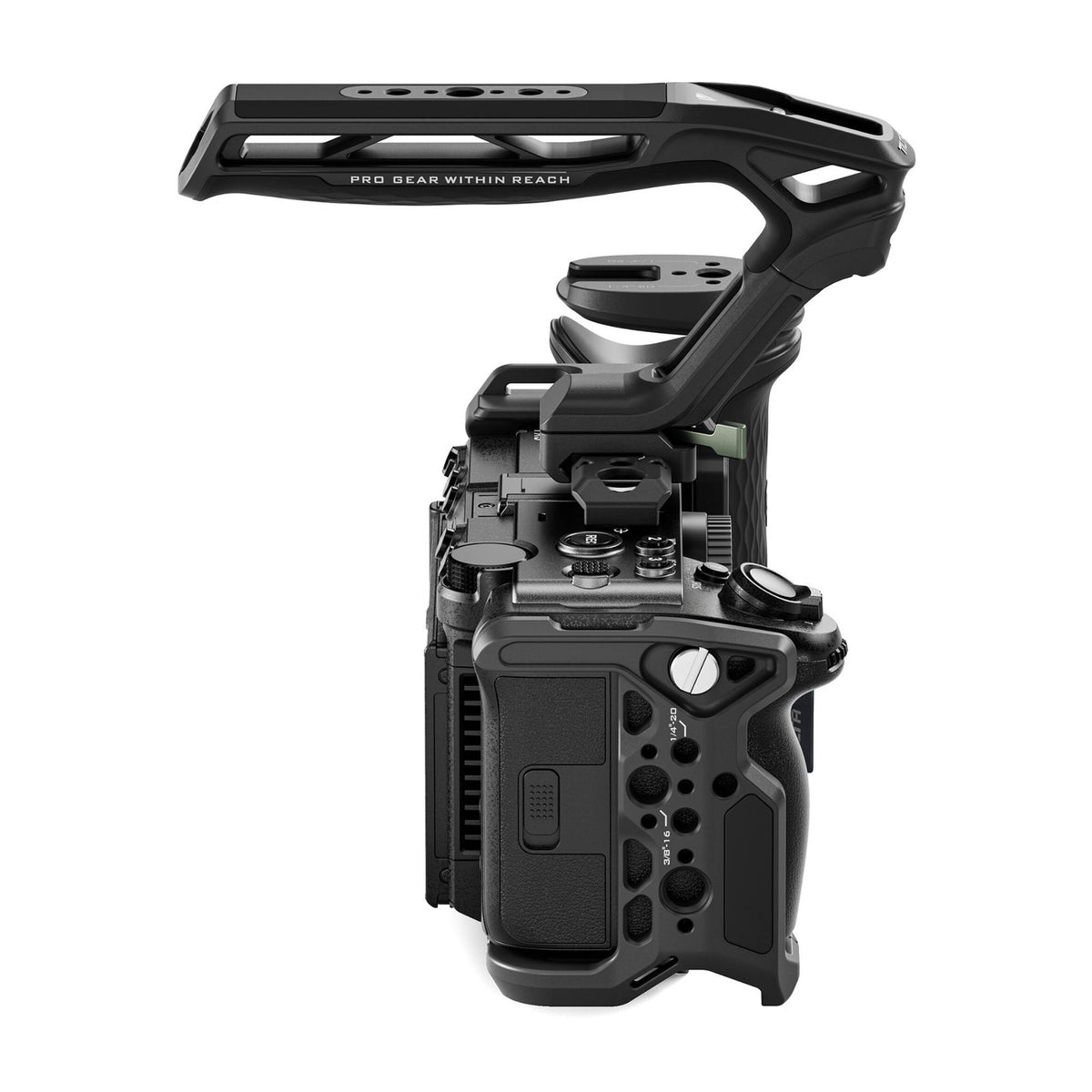

Xeno Top Handle
The Xeno Top Handle attaches by NATO clamp for low angle operating and quick rig changes. Multiple 1/4 inch 20 and 3/8 inch 16 threads provide attachment points for articulating arms, cable management, and other accessories. A cold shoe receiver supports compatible microphones or wireless transmitters, and the silicone grip provides a secure, comfortable hold.
Xeno Side Handle
The Xeno Side Handle mounts on either side of the cage through a NATO clamp with lever lock. Its silicone grip improves handheld control, while up to 1.6 inch of vertical adjustment helps position the handle for the operator. One cold shoe mount and three anti twist 1/4 inch 20 threads add accessory mounting options, and a magnetic 3 mm Allen key is stored with the handle.
General
Camera Cage Base Kit:
| Camera Compatibility | Sony FX5 |
| Color | Black |
| Dimensions | 12.6 x 9.8 x 4.7 inches |
| Weight | 3.31 pounds |
| Materials | Aluminum Alloy, SUS304 Stainless Steel, Silicone |
Full Camera Cage for Sony FX5:
| Support Type | Full cage with half cage conversion |
| Material | Aluminum |
| Accessory Mounting | Multiple anti twist 1/4 inch 20 female threads, multiple anti twist 3/8 inch 16 female threads |
| Camera Mounting | 1/4 inch 20 male screw |
| Tripod Mounting | 1/4 inch 20 female thread, 3/8 inch 16 female thread, built-in Arca type plate |
| Shoe Mounting | 1 cold shoe |
| Rail Mounting | 1 top NATO rail, 1 side NATO rail |

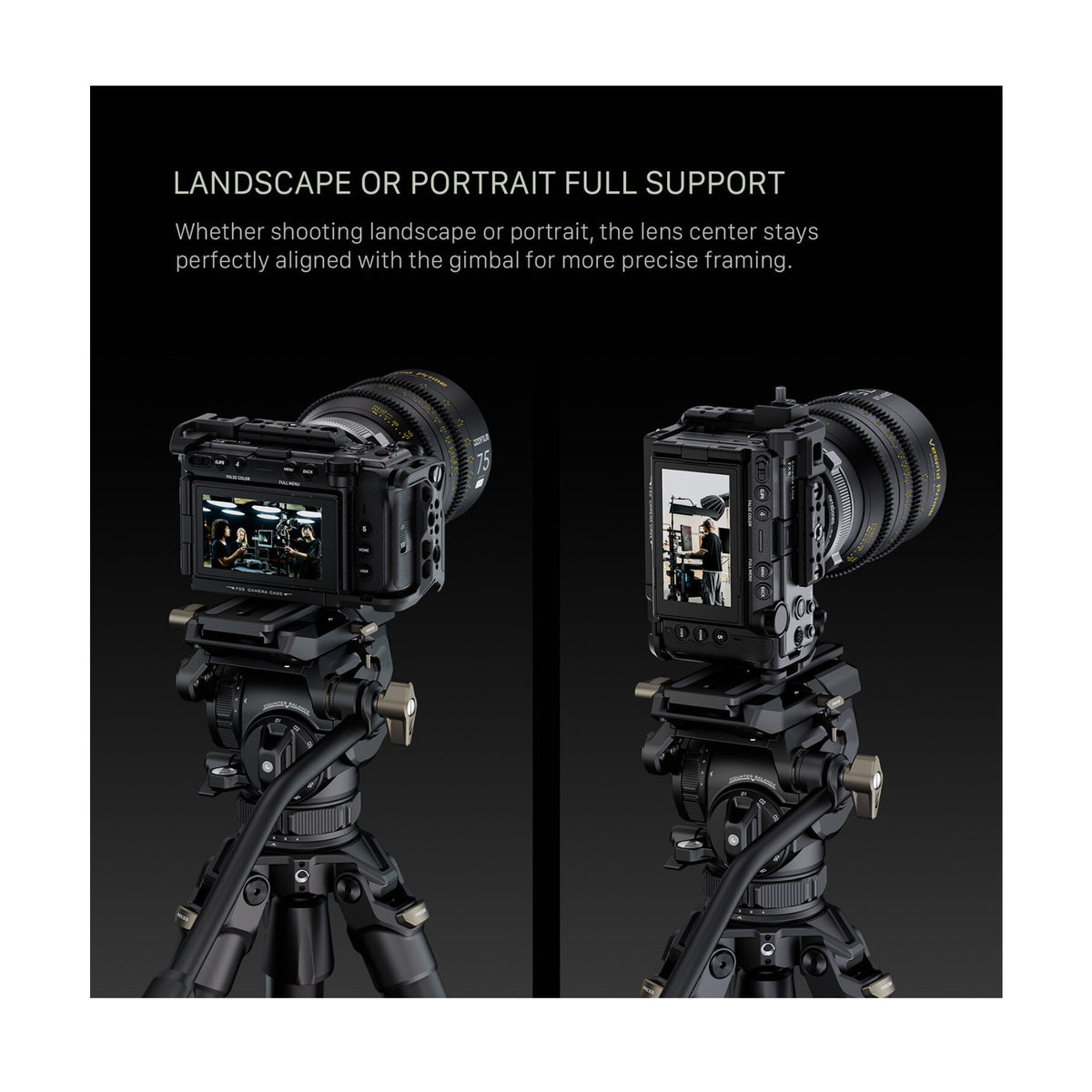

| Bottom Plate | Detachable Arca-type plate with horizontal and vertical support |
| Cable Clamps | 1 high definition video and audio cable clamp, 1 USB Type C cable clamp |
| Battery Access | Dedicated magnetic latch |
| Strap Mounting | Built-in strap slots |
Xeno Top Handle with NATO Clamp:
| Mounting | NATO clamp |
| Accessory Mounting | Multiple 1/4 inch 20 and 3/8 inch 16 threads |
| Shoe Mounting | 1 cold shoe |
| Grip Material | Silicone |
Xeno Side Handle with NATO Mount:
| Mounting | NATO clamp with lever lock |
| Side Placement | Right or left |
| Vertical Adjustment | Up to 1.6 inches |
| Accessory Mounting | 3 anti twist 1/4 inch 20 threads |
| Shoe Mounting | 1 cold shoe |
| Grip Material | Silicone |
| Included Tool | Magnetic 3 mm Allen key |
