- 1 x Tilta Full Camera Cage for Sony FX5 (Black)
- 1 x Arca Quick Release Plate for Sony FX5 (Black)
- 1 x High Definition Video and Audio Cable Clamp for Sony FX5 (Black)
- 1 x Slotted and Allen Key Tool
- 1 x Tilta Xeno Top Handle with NATO Mount (Black)
- 1 x Tilta Xeno Side Handle with NATO Mount (Black)
- 1 x 3 mm Allen Key
- 1 x Tilta Arca Height Adjustable 15 mm LWS Baseplate (Black)
- 1 x Arca Quick Release Plate (Black)
- 1 x 1/4 inch 20 Camera Screw
- 1 x Allen Wrench
- 2 x Tilta 15 mm Aluminum Rod, 200 mm (Black)
Trusted & Verified

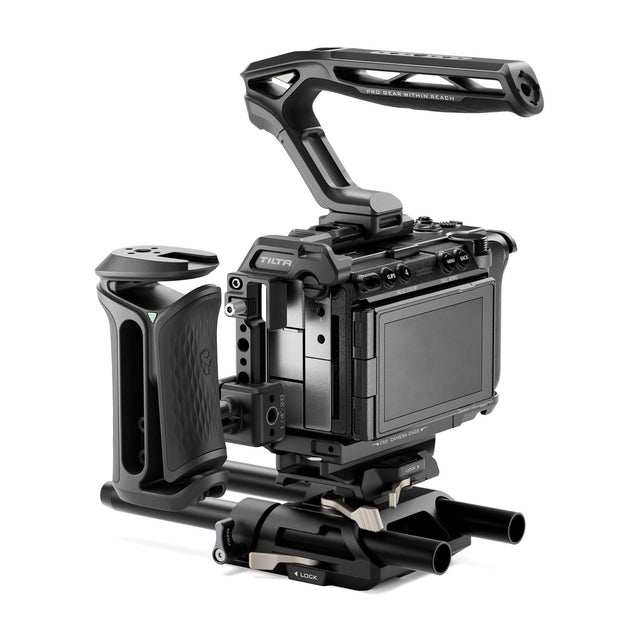

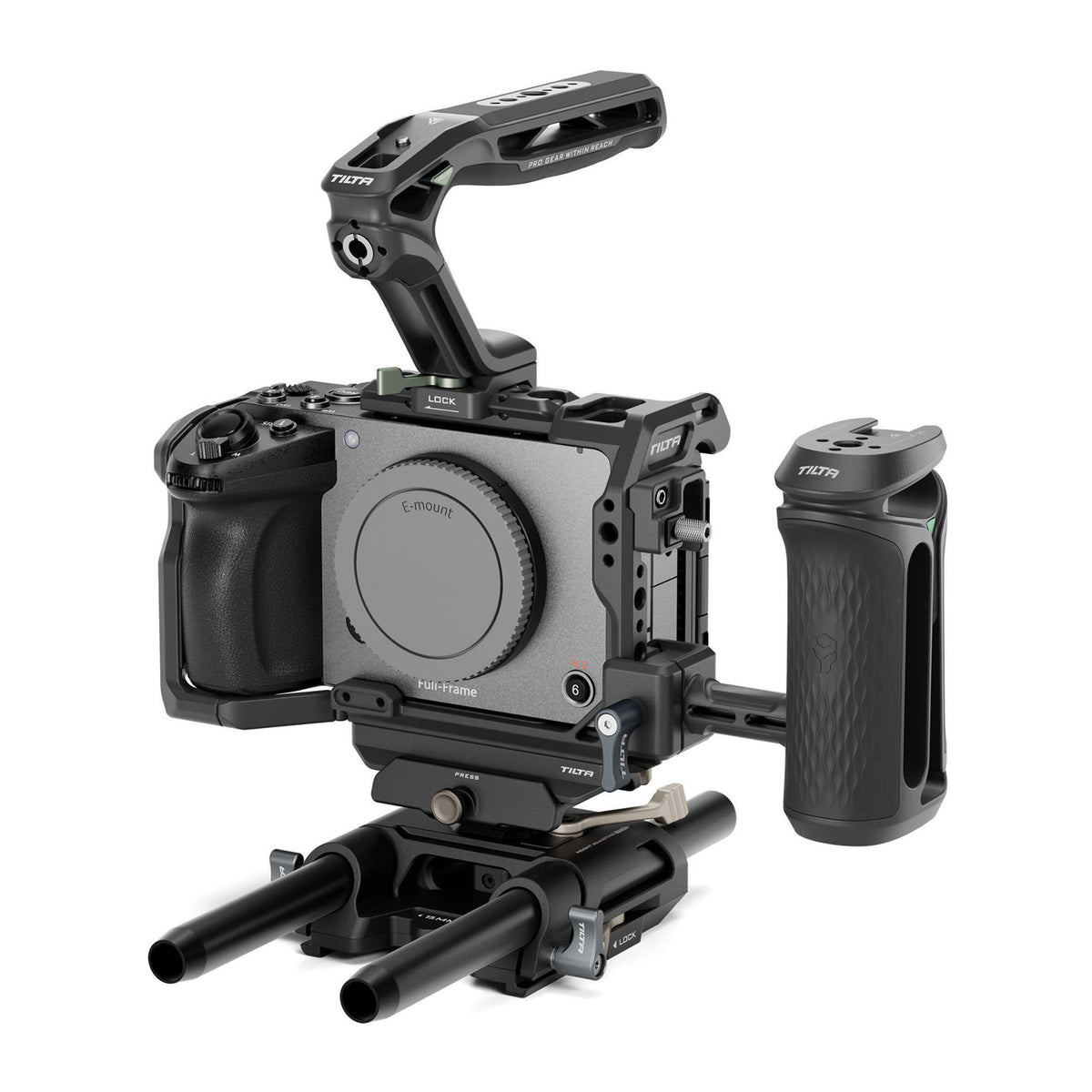

Tilta Camera Cage Pro Kit for Sony FX5 (Black)

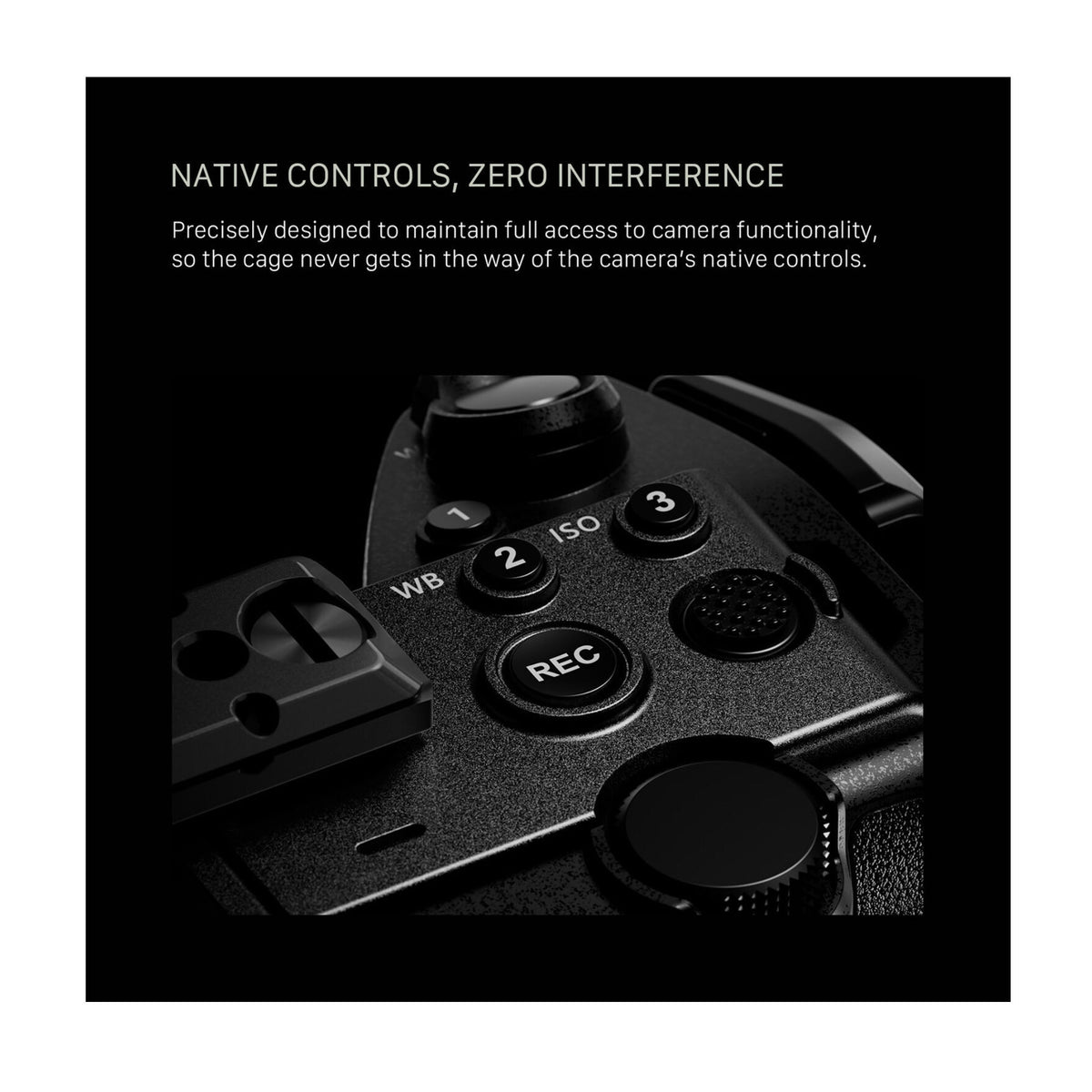

- Formfitting cage protects the Sony FX5 while preserving access to camera controls
- Three point locking helps resist twisting during rigged operation

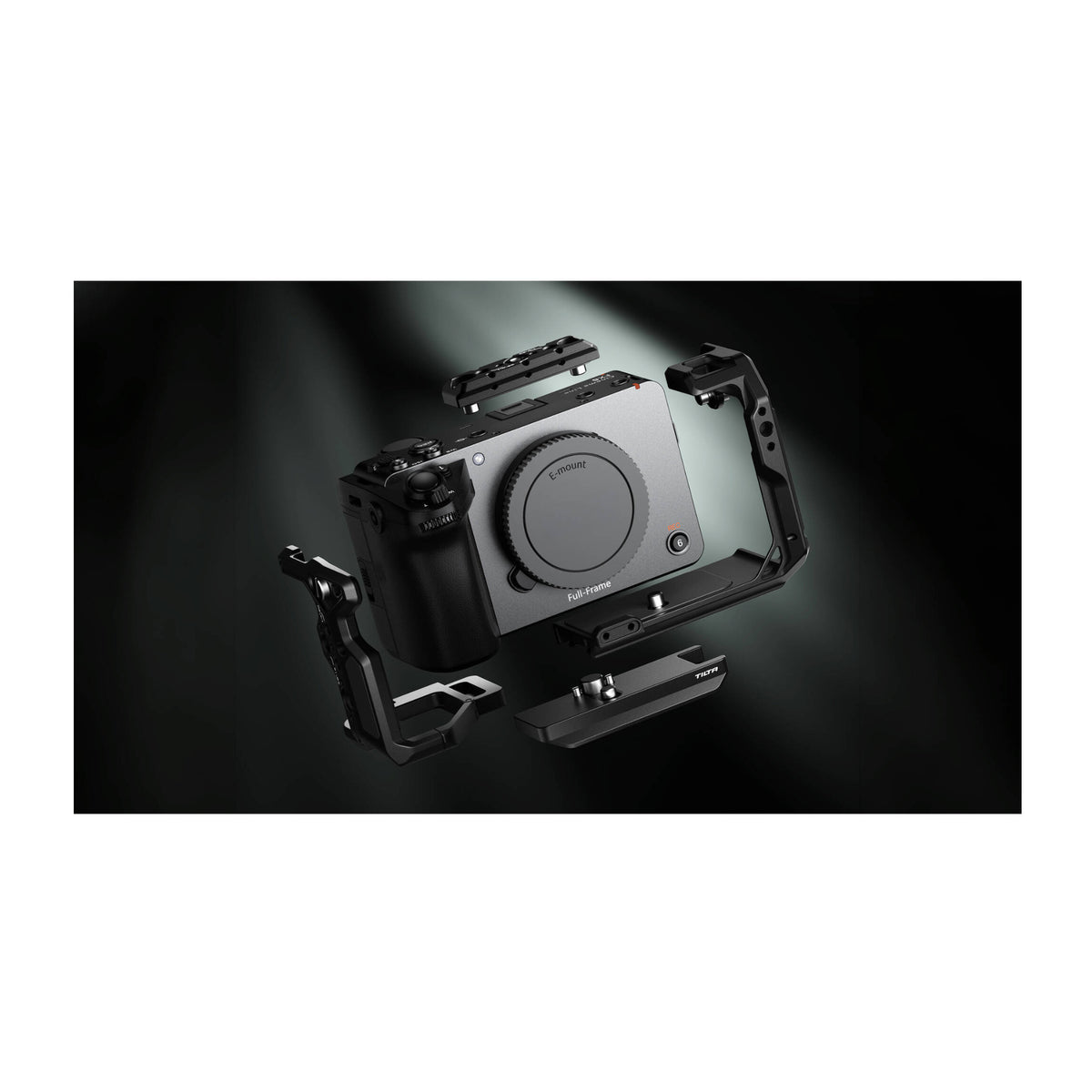

- Converts from a full cage to a lighter half cage configuration
- NATO rails, a cold shoe receiver, and locating threads support accessory mounting
- Bidirectional Arca mounting supports faster transitions between compatible support systems
- Magnetic battery compartment latch adds security during shooting

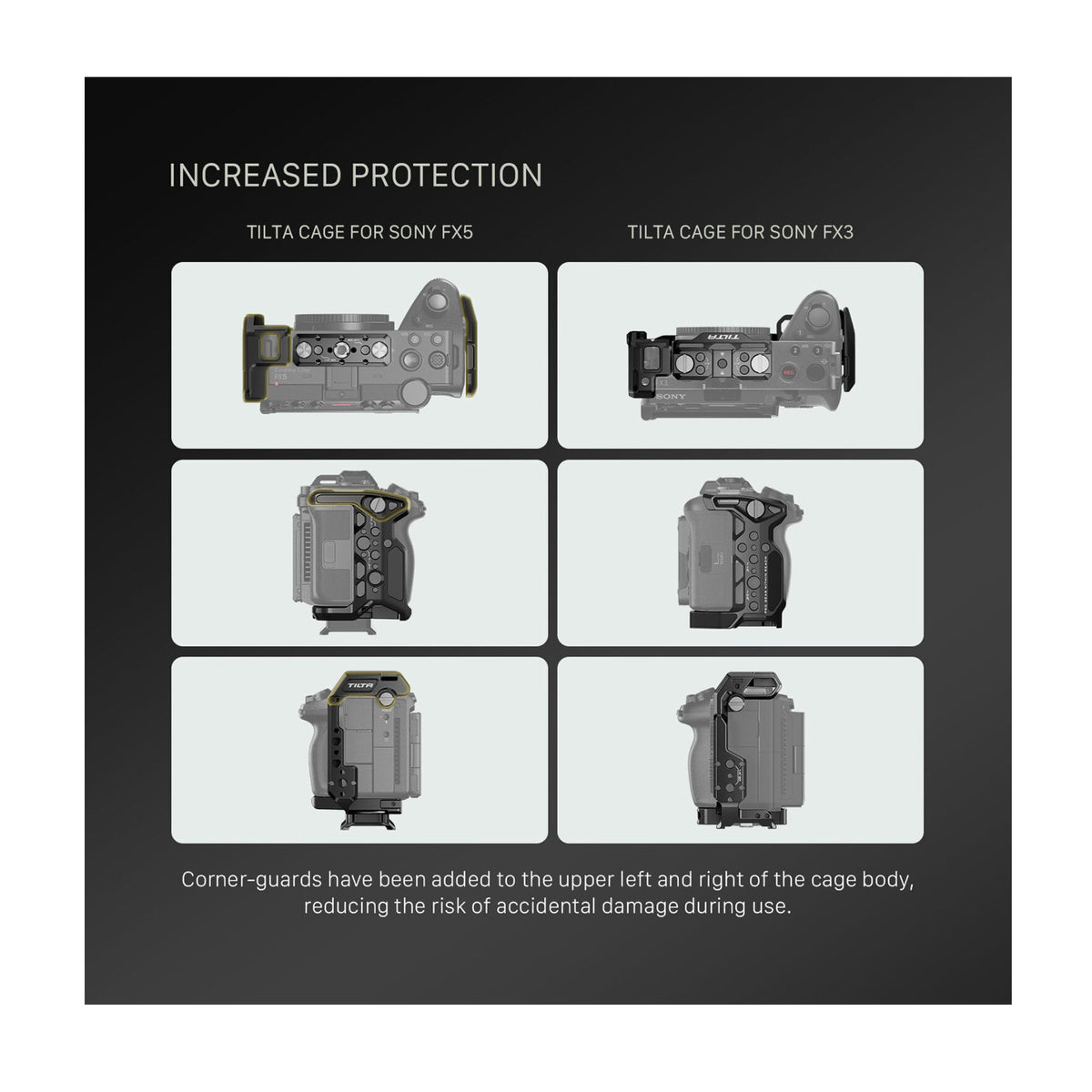

- Reinforced corners add protection around the camera body
- Locking video and audio cable clamp helps reduce accidental cable movement

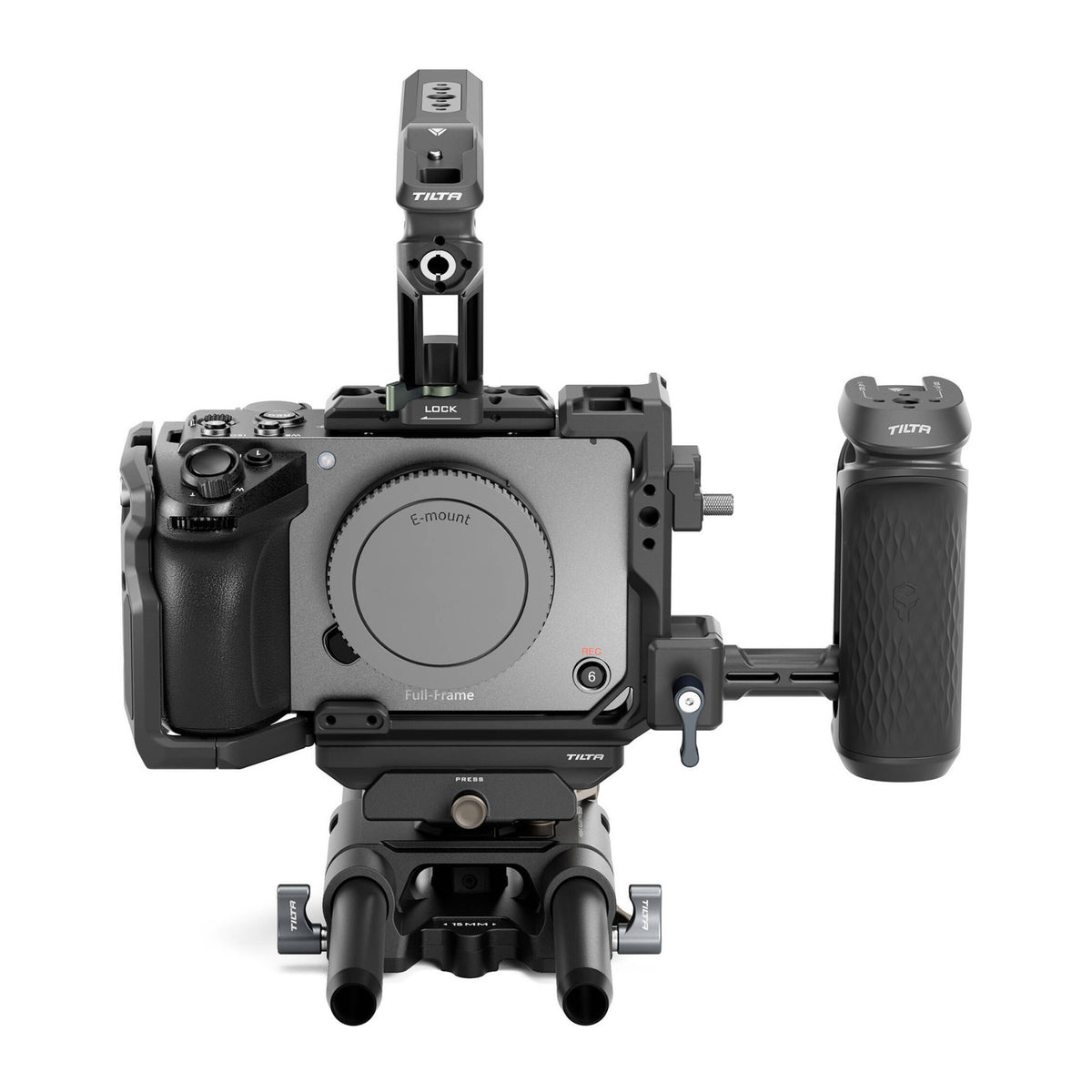

Build a more configurable Sony FX5 rig with a protective cage system that supports handheld work, tripod changes, gimbal transitions, and rod based accessories. The Tilta Camera Cage Pro Kit centers on a formfitting full cage with three point locking, reinforced corners, open access to camera controls, and a modular design that can convert to a lighter half cage when the shooting setup calls for less bulk.
Sony FX5 Full Camera Cage

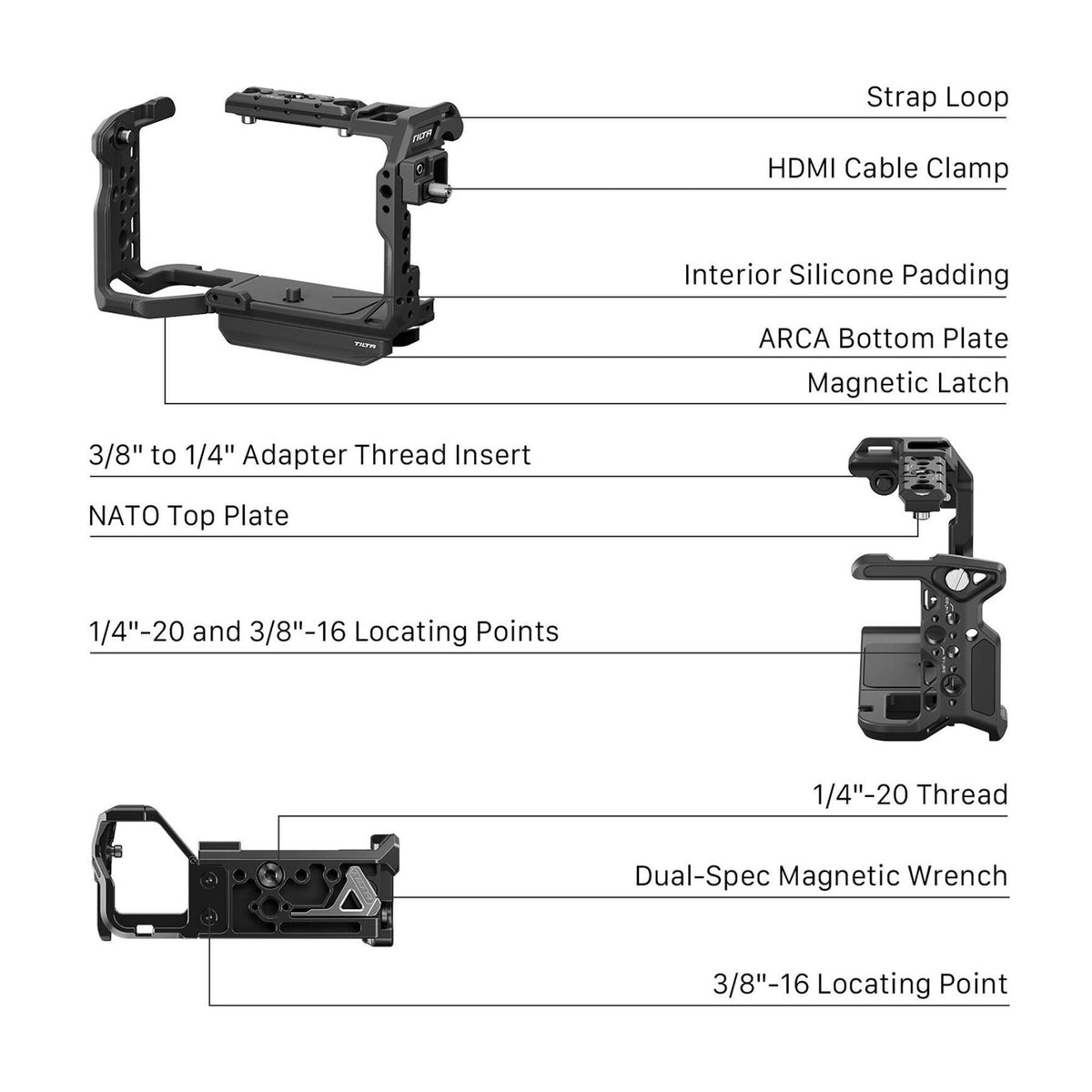

The aluminum alloy cage adds multiple 1/4 inch 20 and 3/8 inch 16 accessory threads, locating points, a cold shoe receiver, and NATO rails for flexible rig expansion. A bidirectional Arca bottom plate supports fast transitions between compatible support systems, while a gimbal center positioning point helps reduce balancing time. A magnetic battery compartment latch adds security, and the locking video and audio cable clamp helps guard against accidental cable movement while preserving access to the camera body.
Xeno NATO Handles

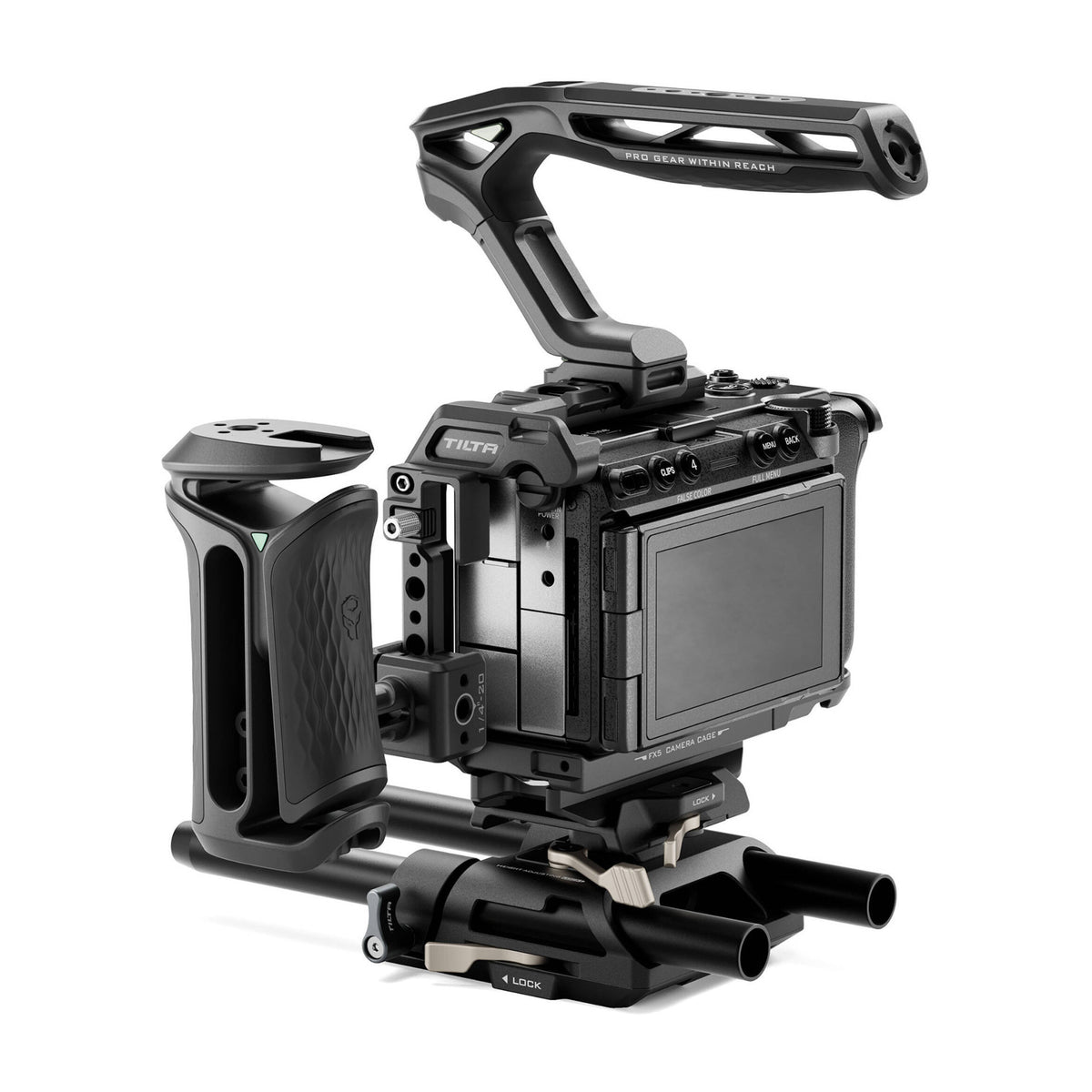

The Xeno top handle connects through the top NATO rail and adds a silicone grip, cold shoe receiver, and multiple accessory threads for practical low angle and transport handling. The Xeno side handle can mount on either side with the NATO connection and adjusts vertically by 40 mm. Its textured silicone grip supports steadier handheld operation, while the built in Allen key keeps a common adjustment tool close to the rig.
Height Adjustable 15 mm LWS Support

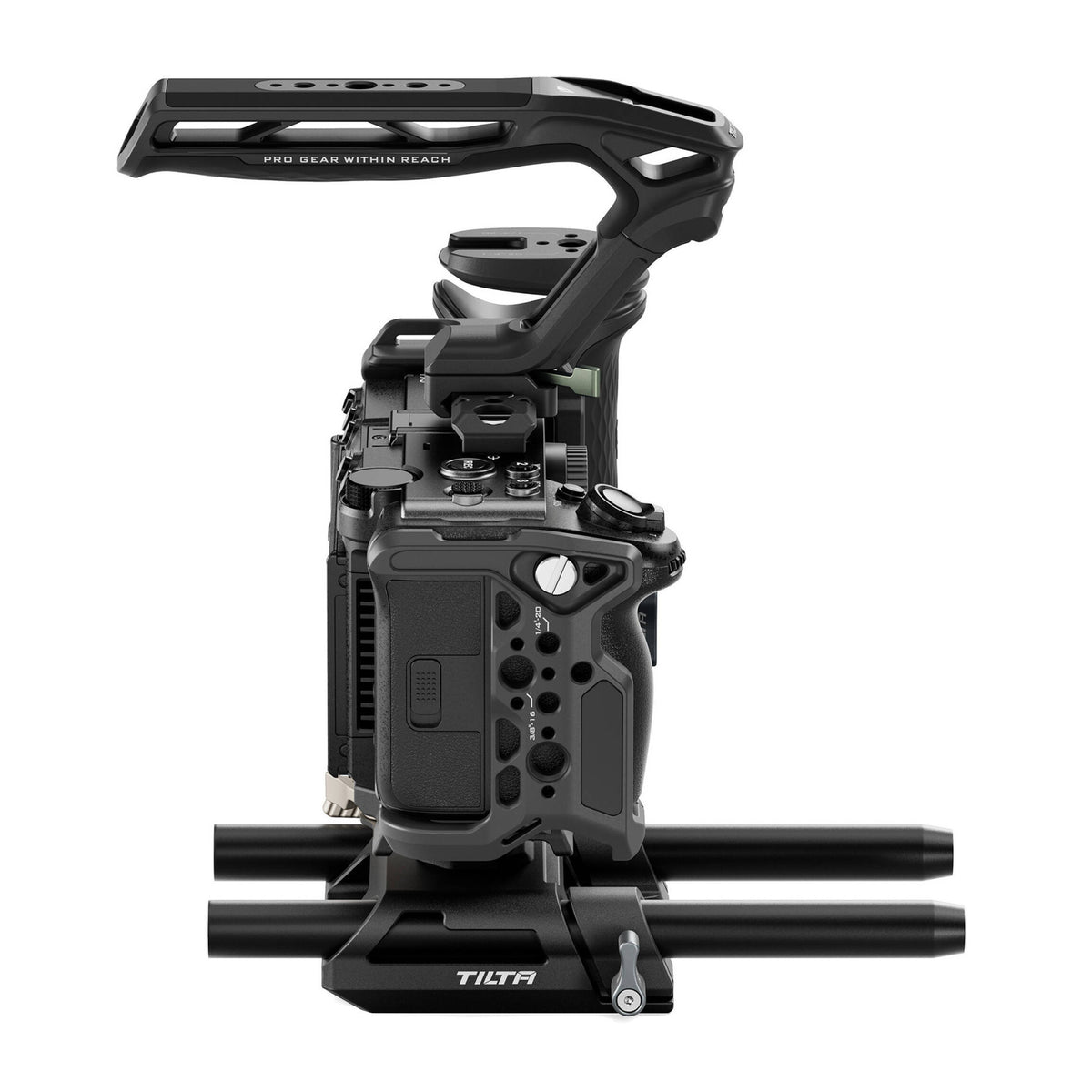

The Arca height adjustable 15 mm LWS baseplate supports rod based accessories such as matte boxes and follow focus systems. Its rod center to Arca receiver distance adjusts from 18 mm to 38 mm to help maintain the 85 mm LWS standard across different camera heights. The baseplate works with Tilta standard dovetails and carries rigs up to 10 pounds. Two 200 mm aluminum rods complete a support platform for expanding the FX5 into a more production focused configuration.
General
Camera Cage Pro Kit:
| Camera Compatibility | Sony FX5 |
| Color | Black |
| Overall Dimensions | 13.8 inches x 10.2 inches x 5.5 inches |
| Overall Weight | 4.6 pounds |
| Materials | Aluminum Alloy, SUS304 Stainless Steel, Silicone |
Tilta Full Camera Cage for Sony FX5
General:
| Support Type | Full Camera Cage |
| Camera Compatibility | Sony FX5 |
| Dimensions | 9 inches x 6.7 inches x 4.3 inches |
| Weight | 1.2 pounds |
| Materials | Aluminum Alloy, SUS304 Stainless Steel, Silicone |
| Color | Black |
Mounting:
| Accessory Mounting | Multiple 1/4 inch 20 female threads and multiple 3/8 inch 16 female threads with locating points |
| Camera Mounting | 1/4 inch 20 male screw |
| Tripod Mounting | 1/4 inch 20 female thread, 3/8 inch 16 female thread, built in Arca type plate |
| Shoe Mounting | 1 cold shoe receiver |
| Rail Mounting | Top NATO rail and side NATO rail |
| Cable Management | Locking high definition video and audio cable clamp |
| Battery Access | Magnetic battery compartment latch |
Tilta Xeno Top Handle with NATO Mount
General:
| Mount Type | NATO clamp |
| Dimensions | 9 inches x 6 inches x 3.5 inches |
| Weight | 0.88 pounds |
| Material | Aluminum Alloy |
| Grip Material | Silicone |
| Color | Black |
Mounting:
| Accessory Mounting | Multiple 1/4 inch 20 and 3/8 inch 16 threads with locating points |
| Shoe Mounting | 1 cold shoe receiver |
Tilta Xeno Side Handle with NATO Mount
General:
| Mount Type | NATO clamp |
| Mounting Position | Left or right side |
| Vertical Adjustment | 40 mm |
| Dimensions | 7 inches x 4.5 inches x 4 inches |
| Weight | 0.8 pounds |
| Material | Aluminum Alloy |
| Grip Material | Silicone |
| Color | Black |
Mounting:
| Shoe Mounting | 1 cold shoe receiver |
| Accessory Mounting | 3 anti twist 1/4 inch 20 threads |
| Integrated Tool | Magnetic 3 mm Allen key |
Tilta Arca Height Adjustable 15 mm LWS Baseplate
General:
| Rod Standard | 15 mm LWS |
| LWS Alignment Standard | 85 mm |
| Rod Center to Arca Receiver Range | 18 mm to 38 mm |
| Height Adjustment Range | 20 mm |
| Maximum Supported Rig Load | 10 pounds |
| Dimensions | 7.5 inches x 5.5 inches x 3.5 inches |
| Weight | 1 pound |
| Materials | Aluminum Alloy, SUS304 Stainless Steel, Silicone |
| Color | Black |
Mounting:
| Rod Mounting | Standard 15 mm rods |
| Quick Release Interface | Arca type |
| Bottom Interface | Tilta standard dovetail clamp |
| Bottom Threads | 1/4 inch 20 female threads |
| Camera Screw | 1/4 inch 20 |
Tilta 15 mm Aluminum Rods
General:
| Quantity | 2 |
| Rod Diameter | 15 mm |
| Rod Length | 200 mm |
| Approximate Rod Length | 8 inches |
| Material | Machined Aluminum |
| Finish | Black Anodized |
| End Threading | Female threads on both ends |
| Rod End Design | One chamfered end and one straight cut end |
