Tilta Nucleus Nano II FIZ Wireless Lens Control System

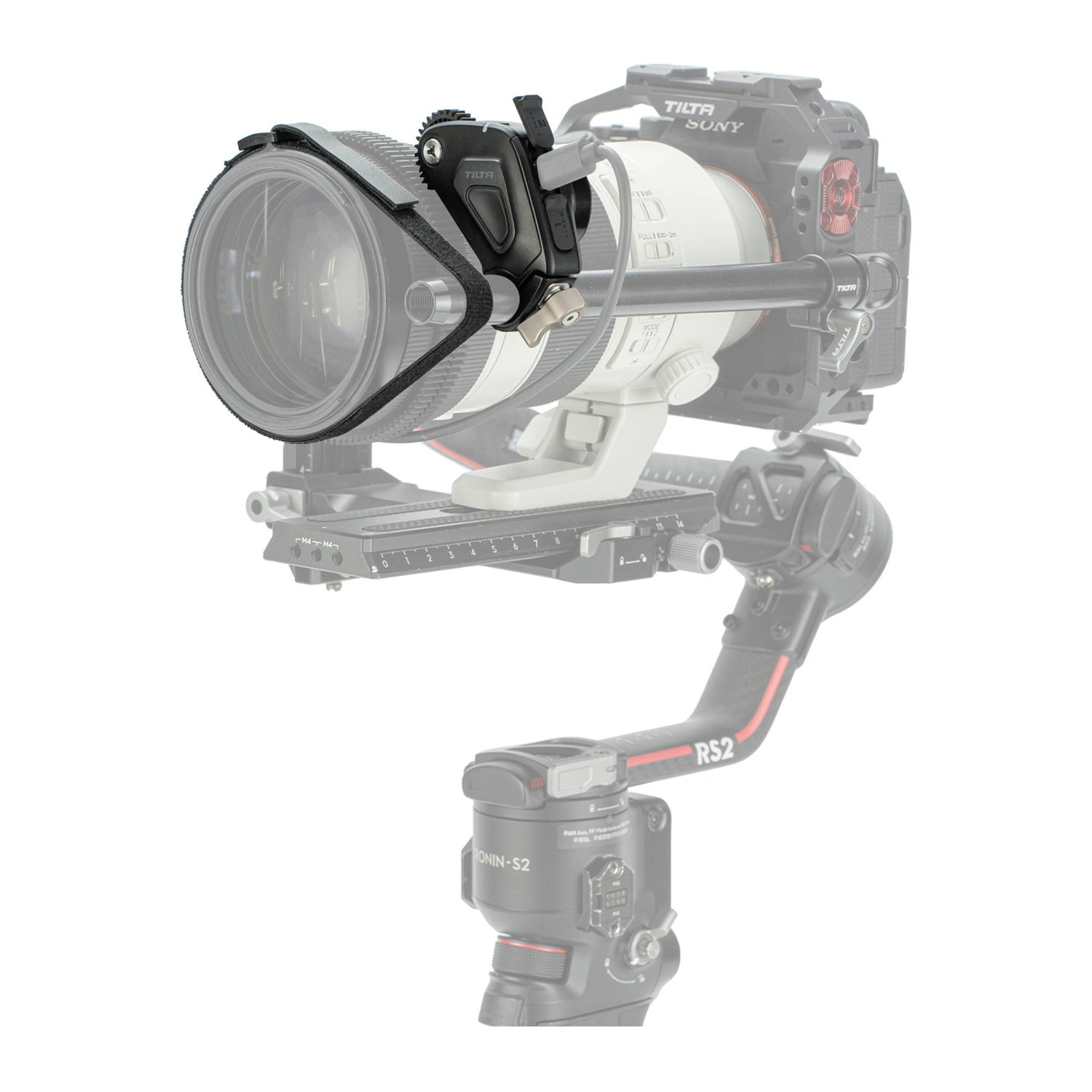

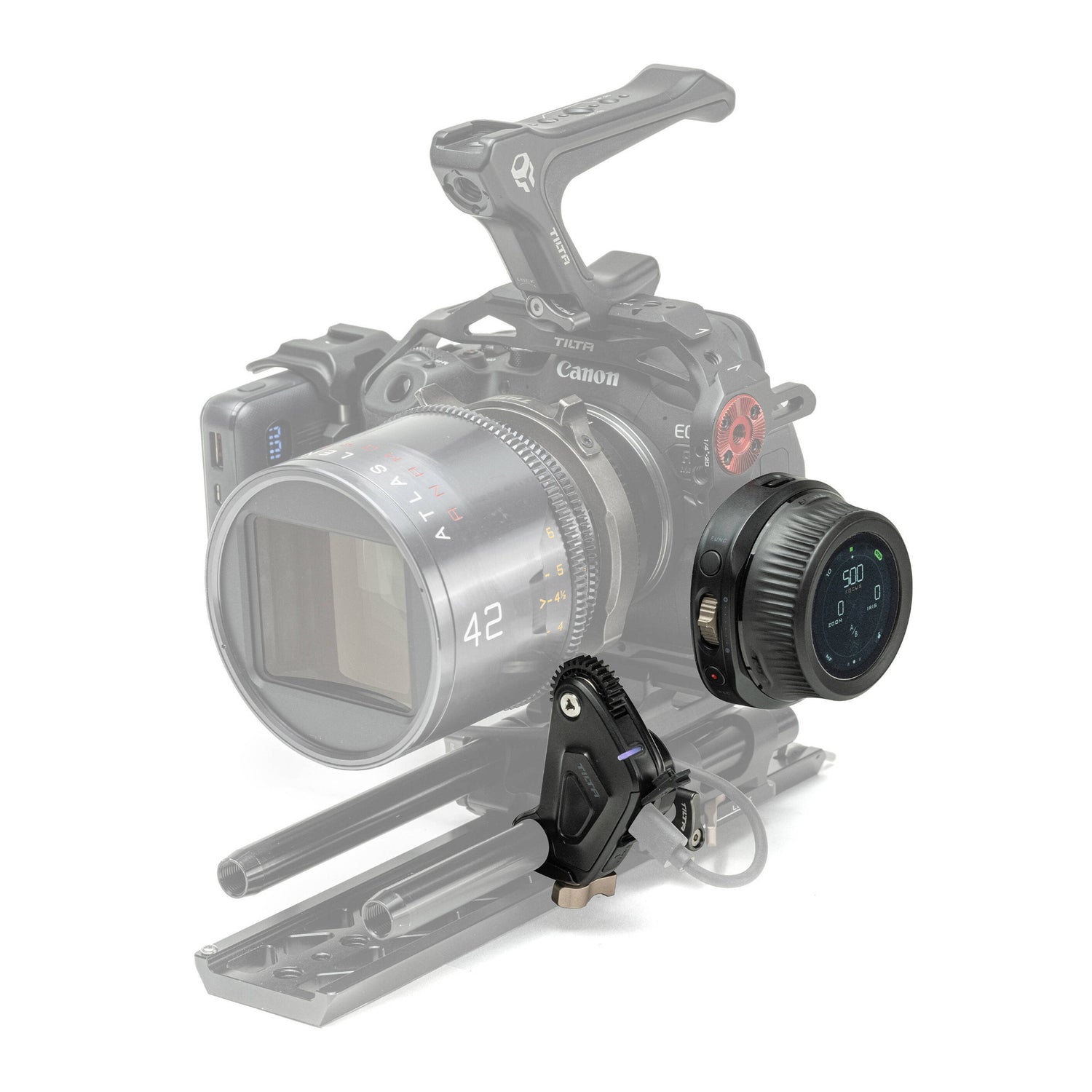

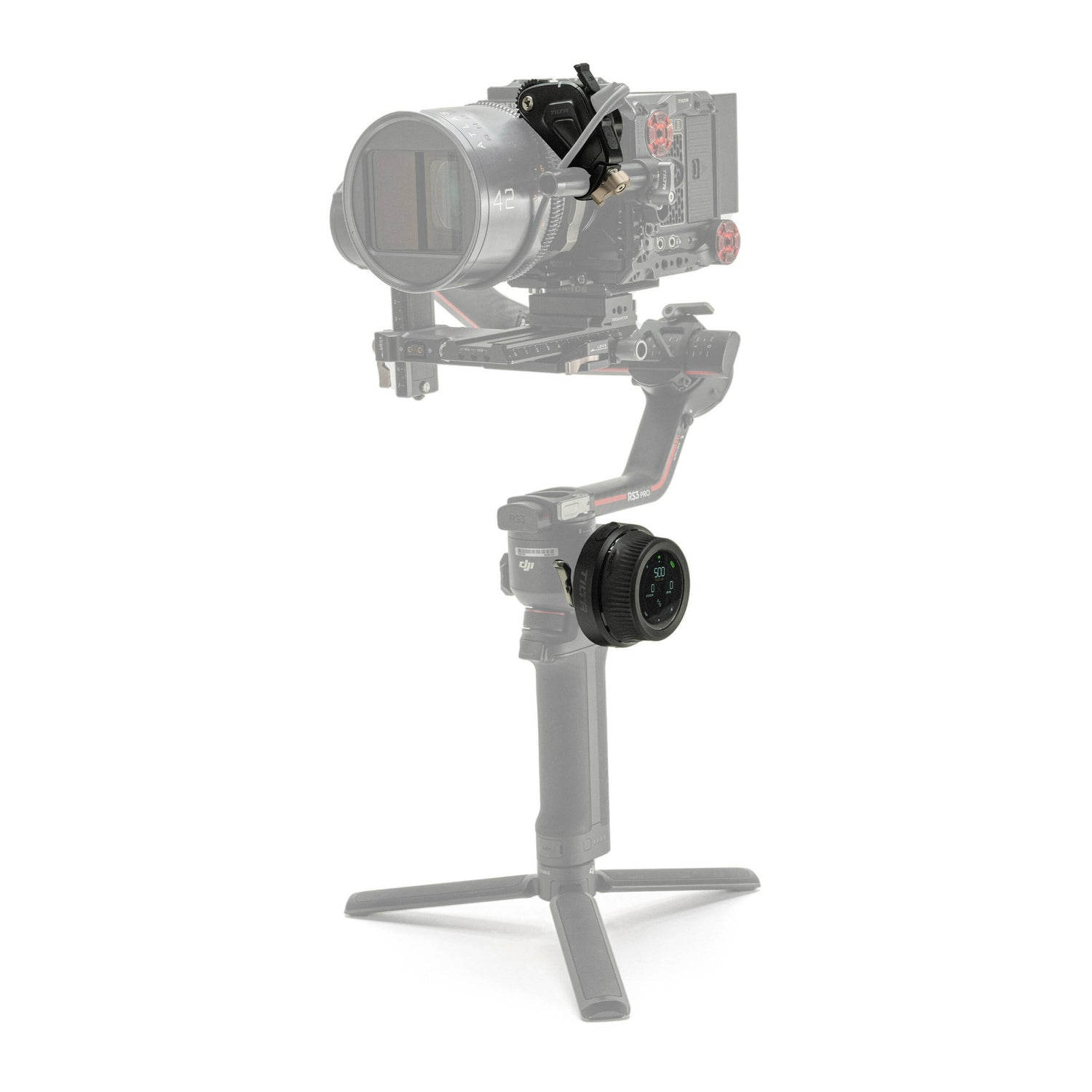

The Nucleus Nano II FIZ Wireless Lens Control System from Tilta is a focus, iris, and zoom control system designed for both freelance cinematographers and experienced DPs alike, whether they're using a handheld or gimbal-mounted rig. The basic system configuration includes a handwheel controller with upgraded touchscreen display and a lens control motor with five times the torque of its predecessor. USB-C connectivity, 2.4 GHz Wi-Fi, and Bluetooth connect the units to one another from up to 300' away and offer control compatibility with select camera systems, and Wi-Fi allows for firmware updates.

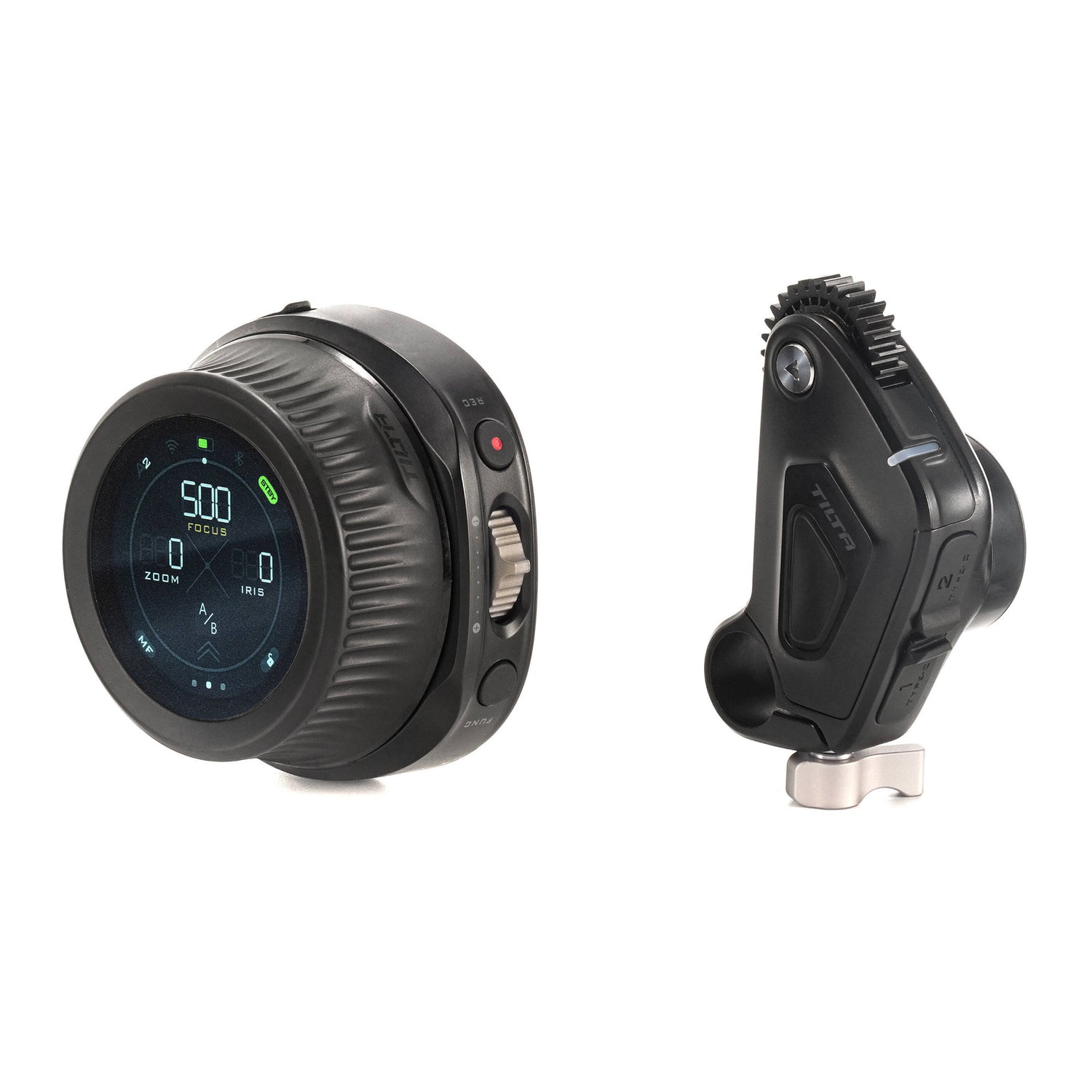

Handwheel Controller with Touchscreen

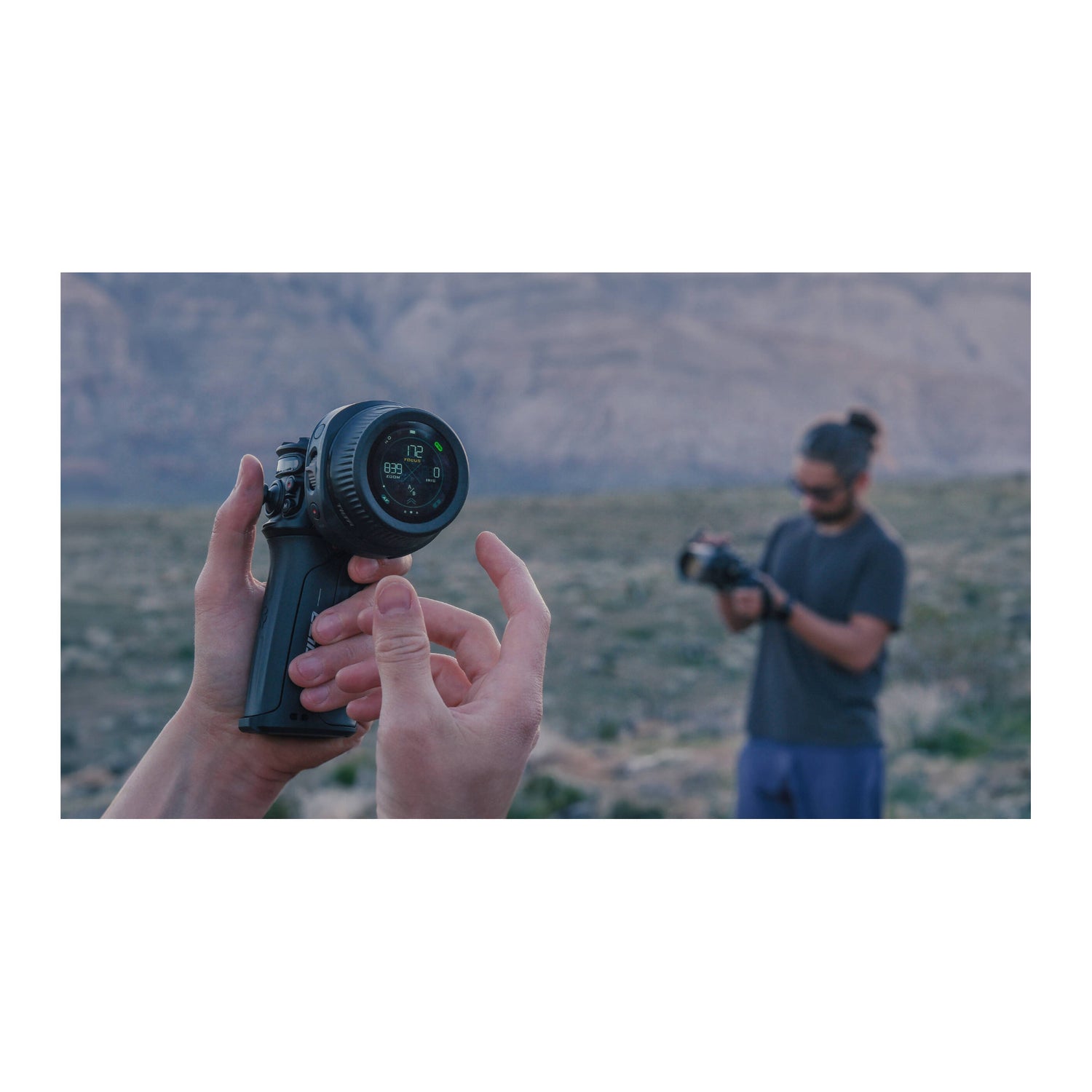

View your wireless channel, Wi-Fi status, battery life, Bluetooth connectivity, and standby status on the outer portion of the controller's 1.6-inch touchscreen dial. FIZ parameters and A/B stop live on the center portion, with the option to lock the screen or toggle between auto and manual focusing. Two other menus can be accessed from the main screen to lock and adjust your connected camera's settings and view your current lens parameters. Additional settings that can be accessed from the interface include pairing and accessing manual controls for the motor as well as additional customizations for the handwheel.

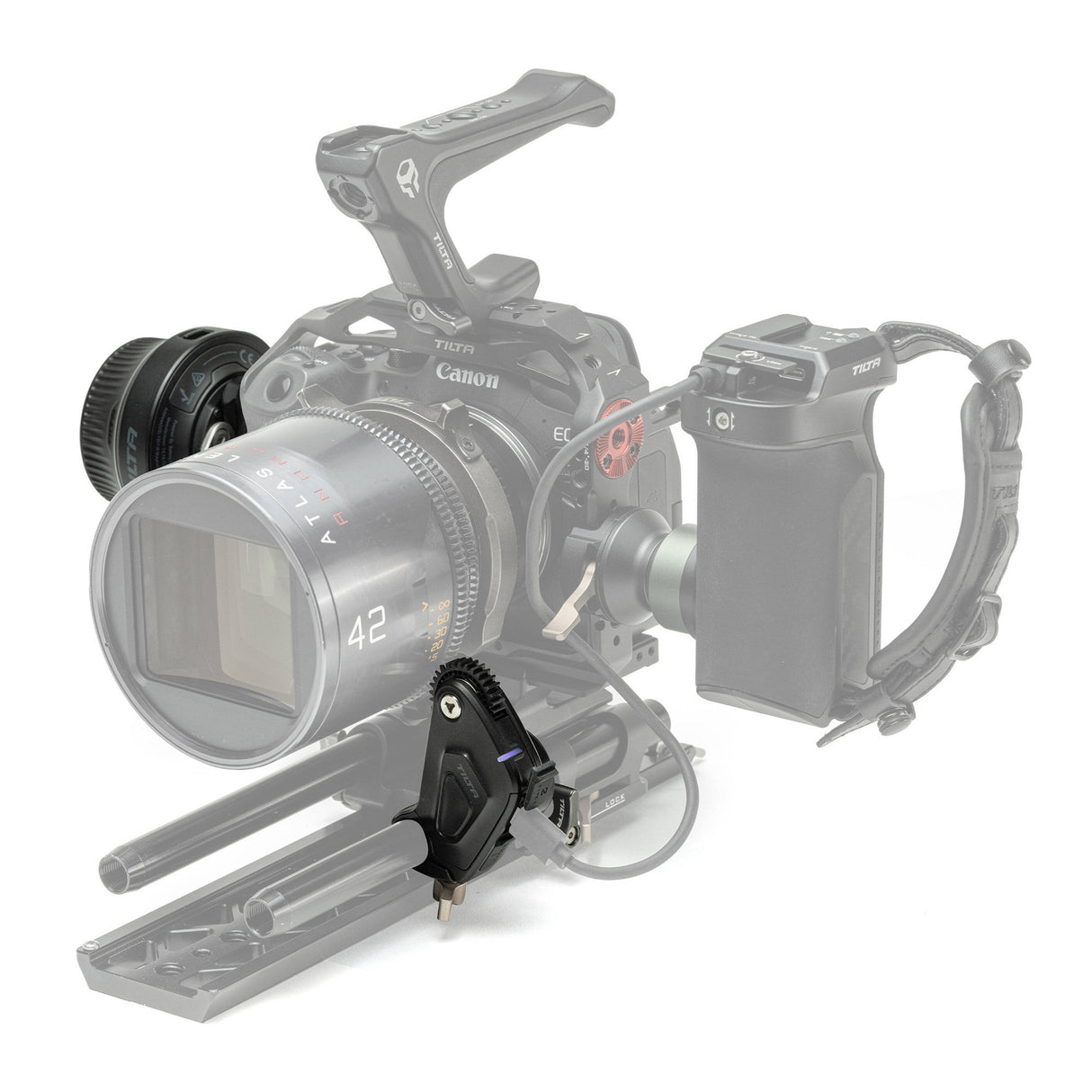

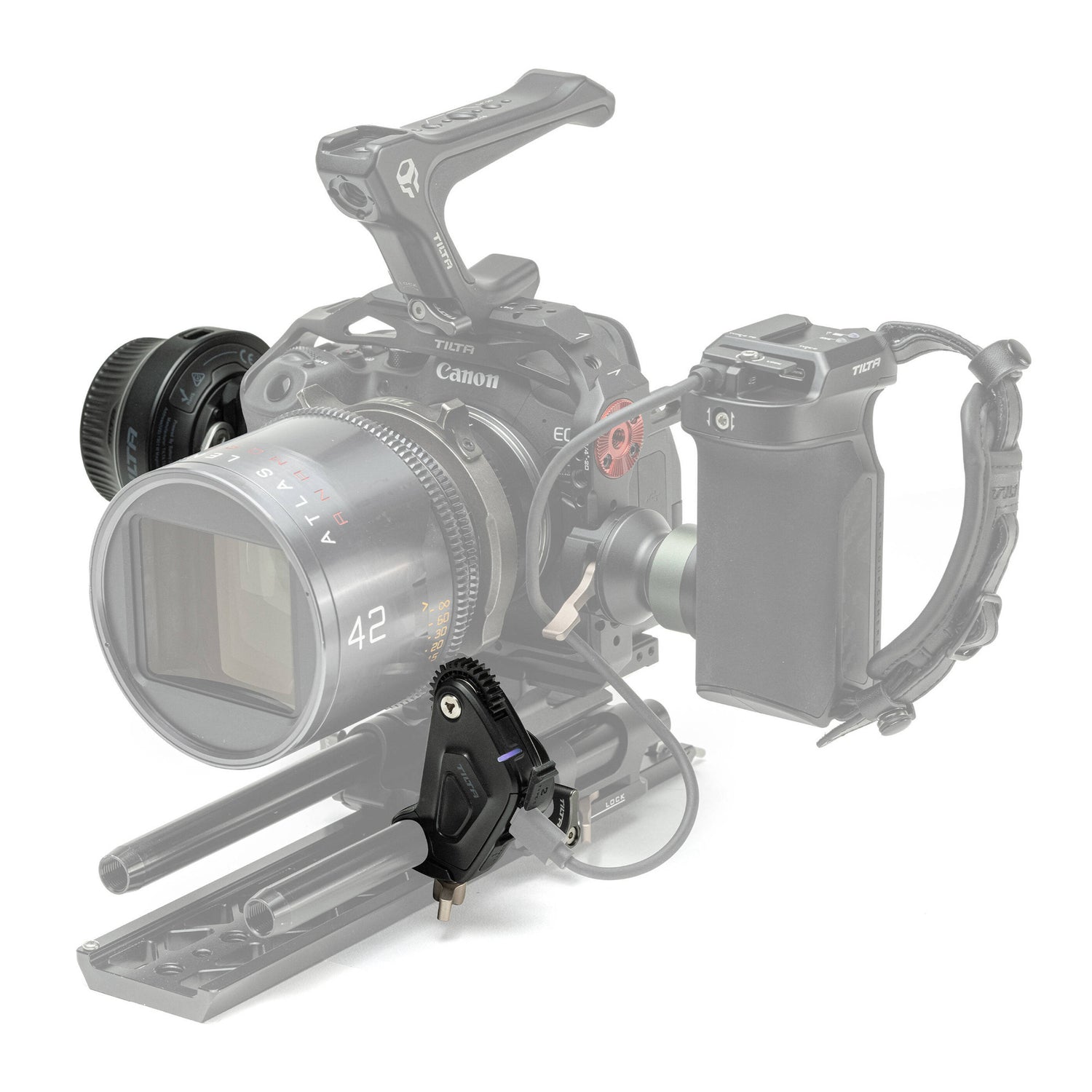

FIZ Lens Control Motor

The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses, while an included lens adapter ring expands this compatibility for DSLR and mirrorless camera lenses. Two USB-C ports on the motor—one I/O and one input only—power the motor and can pass power through to multiple motors to control FIZ from a single source.

USB-C Ports and Power

The USB-C port on the handwheel can be used to facilitate wired connections to compatible cameras. It can also recharge the internal battery when depleted and facilitate firmware updates to the motors or other Nano II accessories. Power can also be delivered to the Nano II using the contact points on the back of the handwheel, which are compatible with select Tilta power accessories. Use professional batteries, power banks, or separately available Tilta power handles to power the motor via the USB-C input. The whole system can run for up to 20 hours.

Intuitive Pairing and Configuration

Select a 2.4 GHz Wi-Fi channel to pair your handwheel with the lens motor over a wireless connection. Press the function button on the motor to finalize the connection and cycle through the available modes: iris control, zoom control, or focus control. Different light colors will show you which mode you are on: green for iris, blue for zoom, purple for focus, and yellow for other. Hold the function button down to automatically calibrate the motor.

Onboard Handwheel Controls

A run/stop button powers up the handwheel and sends run/stop commands to your connected camera via USB-C for Sony and Canon cameras.

A zoom rocker can be set to adjust your lens's zoom, focus, or iris adjustment via Bluetooth motor connection.

A function button calibrates your motors and sets A/B stops.

Use the TF/DF switch to spin the wheel infinitely or set stops in both directions. TF mode is preferred when using the handwheel in tandem with the Nucleus motor, while DF mode works best with the DJI Focus Motor. Spinning the wheel control will adjust your FIZ sensitivity.
