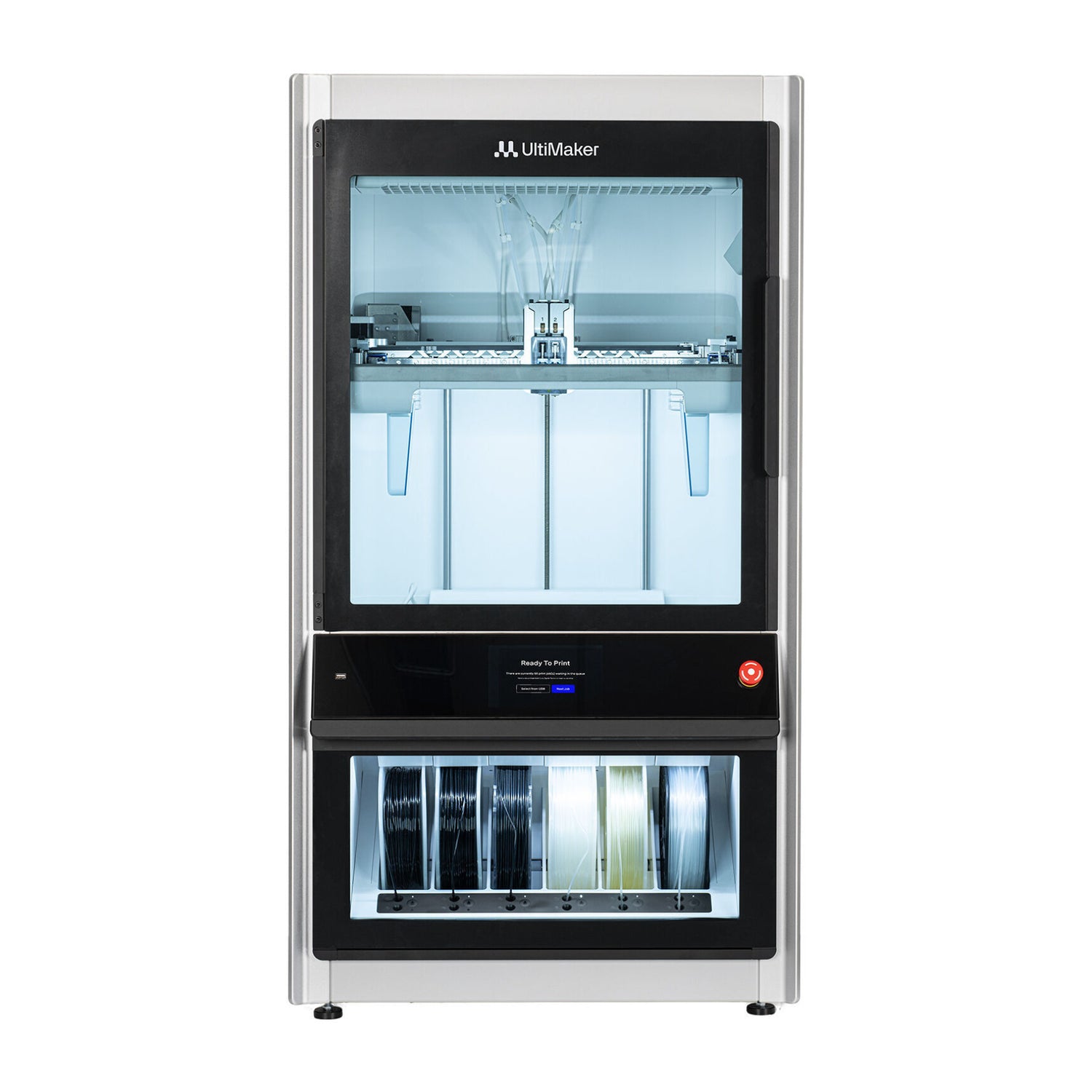

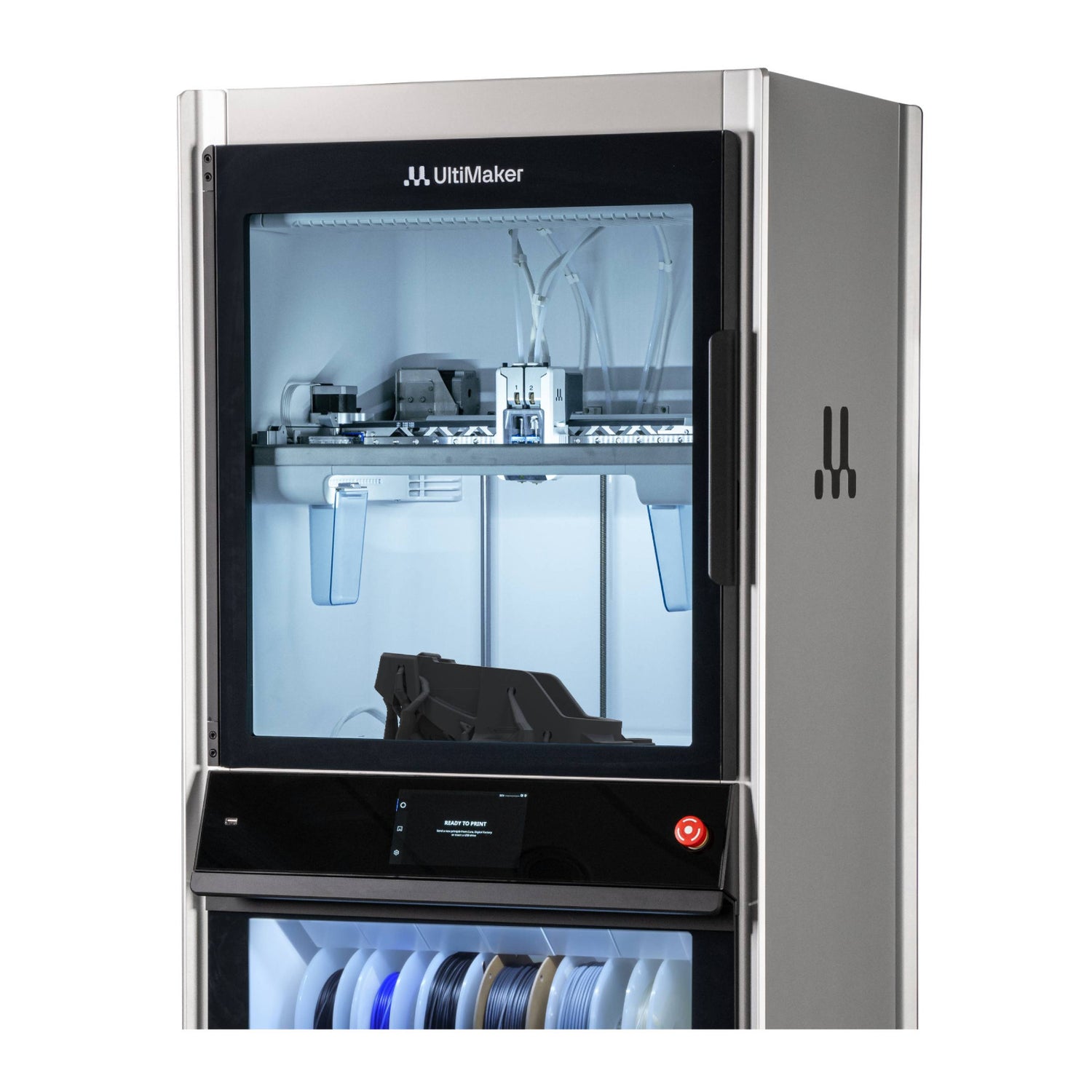

UltiMaker Factor 4 Industrial-Grade 3D Printer
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
UltiMaker Factor 4, the new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.
Built For The Factory Floor

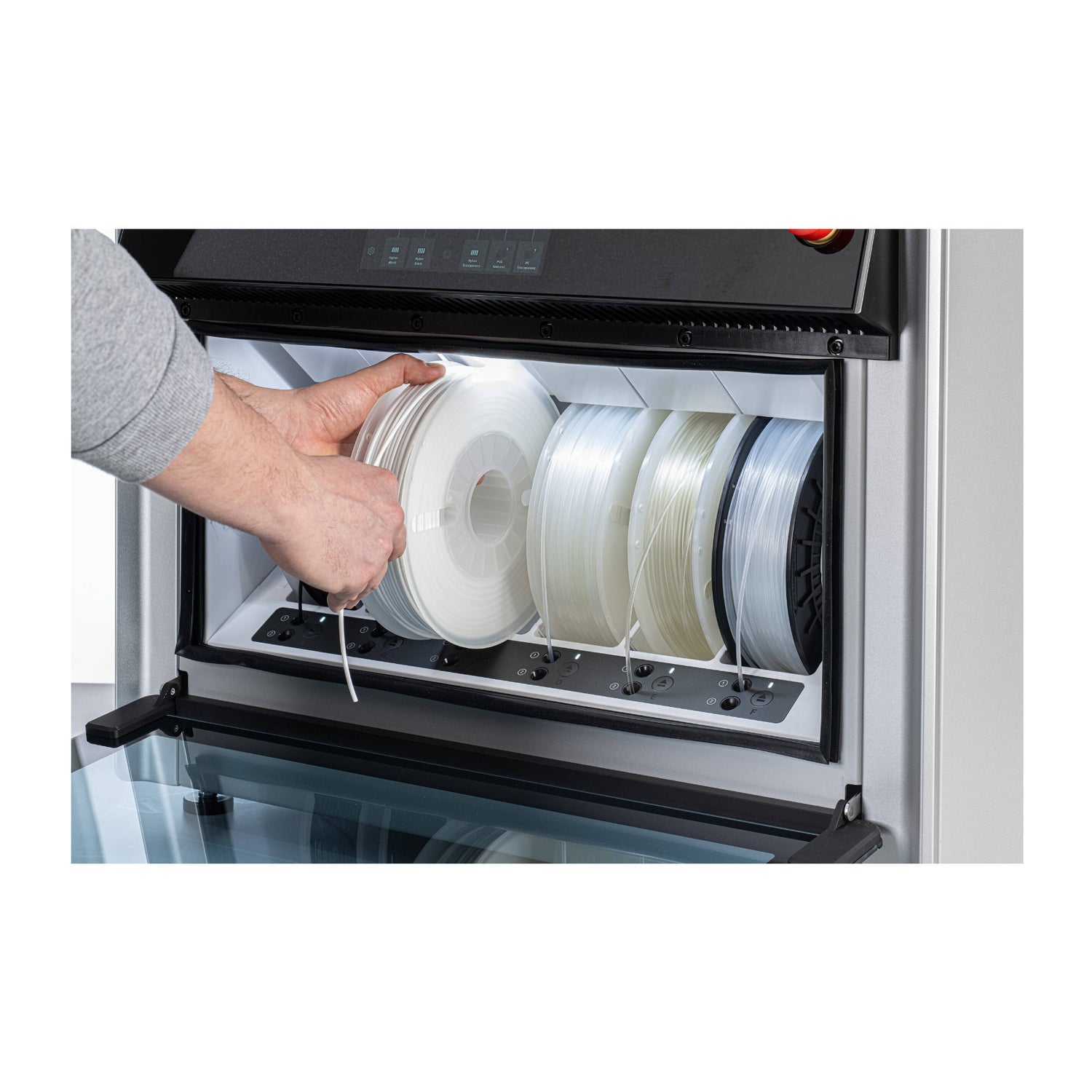

Factor 4 elevates manufacturing with its triple-insulated build and direct dual extrusion. The automated material handling system maintains filament quality. And the robust, temperature-controlled design ensures consistent production output also on complex and challenging designs.
Reliability, Repeatability and Validation
Achieve the highest print accuracy of any UltiMaker printer – even at high resolution on small design features. These will achieve a dimensional accuracy of ± 0.2 mm ± 0.2% of feature nominal length over the full build plate and across multiple printers.
Achieve More with FDM 3D Printing
The Factor 4 excels at quickly switching from 3D printing highly flexible materials all the way to strong composites, like UltiMaker PPS CF. Its H-bridge gantry and direct drive head enable rapid dual material printing.
Success with Every 3D Print
Factor 4 makes it possible to additively produce & deploy structural integrity verified parts across different locations. The low variance, less than 10%, in extrusion rate and mechanical properties batch after batch, part after part is a combination of the H-bridge gantry, closed loop feed control, and uniformly controlled build plate temperatures – with a maximum variation of 2 °C across the X and Y axes.
A Future-Proof Investment
Regular updates ensure that your Factor 4 will evolve over time – far beyond the 12 to 18 months it will take to achieve return on investment. The 3D printer's modular build allows our global support network to quickly replace parts, minimizing downtime.
Dimensions & Build
| Build Volume | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled Dimensions | 695 x 605 x 1287 mm (27.5 x 24 x 51 inches) |
| Weight | 120 kg (265 lbs) |
Printing Technology
| Print Technology | Fused Deposition Modeling (FDM) |
| Compatible Filament Diameter | 2.85 mm |
| Maximum Power Output | 600 W |
Printer Properties
| Layer Resolution | 60-400 microns (varies by nozzle and profile) |
| XYZ Resolution | 6.25, 7.8, 2.5 microns |
| Feeder Type | Dual-extrusion, direct drive print head with swappable print cores |
| Display | 7-inch interactive touchscreen (1024 × 600 px) |

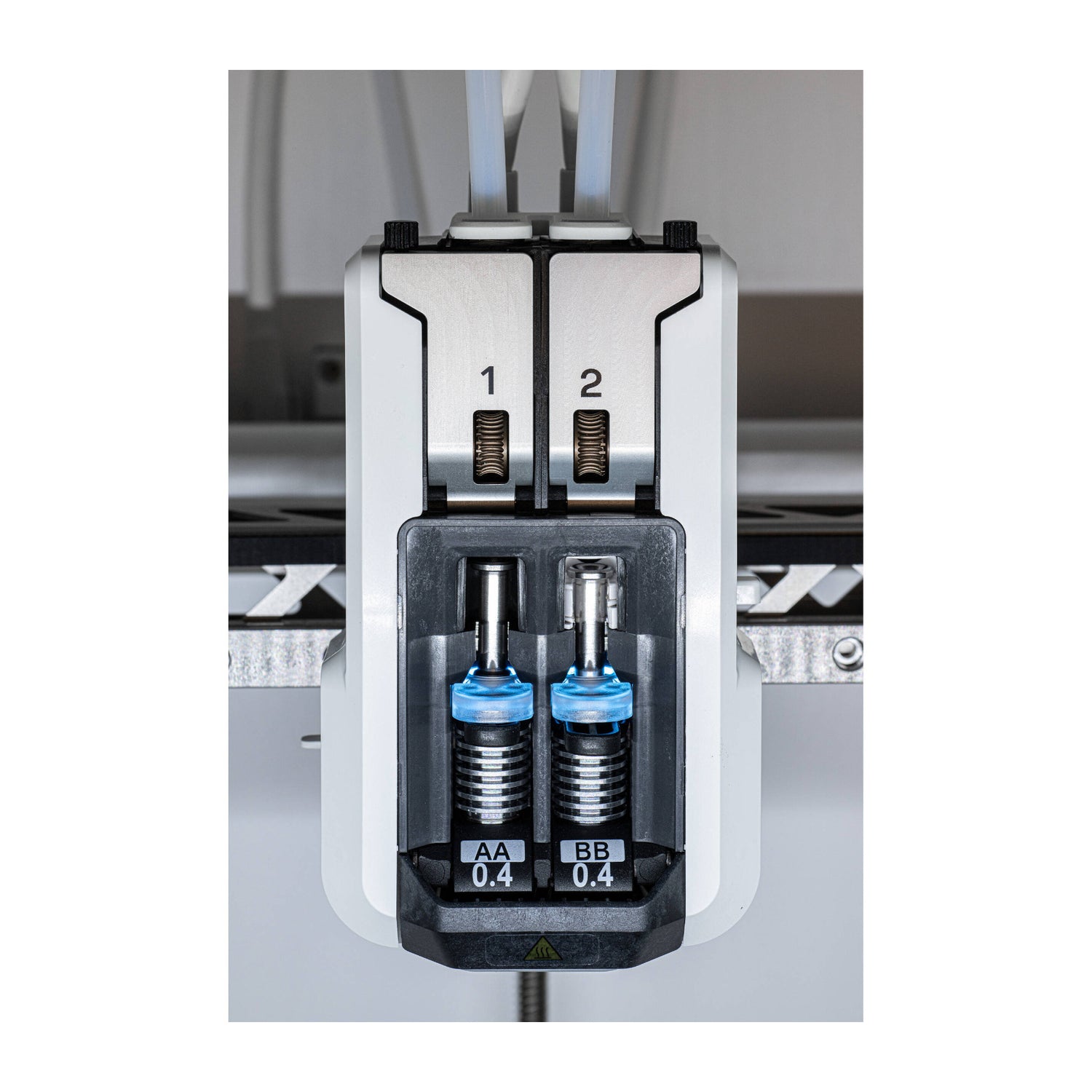

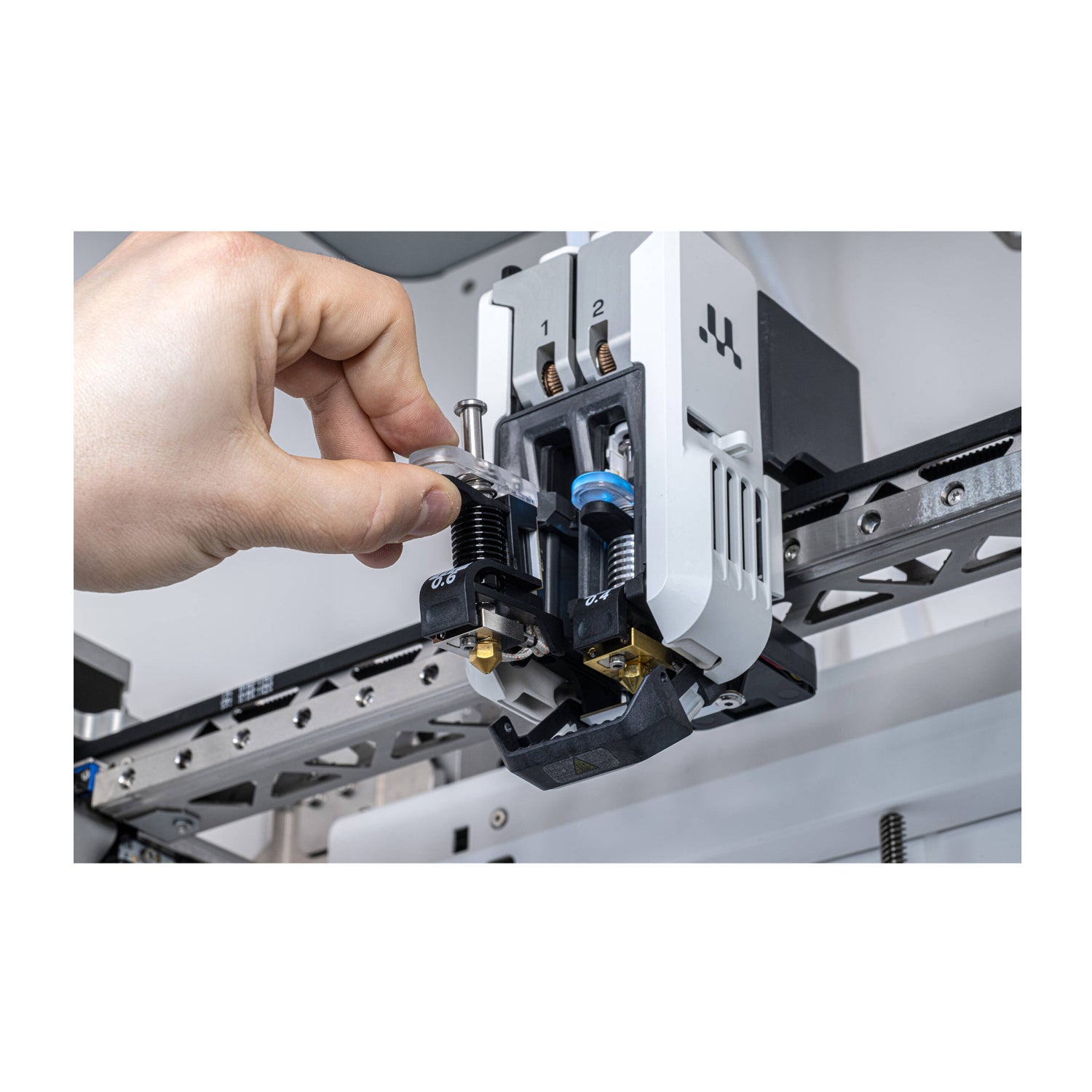

| Print Core Replacement | Swappable print cores |
| Print Head | Dual extrusion with auto-nozzle lift system and flood detection |
| Nozzle Diameters | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation Parameters
| Filter Technology | Replaceable HEPA H13 filter |
| Nozzle Temperature | 180 – 340 °C |
| Build Plate | PEI-coated flexible steel plate |
| Operating Temperature | 18-30 °C (64 - 86 °F), 30 - 70% RH |
| Non-Operating Temperature | 5-40 °C (41 - 104 °F), 20 - 90% RH |
Ecosystem
| Supplied Software | UltiMaker Cura, UltiMaker Digital Factory |
| Supported OS | macOS, Windows, Linux |
| Plugin Integration | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported File Types | STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG |
| Printable Formats | G, GCODE, GCODE.gz, UFP |
| File Transfer | Wi-Fi (2.4 & 5 GHz), Ethernet, USB |
Safety & Compliance
| Safety Features | Red emergency stop button, open door sensor for motion and extrusion pause |
