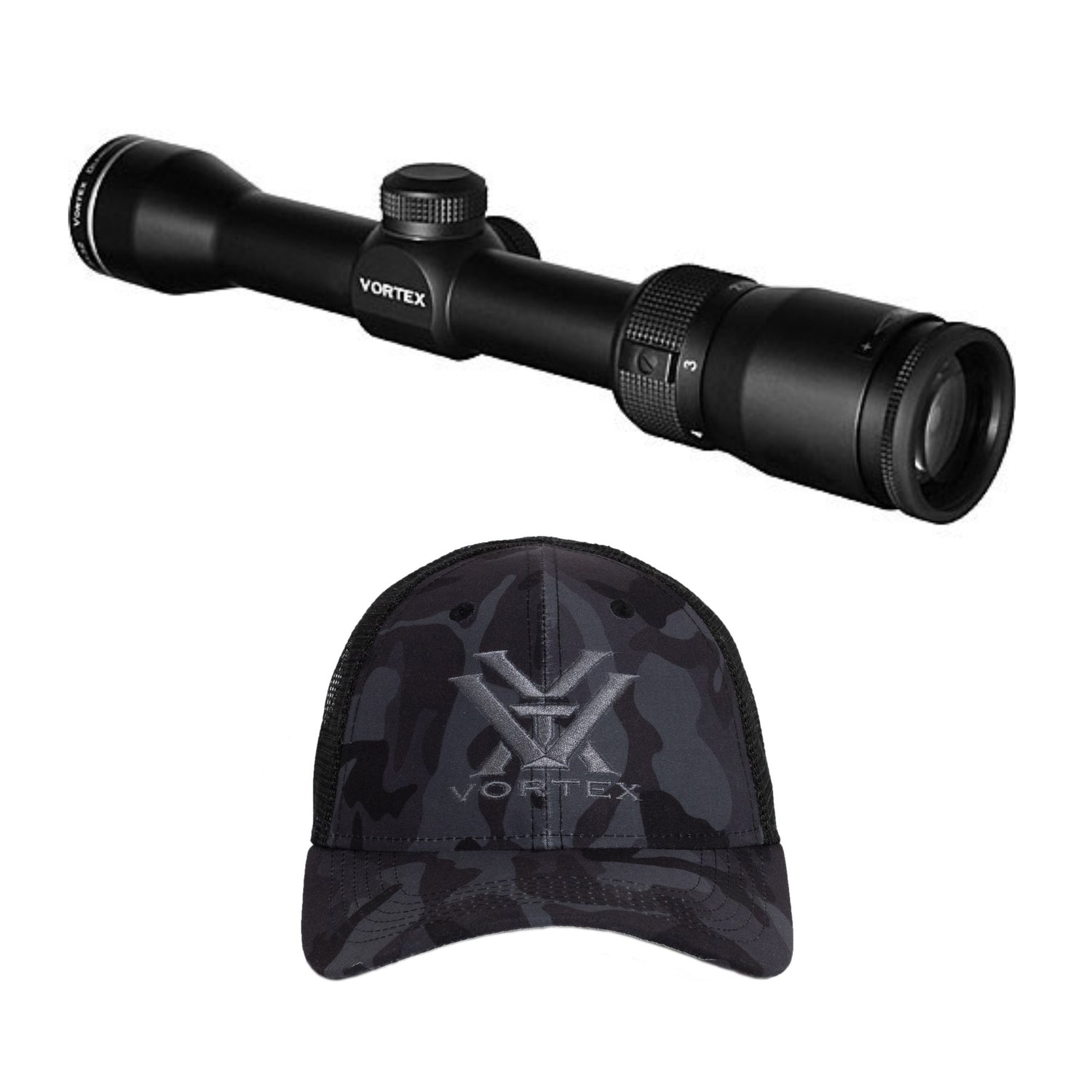

Vortex Optics 1.75-5x32 Diamondback Riflescope (Dead-Hold BDC Reticle) and Hat
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

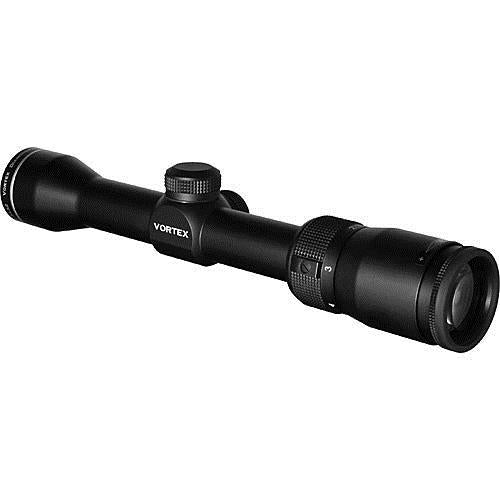

Vortex Optics 1.75-5x32 Diamondback Riflescope (Dead-Hold BDC Retic...
Diamondback riflescopes completely change the rules when it comes to “you get what you pay for.” First, the solid one-piece aircraft-grade aluminum alloy construction makes them virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the checklist and the advanced, fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. All this and then some in a riflescope that seems like it should cost so much more—but doesn’t.
Key Features
- Fully Multi-Coated - Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Tube Size 1-inch diameter.
- Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
- Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Capped Reset Turrets Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.
- Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
Main
| Magnification | 5x |
| Objective Lens Diameter | 32mm |
| Reticle Pattern | BDC |
| Configuration | Core |
| Min Power (Variable) | 1.7x |
| Max Power (Variable) | 5x |
| Tube Diameter | 1" |
| Application | Rifles |
| Color | Black |
| Magnification 1.75-5x | |
| Objective Lens Diameter 32mm | |
| Angle of View 3.5-1.1° | |
| Field-of-View (@ 1000 Yds) 1.75x | 683' (226 m at 1000 m) |
| 5x | 231' (77 m at 1000 m) |
| Dioptric Correction Range +2/-3 | |
| Exit Pupil Diameter 1.75 | x 18.3mm |
| 5x | 6.4mm |
| Eye Relief 1.75x | 3.7-inch (94mm) |
| 5x | 3.5-inch (89mm) |
| Filter Size None | |
| Impact Point Correction per Click 1/4 MOA | |
| Maximum Elevation/Windage Adjustment Windage | 139 MOA |
| Elevation | 139 MOA |
| Relative Brightness 1.75x | 335.0 |
| 5x | 40.1 |
| Twilight Factor 1.75x | 7.5 |
| 5x | 13.1 |
| Weatherproofing Water & fog proof | |
| Dimensions Length | 10.2-inch (257mm) |
| Weight 12.8 oz (363 g) |
