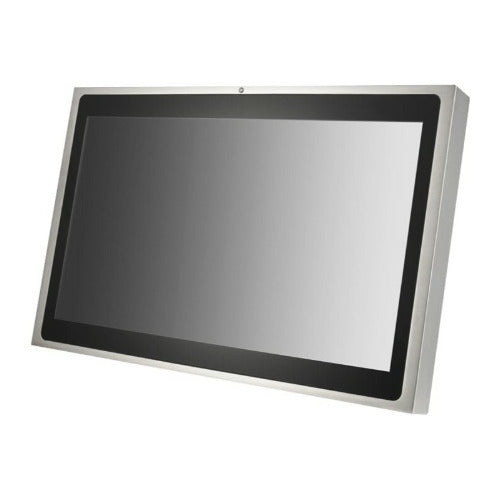

Xenarc Technologies 24-in IP67 and IP69K Touchscreen LCD with VGA, HDMI, and DVI
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The 2409 series of displays expand Xenarc Technologies’ product line into a larger, more specialized segment of the display market. This 24-inch high brightness, 1000NIT display features IP69K ruggedization, which allows the monitors to withstand close range, high temperature and high-pressure spray downs for sanitization, and rigid stainless steel enclosures that could withstand harsh detergents, acidic/alkaline disinfectants, and seawater. This Xenarc display will satisfy the stringent sanitation requirements of food processing, beverage production, pharmaceutical manufacturing, and chemical factories. A wide temperature range allows these displays to operate at temperatures down to -22-degree F (-30-degree C) and withstand temperatures up to 158-degree F (70-degree C), making them perfect for food processing applications where refrigeration or freezing is a must, or in marine and outdoor applications where marine spray or sub-freezing temperatures and direct sun exposure may make other displays unusable.
Projected Capacitive Touchscreen

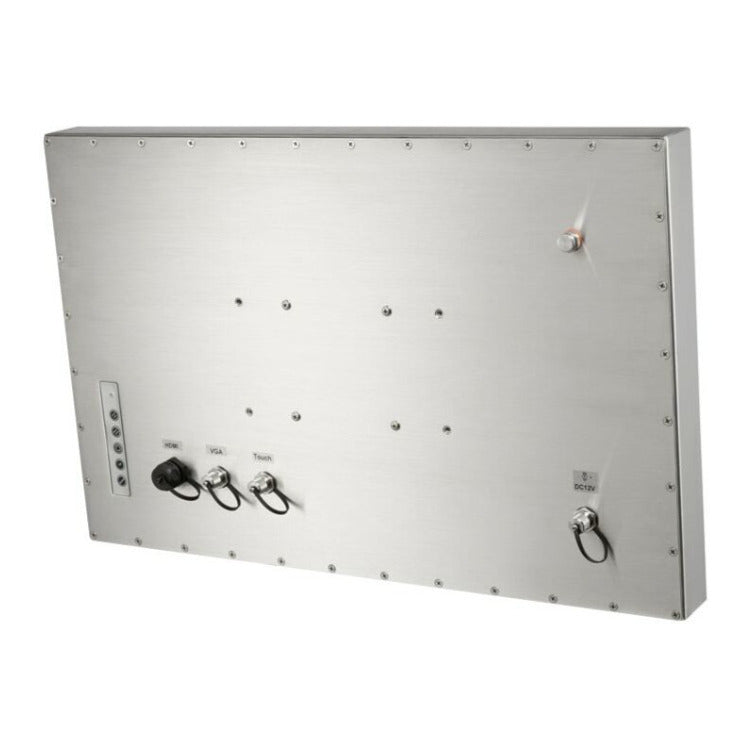

This display monitor includes a projected capacitive touchscreen and utilizes a wide viewing angle, a full HD IPS panel that features a native resolution of 1920x1080, and VGA and HDMI inputs. VESA mounting holes on the back (100mm and 200mmx100mm) come standard, allowing these displays to be mounted in virtually any situation. Whether outdoors and exposed to the elements, or indoors in extreme temperature environments, the rugged, reasonably priced 2409 series displays are built specifically to enhance and expand any application to the limit.
High-Grade Components
By utilizing high-grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required.
Xenarc Technologies 24-inch IP67 and IP69K Touchscreen LCD Monitor with VGA, HDMI, and DVI Inputs
| Screen size | Diagonal 24-inch (16:9) |
| Physical resolution | 1920 (H) x 1080 (V) HD |
| Supported resolution | 640 x 480 to 1920 x 1080 |
| Brightness | 1000 cd/m² |
| Contrast ratio | 5000:1 |
| Viewing angle | 178-degree Horizontal, 178-degree Vertical |
| Response time (Tr+Tf) | 25ms (Typ.) |
| Touch screen interface | USB port |
| Operating voltage range | DC 12V |
| Power supply | DC 12V |
| Power consumption | ≤ 45W |
| Operating temperature | -22 to 158-degree F (-30 to 70-degree C) |
| Storage temperature | -22 to 167-degree F (-30 to 75-degree C) |
| Vibration | Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard |
| Shock | Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard |
| MTBF (Mean time between failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension (mm) | 608W x 392H x 54D |
| Weight (lb) | 22.65 |
