Xenarc Technologies 8-Inch LCD Display Monitor
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

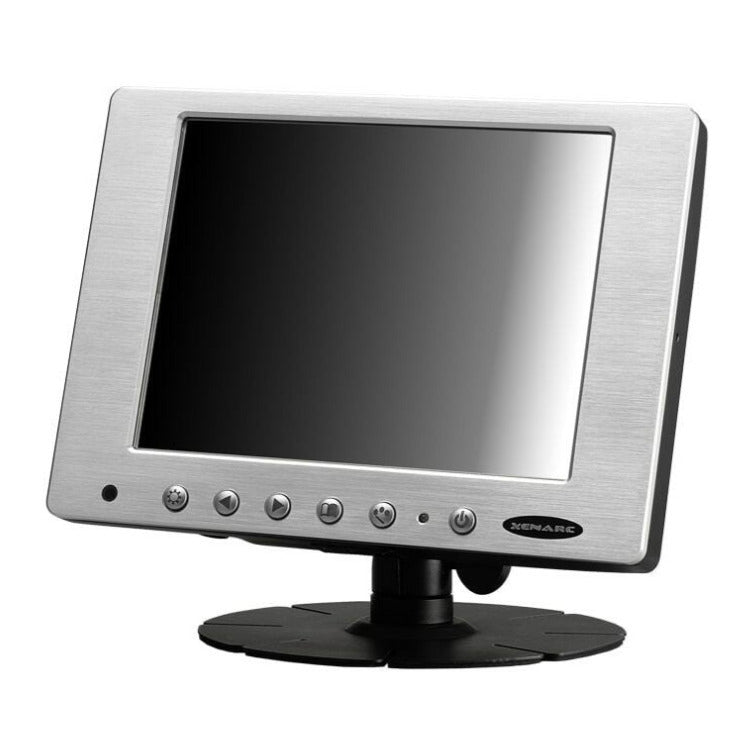

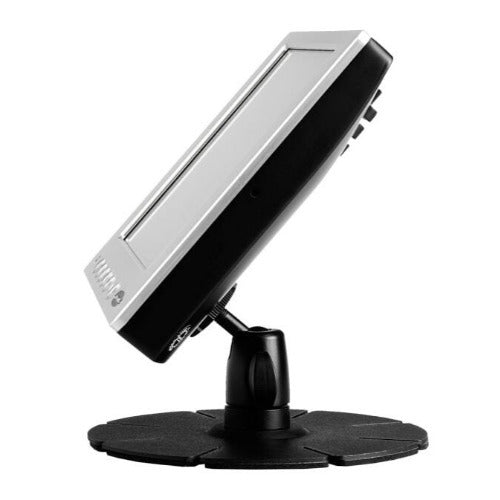

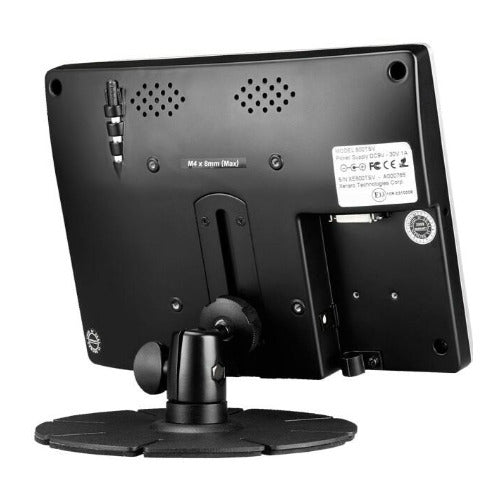

Xenarc Technologies introduced its 800 series line of ruggedized, aluminum-encased monitor displays with an 8-inch Touchscreen LCD display with VGA input, utilizing the latest LED backlight technology.
Rugged and Versatile
This rugged and versatile unit incorporates the innovation of the VGA 8-inch display monitor model along with a 5-wire resistive touchscreen panel. Use the convenient 8-inch touch-screen as your input device, and control your mouse cursor or the mini on-screen keyboard that comes with your operating system. The display utilizes the USB port as the interface. You can connect several of these 8-inch touchscreen displays to your device and the touchscreens would work simultaneously through the multi-monitor support.
Anodized Aluminum Faceplate
The brushed, anodized aluminum faceplate gives the 8-inch LCD LED monitor a modern yet elegant look. The entire enclosure is constructed with aluminum, making the unit strong and ruggedized.
High-Grade Components
By utilizing high-grade components, this 8-inch LCD LED display monitor is perfect for industrial, in-car computing applications, or any other applications where a small form factor, portable and durable displays are required.
Connectivity
| External Ports | USB Type-C |
General
| AC Input Power | DC 12V |
Environmental
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -4 to 158-degree F (-20 to 70-degree C) |
Physical
| Weight | 2.64 lb |
| Wall Mounting | Not Available |
| Lock Slot | No |
Display
| Resolution | 800 x 600 |
| Brightness | 400 cd/m² |
| TV Screen Size (Diagonal) | 8" |
| Variable Frame Rates | Not Available |
| Panel Type | LCD |
| Viewing Angle (H x V) | 140 x 120° |
| Contrast Ratio | 500:1 |
| Dot Pitch | 1,440,000 (dots) |
Xenarc Technologies 8-inch LCD Display Monitor with VGA and AV Inputs
| Screen size | Diagonal 8-inch (4:3) |
| Physical resolution | 800 (H) x 600 (V) SVGA |
| Supported resolution | 640 x 480 to 1600 x 1200 |
| Dot resolution | 2400 x 600 = 1,440,000 (dots) |
| LCD brightness | 400 cd/m2 |
| Contrast ratio | 500:1 |
| Viewing angle | 140-degree Horizontal, 120-degree Vertical |
| Response time (Tr/Tf) | 10/15ms (Typ.) |
| Touch screen interface | USB port |
| Operating voltage range | DC 9V to 36V |
| Power supply | DC 12V |
| Power consumption | < 14W |
| Operating temperature | -4 to 158-degree Fahrenheit (-20 to 70-degree Celsius) |
| Storage temperature | -22 to 176-degree Fahrenheit (-30 to 80-degree Celsius) |
| MTBF (Mean time between failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension (W x H x D) | 228 x 164 x 36 mm |
| Weight | 2.64 lb |
