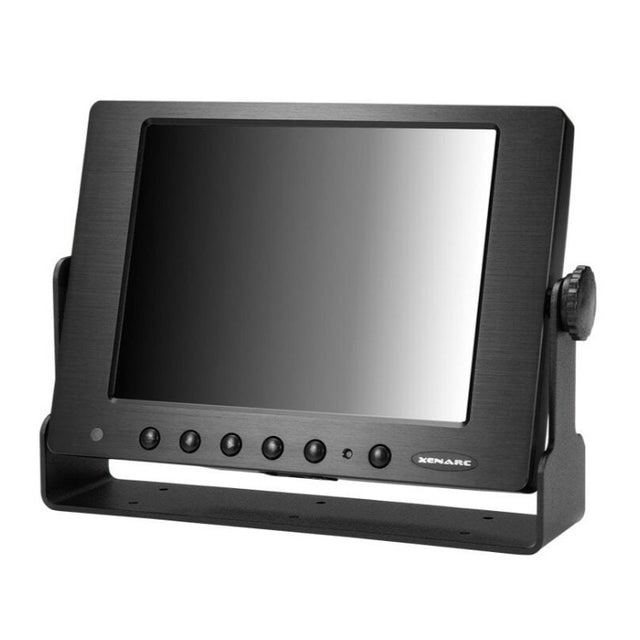

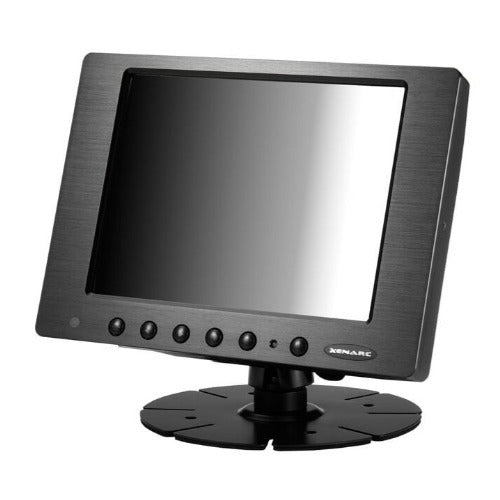

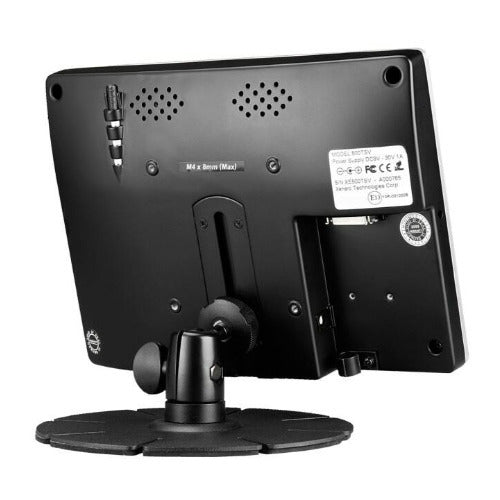

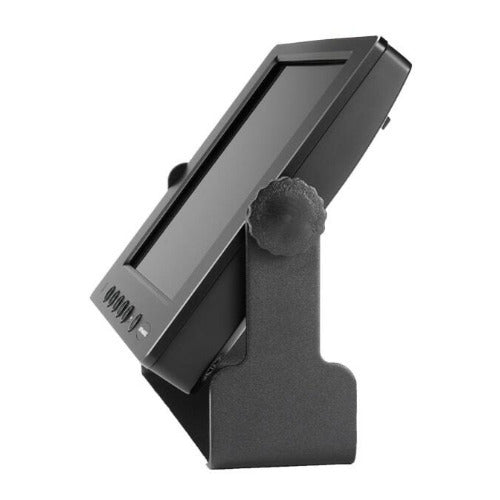

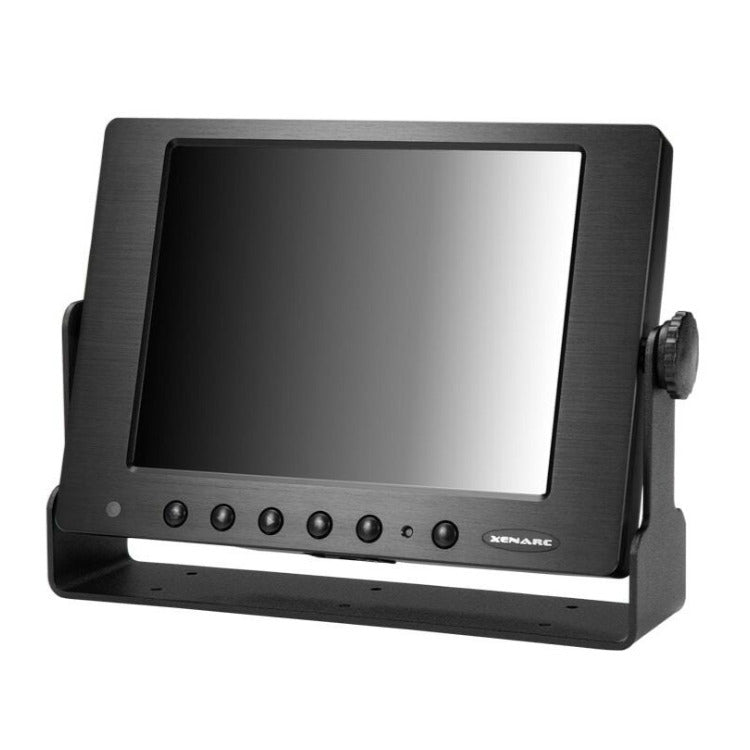

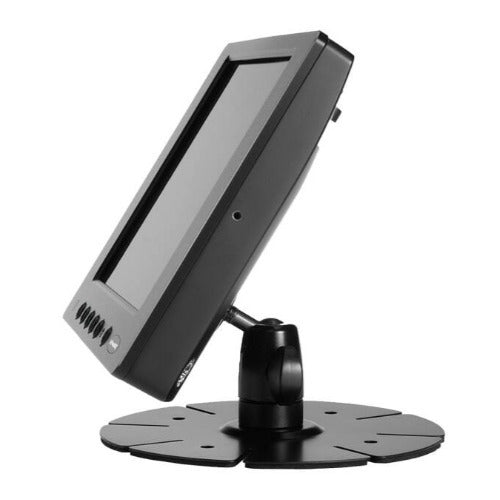

Xenarc Technologies 8-inch Sunlight Readable LCD Monitor with VGA HDMI DVI Input
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
In a follow-up of the 800 series and the 805 series, Xenarc Technologies added to its 8-inch line of off-the-shelf display solutions with the introduction of an 8-inch LED LCD display monitor with a brightness rating of 1,000NIT. The high brightness of this 8-inch inch display monitor, as well as the ruggedized aluminum casing, makes it ideal for outdoor integration and application.
Rugged and Versatile
This rugged and versatile 8-inch display monitor offers superior readability under direct sunlight. With the proprietary technology, Xenarc is are able to increase the brightness rating to 1,000NIT, and the contrast ratio to 500:1. Sunlight readability is further enhanced by its advanced anti-reflective coating.
Anodized Aluminum Faceplate
The brushed, anodized aluminum faceplate gives the 8-inch display monitor a modern yet elegant look. The entire enclosure is constructed with aluminum, making the unit strong and ruggedized.
High-Grade Components
By utilizing high-grade components, this 8-inch LCD LED display monitor is perfect for industrial, in-car computing applications or any other applications where small, portable, and durable displays are required.
Connectivity
| External Ports | HDMI |
General
| AC Input Power | DC 12V |
Environmental
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -4 to 158-degree F (-20 to 70-degree C) |
Physical
| Weight | 2.64 lb |
| Wall Mounting | Not Available |
Display
| Resolution | 800 x 600 |
| Brightness | 1000 cd/m² |
| TV Screen Size (Diagonal) | 8" |
| Variable Frame Rates | Not Available |
| Touch Screen | 42190 |
| Panel Type | LCD |
| Viewing Angle (H x V) | 140 x 120° |
| Contrast Ratio | 500:1 |
| Dot Pitch | 1,440,000 (dots) |
Xenarc Technologies 8-inch Sunlight Readable LCD Monitor with VGA HDMI DVI Inputs
| Screen size | Diagonal 8-inch (4:3) |
| Physical resolution | 800 (H) x 600 (V) SVGA |
| Supported resolution | 640 x 480 to 1600 x 1200 |
| Dot resolution | 2400 x 600 = 1,440,000 (dots) |
| LCD brightness | 1000 cd/m² |
| Contrast ratio | 500:1 |
| Viewing angle | 140-degree Horizontal, 120-degree Vertical |
| Response time (Tr/Tf) | 10/15ms (Typ.) |
| Operating voltage range | DC 9V to 36V |
| Power supply | DC 12V |
| Power consumption | < 14W |
| Operating temperature | -4 to 158-degree F (-20 to 70-degree C) |
| Storage Temperature | -22 to 176-degree F (-30 to 80-degree C) |
| MTBF (Mean time between failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension (mm) | 228W x 164H x 36D |
| Weight | 2.64 lb |
