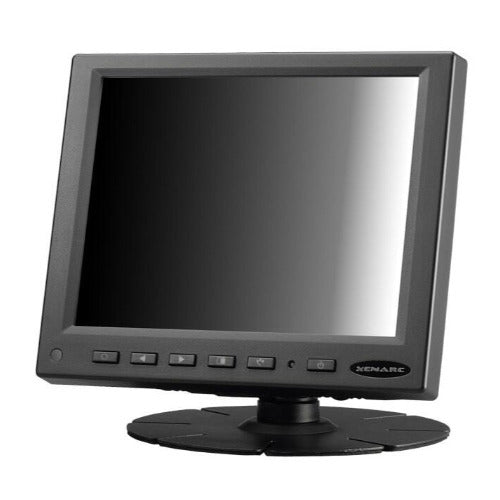

Xenarc Technologies followed up the success of the 800 series line of small form factor portable mini industrial displays with the introduction of the 805 series, an 8-inch LCD screen with VGA input utilizing the latest LED backlight technology.
Industrial Display Unit
Don't mistake this 8-inch industrial monitor display for an ordinary video monitor that displays composite video. This 8-inch industrial, military, medical and marine-grade display monitor has 800 x 600 pixels (2400 x 600 sub-pixels) that help display crystal clear texts and ultra-sharp images through your computer's VGA signal.
High-Grade Components
By utilizing high-grade components such as solid capacitors, this monitor is perfect for industrial, in-car computing applications or any other applications where a small, durable display is required.
General
| AC Input Power | DC 12V |
Environmental
| Storage Temperature | -30°C to 80°C |
| Operating Temperature | -4 to 158-degree F (-20 to 70-degree C) |
Physical
| Weight | 1.81 lb |
| Wall Mounting | Not Available |
Display
| Resolution | 800 x 600 |
| Brightness | 400 cd/m² |
| TV Screen Size (Diagonal) | 8" |
| Variable Frame Rates | Not Available |
| Panel Type | LCD |
| Viewing Angle (H x V) | 140 x 120° |
| Contrast Ratio | 500:1 |
| Dot Pitch | 1,440,000 (dots) |
Xenarc Technologies 8-inch LCD Display Monitor with VGA and AV Inputs
| Screen size | Diagonal 8-inch (4:3) |
| Physical resolution | 800 (H) x 600 (V) SVGA |
| Supported resolution | 640 x 480 to 1600 x 1200 |
| Dot resolution | 2400 x 600 = 1,440,000 (dots) |
| LCD brightness | 400 cd/m² |
| Contrast ratio | 500:1 |
| Viewing angle | 140-degree Horizontal, 120-degree Vertical |
| Response time (Tr/Tf) | 10/15ms (Typ.) |
| Operating voltage range | DC 9V to 36V |
| Power supply | DC 12V |
| Power consumption | < 14W |
| Operating temperature | -4 to 158-degree F (-20 to 70-degree C) |
| Storage temperature | -22 to 176-degree F (-30 to 80-degree C) |
| MTBF (Mean time between failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension (mm) | 200W x 163H x 36.5D |
| Weight | 1.81 lb |
