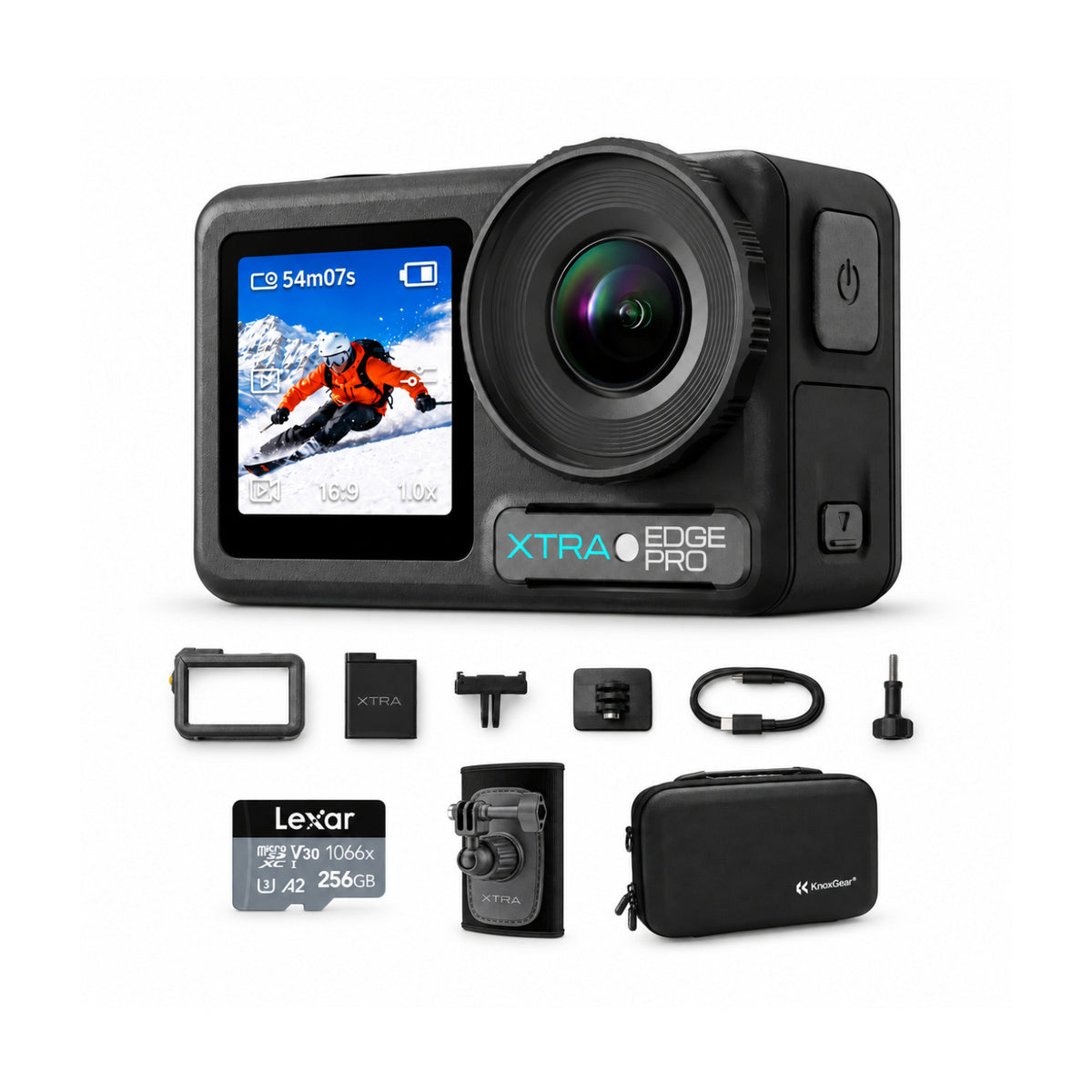

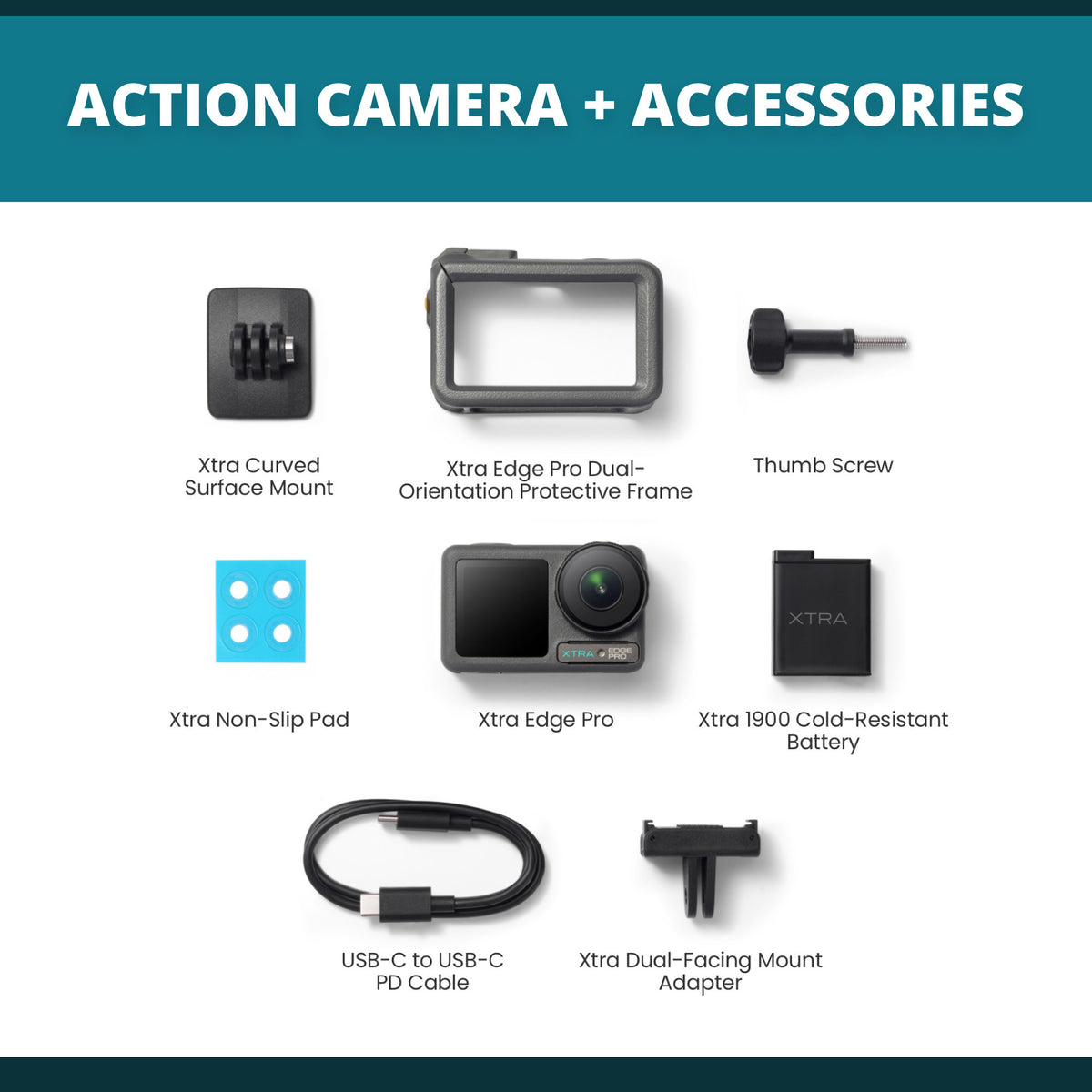

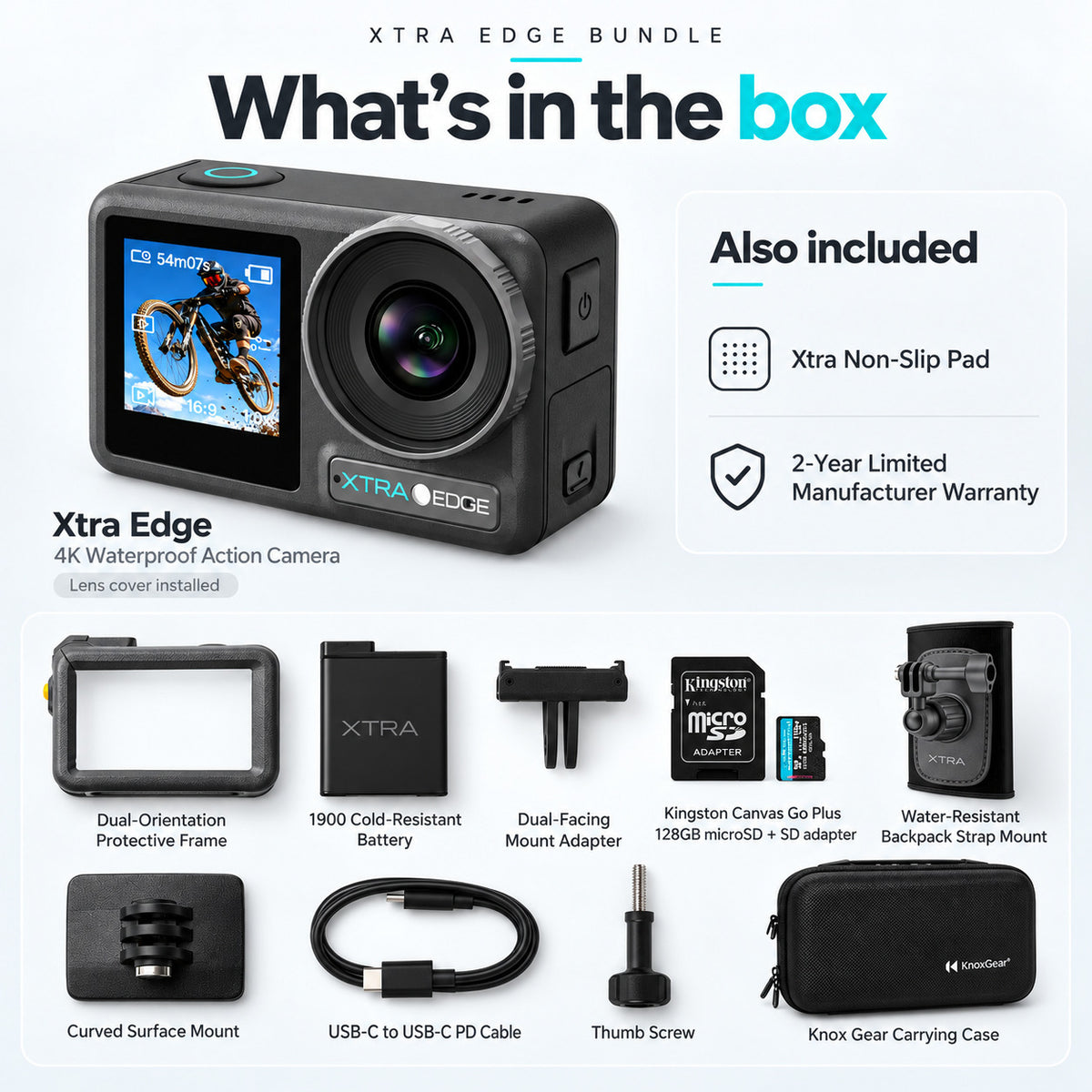

- Xtra Edge Pro 40MP Action Camera
- Xtra 1900 Cold-Resistant Battery
- Xtra Edge Pro Dual-Orientation Protective Frame
- Xtra Dual-Facing Mount Adapter
- Xtra Curved Surface Mount
- Thumb Screw
- USB-C to USB-C PD Cable
- Xtra Edge Pro Glass Lens Protective Cover (Installed on the camera lens)
- Xtra Non-Slip Pad
- 2-Year Limited Manufacturer Warranty
- Kingston Canvas Go Plus U3 V30 A2 microSD Card with SD Adapter and 200MBPS Read Speed (128GB)
- Xtra Edge Water-resistant Backpack Strap Mount
- Knox Gear Osmo Portable Storage and Carrying Case
Trusted & Verified

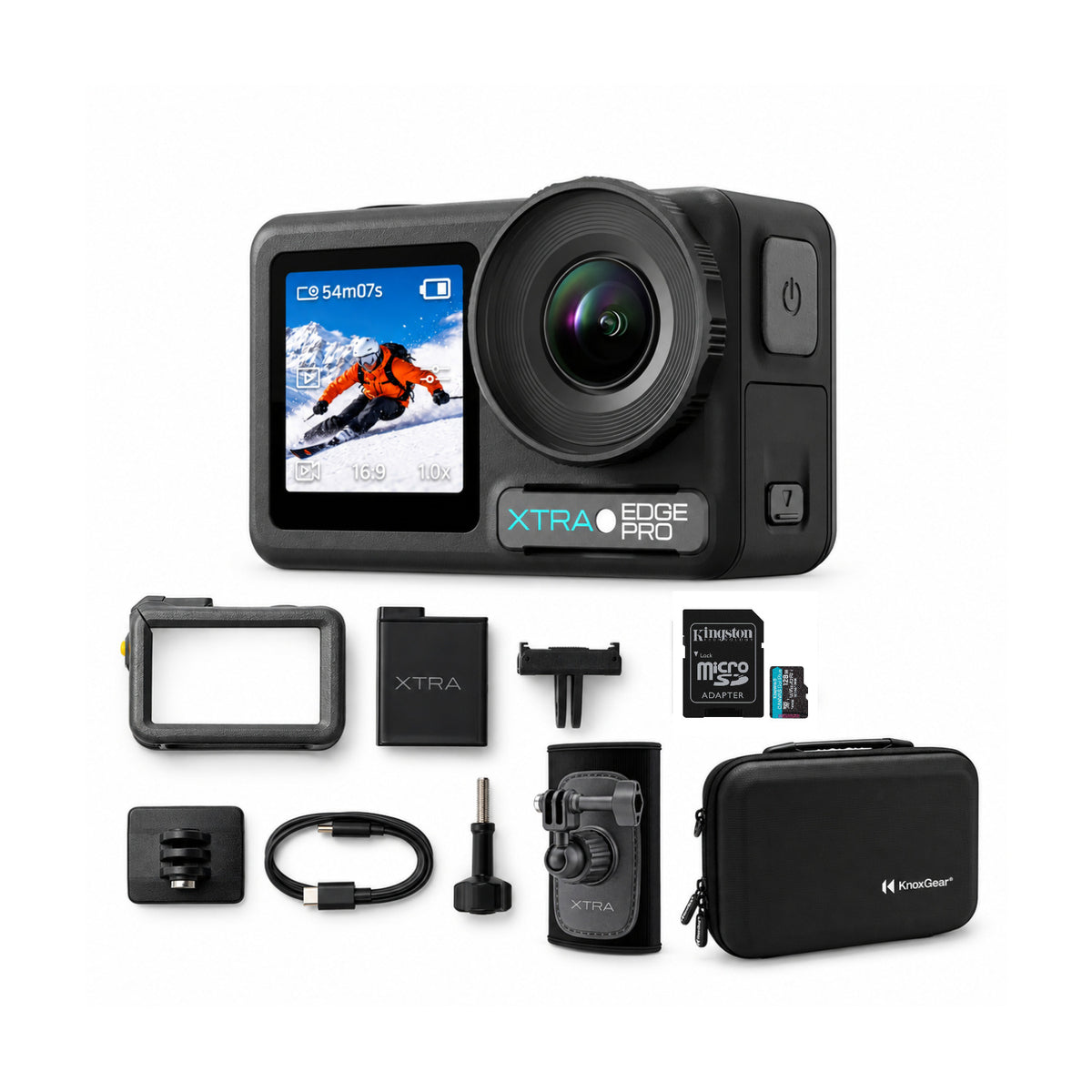

Xtra Edge Pro 40MP 4K/120fps Action Camera Bundle with 128GB Card, Backpack Strap Mount, and Case
- Rugged and Drop‑Resistant
- Waterproof (up to 20m underwater)
- 230 minutes of continuous recording
- 40MP for High Fidelity
- Shoot at 4K/120fps (4:3 aspect ratio)
- X-Log and HLG modes
- 4K/60fps Night View Mode
- Magnetic Quick mount
- Lossless Vertical Shooting
- 155 Degrees FOV
- Up to 5 minutes of Pre-recording
- 32x Slow Motion Feature
- Advanced Multi-frame HDR

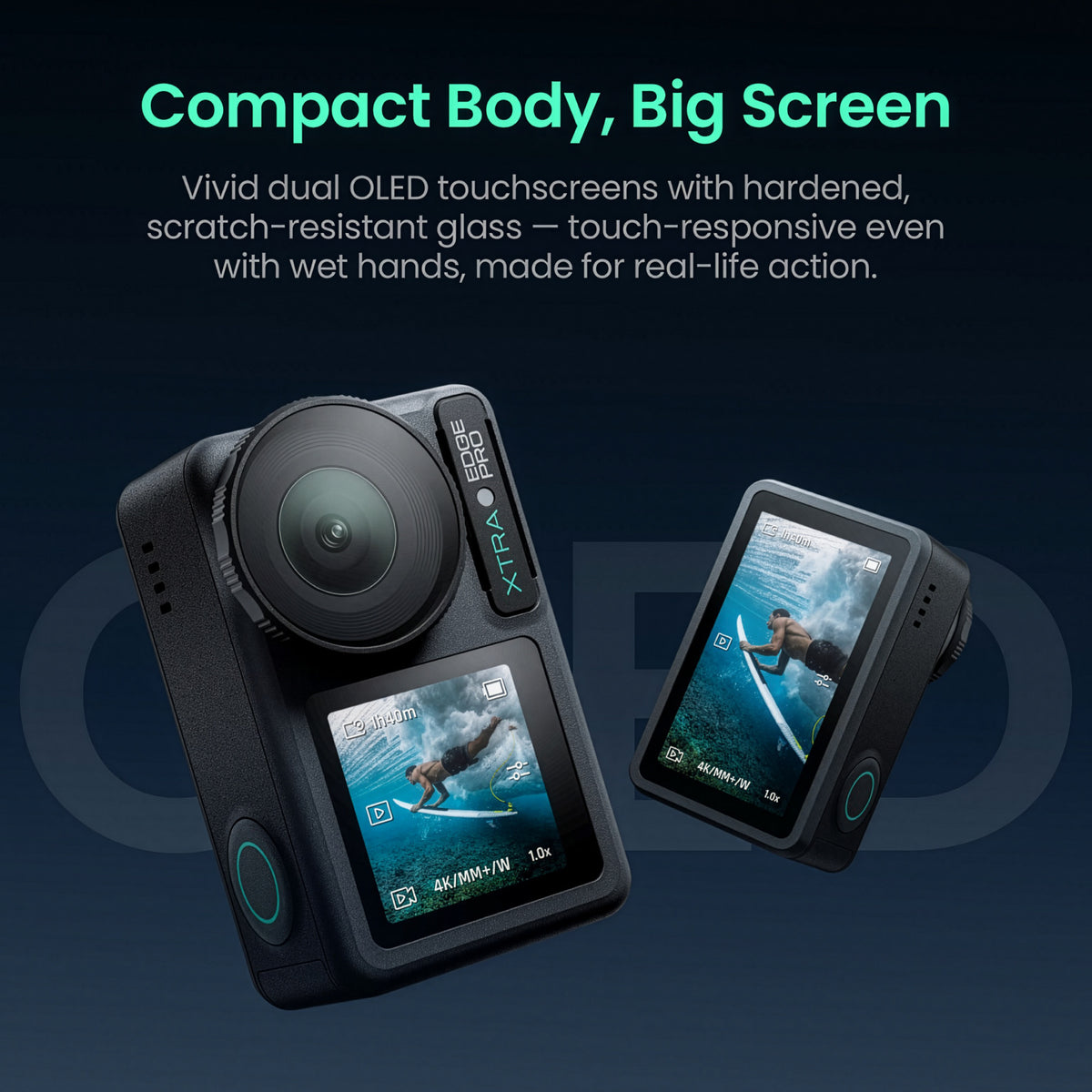

- Dual OLED Screens
- 45GB Built-in Storage

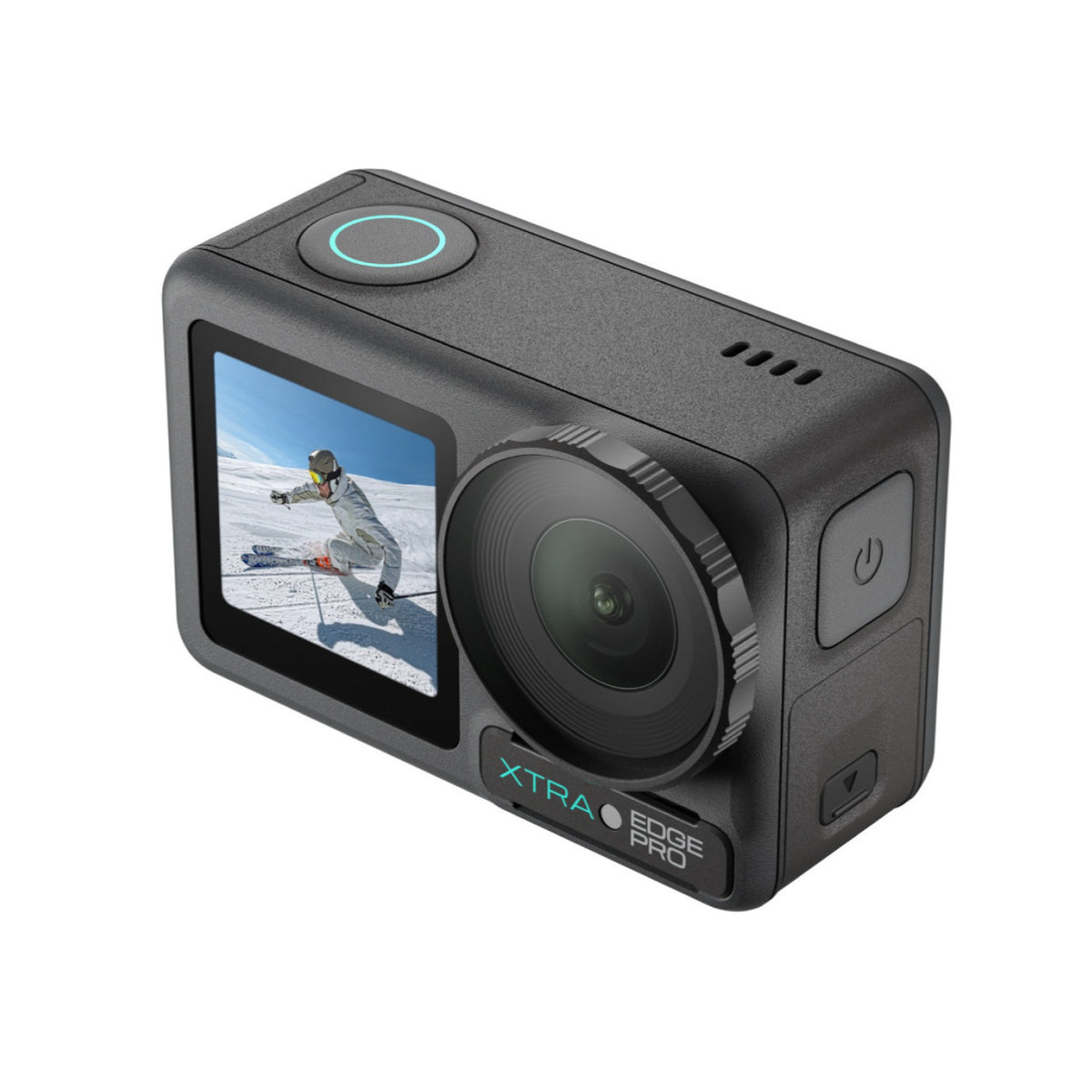

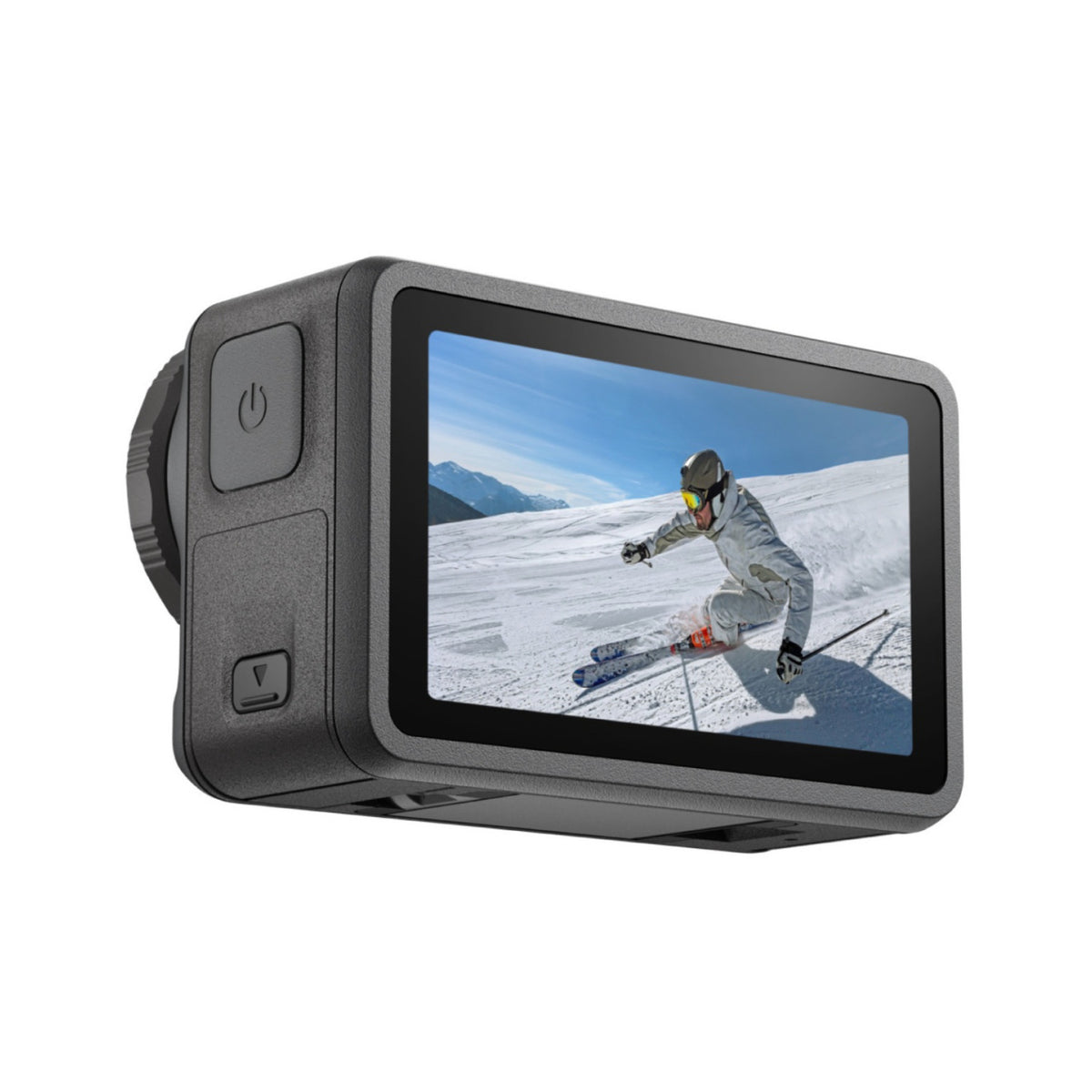

Xtra Edge Pro 40MP Action Camera
The Xtra Edge Pro Action Camera pushes the limits with a rugged composition, 40MP, 4K/120fps recording capacity, 230 minutes of continuous recording, 32x Slow Motion Feature, advanced HDR, more.
Epic Videos and Stunning Photos
Shoot in 4K/120fps with a 4:3 aspect ratio for creative freedom in cropping and composition. X Log and HLG modes preview true to life colors and brightness on screen. Capture up to 40MP burst shooting with multi frame HDR. The 4K/60fps Night View Mode uses advanced AI noise reduction, while 13.5 stops of dynamic range capture more detail in darkness.
Rugged Design for Action
The Xtra Edge Pro is 20m waterproof without a case, no housing required. Front and rear tempered glass screens with AF coating stand up to tough impacts. Dual OLED touchscreens provide vivid visuals, drop and scratch resistance, and operation with wet hands.
Capture More of Every Moment
Magnetic quick mount and lossless vertical shooting enable one hand vertical mode. A 155 degrees field of view captures downhill rides, while up to 5 minutes of pre recording helps you capture the moment. The 32x Slow Motion Feature captures crystal clear dives, aerial ski tricks, and high speed action.
Extended Battery Life and Built In Storage
Over 200 minutes of continuous recording keeps you powered on ski adventures. The 1900mAh battery provides 230 minutes of use, and fast charging gives you 50% power in 10 minutes. With 45GB of internal memory, you can shoot without an SD card.
Xtra Edge Water Resistant Backpack Strap Mount
Hands Free Outdoor POV
This mount positions the Edge action camera on a backpack shoulder strap for hands free recording while hiking, traveling, cycling, walking trails, or outdoors.
Made for Action Camera Workflows
Xtra Edge combines 4K video, a 155 degree field of view, and Hyper Stabilization for smoother footage with a forward facing perspective.
Fast Mounting Changes
The Edge Universal Quick Mount system supports quick transitions between wearable POV and other action camera angles.
Knox Gear Portable Storage and Carrying Case
The Knox Gear Portable Storage and Carrying Case is specially designed for DJI Action 5 Pro and Action 4 Adventure Combo, and compatible with Osmo Action 3, Extreme Battery, Horizontal Vertical Protective Frame, Rubber Lens Protector, Quick Release Adapter Mount, Flat Adhesive Base, Locking Screw, Type C to Type C PD Cable, Multifunctional Battery Case, and 1.5m Extension Rod.
Kingston Canvas Go Plus U3 V30 A2 microSD Card with SD Adapter and 200MBPS Read Speed (128GB)
The Kingston Canvas Go Plus 128GB microSD Card is designed for adventure seekers and mobile gamers who demand high performance on the go. With lightning-fast transfer speeds of up to 200MBps, it streamlines your workflow, allowing you to spend more time capturing and creating. Optimized for action cameras and drones, the U3 and V30 speeds enable smooth, uninterrupted recording of stunning 4K Ultra-HD videos, even in fast-paced scenarios. Whether you are documenting extreme sports or capturing breathtaking aerial footage, the Canvas Go Plus delivers reliable, lag-free performance. For mobile gaming enthusiasts, the A2 Application Performance Class ensures faster app load times and seamless gameplay on smartphones and tablets. Say goodbye to frustrating delays and hello to an enhanced gaming experience wherever you are. With the included SD adapter, the Canvas Go Plus provides added versatility, making it compatible with a wide range of SD-enabled devices.
Xtra Edge Pro 40MP Action Camera
General Specifications
| Dimensions (L x W x H) | 70.5 x 44.2 x 32.8 mm |
| Weight | 147 g |
| Waterproof | Yes (20 m without case, 60 m with waterproof case) |
| Number of Microphones | Three |
| Touchscreen - Front | 1.46-inch, 331 ppi, 342 x 342p, 780 cd/m2 Maximum Brightness (Typical) |
| Touchscreen - Rear | 2.5-inch, 326 ppi, 400 x 712p, 780 cd/m2 Maximum Brightness (Typical), 990 cd/m2 Peak Brightness |
| Supported Storage Card Type | microSD card (up to 1 TB supported) |
| Image Sensor | 1/1.3-Inch CMOS |
| Lens - Field of View (FOV) | 155 Degrees |
| Lens - Aperture | f/2.8 |
| Lens - Focus Range | 0.35 m to infinite |
| ISO Range (Photo) | 100 to 25600 |
| ISO Range (Video) | 100 to 51200 |
| Electronic Shutter Speed (Photo) | 1/8000 sec to 30 sec |
| Electronic Shutter Speed (Video) | 1/8000 sec to shutter speed limited by frame rate |
| Maximum Photo Resolution | 7296 x 5472 |
| Digital Zoom - Photo | Up to 4x |
| Digital Zoom - Video | Up to 2x |
| Slow Motion or Timelapse Modes | Not supported |
Photo Shooting Modes
| Single Shot | Approx. 40MP |
| Self-timer | Off/0.5/1/2/3/5/10 seconds |
| Burst | Up to 30 shots/3 seconds |
Standard Video Recording
| 4K (4 | 3): 3840 x 2880 at 100/120fps |
| 4K (4 | 3): 3840 x 2880 at 24/25/30/48/50/60fps |
| 4K (16 | 9): 3840 x 2160 at 100/120fps |
| 4K (16 | 9): 3840 x 2160 at 24/25/30/48/50/60fps |
| 2.7K (4 | 3): 2688 x 2016 at 100/120fps |
| 2.7K (4 | 3): 2688 x 2016 at 24/25/30/48/50/60fps |
| 2.7K (16 | 9): 2688 x 1512 at 100/120fps |
| 2.7K (16 | 9): 2688 x 1512 at 24/25/30/48/50/60fps |
| 1080p (16 | 9): 1920 x 1080 at 100/120/200/240fps |
| 1080p (16 | 9): 1920 x 1080 at 24/25/30/48/50/60fps |
Night View Mode
| 2.7K (16 | 9): 2688 x 1512 at 24/25/30/48/50/60fps |
| 2.7K (9 | 16): 2688 x 1512 at 24/25/30/48/50/60fps |
| 1080p (16 | 9): 1920 x 1080 at 24/25/30/48/50/60fps |
| 1080p (9 | 16): 1920 x 1080 at 24/25/30/48/50/60fps |
Human Subject Following
| 2.7K (16 | 9): 2688 x 1512 at 24/25/30/48/50/60fps |
| 2.7K (9 | 16): 2688 x 1512 at 24/25/30/48/50/60fps |
| 1080p (16 | 9): 1920 x 1080 at 24/25/30/48/50/60fps |
| 1080p (9 | 16): 1920 x 1080 at 24/25/30/48/50/60fps |
Slow Motion Recording
| 4K | 4x (120fps) |
| 2.7K | 4x (120fps) |
| 1080p | 8x (240fps), 4x (120fps) |
Motion Timelapse
| 4K/2.7K/1080p at 25/30fps | Auto / x2 / x5 / x10 / x15 / x30 |
Static Timelapse
| 4K/2.7K/1080p at 25/30fps | Shooting Interval of 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 sec, 1/2/5/30/60 min |
| 4K/2.7K/1080p at 25/30fps | Shooting Duration of 5/10/20/30 min, 1/2/3/5 h, infinite |
Stabilization
| Electronic Stabilization | MotionMaster, MotionMaster+, TiltGuard, 360 Lock |
| Electronic Stabilization Instructions | Electronic stabilization is not supported in Static Timelapse and Slow Motion modes. 360 Lock is only available for 16:9 aspect ratio 1080p/2.7K video (60fps or less). TiltGuard is only available for 16:9 aspect ratio 1080p/2.7K/4K video (60fps or less). |
Pre-Recording
| Pre-Recording Duration | 5/10/15/30 seconds, 1/2/5 minutes |
Other Photo, Video and Audio Specifications
| Maximum Video Bitrate | 120Mbps |
| Supported File System | exFAT |
| Photo Format | JPEG/RAW |
| Video Format | MP4 (HEVC) |
| Internal Storage Capacity | 64GB built-in storage (45GB available). Expandable via microSD card slot. |
| Audio Recording | 48 kHz 16-bi; AAC |
Battery
| Battery Type | Li-ion 1S |
| Capacity | 1900 mAh |
| Energy | 7.35 Wh |
| Voltage | 3.87 V |
| Operating Temperature | -20 to 45 Degrees C (-4 to 113 Degrees F) |
| Charging Temperature | 5 to 40 Degrees C (41 to 104 Degrees F) |
| Operating Time | 230 minutes |
| Battery Test Conditions | Tested at 25 Degrees C (77 Degrees F) ambient temperature, recording 1080p/24fps (16:9) video, with MotionMaster enabled, Wi-Fi off, and screen off. Data from Xtra laboratory, for reference only. |
Wireless Connectivity
| Wi-Fi Frequency | 2.400 GHz to 2.4835 GHz / 5.150 GHz to 5.250 GHz / 5.725 GHz to 5.850 GHz |
| Wi-Fi Protocol | Wi-Fi 6.0, 802.11 a/b/g/n/ac/ax |
| Wi-Fi Transmit Power (EIRP) at 2.4 GHz | Less than 21 dBm (FCC), less than19 dBm (CE/SRRC/MIC) |
| Wi-Fi Transmit Power (EIRP) at 5.1 GHz | Less than 21 dBm (FCC/CE/SRRC/MIC) |
| Wi-Fi Transmit Power (EIRP) at 5.8 GHz | Less than 21 dBm (FCC/SRRC), Less than 13 dBm (CE) |
| Bluetooth Frequency | 2.400 GHz to 2.4835 GHz |
| Bluetooth Transmit Power (EIRP) | Less than 12 dBm |
| Bluetooth Protocol | BLE 5.1 |
Recommended microSD Card Models
| SanDisk Models | SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC |
| Kingston Models | Kingston CANVAS Go! Plus 64GB / 128GB / 256GB / 512GB / 1TB U3 A2 V30 microSDXC models |
| Lexar Models | Lexar Professional 1066x 64GB / 128GB / 256GB / 512GB U3 A2 V30 microSDXC models |
Warnings
| Underwater Shooting Warning | Please make sure the battery compartment cover and the USB-C port cover are firmly closed before use. For prolonged underwater shooting or in environments with strong water flow or pressure, it is recommended to use the waterproof case. Both Xtra Edge Pro and the waterproof case have passed the IP68 waterproof test according to GB/T 4208-2017 and IEC 60529-2013 enclosure protection standards. Use of this product is not recommended in extreme water environments or unknown liquids. Do not use in hot springs or corrosive liquids. |
Xtra Edge Water-Resistant Backpack Strap Mount
| Product Type | Backpack Strap Camera Mount |
| Configuration | Single Mount |
| Primary Use | Hands Free POV Camera Mounting |
| Compatible Action Cameras | Xtra Edge and Xtra Edge Pro |
| Backpack Shoulder Strap Mounting | Supported |
| Hands Free Recording | Supported |
| POV Capture | Supported |
| Universal Quick Mount Workflow | Supported with Compatible Edge Camera Setup |
| Intended Shooting Scenarios | Hiking, Cycling, Trail Recording, Travel, Outdoor Action |
| Water Resistant | Yes |
| Enclosure Material | Nylon |
| Dimensions | 1.97 x 1.97 inches |
| Weight | 2.4 ounces |
Knox Gear Osmo Portable Storage and Carrying Case
General
| Dimensions | (L x W x H): 11.20 x7.80 x 2.90 in. |
| Material | EVA |
| Type of Closure | Zipper |
| Weight | 2.31 lb |
| Case / Gig Bag | Hard Shell Case |
| Carry/Transport Options | Handle |
| Bags/Case Features | Waterproof |
Environmental
| Water-Resistant | Yes |
Kingston Canvas Go Plus U3 V30 A2 microSD Card with SD Adapter and 200MBPS Read Speed
| Capacity | 128GB |
| Standard/Class | Class 10, UHS-I, U3, V30, A2 |
| Performance | Up to 200MBps read |
| microSDXC Card Dimensions | 0.433 x 0.590 x 0.039-inch (11mm x 15mm x 1mm) |
| SD Adapter Dimensions | 0.944 x 1.259 x 0.0826-inch (24mm x 32mm x 2.1mm) |
| Format | exFAT |
| Operating Temperature | Minus 13 to 185-degree F (minus 25 to 85-degree C) |
| Storage Temperature | Minus 40 to 185-degree F (Minus 40 to 85-degree C) |
| Voltage | 3.3V |
