- 1 x W73H Handset
- 1 x W70B Base Station
- 1 x Base Stand
- 1 x Charger Cradle
- 2 x Power Adapters
- 1 x Ethernet Cable
- 1 x Belt Clip
- 1 x Rechargeable Battery
- 1 x Quick Start Guide
Trusted & Verified

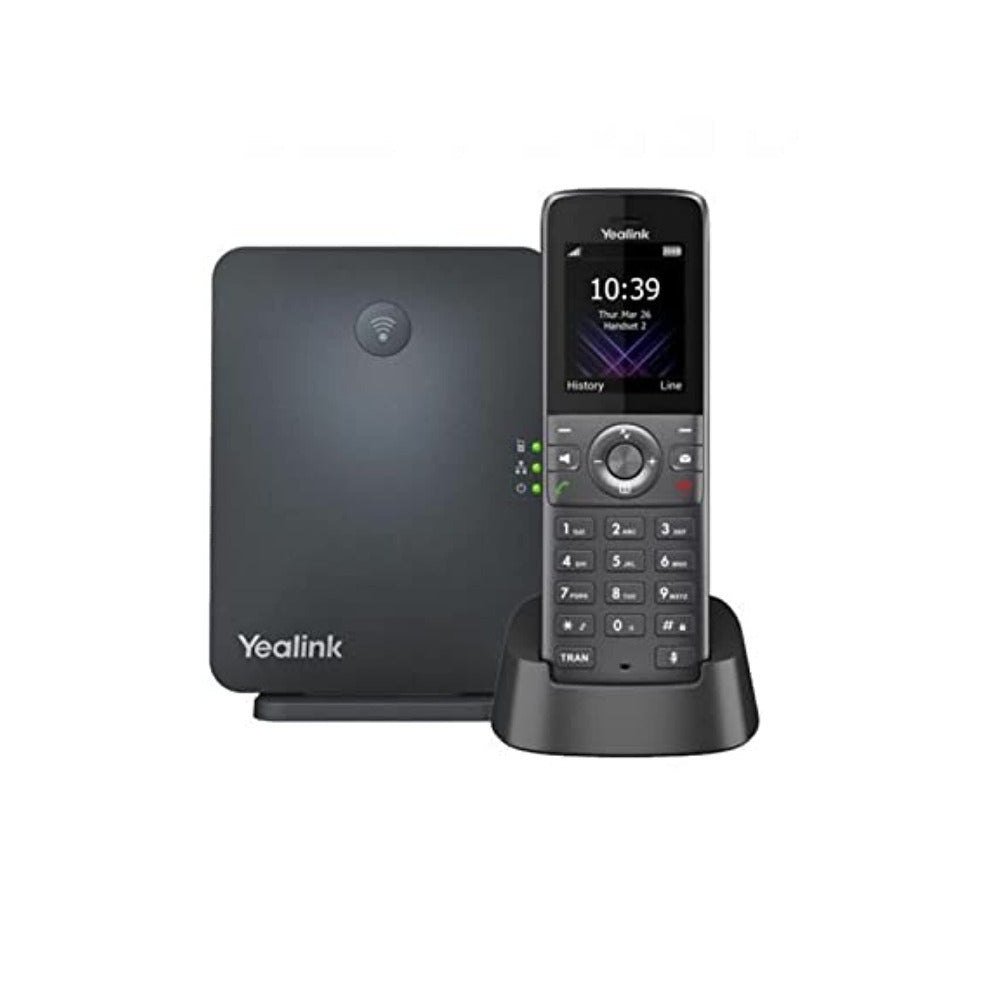

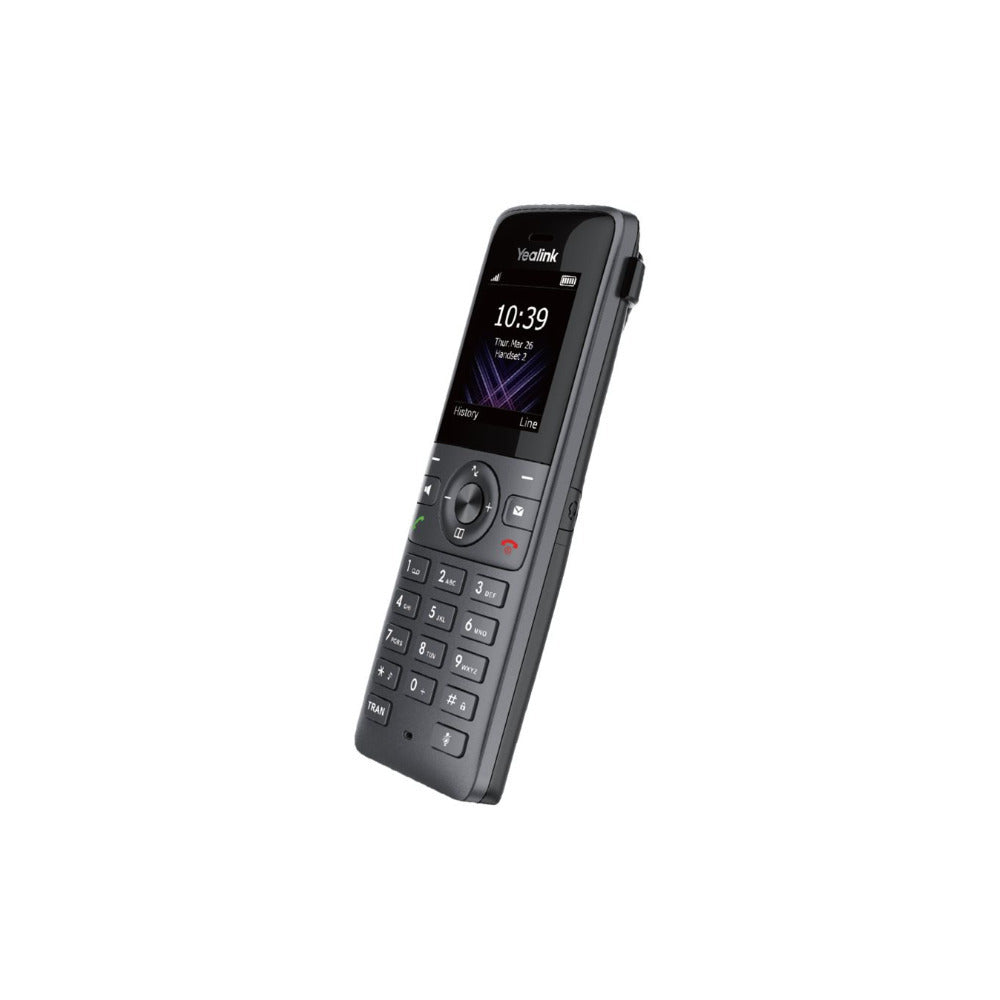

Yealink W73P Cordless DECT IP Phone (Space Gray, Classic Gray), Wall Mountable
- Supports up to 10 registered handsets and up to 10 SIP accounts
- Handles up to 20 simultaneous calls across the system
- Up to 35 hours of talk time and 400 hours of standby time in ideal conditions
- DECT range reaches up to 50 meters indoors and 300 meters outdoors in ideal conditions
- Flexible Noise Reduction and Noise Cancellation support clearer conversations
- 1.8-inch 128 x 160 TFT color display with backlit keypad
- 3.5 mm headset jack plus full duplex speakerphone
- Desktop or wall-mountable with Power over Ethernet support
Keep business calls moving without tying every conversation to one desk. The Yealink W73P combines the W73H cordless handset with the W70B base station for DECT and SIP calling across offices, retail counters, hospitality spaces, factory sites, and warehouses. The system supports up to 10 registered handsets, 10 SIP accounts, and 20 simultaneous calls, giving growing teams room to expand within one base system.
Clear Calls with Flexible Mobility
Flexible Noise Reduction and Noise Cancellation help reduce distracting background sound, while HD audio and a full duplex speakerphone support natural conversations. In ideal conditions, DECT coverage reaches up to 50 meters indoors and 300 meters outdoors. The W73H also offers up to 35 hours of talk time and up to 400 hours of standby time in ideal conditions, plus quick charging that can provide up to 2 hours of talk time from a 10-minute charge.
Business Calling Features and Simple Connectivity
The 1.8-inch 128 x 160 TFT color display, backlit keypad, caller ID, call hold, transfer, waiting, forwarding, 3-way conference, intercom, paging, voicemail, speed dial, and call history tools keep everyday calling functions close at hand. A 3.5 mm headset jack supports wired headset use. The W70B connects through a 10/100M Ethernet port and supports Power over Ethernet, while TLS and SRTP help secure supported call traffic and provisioning.
The W73P can be used on a desktop or wall-mounted, and Yealink supports up to 6 RT30 repeaters per base station for supported deployments. Yealink also states that its DECT system is not compatible with third-party DECT base stations or handsets, so expansion should use supported Yealink components.
General
System:
| Model | W73P |
| System Type | DECT IP Phone System |
| Handset | W73H |
| Base Station | W70B |
| Handset Color | Space Gray |
| Base Station Color | Classic Gray |
| Mounting | Desktop or wall-mountable |
Call Capacity and Phone Features:
| Simultaneous Calls | Up to 20 |
| Registered Handsets | Up to 10 |
| SIP Accounts | Up to 10 |
| Simultaneous Calls per Handset | Up to 2 |
| Repeaters per Base Station | Up to 6 RT30 repeaters |
| Receiving Call Selection | Handset selection supported |
| Placing Call Selection | Handset and number selection supported |
| Call Functions | Paging, intercom, auto answer, dial plan, hold, transfer, switching, waiting, mute, silence, DND |
| Conference Calling | 3 way conference |
| Caller ID | Name and number |
| Anonymous Calling | Anonymous call and anonymous call rejection |
| Call Forwarding | Always, Busy, No Answer |
| Calling Tools | Speed dial, voicemail, redial |
| Message Waiting Indication | Supported |
| Music on Hold | Server based |
| Local Phonebook | Up to 1000 entries stored in the base |
| Remote Phonebook | LDAP and XML phonebook support |
| Phonebook Tools | Search, import, export |
| Call History | Up to 100 entries per handset for All, Placed, Missed, Received, Forward |
| Direct IP Call | Supported without SIP proxy |
| Device Controls | Factory reset and reboot |
| Keypad Lock | Supported |
| Emergency Call | Supported |
| BroadSoft Directory and Call Log | Supported |
| BroadWorks Feature Key Synchronization | Supported |
| Shared Call Appearance | Supported |
| XML Browser | Supported |
| Action URI | Supported |
Personalization:
| Ringer Melodies | 9 |
| Screen Saver | Supported |
| User Interface | Multilingual |
Management:
| Automatic Provisioning | TFTP, FTP, HTTP, HTTPS, RPS |
| Plug and Play Provisioning | Supported |
| Handset Upgrade | Over the Air |
| Configuration Methods | Browser, phone, automatic provisioning |
| Diagnostics | Trace package and system log export |
Audio:
| Speakerphone | Full duplex |
| Hearing Aid Compatibility | Compliant |
| Noise Processing | Flexible Noise Reduction and Noise Cancellation |
| Receiver Volume Control | 5 steps |
| Ringer Volume Control | 5 steps plus off |
| Advisory Tones | Multiple |
| Low Battery Warning | Acoustic warning |
| DTMF | Supported |
| Wideband Codecs | AMR WB optional, G.722 |
| Narrowband Codecs | AMR NB optional, PCMU, PCMA, G.726, G.729, G.729A, iLBC |
| Voice Processing | VAD, CNG, AGC, PLC, AJB |
| Voice Quality Reporting | VQ RTCPXR RFC6035, RTCP XR |
Network:
| SIP | Version 1 RFC2543 and Version 2 RFC3261 |
| Time Protocols | SNTP and NTP |
| VLAN | 802.1Q and 802.1P |
| Network Access | 802.1x and LLDP |
| NAT Traversal | STUN Client |
| Transport | UDP, TCP, TLS |
| IP Assignment | Static or DHCP |
| Outbound Proxy Server Backup | Supported |
Security:
| Open VPN | Supported |
| Transport Layer Security | Supported |
| HTTPS | Server and client support |
| SRTP | RFC3711 |
| Digest Authentication | Supported |
| Configuration File Security | AES encryption |
| Support | SHA256, SHA512, SHA384 |
| Configuration Levels | Admin, Var, User |
DECT:
| Europe Frequency Band | 1880 to 1900 MHz |
| US Frequency Band | 1920 to 1930 MHz |
| Thailand Frequency Band | 1902 to 1906 MHz |
| Brazil Frequency Band | 1910 to 1920 MHz |
| Indoor Range | Up to 50 meters in ideal conditions |
| Outdoor Range | Up to 300 meters in ideal conditions |
| Third Party DECT Devices | Not compatible |
Interface:
| Ethernet | 1 x RJ45 10/100M Ethernet port |
| Power over Ethernet | IEEE 802.3af, Class 1 |
| Headset Connection | 3.5 mm jack |
Display and Keypad:
| Display | 1.8 inch 128 x 160 TFT color display |
| Display Lighting | LCD backlight |
| Keypad Lighting | Backlit |
| Keypad | 25 keys |
| Telephone Keypad | 12 keys in a 4 x 3 layout with star and pound keys |
| Navigation Keys | 5, left, right, up, down, OK |
| Softkeys | 2 |
| Function Keys | 6, Speaker, Message, Off Hook, Cancel, TRAN, Mute |
| Shortcut Keys | 6 |
| W70B Indicators | Registration LED, Network Status LED, Power Indicator LED |
Power and Battery:
| External AC Adapter Input | 100 to 240 V, 50/60 Hz |
| External AC Adapter Output | 5 V, 600 mA |
| W73H Battery | 1010 mAh lithium-ion, 3.7 V, 3.73 Wh |
| Talk Time | Up to 35 hours in ideal conditions |
| Standby Time | Up to 400 hours in ideal conditions |
| Quick Charging | 10-minute charge provides up to 2 hours of talk time |
Physical Features:
| Handset Dimensions | 144.5 mm x 48 mm x 21 mm |
| Handset Weight | 112 g |
| Base Station Dimensions | 130 mm x 100 mm x 25.1 mm |
| Operating Humidity | 10 to 95 percent |
| Handset Operating Temperature | minus 10 to 50 degrees Celsius, 14 to 122 degrees Fahrenheit |
| Handset Storage Temperature | minus 30 to 70 degrees Celsius, minus 22 to 158 degrees Fahrenheit |
| Energy Saving Modes | ECO Mode and ECO Mode Plus |
Compliance:
| Compliance | CE, FCC, REACH, ISO 9001, BroadSoft, 3CX, Asterisk Compatible, Metaswitch |
