- 1 x W57R Handset with Belt Clip
- 1 x W70B Base Station
- 1 x Charger Cradle
- 1 x Rechargeable Battery
- 1 x Base Stand
- 1 x Ethernet Cable
- 1 x Decorative Cover
- 1 x Quick Start Guide
- 2 x Power Adapters
Trusted & Verified

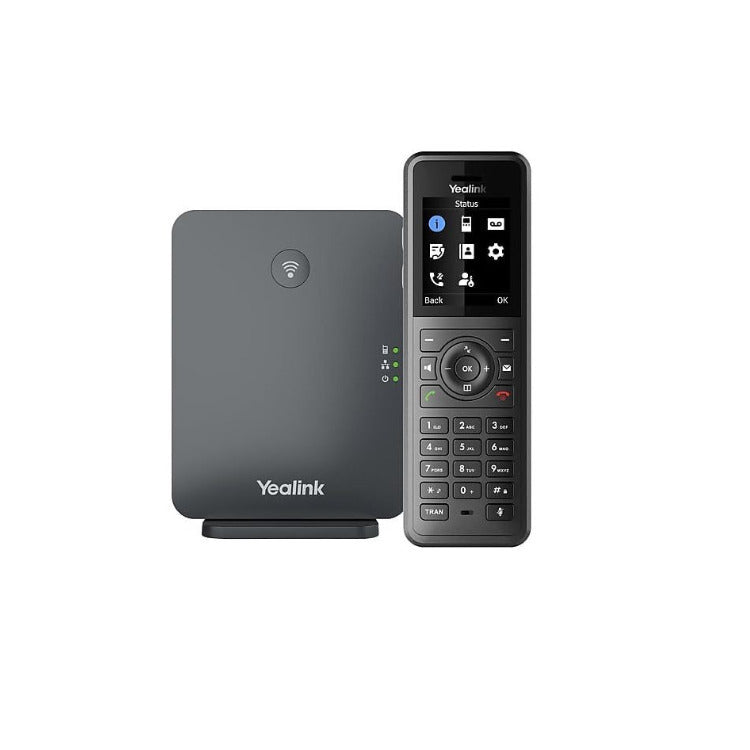

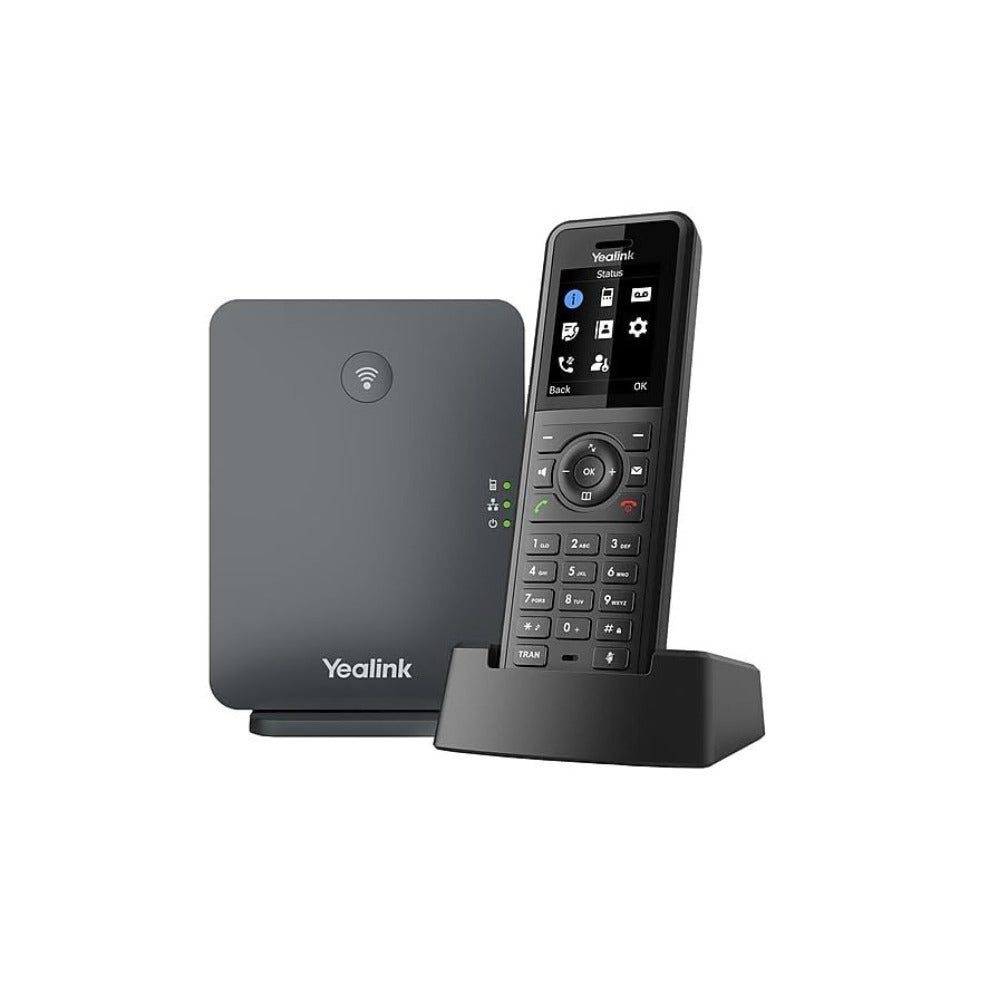

Yealink W77P DECT IP Phone System with IP54 W57R Handset and W70B Base Station
- Supports up to 10 SIP accounts and 20 simultaneous calls
- Registers up to 10 compatible Yealink DECT handsets
- W57R handset carries an IP54 protection rating
- W57R withstands drops up to 3.5 meters
- Flexible Noise Reduction and noise cancellation support clearer conversations
- DECT range reaches up to 50 meters indoors and 300 meters outdoors in ideal conditions
- W70B supports Power over Ethernet and 10/100M Ethernet
The Yealink W77P DECT IP Phone System combines a W57R rugged handset with a W70B base station for mobile voice communication in busy business spaces. The W57R carries an IP54 protection rating, withstands drops up to 3.5 meters, and adds a vibration alert for situations where an audible ring can be easy to miss. The system supports up to 10 SIP accounts, up to 10 registered handsets, and as many as 20 simultaneous calls.
Rugged Handset for Demanding Work Areas
The W57R uses a 1.8-inch 128 x 160 TFT color screen with keypad backlighting and 25 keys. Flexible Noise Reduction, noise cancellation, HD audio, and a full duplex speakerphone help keep voice communication clear. The handset supports call hold, transfer, waiting, forwarding, 3-way conferencing, voicemail, caller ID, paging, intercom, and other common business calling features.
Coverage and Expansion
The W70B provides DECT coverage up to 50 meters indoors and 300 meters outdoors in ideal conditions. It supports up to 6 optional RT30 repeaters when additional coverage is required. The base includes a 10/100M Ethernet port and supports Power over Ethernet under IEEE 802.3af Class 1. TLS and SRTP support help protect communications, while browser configuration and auto provisioning support efficient deployment and maintenance.
For teams that need mobility without giving up centralized call control, the W77P brings the W57R and W70B into one manufacturer-configured system. Its combination of rugged handset protection, scalable call capacity, DECT mobility, and network management features supports active small and medium business workspaces.
General
System:
| Model | W77P |
| Configuration | W70B Base Station and W57R Handset |
Phone Features:
| Simultaneous Calls | Up to 20 |
| Registered Handsets | Up to 10 |
| SIP Accounts | Up to 10 |
| Simultaneous Calls Per Handset | Up to 2 |
| Repeaters Per Base Station | Up to 6 RT30 repeaters |
| Vibration Alarm | Supported |
| Alarm Functions | Push button |
| Receiving Call Handset Selection | Supported |
| Placing Call Handset and Number Selection | Supported |
| Paging | Supported |
| Intercom | Supported |
| Auto Answer | Supported |
| Dial Plan | Supported |
| Call Hold | Supported |
| Call Transfer | Supported |
| Conference Calling | 3 way |
| Switching Between Calls | Supported |
| Call Waiting | Supported |
| Mute and Silence | Supported |
| DND | Supported |
| Caller ID | Name and number |
| Anonymous Call and Anonymous Call Rejection | Supported |
| Call Forward | Always, Busy, No Answer |
| Speed Dial | Supported |
| Voicemail | Supported |
| Redial | Supported |
| Message Waiting Indication | MWI |
| Music on Hold | Server based |
| Local Phonebook | Up to 1000 entries stored in the base |
| Remote Phonebook | LDAP and XML |
| Phonebook Search, Import, and Export | Supported |
| Call History Per Handset | Up to 100 All, Placed, Missed, and Received entries |
| Direct IP Call Without SIP Proxy | Supported |
| Factory Reset and Reboot | Supported |
| Keypad Lock | Supported |
| Emergency Call | Supported |
| BroadSoft Directory and Call Log | Supported |
| Broadworks Feature Key Synchronization | Supported |
| Shared Call Appearance | SCA |
| XML Browser | Supported |
| Action URI | Supported |
Personalization:
| Ringer Melodies | 9 |
| Screen Saver | Supported |
| User Interface | Multilingual |
Management:
| Auto Provisioning | TFTP, FTP, HTTP, HTTPS, RPS |
| Auto Provisioning with PnP | Supported |
| Handset Upgrade | OTA and No Perception Upgrade |
| Configuration | Browser, phone, auto provision |
| Trace Package and System Log Export | Supported |
Audio:
| Speakerphone | Full duplex |
| Hearing Aid Compatibility | HAC compliant |
| Flexible Noise Reduction | Supported |
| Noise Cancellation | Supported |
| Receiver Volume Control | 5 steps |
| Ringer Volume Control | 5 steps plus off |
| Advisory Tones | Multiple |
| Low Battery Acoustic Warning | Supported |
| DTMF | Supported |
| Wideband Codecs | AMR WB optional, G.722 |
| Narrowband Codecs | PCMU, PCMA, G.726, G.729, G.729A, iLBC |
| Audio Processing | VAD, CNG, AGC, PLC, AJB |
| AEC | Supported |
| Voice Quality Reporting | VQ RTCPXR RFC6035, RTCP XR |
Network:
| SIP | v1 RFC2543, v2 RFC3261 |
| Time Services | SNTP, NTP |
| VLAN | 802.1Q and 802.1P |
| Network Standards | 802.1x, LLDP |
| STUN Client | NAT traversal |
| Transport Protocols | UDP, TCP, TLS |
| IP Assignment | Static or DHCP |
| Outbound Proxy Server Backup | Supported |
Security:
| Open VPN | Supported |
| Transport Layer Security | TLS |
| HTTPS | Server and client |
| Secure Real-Time Transport Protocol | SRTP RFC3711 |
| Digest Authentication | Supported |
| Secure Configuration File | AES encryption |
| Support | SHA256, SHA512, SHA |
| Configuration Access Levels | Admin, Var, User |
DECT:
| Europe Frequency Band | 1880 to 1900 MHz |
| US Frequency Band | 1920 to 1930 MHz |
| Indoor Range | Up to 50 meters in ideal conditions |
| Outdoor Range | Up to 300 meters in ideal conditions |
| Third Party DECT Device Compatibility | Not compatible |
Interface:
| Ethernet | 1 x RJ45 10/100M Ethernet port |
| Power over Ethernet | IEEE 802.3af Class 1 |
W57R Physical Features:
| Protection Rating | IP54 |
| Drop Resistance | Up to 3.5 meters |
| Display | 1.8 inch 128 x 160 pixel TFT color screen |
| LCD Backlight | Supported |
| Key Backlight | Supported |
| Keypad | 25 backlit keys |
| Telephone Keypad | 12 keys in a 4 x 3 layout with star and pound keys |
| Navigation Keys | 5, left, right, up, down, OK |
| Softkeys | 2 |
| Function Keys | 6, Speaker, Message, Off Hook, Cancel, TRAN, Mute |
| Side Keys | 3, volume up, volume down, alarm |
| Shortcut Keys | 6 |
| Color | Black |
| Dimensions | 157 x 51 x 24 mm |
| Operating Temperature | 0 to 40 degrees Celsius, 32 to 104 degrees Fahrenheit |
W57R Battery:
| V0 Through V3 Battery | 1460 mAh lithium ion, 3.7 V, 5.4 Wh |
| V0 Through V3 Talk Time | Up to 40 hours in ideal conditions |
| V0 Through V3 Standby Time | Up to 575 hours in ideal conditions |
| V4 Battery | 3 x 3.7 V 350 mAh, 1.295 Wh, lithium ion |
| V4 Talk Time | Up to 28 hours in ideal conditions |
| V4 Standby Time | Up to 320 hours in ideal conditions |
| Quick Charging | 10 minutes of charging for 2 hours of talk time |
W70B Physical Features:
| Mounting | Desktop or wall mountable |
| Energy Saving Modes | ECO Mode and ECO Mode+ |
| Registration LED | 1 |
| Network Status LED | 1 |
| Power Indicator LED | 1 |
| Color | Classic Gray |
| Dimensions | 130 x 100 x 25.1 mm |
| Operating Temperature | Minus 10 to 45 degrees Celsius, 14 to 113 degrees Fahrenheit |
Environmental:
| Operating Humidity | 10% to 95% |
| Handset and Base Storage Temperature | Minus 30 to 70 degrees Celsius, minus 22 to 158 degrees Fahrenheit |
Power:
| External AC Adapter Input | AC 100 to 240 V |
| External AC Adapter Output | DC 5 V, 600 mA |
Package Features:
| W57R Handset with Belt Clip | 1 |
| W70B Base Station | 1 |
| Charger Cradle | 1 |
| Rechargeable Battery | 1 |
| Base Stand | 1 |
| Ethernet Cable | 1 |
| Decorative Cover | 1 |
| Quick Start Guide | 1 |
| Power Adapters | 2 |
| Carton Quantity | 10 pieces |
| Giftbox Dimensions | 205 x 182 x 95 mm |
| Carton Dimensions | 502 x 378 x 215 mm |
| N.W. | 7.456 kg |
| G.W. | 8.136 kg |
