- 1 x Zebra DS3678-DP Cordless DPM Barcode Scanner
Trusted & Verified

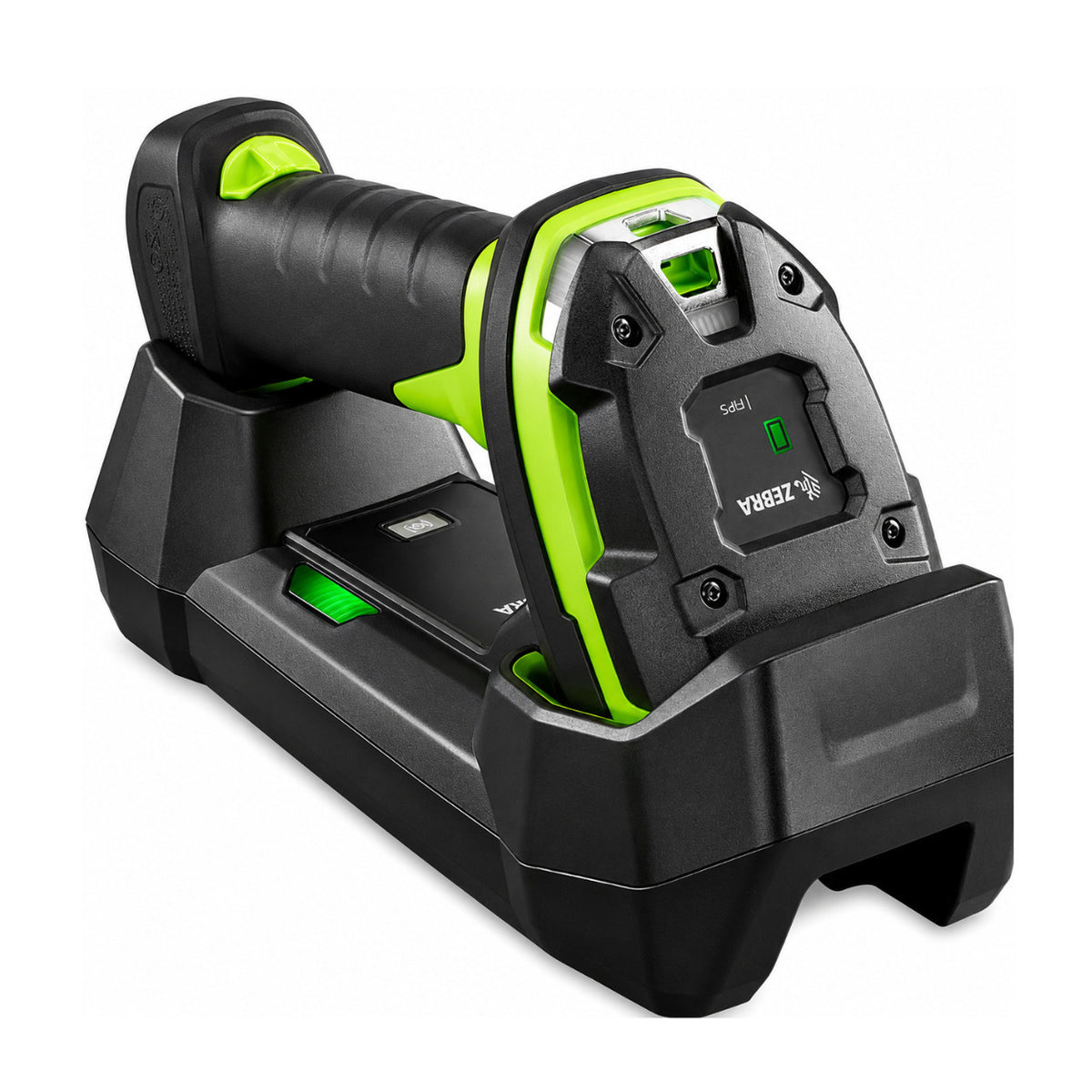

Zebra DS3678-DP Cordless Ultra Rugged DPM Barcode Scanner with Dual IP65 and IP68 Sealing (Green)
- Dual IP65 and IP68 Scanner Sealing
- Captures direct part marks and printed 1D / 2D Barcodes
- 3,100 mAh Battery
- 100,000 scans per Battery Charge
- Bluetooth with 100m Open Air Line of Sight Range
- 2.4m Drop Resistance
- Survives 7,500 tumbles from 1m
- LED, Beeper, Vibration, and Direct Decode Features
- IUID Parsing for Structured Identification Workflows
Built for Direct Part Marks
The Zebra DS3678-DP captures direct part marks plus standard 1D and 2D barcodes. Direct and diffuse illumination helps read difficult marks on reflective, curved, irregular, and low contrast surfaces used throughout industrial manufacturing.
Cordless Production Floor Mobility
A 3,100 mAh PowerPrecision+ lithium-ion battery delivers more than 100,000 scans per full charge. Bluetooth Class 1 provides a minimum 100m open air line of sight range for movement around work cells and large production areas.
Ultra Rugged Construction
The cordless scanner withstands multiple 2.4m drops to concrete across its specified operating temperature range and 7,500 tumbles from 1m. Dual IP65 and IP68 scanner sealing supports use in demanding industrial environments.
General
| Model | DS3678-DP |
| Configuration | Cordless |
| Scan Range | Direct Part Marks |
| Color | Industrial Green |
| Height | 18.5 cm |
| Width | 7.7 cm |
| Depth | 14.3 cm |
| Weight | 402 g |
Imaging
| Image Sensor | 1,280 x 960 Pixels |
| Image Capture | Basic |
| Horizontal Field of View | 31 degrees |
| Vertical Field of View | 23 degrees |
| Minimum Print Contrast | 15% Reflective Difference |
Illumination and Aiming
| Direct Illumination | 2 Warm White LEDs |
| Diffuse Illumination | Ring of Red 634 nm LEDs |
| Aimer | 655 nm Laser |
Code Decode Capabilities
| 1D Decode Capability | Code 39, Code 128, Code 93, Codabar and NW7, Code 11, MSI Plessey, UPC and EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italian Pharma |
| 2D Decode Capability | PDF417, Micro PDF417, Composite Codes, TLC 39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
Battery
| Battery Type | PowerPrecision+ Rechargeable Lithium Ion |
| Battery Capacity | 3,100 mAh |
| Scans per Full Charge | More than 100,000 |
Wireless Connectivity
| Bluetooth | Class 1, Version 4.0 with Low Energy |
| Bluetooth Profiles | Serial Port and HID |
| Classic Bluetooth Data Rate | 3 Mbit/s, 2.1 Mbit/s Effective |
| Low Energy Data Rate | 1 Mbit/s, 0.27 Mbit/s Effective |
| Class 1 Open Air Line of Sight Range | Minimum 100 m |
| Class 2 Open Air Line of Sight Range | Minimum 10 m |
User Indicators
| Direct Decode Indicator | Supported |
| LED Indicators | Supported |
| Beeper | Supported |
| Vibration | Supported |
Environmental
| Operating Temperature | -20 to 50 degrees C |
| Storage Temperature | -40 to 70 degrees C |
| Humidity | 5 to 95% Noncondensing |
| Scanner Sealing | IP65 and IP68 |
| Cordless Drop Specification | Multiple 2.4m Drops to Concrete from -20 to 50 degrees C |
| Room Temperature Drop Specification | Multiple 3m Drops to Concrete |
| Tumble Specification | 7,500 Tumbles from 1m |
| Ambient Light Immunity | 0 to 108,000 Lux |
Typical Decode Range
| Code 39, 3.0 mil | 0.5 to 7.1 cm |
| Code 39, 5.0 mil | 0.5 to 7.1 cm |
| PDF417, 6.6 mil | 0.5 to 8.1 cm |
| DataMatrix, 5.0 mil | 1.0 to 6.3 cm |
| DataMatrix, 10.0 mil | 0 to 8.6 cm |
| QR Code, 5.0 mil | 1.0 to 6.3 cm |
| QR Code, 10.0 mil | 0 to 8.1 cm |
| UPC, 13.0 mil | 2.5 to 14.7 cm |
Software and Management
| Zebra 123Scan | Supported |
| Zebra Scanner SDK | Supported |
| Zebra Scanner Management Service | Supported |
| Zebra Network Connect | Supported |
