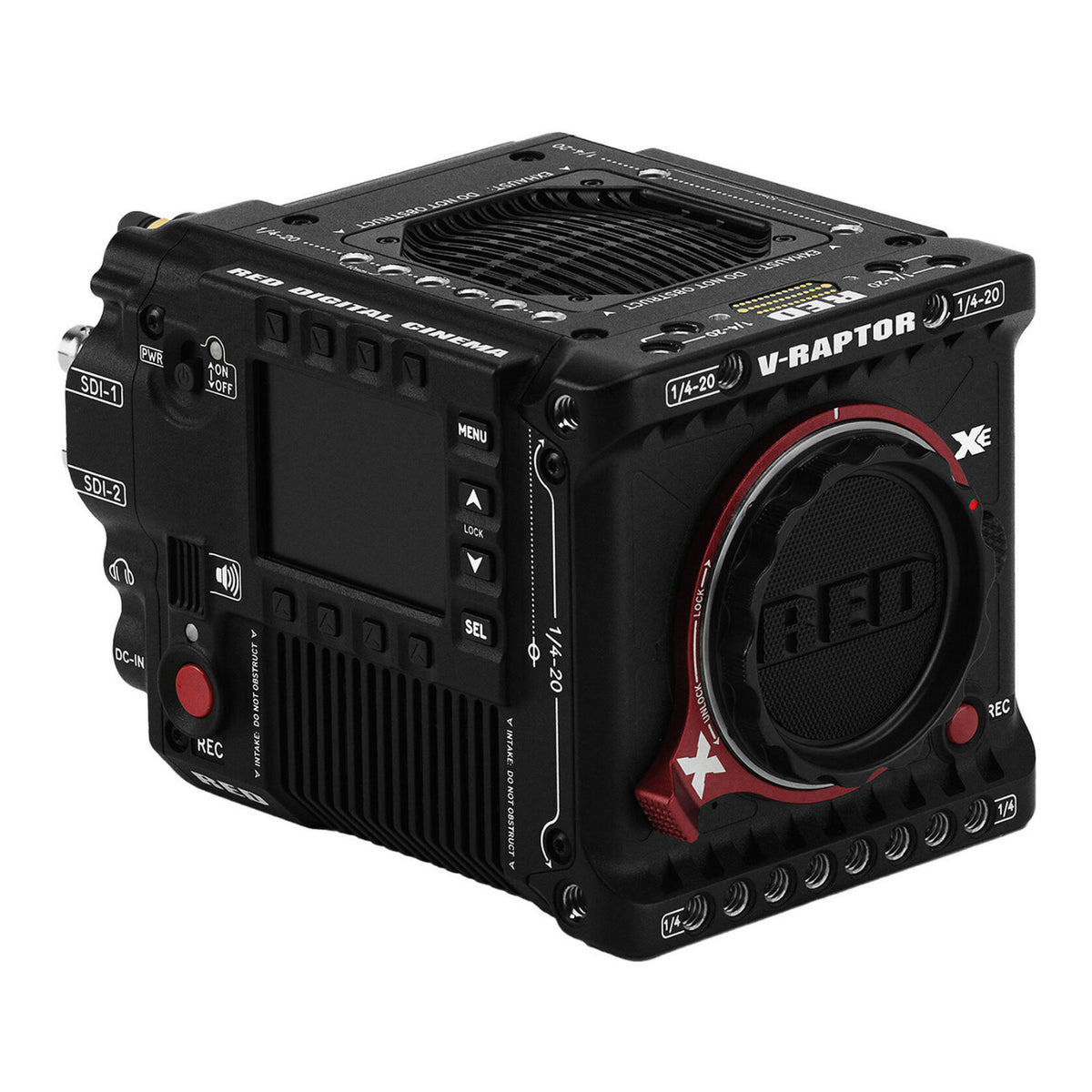

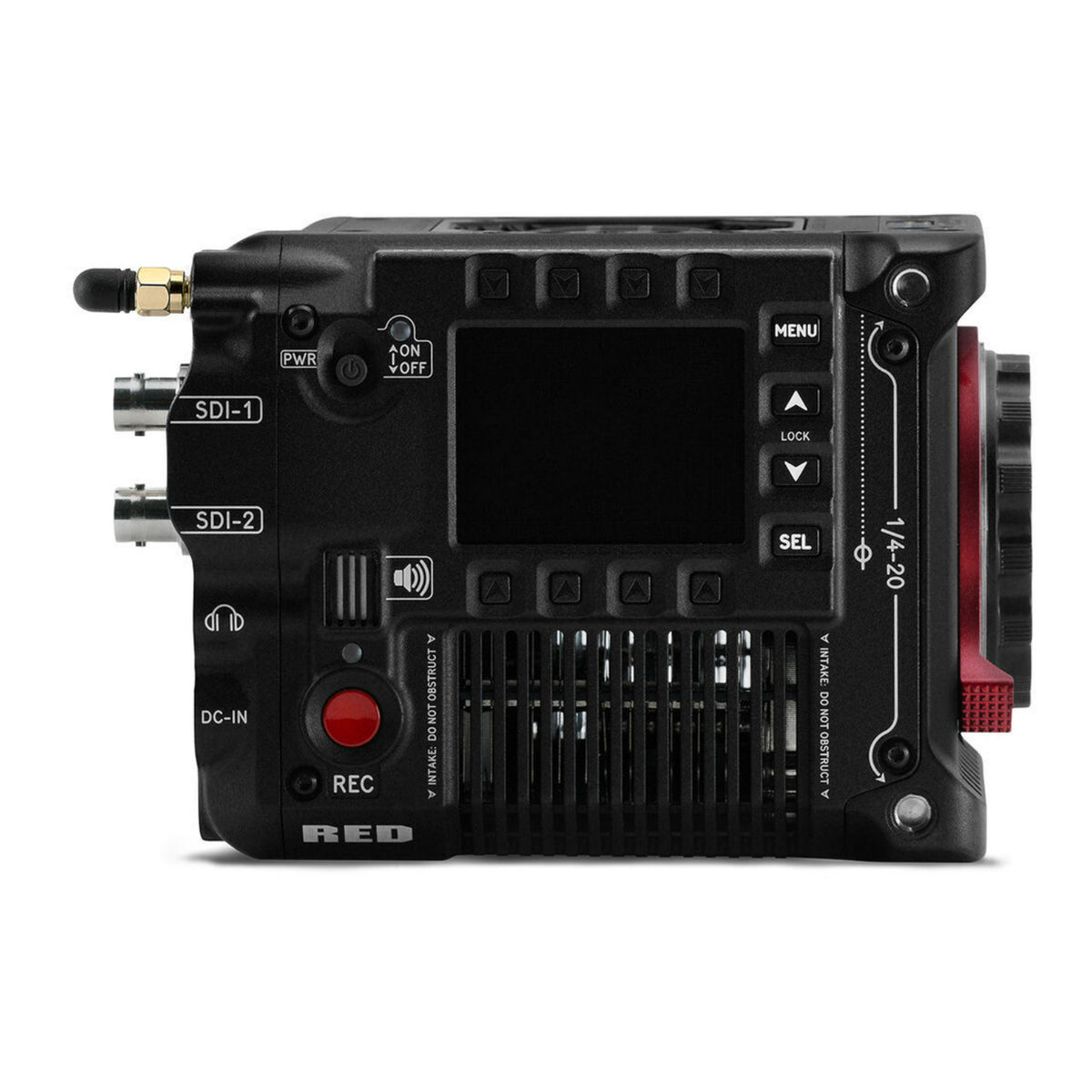

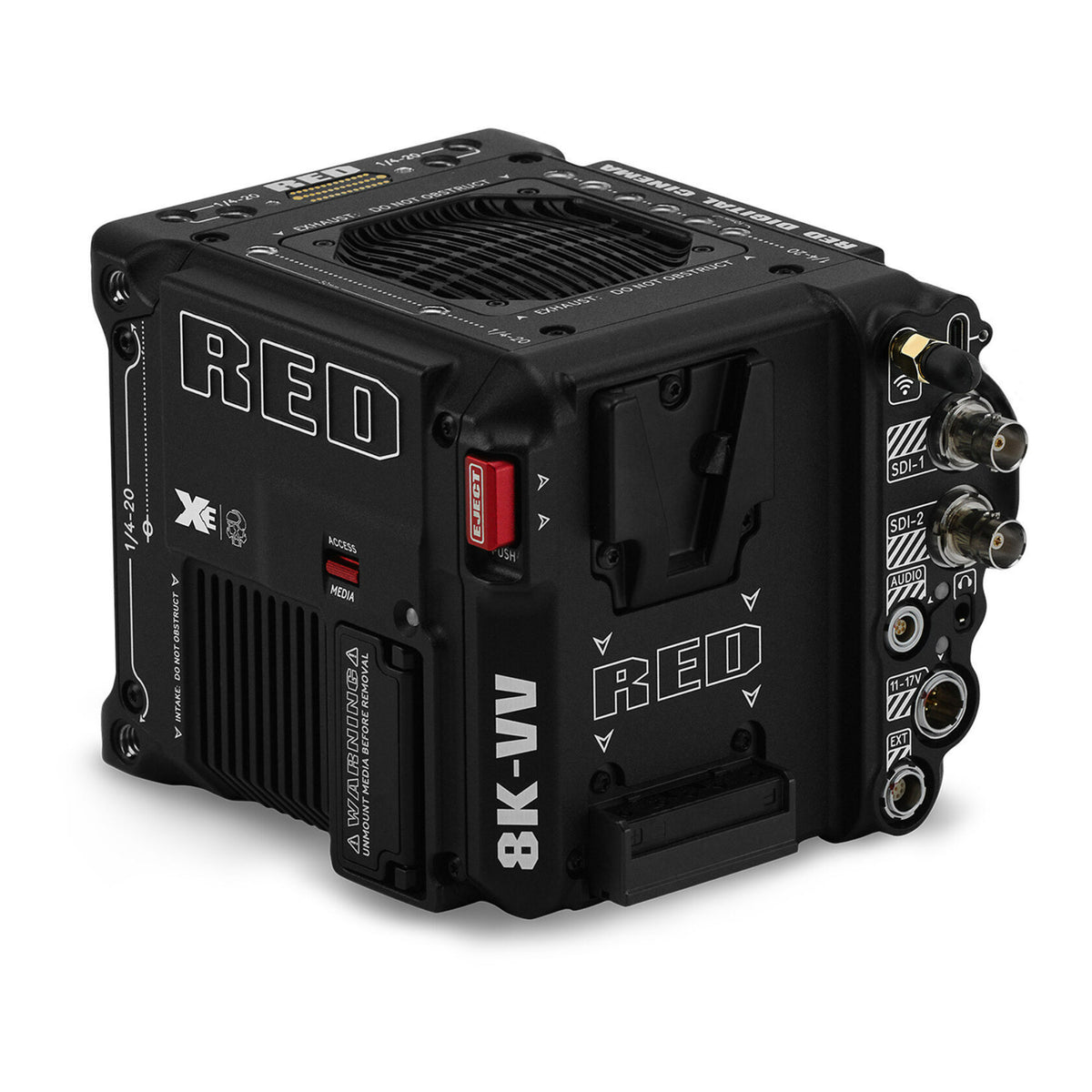

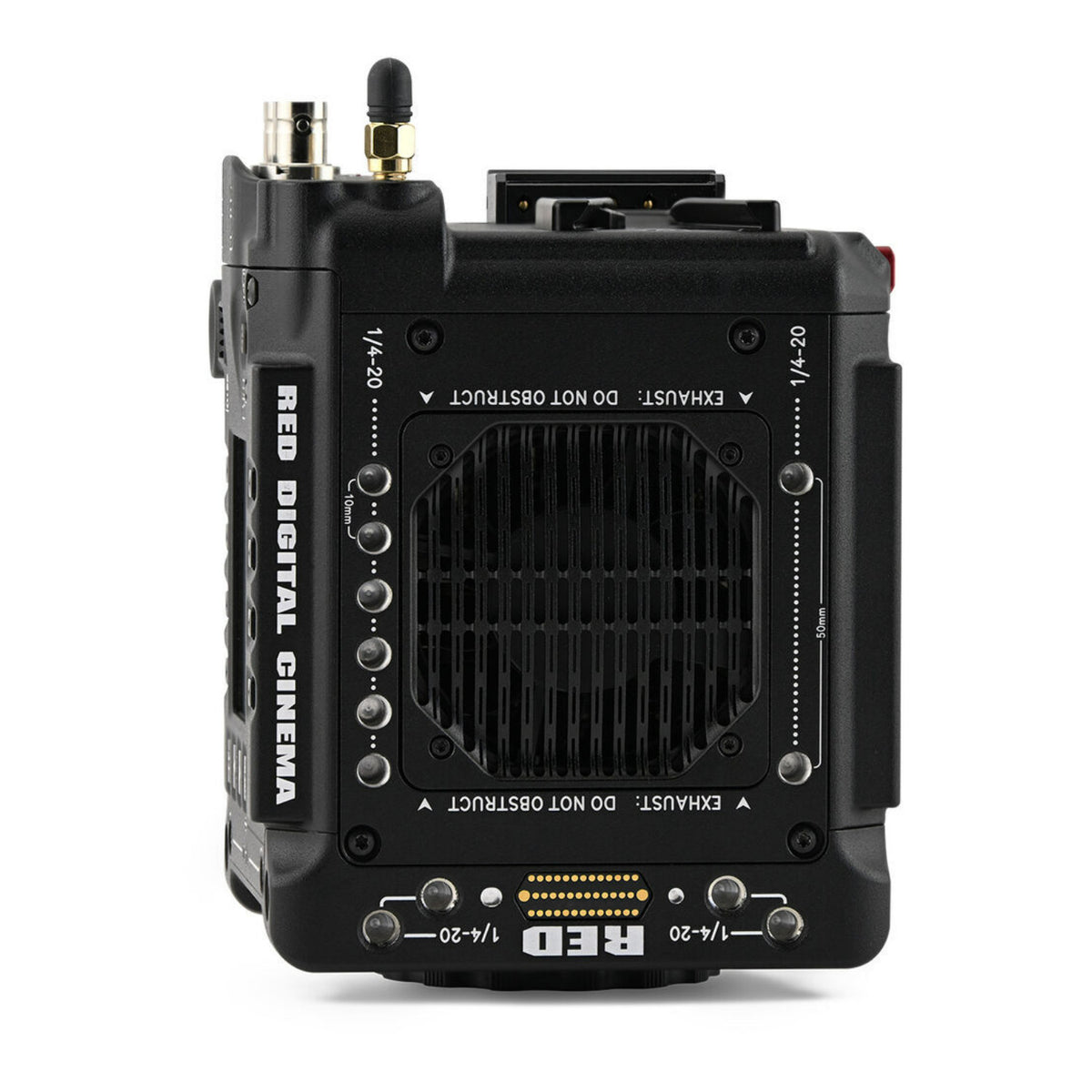

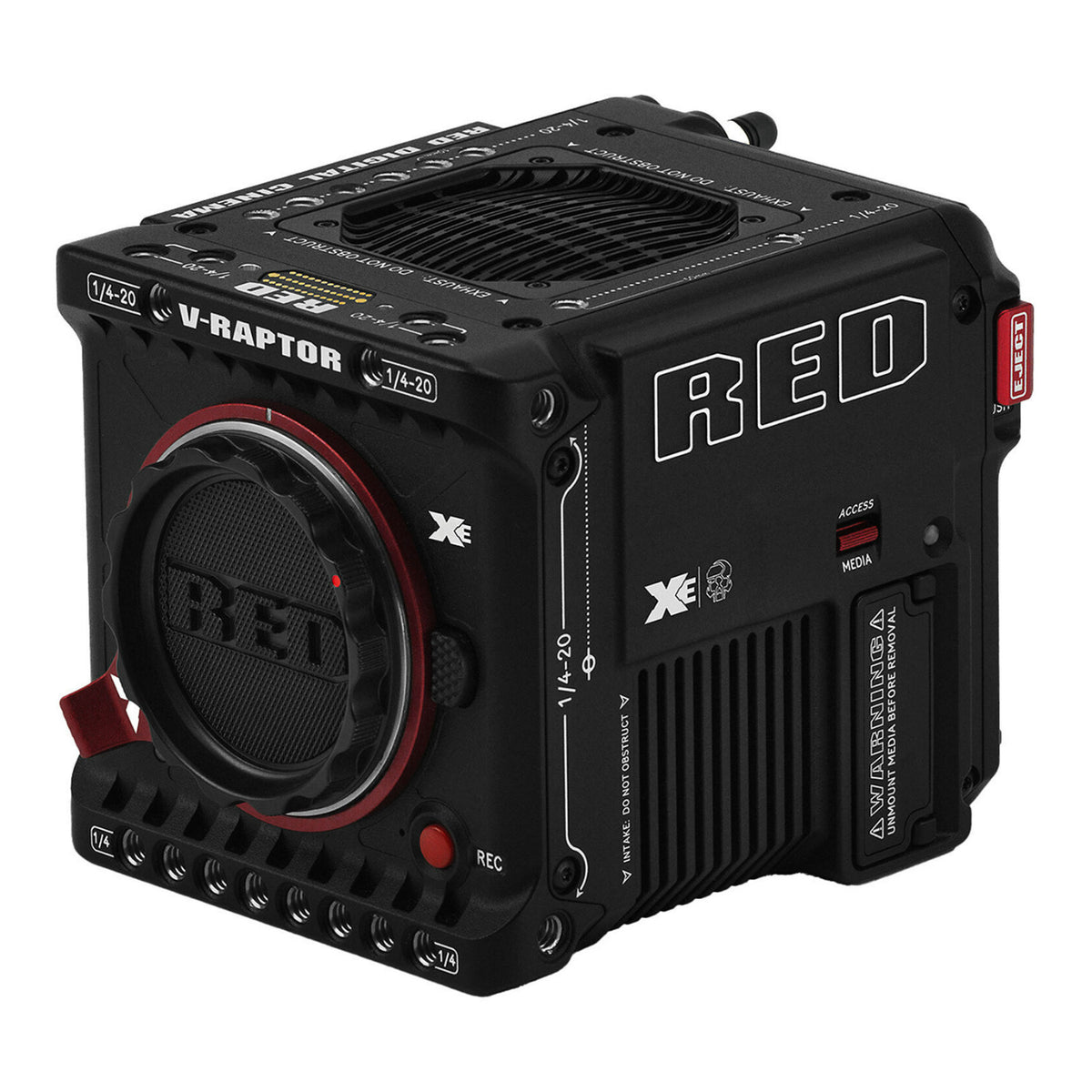

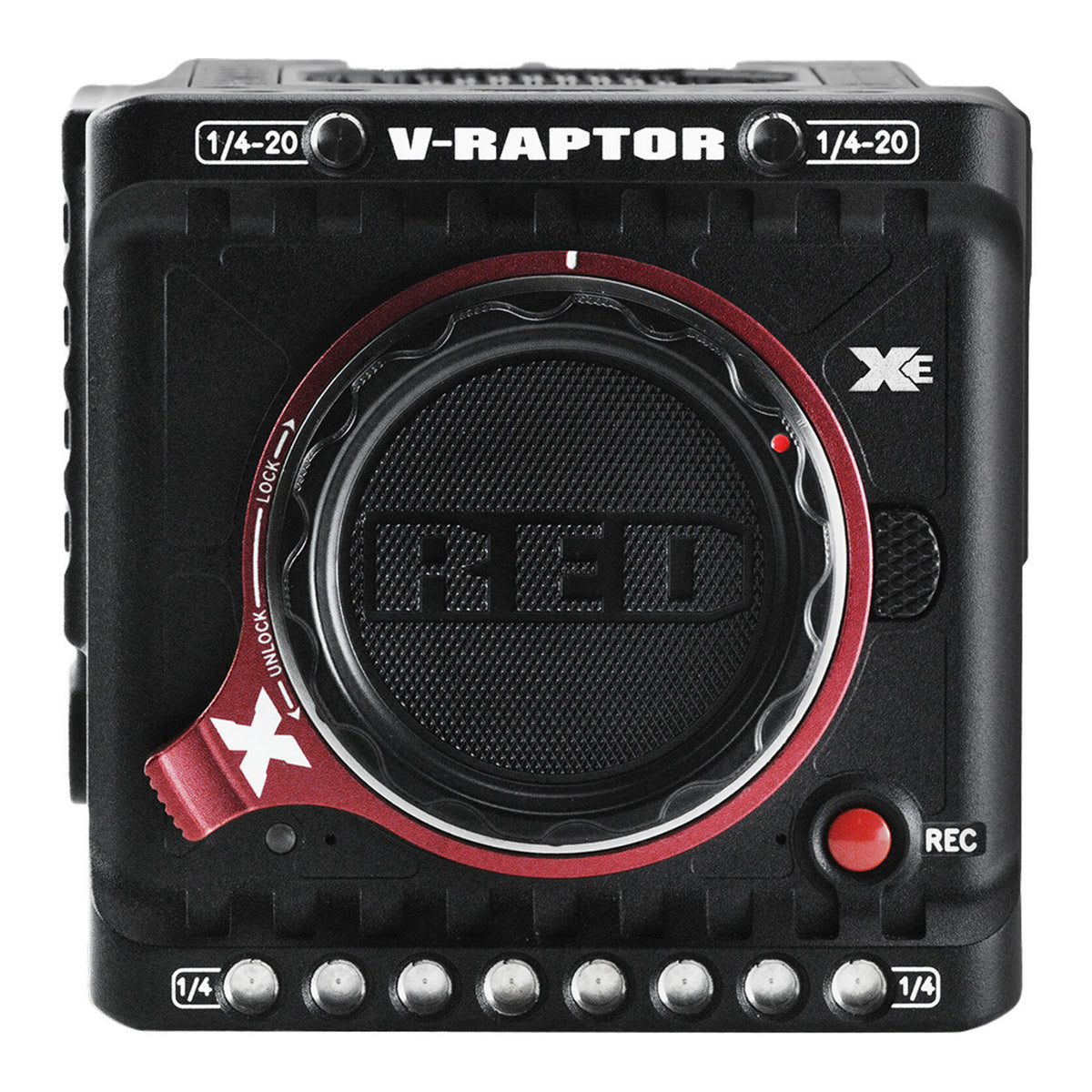

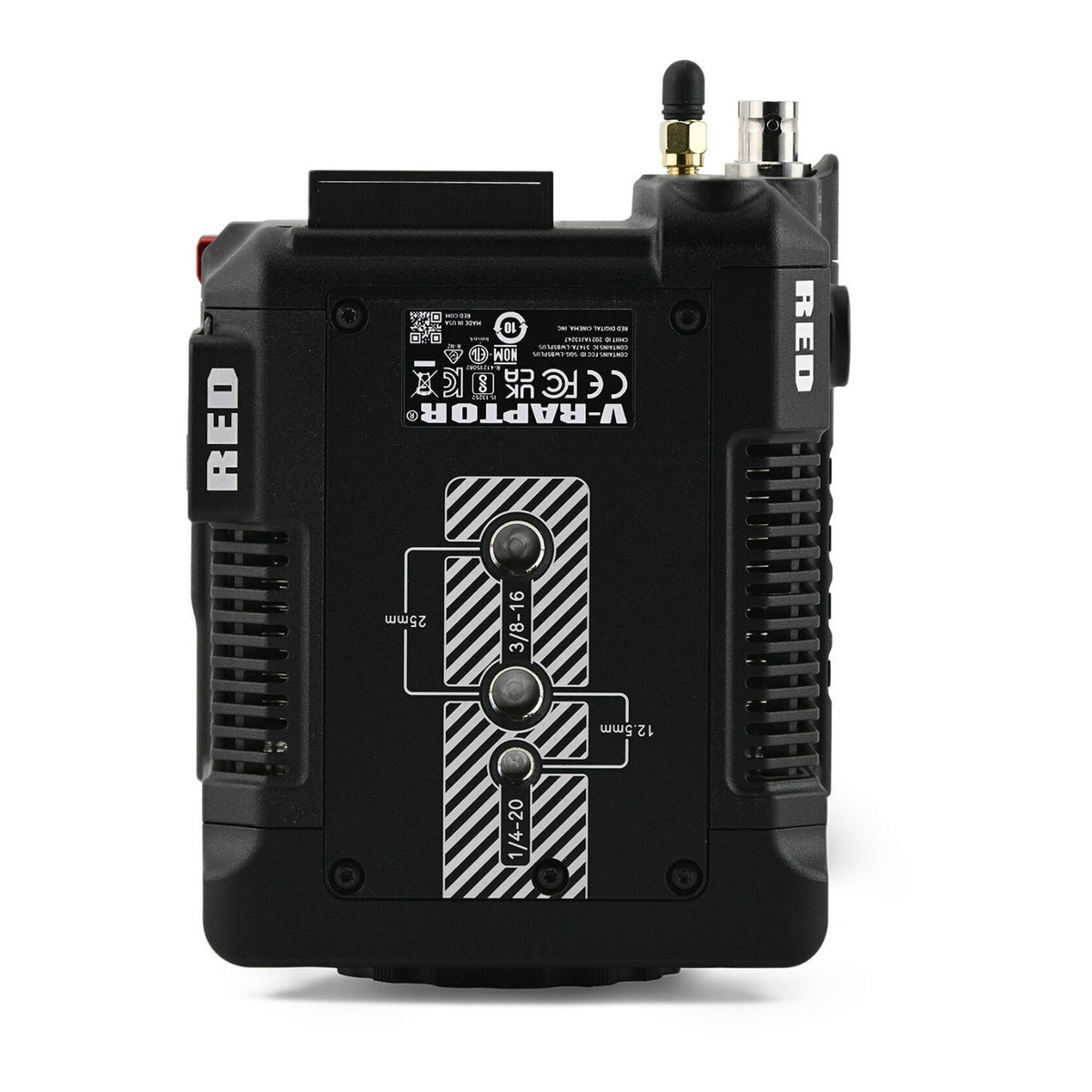

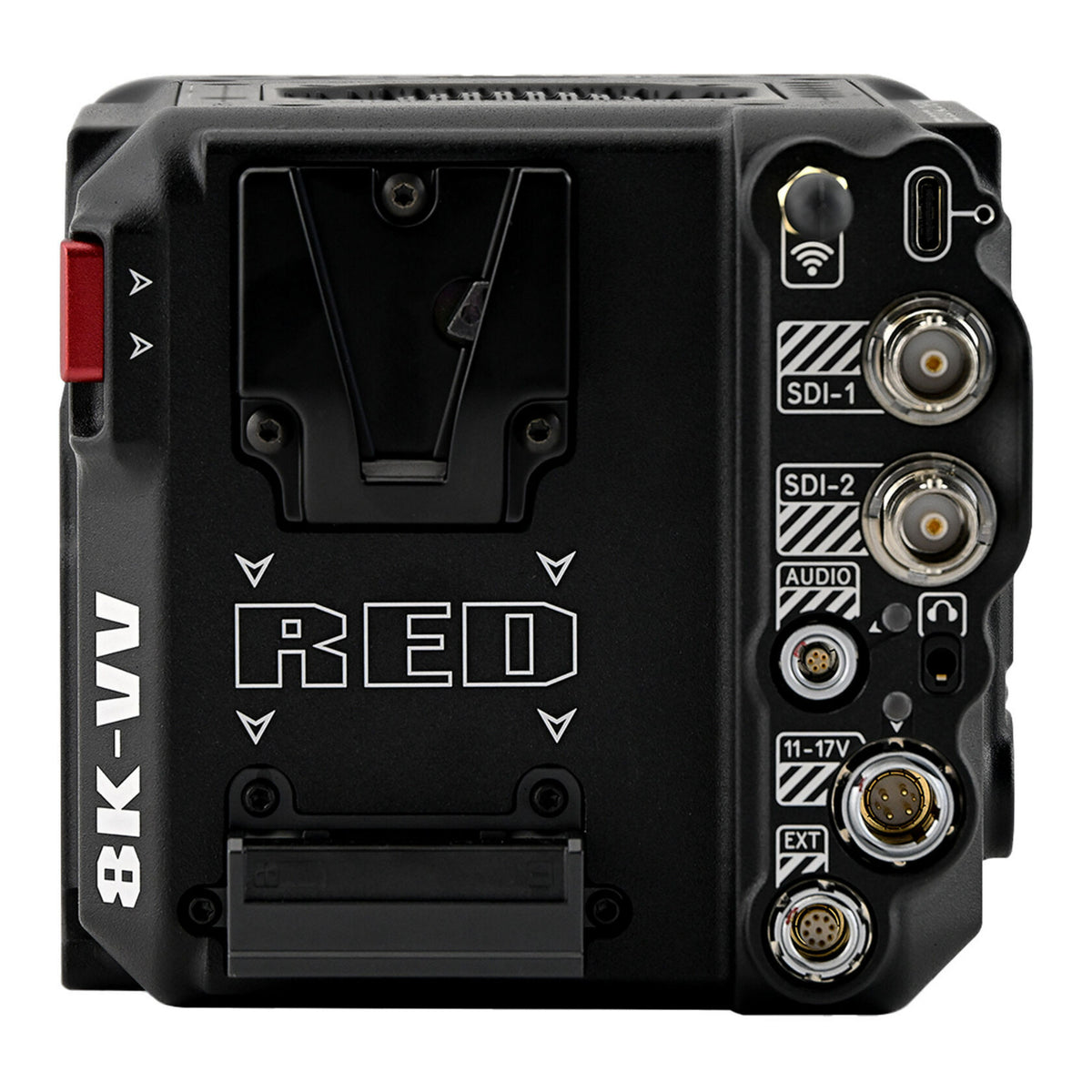

RED Digital Cinema V-RAPTOR XE 8K VV Cinema Camera (RF Mount)
- 35.4 MP 8K VV global shutter CMOS sensor captures 8192 x 4320 effective pixels
- 17+ stops of dynamic range supports detailed highlight and shadow capture
- Records R3D at up to 8K 60P, 4K 120P, and 2K 240P
- CFexpress Type B media supports data rates up to 800 MB/s with qualified cards
- Dual 12G SDI outputs support separate monitoring views
- Dual-band Wi-Fi supports wireless camera control and live preview
- USB-C or Ethernet control supports remote operation and media offload
- Aluminum alloy body weighs 4.03 lb without body cap or CFexpress card
The RED Digital Cinema V-RAPTOR XE brings large format 8K VV capture to a compact cinema camera body built around a 35.4 MP global shutter CMOS sensor. It records R3D at up to 8K VV 60P and delivers 17+ stops of dynamic range, giving productions detailed image capture with the flexibility of REDCODE RAW for post work.
8K VV Global Shutter Imaging
The 8192 x 4320 sensor measures 40.96 mm x 21.60 mm and supports 8K, 7K, 6K, 5K, 4K, 3K, and 2K acquisition formats. Maximum frame rates reach 60 fps at 8K 17:9, 120 fps at 4K 17:9, and 240 fps at 2K 17:9. The global shutter design captures the full frame at once, while REDCODE RAW keeps color processing decisions flexible for post-production.
Fast Media and Monitoring
CFexpress Type B media supports data rates up to 800 MB/s with RED branded or other qualified cards. Dual 12G SDI outputs support separate monitoring views, while the integrated 2.4-inch LCD provides camera control. Proxy recording is available up to ProRes 422 HQ in 2K at 60P, helping simplify editorial handoff and production workflows.
Connected Cinema Workflow
Dual-band Wi-Fi and wired USB-C or Ethernet control support remote settings, live preview, Camera to Cloud workflows, and high-speed remote media offload. The RF mount configuration supports RF mount lens workflows, while the aluminum alloy body measures 5.9 inches x 4.5 inches x 4.3 inches and weighs 4.03 lb without the body cap or CFexpress card.
General
Imaging:
| Sensor Type | V-RAPTOR XE 8K VV 35.4 Megapixel Global Shutter CMOS |
| Effective Pixels | 8192 x 4320 |
| Sensor Size | 40.96 mm x 21.60 mm, diagonal 46.31 mm |
| Dynamic Range | 17+ stops |
| Mount Type | RF Mount |
Recording:
| Maximum Data Rate | Up to 800 MB/s using RED branded or other qualified CFexpress media cards |
| 8K 17 | 9 Maximum Frame Rate: 60 fps at 8192 x 4320 |
| 8K 2.4 | 1 Maximum Frame Rate: 75 fps |
| 7K 17 | 9 Maximum Frame Rate: 70 fps at 7168 x 3780 |
| 7K 2.4 | 1 Maximum Frame Rate: 87 fps |
| 6K 17 | 9 Maximum Frame Rate: 80 fps at 6144 x 3240 |
| 6K 2.4 | 1 Maximum Frame Rate: 100 fps |
| 5K 17 | 9 Maximum Frame Rate: 96 fps at 5120 x 2700 |
| 5K 2.4 | 1 Maximum Frame Rate: 120 fps |
| 4K 17 | 9 Maximum Frame Rate: 120 fps at 4096 x 2160 |
| 4K 2.4 | 1 Maximum Frame Rate: 150 fps |
| 3K 17 | 9 Maximum Frame Rate: 160 fps at 3072 x 1620 |
| 3K 2.4 | 1 Maximum Frame Rate: 200 fps |
| 2K 17 | 9 Maximum Frame Rate: 240 fps at 2048 x 1080 |
| 2K 2.4 | 1 Maximum Frame Rate: 300 fps |
| Playback Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps at all resolutions |
| REDCODE Settings | HQ, MQ, LQ, and ELQ |
| 8K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, and 1.25x |
| 7K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 2x, 1.8x, and 1.6x |
| 6K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, 1:1, Anamorphic 1.5x, 1.3x, and 1.25x |
| 5K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 4K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 3K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| 2K Acquisition Formats | 17:9, 2:1, 2.4:1, 16:9, and 1:1 |
| ProRes Recording | ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K 4096 x 2160 120P |
| Proxy Recording | Up to ProRes 422 HQ in 2K 2048 x 1080 at up to 60P |
Body:
| Construction | Aluminum Alloy |
| Dimensions | 5.9 inches long x 4.5 inches wide x 4.3 inches high, 149.63 mm x 115.5 mm x 108 mm |
| Weight | 4.03 lb without body cap and CFexpress card |
Media and Power:
| Media Type | CFexpress Type B |
| Battery Interface | Integrated V Lock interface optimized for Micro V Lock batteries |
| DC Power | +11 to +17 volts DC through integrated 6 pin DC input |
Environmental:
| Operating Temperature | 0 degrees C to 40 degrees C, 32 degrees F to 104 degrees F |
| Storage Temperature | minus 20 degrees C to 50 degrees C, minus 4 degrees F to 122 degrees F |
| Relative Humidity | 0% to 85% non condensing |
Color Management:
| Image Processing | Image Processing Pipeline 2 |
| 3D LUT Support | 33 x 33 x 33 |
| CDL Support | Import and adjustment |
Audio:
| Integrated Microphones | Dual channel digital mono, uncompressed, 24 bit 48 kHz |
| Audio Input | Dual channel mic, line, and +48V through 5 pin 00B Audio Port, uncompressed, 24 bit 48 kHz |
| Headphone Output | 3.5 mm stereo |
Focus:
| Autofocus | Phase detect with Face Detection |
Connectivity:
| Wireless | Dual band Wi-Fi at 2.4 GHz or 5 GHz |
| Wireless Functions | Camera control, live preview, and direct Camera to Cloud workflow |
| Wired Control | USB-C or Ethernet with compatible USB-C to Ethernet adapter |
| Wired Functions | Remote camera control, live preview, Camera to Cloud workflow, and high speed remote media offload |
| RED Connect | Optional license supports live 8K R3D video through USB-C to Ethernet adapter |
Monitoring:
| Monitor Outputs | Dual 12G SDI with 6G SDI, 3G SDI, and 1.5G SDI modes |
| 12G SDI Output | Up to 4096 x 2160 4:2:2 at 60p |
| 6G SDI Output | Up to 4096 x 2160 4:2:2 at 30p, 25p, and 24p |
| 3G SDI Output | Up to 2048 x 1080 4:2:2 at 60p |
| 1.5G SDI Output | Up to 2048 x 1080 4:2:2 at 30p, 25p, and 24p |
| Monitoring Metadata and Audio | SMPTE Timecode, HANC metadata, and 24 bit 48 kHz audio |
| Monitor Option | DSMC3 RED Touch 7.0 inch LCD |
| Monitor Option | RED Compact EVF with DSMC3 Adapter A |
| Wireless Preview | 1080p over 2.4 GHz or 5 GHz Wi-Fi |
| Integrated Display | 2.4 inch LCD for camera control without preview video |
Additional I/O:
| Genlock | Tri Level Genlock input through 9 pin EXT |
| Timecode | LTC Timecode input through 9 pin EXT |
| Control | RS 232 CTRL with RCP2 through 9 pin EXT |
Software:
| Camera Control | RED Control and RED Control Pro |
| Supported Control Platforms | iOS and Android for RED Control |
| Control Connection | Wireless or wired through USB-C |
